Sayfa 1-50 - Isuzu EPC

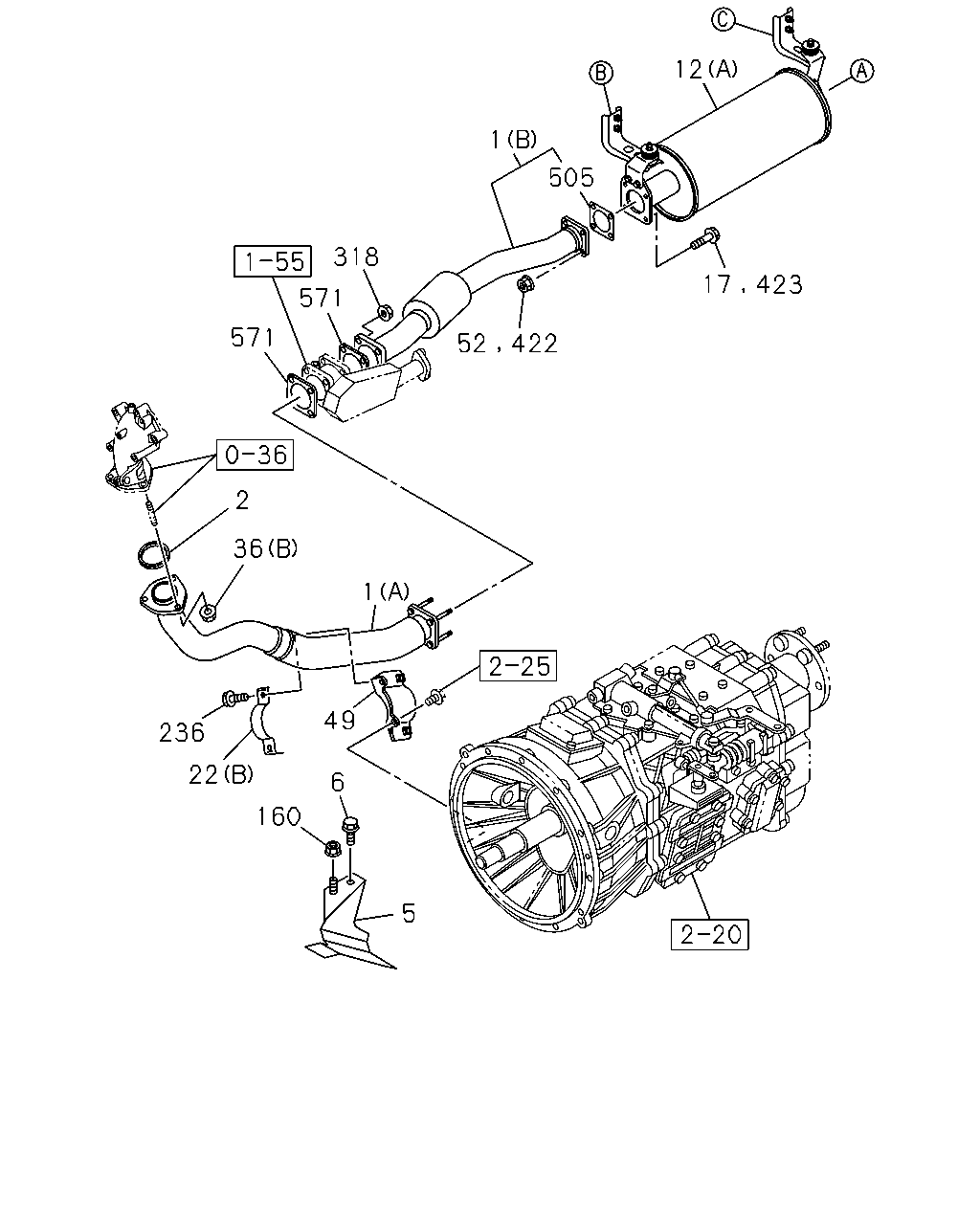

1-50 — EXHAUST PIPE AND SILENCER (#144125) — 280 parça

12 1 17 423 52 422 318 571 571 2 36 1 236 22 160 5 49 505 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH 6HK1-TCN ENG(82L) (C)	8-98212-603-0	01	1	1410-1504
1	PIPE; EXH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C)	8-98212-603-0	01	1	1505-
1	PIPE; EXH 4HK1-TCS ENG(RJS) (B)	8-98206-298-0	01	1	1407-
1	PIPE; EXH 4HK1-TCS ENG(RJS) (A)	8-98082-498-0	01	1	1407-
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS) MAL	8-97381-455-0	01	1	1407-
5	PROTECTOR; HEAT 4HK1-TCS ENG(RJS)	8-98208-210-1	01	1	1407-
6	BOLT; HEAT PROTECTOR 4HK1-TCS ENG(RJS) M8X25 FLANGE MAL	0-28650-825-0	01	1	1407-
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L) (B)	8-98212-605-0	01	1	1410-1504
12	SILENCER ASM; EXH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98212-605-0	01	1	1505-
12	SILENCER ASM; EXH 4HK1-TCS ENG(RJS) (A)	8-98090-389-2	01	1	1407-
17	BOLT; EXH PIPE M12X35 FLANGE	0-28051-235-0	04	1	1407-1408
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) (A) ID=80-84 MAL	1-22133-233-0	04	1	1410-1504
22	CLAMP; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=80-84 MAL	1-22133-233-0	04	1	1505-
22	CLAMP; EXH PIPE (A) ID=80-84 MAL	1-22133-233-0	02	1	1407-1409
22	CLAMP; EXH PIPE (A) ID=80-84 MAL	1-22133-233-0	02	1	1407-1409
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (A) ID=80-84 MAL	1-22133-233-0	02	1	1410-
22	CLAMP; EXH PIPE (A) ID=80-84 MAL	1-22133-233-0	02	1	1410-
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-97646-674-0	01	1	1407-
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (C) M12	1-09400-010-0	03	1	1410-1504
36	NUT; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) M12	1-09400-010-0	03	1	1505-
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (A) M10 FLANGE MAL	0-91180-210-0	02	1	1407-
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (B) M10 FLANGE	8-97096-192-1	03	1	1407-
49	BRACKET; EXH PIPE TO TRANS 4HK1-TCS ENG(RJS)	8-98234-530-0	01	1	1407-
52	NUT; BRKT 4HK1-TCS ENG(RJS) M12 FLANGE MAL	0-91180-212-0	04	1	1407-1408
160	NUT; HEAT PROTECTOR 4HK1-TCS ENG(RJS) M8 FLANGE MAL	0-91180-108-0	01	1	1407-
236	BOLT; PIPE CLAMP TO BRKT 4HK1-TCS ENG(RJS) M10X30 FLANGE	0-28051-030-0	02	1	1407-
318	NUT; EXH PIPE,FRT 4HK1-TCS ENG(RJS) M8 W/LK WASHER MAL	8-97581-234-0	04	1	1407-
422	NUT; PIPE 4HK1-TCS ENG(RJS) M12 FLANGE MAL	0-91180-212-0	04	1	1409-
423	BOLT; PIPE 4HK1-TCS ENG(RJS) M12X35 FLANGE	0-28051-235-0	04	1	1409-
505	GASKET; CONV TO EXH PIPE 4HK1-TCS ENG(RJS)	8-98096-305-0	01	1	1407-
571	GASKET 4HK1-TCS ENG(RJS) ID=64	8-97373-108-0	02	1	1407-

70 75 62 56 75 94 97 22 22 105 97 81 60 81 126 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) (A) ID=80-84 MAL	1-22133-233-0	04	1	1410-1504
22	CLAMP; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=80-84 MAL	1-22133-233-0	04	1	1505-
22	CLAMP; EXH PIPE (A) ID=80-84 MAL	1-22133-233-0	02	1	1407-1409
22	CLAMP; EXH PIPE (A) ID=80-84 MAL	1-22133-233-0	02	1	1407-1409
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (A) ID=80-84 MAL	1-22133-233-0	02	1	1410-
22	CLAMP; EXH PIPE (A) ID=80-84 MAL	1-22133-233-0	02	1	1410-
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-97646-674-0	01	1	1407-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (D) L=40 B=50 H=74	1-22139-045-0	02	1	1410-1504
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) L=40 B=50 H=74	1-22139-045-0	02	1	1505-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (C)	8-98206-303-0	01	1	1407-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (A)	8-98206-304-0	01	1	1407-
56	BRACKET; CLAMP,EXH PIPE (B)	1-22131-528-1	01	1	1407-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (C)	8-98183-955-0	02	1	1410-1504
60	BRACKET; FRAME TO BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C)	8-98183-955-0	02	1	1505-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (D)	8-98212-611-0	01	1	1410-1504
60	BRACKET; FRAME TO BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D)	8-98212-611-0	01	1	1505-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (A)	8-98206-302-0	02	1	1407-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (B)	1-22131-435-1	01	1	1407-
62	TUBE; DIST,BRKT 4HK1-TCS ENG(RJS) (A) L=39 MAL	8-98060-852-0	02	1	1407-
62	TUBE; DIST,BRKT (B) L=22 MAL	9-22159-024-0	01	1	1407-
70	BOLT; BRKT 6HK1-TCN ENG(82L) (B) M10X50 MAL	0-10856-050-0	02	1	1410-1504
70	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) M10X50 MAL	0-10856-050-0	02	1	1505-
70	BOLT; BRKT 6HK1-TCN ENG(82L) (C) M10X50 FLANGE MAL	0-28051-050-0	01	1	1410-1504
70	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) M10X50 FLANGE MAL	0-28051-050-0	01	1	1505-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M10X70 FLANGE MAL	0-28051-070-0	02	1	1407-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (B) M10X50 MAL	0-10856-050-0	01	1	1407-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) (B) OD=30	1-22159-106-1	04	1	1410-1504
75	RUBBER; SUPPORT,BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) OD=30	1-22159-106-1	04	1	1505-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) (A) OD=40	1-22159-193-0	02	1	1410-1504
75	RUBBER; SUPPORT,BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) OD=40	1-22159-193-0	02	1	1505-
75	RUBBER; SUPPORT,BRKT 4HK1-TCS ENG(RJS) (C) OD=40 MAL	1-22159-094-0	02	1	1407-
81	NUT; BRKT 6HK1-TCN ENG(82L) (B) M10 LOCK NUT MAL	0-91370-010-0	02	1	1410-1504
81	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) M10 LOCK NUT MAL	0-91370-010-0	02	1	1505-
81	NUT; BRKT 4HK1-TCS ENG(RJS) (A) M10 FLANGE MAL	0-91180-210-0	02	1	1407-
81	NUT; BRKT (A) M10 FLANGE MAL	0-91180-210-0	02	1	1407-
81	NUT; BRKT (A) M10 FLANGE MAL	0-91180-210-0	02	1	1407-
81	NUT; BRKT (A) M10 FLANGE MAL	0-91180-210-0	01	1	1407-
94	BOLT; CLAMP (A) M10X40 FLANGE MAL	0-28651-040-0	02	1	1410-
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) (A) M10X40 FLANGE MAL	0-28651-040-0	02	1	1407-1409
94	BOLT; CLAMP 6HK1-TCN ENG(82L) (A) M10X40 FLANGE MAL	0-28651-040-0	04	1	1410-1504
94	BOLT; CLAMP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M10X40 FLANGE MAL	0-28651-040-0	04	1	1505-
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1407-
97	WASHER; PL,CLAMP 4HK1-TCS ENG(RJS) ID=10.5	9-09164-510-0	02	1	1407-
105	NUT; CLAMP (A) M10 FLANGE MAL	0-91180-210-0	02	1	1410-
105	NUT; CLAMP 4HK1-TCS ENG(RJS) (A) M10 FLANGE MAL	0-91180-210-0	02	1	1407-1409
105	NUT; CLAMP 6HK1-TCN ENG(82L) (A) M10 FLANGE MAL	0-91180-210-0	04	1	1410-1504
105	NUT; CLAMP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M10 FLANGE MAL	0-91180-210-0	04	1	1505-
105	NUT; CLAMP 4HK1-TCS ENG(RJS) (B) M10 MAL	0-91110-510-0	02	1	1407-
107	BOLT; BRKT M10X35 FLANGE MAL	0-28651-035-0	04	1	1407-1408
107	BOLT; BRKT M10X35 FLANGE MAL	0-28651-035-0	02	1	1409-
107	BOLT; BRKT M10X35 FLANGE MAL	0-28651-035-0	02	1	1409-
107	BOLT; BRKT M10X35 FLANGE MAL	0-28651-035-0	02	1	1409-
107	BOLT; BRKT M10X35 FLANGE MAL	0-28651-035-0	02	1	1407-1408
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) (B)	8-98069-920-0	01	1	1410-1504
126	PIPE; EXH,RR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98069-920-0	01	1	1505-
126	PIPE; EXH,RR 4HK1-TCS ENG(RJS) (A)	8-98206-305-0	01	1	1407-

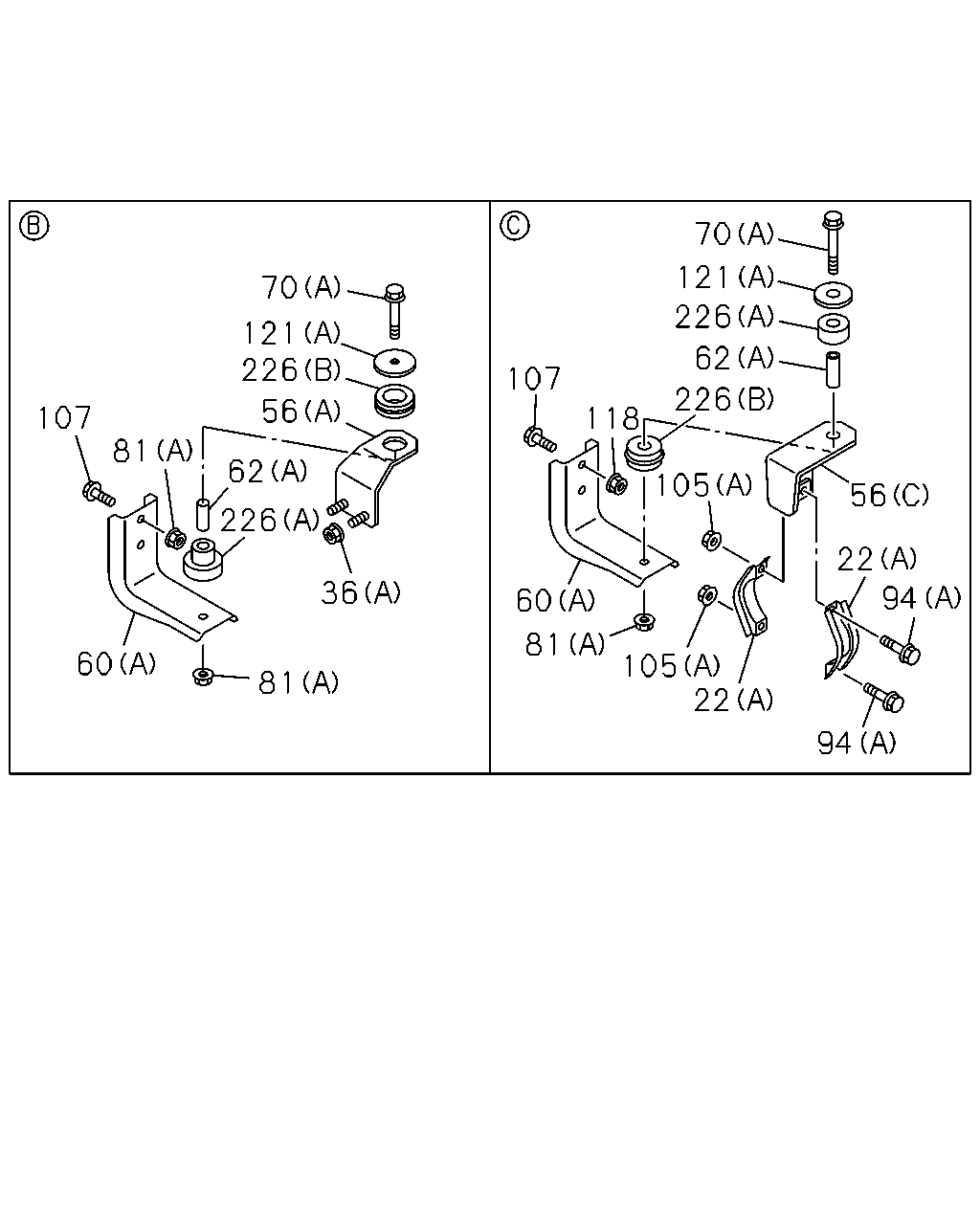

70 121 226 107 81 62 226 36 81 60 56 107 70 121 226 62 226 118 60 81 22 105 94 94 22 56 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) (A) ID=80-84 MAL	1-22133-233-0	04	1	1410-1504
22	CLAMP; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=80-84 MAL	1-22133-233-0	04	1	1505-
22	CLAMP; EXH PIPE (A) ID=80-84 MAL	1-22133-233-0	02	1	1407-1409
22	CLAMP; EXH PIPE (A) ID=80-84 MAL	1-22133-233-0	02	1	1407-1409
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (A) ID=80-84 MAL	1-22133-233-0	02	1	1410-
22	CLAMP; EXH PIPE (A) ID=80-84 MAL	1-22133-233-0	02	1	1410-
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-97646-674-0	01	1	1407-
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (C) M12	1-09400-010-0	03	1	1410-1504
36	NUT; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) M12	1-09400-010-0	03	1	1505-
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (A) M10 FLANGE MAL	0-91180-210-0	02	1	1407-
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (B) M10 FLANGE	8-97096-192-1	03	1	1407-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (D) L=40 B=50 H=74	1-22139-045-0	02	1	1410-1504
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) L=40 B=50 H=74	1-22139-045-0	02	1	1505-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (C)	8-98206-303-0	01	1	1407-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (A)	8-98206-304-0	01	1	1407-
56	BRACKET; CLAMP,EXH PIPE (B)	1-22131-528-1	01	1	1407-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (C)	8-98183-955-0	02	1	1410-1504
60	BRACKET; FRAME TO BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C)	8-98183-955-0	02	1	1505-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (D)	8-98212-611-0	01	1	1410-1504
60	BRACKET; FRAME TO BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D)	8-98212-611-0	01	1	1505-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (A)	8-98206-302-0	02	1	1407-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (B)	1-22131-435-1	01	1	1407-
62	TUBE; DIST,BRKT 4HK1-TCS ENG(RJS) (A) L=39 MAL	8-98060-852-0	02	1	1407-
62	TUBE; DIST,BRKT (B) L=22 MAL	9-22159-024-0	01	1	1407-
70	BOLT; BRKT 6HK1-TCN ENG(82L) (B) M10X50 MAL	0-10856-050-0	02	1	1410-1504
70	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) M10X50 MAL	0-10856-050-0	02	1	1505-
70	BOLT; BRKT 6HK1-TCN ENG(82L) (C) M10X50 FLANGE MAL	0-28051-050-0	01	1	1410-1504
70	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) M10X50 FLANGE MAL	0-28051-050-0	01	1	1505-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M10X70 FLANGE MAL	0-28051-070-0	02	1	1407-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (B) M10X50 MAL	0-10856-050-0	01	1	1407-
81	NUT; BRKT 6HK1-TCN ENG(82L) (B) M10 LOCK NUT MAL	0-91370-010-0	02	1	1410-1504
81	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) M10 LOCK NUT MAL	0-91370-010-0	02	1	1505-
81	NUT; BRKT 4HK1-TCS ENG(RJS) (A) M10 FLANGE MAL	0-91180-210-0	02	1	1407-
81	NUT; BRKT (A) M10 FLANGE MAL	0-91180-210-0	02	1	1407-
81	NUT; BRKT (A) M10 FLANGE MAL	0-91180-210-0	02	1	1407-
81	NUT; BRKT (A) M10 FLANGE MAL	0-91180-210-0	01	1	1407-
94	BOLT; CLAMP (A) M10X40 FLANGE MAL	0-28651-040-0	02	1	1410-
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) (A) M10X40 FLANGE MAL	0-28651-040-0	02	1	1407-1409
94	BOLT; CLAMP 6HK1-TCN ENG(82L) (A) M10X40 FLANGE MAL	0-28651-040-0	04	1	1410-1504
94	BOLT; CLAMP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M10X40 FLANGE MAL	0-28651-040-0	04	1	1505-
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1407-
105	NUT; CLAMP (A) M10 FLANGE MAL	0-91180-210-0	02	1	1410-
105	NUT; CLAMP 4HK1-TCS ENG(RJS) (A) M10 FLANGE MAL	0-91180-210-0	02	1	1407-1409
105	NUT; CLAMP 6HK1-TCN ENG(82L) (A) M10 FLANGE MAL	0-91180-210-0	04	1	1410-1504
105	NUT; CLAMP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M10 FLANGE MAL	0-91180-210-0	04	1	1505-
105	NUT; CLAMP 4HK1-TCS ENG(RJS) (B) M10 MAL	0-91110-510-0	02	1	1407-
107	BOLT; BRKT M10X35 FLANGE MAL	0-28651-035-0	04	1	1407-1408
107	BOLT; BRKT M10X35 FLANGE MAL	0-28651-035-0	02	1	1409-
107	BOLT; BRKT M10X35 FLANGE MAL	0-28651-035-0	02	1	1409-
107	BOLT; BRKT M10X35 FLANGE MAL	0-28651-035-0	02	1	1409-
107	BOLT; BRKT M10X35 FLANGE MAL	0-28651-035-0	02	1	1407-1408
118	NUT; SILENCER MTG BRKT M10 FLANGE MAL	0-91180-210-0	02	1	1407-
121	WASHER; PL,BRKT 6HK1-TCN ENG(82L) (B) ID=10.5 OD=32 MAL	0-91614-810-0	02	1	1410-1504
121	WASHER; PL,BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=10.5 OD=32 MAL	0-91614-810-0	02	1	1505-
121	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) (A) ID=11 OD=54	1-09503-154-2	02	1	1407-
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) (A) MAL	8-94457-277-1	02	1	1407-
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) (B) MAL	8-94457-278-1	02	1	1407-

94 22 22 126 105 70 60 81 75 62 56 75 81 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) (A) ID=80-84 MAL	1-22133-233-0	04	1	1410-1504
22	CLAMP; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=80-84 MAL	1-22133-233-0	04	1	1505-
22	CLAMP; EXH PIPE (A) ID=80-84 MAL	1-22133-233-0	02	1	1407-1409
22	CLAMP; EXH PIPE (A) ID=80-84 MAL	1-22133-233-0	02	1	1407-1409
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (A) ID=80-84 MAL	1-22133-233-0	02	1	1410-
22	CLAMP; EXH PIPE (A) ID=80-84 MAL	1-22133-233-0	02	1	1410-
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-97646-674-0	01	1	1407-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (D) L=40 B=50 H=74	1-22139-045-0	02	1	1410-1504
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) L=40 B=50 H=74	1-22139-045-0	02	1	1505-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (C)	8-98206-303-0	01	1	1407-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (A)	8-98206-304-0	01	1	1407-
56	BRACKET; CLAMP,EXH PIPE (B)	1-22131-528-1	01	1	1407-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (C)	8-98183-955-0	02	1	1410-1504
60	BRACKET; FRAME TO BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C)	8-98183-955-0	02	1	1505-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (D)	8-98212-611-0	01	1	1410-1504
60	BRACKET; FRAME TO BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D)	8-98212-611-0	01	1	1505-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (A)	8-98206-302-0	02	1	1407-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (B)	1-22131-435-1	01	1	1407-
62	TUBE; DIST,BRKT 4HK1-TCS ENG(RJS) (A) L=39 MAL	8-98060-852-0	02	1	1407-
62	TUBE; DIST,BRKT (B) L=22 MAL	9-22159-024-0	01	1	1407-
70	BOLT; BRKT 6HK1-TCN ENG(82L) (B) M10X50 MAL	0-10856-050-0	02	1	1410-1504
70	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) M10X50 MAL	0-10856-050-0	02	1	1505-
70	BOLT; BRKT 6HK1-TCN ENG(82L) (C) M10X50 FLANGE MAL	0-28051-050-0	01	1	1410-1504
70	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) M10X50 FLANGE MAL	0-28051-050-0	01	1	1505-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M10X70 FLANGE MAL	0-28051-070-0	02	1	1407-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (B) M10X50 MAL	0-10856-050-0	01	1	1407-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) (B) OD=30	1-22159-106-1	04	1	1410-1504
75	RUBBER; SUPPORT,BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) OD=30	1-22159-106-1	04	1	1505-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) (A) OD=40	1-22159-193-0	02	1	1410-1504
75	RUBBER; SUPPORT,BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) OD=40	1-22159-193-0	02	1	1505-
75	RUBBER; SUPPORT,BRKT 4HK1-TCS ENG(RJS) (C) OD=40 MAL	1-22159-094-0	02	1	1407-
81	NUT; BRKT 6HK1-TCN ENG(82L) (B) M10 LOCK NUT MAL	0-91370-010-0	02	1	1410-1504
81	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) M10 LOCK NUT MAL	0-91370-010-0	02	1	1505-
81	NUT; BRKT 4HK1-TCS ENG(RJS) (A) M10 FLANGE MAL	0-91180-210-0	02	1	1407-
81	NUT; BRKT (A) M10 FLANGE MAL	0-91180-210-0	02	1	1407-
81	NUT; BRKT (A) M10 FLANGE MAL	0-91180-210-0	02	1	1407-
81	NUT; BRKT (A) M10 FLANGE MAL	0-91180-210-0	01	1	1407-
94	BOLT; CLAMP (A) M10X40 FLANGE MAL	0-28651-040-0	02	1	1410-
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) (A) M10X40 FLANGE MAL	0-28651-040-0	02	1	1407-1409
94	BOLT; CLAMP 6HK1-TCN ENG(82L) (A) M10X40 FLANGE MAL	0-28651-040-0	04	1	1410-1504
94	BOLT; CLAMP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M10X40 FLANGE MAL	0-28651-040-0	04	1	1505-
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1407-
105	NUT; CLAMP (A) M10 FLANGE MAL	0-91180-210-0	02	1	1410-
105	NUT; CLAMP 4HK1-TCS ENG(RJS) (A) M10 FLANGE MAL	0-91180-210-0	02	1	1407-1409
105	NUT; CLAMP 6HK1-TCN ENG(82L) (A) M10 FLANGE MAL	0-91180-210-0	04	1	1410-1504
105	NUT; CLAMP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M10 FLANGE MAL	0-91180-210-0	04	1	1505-
105	NUT; CLAMP 4HK1-TCS ENG(RJS) (B) M10 MAL	0-91110-510-0	02	1	1407-
107	BOLT; BRKT M10X35 FLANGE MAL	0-28651-035-0	04	1	1407-1408
107	BOLT; BRKT M10X35 FLANGE MAL	0-28651-035-0	02	1	1409-
107	BOLT; BRKT M10X35 FLANGE MAL	0-28651-035-0	02	1	1409-
107	BOLT; BRKT M10X35 FLANGE MAL	0-28651-035-0	02	1	1409-
107	BOLT; BRKT M10X35 FLANGE MAL	0-28651-035-0	02	1	1407-1408
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) (B)	8-98069-920-0	01	1	1410-1504
126	PIPE; EXH,RR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98069-920-0	01	1	1505-
126	PIPE; EXH,RR 4HK1-TCS ENG(RJS) (A)	8-98206-305-0	01	1	1407-

1 12 1 20 476 475 476 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH 6HK1-TCN ENG(82L) (C)	8-98212-603-0	01	1	1410-1504
1	PIPE; EXH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C)	8-98212-603-0	01	1	1505-
1	PIPE; EXH 4HK1-TCS ENG(RJS) (B)	8-98206-298-0	01	1	1407-
1	PIPE; EXH 4HK1-TCS ENG(RJS) (A)	8-98082-498-0	01	1	1407-
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L) (B)	8-98212-605-0	01	1	1410-1504
12	SILENCER ASM; EXH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98212-605-0	01	1	1505-
12	SILENCER ASM; EXH 4HK1-TCS ENG(RJS) (A)	8-98090-389-2	01	1	1407-
20	BOLT; FLANGE,EXH PIPE 6HK1-TCN ENG(82L) M10X49.8	8-97039-586-0	02	1	1410-1504
20	BOLT; FLANGE,EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M10X49.8	8-97039-586-0	02	1	1505-
475	BEARING; SEAL,VIBNON,EXH PIPE 6HK1-TCN ENG(82L) OD=112	1-22119-294-1	01	1	1410-1504
475	BEARING; SEAL,VIBNON,EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) OD=112	1-22119-294-1	01	1	1505-
476	SPRING; VIBNON,EXH PIPE 6HK1-TCN ENG(82L)	8-94141-851-0	02	1	1410-1504
476	SPRING; VIBNON,EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)	8-94141-851-0	02	1	1505-

1 36 34 34 36 172 107 81 118 60 75 56 94 22 63 105 22 70 75 121 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH 6HK1-TCN ENG(82L) (C)	8-98212-603-0	01	1	1410-1504
1	PIPE; EXH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C)	8-98212-603-0	01	1	1505-
1	PIPE; EXH 4HK1-TCS ENG(RJS) (B)	8-98206-298-0	01	1	1407-
1	PIPE; EXH 4HK1-TCS ENG(RJS) (A)	8-98082-498-0	01	1	1407-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) (A) ID=80-84 MAL	1-22133-233-0	04	1	1410-1504
22	CLAMP; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=80-84 MAL	1-22133-233-0	04	1	1505-
22	CLAMP; EXH PIPE (A) ID=80-84 MAL	1-22133-233-0	02	1	1407-1409
22	CLAMP; EXH PIPE (A) ID=80-84 MAL	1-22133-233-0	02	1	1407-1409
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (A) ID=80-84 MAL	1-22133-233-0	02	1	1410-
22	CLAMP; EXH PIPE (A) ID=80-84 MAL	1-22133-233-0	02	1	1410-
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-97646-674-0	01	1	1407-
34	WASHER; EXH PIPE 6HK1-TCN ENG(82L) ID=13 OD=24 DISH	1-09500-030-0	03	1	1410-1504
34	WASHER; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ID=13 OD=24 DISH	1-09500-030-0	03	1	1505-
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (C) M12	1-09400-010-0	03	1	1410-1504
36	NUT; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) M12	1-09400-010-0	03	1	1505-
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (A) M10 FLANGE MAL	0-91180-210-0	02	1	1407-
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (B) M10 FLANGE	8-97096-192-1	03	1	1407-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (D) L=40 B=50 H=74	1-22139-045-0	02	1	1410-1504
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) L=40 B=50 H=74	1-22139-045-0	02	1	1505-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (C)	8-98206-303-0	01	1	1407-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (A)	8-98206-304-0	01	1	1407-
56	BRACKET; CLAMP,EXH PIPE (B)	1-22131-528-1	01	1	1407-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (C)	8-98183-955-0	02	1	1410-1504
60	BRACKET; FRAME TO BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C)	8-98183-955-0	02	1	1505-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (D)	8-98212-611-0	01	1	1410-1504
60	BRACKET; FRAME TO BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D)	8-98212-611-0	01	1	1505-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (A)	8-98206-302-0	02	1	1407-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (B)	1-22131-435-1	01	1	1407-
63	TUBE; DIST,BRKT 6HK1-TCN ENG(82L) L=11	1-22139-026-0	02	1	1410-1504
63	TUBE; DIST,BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) L=11	1-22139-026-0	02	1	1505-
70	BOLT; BRKT 6HK1-TCN ENG(82L) (B) M10X50 MAL	0-10856-050-0	02	1	1410-1504
70	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) M10X50 MAL	0-10856-050-0	02	1	1505-
70	BOLT; BRKT 6HK1-TCN ENG(82L) (C) M10X50 FLANGE MAL	0-28051-050-0	01	1	1410-1504
70	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) M10X50 FLANGE MAL	0-28051-050-0	01	1	1505-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M10X70 FLANGE MAL	0-28051-070-0	02	1	1407-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (B) M10X50 MAL	0-10856-050-0	01	1	1407-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) (B) OD=30	1-22159-106-1	04	1	1410-1504
75	RUBBER; SUPPORT,BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) OD=30	1-22159-106-1	04	1	1505-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) (A) OD=40	1-22159-193-0	02	1	1410-1504
75	RUBBER; SUPPORT,BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) OD=40	1-22159-193-0	02	1	1505-
75	RUBBER; SUPPORT,BRKT 4HK1-TCS ENG(RJS) (C) OD=40 MAL	1-22159-094-0	02	1	1407-
81	NUT; BRKT 6HK1-TCN ENG(82L) (B) M10 LOCK NUT MAL	0-91370-010-0	02	1	1410-1504
81	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) M10 LOCK NUT MAL	0-91370-010-0	02	1	1505-
81	NUT; BRKT 4HK1-TCS ENG(RJS) (A) M10 FLANGE MAL	0-91180-210-0	02	1	1407-
81	NUT; BRKT (A) M10 FLANGE MAL	0-91180-210-0	02	1	1407-
81	NUT; BRKT (A) M10 FLANGE MAL	0-91180-210-0	02	1	1407-
81	NUT; BRKT (A) M10 FLANGE MAL	0-91180-210-0	01	1	1407-
94	BOLT; CLAMP (A) M10X40 FLANGE MAL	0-28651-040-0	02	1	1410-
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) (A) M10X40 FLANGE MAL	0-28651-040-0	02	1	1407-1409
94	BOLT; CLAMP 6HK1-TCN ENG(82L) (A) M10X40 FLANGE MAL	0-28651-040-0	04	1	1410-1504
94	BOLT; CLAMP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M10X40 FLANGE MAL	0-28651-040-0	04	1	1505-
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1407-
105	NUT; CLAMP (A) M10 FLANGE MAL	0-91180-210-0	02	1	1410-
105	NUT; CLAMP 4HK1-TCS ENG(RJS) (A) M10 FLANGE MAL	0-91180-210-0	02	1	1407-1409
105	NUT; CLAMP 6HK1-TCN ENG(82L) (A) M10 FLANGE MAL	0-91180-210-0	04	1	1410-1504
105	NUT; CLAMP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M10 FLANGE MAL	0-91180-210-0	04	1	1505-
105	NUT; CLAMP 4HK1-TCS ENG(RJS) (B) M10 MAL	0-91110-510-0	02	1	1407-
107	BOLT; BRKT M10X35 FLANGE MAL	0-28651-035-0	04	1	1407-1408
107	BOLT; BRKT M10X35 FLANGE MAL	0-28651-035-0	02	1	1409-
107	BOLT; BRKT M10X35 FLANGE MAL	0-28651-035-0	02	1	1409-
107	BOLT; BRKT M10X35 FLANGE MAL	0-28651-035-0	02	1	1409-
107	BOLT; BRKT M10X35 FLANGE MAL	0-28651-035-0	02	1	1407-1408
118	NUT; SILENCER MTG BRKT M10 FLANGE MAL	0-91180-210-0	02	1	1407-
121	WASHER; PL,BRKT 6HK1-TCN ENG(82L) (B) ID=10.5 OD=32 MAL	0-91614-810-0	02	1	1410-1504
121	WASHER; PL,BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=10.5 OD=32 MAL	0-91614-810-0	02	1	1505-
121	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) (A) ID=11 OD=54	1-09503-154-2	02	1	1407-
172	BOLT 6HK1-TCN ENG(82L) M12X120	1-09000-293-0	01	1	1410-1504
172	BOLT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M12X120	1-09000-293-0	01	1	1505-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
