◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11604 - FVR(MALAYSIA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-35 - CHARGE AIR COOLER ▶
1-35 — CHARGE AIR COOLER (#144121) — 11 parça

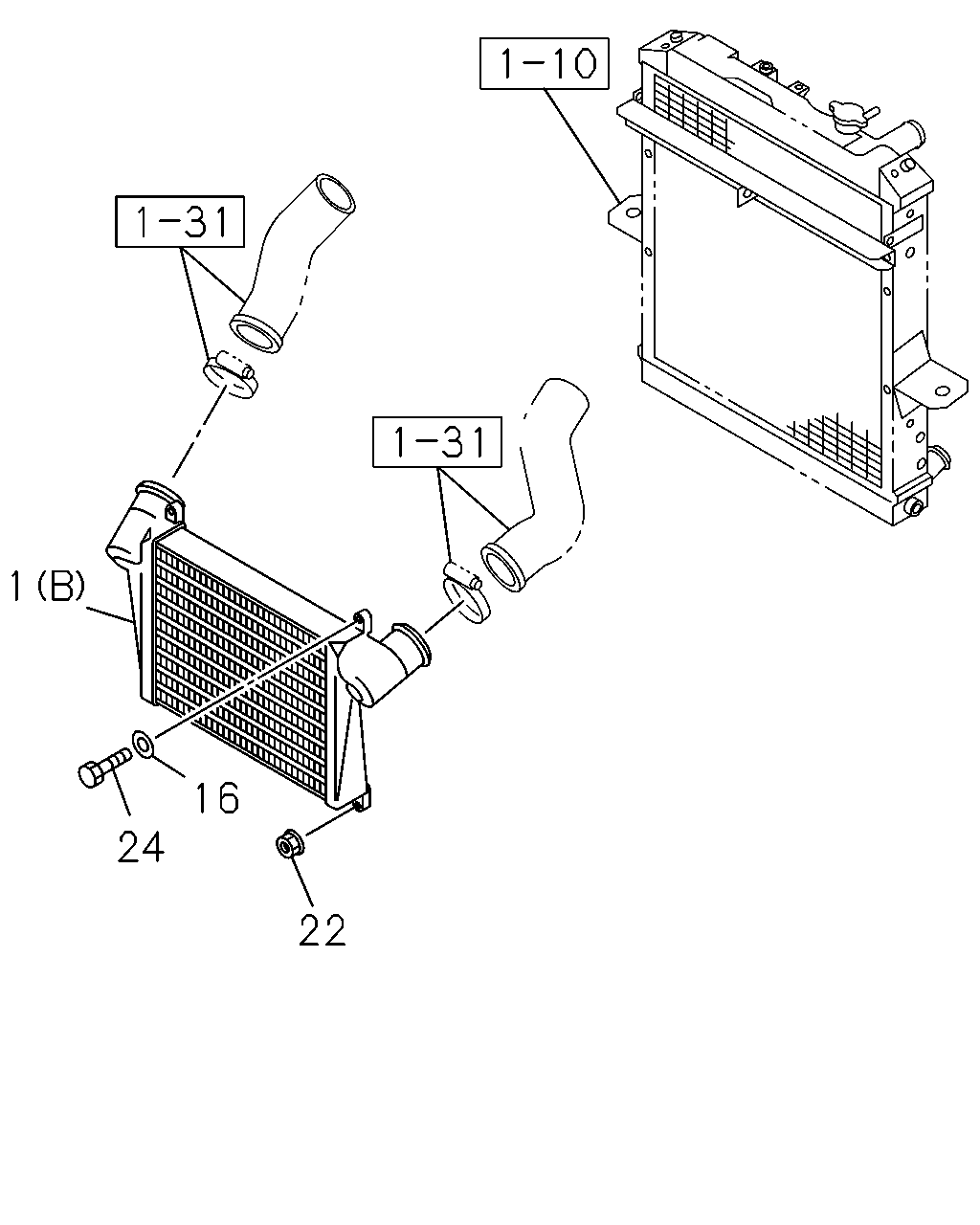

çizim 432419
1 24 22 16
BalonParca AdiParca NoAdetTipApplied Date A B C
1 COOLER; CHARGE AIR
(A) 		8-98047-633-0 01 1 1410-1504 ●
1 COOLER; CHARGE AIR
(A) 		8-98047-633-0 01 1 1505- ● ●
1 COOLER; CHARGE AIR
(B) 		8-98212-545-1 01 1 1407- ●
16 WASHER; PL,CHARGE AIR COOLER
ID=8.4 OD=16 MAL 		0-91610-508-0 02 1 1407- ●
22 NUT
M8 FLANGE MAL 		0-91180-108-0 02 1 1407- ●
24 BOLT; COOLER TO RAD
M8X25 FLANGE 		0-28050-825-0 02 1 1407- ●

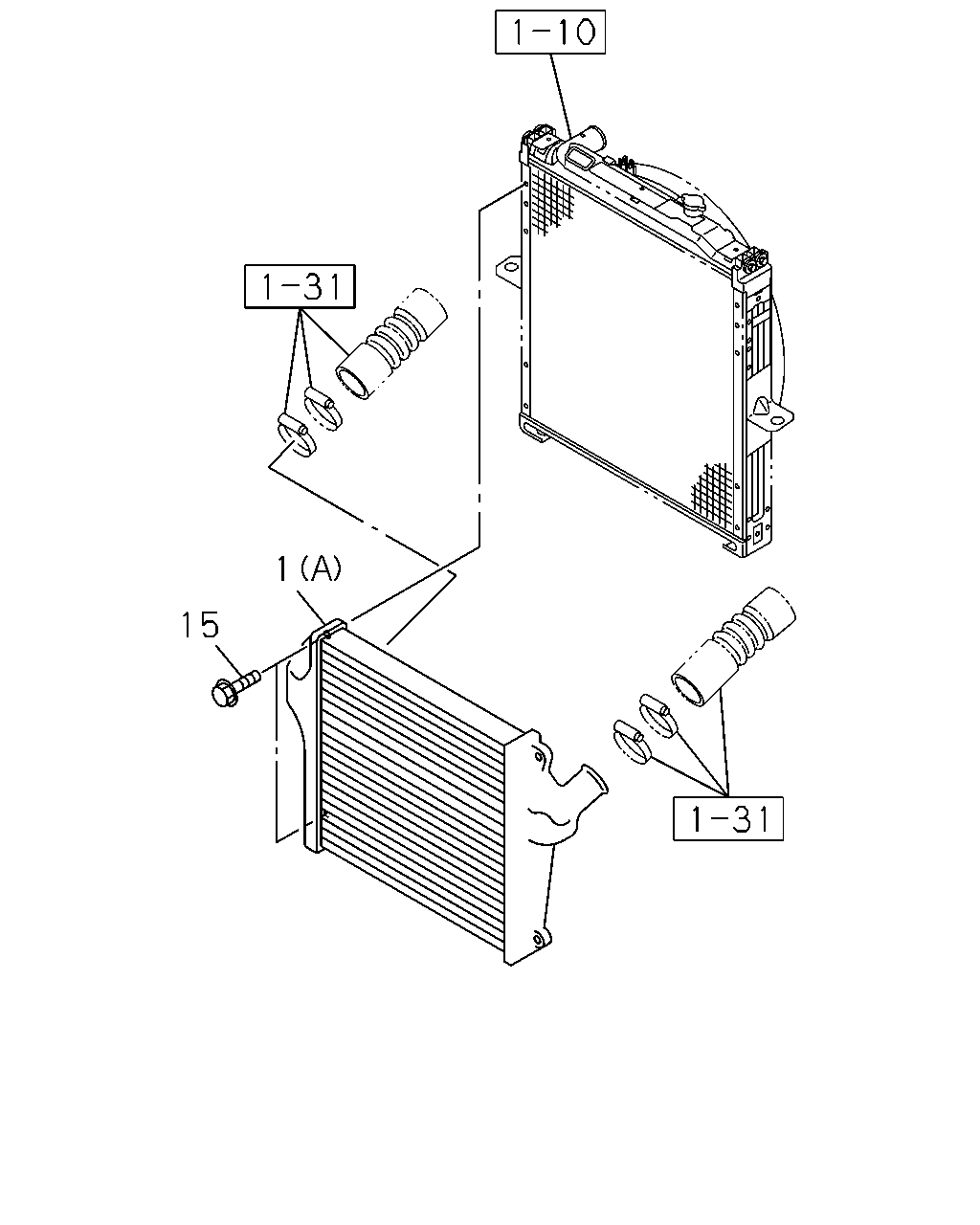

çizim 458384
15 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 COOLER; CHARGE AIR
(A) 		8-98047-633-0 01 1 1410-1504 ●
1 COOLER; CHARGE AIR
(A) 		8-98047-633-0 01 1 1505- ● ●
1 COOLER; CHARGE AIR
(B) 		8-98212-545-1 01 1 1407- ●
15 BOLT; CHARGE AIR COOLER
M8X35 FLANGE 		1-21469-151-0 04 1 1410-1504 ●
15 BOLT; CHARGE AIR COOLER
M8X35 FLANGE 		1-21469-151-0 04 1 1505- ● ●
