◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11604 - FVR(MALAYSIA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#144120) — 248 parça

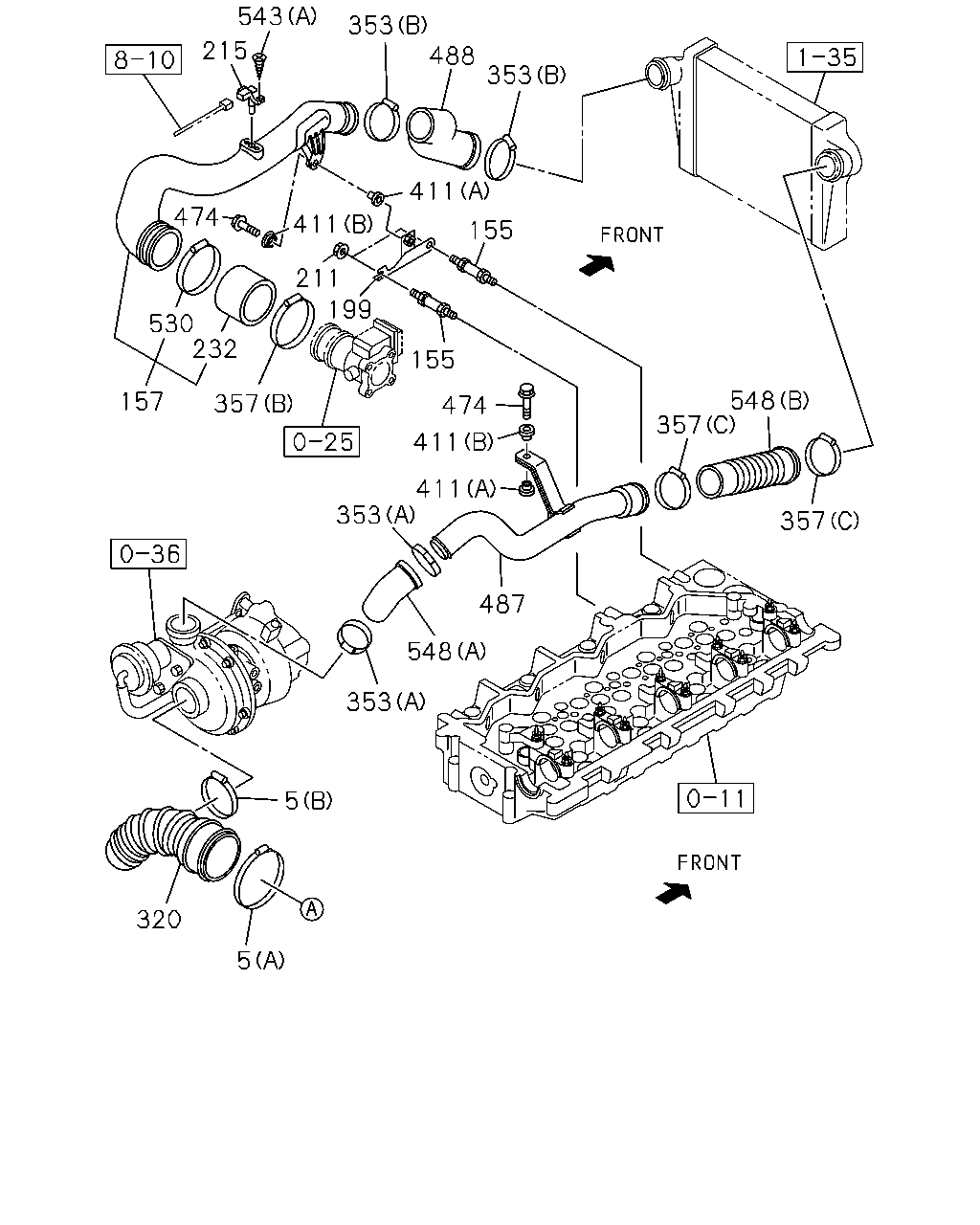

çizim 431479
543 215 353 353 488 474 411 411 211 530 157 357 155 474 411 411 353 357 548 357 487 548 353 5 5 320 232 199 155
BalonParca AdiParca NoAdetTipApplied Date A B C
5 CLIP; AIR DUCT
(D) ID=130-150 		8-98133-360-0 01 1 1505- ●
5 CLIP; AIR DUCT
(C) ID=90-110 		8-98133-365-0 01 1 1410-1504 ●
5 CLIP; AIR DUCT
(C) ID=90-110 		8-98133-365-0 01 1 1505- ● ●
5 CLIP; AIR DUCT
(B) ID=55-75 		8-98133-349-0 01 1 1407- ●
5 CLIP; AIR DUCT
(A) ID=110-130 		8-98133-359-0 01 1 1407-1409 ●
5 CLIP; AIR DUCT
(A) ID=110-130 		8-98133-359-0 01 1 1410- ● ●
155 BOLT; BRKT
M10X17,M10X30 L=105 		8-97233-428-0 02 1 1407- ●
157 PIPE; AIR 8-98010-719-3 01 1 1407- ●
199 BRACKET; PIPE 8-97385-293-1 01 1 1407- ●
211 NUT; BRKT
M10 FLANGE MAL 		0-91180-210-0 02 1 1407- ●
215 SENSOR; MAP 8-98009-418-0 01 1 1407- ●
232 HOSE; CONN 8-98067-929-0 01 1 1407- ●
320 HOSE; CONN,ACL 8-98073-259-0 01 1 1505- ●
320 HOSE; CONN,ACL 8-98073-257-0 01 1 1410- ●
320 HOSE; CONN,ACL 8-98188-580-0 01 1 1407- ●
353 CLIP; RUBBER HOSE
(C) ID=55-75 		8-98133-349-0 04 1 1410-1504 ●
353 CLIP; RUBBER HOSE
(C) ID=55-75 		8-98133-349-0 04 1 1505- ● ●
353 CLIP; RUBBER HOSE
(A) ID=60-65 		8-98096-418-0 02 1 1407- ●
353 CLIP; RUBBER HOSE
(B) ID=65-85 		8-98133-350-0 02 1 1407- ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=26 		1-09707-091-0 02 1 1505- ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=26 		1-09707-091-0 02 1 1505- ●
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 01 1 1410-1504 ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=26 		1-09707-091-0 01 1 1505- ●
357 CLIP; RUBBER HOSE
(A) ID=29.5 		8-97354-979-0 01 1 1410-1504 ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=29.5 		8-97354-979-0 01 1 1505- ●
357 CLIP; RUBBER HOSE
(B) ID=55-75 		8-98133-349-0 04 1 1410-1504 ●
357 CLIP; RUBBER HOSE
(B) ID=55-75 		8-98133-349-0 04 1 1505- ● ●
357 CLIP; RUBBER HOSE
(C) ID=65-85 		8-98133-350-0 02 1 1407- ●
357 CLIP; RUBBER HOSE
(B) ID=75-95 		8-98133-357-0 01 1 1407- ●
357 CLIP; RUBBER HOSE
(A) ID=24 		8-98025-921-0 02 1 1407- ●
411 RUBBER; CUSHION
(A) OD=32 		8-94395-766-0 02 1 1407- ●
411 RUBBER; CUSHION
(B) OD=23 		8-97105-689-6 02 1 1407- ●
474 BOLT; PIPE
M8X40 FLANGE 		0-28650-840-0 02 1 1407- ●
487 PIPE; TURBO TO CHARGE AIR COOLER 8-98211-755-0 01 1 1407- ●
488 HOSE; RUBBER,PIPE 8-98012-936-1 01 1 1410-1504 ●
488 HOSE; RUBBER,PIPE 8-98012-936-1 01 1 1505- ● ●
488 HOSE; RUBBER,PIPE 8-98204-041-0 01 1 1407- ●
530 CLAMP; AIR DUCT
ID=75-95 		8-98133-357-0 01 1 1407- ●
543 SCREW; SENSOR
(B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1407-1409 ●
543 SCREW; SENSOR
(B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1410-1504 ● ●
543 SCREW; SENSOR
(B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1505- ● ● ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1407-1409 ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1407-1409 ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1410-1504 ● ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1410-1504 ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1505- ● ● ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1505- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(C) 		8-98181-974-1 01 1 1410-1504 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(C) 		8-98181-974-1 01 1 1505- ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98181-971-1 01 1 1407- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) 		8-98211-753-0 01 1 1407- ●

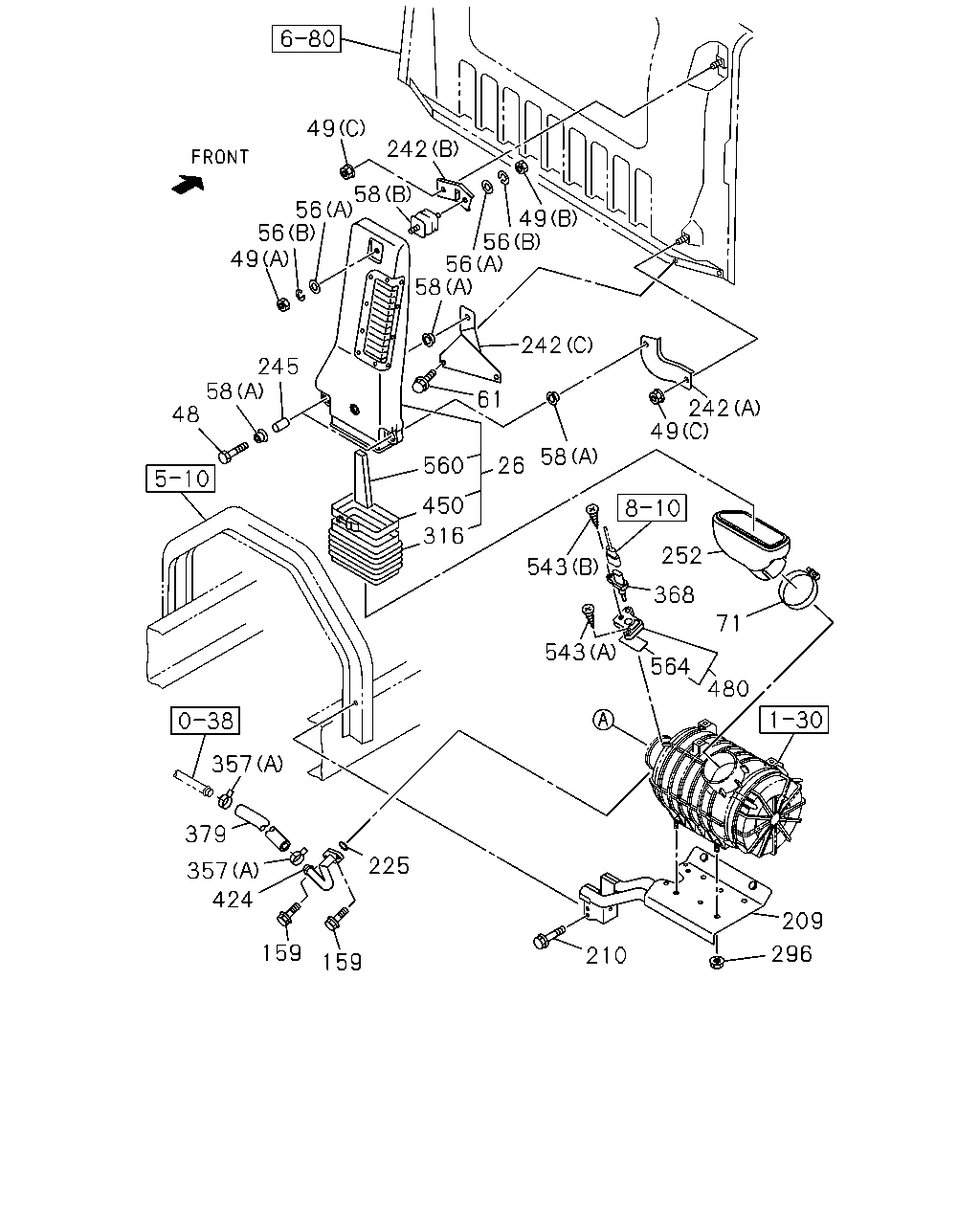

çizim 432473
49 56 56 49 58 242 49 56 56 58 242 61 26 245 58 48 242 49 252 368 71 480 564 543 543 209 296 210 159 159 424 357 379 357 560 450 316 58 225
BalonParca AdiParca NoAdetTipApplied Date A B C
26 DUCT; AIR INT 8-98010-361-2 01 1 1407- ● ● ●
48 BOLT; AIR DUCT
M10X60 		1-09030-044-1 02 1 1407- ● ● ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1407- ● ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1407- ● ● ●
49 NUT; AIR DUCT
(C) M8 FLANGE MAL 		8-94279-517-0 02 1 1407- ● ● ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1407- ● ● ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1407- ● ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1407- ● ● ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1407- ● ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1407- ● ● ●
71 CLIP; AIR DUCT
ID=140-160 		8-98133-368-0 01 1 1505- ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1407-1409 ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1410- ● ●
159 BOLT; AIR PIPE
M6X16 FLANGE MAL 		0-28050-616-0 02 1 1407-1409 ●
159 BOLT; AIR PIPE
M6X16 FLANGE MAL 		0-28050-616-0 02 1 1410-1504 ● ●
159 BOLT; AIR PIPE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M6X16 FLANGE MAL 		0-28050-616-0 02 1 1505- ● ●
209 BRACKET; ACL 8-98021-995-1 01 1 1407- ● ● ●
210 BOLT; ACL BRKT
M10X25 FLANGE MAL 		0-28651-025-0 04 1 1407- ● ● ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1407-1409 ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1410-1504 ● ●
225 GASKET; AIR PIPE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=24.4 		1-09623-057-0 01 1 1505- ● ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1407- ● ● ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1407- ● ● ●
242 BRACKET; AIR DUCT
(A) 		8-98019-304-1 01 1 1407- ● ● ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1407- ● ● ●
252 DUCT; AIR INT 8-98021-989-1 01 1 1505- ●
252 DUCT; AIR INT 8-98012-861-1 01 1 1407-1409 ●
252 DUCT; AIR INT 8-98012-861-1 01 1 1410- ● ●
296 NUT; ACL
M8 FLANGE MAL 		0-91180-108-0 04 1 1407- ● ● ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1407- ● ● ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=26 		1-09707-091-0 02 1 1505- ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=26 		1-09707-091-0 02 1 1505- ●
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 01 1 1410-1504 ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=26 		1-09707-091-0 01 1 1505- ●
357 CLIP; RUBBER HOSE
(A) ID=29.5 		8-97354-979-0 01 1 1410-1504 ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=29.5 		8-97354-979-0 01 1 1505- ●
357 CLIP; RUBBER HOSE
(B) ID=55-75 		8-98133-349-0 04 1 1410-1504 ●
357 CLIP; RUBBER HOSE
(B) ID=55-75 		8-98133-349-0 04 1 1505- ● ●
357 CLIP; RUBBER HOSE
(C) ID=65-85 		8-98133-350-0 02 1 1407- ●
357 CLIP; RUBBER HOSE
(B) ID=75-95 		8-98133-357-0 01 1 1407- ●
357 CLIP; RUBBER HOSE
(A) ID=24 		8-98025-921-0 02 1 1407- ●
368 SENSOR; TEMP 8-98065-377-0 01 1 1407-1409 ●
368 SENSOR; TEMP 8-98065-377-0 01 1 1410-1504 ● ●
368 SENSOR; TEMP 8-98065-377-0 01 1 1505- ● ● ●
379 HOSE; RUBBER 8-98077-470-0 01 1 1505- ●
379 HOSE; RUBBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98077-469-0 01 1 1505- ●
379 HOSE; RUBBER 8-97619-194-0 01 1 1410-1504 ●
379 HOSE; RUBBER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-194-0 01 1 1505- ●
379 HOSE; RUBBER 8-98188-903-0 01 1 1407-1504 ●
379 HOSE; RUBBER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98188-903-0 01 1 1505- ●
424 PIPE; AIR,INL 8-98081-834-0 01 1 1410- ●
424 PIPE; AIR,INL 8-98081-837-0 01 1 1407- ●
450 CLAMP; HOSE 9-09915-504-1 01 1 1407- ● ● ●
480 ADAPTER 8-98086-417-0 01 1 1407-1409 ●
480 ADAPTER 8-98086-417-0 01 1 1410-1504 ● ●
480 ADAPTER 8-98086-417-0 01 1 1505- ● ● ●
543 SCREW; SENSOR
(B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1407-1409 ●
543 SCREW; SENSOR
(B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1410-1504 ● ●
543 SCREW; SENSOR
(B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1505- ● ● ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1407-1409 ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1407-1409 ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1410-1504 ● ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1410-1504 ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1505- ● ● ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1505- ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1407- ● ● ●
564 GASKET; ADAPTER 8-98071-416-0 01 1 1407-1409 ●
564 GASKET; ADAPTER 8-98071-416-0 01 1 1410-1504 ● ●
564 GASKET; ADAPTER 8-98071-416-0 01 1 1505- ● ● ●

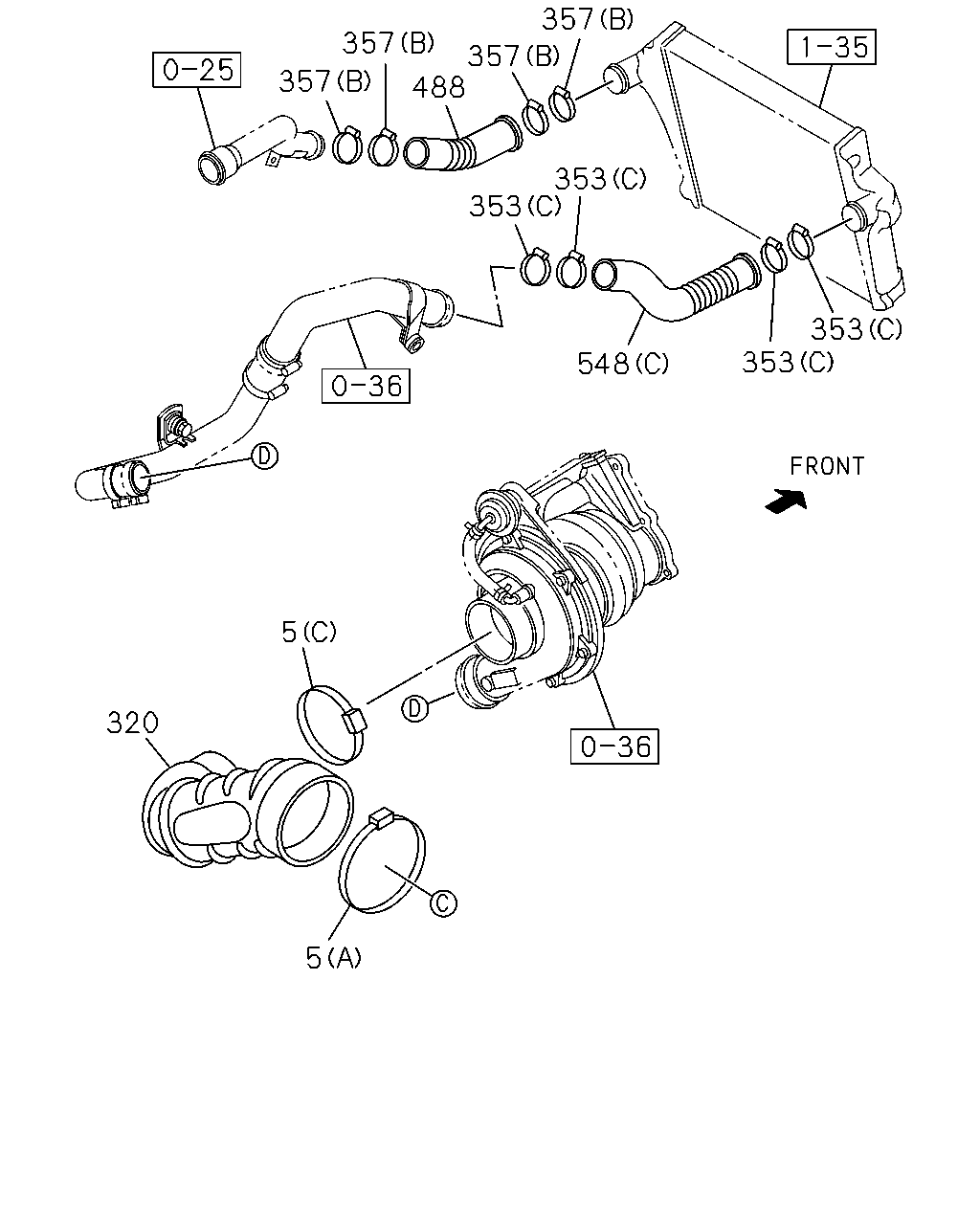

çizim 458520
357 357 357 488 357 353 353 548 353 353 5 320 5
BalonParca AdiParca NoAdetTipApplied Date A B C
5 CLIP; AIR DUCT
(D) ID=130-150 		8-98133-360-0 01 1 1505- ●
5 CLIP; AIR DUCT
(C) ID=90-110 		8-98133-365-0 01 1 1410-1504 ●
5 CLIP; AIR DUCT
(C) ID=90-110 		8-98133-365-0 01 1 1505- ● ●
5 CLIP; AIR DUCT
(B) ID=55-75 		8-98133-349-0 01 1 1407- ●
5 CLIP; AIR DUCT
(A) ID=110-130 		8-98133-359-0 01 1 1407-1409 ●
5 CLIP; AIR DUCT
(A) ID=110-130 		8-98133-359-0 01 1 1410- ● ●
320 HOSE; CONN,ACL 8-98073-259-0 01 1 1505- ●
320 HOSE; CONN,ACL 8-98073-257-0 01 1 1410- ●
320 HOSE; CONN,ACL 8-98188-580-0 01 1 1407- ●
353 CLIP; RUBBER HOSE
(C) ID=55-75 		8-98133-349-0 04 1 1410-1504 ●
353 CLIP; RUBBER HOSE
(C) ID=55-75 		8-98133-349-0 04 1 1505- ● ●
353 CLIP; RUBBER HOSE
(A) ID=60-65 		8-98096-418-0 02 1 1407- ●
353 CLIP; RUBBER HOSE
(B) ID=65-85 		8-98133-350-0 02 1 1407- ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=26 		1-09707-091-0 02 1 1505- ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=26 		1-09707-091-0 02 1 1505- ●
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 01 1 1410-1504 ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=26 		1-09707-091-0 01 1 1505- ●
357 CLIP; RUBBER HOSE
(A) ID=29.5 		8-97354-979-0 01 1 1410-1504 ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=29.5 		8-97354-979-0 01 1 1505- ●
357 CLIP; RUBBER HOSE
(B) ID=55-75 		8-98133-349-0 04 1 1410-1504 ●
357 CLIP; RUBBER HOSE
(B) ID=55-75 		8-98133-349-0 04 1 1505- ● ●
357 CLIP; RUBBER HOSE
(C) ID=65-85 		8-98133-350-0 02 1 1407- ●
357 CLIP; RUBBER HOSE
(B) ID=75-95 		8-98133-357-0 01 1 1407- ●
357 CLIP; RUBBER HOSE
(A) ID=24 		8-98025-921-0 02 1 1407- ●
488 HOSE; RUBBER,PIPE 8-98012-936-1 01 1 1410-1504 ●
488 HOSE; RUBBER,PIPE 8-98012-936-1 01 1 1505- ● ●
488 HOSE; RUBBER,PIPE 8-98204-041-0 01 1 1407- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(C) 		8-98181-974-1 01 1 1410-1504 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(C) 		8-98181-974-1 01 1 1505- ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98181-971-1 01 1 1407- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) 		8-98211-753-0 01 1 1407- ●

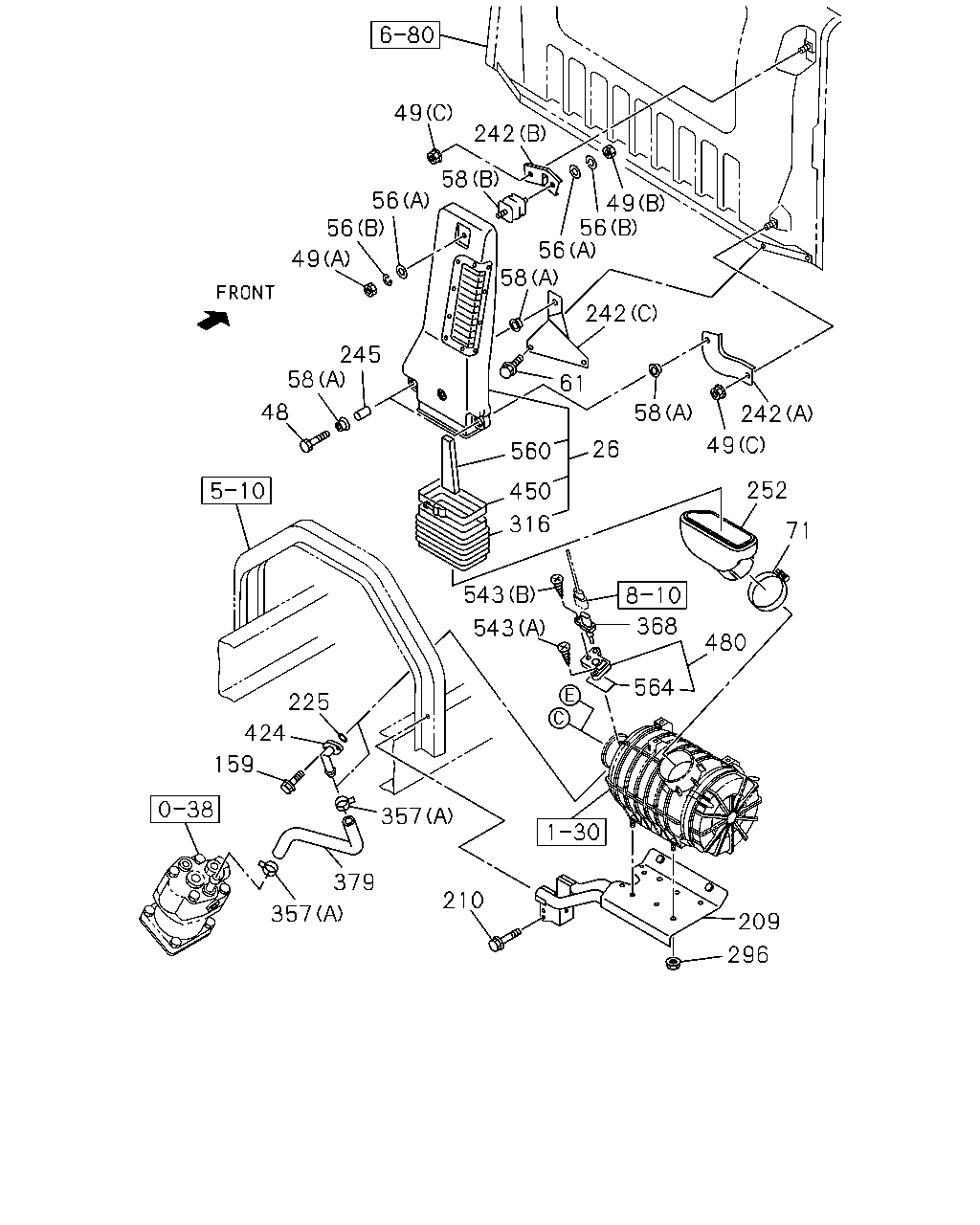

çizim 459513
49 242 58 56 56 49 245 58 48 58 56 56 49 242 61 58 26 560 450 316 49 242 252 70 368 480 543 543 564 225 424 159 357 379 357 210 296 209
BalonParca AdiParca NoAdetTipApplied Date A B C
26 DUCT; AIR INT 8-98010-361-2 01 1 1407- ● ● ●
48 BOLT; AIR DUCT
M10X60 		1-09030-044-1 02 1 1407- ● ● ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1407- ● ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1407- ● ● ●
49 NUT; AIR DUCT
(C) M8 FLANGE MAL 		8-94279-517-0 02 1 1407- ● ● ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1407- ● ● ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1407- ● ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1407- ● ● ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1407- ● ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1407- ● ● ●
159 BOLT; AIR PIPE
M6X16 FLANGE MAL 		0-28050-616-0 02 1 1407-1409 ●
159 BOLT; AIR PIPE
M6X16 FLANGE MAL 		0-28050-616-0 02 1 1410-1504 ● ●
159 BOLT; AIR PIPE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M6X16 FLANGE MAL 		0-28050-616-0 02 1 1505- ● ●
209 BRACKET; ACL 8-98021-995-1 01 1 1407- ● ● ●
210 BOLT; ACL BRKT
M10X25 FLANGE MAL 		0-28651-025-0 04 1 1407- ● ● ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1407-1409 ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1410-1504 ● ●
225 GASKET; AIR PIPE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=24.4 		1-09623-057-0 01 1 1505- ● ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1407- ● ● ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1407- ● ● ●
242 BRACKET; AIR DUCT
(A) 		8-98019-304-1 01 1 1407- ● ● ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1407- ● ● ●
252 DUCT; AIR INT 8-98021-989-1 01 1 1505- ●
252 DUCT; AIR INT 8-98012-861-1 01 1 1407-1409 ●
252 DUCT; AIR INT 8-98012-861-1 01 1 1410- ● ●
296 NUT; ACL
M8 FLANGE MAL 		0-91180-108-0 04 1 1407- ● ● ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1407- ● ● ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=26 		1-09707-091-0 02 1 1505- ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=26 		1-09707-091-0 02 1 1505- ●
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 01 1 1410-1504 ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=26 		1-09707-091-0 01 1 1505- ●
357 CLIP; RUBBER HOSE
(A) ID=29.5 		8-97354-979-0 01 1 1410-1504 ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=29.5 		8-97354-979-0 01 1 1505- ●
357 CLIP; RUBBER HOSE
(B) ID=55-75 		8-98133-349-0 04 1 1410-1504 ●
357 CLIP; RUBBER HOSE
(B) ID=55-75 		8-98133-349-0 04 1 1505- ● ●
357 CLIP; RUBBER HOSE
(C) ID=65-85 		8-98133-350-0 02 1 1407- ●
357 CLIP; RUBBER HOSE
(B) ID=75-95 		8-98133-357-0 01 1 1407- ●
357 CLIP; RUBBER HOSE
(A) ID=24 		8-98025-921-0 02 1 1407- ●
368 SENSOR; TEMP 8-98065-377-0 01 1 1407-1409 ●
368 SENSOR; TEMP 8-98065-377-0 01 1 1410-1504 ● ●
368 SENSOR; TEMP 8-98065-377-0 01 1 1505- ● ● ●
379 HOSE; RUBBER 8-98077-470-0 01 1 1505- ●
379 HOSE; RUBBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98077-469-0 01 1 1505- ●
379 HOSE; RUBBER 8-97619-194-0 01 1 1410-1504 ●
379 HOSE; RUBBER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-194-0 01 1 1505- ●
379 HOSE; RUBBER 8-98188-903-0 01 1 1407-1504 ●
379 HOSE; RUBBER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98188-903-0 01 1 1505- ●
424 PIPE; AIR,INL 8-98081-834-0 01 1 1410- ●
424 PIPE; AIR,INL 8-98081-837-0 01 1 1407- ●
450 CLAMP; HOSE 9-09915-504-1 01 1 1407- ● ● ●
480 ADAPTER 8-98086-417-0 01 1 1407-1409 ●
480 ADAPTER 8-98086-417-0 01 1 1410-1504 ● ●
480 ADAPTER 8-98086-417-0 01 1 1505- ● ● ●
543 SCREW; SENSOR
(B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1407-1409 ●
543 SCREW; SENSOR
(B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1410-1504 ● ●
543 SCREW; SENSOR
(B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1505- ● ● ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1407-1409 ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1407-1409 ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1410-1504 ● ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1410-1504 ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1505- ● ● ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1505- ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1407- ● ● ●
564 GASKET; ADAPTER 8-98071-416-0 01 1 1407-1409 ●
564 GASKET; ADAPTER 8-98071-416-0 01 1 1410-1504 ● ●
564 GASKET; ADAPTER 8-98071-416-0 01 1 1505- ● ● ●

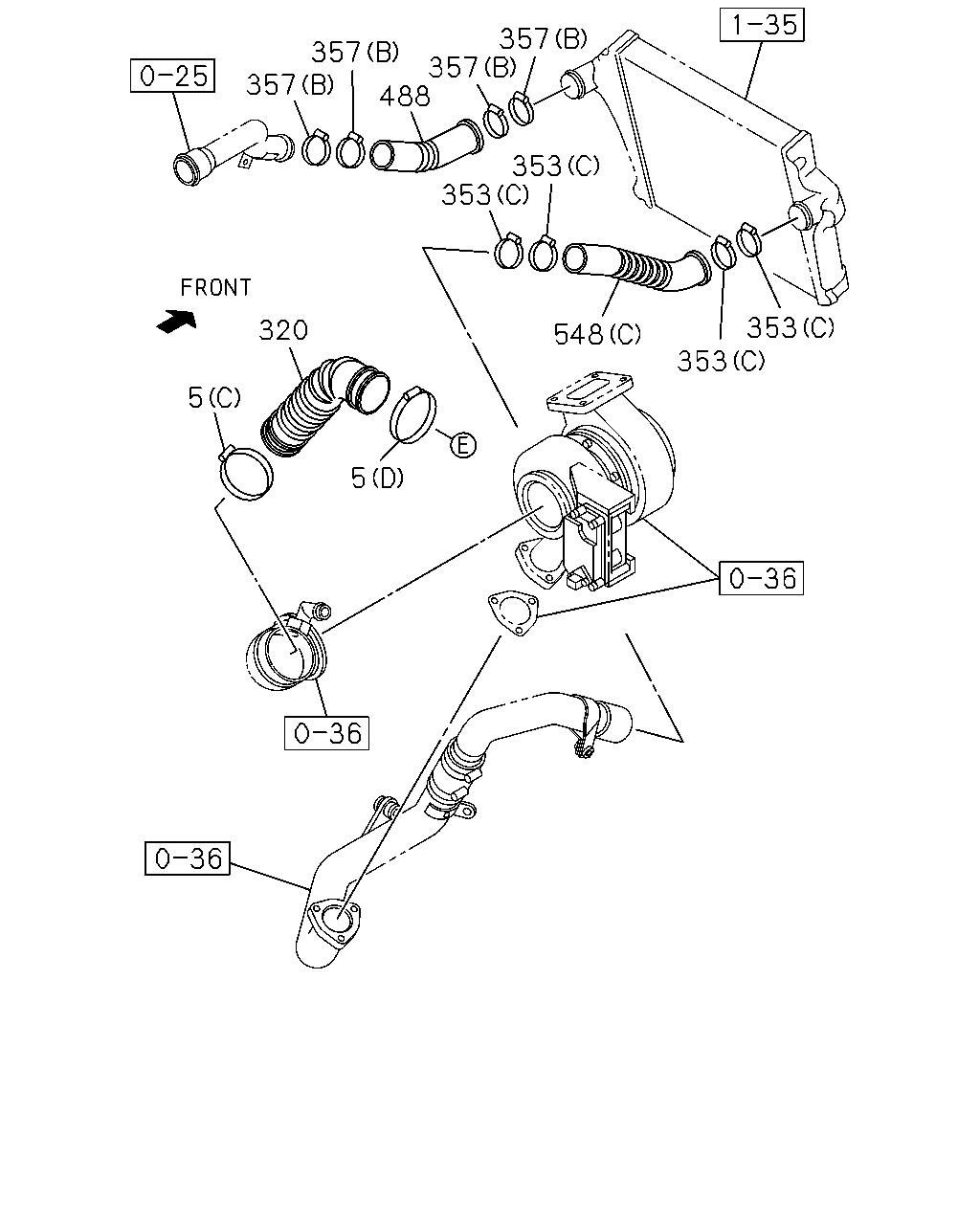

çizim 475342
353 353 548 5 5 320 357 357 357 357 353 353 488
BalonParca AdiParca NoAdetTipApplied Date A B C
5 CLIP; AIR DUCT
(D) ID=130-150 		8-98133-360-0 01 1 1505- ●
5 CLIP; AIR DUCT
(C) ID=90-110 		8-98133-365-0 01 1 1410-1504 ●
5 CLIP; AIR DUCT
(C) ID=90-110 		8-98133-365-0 01 1 1505- ● ●
5 CLIP; AIR DUCT
(B) ID=55-75 		8-98133-349-0 01 1 1407- ●
5 CLIP; AIR DUCT
(A) ID=110-130 		8-98133-359-0 01 1 1407-1409 ●
5 CLIP; AIR DUCT
(A) ID=110-130 		8-98133-359-0 01 1 1410- ● ●
320 HOSE; CONN,ACL 8-98073-259-0 01 1 1505- ●
320 HOSE; CONN,ACL 8-98073-257-0 01 1 1410- ●
320 HOSE; CONN,ACL 8-98188-580-0 01 1 1407- ●
353 CLIP; RUBBER HOSE
(C) ID=55-75 		8-98133-349-0 04 1 1410-1504 ●
353 CLIP; RUBBER HOSE
(C) ID=55-75 		8-98133-349-0 04 1 1505- ● ●
353 CLIP; RUBBER HOSE
(A) ID=60-65 		8-98096-418-0 02 1 1407- ●
353 CLIP; RUBBER HOSE
(B) ID=65-85 		8-98133-350-0 02 1 1407- ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=26 		1-09707-091-0 02 1 1505- ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=26 		1-09707-091-0 02 1 1505- ●
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 01 1 1410-1504 ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=26 		1-09707-091-0 01 1 1505- ●
357 CLIP; RUBBER HOSE
(A) ID=29.5 		8-97354-979-0 01 1 1410-1504 ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=29.5 		8-97354-979-0 01 1 1505- ●
357 CLIP; RUBBER HOSE
(B) ID=55-75 		8-98133-349-0 04 1 1410-1504 ●
357 CLIP; RUBBER HOSE
(B) ID=55-75 		8-98133-349-0 04 1 1505- ● ●
357 CLIP; RUBBER HOSE
(C) ID=65-85 		8-98133-350-0 02 1 1407- ●
357 CLIP; RUBBER HOSE
(B) ID=75-95 		8-98133-357-0 01 1 1407- ●
357 CLIP; RUBBER HOSE
(A) ID=24 		8-98025-921-0 02 1 1407- ●
488 HOSE; RUBBER,PIPE 8-98012-936-1 01 1 1410-1504 ●
488 HOSE; RUBBER,PIPE 8-98012-936-1 01 1 1505- ● ●
488 HOSE; RUBBER,PIPE 8-98204-041-0 01 1 1407- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(C) 		8-98181-974-1 01 1 1410-1504 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(C) 		8-98181-974-1 01 1 1505- ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98181-971-1 01 1 1407- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) 		8-98211-753-0 01 1 1407- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
