Isuzu WW
▶
TRUCKS
▶
EXY
▶
11118 - EXY NZ JNST04 EXC.HYDRAULIC RETARDER
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-61 - SHOCK ABSORBER; REAR SUSPENSION
▶

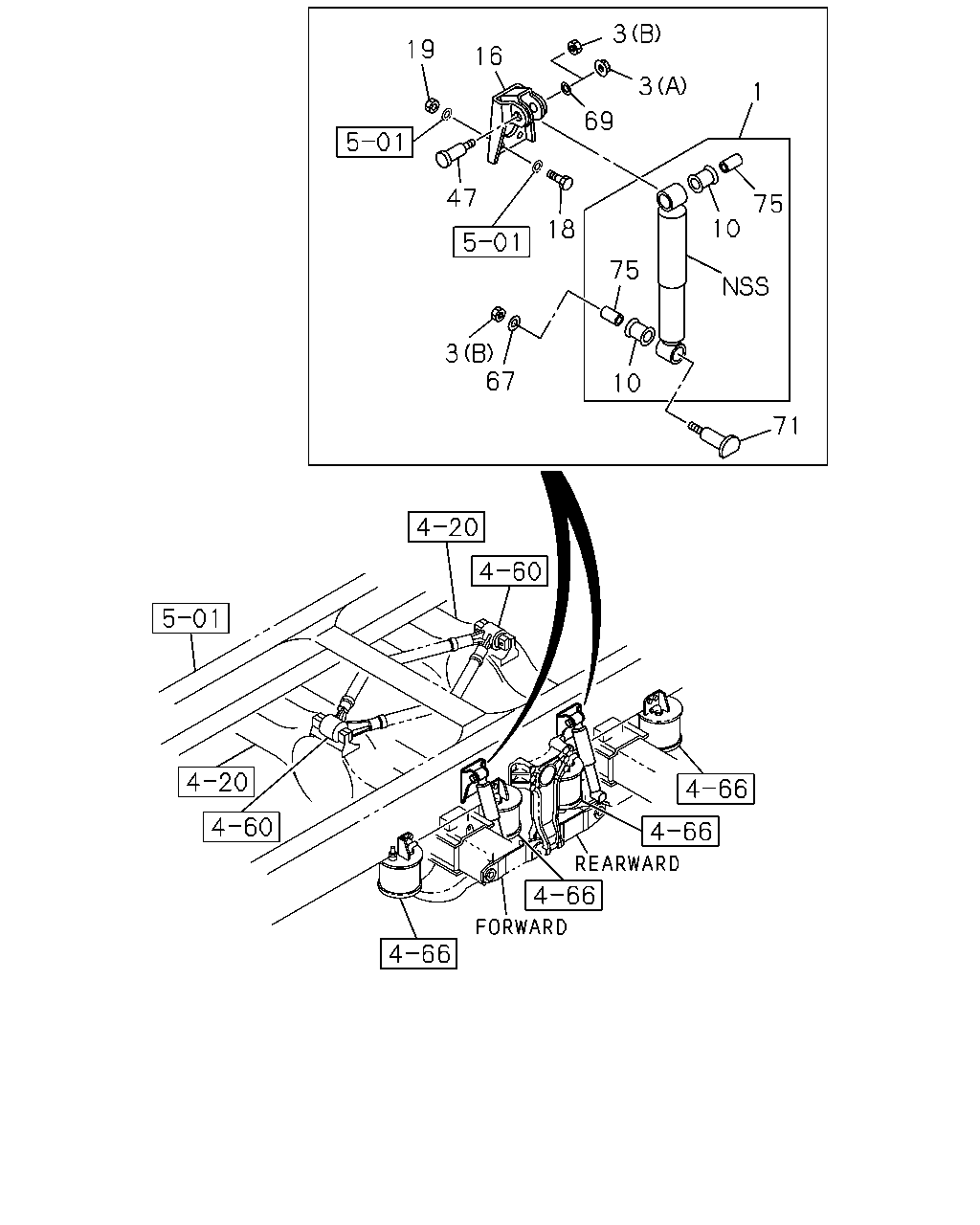

4-61 — SHOCK ABSORBER; REAR SUSPENSION
(#14412) — 16 parça
3
19
16
3
1
69
47
75
10
18
75
3
67
10
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ABSORBER ASM; SHOCK,RR
1-51630-844-0
04
1
0710-
3
NUT; S/ABS
(B) M20
0-91110-520-0
04
1
0710-0810
3
NUT; S/ABS
(B) M20
0-91110-520-0
08
1
0811-
3
NUT; S/ABS
(A) M20 FLANGE
1-09440-060-0
04
1
0710-0810
10
BUSHING; RUBBER,S/ABS
1-51631-084-0
08
1
0710-
16
BRACKET; S/ABS,RR
1-51681-757-2
04
1
0710-
18
BOLT; S/ABS BRKT
M14X40
0-20951-440-0
16
1
0710-
19
NUT; S/ABS BRKT
M14
0-91110-514-0
16
1
0710-
47
PIN; S/ABS SETTING
M20X110
1-51361-029-2
04
1
0710-
67
WASHER; PL,S/ABS
ID=21 OD=62
9-09851-487-0
04
1
0710-0910
67
WASHER; PL,S/ABS
ID=21
8-98019-966-0
04
1
0911-
69
WASHER; PL
ID=21
9-09164-520-0
04
1
0710-0810
69
WASHER; PL
ID=21
8-98010-403-0
04
1
0811-
71
PIN; SHOCK ABSORBER,LWR
1-51361-031-0
04
1
0710-0805
71
PIN; SHOCK ABSORBER,LWR
M20X180
8-97605-113-1
04
1
0806-
75
COLLER; S/ABS
1-51631-083-0
08
1
0710-
