Isuzu WW
▶
TRUCKS
▶
FVR
▶
11604 - FVR(MALAYSIA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶
1-11 — RADIATOR HOSE AND SUB TANK
(#144118) — 66 parça
Tümü
A - 6HK1-TCS ENG
B - 6HK1-TCN ENG
C - 4HK1-TCS ENG
◀

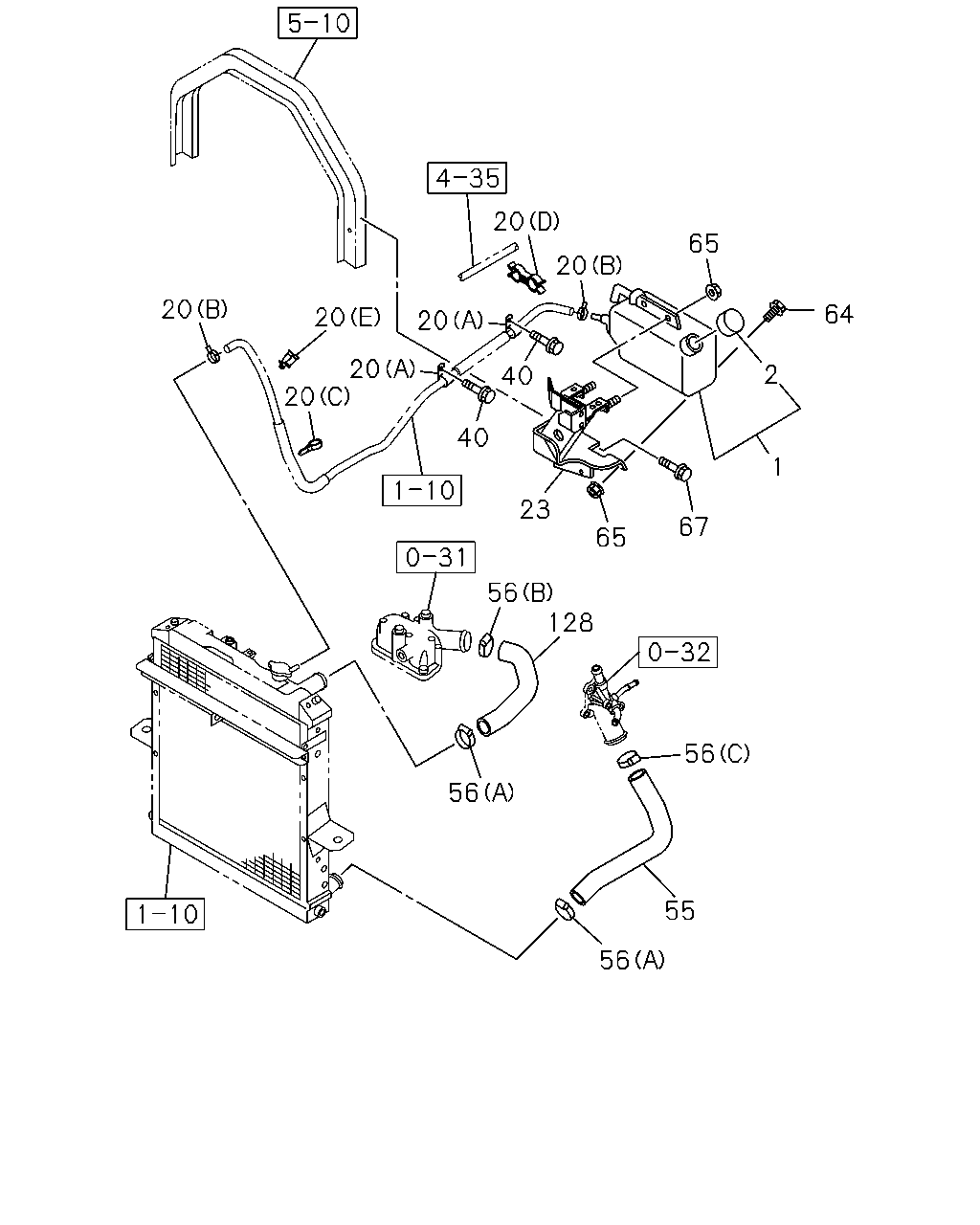

[111A] 4HK1 (33 parça)

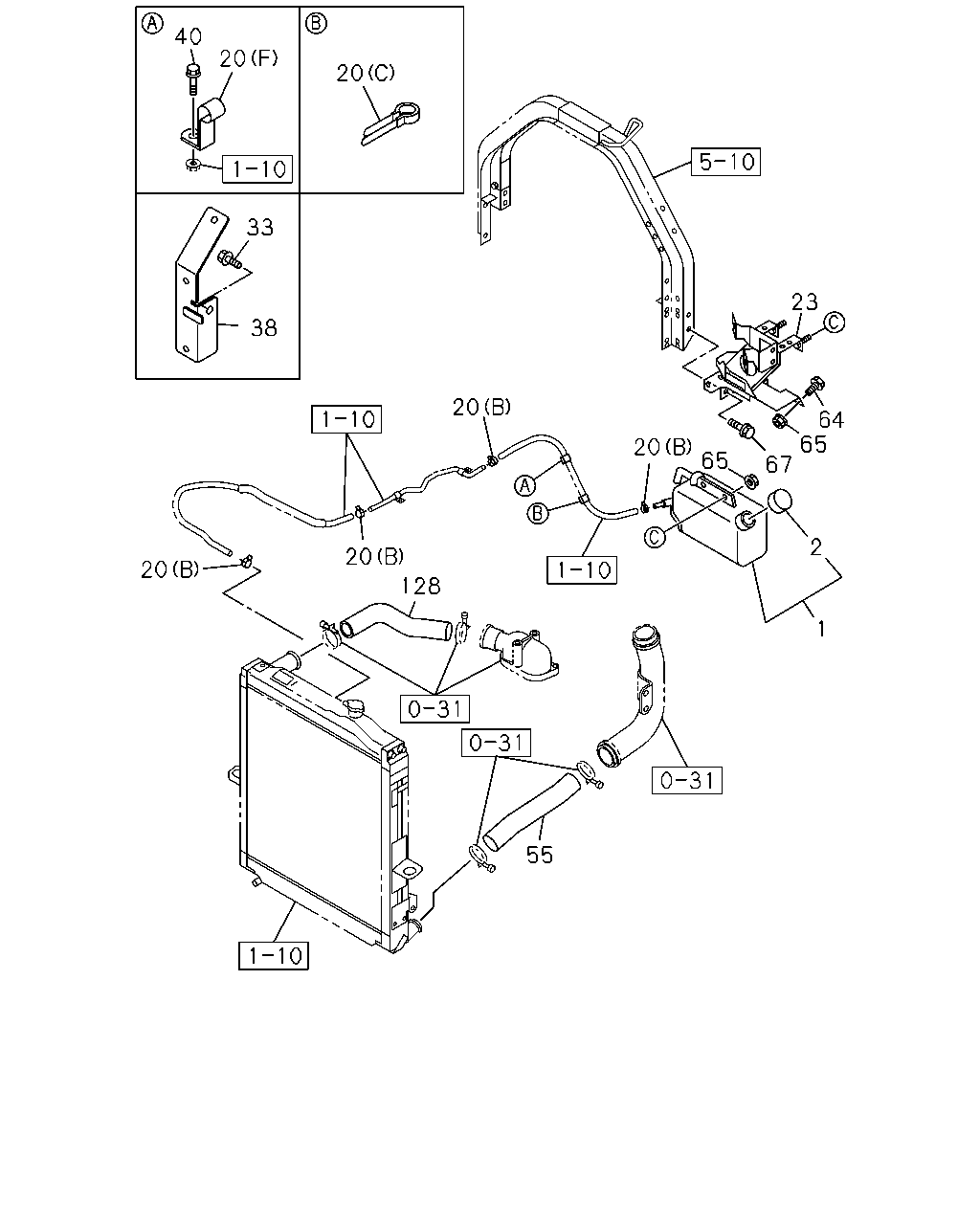

[111A] 6HK1 (33 parça)
▶
20
20
20
20
20
20
40
40
23
56
128
56
56
55
65
67
1
2
64
65
20
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
TANK; SURGE,RAD
8-98171-757-0
01
1
1407-
●
●
●
2
CAP; SURGE TANK
MAL
8-98178-074-0
01
1
1407-
●
●
●
20
CLIP; HOSE,RAD
(F) ID=13 H=40 L=25
1-09700-620-0
01
1
1410-1504
●
20
CLIP; HOSE,RAD
(F) ID=13 H=40 L=25
1-09700-620-0
01
1
1505-
●
●
20
CLIP; HOSE,RAD
(B) ID=11.5
8-97375-638-0
04
1
1410-1504
●
20
CLIP; HOSE,RAD
(B) ID=11.5
8-97375-638-0
04
1
1505-
●
●
20
CLIP; HOSE,RAD
(A) ID=13 L=20
0-95235-235-0
02
1
1407-
●
20
CLIP; HOSE,RAD
(A) ID=12 L=70
1-09700-097-1
01
1
1407-
●
20
CLIP; HOSE,RAD
(D) ID=11.5 & 14.5
8-94314-293-0
01
1
1407-
●
20
CLIP; HOSE,RAD
(B) ID=11.5
8-97375-638-0
02
1
1407-
●
20
CLIP; HOSE,RAD
(E) ID=12
8-98029-256-0
01
1
1407-
●
20
CLIP; HOSE,RAD
(C) ID=20 L=50
9-09917-430-0
01
1
1407-1409
●
20
CLIP; HOSE,RAD
(C) ID=20 L=50
9-09917-430-0
01
1
1407-1409
●
20
CLIP; HOSE,RAD
(C) ID=20 L=50
9-09917-430-0
01
1
1410-1504
●
●
20
CLIP; HOSE,RAD
(C) ID=20 L=50
9-09917-430-0
01
1
1410-1504
●
20
CLIP; HOSE,RAD
(C) ID=20 L=50
9-09917-430-0
01
1
1505-
●
●
●
20
CLIP; HOSE,RAD
(C) ID=20 L=50
9-09917-430-0
01
1
1505-
●
23
BRACKET; RESERVE TANK
8-98049-965-4
01
1
1407-
●
●
●
40
BOLT; CLIP
M8X20 FLANGE MAL
0-28650-820-0
01
1
1410-1504
●
40
BOLT; CLIP
M8X20 FLANGE MAL
0-28650-820-0
01
1
1505-
●
●
40
BOLT; CLIP
M8X20 FLANGE MAL
0-28650-820-0
03
1
1407-
●
55
HOSE; WATER,RAD OUTLET
8-98079-430-1
01
1
1505-
●
55
HOSE; WATER,RAD OUTLET
8-98079-429-1
01
1
1410-
●
55
HOSE; WATER,RAD OUTLET
8-98010-573-2
01
1
1407-
●
56
CLIP; WATER HOSE,RAD
(B) ID=52
1-09704-057-0
01
1
1407-
●
56
CLIP; WATER HOSE,RAD
(A) ID=48
8-98133-956-0
02
1
1407-
●
56
CLIP; WATER HOSE,RAD
(C) ID=62
8-98133-957-0
01
1
1407-
●
64
BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER
1-09030-093-0
01
1
1407-
●
●
●
65
NUT; BRKT,SUB TANK
M8 FLANGE MAL
0-91180-108-0
03
1
1407-
●
●
●
67
BOLT; BRKT
M8X20 FLANGE MAL
0-28650-820-0
03
1
1407-
●
●
●
128
HOSE; WATER,RAD INL
8-98010-578-1
01
1
1505-
●
128
HOSE; WATER,RAD INL
8-98050-924-1
01
1
1410-
●
128
HOSE; WATER,RAD INL
8-98205-873-0
01
1
1407-
●
55
128
20
20
67
65
20
20
65
64
23
38
33
40
20
20
1
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
TANK; SURGE,RAD
8-98171-757-0
01
1
1407-
●
●
●
2
CAP; SURGE TANK
MAL
8-98178-074-0
01
1
1407-
●
●
●
20
CLIP; HOSE,RAD
(F) ID=13 H=40 L=25
1-09700-620-0
01
1
1410-1504
●
20
CLIP; HOSE,RAD
(F) ID=13 H=40 L=25
1-09700-620-0
01
1
1505-
●
●
20
CLIP; HOSE,RAD
(B) ID=11.5
8-97375-638-0
04
1
1410-1504
●
20
CLIP; HOSE,RAD
(B) ID=11.5
8-97375-638-0
04
1
1505-
●
●
20
CLIP; HOSE,RAD
(A) ID=13 L=20
0-95235-235-0
02
1
1407-
●
20
CLIP; HOSE,RAD
(A) ID=12 L=70
1-09700-097-1
01
1
1407-
●
20
CLIP; HOSE,RAD
(D) ID=11.5 & 14.5
8-94314-293-0
01
1
1407-
●
20
CLIP; HOSE,RAD
(B) ID=11.5
8-97375-638-0
02
1
1407-
●
20
CLIP; HOSE,RAD
(E) ID=12
8-98029-256-0
01
1
1407-
●
20
CLIP; HOSE,RAD
(C) ID=20 L=50
9-09917-430-0
01
1
1407-1409
●
20
CLIP; HOSE,RAD
(C) ID=20 L=50
9-09917-430-0
01
1
1407-1409
●
20
CLIP; HOSE,RAD
(C) ID=20 L=50
9-09917-430-0
01
1
1410-1504
●
●
20
CLIP; HOSE,RAD
(C) ID=20 L=50
9-09917-430-0
01
1
1410-1504
●
20
CLIP; HOSE,RAD
(C) ID=20 L=50
9-09917-430-0
01
1
1505-
●
●
●
20
CLIP; HOSE,RAD
(C) ID=20 L=50
9-09917-430-0
01
1
1505-
●
23
BRACKET; RESERVE TANK
8-98049-965-4
01
1
1407-
●
●
●
33
BOLT; BRKT
A/T<X9D> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X16 W/LK&PL WASHER
1-09980-498-0
01
1
1508-
●
38
BRACKET; RUBBER HOSE
A/T<X9D> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)
8-98318-031-0
01
1
1508-1510
●
38
BRACKET; RUBBER HOSE
A/T<X9D> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)
8-98333-475-0
01
1
1511-
●
40
BOLT; CLIP
M8X20 FLANGE MAL
0-28650-820-0
01
1
1410-1504
●
40
BOLT; CLIP
M8X20 FLANGE MAL
0-28650-820-0
01
1
1505-
●
●
40
BOLT; CLIP
M8X20 FLANGE MAL
0-28650-820-0
03
1
1407-
●
55
HOSE; WATER,RAD OUTLET
8-98079-430-1
01
1
1505-
●
55
HOSE; WATER,RAD OUTLET
8-98079-429-1
01
1
1410-
●
55
HOSE; WATER,RAD OUTLET
8-98010-573-2
01
1
1407-
●
64
BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER
1-09030-093-0
01
1
1407-
●
●
●
65
NUT; BRKT,SUB TANK
M8 FLANGE MAL
0-91180-108-0
03
1
1407-
●
●
●
67
BOLT; BRKT
M8X20 FLANGE MAL
0-28650-820-0
03
1
1407-
●
●
●
128
HOSE; WATER,RAD INL
8-98010-578-1
01
1
1505-
●
128
HOSE; WATER,RAD INL
8-98050-924-1
01
1
1410-
●
128
HOSE; WATER,RAD INL
8-98205-873-0
01
1
1407-
●
