◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11604 - FVR(MALAYSIA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#144117) — 308 parça

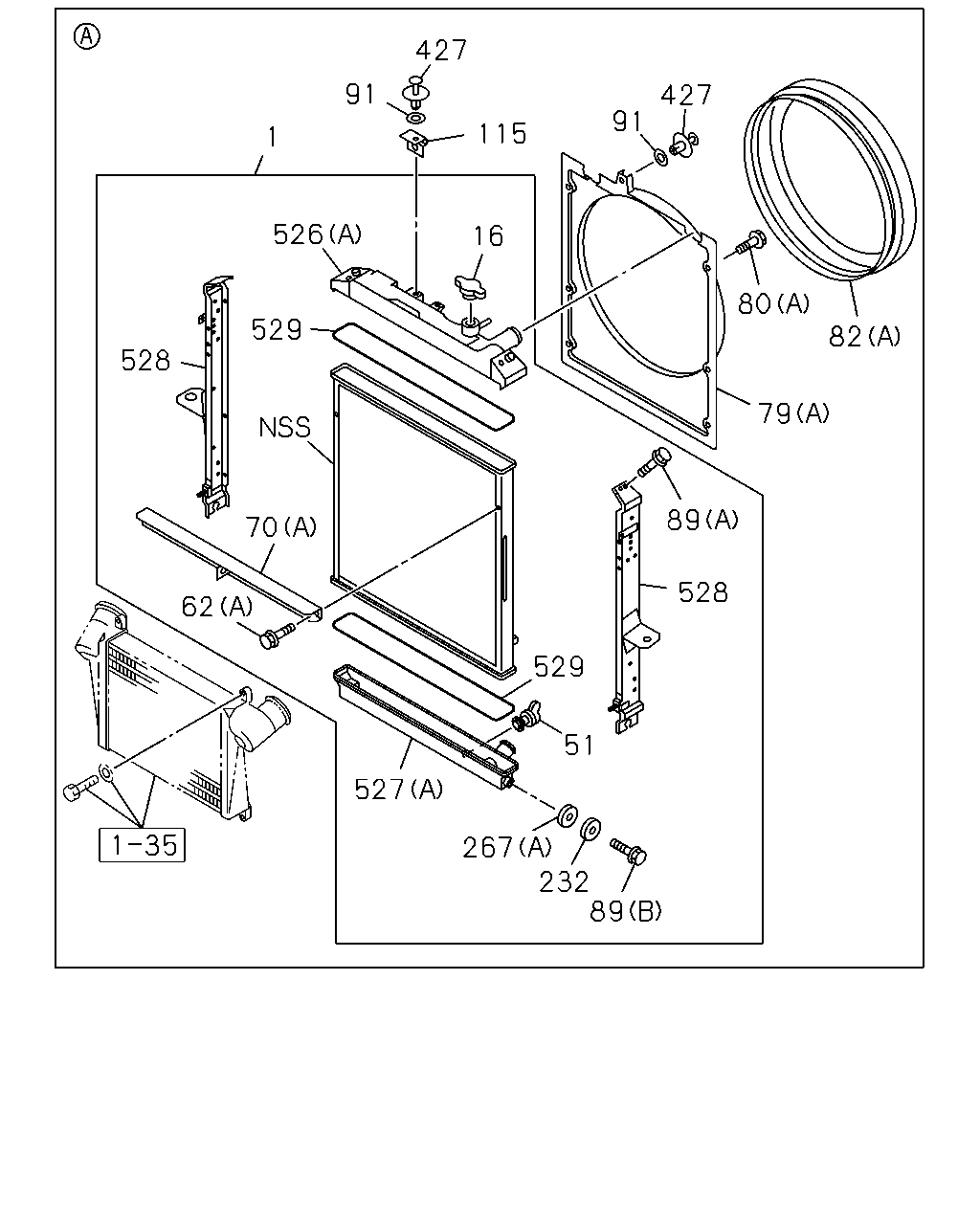

çizim 431361
427 91 1 526 529 528 70 62 527 529 51 267 232 89 528 89 79 80 427 91 115 16 82
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RADIATOR ASM
A/T<X9D> 		8-98139-312-0 01 1 1508- ●
1 RADIATOR ASM 8-98299-736-0 01 1 1505- ●
1 RADIATOR ASM 8-98139-310-0 01 1 1410-1507 ●
1 RADIATOR ASM
MANUAL TRANSMISSION<X9C> 		8-98139-310-0 01 1 1508- ●
1 RADIATOR ASM 8-98206-624-0 01 1 1407- ●
16 CAP; RAD 8-98096-226-0 01 1 1407-1409 ●
16 CAP; RAD 8-98096-226-0 01 1 1410-1504 ● ●
16 CAP; RAD 8-98096-226-0 01 1 1505- ● ● ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1407-1409 ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1410-1504 ● ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1505- ● ● ●
62 BOLT; STAY
(C) M8X30 		1-09009-020-1 02 1 1410-1504 ●
62 BOLT; STAY
(C) M8X30 		1-09009-020-1 02 1 1505- ● ●
62 BOLT; STAY
(B) M8X26 		1-09009-175-0 02 1 1410-1504 ●
62 BOLT; STAY
(B) M8X26 		1-09009-175-0 02 1 1505- ● ●
62 BOLT; STAY
(A) M8X12 FLANGE 		0-28050-812-0 02 1 1407- ●
70 STAY; RAD
(C) 		8-98004-132-2 02 1 1410-1504 ●
70 STAY; RAD
(C) 		8-98004-132-2 02 1 1505- ● ●
70 STAY; RAD
(B) 		8-98010-657-0 01 1 1407- ●
70 STAY; RAD
(A) 		8-98018-941-0 01 1 1407- ●
79 GUIDE; FAN,RAD
(B) 		8-98273-634-0 01 1 1505- ●
79 GUIDE; FAN,RAD
(B) 		8-98004-207-0 01 1 1410-1505 ●
79 GUIDE; FAN,RAD
(C) 		8-98286-937-0 01 1 1506- ●
79 GUIDE; FAN,RAD
(A) 		8-98010-297-0 01 1 1407- ●
80 BOLT; FAN GUIDE
(C) M8X12 FLANGE 		0-28050-812-0 04 1 1505-1505 ●
80 BOLT; FAN GUIDE
(C) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ● ●
80 BOLT; FAN GUIDE
(C) M8X14 		8-98046-222-0 04 1 1410-1505 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1407-1409 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1410-1504 ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1505- ● ● ●
80 BOLT; FAN GUIDE
(A) M6X16 		1-21559-481-0 04 1 1407- ●
82 COVER; FAN,RAD
(C) 		8-98293-253-0 01 1 1505-1505 ●
82 COVER; FAN,RAD
(C) 		8-98293-253-0 01 1 1506- ● ●
82 COVER; FAN,RAD
(B) 		8-98004-211-0 01 1 1410-1505 ●
82 COVER; FAN,RAD
(A) 		8-98006-478-0 01 1 1407- ●
89 BOLT
(C) M6X12 FLANGE MAL 		0-28050-612-0 02 1 1410-1504 ●
89 BOLT
(C) M6X12 FLANGE MAL 		0-28050-612-0 02 1 1505- ● ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 1410-1504 ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 1505- ● ●
89 BOLT
(A) M8X12 FLANGE 		0-28050-812-0 02 1 1407- ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 02 1 1407- ●
91 WASHER; PL 1-21469-111-0 02 1 1407- ●
115 BRACKET; FAN GUIDE 8-98204-117-0 01 1 1407- ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 1410-1504 ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 1505- ● ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 02 1 1407- ●
267 RUBBER; CUSHION
(C) 		1-21469-130-0 04 1 1410-1504 ●
267 RUBBER; CUSHION
(C) 		1-21469-130-0 04 1 1505- ● ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 1410-1504 ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 1505- ● ●
267 RUBBER; CUSHION
(A) 		1-21467-023-0 02 1 1407- ●
427 CLIP; FAN GUIDE 1-09470-009-0 02 1 1407-1409 ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1506- ●
427 CLIP; FAN GUIDE 1-09470-009-0 02 1 1410- ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1410- ●
526 TANK; UPR,RADIATOR CORE
A/T<X9D> (C) 		8-98010-366-2 01 1 1508- ●
526 TANK; UPR,RADIATOR CORE
(B) 		8-98004-202-2 01 1 1410-1504 ●
526 TANK; UPR,RADIATOR CORE
(B) 		8-98004-202-2 01 1 1505-1507 ● ●
526 TANK; UPR,RADIATOR CORE
MANUAL TRANSMISSION<X9C> (B) 		8-98004-202-2 01 1 1508- ●
526 TANK; UPR,RADIATOR CORE
(B) 		8-98004-202-2 01 1 1508- ●
526 TANK; UPR,RADIATOR CORE
(A) 		8-98107-793-0 01 1 1407- ●
527 TANK; LWR,RADIATOR CORE
A/T<X9D> (C) 		8-98038-558-2 01 1 1508- ●
527 TANK; LWR,RADIATOR CORE
(B) 		8-98004-203-0 01 1 1410-1504 ●
527 TANK; LWR,RADIATOR CORE
(B) 		8-98004-203-0 01 1 1505-1507 ● ●
527 TANK; LWR,RADIATOR CORE
MANUAL TRANSMISSION<X9C> (B) 		8-98004-203-0 01 1 1508- ●
527 TANK; LWR,RADIATOR CORE
(B) 		8-98004-203-0 01 1 1508- ●
527 TANK; LWR,RADIATOR CORE
(A) 		8-98032-433-1 01 1 1407- ●
528 PLATE; SIDE,RADIATOR CORE 8-98010-372-4 01 1 1505- ●
528 PLATE; SIDE,RADIATOR CORE 8-98185-754-0 01 1 1505- ●
528 PLATE; SIDE,RADIATOR CORE 8-98042-838-3 01 1 1410- ●
528 PLATE; SIDE,RADIATOR CORE 8-98042-839-2 01 1 1410- ●
528 PLATE; SIDE,RADIATOR CORE 8-98206-626-0 01 1 1407- ●
528 PLATE; SIDE,RADIATOR CORE 8-98206-627-0 01 1 1407- ●
529 GASKET; CORE,RADIATOR 8-98004-206-0 02 1 1410-1504 ●
529 GASKET; CORE,RADIATOR 8-98004-206-0 02 1 1505- ● ●
529 GASKET; CORE,RADIATOR 8-98032-435-0 02 1 1407- ●

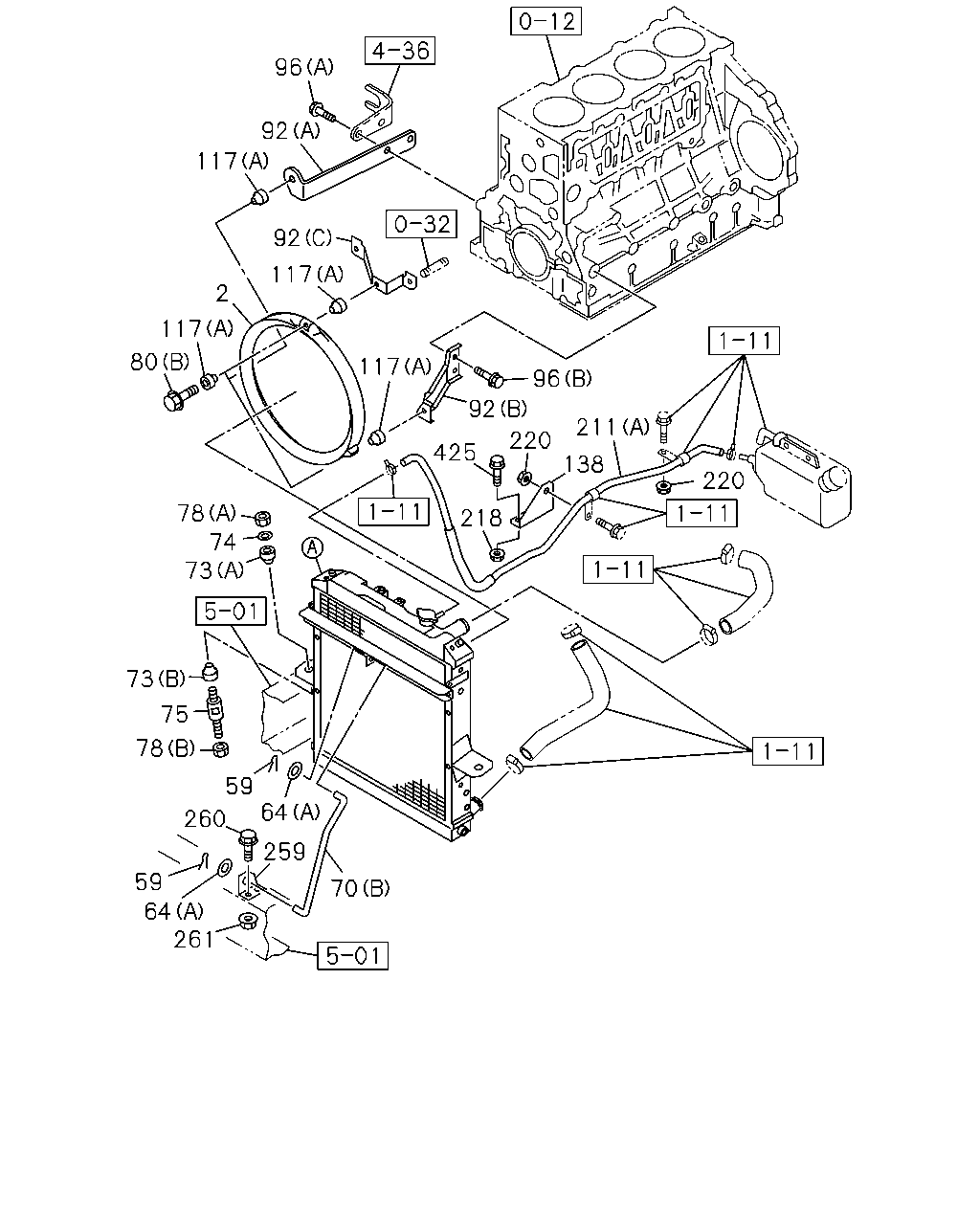

çizim 431560
96 92 117 92 117 2 117 80 78 74 73 73 75 78 59 64 259 260 59 64 261 70 117 96 92 425 220 211 218 138 220
BalonParca AdiParca NoAdetTipApplied Date A B C
2 GUIDE; FAN 8-94393-779-1 01 1 1410-1504 ●
2 GUIDE; FAN 8-94393-779-1 01 1 1505- ● ●
2 GUIDE; FAN 8-97350-995-0 01 1 1407- ●
59 PIN; SNAP,STAY
L=32.6 		8-97359-052-0 02 1 1407- ●
64 WASHER; STAY TO RAD
(B) ID=12.5 OD=26 		0-91610-612-0 04 1 1410-1504 ●
64 WASHER; STAY TO RAD
(B) ID=12.5 OD=26 		0-91610-612-0 04 1 1505- ● ●
64 WASHER; STAY TO RAD
(A) ID=10.5 		0-91610-510-0 02 1 1407- ●
70 STAY; RAD
(C) 		8-98004-132-2 02 1 1410-1504 ●
70 STAY; RAD
(C) 		8-98004-132-2 02 1 1505- ● ●
70 STAY; RAD
(B) 		8-98010-657-0 01 1 1407- ●
70 STAY; RAD
(A) 		8-98018-941-0 01 1 1407- ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 1407- ● ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 1407- ● ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 1407-1409 ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 1410-1504 ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 1505- ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 1407-1409 ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 1410-1504 ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 1505- ● ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE MAL 		0-91180-210-0 02 1 1407-1409 ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE MAL 		0-91180-210-0 02 1 1410-1504 ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE MAL 		0-91180-210-0 02 1 1505- ● ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE MAL 		0-91180-212-0 02 1 1407-1409 ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE MAL 		0-91180-212-0 02 1 1410-1504 ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE MAL 		0-91180-212-0 02 1 1505- ● ● ●
80 BOLT; FAN GUIDE
(C) M8X12 FLANGE 		0-28050-812-0 04 1 1505-1505 ●
80 BOLT; FAN GUIDE
(C) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ● ●
80 BOLT; FAN GUIDE
(C) M8X14 		8-98046-222-0 04 1 1410-1505 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1407-1409 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1410-1504 ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1505- ● ● ●
80 BOLT; FAN GUIDE
(A) M6X16 		1-21559-481-0 04 1 1407- ●
92 BRACKET; FAN GUIDE
(A) 		8-97350-997-0 01 1 1407- ●
92 BRACKET; FAN GUIDE
(C) 		8-97382-827-2 01 1 1407- ●
92 BRACKET; FAN GUIDE
(B) 		8-97386-233-0 01 1 1407- ●
96 BOLT; STAY FIX
(C) M8X16 FLANGE MAL 		0-28050-816-0 02 1 1410-1504 ●
96 BOLT; STAY FIX
(C) M8X16 FLANGE MAL 		0-28050-816-0 02 1 1505- ● ●
96 BOLT; STAY FIX
(D) M10X16 FLANGE 		0-28151-016-0 02 1 1410-1504 ●
96 BOLT; STAY FIX
(D) M10X16 FLANGE 		0-28151-016-0 02 1 1505- ● ●
96 BOLT; STAY FIX
(B) M10X20 FLANGE 		0-28151-020-0 02 1 1407- ●
96 BOLT; STAY FIX
(A) M10X75 FLANGE 		8-94399-669-1 02 1 1407- ●
117 RUBBER; MTG,FAN GUIDE
(B) OD=32 		8-94395-766-0 06 1 1410-1504 ●
117 RUBBER; MTG,FAN GUIDE
(B) OD=32 		8-94395-766-0 06 1 1505- ● ●
117 RUBBER; MTG,FAN GUIDE
(A) 		1-09337-027-0 06 1 1407- ●
138 BRACKET; CLIP 8-98226-427-0 01 1 1407- ●
211 HOSE; RAD TO PIPE
(C) L=970 		8-98073-545-0 01 1 1505- ●
211 HOSE; RAD TO PIPE
(C) L=940 		8-98073-544-0 01 1 1410- ●
211 HOSE; RAD TO PIPE
(B) L=560 		8-98119-375-0 01 1 1410-1504 ●
211 HOSE; RAD TO PIPE
(B) L=560 		8-98119-375-0 01 1 1505- ● ●
211 HOSE; RAD TO PIPE
(A) 		8-98206-622-3 01 1 1407- ●
218 NUT; BRKT
M8 FLANGE MAL 		0-91180-108-0 02 1 1407- ●
220 NUT; CLIP
M8 FLANGE MAL 		0-91180-108-0 01 1 1407-1409 ●
220 NUT; CLIP
M8 FLANGE MAL 		0-91180-108-0 01 1 1407-1409 ●
220 NUT; CLIP
M8 FLANGE MAL 		0-91180-108-0 01 1 1410-1504 ● ●
220 NUT; CLIP
M8 FLANGE MAL 		0-91180-108-0 01 1 1410-1504 ●
220 NUT; CLIP
M8 FLANGE MAL 		0-91180-108-0 01 1 1505- ● ● ●
220 NUT; CLIP
M8 FLANGE MAL 		0-91180-108-0 01 1 1505- ●
259 BRACKET; RAD STAY 8-98071-821-0 01 1 1410-1504 ●
259 BRACKET; RAD STAY 8-98071-821-0 01 1 1505- ● ●
259 BRACKET; RAD STAY 8-98071-822-0 01 1 1410-1504 ●
259 BRACKET; RAD STAY 8-98071-822-0 01 1 1505- ● ●
259 BRACKET; RAD STAY 8-98179-846-0 01 1 1407- ●
260 BOLT; BRKT
M8X20 FLANGE MAL 		0-28650-820-0 04 1 1410-1504 ●
260 BOLT; BRKT
M8X20 FLANGE MAL 		0-28650-820-0 04 1 1505- ● ●
260 BOLT; BRKT
M8X20 FLANGE MAL 		0-28650-820-0 02 1 1407- ●
261 NUT; BRKT
M8 FLANGE MAL 		0-91180-108-0 04 1 1410-1504 ●
261 NUT; BRKT
M8 FLANGE MAL 		0-91180-108-0 04 1 1505- ● ●
261 NUT; BRKT
M8 FLANGE MAL 		0-91180-108-0 02 1 1407- ●
425 BOLT; BRKT
M8X25 FLANGE MAL 		0-28650-825-0 02 1 1407- ●

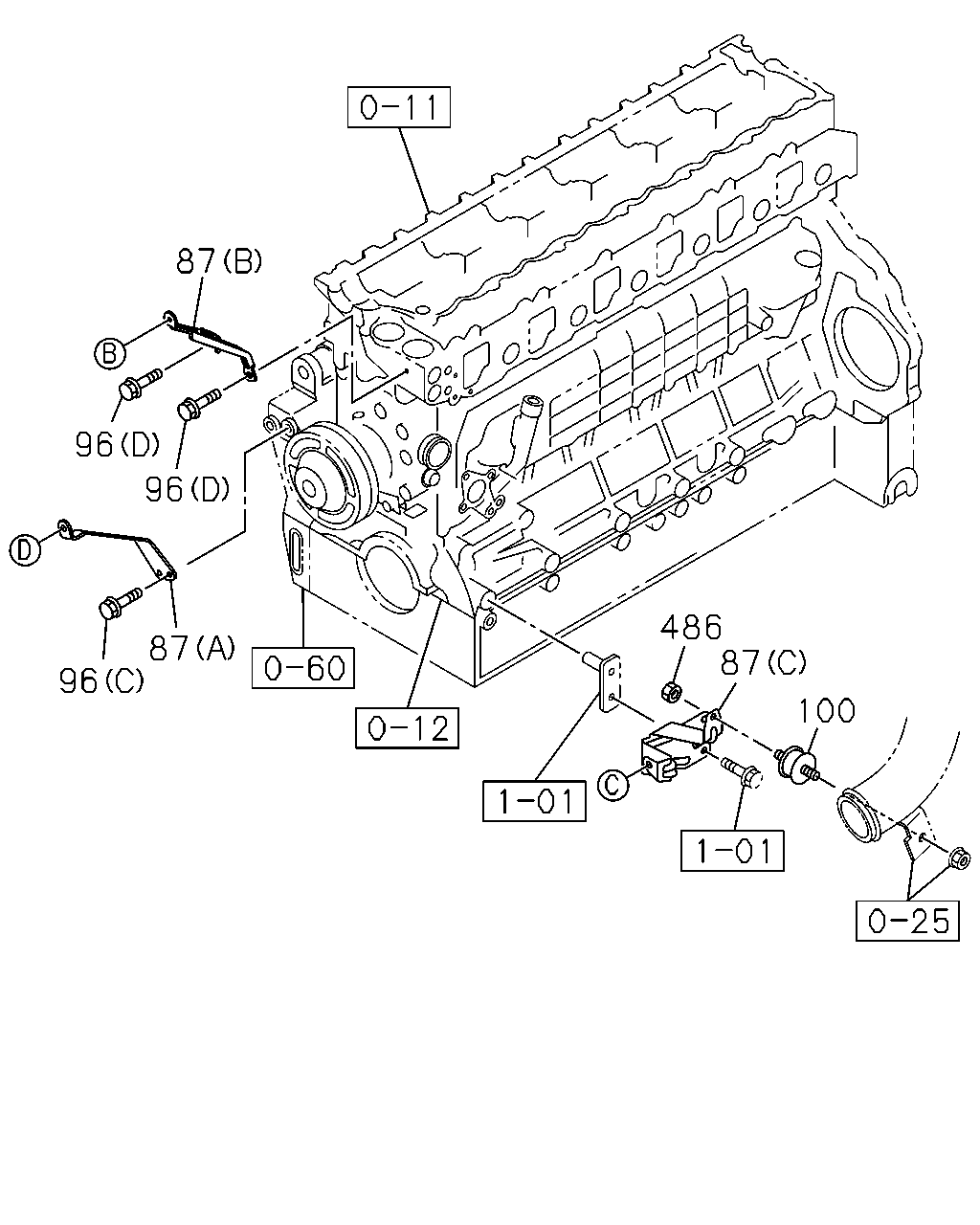

çizim 458396
87 96 96 87 96 486 87 100
BalonParca AdiParca NoAdetTipApplied Date A B C
87 STAY; FAN GUIDE
(B) 		8-94393-776-1 01 1 1410-1504 ●
87 STAY; FAN GUIDE
(B) 		8-94393-776-1 01 1 1505- ● ●
87 STAY; FAN GUIDE
(C) 		8-94393-778-2 01 1 1410-1504 ●
87 STAY; FAN GUIDE
(C) 		8-94393-778-2 01 1 1505- ● ●
87 STAY; FAN GUIDE
(A) 		8-97602-988-0 01 1 1410-1504 ●
87 STAY; FAN GUIDE
(A) 		8-97602-988-0 01 1 1505- ● ●
96 BOLT; STAY FIX
(C) M8X16 FLANGE MAL 		0-28050-816-0 02 1 1410-1504 ●
96 BOLT; STAY FIX
(C) M8X16 FLANGE MAL 		0-28050-816-0 02 1 1505- ● ●
96 BOLT; STAY FIX
(D) M10X16 FLANGE 		0-28151-016-0 02 1 1410-1504 ●
96 BOLT; STAY FIX
(D) M10X16 FLANGE 		0-28151-016-0 02 1 1505- ● ●
96 BOLT; STAY FIX
(B) M10X20 FLANGE 		0-28151-020-0 02 1 1407- ●
96 BOLT; STAY FIX
(A) M10X75 FLANGE 		8-94399-669-1 02 1 1407- ●
100 RUBBER; MTG 8-98148-109-0 01 1 1410-1504 ●
100 RUBBER; MTG 8-98148-109-0 01 1 1505- ● ●
486 NUT; MTG RUBBER
M8 FLANGE MAL 		0-91180-108-0 01 1 1410-1504 ●
486 NUT; MTG RUBBER
M8 FLANGE MAL 		0-91180-108-0 01 1 1505- ● ●

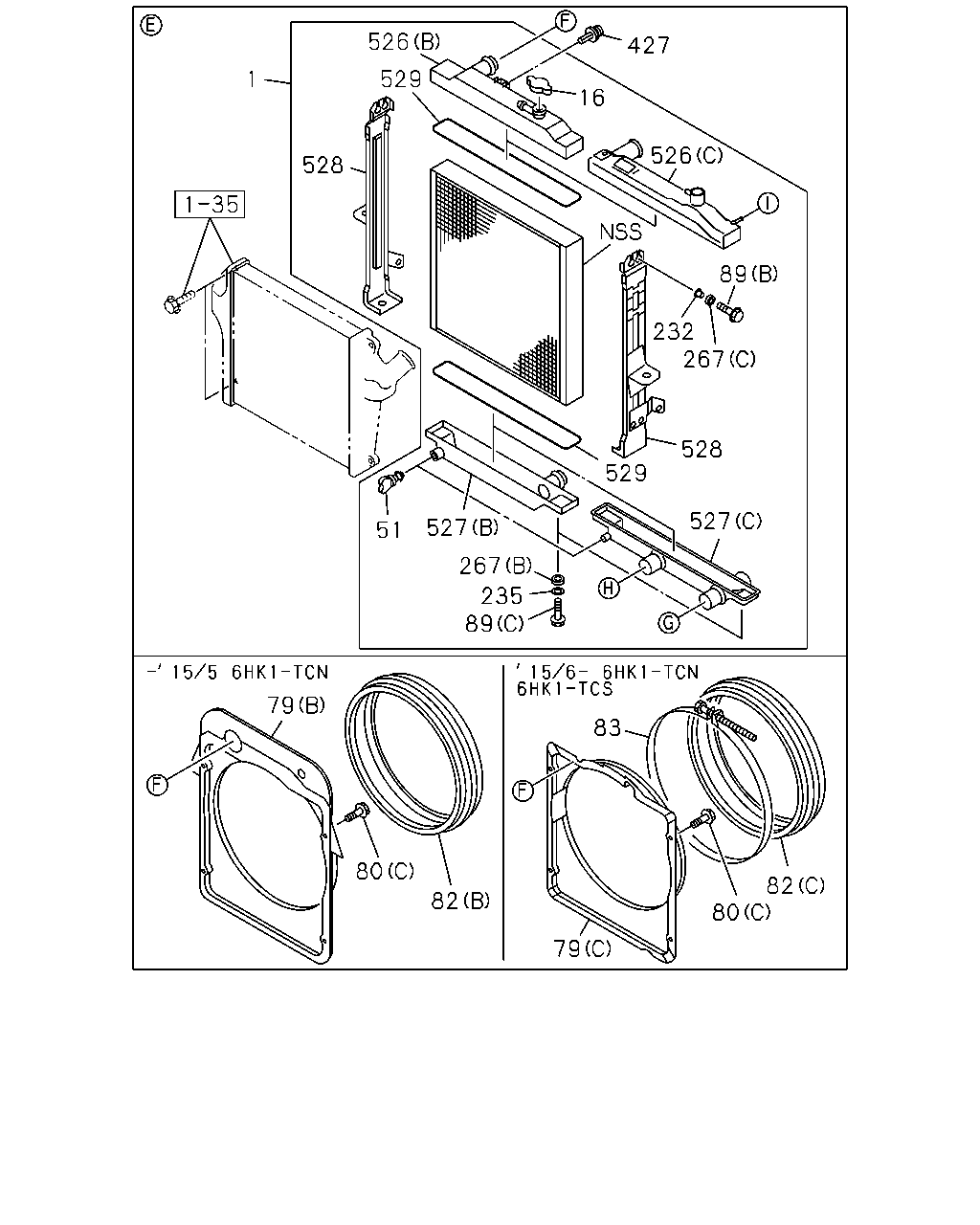

çizim 458506
526 1 528 529 427 526 16 89 232 267 528 529 527 527 51 267 235 89 79 80 82 79 80 82 83
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RADIATOR ASM
A/T<X9D> 		8-98139-312-0 01 1 1508- ●
1 RADIATOR ASM 8-98299-736-0 01 1 1505- ●
1 RADIATOR ASM 8-98139-310-0 01 1 1410-1507 ●
1 RADIATOR ASM
MANUAL TRANSMISSION<X9C> 		8-98139-310-0 01 1 1508- ●
1 RADIATOR ASM 8-98206-624-0 01 1 1407- ●
16 CAP; RAD 8-98096-226-0 01 1 1407-1409 ●
16 CAP; RAD 8-98096-226-0 01 1 1410-1504 ● ●
16 CAP; RAD 8-98096-226-0 01 1 1505- ● ● ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1407-1409 ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1410-1504 ● ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1505- ● ● ●
79 GUIDE; FAN,RAD
(B) 		8-98273-634-0 01 1 1505- ●
79 GUIDE; FAN,RAD
(B) 		8-98004-207-0 01 1 1410-1505 ●
79 GUIDE; FAN,RAD
(C) 		8-98286-937-0 01 1 1506- ●
79 GUIDE; FAN,RAD
(A) 		8-98010-297-0 01 1 1407- ●
80 BOLT; FAN GUIDE
(C) M8X12 FLANGE 		0-28050-812-0 04 1 1505-1505 ●
80 BOLT; FAN GUIDE
(C) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ● ●
80 BOLT; FAN GUIDE
(C) M8X14 		8-98046-222-0 04 1 1410-1505 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1407-1409 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1410-1504 ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1505- ● ● ●
80 BOLT; FAN GUIDE
(A) M6X16 		1-21559-481-0 04 1 1407- ●
82 COVER; FAN,RAD
(C) 		8-98293-253-0 01 1 1505-1505 ●
82 COVER; FAN,RAD
(C) 		8-98293-253-0 01 1 1506- ● ●
82 COVER; FAN,RAD
(B) 		8-98004-211-0 01 1 1410-1505 ●
82 COVER; FAN,RAD
(A) 		8-98006-478-0 01 1 1407- ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 1505-1505 ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 1506- ● ●
89 BOLT
(C) M6X12 FLANGE MAL 		0-28050-612-0 02 1 1410-1504 ●
89 BOLT
(C) M6X12 FLANGE MAL 		0-28050-612-0 02 1 1505- ● ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 1410-1504 ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 1505- ● ●
89 BOLT
(A) M8X12 FLANGE 		0-28050-812-0 02 1 1407- ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 02 1 1407- ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 1410-1504 ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 1505- ● ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 02 1 1407- ●
235 WASHER; CUSHION RUBBER 1-21469-133-0 02 1 1410-1504 ●
235 WASHER; CUSHION RUBBER 1-21469-133-0 02 1 1505- ● ●
267 RUBBER; CUSHION
(C) 		1-21469-130-0 04 1 1410-1504 ●
267 RUBBER; CUSHION
(C) 		1-21469-130-0 04 1 1505- ● ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 1410-1504 ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 1505- ● ●
267 RUBBER; CUSHION
(A) 		1-21467-023-0 02 1 1407- ●
427 CLIP; FAN GUIDE 1-09470-009-0 02 1 1407-1409 ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1506- ●
427 CLIP; FAN GUIDE 1-09470-009-0 02 1 1410- ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1410- ●
526 TANK; UPR,RADIATOR CORE
A/T<X9D> (C) 		8-98010-366-2 01 1 1508- ●
526 TANK; UPR,RADIATOR CORE
(B) 		8-98004-202-2 01 1 1410-1504 ●
526 TANK; UPR,RADIATOR CORE
(B) 		8-98004-202-2 01 1 1505-1507 ● ●
526 TANK; UPR,RADIATOR CORE
MANUAL TRANSMISSION<X9C> (B) 		8-98004-202-2 01 1 1508- ●
526 TANK; UPR,RADIATOR CORE
(B) 		8-98004-202-2 01 1 1508- ●
526 TANK; UPR,RADIATOR CORE
(A) 		8-98107-793-0 01 1 1407- ●
527 TANK; LWR,RADIATOR CORE
A/T<X9D> (C) 		8-98038-558-2 01 1 1508- ●
527 TANK; LWR,RADIATOR CORE
(B) 		8-98004-203-0 01 1 1410-1504 ●
527 TANK; LWR,RADIATOR CORE
(B) 		8-98004-203-0 01 1 1505-1507 ● ●
527 TANK; LWR,RADIATOR CORE
MANUAL TRANSMISSION<X9C> (B) 		8-98004-203-0 01 1 1508- ●
527 TANK; LWR,RADIATOR CORE
(B) 		8-98004-203-0 01 1 1508- ●
527 TANK; LWR,RADIATOR CORE
(A) 		8-98032-433-1 01 1 1407- ●
528 PLATE; SIDE,RADIATOR CORE 8-98010-372-4 01 1 1505- ●
528 PLATE; SIDE,RADIATOR CORE 8-98185-754-0 01 1 1505- ●
528 PLATE; SIDE,RADIATOR CORE 8-98042-838-3 01 1 1410- ●
528 PLATE; SIDE,RADIATOR CORE 8-98042-839-2 01 1 1410- ●
528 PLATE; SIDE,RADIATOR CORE 8-98206-626-0 01 1 1407- ●
528 PLATE; SIDE,RADIATOR CORE 8-98206-627-0 01 1 1407- ●
529 GASKET; CORE,RADIATOR 8-98004-206-0 02 1 1410-1504 ●
529 GASKET; CORE,RADIATOR 8-98004-206-0 02 1 1505- ● ●
529 GASKET; CORE,RADIATOR 8-98032-435-0 02 1 1407- ●

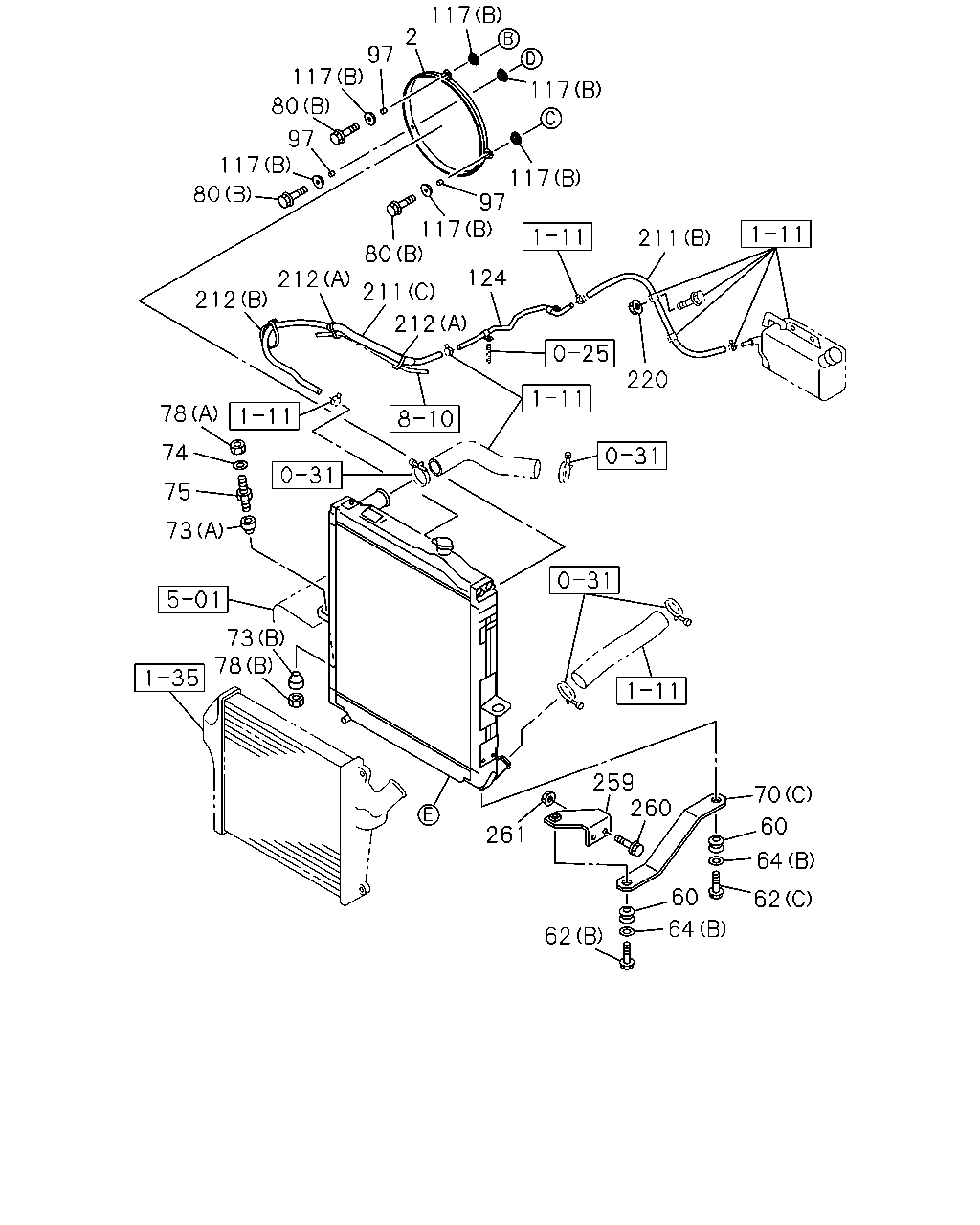

çizim 459321
117 2 97 117 80 117 80 97 117 117 97 117 80 212 212 78 75 74 73 211 212 124 211 220 259 260 70 60 64 62 60 64 62 261 73 78
BalonParca AdiParca NoAdetTipApplied Date A B C
2 GUIDE; FAN 8-94393-779-1 01 1 1410-1504 ●
2 GUIDE; FAN 8-94393-779-1 01 1 1505- ● ●
2 GUIDE; FAN 8-97350-995-0 01 1 1407- ●
60 GROMMET 1-09332-117-0 04 1 1410-1504 ●
60 GROMMET 1-09332-117-0 04 1 1505- ● ●
62 BOLT; STAY
(C) M8X30 		1-09009-020-1 02 1 1410-1504 ●
62 BOLT; STAY
(C) M8X30 		1-09009-020-1 02 1 1505- ● ●
62 BOLT; STAY
(B) M8X26 		1-09009-175-0 02 1 1410-1504 ●
62 BOLT; STAY
(B) M8X26 		1-09009-175-0 02 1 1505- ● ●
62 BOLT; STAY
(A) M8X12 FLANGE 		0-28050-812-0 02 1 1407- ●
64 WASHER; STAY TO RAD
(B) ID=12.5 OD=26 		0-91610-612-0 04 1 1410-1504 ●
64 WASHER; STAY TO RAD
(B) ID=12.5 OD=26 		0-91610-612-0 04 1 1505- ● ●
64 WASHER; STAY TO RAD
(A) ID=10.5 		0-91610-510-0 02 1 1407- ●
70 STAY; RAD
(C) 		8-98004-132-2 02 1 1410-1504 ●
70 STAY; RAD
(C) 		8-98004-132-2 02 1 1505- ● ●
70 STAY; RAD
(B) 		8-98010-657-0 01 1 1407- ●
70 STAY; RAD
(A) 		8-98018-941-0 01 1 1407- ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 1407- ● ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 1407- ● ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 1407-1409 ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 1410-1504 ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 1505- ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 1407-1409 ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 1410-1504 ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 1505- ● ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE MAL 		0-91180-210-0 02 1 1407-1409 ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE MAL 		0-91180-210-0 02 1 1410-1504 ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE MAL 		0-91180-210-0 02 1 1505- ● ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE MAL 		0-91180-212-0 02 1 1407-1409 ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE MAL 		0-91180-212-0 02 1 1410-1504 ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE MAL 		0-91180-212-0 02 1 1505- ● ● ●
80 BOLT; FAN GUIDE
(C) M8X12 FLANGE 		0-28050-812-0 04 1 1505-1505 ●
80 BOLT; FAN GUIDE
(C) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ● ●
80 BOLT; FAN GUIDE
(C) M8X14 		8-98046-222-0 04 1 1410-1505 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1407-1409 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1410-1504 ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1505- ● ● ●
80 BOLT; FAN GUIDE
(A) M6X16 		1-21559-481-0 04 1 1407- ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 1410-1504 ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 1505- ● ●
117 RUBBER; MTG,FAN GUIDE
(B) OD=32 		8-94395-766-0 06 1 1410-1504 ●
117 RUBBER; MTG,FAN GUIDE
(B) OD=32 		8-94395-766-0 06 1 1505- ● ●
117 RUBBER; MTG,FAN GUIDE
(A) 		1-09337-027-0 06 1 1407- ●
124 PIPE; WATER,TANK TO RAD 8-97611-022-1 01 1 1410-1504 ●
124 PIPE; WATER,TANK TO RAD 8-97611-022-1 01 1 1505- ● ●
211 HOSE; RAD TO PIPE
(C) L=970 		8-98073-545-0 01 1 1505- ●
211 HOSE; RAD TO PIPE
(C) L=940 		8-98073-544-0 01 1 1410- ●
211 HOSE; RAD TO PIPE
(B) L=560 		8-98119-375-0 01 1 1410-1504 ●
211 HOSE; RAD TO PIPE
(B) L=560 		8-98119-375-0 01 1 1505- ● ●
211 HOSE; RAD TO PIPE
(A) 		8-98206-622-3 01 1 1407- ●
212 CLIP; HOSE
(A) L=250 		5-09707-030-1 02 1 1410-1504 ●
212 CLIP; HOSE
(A) L=250 		5-09707-030-1 02 1 1505- ● ●
212 CLIP; HOSE
(B) L=140 MAL 		5-09707-031-1 01 1 1410-1504 ●
212 CLIP; HOSE
(B) L=140 MAL 		5-09707-031-1 01 1 1505- ● ●
220 NUT; CLIP
M8 FLANGE MAL 		0-91180-108-0 01 1 1407-1409 ●
220 NUT; CLIP
M8 FLANGE MAL 		0-91180-108-0 01 1 1407-1409 ●
220 NUT; CLIP
M8 FLANGE MAL 		0-91180-108-0 01 1 1410-1504 ● ●
220 NUT; CLIP
M8 FLANGE MAL 		0-91180-108-0 01 1 1410-1504 ●
220 NUT; CLIP
M8 FLANGE MAL 		0-91180-108-0 01 1 1505- ● ● ●
220 NUT; CLIP
M8 FLANGE MAL 		0-91180-108-0 01 1 1505- ●
259 BRACKET; RAD STAY 8-98071-821-0 01 1 1410-1504 ●
259 BRACKET; RAD STAY 8-98071-821-0 01 1 1505- ● ●
259 BRACKET; RAD STAY 8-98071-822-0 01 1 1410-1504 ●
259 BRACKET; RAD STAY 8-98071-822-0 01 1 1505- ● ●
259 BRACKET; RAD STAY 8-98179-846-0 01 1 1407- ●
260 BOLT; BRKT
M8X20 FLANGE MAL 		0-28650-820-0 04 1 1410-1504 ●
260 BOLT; BRKT
M8X20 FLANGE MAL 		0-28650-820-0 04 1 1505- ● ●
260 BOLT; BRKT
M8X20 FLANGE MAL 		0-28650-820-0 02 1 1407- ●
261 NUT; BRKT
M8 FLANGE MAL 		0-91180-108-0 04 1 1410-1504 ●
261 NUT; BRKT
M8 FLANGE MAL 		0-91180-108-0 04 1 1505- ● ●
261 NUT; BRKT
M8 FLANGE MAL 		0-91180-108-0 02 1 1407- ●
çizim 488707
167 148 167 167 168 167
BalonParca AdiParca NoAdetTipApplied Date A B C
148 HOSE; WATER,BYPASS,SUB RAD
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) A/T<X9D> L=1250 		8-98318-034-0 01 1 1508- ●
148 HOSE; WATER,BYPASS,SUB RAD
A/T<X9D> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=1270 		8-98318-033-0 01 1 1508- ●
167 CLIP; BYPASS HOSE
EXC. MANUAL TRANSMISSION<X9C> (A) ID=11.5 		8-97375-638-0 02 1 1505- ● ● ●
167 CLIP; BYPASS HOSE
A/T<X9D> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=14-12 		8-94379-592-0 01 1 1508- ●
167 CLIP; BYPASS HOSE
A/T<X9D> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=13 H=75 L=25 		1-09700-601-0 01 1 1508- ●
167 CLIP; BYPASS HOSE
A/T<X9D> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=14-12 		8-94379-592-0 04 1 1508- ●
168 BOLT; CLIP,BYPASS HOSE
A/T<X9D> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE MAL 		0-28650-825-0 01 1 1508- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
