Sayfa 0-60 - Isuzu EPC

0-60 — ENGINE ELECTRICAL CONTROL PARTS (#144110) — 152 parça

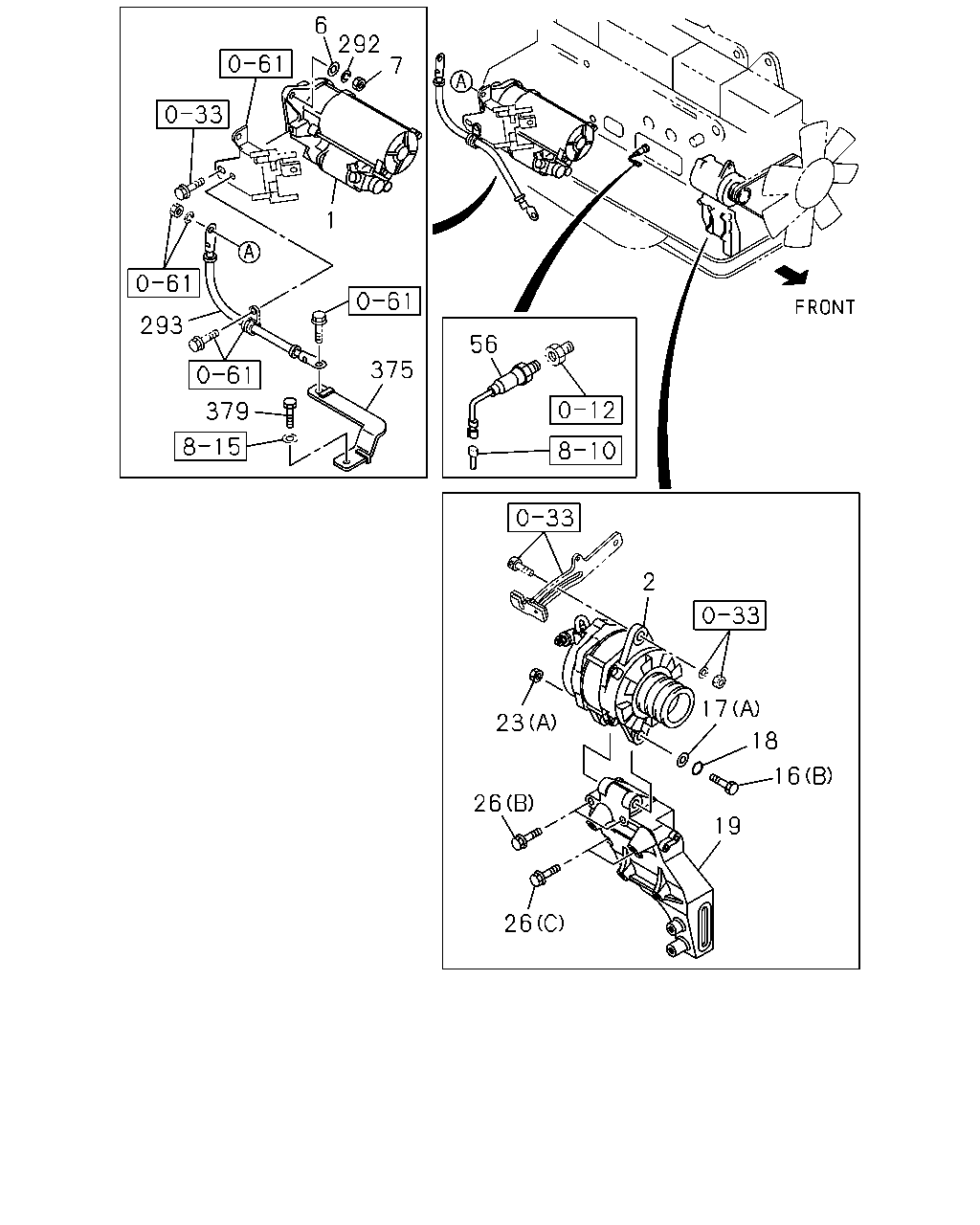

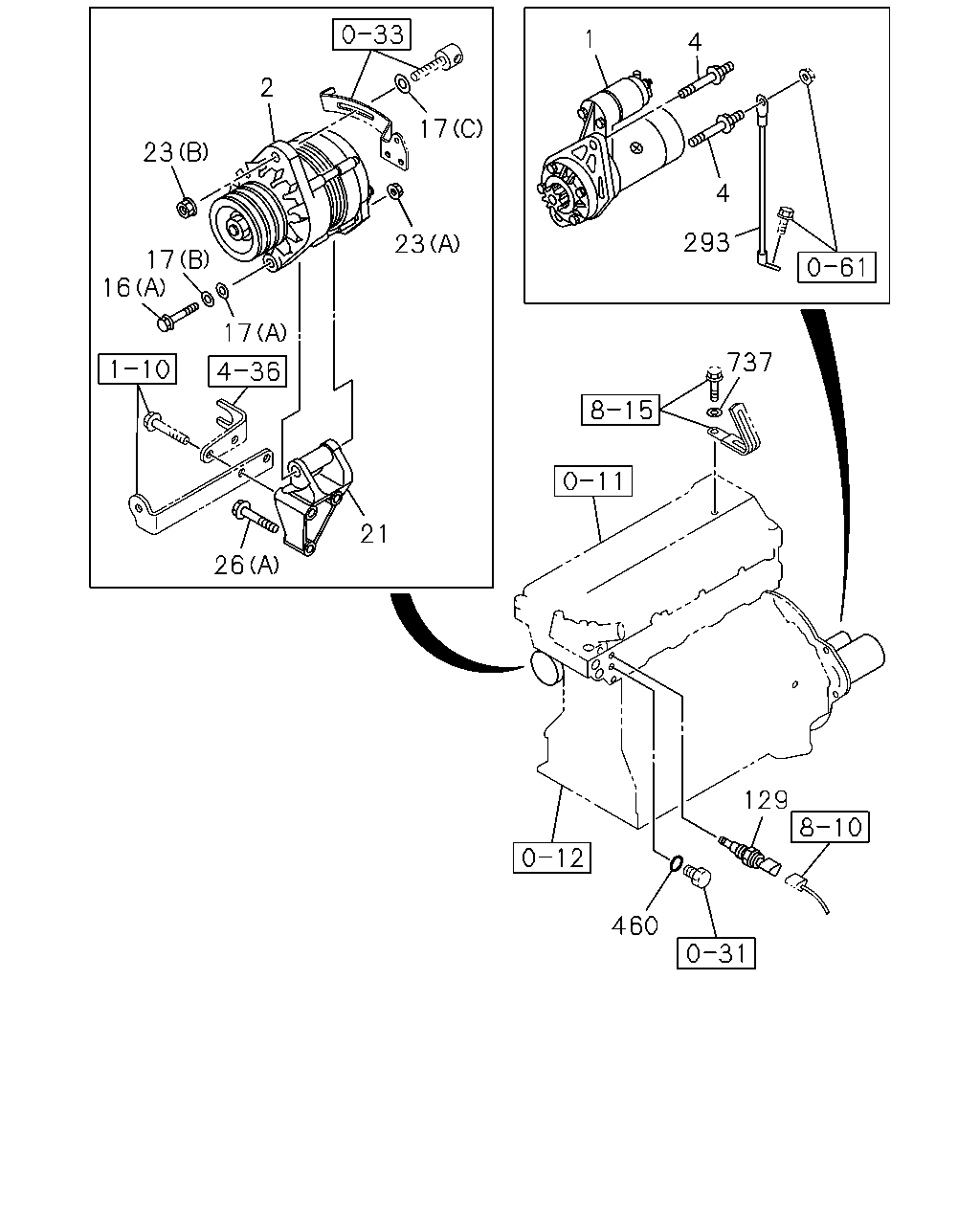

2 17 23 23 17 16 17 21 26 1 4 4 293 737 129 460

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6HK1-TCN ENG(82L) 24V 5.0KW MITSUBISHI	8-98141-206-3	01	1	1410-1410
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6HK1-TCN ENG(82L) 24V 5.0KW MITSUBISHI	8-98261-669-0	01	1	1410-1504
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) 24V 5.0KW MITSUBISHI	8-98261-669-0	01	1	1505-
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) 24V 4.5KW HITACHI	8-98245-260-1	01	1	1407-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) 24V 60A NIKKO	8-98013-462-4	01	1	1410-1504
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) 24V 60A NIKKO	8-98013-462-5	01	1	1505-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) 24V 50A NIKKO	8-98013-461-4	01	1	1410-1504
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) 24V 50A NIKKO	8-98013-461-5	01	1	1505-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 4HK1-TCS ENG(RJS) GENERATOR 24V50A(K89) 24V 50A NIKKO	8-98013-455-4	01	1	1407-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2) 24V 60A NIKKO	8-98013-456-4	01	1	1407-
4	BOLT; STARTER 4HK1-TCS ENG(RJS) M10X15,M14X82 L=110	8-98029-095-0	02	1	1407-
16	BOLT; GEN 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE	0-28050-610-0	02	1	1410-1504
16	BOLT; GEN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE	0-28050-610-0	02	1	1505-
16	BOLT; GEN 6HK1-TCN ENG(82L) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE	0-28050-610-0	01	1	1410-1504
16	BOLT; GEN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE	0-28050-610-0	01	1	1505-
16	BOLT; GEN (A) M14X135	1-09000-133-1	01	1	1407-
17	WASHER; PL,GEN (A) ID=14.2 MAL	0-91510-814-0	01	1	1407-
17	WASHER; PL,GEN (B) ID=15	0-91610-514-0	01	1	1407-
17	WASHER; PL,GEN (C) ID=12.5 OD=32	9-09160-712-0	01	1	1407-
21	BRACKET; GEN 4HK1-TCS ENG(RJS)	8-97381-404-0	01	1	1407-
23	NUT; GEN (A) M14 MAL	0-91110-514-0	01	1	1407-
23	NUT; GEN (B) M12 FLANGE MAL	0-91180-112-0	01	1	1407-
26	BOLT; GEN BRKT 6HK1-TCN ENG(82L) (C) M10X40 FLANGE	0-28151-040-0	02	1	1410-1504
26	BOLT; GEN BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) M10X40 FLANGE	0-28151-040-0	02	1	1505-
26	BOLT; GEN BRKT 6HK1-TCN ENG(82L) (B) M10X80 FLANGE	0-28151-080-0	02	1	1410-1504
26	BOLT; GEN BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) M10X80 FLANGE	0-28151-080-0	02	1	1505-
26	BOLT; GEN BRKT 4HK1-TCS ENG(RJS) (A) M10X50 FLANGE	0-28151-050-0	01	1	1407-
129	SENSOR; GLOW PLUG,THERMO 4HK1-TCS ENG(RJS) MITSUBISHI	8-98023-883-0	01	1	1407-1503
129	SENSOR; GLOW PLUG,THERMO 4HK1-TCS ENG(RJS) NISHIDA	8-98260-257-0	01	1	1504-
293	CABLE; STARTER EARTH 6HK1-TCN ENG(82L) L=420	8-98131-856-0	01	1	1410-1504
293	CABLE; STARTER EARTH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) L=420	8-98131-856-0	01	1	1505-
293	CABLE; STARTER EARTH 4HK1-TCS ENG(RJS)	8-98176-541-0	01	1	1407-
460	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS) ID=16.2	1-09630-086-0	01	1	1407-
737	WASHER; PL 4HK1-TCS ENG(RJS) ID=9 OD=18 T=5	9-14149-173-0	01	1	1407-

292 293 375 56 2 23 26 26 17 18 16 19 7 6 379 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6HK1-TCN ENG(82L) 24V 5.0KW MITSUBISHI	8-98141-206-3	01	1	1410-1410
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6HK1-TCN ENG(82L) 24V 5.0KW MITSUBISHI	8-98261-669-0	01	1	1410-1504
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) 24V 5.0KW MITSUBISHI	8-98261-669-0	01	1	1505-
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) 24V 4.5KW HITACHI	8-98245-260-1	01	1	1407-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) 24V 60A NIKKO	8-98013-462-4	01	1	1410-1504
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) 24V 60A NIKKO	8-98013-462-5	01	1	1505-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) 24V 50A NIKKO	8-98013-461-4	01	1	1410-1504
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) 24V 50A NIKKO	8-98013-461-5	01	1	1505-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 4HK1-TCS ENG(RJS) GENERATOR 24V50A(K89) 24V 50A NIKKO	8-98013-455-4	01	1	1407-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2) 24V 60A NIKKO	8-98013-456-4	01	1	1407-
6	WASHER; PL,STARTER 6HK1-TCN ENG(82L) ID=15	0-91610-514-0	01	1	1410-1504
6	WASHER; PL,STARTER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ID=15	0-91610-514-0	01	1	1505-
7	NUT; STARTER 6HK1-TCN ENG(82L) M14 MAL	0-91110-514-0	02	1	1410-1504
7	NUT; STARTER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M14 MAL	0-91110-514-0	02	1	1505-
16	BOLT; GEN 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE	0-28050-610-0	02	1	1410-1504
16	BOLT; GEN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE	0-28050-610-0	02	1	1505-
16	BOLT; GEN 6HK1-TCN ENG(82L) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE	0-28050-610-0	01	1	1410-1504
16	BOLT; GEN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE	0-28050-610-0	01	1	1505-
16	BOLT; GEN (A) M14X135	1-09000-133-1	01	1	1407-
17	WASHER; PL,GEN (A) ID=14.2 MAL	0-91510-814-0	01	1	1407-
17	WASHER; PL,GEN (B) ID=15	0-91610-514-0	01	1	1407-
17	WASHER; PL,GEN (C) ID=12.5 OD=32	9-09160-712-0	01	1	1407-
18	WASHER; LK,GEN 6HK1-TCN ENG(82L) ID=14.2	0-91510-514-0	01	1	1410-1504
18	WASHER; LK,GEN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ID=14.2	0-91510-514-0	01	1	1505-
19	BRACKET; GEN 6HK1-TCN ENG(82L)	8-98082-615-1	01	1	1410-1504
19	BRACKET; GEN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)	8-98082-615-1	01	1	1505-
23	NUT; GEN (A) M14 MAL	0-91110-514-0	01	1	1407-
23	NUT; GEN (B) M12 FLANGE MAL	0-91180-112-0	01	1	1407-
26	BOLT; GEN BRKT 6HK1-TCN ENG(82L) (C) M10X40 FLANGE	0-28151-040-0	02	1	1410-1504
26	BOLT; GEN BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) M10X40 FLANGE	0-28151-040-0	02	1	1505-
26	BOLT; GEN BRKT 6HK1-TCN ENG(82L) (B) M10X80 FLANGE	0-28151-080-0	02	1	1410-1504
26	BOLT; GEN BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) M10X80 FLANGE	0-28151-080-0	02	1	1505-
26	BOLT; GEN BRKT 4HK1-TCS ENG(RJS) (A) M10X50 FLANGE	0-28151-050-0	01	1	1407-
56	SWITCH; OIL PRESSURE WARNING 6HK1-TCN ENG(82L)	1-82410-170-1	01	1	1410-1504
56	SWITCH; OIL PRESSURE WARNING 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)	1-82410-170-1	01	1	1505-
292	WASHER; LK,STARTER 6HK1-TCN ENG(82L) ID=14.2	0-91510-514-0	01	1	1410-1504
292	WASHER; LK,STARTER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ID=14.2	0-91510-514-0	01	1	1505-
293	CABLE; STARTER EARTH 6HK1-TCN ENG(82L) L=420	8-98131-856-0	01	1	1410-1504
293	CABLE; STARTER EARTH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) L=420	8-98131-856-0	01	1	1505-
293	CABLE; STARTER EARTH 4HK1-TCS ENG(RJS)	8-98176-541-0	01	1	1407-
375	BRACKET 6HK1-TCN ENG(82L)	8-98131-726-0	01	1	1410-1504
375	BRACKET 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)	8-98131-726-0	01	1	1505-
379	BOLT; BRKT 6HK1-TCN ENG(82L) M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	1410-1504
379	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	1505-

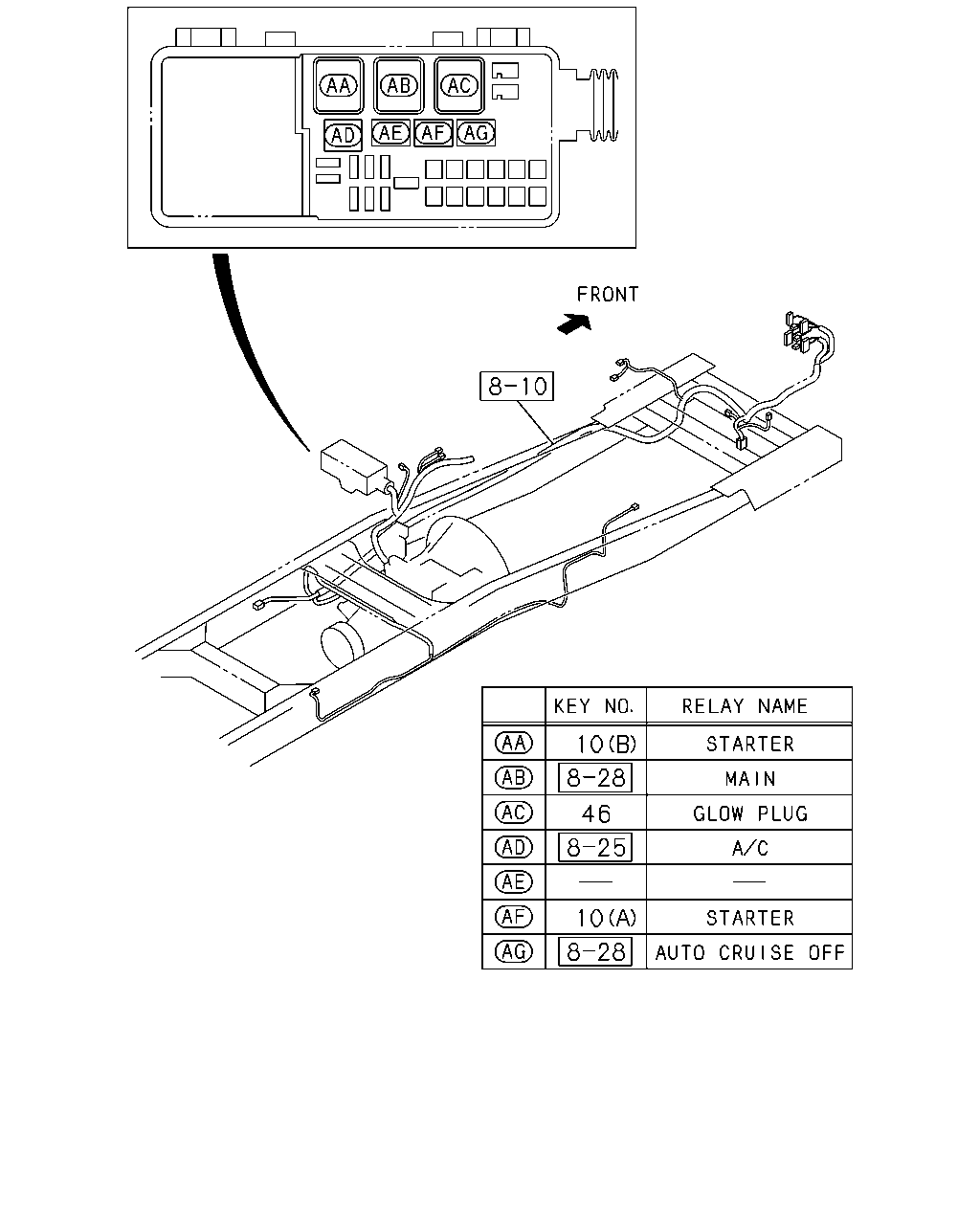

10 46 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	RELAY; STARTER 6HK1-TCN ENG(82L) (C) 24V NIKKO	8-98005-631-1	01	1	1410-1504
10	RELAY; STARTER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) 24V NIKKO	8-98005-631-1	01	1	1505-
10	RELAY; STARTER 4HK1-TCS ENG(RJS) (B) 24V 50A	8-97264-947-0	01	1	1407-
10	RELAY; STARTER (A) 24V 10A PANASONIC	8-98167-173-0	01	1	1407-
46	RELAY; GLOW PLUG 24V 50A	8-97173-947-0	01	1	1407-

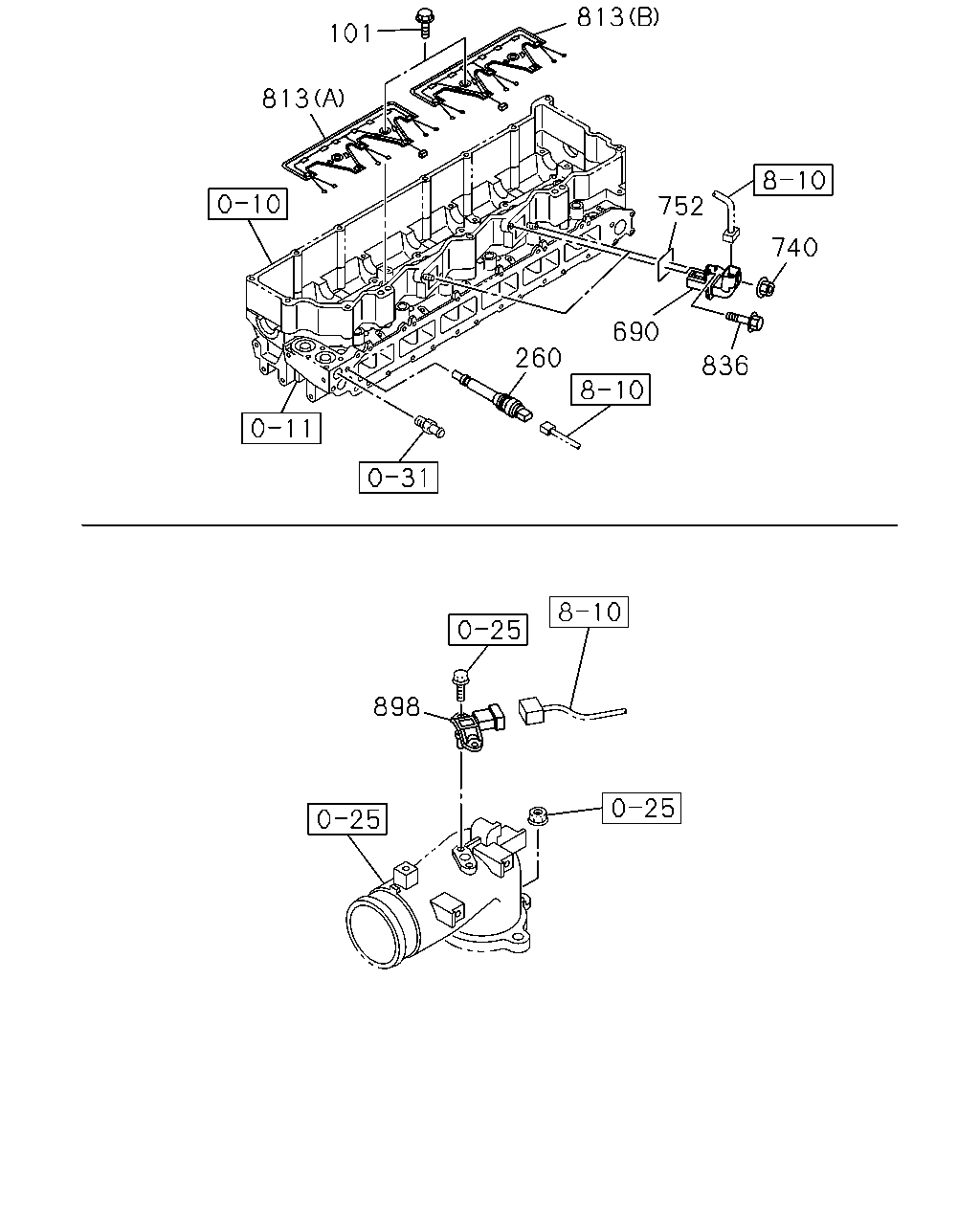

101 813 752 740 690 260 813 836 898

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
101	BOLT; HARNESS 6HK1-TCN ENG(82L) M8X40 FLANGE	0-28650-840-0	04	1	1410-1504
101	BOLT; HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M8X40 FLANGE	0-28650-840-0	04	1	1505-
260	SENSOR; WATER TEMP 6HK1-TCN ENG(82L) MITSUBISHI	8-98023-883-0	01	1	1410-1503
260	SENSOR; WATER TEMP 6HK1-TCN ENG(82L) NISHIDA	8-98260-257-0	01	1	1504-1504
260	SENSOR; WATER TEMP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) NISHIDA	8-98260-257-0	01	1	1505-
690	CONNECTOR 6HK1-TCN ENG(82L)	8-94390-858-1	02	1	1410-1504
690	CONNECTOR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)	8-94390-858-1	02	1	1505-
740	NUT 6HK1-TCN ENG(82L) M8 FLANGE MAL	0-91180-108-0	02	1	1410-1504
740	NUT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M8 FLANGE MAL	0-91180-108-0	02	1	1505-
752	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L)	8-94391-310-0	02	1	1410-1504
752	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)	8-94391-310-0	02	1	1505-
813	HARNESS; INJECTOR 6HK1-TCN ENG(82L) (A)	8-98204-717-0	01	1	1410-1504
813	HARNESS; INJECTOR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98204-717-0	01	1	1505-
813	HARNESS; INJECTOR 6HK1-TCN ENG(82L) (B)	8-98204-718-0	01	1	1410-1504
813	HARNESS; INJECTOR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98204-718-0	01	1	1505-
836	BOLT; CONNECTOR 6HK1-TCN ENG(82L) M8X12 FLANGE	0-28050-812-0	02	1	1410-1504
836	BOLT; CONNECTOR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M8X12 FLANGE	0-28050-812-0	02	1	1505-
898	SENSOR; BOOST 6HK1-TCN ENG(82L)	8-98009-418-0	01	1	1410-1504
898	SENSOR; BOOST 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)	8-98009-418-0	01	1	1505-

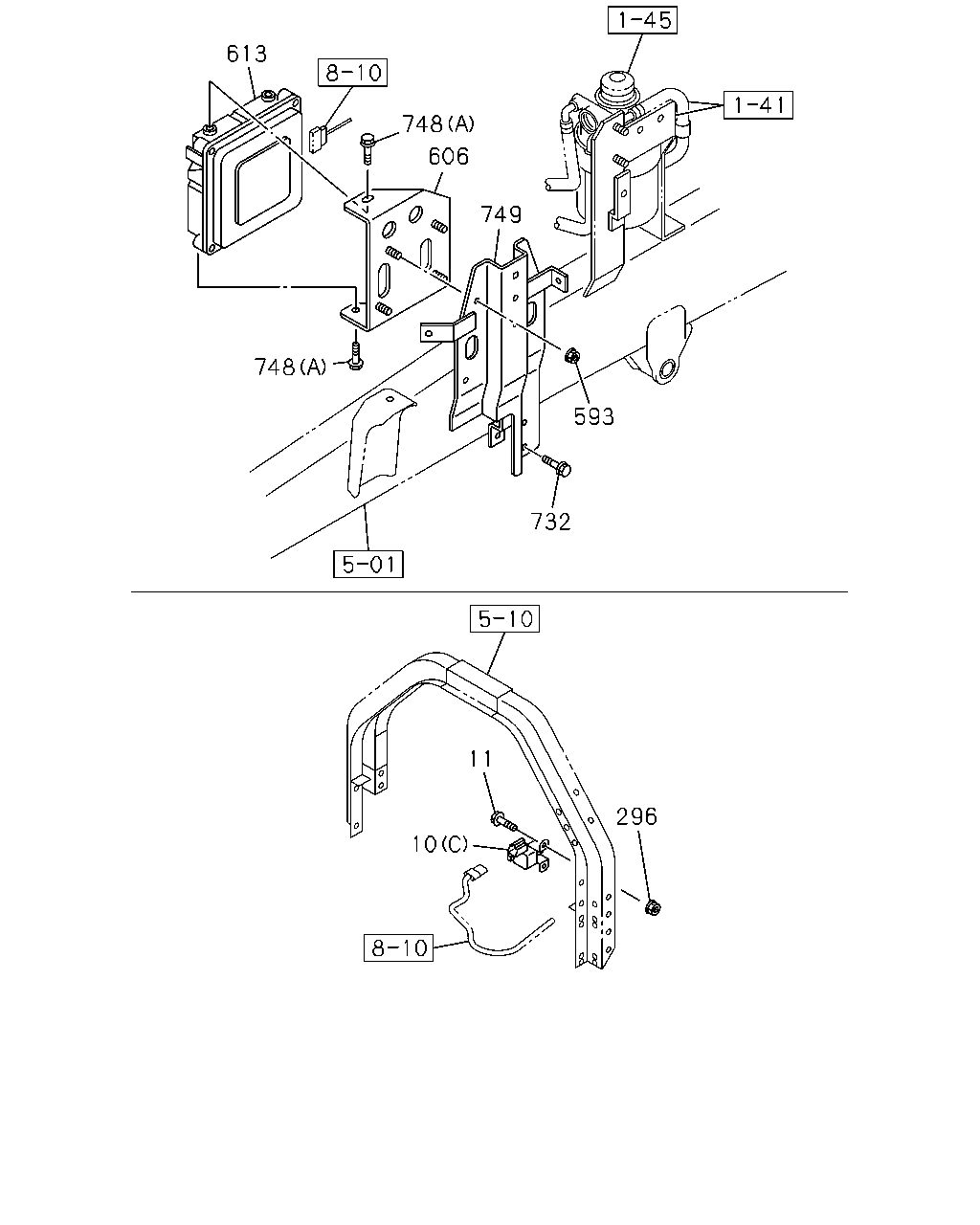

10 296 11 732 593 748 749 606 748 613

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	RELAY; STARTER 6HK1-TCN ENG(82L) (C) 24V NIKKO	8-98005-631-1	01	1	1410-1504
10	RELAY; STARTER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) 24V NIKKO	8-98005-631-1	01	1	1505-
10	RELAY; STARTER 4HK1-TCS ENG(RJS) (B) 24V 50A	8-97264-947-0	01	1	1407-
10	RELAY; STARTER (A) 24V 10A PANASONIC	8-98167-173-0	01	1	1407-
11	BOLT; RELAY STARTER 6HK1-TCN ENG(82L) M8X20 FLANGE MAL	0-28650-820-0	02	1	1410-1504
11	BOLT; RELAY STARTER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M8X20 FLANGE MAL	0-28650-820-0	02	1	1505-
296	NUT; RELAY,STARTER 6HK1-TCN ENG(82L) M8 FLANGE MAL	0-91180-108-0	02	1	1410-1504
296	NUT; RELAY,STARTER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M8 FLANGE MAL	0-91180-108-0	02	1	1505-
593	NUT; BRKT M6 FLANGE MAL	0-91180-106-0	04	1	1407-
606	BRACKET; CONT UNIT	1-53194-675-0	01	1	1407-
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) SPEED LIMITER 90KM<NMJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98285-820-0	01	1	1601-
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) SPEED LIMITER 100KM<NMU> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98289-391-0	01	1	1601-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) SPEED LIMITER 90KM<NMJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98289-390-0	01	1	1601-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) SPEED LIMITER 100KM<NMU> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98273-235-0	01	1	1601-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) ALLISON MD3060P A/T(Y4G)	8-98216-181-0	01	1	1508-1512
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) ALLISON MD3060P A/T(Y4G) EXC. SPEED LIMITER 90KM<NMJ>,SPEED LIMITER 100KM<NMU>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98216-181-0	01	1	1601-
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E)	8-98216-174-0	01	1	1505-1512
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEED LIMITER 90KM<NMJ>,SPEED LIMITER 100KM<NMU>	8-98216-174-0	01	1	1601-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) MZW6P M/T(RSZ)	8-98216-179-0	01	1	1410-1504
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E)	8-98216-179-0	01	1	1505-1512
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEED LIMITER 90KM<NMJ>,SPEED LIMITER 100KM<NMU>	8-98216-179-0	01	1	1601-
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS)	8-98218-522-1	01	1	1407-
732	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	03	1	1407-
748	BOLT; CONT UNIT (A) M6X12 FLANGE MAL	0-28050-612-0	03	1	1407-
748	BOLT; CONT UNIT (B) M6X16 FLANGE MAL	0-28650-616-0	02	1	1407-
749	STAY; CONT UNIT 6HK1-TCN ENG(82L)	1-53194-595-3	01	1	1410-1504
749	STAY; CONT UNIT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)	1-53194-595-3	01	1	1505-
749	STAY; CONT UNIT 4HK1-TCS ENG(RJS)	8-98206-457-0	01	1	1407-

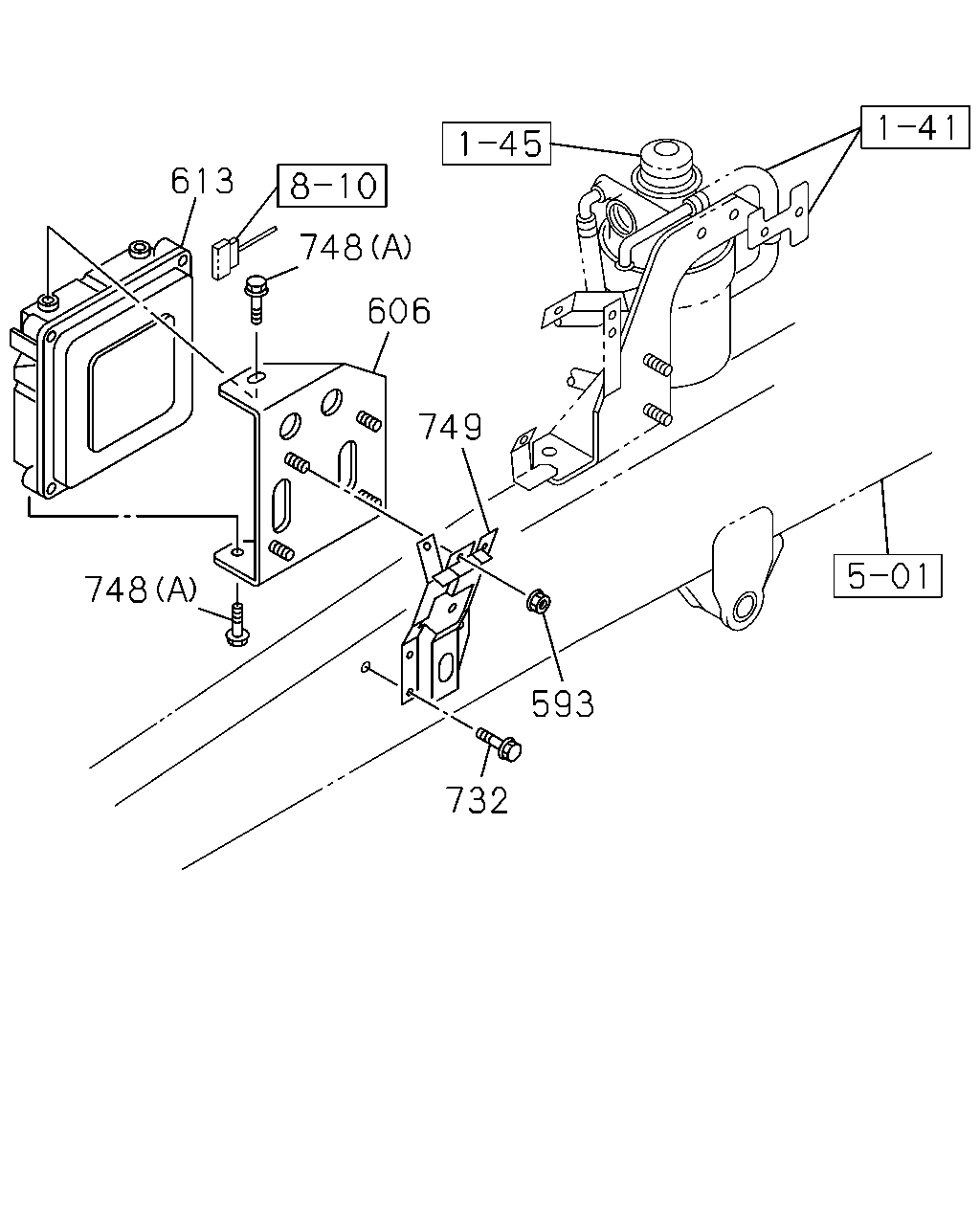

613 748 732 749 606 748 593

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
593	NUT; BRKT M6 FLANGE MAL	0-91180-106-0	04	1	1407-
606	BRACKET; CONT UNIT	1-53194-675-0	01	1	1407-
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) SPEED LIMITER 90KM<NMJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98285-820-0	01	1	1601-
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) SPEED LIMITER 100KM<NMU> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98289-391-0	01	1	1601-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) SPEED LIMITER 90KM<NMJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98289-390-0	01	1	1601-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) SPEED LIMITER 100KM<NMU> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98273-235-0	01	1	1601-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) ALLISON MD3060P A/T(Y4G)	8-98216-181-0	01	1	1508-1512
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) ALLISON MD3060P A/T(Y4G) EXC. SPEED LIMITER 90KM<NMJ>,SPEED LIMITER 100KM<NMU>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98216-181-0	01	1	1601-
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E)	8-98216-174-0	01	1	1505-1512
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEED LIMITER 90KM<NMJ>,SPEED LIMITER 100KM<NMU>	8-98216-174-0	01	1	1601-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) MZW6P M/T(RSZ)	8-98216-179-0	01	1	1410-1504
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E)	8-98216-179-0	01	1	1505-1512
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEED LIMITER 90KM<NMJ>,SPEED LIMITER 100KM<NMU>	8-98216-179-0	01	1	1601-
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS)	8-98218-522-1	01	1	1407-
732	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	03	1	1407-
748	BOLT; CONT UNIT (A) M6X12 FLANGE MAL	0-28050-612-0	03	1	1407-
748	BOLT; CONT UNIT (B) M6X16 FLANGE MAL	0-28650-616-0	02	1	1407-
749	STAY; CONT UNIT 6HK1-TCN ENG(82L)	1-53194-595-3	01	1	1410-1504
749	STAY; CONT UNIT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)	1-53194-595-3	01	1	1505-
749	STAY; CONT UNIT 4HK1-TCS ENG(RJS)	8-98206-457-0	01	1	1407-

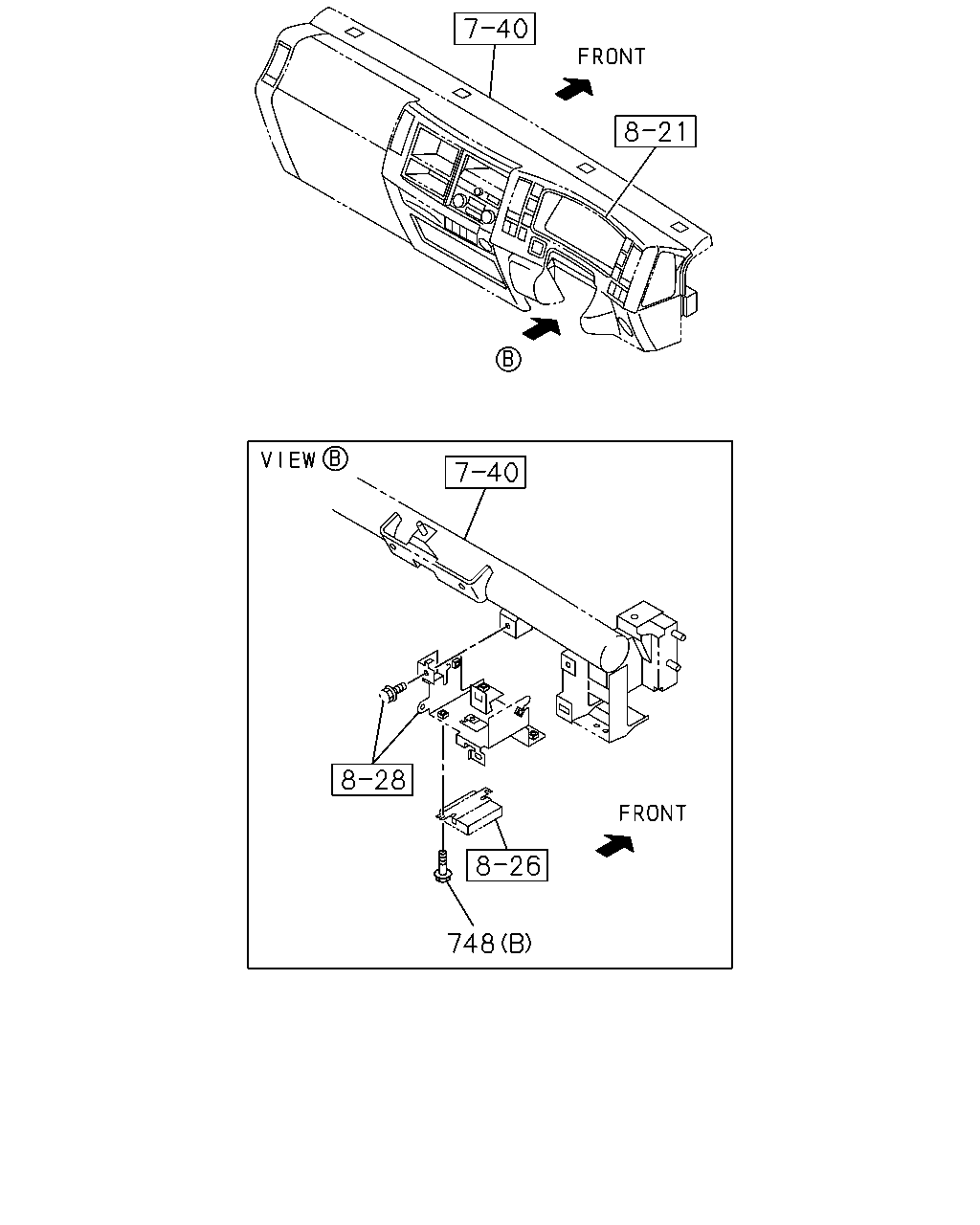

748

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	748	BOLT; CONT UNIT (A) M6X12 FLANGE MAL	0-28050-612-0	03	1	1407-
	748	BOLT; CONT UNIT (B) M6X16 FLANGE MAL	0-28650-616-0	02	1	1407-
