0-50 — OIL COOLER AND OIL FILTER (#144106) — 137 parça

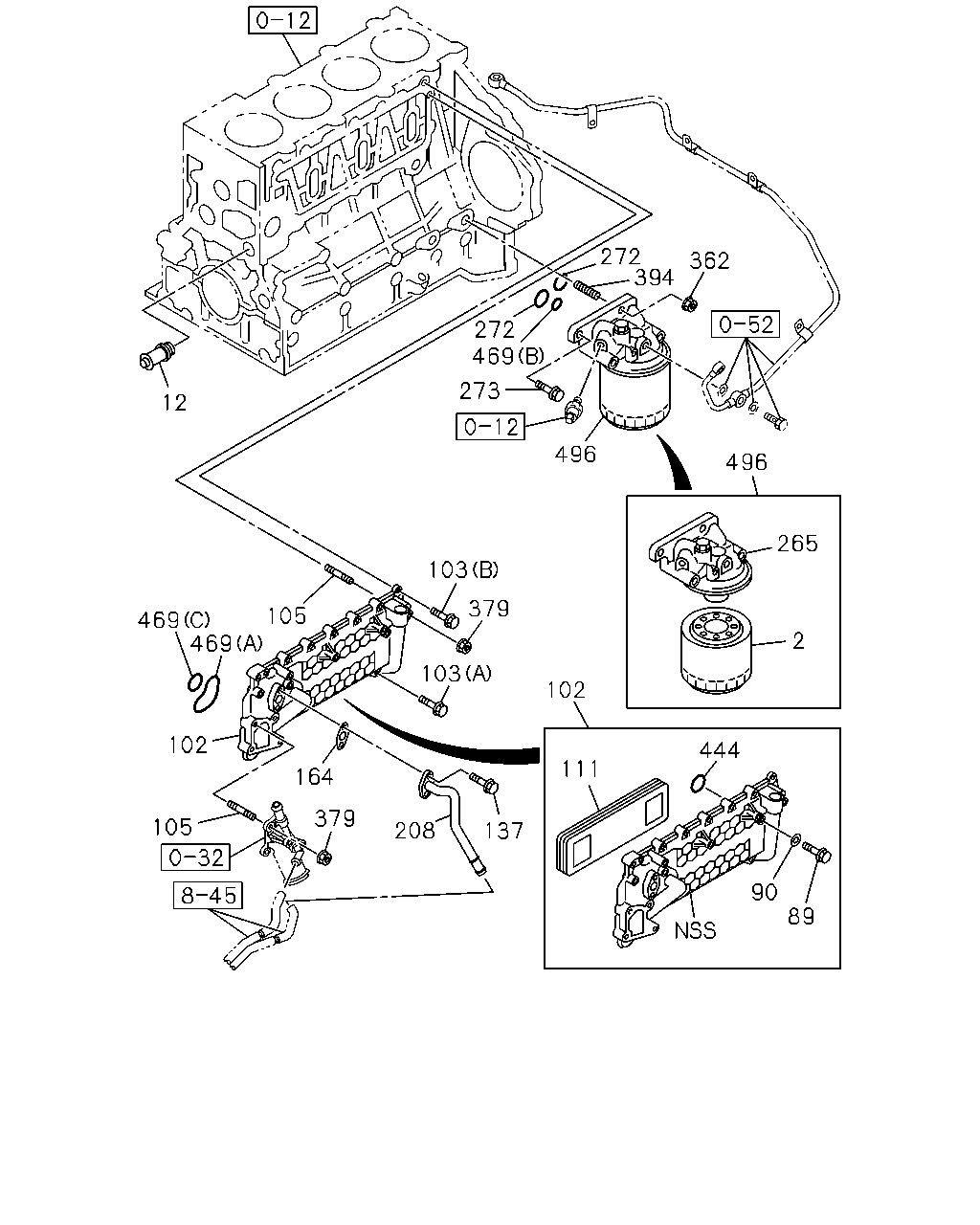

12 272 362 272 394 496 469 496 273 103 105 469 469 379 103 102 164 105 379 208 137 102 265 2 111 444 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	ELEMENT; OIL FILTER	8-97148-270-1	01	1	1407-1509	●
2	ELEMENT; OIL FILTER	8-98328-207-0	01	1	1510-	●
2	ELEMENT; OIL FILTER	8-94391-049-4	01	1	1410-1504		●
2	ELEMENT; OIL FILTER	8-94391-049-4	01	1	1505-		●	●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-117-0	01	1	1407-1509	●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-064-0	01	1	1410-1504		●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-064-0	01	1	1505-		●	●
12	VALVE ASM; BYPASS	8-97013-566-2	01	1	1407-	●
13	VALVE; RELIEF	8-98238-944-0	01	1	1410-1504		●
13	VALVE; RELIEF	8-98238-944-0	01	1	1505-		●	●
89	BOLT; ELEMENT TO CASE M8X16 FLANGE MAL	0-28050-816-0	04	1	1407-	●
90	GASKET; BOLT,OIL COOLER MAL	1-21729-043-0	04	1	1407-	●
102	COOLER ASM; OIL	8-98085-312-5	01	1	1407-	●
102	COOLER ASM; OIL	8-97600-156-1	01	1	1410-1504		●
102	COOLER ASM; OIL	8-97600-156-1	01	1	1505-		●	●
103	BOLT; OIL COOLER (A) M8X20 FLANGE MAL	0-28050-820-0	08	1	1407-	●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	08	1	1407-	●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	1410-1504		●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	1505-		●	●
103	BOLT; OIL COOLER (C) M8X30 FLANGE	0-28650-830-0	24	1	1410-1504		●
103	BOLT; OIL COOLER (C) M8X30 FLANGE	0-28650-830-0	24	1	1505-		●	●
105	STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	1407-	●
111	CORE; OIL COOLER	8-97334-100-2	01	1	1407-	●
137	BOLT M8X20 FLANGE MAL	0-28650-820-0	02	1	1407-	●
164	GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.6	8-97146-684-0	01	1	1407-	●
208	PIPE; WATER,HTR	8-97146-519-0	01	1	1407-	●
265	BODY; OIL FILTER	8-97096-677-4	01	1	1407-	●
265	BODY; OIL FILTER	8-98238-939-0	01	1	1410-1504		●
265	BODY; OIL FILTER	8-98238-939-0	01	1	1505-		●	●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	02	1	1407-	●
273	BOLT; OIL FILTER M10X30	0-59331-030-0	03	1	1407-	●
362	NUT; OIL FILTER M10 FLANGE MAL	0-91180-110-0	01	1	1407-	●
379	NUT; OIL COOLER M8 FLANGE MAL	0-91180-108-0	03	1	1407-	●
394	STUD; OIL FILTER M10X25 L=48.5	0-49241-025-0	01	1	1407-	●
444	GASKET; ELEMENT TO BODY	8-97384-130-0	02	1	1407-	●
444	GASKET; ELEMENT TO BODY	8-94396-810-0	02	1	1410-1504		●
444	GASKET; ELEMENT TO BODY	8-94396-810-0	02	1	1505-		●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	1407-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	1407-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	1407-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-94399-002-0	01	1	1410-1504		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-94399-002-0	01	1	1505-		●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=20	8-98045-449-0	01	1	1410-1504		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=20	8-98045-449-0	01	1	1505-		●	●
496	FILTER ASM; OIL	8-97148-268-4	01	1	1407-1509	●
496	FILTER ASM; OIL	8-98328-202-0	01	1	1510-	●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1410-1504		●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1505-		●	●

496 386 66 434 18 2 265 265 321 321 321

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	ELEMENT; OIL FILTER	8-97148-270-1	01	1	1407-1509	●
2	ELEMENT; OIL FILTER	8-98328-207-0	01	1	1510-	●
2	ELEMENT; OIL FILTER	8-94391-049-4	01	1	1410-1504		●
2	ELEMENT; OIL FILTER	8-94391-049-4	01	1	1505-		●	●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-117-0	01	1	1407-1509	●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-064-0	01	1	1410-1504		●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-064-0	01	1	1505-		●	●
13	VALVE; RELIEF	8-98238-944-0	01	1	1410-1504		●
13	VALVE; RELIEF	8-98238-944-0	01	1	1505-		●	●
66	SPRING; VLV	8-98238-943-0	01	1	1410-1504		●
66	SPRING; VLV	8-98238-943-0	01	1	1505-		●	●
265	BODY; OIL FILTER	8-97096-677-4	01	1	1407-	●
265	BODY; OIL FILTER	8-98238-939-0	01	1	1410-1504		●
265	BODY; OIL FILTER	8-98238-939-0	01	1	1505-		●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	1410-1504		●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	1505-		●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	1410-1504		●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	1505-		●	●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	1410-1504		●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	1505-		●	●
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1410-1504		●
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1505-		●	●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	1410-1504		●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	1505-		●	●
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1410-1504		●
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1505-		●	●
496	FILTER ASM; OIL	8-97148-268-4	01	1	1407-1509	●
496	FILTER ASM; OIL	8-98328-202-0	01	1	1510-	●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1410-1504		●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1505-		●	●

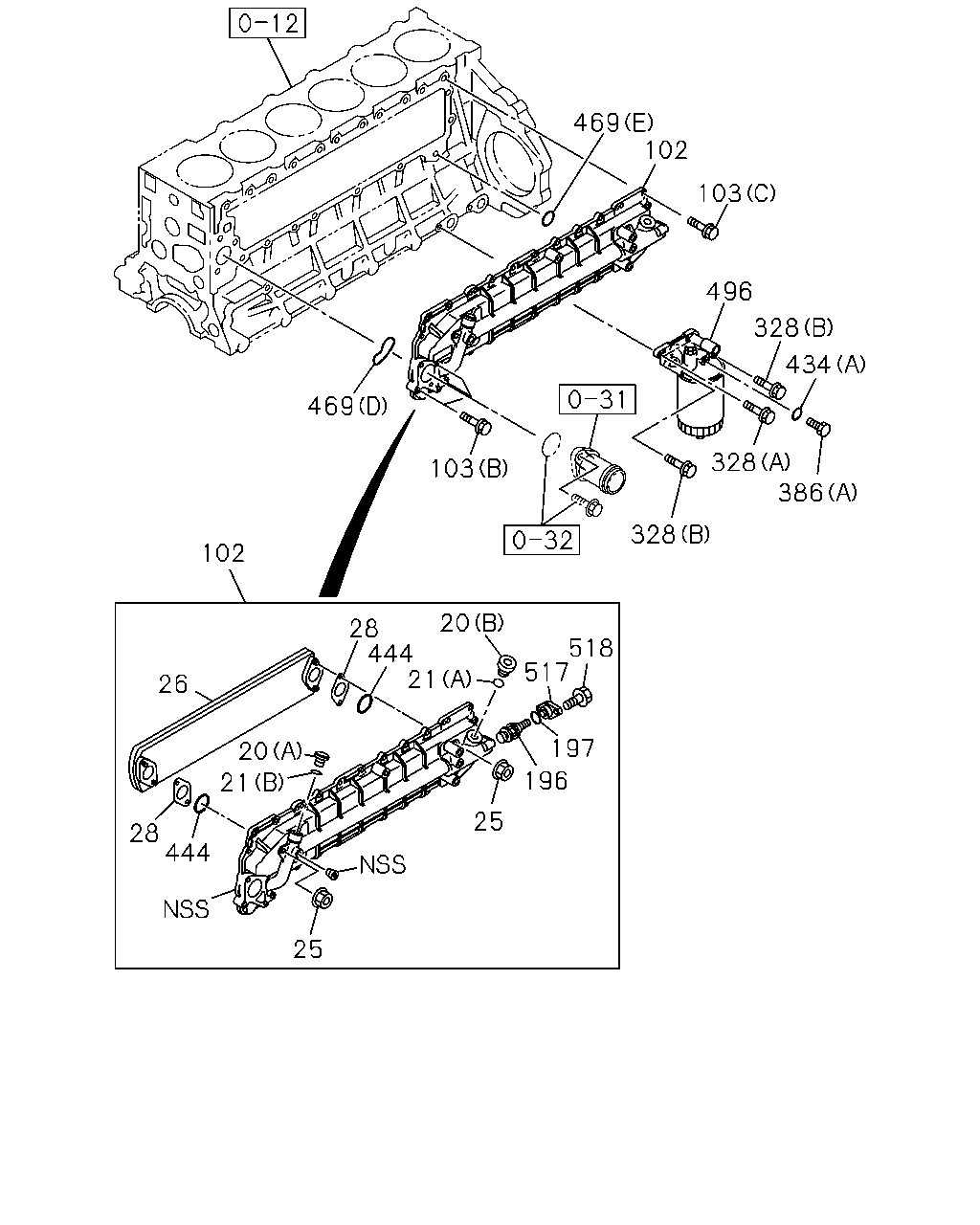

469 103 496 469 103 328 328 328 386 102 434 28 444 26 20 21 517 197 518 196 25 20 21 28 444 25 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
13	VALVE; RELIEF	8-98238-944-0	01	1	1410-1504		●
13	VALVE; RELIEF	8-98238-944-0	01	1	1505-		●	●
20	PLUG; COOLER BODY (A)	8-94393-604-0	01	1	1410-1504		●
20	PLUG; COOLER BODY (A)	8-94393-604-0	01	1	1505-		●	●
20	PLUG; COOLER BODY (B)	8-94396-753-0	01	1	1410-1504		●
20	PLUG; COOLER BODY (B)	8-94396-753-0	01	1	1505-		●	●
21	GASKET; PLUG (B)	1-13219-253-0	01	1	1410-1504		●
21	GASKET; PLUG (B)	1-13219-253-0	01	1	1505-		●	●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	1410-1504		●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	1505-		●	●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	1410-1504		●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	1505-		●	●
26	CORE ASM; OIL COOLER	8-94391-738-1	01	1	1410-1504		●
26	CORE ASM; OIL COOLER	8-94391-738-1	01	1	1505-		●	●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	1410-1504		●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	1505-		●	●
102	COOLER ASM; OIL	8-98085-312-5	01	1	1407-	●
102	COOLER ASM; OIL	8-97600-156-1	01	1	1410-1504		●
102	COOLER ASM; OIL	8-97600-156-1	01	1	1505-		●	●
103	BOLT; OIL COOLER (A) M8X20 FLANGE MAL	0-28050-820-0	08	1	1407-	●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	08	1	1407-	●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	1410-1504		●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	1505-		●	●
103	BOLT; OIL COOLER (C) M8X30 FLANGE	0-28650-830-0	24	1	1410-1504		●
103	BOLT; OIL COOLER (C) M8X30 FLANGE	0-28650-830-0	24	1	1505-		●	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	1410-1504		●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	1505-		●	●
197	GASKET; THERMOSTAT ID=25.7	8-94399-279-0	01	1	1410-1504		●
197	GASKET; THERMOSTAT ID=25.7	8-94399-279-0	01	1	1505-		●	●
328	BOLT; OIL FILTER (B) M10X30 FLANGE	0-28151-030-0	02	1	1410-1504		●
328	BOLT; OIL FILTER (B) M10X30 FLANGE	0-28151-030-0	02	1	1505-		●	●
328	BOLT; OIL FILTER (A) M10X90 FLANGE	0-28151-090-0	02	1	1410-1504		●
328	BOLT; OIL FILTER (A) M10X90 FLANGE	0-28151-090-0	02	1	1505-		●	●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	1410-1504		●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	1505-		●	●
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1410-1504		●
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1505-		●	●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	1410-1504		●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	1505-		●	●
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1410-1504		●
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1505-		●	●
444	GASKET; ELEMENT TO BODY	8-97384-130-0	02	1	1407-	●
444	GASKET; ELEMENT TO BODY	8-94396-810-0	02	1	1410-1504		●
444	GASKET; ELEMENT TO BODY	8-94396-810-0	02	1	1505-		●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	1407-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	1407-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	1407-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-94399-002-0	01	1	1410-1504		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-94399-002-0	01	1	1505-		●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=20	8-98045-449-0	01	1	1410-1504		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=20	8-98045-449-0	01	1	1505-		●	●
496	FILTER ASM; OIL	8-97148-268-4	01	1	1407-1509	●
496	FILTER ASM; OIL	8-98328-202-0	01	1	1510-	●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1410-1504		●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1505-		●	●
517	PLUG; THERMOSTAT,OIL COOLER	8-94391-740-0	01	1	1410-1504		●
517	PLUG; THERMOSTAT,OIL COOLER	8-94391-740-0	01	1	1505-		●	●
518	BOLT; PLUG,THERMOSTAT M8X16 FLANGE MAL	0-28050-816-0	02	1	1410-1504		●
518	BOLT; PLUG,THERMOSTAT M8X16 FLANGE MAL	0-28050-816-0	02	1	1505-		●	●
