0-40 — FUEL INJECTION SYSTEM (#144104) — 387 parça

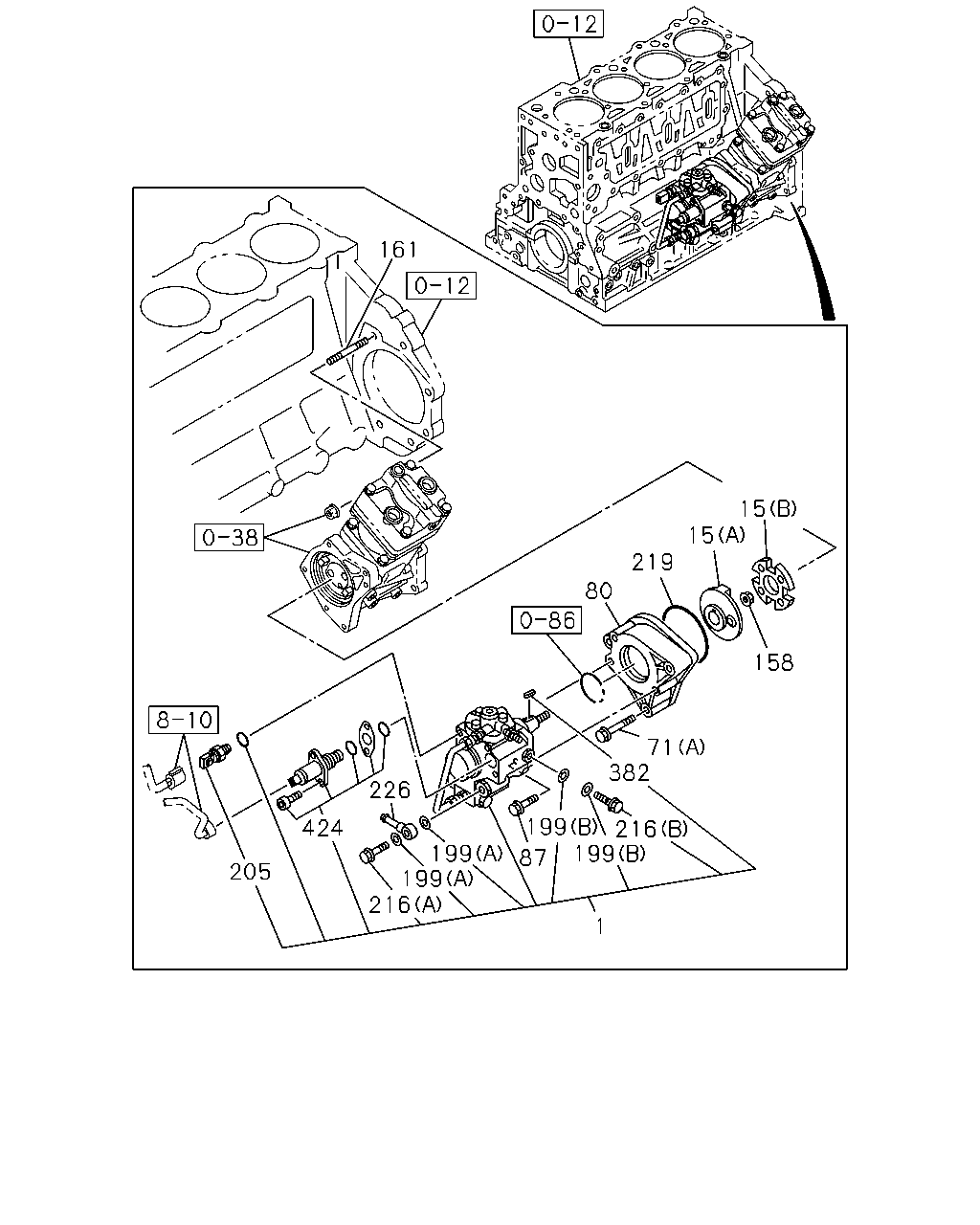

çizim 431281
161 219 15 80 71 158 199 216 199 199 226 424 216 205 87 15 199 382 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; INJ 8-97386-557-5 01 1 1407- ●
1 PUMP ASM; INJ 8-97605-946-7 01 1 1410-1504 ●
1 PUMP ASM; INJ 8-97605-946-7 01 1 1505- ● ●
15 COUPLING ASM; INJ PUMP
(A) 		8-97306-054-0 01 1 1407- ●
15 COUPLING ASM; INJ PUMP
(B) SEE FIG-NO 0-87 FOR COMPONENT. 		8-97306-059-1 01 1 1407- ●
71 BOLT; BRKT
(D) M8X16 FLANGE MAL 		0-28050-816-0 01 1 1407- ●
71 BOLT; BRKT
(B) M8X40 FLANGE 		0-28050-840-0 01 1 1407- ●
71 BOLT; BRKT
(C) M8X50 FLANGE 		0-28050-850-0 01 1 1407- ●
71 BOLT; BRKT
(A) M10X60 FLANGE 		0-28051-060-0 03 1 1407- ●
71 BOLT; BRKT
(G) M8X16 FLANGE MAL 		0-28050-816-0 02 1 1410-1504 ●
71 BOLT; BRKT
(G) M8X16 FLANGE MAL 		0-28050-816-0 02 1 1505- ● ●
71 BOLT; BRKT
(E) M10X16 FLANGE 		0-28151-016-0 01 1 1410-1504 ●
71 BOLT; BRKT
(E) M10X16 FLANGE 		0-28151-016-0 01 1 1505- ● ●
71 BOLT; BRKT
(F) M12X100 FLANGE 		0-28151-200-0 01 1 1410-1504 ●
71 BOLT; BRKT
(F) M12X100 FLANGE 		0-28151-200-0 01 1 1505- ● ●
80 BRACKET; PUMP 8-98061-699-0 01 1 1407- ●
87 BOLT; PUMP
M8X30 FLANGE 		0-28650-830-0 03 1 1407- ●
158 NUT; INJ PUMP
M14 FLANGE 		0-91180-114-0 01 1 1407- ●
161 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97066-386-1 02 1 1407- ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1407-1409 ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1410-1504 ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1505- ● ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1407-1409 ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1410-1504 ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1505- ● ● ●
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1407-1409 ●
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1410-1504 ● ●
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1505- ● ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1407-1409 ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1410-1504 ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1505- ● ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1407-1409 ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1410-1504 ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1505- ● ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1407-1409 ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1410-1504 ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1505- ● ● ●
219 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=94.6 		1-09623-593-0 01 1 1407- ●
226 PIPE; FUEL 8-98126-332-0 01 1 1407- ●
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1407-1409 ●
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1410-1504 ● ●
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1505- ● ● ●
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-449-1 01 1 1410-1504 ●
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-449-1 01 1 1505- ● ●
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 1407- ●

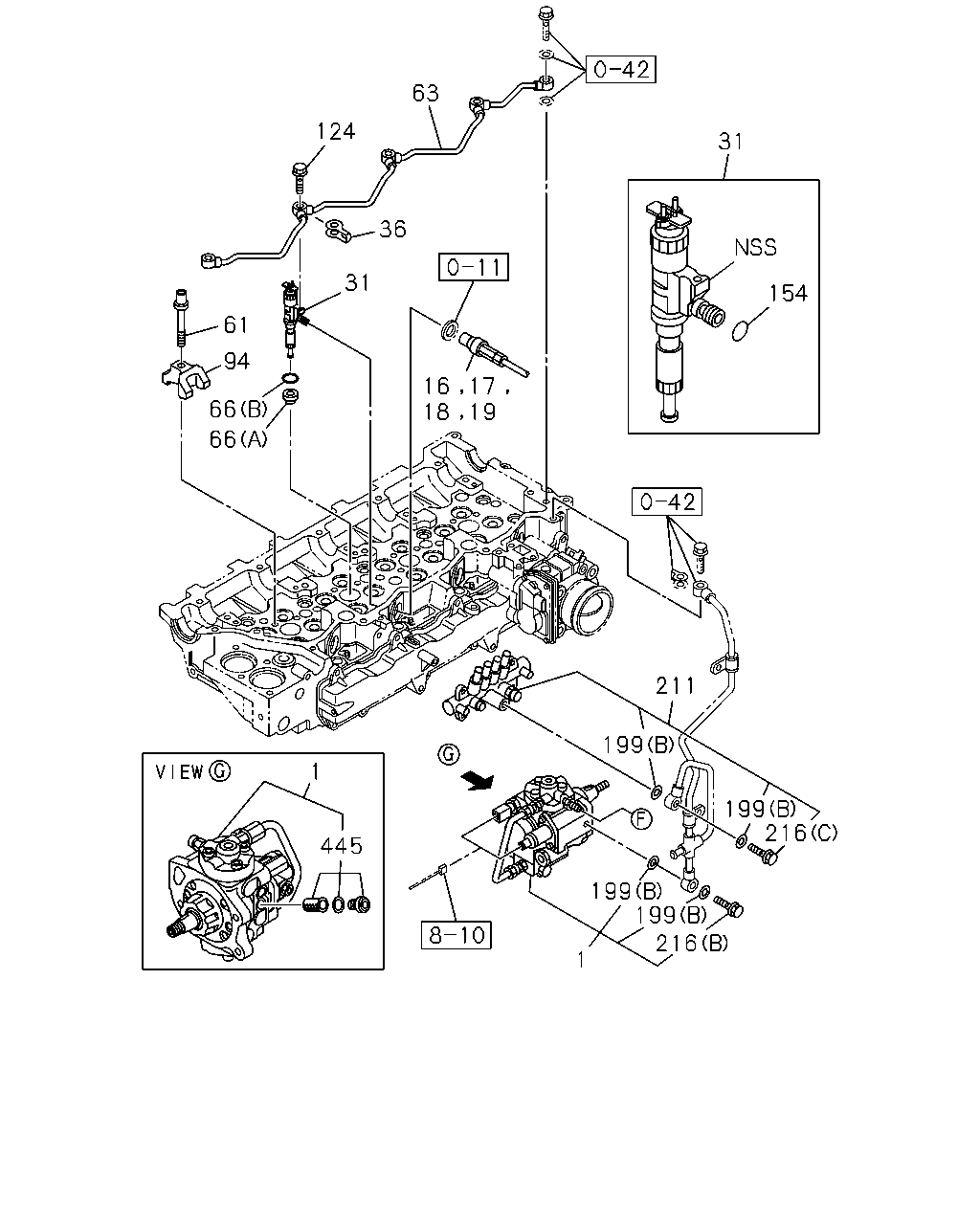

çizim 431298
63 124 36 31 61 94 66 66 16 17 18 19 31 154 211 199 199 216 199 199 216 1 445 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; INJ 8-97386-557-5 01 1 1407- ●
1 PUMP ASM; INJ 8-97605-946-7 01 1 1410-1504 ●
1 PUMP ASM; INJ 8-97605-946-7 01 1 1505- ● ●
16 PIPE; INJ NO.1 8-98271-202-0 01 1 1407-1501 ●
16 PIPE; INJ NO.1 8-98298-606-0 01 1 1502- ●
16 PIPE; INJ NO.1 8-98271-207-0 01 1 1410-1501 ●
16 PIPE; INJ NO.1 8-98298-611-0 01 1 1502-1504 ●
16 PIPE; INJ NO.1 8-98298-611-0 01 1 1505- ● ●
17 PIPE; INJ NO.2 8-98271-203-0 01 1 1407-1501 ●
17 PIPE; INJ NO.2 8-98298-607-0 01 1 1502- ●
17 PIPE; INJ NO.2 8-98271-208-0 01 1 1410-1501 ●
17 PIPE; INJ NO.2 8-98298-612-0 01 1 1502-1504 ●
17 PIPE; INJ NO.2 8-98298-612-0 01 1 1505- ● ●
18 PIPE; INJ NO.3 8-98271-204-0 01 1 1407-1501 ●
18 PIPE; INJ NO.3 8-98298-608-0 01 1 1502- ●
18 PIPE; INJ NO.3 8-98271-209-0 01 1 1410-1501 ●
18 PIPE; INJ NO.3 8-98298-613-0 01 1 1502-1504 ●
18 PIPE; INJ NO.3 8-98298-613-0 01 1 1505- ● ●
19 PIPE; INJ NO.4 8-98271-230-0 01 1 1407-1501 ●
19 PIPE; INJ NO.4 8-98298-609-0 01 1 1502- ●
19 PIPE; INJ NO.4 8-98271-210-0 01 1 1410-1501 ●
19 PIPE; INJ NO.4 8-98298-614-0 01 1 1502-1504 ●
19 PIPE; INJ NO.4 8-98298-614-0 01 1 1505- ● ●
31 NOZZLE ASM; INJ 8-98219-181-0 04 1 1407- ●
31 NOZZLE ASM; INJ 8-97609-789-6 06 1 1410-1504 ●
31 NOZZLE ASM; INJ 8-97609-789-6 06 1 1505- ● ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0 		8-98065-992-0 04 1 1407- ●
61 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 04 1 1407- ●
63 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 1407- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-98079-248-0 04 1 1407- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=23.3 		8-94173-412-0 04 1 1407- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-98079-248-0 06 1 1410-1504 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-98079-248-0 06 1 1505- ● ●
94 BRACKET; INJ NOZZLE 8-98028-999-1 04 1 1407- ●
94 BRACKET; INJ NOZZLE 8-98028-999-1 06 1 1410-1504 ●
94 BRACKET; INJ NOZZLE 8-98028-999-1 06 1 1505- ● ●
124 BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 04 1 1407- ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 04 1 1407- ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 06 1 1410-1504 ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 06 1 1505- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1407-1409 ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1410-1504 ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1505- ● ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1407-1409 ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1410-1504 ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1505- ● ● ●
211 RAIL ASM; COMMON 8-98011-888-2 01 1 1407- ●
211 RAIL ASM; COMMON 8-97609-980-2 01 1 1410-1504 ●
211 RAIL ASM; COMMON 8-97609-980-2 01 1 1505- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1407-1409 ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1410-1504 ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1505- ● ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1407-1409 ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1410-1504 ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1505- ● ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1407-1409 ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1410-1504 ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1505- ● ● ●
445 SCREW; FILTER,INLET 8-98204-986-0 01 1 1407- ●

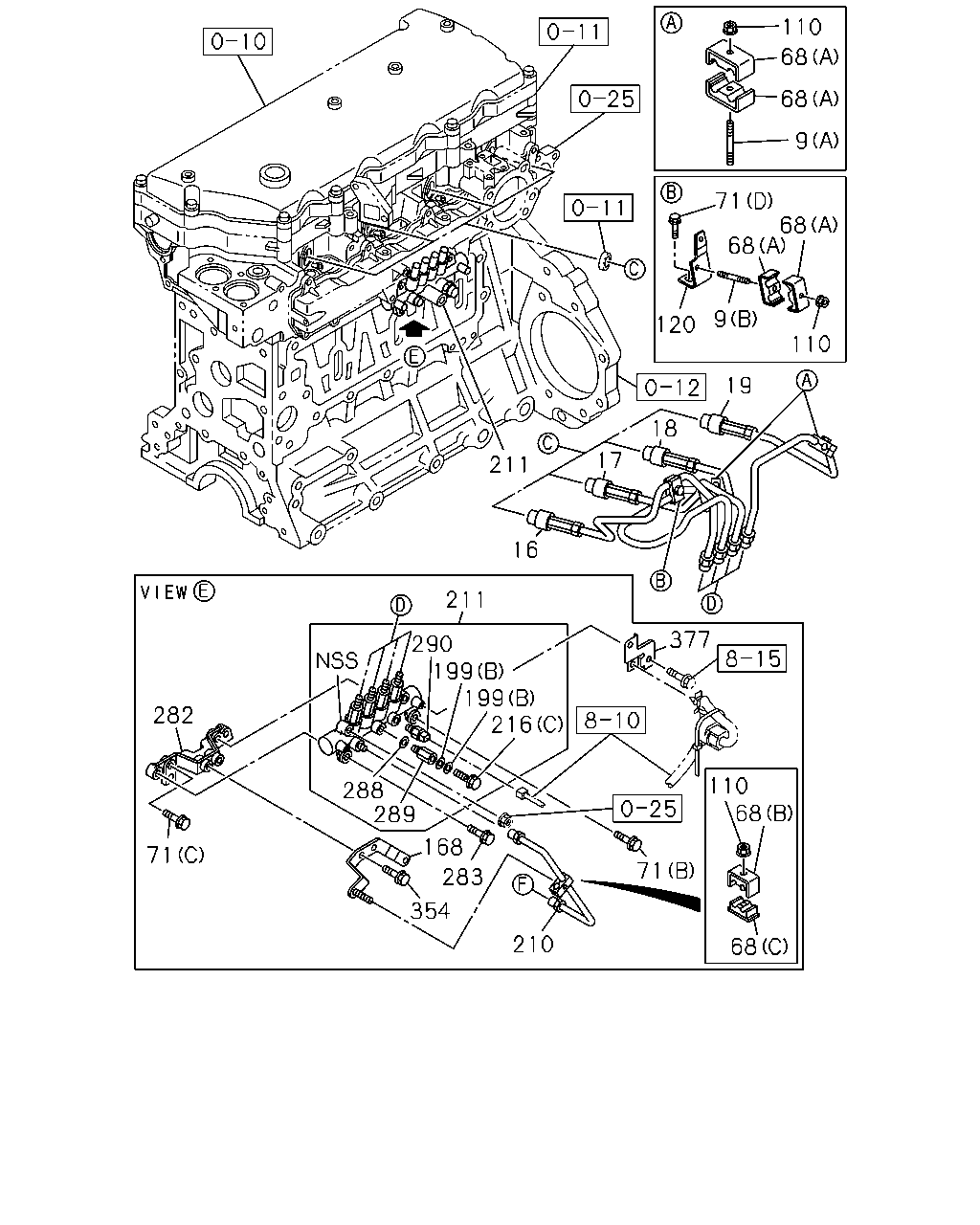

çizim 432421
110 68 68 71 68 68 120 9 211 17 19 110 9 18 16 377 199 290 199 216 68 68 210 283 354 168 289 288 71 282 211 110 71
BalonParca AdiParca NoAdetTipApplied Date A B C
9 STUD; CLIP
(A) M6X30 L=38 		0-41010-630-0 02 1 1407- ●
9 STUD; CLIP
(B) M6X35 L=43 		8-97203-278-0 01 1 1407- ●
16 PIPE; INJ NO.1 8-98271-202-0 01 1 1407-1501 ●
16 PIPE; INJ NO.1 8-98298-606-0 01 1 1502- ●
16 PIPE; INJ NO.1 8-98271-207-0 01 1 1410-1501 ●
16 PIPE; INJ NO.1 8-98298-611-0 01 1 1502-1504 ●
16 PIPE; INJ NO.1 8-98298-611-0 01 1 1505- ● ●
17 PIPE; INJ NO.2 8-98271-203-0 01 1 1407-1501 ●
17 PIPE; INJ NO.2 8-98298-607-0 01 1 1502- ●
17 PIPE; INJ NO.2 8-98271-208-0 01 1 1410-1501 ●
17 PIPE; INJ NO.2 8-98298-612-0 01 1 1502-1504 ●
17 PIPE; INJ NO.2 8-98298-612-0 01 1 1505- ● ●
18 PIPE; INJ NO.3 8-98271-204-0 01 1 1407-1501 ●
18 PIPE; INJ NO.3 8-98298-608-0 01 1 1502- ●
18 PIPE; INJ NO.3 8-98271-209-0 01 1 1410-1501 ●
18 PIPE; INJ NO.3 8-98298-613-0 01 1 1502-1504 ●
18 PIPE; INJ NO.3 8-98298-613-0 01 1 1505- ● ●
19 PIPE; INJ NO.4 8-98271-230-0 01 1 1407-1501 ●
19 PIPE; INJ NO.4 8-98298-609-0 01 1 1502- ●
19 PIPE; INJ NO.4 8-98271-210-0 01 1 1410-1501 ●
19 PIPE; INJ NO.4 8-98298-614-0 01 1 1502-1504 ●
19 PIPE; INJ NO.4 8-98298-614-0 01 1 1505- ● ●
68 CLIP; INJ PIPE
(A) ID=11 & 11 L=19 		8-98148-996-2 06 1 1407- ●
68 CLIP; INJ PIPE
(B) ID=7 & 7 L=22 		8-97330-118-3 01 1 1407- ●
68 CLIP; INJ PIPE
(C) ID=7 & 7 L=22 		8-97330-119-3 01 1 1407- ●
68 CLIP; INJ PIPE
(A) ID=11 & 11 L=19 		8-98148-996-2 14 1 1410-1504 ●
68 CLIP; INJ PIPE
(A) ID=11 & 11 L=19 		8-98148-996-2 14 1 1505- ● ●
71 BOLT; BRKT
(D) M8X16 FLANGE MAL 		0-28050-816-0 01 1 1407- ●
71 BOLT; BRKT
(B) M8X40 FLANGE 		0-28050-840-0 01 1 1407- ●
71 BOLT; BRKT
(C) M8X50 FLANGE 		0-28050-850-0 01 1 1407- ●
71 BOLT; BRKT
(A) M10X60 FLANGE 		0-28051-060-0 03 1 1407- ●
71 BOLT; BRKT
(G) M8X16 FLANGE MAL 		0-28050-816-0 02 1 1410-1504 ●
71 BOLT; BRKT
(G) M8X16 FLANGE MAL 		0-28050-816-0 02 1 1505- ● ●
71 BOLT; BRKT
(E) M10X16 FLANGE 		0-28151-016-0 01 1 1410-1504 ●
71 BOLT; BRKT
(E) M10X16 FLANGE 		0-28151-016-0 01 1 1505- ● ●
71 BOLT; BRKT
(F) M12X100 FLANGE 		0-28151-200-0 01 1 1410-1504 ●
71 BOLT; BRKT
(F) M12X100 FLANGE 		0-28151-200-0 01 1 1505- ● ●
110 NUT; CLIP
M6 FLANGE MAL 		0-91180-106-0 04 1 1407- ●
110 NUT; CLIP
M6 FLANGE MAL 		0-91180-106-0 05 1 1410-1504 ●
110 NUT; CLIP
M6 FLANGE MAL 		0-91180-106-0 05 1 1505- ● ●
120 BRACKET; INJ PIPE 8-98001-041-0 01 1 1407- ●
168 BRACKET; FUEL PIPE 8-98072-403-0 01 1 1407- ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1407-1409 ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1410-1504 ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1505- ● ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1407-1409 ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1410-1504 ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1505- ● ● ●
210 PIPE; INJ,C/R 8-97376-779-0 01 1 1407- ●
210 PIPE; INJ,C/R 8-98059-805-0 01 1 1410-1504 ●
210 PIPE; INJ,C/R 8-98059-805-0 01 1 1505- ● ●
211 RAIL ASM; COMMON 8-98011-888-2 01 1 1407- ●
211 RAIL ASM; COMMON 8-97609-980-2 01 1 1410-1504 ●
211 RAIL ASM; COMMON 8-97609-980-2 01 1 1505- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1407-1409 ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1410-1504 ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1505- ● ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1407-1409 ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1410-1504 ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1505- ● ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1407-1409 ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1410-1504 ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1505- ● ● ●
282 BRACKET; COMMON RAIL 8-98157-115-0 01 1 1407- ●
283 BOLT; COMMON RAIL
M8X25 FLANGE 		0-28050-825-0 01 1 1407- ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1407-1409 ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1410-1504 ● ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1505- ● ● ●
289 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1407-1409 ●
289 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1410-1504 ● ●
289 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1505- ● ● ●
290 SENSOR; PRESS 8-98119-790-0 01 1 1407-1409 ●
290 SENSOR; PRESS 8-98119-790-0 01 1 1410-1504 ● ●
290 SENSOR; PRESS 8-98119-790-0 01 1 1505- ● ● ●
354 BOLT; FUEL PIPE
M8X16 FLANGE MAL 		0-28050-816-0 02 1 1407- ●
377 BRACKET; HARNESS 8-97379-783-1 01 1 1407- ●

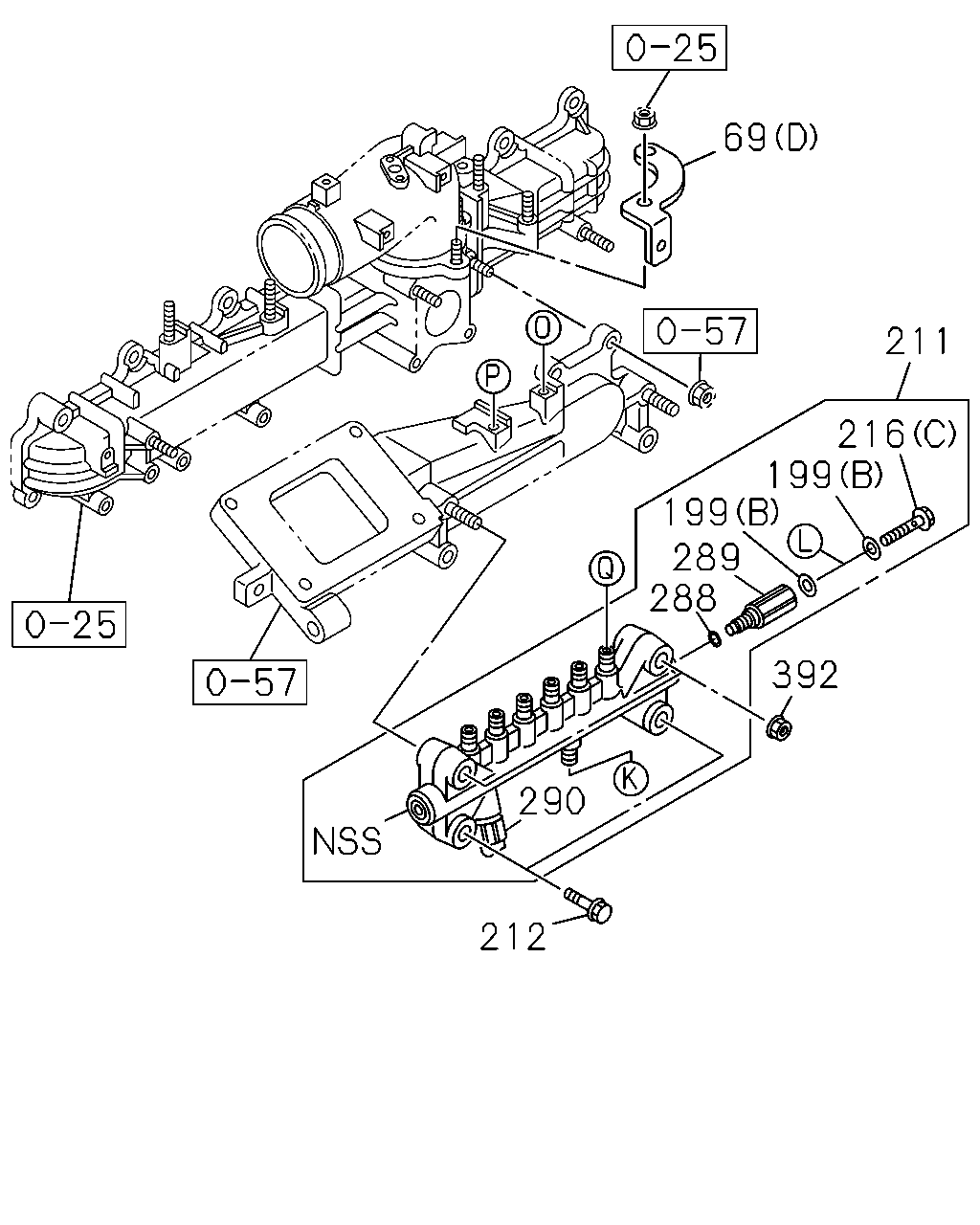

çizim 458269
69 211 216 199 199 289 288 392 290 212
BalonParca AdiParca NoAdetTipApplied Date A B C
69 BRACKET; INJ PIPE CLIP
(B) 		8-98038-940-0 01 1 1410-1504 ●
69 BRACKET; INJ PIPE CLIP
(B) 		8-98038-940-0 01 1 1505- ● ●
69 BRACKET; INJ PIPE CLIP
(D) 		8-98038-941-0 01 1 1410-1504 ●
69 BRACKET; INJ PIPE CLIP
(D) 		8-98038-941-0 01 1 1505- ● ●
69 BRACKET; INJ PIPE CLIP
(C) 		8-98049-015-0 01 1 1410-1504 ●
69 BRACKET; INJ PIPE CLIP
(C) 		8-98049-015-0 01 1 1505- ● ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-98059-807-0 01 1 1410-1504 ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-98059-807-0 01 1 1505- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1407-1409 ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1410-1504 ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1505- ● ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1407-1409 ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1410-1504 ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1505- ● ● ●
211 RAIL ASM; COMMON 8-98011-888-2 01 1 1407- ●
211 RAIL ASM; COMMON 8-97609-980-2 01 1 1410-1504 ●
211 RAIL ASM; COMMON 8-97609-980-2 01 1 1505- ● ●
212 BOLT; RAIL ASM
M10X50 FLANGE 		8-97372-243-0 02 1 1410-1504 ●
212 BOLT; RAIL ASM
M10X50 FLANGE 		8-97372-243-0 02 1 1505- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1407-1409 ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1410-1504 ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1505- ● ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1407-1409 ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1410-1504 ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1505- ● ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1407-1409 ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1410-1504 ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1505- ● ● ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1407-1409 ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1410-1504 ● ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1505- ● ● ●
289 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1407-1409 ●
289 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1410-1504 ● ●
289 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1505- ● ● ●
290 SENSOR; PRESS 8-98119-790-0 01 1 1407-1409 ●
290 SENSOR; PRESS 8-98119-790-0 01 1 1410-1504 ● ●
290 SENSOR; PRESS 8-98119-790-0 01 1 1505- ● ● ●
392 NUT; RAIL ASM
M10 FLANGE MAL 		0-91180-110-0 02 1 1410-1504 ●
392 NUT; RAIL ASM
M10 FLANGE MAL 		0-91180-110-0 02 1 1505- ● ●

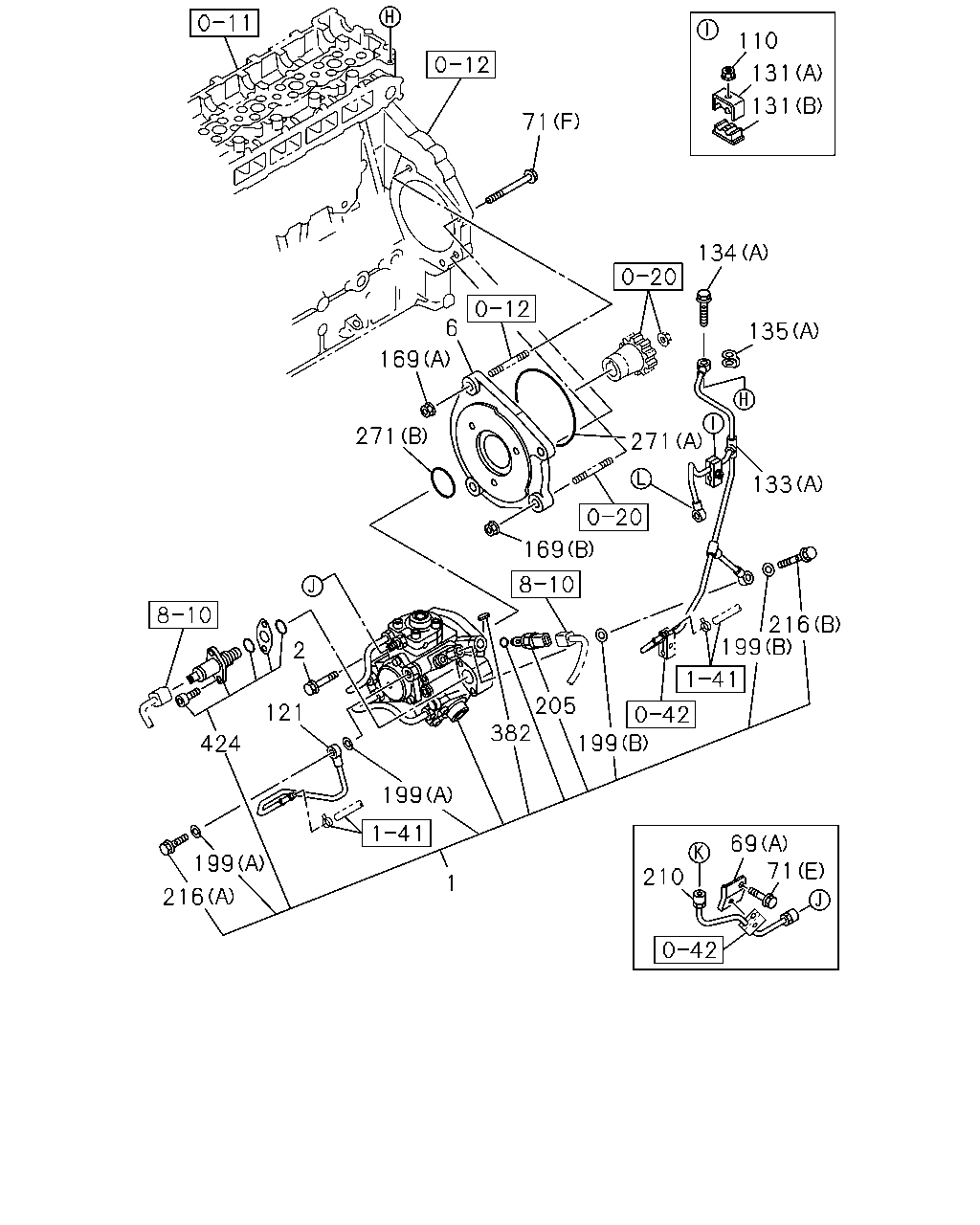

çizim 458306
71 110 131 131 134 169 271 271 135 133 216 199 169 205 382 199 69 210 71 199 121 2 424 199 216 6 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; INJ 8-97386-557-5 01 1 1407- ●
1 PUMP ASM; INJ 8-97605-946-7 01 1 1410-1504 ●
1 PUMP ASM; INJ 8-97605-946-7 01 1 1505- ● ●
2 BOLT; INJ PUMP
M8X28 		8-94399-256-0 03 1 1410-1504 ●
2 BOLT; INJ PUMP
M8X28 		8-94399-256-0 03 1 1505- ● ●
6 BRACKET; INJ PUMP TO C/BL 8-97601-154-1 01 1 1410-1504 ●
6 BRACKET; INJ PUMP TO C/BL 8-97601-154-1 01 1 1505- ● ●
69 BRACKET; INJ PIPE CLIP
(B) 		8-98038-940-0 01 1 1410-1504 ●
69 BRACKET; INJ PIPE CLIP
(B) 		8-98038-940-0 01 1 1505- ● ●
69 BRACKET; INJ PIPE CLIP
(D) 		8-98038-941-0 01 1 1410-1504 ●
69 BRACKET; INJ PIPE CLIP
(D) 		8-98038-941-0 01 1 1505- ● ●
69 BRACKET; INJ PIPE CLIP
(C) 		8-98049-015-0 01 1 1410-1504 ●
69 BRACKET; INJ PIPE CLIP
(C) 		8-98049-015-0 01 1 1505- ● ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-98059-807-0 01 1 1410-1504 ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-98059-807-0 01 1 1505- ● ●
71 BOLT; BRKT
(D) M8X16 FLANGE MAL 		0-28050-816-0 01 1 1407- ●
71 BOLT; BRKT
(B) M8X40 FLANGE 		0-28050-840-0 01 1 1407- ●
71 BOLT; BRKT
(C) M8X50 FLANGE 		0-28050-850-0 01 1 1407- ●
71 BOLT; BRKT
(A) M10X60 FLANGE 		0-28051-060-0 03 1 1407- ●
71 BOLT; BRKT
(G) M8X16 FLANGE MAL 		0-28050-816-0 02 1 1410-1504 ●
71 BOLT; BRKT
(G) M8X16 FLANGE MAL 		0-28050-816-0 02 1 1505- ● ●
71 BOLT; BRKT
(E) M10X16 FLANGE 		0-28151-016-0 01 1 1410-1504 ●
71 BOLT; BRKT
(E) M10X16 FLANGE 		0-28151-016-0 01 1 1505- ● ●
71 BOLT; BRKT
(F) M12X100 FLANGE 		0-28151-200-0 01 1 1410-1504 ●
71 BOLT; BRKT
(F) M12X100 FLANGE 		0-28151-200-0 01 1 1505- ● ●
110 NUT; CLIP
M6 FLANGE MAL 		0-91180-106-0 04 1 1407- ●
110 NUT; CLIP
M6 FLANGE MAL 		0-91180-106-0 05 1 1410-1504 ●
110 NUT; CLIP
M6 FLANGE MAL 		0-91180-106-0 05 1 1505- ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-98126-331-0 01 1 1410-1504 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-98126-331-0 01 1 1505- ● ●
131 CLIP; OVERFLOW LEAK OFF
(A) ID=7 & 9 L=25 		8-98000-010-2 01 1 1410-1504 ●
131 CLIP; OVERFLOW LEAK OFF
(A) ID=7 & 9 L=25 		8-98000-010-2 01 1 1505- ● ●
131 CLIP; OVERFLOW LEAK OFF
(B) ID=7 & 9 L=25 		8-98000-011-2 01 1 1410-1504 ●
131 CLIP; OVERFLOW LEAK OFF
(B) ID=7 & 9 L=25 		8-98000-011-2 01 1 1505- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-98059-804-0 01 1 1410-1504 ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-98059-804-0 01 1 1505- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-98203-705-1 01 1 1410-1504 ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-98203-705-1 01 1 1505- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(B) M8X18 EYE-BOLT 		1-09675-037-1 06 1 1410-1504 ●
134 BOLT; JOINT,LEAK OFF PIPE
(B) M8X18 EYE-BOLT 		1-09675-037-1 06 1 1505- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M10X21 FLANGE 		8-94396-711-0 02 1 1410-1504 ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M10X21 FLANGE 		8-94396-711-0 02 1 1505- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0 		8-98065-992-0 06 1 1410-1504 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0 		8-98065-992-0 06 1 1505- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17 		8-98079-755-0 01 1 1410-1504 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17 		8-98079-755-0 01 1 1505- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6 		8-98231-393-0 01 1 1410-1504 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6 		8-98231-393-0 01 1 1505- ● ●
169 NUT; BRKT
(A) M10 FLANGE MAL 		0-91180-110-0 02 1 1410-1504 ●
169 NUT; BRKT
(A) M10 FLANGE MAL 		0-91180-110-0 02 1 1505- ● ●
169 NUT; BRKT
(B) M12 FLANGE MAL 		0-91180-112-0 01 1 1410-1504 ●
169 NUT; BRKT
(B) M12 FLANGE MAL 		0-91180-112-0 01 1 1505- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1407-1409 ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1410-1504 ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1505- ● ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1407-1409 ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1410-1504 ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1505- ● ● ●
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1407-1409 ●
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1410-1504 ● ●
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1505- ● ● ●
210 PIPE; INJ,C/R 8-97376-779-0 01 1 1407- ●
210 PIPE; INJ,C/R 8-98059-805-0 01 1 1410-1504 ●
210 PIPE; INJ,C/R 8-98059-805-0 01 1 1505- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1407-1409 ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1410-1504 ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1505- ● ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1407-1409 ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1410-1504 ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1505- ● ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1407-1409 ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1410-1504 ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1505- ● ● ●
271 GASKET; INJ PUMP
(A) ID=139.6 		1-09623-464-0 01 1 1410-1504 ●
271 GASKET; INJ PUMP
(A) ID=139.6 		1-09623-464-0 01 1 1505- ● ●
271 GASKET; INJ PUMP
(B) ID=52 		8-98031-844-0 01 1 1410-1504 ●
271 GASKET; INJ PUMP
(B) ID=52 		8-98031-844-0 01 1 1505- ● ●
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1407-1409 ●
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1410-1504 ● ●
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1505- ● ● ●
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-449-1 01 1 1410-1504 ●
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-449-1 01 1 1505- ● ●
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 1407- ●

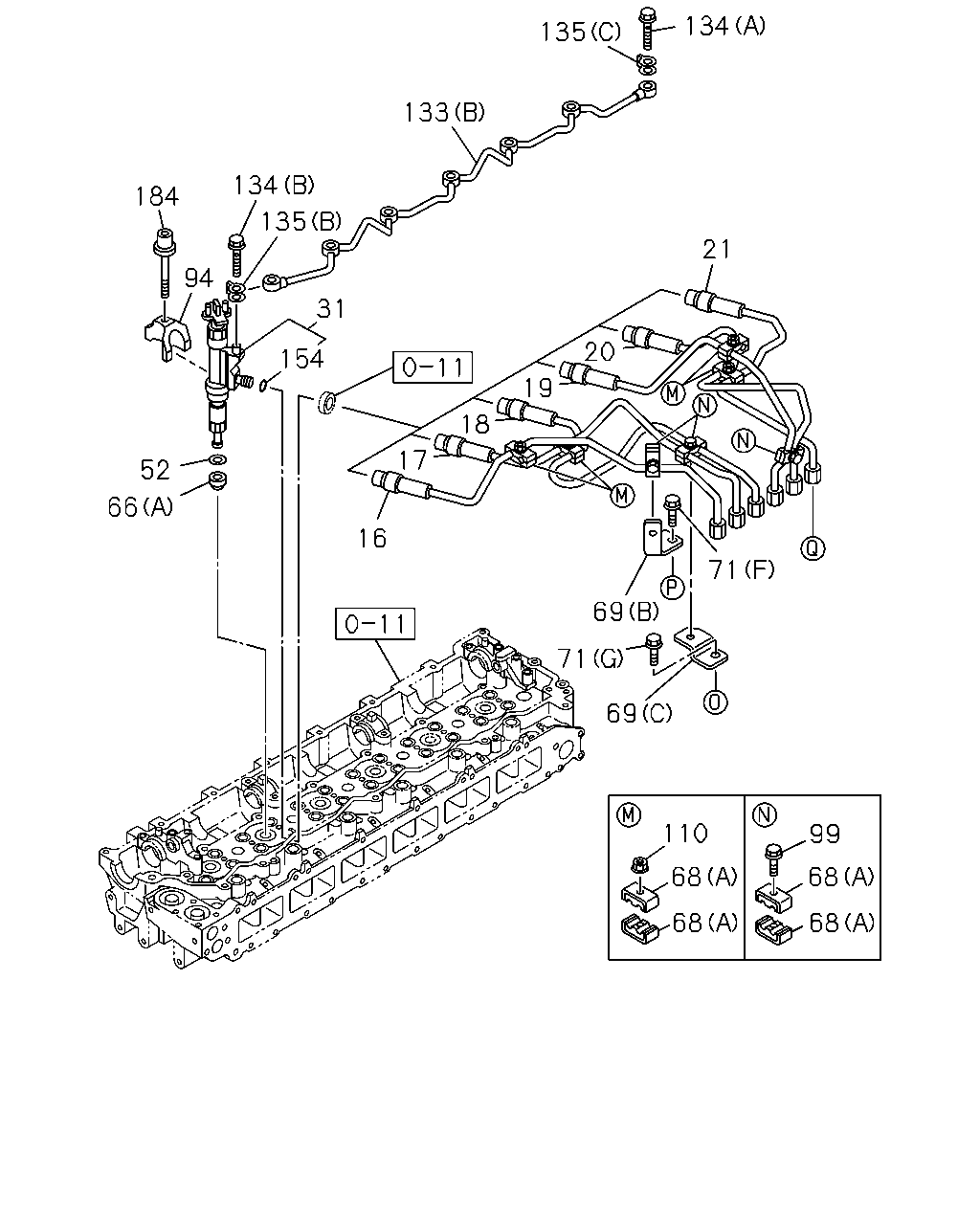

çizim 458307
184 134 133 135 134 135 94 31 154 52 66 21 20 19 18 17 16 69 71 71 69 110 68 68 99 68 68
BalonParca AdiParca NoAdetTipApplied Date A B C
16 PIPE; INJ NO.1 8-98271-202-0 01 1 1407-1501 ●
16 PIPE; INJ NO.1 8-98298-606-0 01 1 1502- ●
16 PIPE; INJ NO.1 8-98271-207-0 01 1 1410-1501 ●
16 PIPE; INJ NO.1 8-98298-611-0 01 1 1502-1504 ●
16 PIPE; INJ NO.1 8-98298-611-0 01 1 1505- ● ●
17 PIPE; INJ NO.2 8-98271-203-0 01 1 1407-1501 ●
17 PIPE; INJ NO.2 8-98298-607-0 01 1 1502- ●
17 PIPE; INJ NO.2 8-98271-208-0 01 1 1410-1501 ●
17 PIPE; INJ NO.2 8-98298-612-0 01 1 1502-1504 ●
17 PIPE; INJ NO.2 8-98298-612-0 01 1 1505- ● ●
18 PIPE; INJ NO.3 8-98271-204-0 01 1 1407-1501 ●
18 PIPE; INJ NO.3 8-98298-608-0 01 1 1502- ●
18 PIPE; INJ NO.3 8-98271-209-0 01 1 1410-1501 ●
18 PIPE; INJ NO.3 8-98298-613-0 01 1 1502-1504 ●
18 PIPE; INJ NO.3 8-98298-613-0 01 1 1505- ● ●
19 PIPE; INJ NO.4 8-98271-230-0 01 1 1407-1501 ●
19 PIPE; INJ NO.4 8-98298-609-0 01 1 1502- ●
19 PIPE; INJ NO.4 8-98271-210-0 01 1 1410-1501 ●
19 PIPE; INJ NO.4 8-98298-614-0 01 1 1502-1504 ●
19 PIPE; INJ NO.4 8-98298-614-0 01 1 1505- ● ●
20 PIPE; INJ NO.5 8-98271-211-0 01 1 1410-1501 ●
20 PIPE; INJ NO.5 8-98298-615-0 01 1 1502-1504 ●
20 PIPE; INJ NO.5 8-98298-615-0 01 1 1505- ● ●
21 PIPE; INJ NO.6 8-98271-212-0 01 1 1410-1501 ●
21 PIPE; INJ NO.6 8-98298-617-0 01 1 1502-1504 ●
21 PIPE; INJ NO.6 8-98298-617-0 01 1 1505- ● ●
31 NOZZLE ASM; INJ 8-98219-181-0 04 1 1407- ●
31 NOZZLE ASM; INJ 8-97609-789-6 06 1 1410-1504 ●
31 NOZZLE ASM; INJ 8-97609-789-6 06 1 1505- ● ●
52 GASKET; SLEEVE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=23.3 		8-94173-412-0 06 1 1410-1504 ●
52 GASKET; SLEEVE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=23.3 		8-94173-412-0 06 1 1505- ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-98079-248-0 04 1 1407- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=23.3 		8-94173-412-0 04 1 1407- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-98079-248-0 06 1 1410-1504 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-98079-248-0 06 1 1505- ● ●
68 CLIP; INJ PIPE
(A) ID=11 & 11 L=19 		8-98148-996-2 06 1 1407- ●
68 CLIP; INJ PIPE
(B) ID=7 & 7 L=22 		8-97330-118-3 01 1 1407- ●
68 CLIP; INJ PIPE
(C) ID=7 & 7 L=22 		8-97330-119-3 01 1 1407- ●
68 CLIP; INJ PIPE
(A) ID=11 & 11 L=19 		8-98148-996-2 14 1 1410-1504 ●
68 CLIP; INJ PIPE
(A) ID=11 & 11 L=19 		8-98148-996-2 14 1 1505- ● ●
69 BRACKET; INJ PIPE CLIP
(B) 		8-98038-940-0 01 1 1410-1504 ●
69 BRACKET; INJ PIPE CLIP
(B) 		8-98038-940-0 01 1 1505- ● ●
69 BRACKET; INJ PIPE CLIP
(D) 		8-98038-941-0 01 1 1410-1504 ●
69 BRACKET; INJ PIPE CLIP
(D) 		8-98038-941-0 01 1 1505- ● ●
69 BRACKET; INJ PIPE CLIP
(C) 		8-98049-015-0 01 1 1410-1504 ●
69 BRACKET; INJ PIPE CLIP
(C) 		8-98049-015-0 01 1 1505- ● ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-98059-807-0 01 1 1410-1504 ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-98059-807-0 01 1 1505- ● ●
71 BOLT; BRKT
(D) M8X16 FLANGE MAL 		0-28050-816-0 01 1 1407- ●
71 BOLT; BRKT
(B) M8X40 FLANGE 		0-28050-840-0 01 1 1407- ●
71 BOLT; BRKT
(C) M8X50 FLANGE 		0-28050-850-0 01 1 1407- ●
71 BOLT; BRKT
(A) M10X60 FLANGE 		0-28051-060-0 03 1 1407- ●
71 BOLT; BRKT
(G) M8X16 FLANGE MAL 		0-28050-816-0 02 1 1410-1504 ●
71 BOLT; BRKT
(G) M8X16 FLANGE MAL 		0-28050-816-0 02 1 1505- ● ●
71 BOLT; BRKT
(E) M10X16 FLANGE 		0-28151-016-0 01 1 1410-1504 ●
71 BOLT; BRKT
(E) M10X16 FLANGE 		0-28151-016-0 01 1 1505- ● ●
71 BOLT; BRKT
(F) M12X100 FLANGE 		0-28151-200-0 01 1 1410-1504 ●
71 BOLT; BRKT
(F) M12X100 FLANGE 		0-28151-200-0 01 1 1505- ● ●
94 BRACKET; INJ NOZZLE 8-98028-999-1 04 1 1407- ●
94 BRACKET; INJ NOZZLE 8-98028-999-1 06 1 1410-1504 ●
94 BRACKET; INJ NOZZLE 8-98028-999-1 06 1 1505- ● ●
99 BOLT; CLIP,INJ,PIPE
M6X35 FLANGE 		0-28050-635-0 03 1 1410-1504 ●
99 BOLT; CLIP,INJ,PIPE
M6X35 FLANGE 		0-28050-635-0 03 1 1505- ● ●
110 NUT; CLIP
M6 FLANGE MAL 		0-91180-106-0 04 1 1407- ●
110 NUT; CLIP
M6 FLANGE MAL 		0-91180-106-0 05 1 1410-1504 ●
110 NUT; CLIP
M6 FLANGE MAL 		0-91180-106-0 05 1 1505- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-98059-804-0 01 1 1410-1504 ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-98059-804-0 01 1 1505- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-98203-705-1 01 1 1410-1504 ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-98203-705-1 01 1 1505- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(B) M8X18 EYE-BOLT 		1-09675-037-1 06 1 1410-1504 ●
134 BOLT; JOINT,LEAK OFF PIPE
(B) M8X18 EYE-BOLT 		1-09675-037-1 06 1 1505- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M10X21 FLANGE 		8-94396-711-0 02 1 1410-1504 ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M10X21 FLANGE 		8-94396-711-0 02 1 1505- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0 		8-98065-992-0 06 1 1410-1504 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0 		8-98065-992-0 06 1 1505- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17 		8-98079-755-0 01 1 1410-1504 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17 		8-98079-755-0 01 1 1505- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6 		8-98231-393-0 01 1 1410-1504 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6 		8-98231-393-0 01 1 1505- ● ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 04 1 1407- ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 06 1 1410-1504 ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 06 1 1505- ● ●
184 BOLT; NOZZLE HOLDER
M8X54 		8-98008-895-0 06 1 1410-1504 ●
184 BOLT; NOZZLE HOLDER
M8X54 		8-98008-895-0 06 1 1505- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
