Sayfa 0-39 - Isuzu EPC

0-39 — AIR COMPRESSOR; BRAKE (#144103) — 255 parça

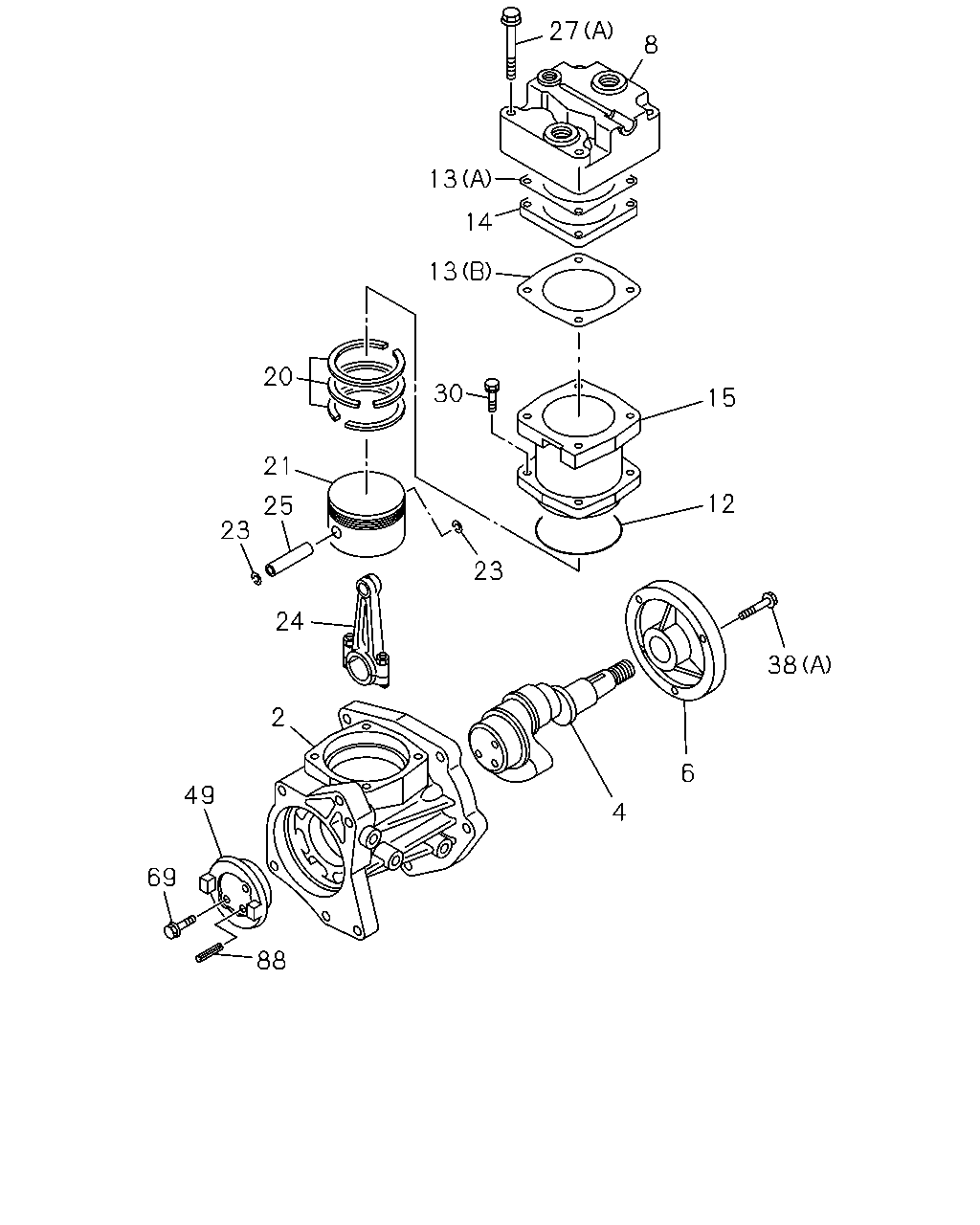

27 8 13 13 14 30 20 21 23 24 25 23 15 12 38 6 4 2 49 69 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	CRANKCASE; AIR CMPR	1-19151-303-0	01	1	1407-	●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	1410-1507		●
2	CRANKCASE; AIR CMPR MZW6P M/T(RSZ)	1-19151-274-0	01	1	1508-		●
2	CRANKCASE; AIR CMPR	8-97614-060-1	01	1	1505-1507			●
2	CRANKCASE; AIR CMPR ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E)	8-97614-060-1	01	1	1508-		●	●
4	CRANKSHAFT; AIR CMPR	1-19171-090-1	01	1	1407-	●
4	CRANKSHAFT; AIR CMPR	1-19171-096-0	01	1	1410-1507		●
4	CRANKSHAFT; AIR CMPR MZW6P M/T(RSZ)	1-19171-096-0	01	1	1508-		●
4	CRANKSHAFT; AIR CMPR	8-97614-059-1	01	1	1505-1507			●
4	CRANKSHAFT; AIR CMPR ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E)	8-97614-059-1	01	1	1508-		●	●
6	COVER ASM; BRG,AIR CMPR	1-19156-086-1	01	1	1407-	●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	1410-1507		●
6	COVER ASM; BRG,AIR CMPR MZW6P M/T(RSZ)	1-19156-039-0	01	1	1508-		●
6	COVER ASM; BRG,AIR CMPR	8-97614-058-1	01	1	1505-1507			●
6	COVER ASM; BRG,AIR CMPR ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E)	8-97614-058-1	01	1	1508-		●	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-075-0	01	1	1407-	●
8	HEAD ASM; CYL,AIR CMPR	8-98167-014-0	01	1	1410-1507		●
8	HEAD ASM; CYL,AIR CMPR MZW6P M/T(RSZ)	8-98167-014-0	01	1	1508-		●
8	HEAD ASM; CYL,AIR CMPR	8-98167-013-0	01	1	1505-1507			●
8	HEAD ASM; CYL,AIR CMPR ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E)	8-98167-013-0	01	1	1508-		●	●
12	GASKET; AIR CMPR	8-98185-684-0	01	1	1407-1409	●
12	GASKET; AIR CMPR	8-98185-684-0	01	1	1410-	●	●
12	GASKET; AIR CMPR	8-98048-641-0	01	1	1505-1507			●
12	GASKET; AIR CMPR ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E)	8-98048-641-0	01	1	1508-		●	●
13	GASKET; AIR CMPR (A)	1-19115-015-0	01	1	1407-	●
13	GASKET; AIR CMPR (B)	1-19115-016-0	01	1	1407-	●
13	GASKET; AIR CMPR (C)	8-98048-640-0	01	1	1410-1504		●
13	GASKET; AIR CMPR (C)	8-98048-640-0	01	1	1505-		●	●
14	PLATE; AIR CMPR	8-98271-713-0	01	1	1407-	●
15	CYLINDER; AIR CMPR	1-19163-068-1	01	1	1407-	●
15	CYLINDER; AIR CMPR	8-98038-668-0	01	1	1410-1507		●
15	CYLINDER; AIR CMPR MZW6P M/T(RSZ)	8-98038-668-0	01	1	1508-		●
15	CYLINDER; AIR CMPR	8-97614-056-0	01	1	1505-1507			●
15	CYLINDER; AIR CMPR ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E)	8-97614-056-0	01	1	1508-		●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-058-0	01	1	1407-1409	●
20	RING KIT; PISTON,AIR CMPR	1-19163-058-0	01	1	1410-1504	●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-058-0	01	1	1505-	●	●	●
21	PISTON; AIR CMPR	1-19161-027-0	01	1	1407-1409	●
21	PISTON; AIR CMPR	1-19161-027-0	01	1	1410-1504	●	●
21	PISTON; AIR CMPR	1-19161-027-0	01	1	1505-	●	●	●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	02	1	1407-1409	●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	02	1	1410-1504	●	●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	02	1	1505-	●	●	●
24	ROD ASM; CONN,AIR CMPR	1-19173-023-0	01	1	1407-	●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	1410-1507		●
24	ROD ASM; CONN,AIR CMPR MZW6P M/T(RSZ)	1-19173-010-0	01	1	1508-		●
24	ROD ASM; CONN,AIR CMPR	8-97614-057-0	01	1	1505-1507			●
24	ROD ASM; CONN,AIR CMPR ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E)	8-97614-057-0	01	1	1508-		●	●
25	PIN; PISTON,AIR CMPR	1-19167-003-0	01	1	1407-1409	●
25	PIN; PISTON,AIR CMPR	1-19167-003-0	01	1	1410-1504	●	●
25	PIN; PISTON,AIR CMPR	1-19167-003-0	01	1	1505-	●	●	●
27	BOLT; HD (A)	8-98188-172-0	04	1	1407-	●
27	BOLT; HD (B) M10X75	8-98167-018-0	04	1	1410-1507		●
27	BOLT; HD MZW6P M/T(RSZ) (B) M10X75	8-98167-018-0	04	1	1508-		●
27	BOLT; HD (C)	8-97614-054-0	01	1	1505-1507			●
27	BOLT; HD ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (C)	8-97614-054-0	01	1	1508-		●	●
27	BOLT; HD (D) M10X75	8-98167-018-0	03	1	1505-1507			●
27	BOLT; HD ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (D) M10X75	8-98167-018-0	03	1	1508-		●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	1407-	●
30	BOLT; CYL TO CRANKCASE M10X25	8-98038-763-0	04	1	1410-1507		●
30	BOLT; CYL TO CRANKCASE MZW6P M/T(RSZ) M10X25	8-98038-763-0	04	1	1508-		●
30	BOLT; CYL TO CRANKCASE M10X30	8-97613-704-0	04	1	1505-1507			●
30	BOLT; CYL TO CRANKCASE ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) M10X30	8-97613-704-0	04	1	1508-		●	●
38	BOLT; COVER FIX (A)	1-19159-023-0	03	1	1407-	●
38	BOLT; COVER FIX (B)	8-97617-894-0	02	1	1410-1507		●
38	BOLT; COVER FIX MZW6P M/T(RSZ) (B)	8-97617-894-0	02	1	1508-		●
38	BOLT; COVER FIX (C) M8X20	8-97617-895-0	02	1	1410-1507		●
38	BOLT; COVER FIX MZW6P M/T(RSZ) (C) M8X20	8-97617-895-0	02	1	1508-		●
38	BOLT; COVER FIX (D) M10X30	8-97613-704-0	02	1	1505-1507			●
38	BOLT; COVER FIX ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (D) M10X30	8-97613-704-0	02	1	1508-		●	●
38	BOLT; COVER FIX (E)	8-97617-310-0	02	1	1505-1507			●
38	BOLT; COVER FIX ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (E)	8-97617-310-0	02	1	1508-		●	●
49	COUPLING ASM	1-19179-032-0	01	1	1407-	●
69	BOLT ASM; AIR COMP	1-19179-033-0	02	1	1407-	●
88	PIN; SPRING	1-19179-034-0	01	1	1407-	●

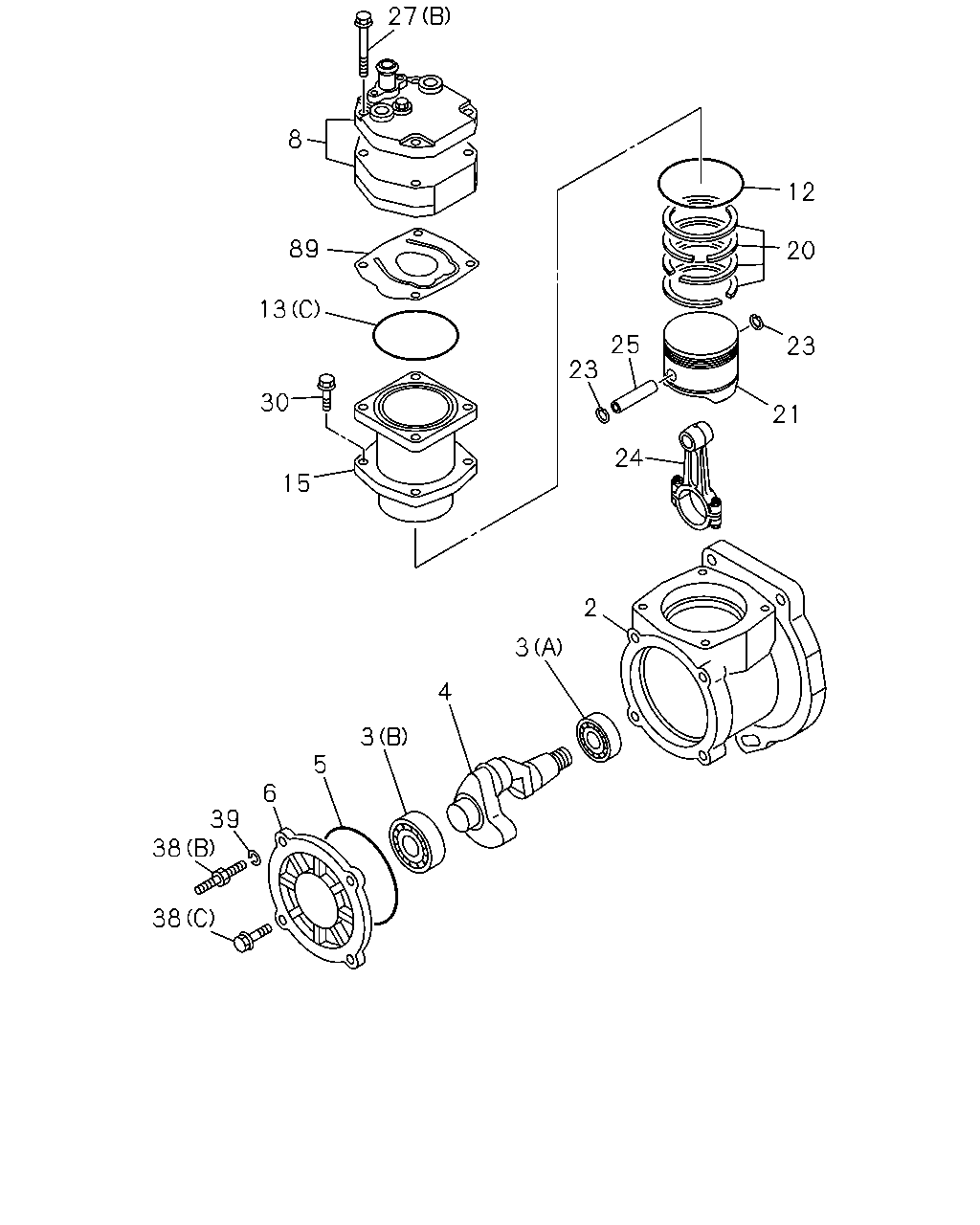

27 8 89 13 30 15 12 20 23 25 23 24 21 2 3 4 3 5 6 39 38 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	CRANKCASE; AIR CMPR	1-19151-303-0	01	1	1407-	●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	1410-1507		●
2	CRANKCASE; AIR CMPR MZW6P M/T(RSZ)	1-19151-274-0	01	1	1508-		●
2	CRANKCASE; AIR CMPR	8-97614-060-1	01	1	1505-1507			●
2	CRANKCASE; AIR CMPR ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E)	8-97614-060-1	01	1	1508-		●	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	1410-1507		●
3	BEARING; AIR CMPR MZW6P M/T(RSZ) (B)	9-00006-206-0	01	1	1508-		●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	1410-1507		●
3	BEARING; AIR CMPR MZW6P M/T(RSZ) (A)	9-00090-152-0	01	1	1508-		●
3	BEARING; AIR CMPR (C)	1-09800-268-0	02	1	1505-1507			●
3	BEARING; AIR CMPR ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (C)	1-09800-268-0	02	1	1508-		●	●
4	CRANKSHAFT; AIR CMPR	1-19171-090-1	01	1	1407-	●
4	CRANKSHAFT; AIR CMPR	1-19171-096-0	01	1	1410-1507		●
4	CRANKSHAFT; AIR CMPR MZW6P M/T(RSZ)	1-19171-096-0	01	1	1508-		●
4	CRANKSHAFT; AIR CMPR	8-97614-059-1	01	1	1505-1507			●
4	CRANKSHAFT; AIR CMPR ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E)	8-97614-059-1	01	1	1508-		●	●
5	GASKET; AIR CMPR	8-98192-460-0	01	1	1410-1507		●
5	GASKET; AIR CMPR MZW6P M/T(RSZ)	8-98192-460-0	01	1	1508-		●
5	GASKET; AIR CMPR	8-98192-463-0	01	1	1505-1507			●
5	GASKET; AIR CMPR ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E)	8-98192-463-0	01	1	1508-		●	●
6	COVER ASM; BRG,AIR CMPR	1-19156-086-1	01	1	1407-	●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	1410-1507		●
6	COVER ASM; BRG,AIR CMPR MZW6P M/T(RSZ)	1-19156-039-0	01	1	1508-		●
6	COVER ASM; BRG,AIR CMPR	8-97614-058-1	01	1	1505-1507			●
6	COVER ASM; BRG,AIR CMPR ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E)	8-97614-058-1	01	1	1508-		●	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-075-0	01	1	1407-	●
8	HEAD ASM; CYL,AIR CMPR	8-98167-014-0	01	1	1410-1507		●
8	HEAD ASM; CYL,AIR CMPR MZW6P M/T(RSZ)	8-98167-014-0	01	1	1508-		●
8	HEAD ASM; CYL,AIR CMPR	8-98167-013-0	01	1	1505-1507			●
8	HEAD ASM; CYL,AIR CMPR ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E)	8-98167-013-0	01	1	1508-		●	●
12	GASKET; AIR CMPR	8-98185-684-0	01	1	1407-1409	●
12	GASKET; AIR CMPR	8-98185-684-0	01	1	1410-	●	●
12	GASKET; AIR CMPR	8-98048-641-0	01	1	1505-1507			●
12	GASKET; AIR CMPR ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E)	8-98048-641-0	01	1	1508-		●	●
13	GASKET; AIR CMPR (A)	1-19115-015-0	01	1	1407-	●
13	GASKET; AIR CMPR (B)	1-19115-016-0	01	1	1407-	●
13	GASKET; AIR CMPR (C)	8-98048-640-0	01	1	1410-1504		●
13	GASKET; AIR CMPR (C)	8-98048-640-0	01	1	1505-		●	●
15	CYLINDER; AIR CMPR	1-19163-068-1	01	1	1407-	●
15	CYLINDER; AIR CMPR	8-98038-668-0	01	1	1410-1507		●
15	CYLINDER; AIR CMPR MZW6P M/T(RSZ)	8-98038-668-0	01	1	1508-		●
15	CYLINDER; AIR CMPR	8-97614-056-0	01	1	1505-1507			●
15	CYLINDER; AIR CMPR ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E)	8-97614-056-0	01	1	1508-		●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-058-0	01	1	1407-1409	●
20	RING KIT; PISTON,AIR CMPR	1-19163-058-0	01	1	1410-1504	●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-058-0	01	1	1505-	●	●	●
21	PISTON; AIR CMPR	1-19161-027-0	01	1	1407-1409	●
21	PISTON; AIR CMPR	1-19161-027-0	01	1	1410-1504	●	●
21	PISTON; AIR CMPR	1-19161-027-0	01	1	1505-	●	●	●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	02	1	1407-1409	●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	02	1	1410-1504	●	●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	02	1	1505-	●	●	●
24	ROD ASM; CONN,AIR CMPR	1-19173-023-0	01	1	1407-	●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	1410-1507		●
24	ROD ASM; CONN,AIR CMPR MZW6P M/T(RSZ)	1-19173-010-0	01	1	1508-		●
24	ROD ASM; CONN,AIR CMPR	8-97614-057-0	01	1	1505-1507			●
24	ROD ASM; CONN,AIR CMPR ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E)	8-97614-057-0	01	1	1508-		●	●
25	PIN; PISTON,AIR CMPR	1-19167-003-0	01	1	1407-1409	●
25	PIN; PISTON,AIR CMPR	1-19167-003-0	01	1	1410-1504	●	●
25	PIN; PISTON,AIR CMPR	1-19167-003-0	01	1	1505-	●	●	●
27	BOLT; HD (A)	8-98188-172-0	04	1	1407-	●
27	BOLT; HD (B) M10X75	8-98167-018-0	04	1	1410-1507		●
27	BOLT; HD MZW6P M/T(RSZ) (B) M10X75	8-98167-018-0	04	1	1508-		●
27	BOLT; HD (C)	8-97614-054-0	01	1	1505-1507			●
27	BOLT; HD ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (C)	8-97614-054-0	01	1	1508-		●	●
27	BOLT; HD (D) M10X75	8-98167-018-0	03	1	1505-1507			●
27	BOLT; HD ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (D) M10X75	8-98167-018-0	03	1	1508-		●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	1407-	●
30	BOLT; CYL TO CRANKCASE M10X25	8-98038-763-0	04	1	1410-1507		●
30	BOLT; CYL TO CRANKCASE MZW6P M/T(RSZ) M10X25	8-98038-763-0	04	1	1508-		●
30	BOLT; CYL TO CRANKCASE M10X30	8-97613-704-0	04	1	1505-1507			●
30	BOLT; CYL TO CRANKCASE ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) M10X30	8-97613-704-0	04	1	1508-		●	●
38	BOLT; COVER FIX (A)	1-19159-023-0	03	1	1407-	●
38	BOLT; COVER FIX (B)	8-97617-894-0	02	1	1410-1507		●
38	BOLT; COVER FIX MZW6P M/T(RSZ) (B)	8-97617-894-0	02	1	1508-		●
38	BOLT; COVER FIX (C) M8X20	8-97617-895-0	02	1	1410-1507		●
38	BOLT; COVER FIX MZW6P M/T(RSZ) (C) M8X20	8-97617-895-0	02	1	1508-		●
38	BOLT; COVER FIX (D) M10X30	8-97613-704-0	02	1	1505-1507			●
38	BOLT; COVER FIX ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (D) M10X30	8-97613-704-0	02	1	1508-		●	●
38	BOLT; COVER FIX (E)	8-97617-310-0	02	1	1505-1507			●
38	BOLT; COVER FIX ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (E)	8-97617-310-0	02	1	1508-		●	●
39	WASHER; LK,COVER FIX	8-97617-893-0	02	1	1410-1507		●
39	WASHER; LK,COVER FIX MZW6P M/T(RSZ)	8-97617-893-0	02	1	1508-		●
39	WASHER; LK,COVER FIX	8-97613-694-0	02	1	1505-1507			●
39	WASHER; LK,COVER FIX ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E)	8-97613-694-0	02	1	1508-		●	●
89	VALVE; SUCTION	1-19119-045-0	01	1	1410-1504		●
89	VALVE; SUCTION	1-19119-045-0	01	1	1505-		●	●

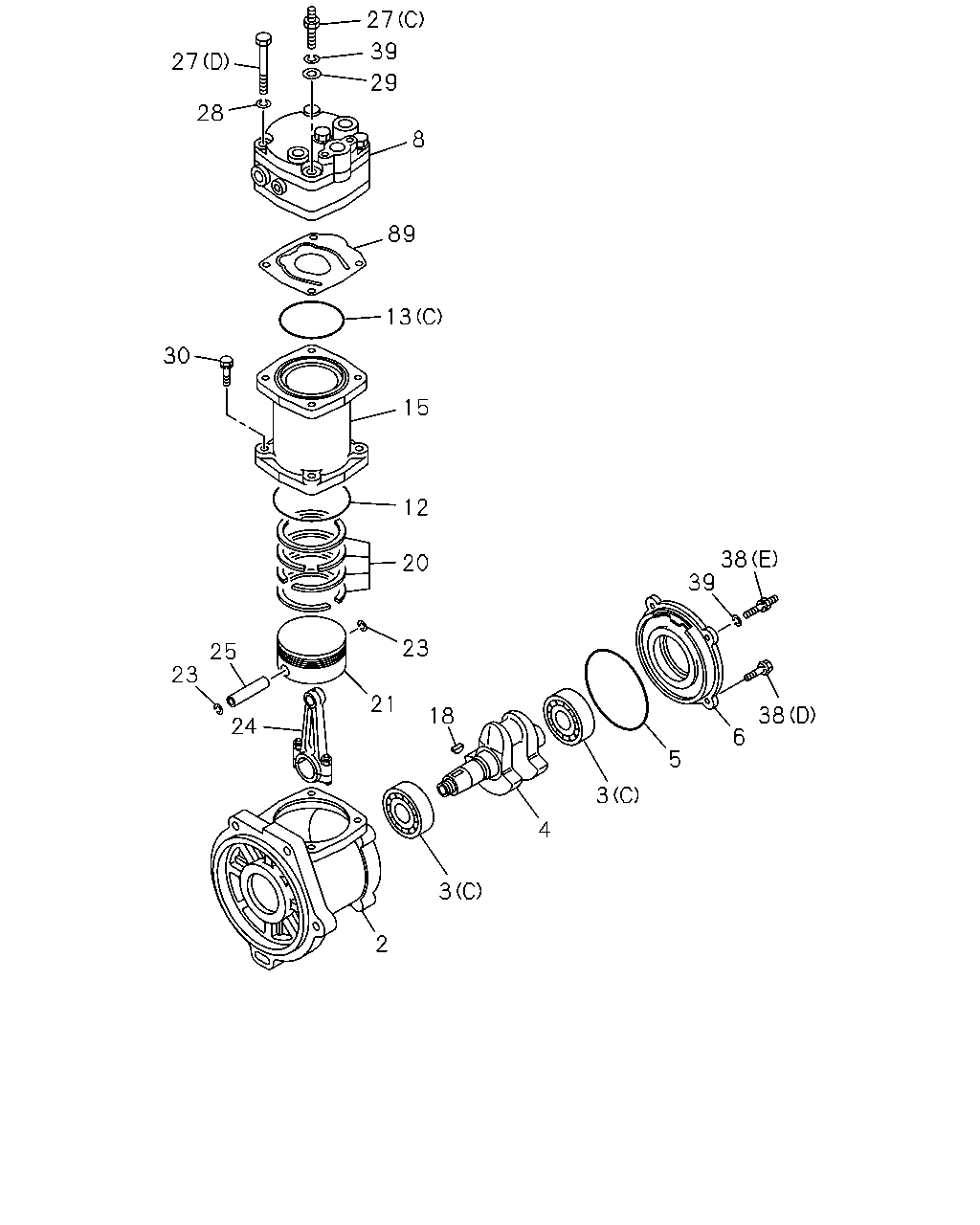

27 27 39 28 29 8 89 30 13 15 12 20 23 21 25 23 24 18 4 5 3 6 3 38 39 2 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	CRANKCASE; AIR CMPR	1-19151-303-0	01	1	1407-	●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	1410-1507		●
2	CRANKCASE; AIR CMPR MZW6P M/T(RSZ)	1-19151-274-0	01	1	1508-		●
2	CRANKCASE; AIR CMPR	8-97614-060-1	01	1	1505-1507			●
2	CRANKCASE; AIR CMPR ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E)	8-97614-060-1	01	1	1508-		●	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	1410-1507		●
3	BEARING; AIR CMPR MZW6P M/T(RSZ) (B)	9-00006-206-0	01	1	1508-		●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	1410-1507		●
3	BEARING; AIR CMPR MZW6P M/T(RSZ) (A)	9-00090-152-0	01	1	1508-		●
3	BEARING; AIR CMPR (C)	1-09800-268-0	02	1	1505-1507			●
3	BEARING; AIR CMPR ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (C)	1-09800-268-0	02	1	1508-		●	●
4	CRANKSHAFT; AIR CMPR	1-19171-090-1	01	1	1407-	●
4	CRANKSHAFT; AIR CMPR	1-19171-096-0	01	1	1410-1507		●
4	CRANKSHAFT; AIR CMPR MZW6P M/T(RSZ)	1-19171-096-0	01	1	1508-		●
4	CRANKSHAFT; AIR CMPR	8-97614-059-1	01	1	1505-1507			●
4	CRANKSHAFT; AIR CMPR ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E)	8-97614-059-1	01	1	1508-		●	●
5	GASKET; AIR CMPR	8-98192-460-0	01	1	1410-1507		●
5	GASKET; AIR CMPR MZW6P M/T(RSZ)	8-98192-460-0	01	1	1508-		●
5	GASKET; AIR CMPR	8-98192-463-0	01	1	1505-1507			●
5	GASKET; AIR CMPR ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E)	8-98192-463-0	01	1	1508-		●	●
6	COVER ASM; BRG,AIR CMPR	1-19156-086-1	01	1	1407-	●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	1410-1507		●
6	COVER ASM; BRG,AIR CMPR MZW6P M/T(RSZ)	1-19156-039-0	01	1	1508-		●
6	COVER ASM; BRG,AIR CMPR	8-97614-058-1	01	1	1505-1507			●
6	COVER ASM; BRG,AIR CMPR ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E)	8-97614-058-1	01	1	1508-		●	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-075-0	01	1	1407-	●
8	HEAD ASM; CYL,AIR CMPR	8-98167-014-0	01	1	1410-1507		●
8	HEAD ASM; CYL,AIR CMPR MZW6P M/T(RSZ)	8-98167-014-0	01	1	1508-		●
8	HEAD ASM; CYL,AIR CMPR	8-98167-013-0	01	1	1505-1507			●
8	HEAD ASM; CYL,AIR CMPR ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E)	8-98167-013-0	01	1	1508-		●	●
12	GASKET; AIR CMPR	8-98185-684-0	01	1	1407-1409	●
12	GASKET; AIR CMPR	8-98185-684-0	01	1	1410-	●	●
12	GASKET; AIR CMPR	8-98048-641-0	01	1	1505-1507			●
12	GASKET; AIR CMPR ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E)	8-98048-641-0	01	1	1508-		●	●
13	GASKET; AIR CMPR (A)	1-19115-015-0	01	1	1407-	●
13	GASKET; AIR CMPR (B)	1-19115-016-0	01	1	1407-	●
13	GASKET; AIR CMPR (C)	8-98048-640-0	01	1	1410-1504		●
13	GASKET; AIR CMPR (C)	8-98048-640-0	01	1	1505-		●	●
15	CYLINDER; AIR CMPR	1-19163-068-1	01	1	1407-	●
15	CYLINDER; AIR CMPR	8-98038-668-0	01	1	1410-1507		●
15	CYLINDER; AIR CMPR MZW6P M/T(RSZ)	8-98038-668-0	01	1	1508-		●
15	CYLINDER; AIR CMPR	8-97614-056-0	01	1	1505-1507			●
15	CYLINDER; AIR CMPR ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E)	8-97614-056-0	01	1	1508-		●	●
18	KEY; AIR CMPR	9-08055-516-0	01	1	1505-1507			●
18	KEY; AIR CMPR ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E)	9-08055-516-0	01	1	1508-		●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-058-0	01	1	1407-1409	●
20	RING KIT; PISTON,AIR CMPR	1-19163-058-0	01	1	1410-1504	●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-058-0	01	1	1505-	●	●	●
21	PISTON; AIR CMPR	1-19161-027-0	01	1	1407-1409	●
21	PISTON; AIR CMPR	1-19161-027-0	01	1	1410-1504	●	●
21	PISTON; AIR CMPR	1-19161-027-0	01	1	1505-	●	●	●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	02	1	1407-1409	●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	02	1	1410-1504	●	●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	02	1	1505-	●	●	●
24	ROD ASM; CONN,AIR CMPR	1-19173-023-0	01	1	1407-	●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	1410-1507		●
24	ROD ASM; CONN,AIR CMPR MZW6P M/T(RSZ)	1-19173-010-0	01	1	1508-		●
24	ROD ASM; CONN,AIR CMPR	8-97614-057-0	01	1	1505-1507			●
24	ROD ASM; CONN,AIR CMPR ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E)	8-97614-057-0	01	1	1508-		●	●
25	PIN; PISTON,AIR CMPR	1-19167-003-0	01	1	1407-1409	●
25	PIN; PISTON,AIR CMPR	1-19167-003-0	01	1	1410-1504	●	●
25	PIN; PISTON,AIR CMPR	1-19167-003-0	01	1	1505-	●	●	●
27	BOLT; HD (A)	8-98188-172-0	04	1	1407-	●
27	BOLT; HD (B) M10X75	8-98167-018-0	04	1	1410-1507		●
27	BOLT; HD MZW6P M/T(RSZ) (B) M10X75	8-98167-018-0	04	1	1508-		●
27	BOLT; HD (C)	8-97614-054-0	01	1	1505-1507			●
27	BOLT; HD ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (C)	8-97614-054-0	01	1	1508-		●	●
27	BOLT; HD (D) M10X75	8-98167-018-0	03	1	1505-1507			●
27	BOLT; HD ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (D) M10X75	8-98167-018-0	03	1	1508-		●	●
28	WASHER; LK,HD BOLT	8-97613-694-0	01	1	1505-1507			●
28	WASHER; LK,HD BOLT ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E)	8-97613-694-0	01	1	1508-		●	●
29	WASHER; PL,HD BOLT	8-97613-686-0	01	1	1505-1507			●
29	WASHER; PL,HD BOLT ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E)	8-97613-686-0	01	1	1508-		●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	1407-	●
30	BOLT; CYL TO CRANKCASE M10X25	8-98038-763-0	04	1	1410-1507		●
30	BOLT; CYL TO CRANKCASE MZW6P M/T(RSZ) M10X25	8-98038-763-0	04	1	1508-		●
30	BOLT; CYL TO CRANKCASE M10X30	8-97613-704-0	04	1	1505-1507			●
30	BOLT; CYL TO CRANKCASE ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) M10X30	8-97613-704-0	04	1	1508-		●	●
38	BOLT; COVER FIX (A)	1-19159-023-0	03	1	1407-	●
38	BOLT; COVER FIX (B)	8-97617-894-0	02	1	1410-1507		●
38	BOLT; COVER FIX MZW6P M/T(RSZ) (B)	8-97617-894-0	02	1	1508-		●
38	BOLT; COVER FIX (C) M8X20	8-97617-895-0	02	1	1410-1507		●
38	BOLT; COVER FIX MZW6P M/T(RSZ) (C) M8X20	8-97617-895-0	02	1	1508-		●
38	BOLT; COVER FIX (D) M10X30	8-97613-704-0	02	1	1505-1507			●
38	BOLT; COVER FIX ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (D) M10X30	8-97613-704-0	02	1	1508-		●	●
38	BOLT; COVER FIX (E)	8-97617-310-0	02	1	1505-1507			●
38	BOLT; COVER FIX ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (E)	8-97617-310-0	02	1	1508-		●	●
39	WASHER; LK,COVER FIX	8-97617-893-0	02	1	1410-1507		●
39	WASHER; LK,COVER FIX MZW6P M/T(RSZ)	8-97617-893-0	02	1	1508-		●
39	WASHER; LK,COVER FIX	8-97613-694-0	02	1	1505-1507			●
39	WASHER; LK,COVER FIX ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E)	8-97613-694-0	02	1	1508-		●	●
89	VALVE; SUCTION	1-19119-045-0	01	1	1410-1504		●
89	VALVE; SUCTION	1-19119-045-0	01	1	1505-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
