0-36 — TURBOCHARGER SYSTEM (#144100) — 136 parça

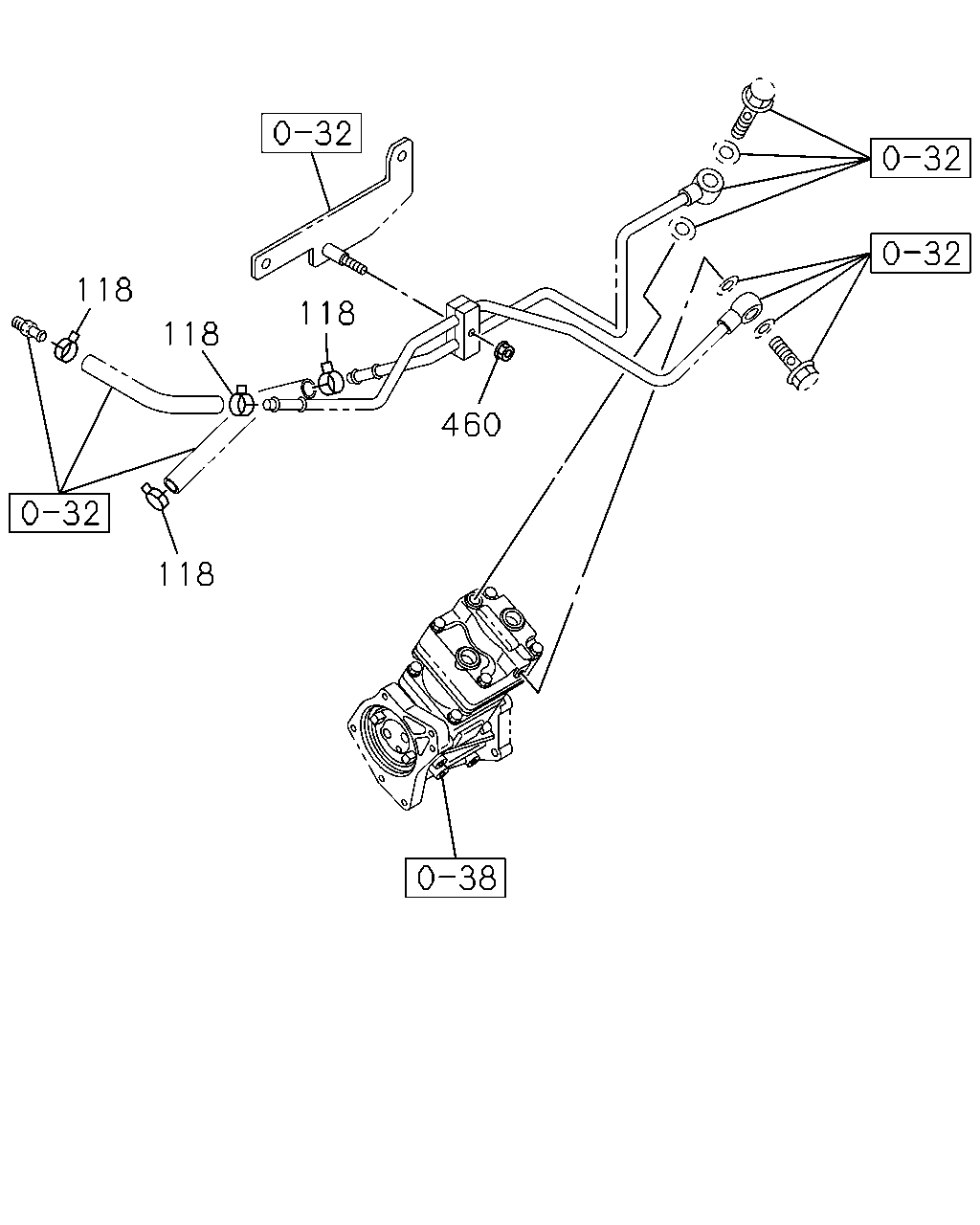

çizim 431208
118 118 118 118 460
BalonParca AdiParca NoAdetTipApplied Date A B C
118 CLIP; WATER HOSE
ID=15.5 		8-94221-519-0 06 1 1407- ●
460 NUT; PIPE
M6 FLANGE MAL 		0-91180-106-0 01 1 1407- ●

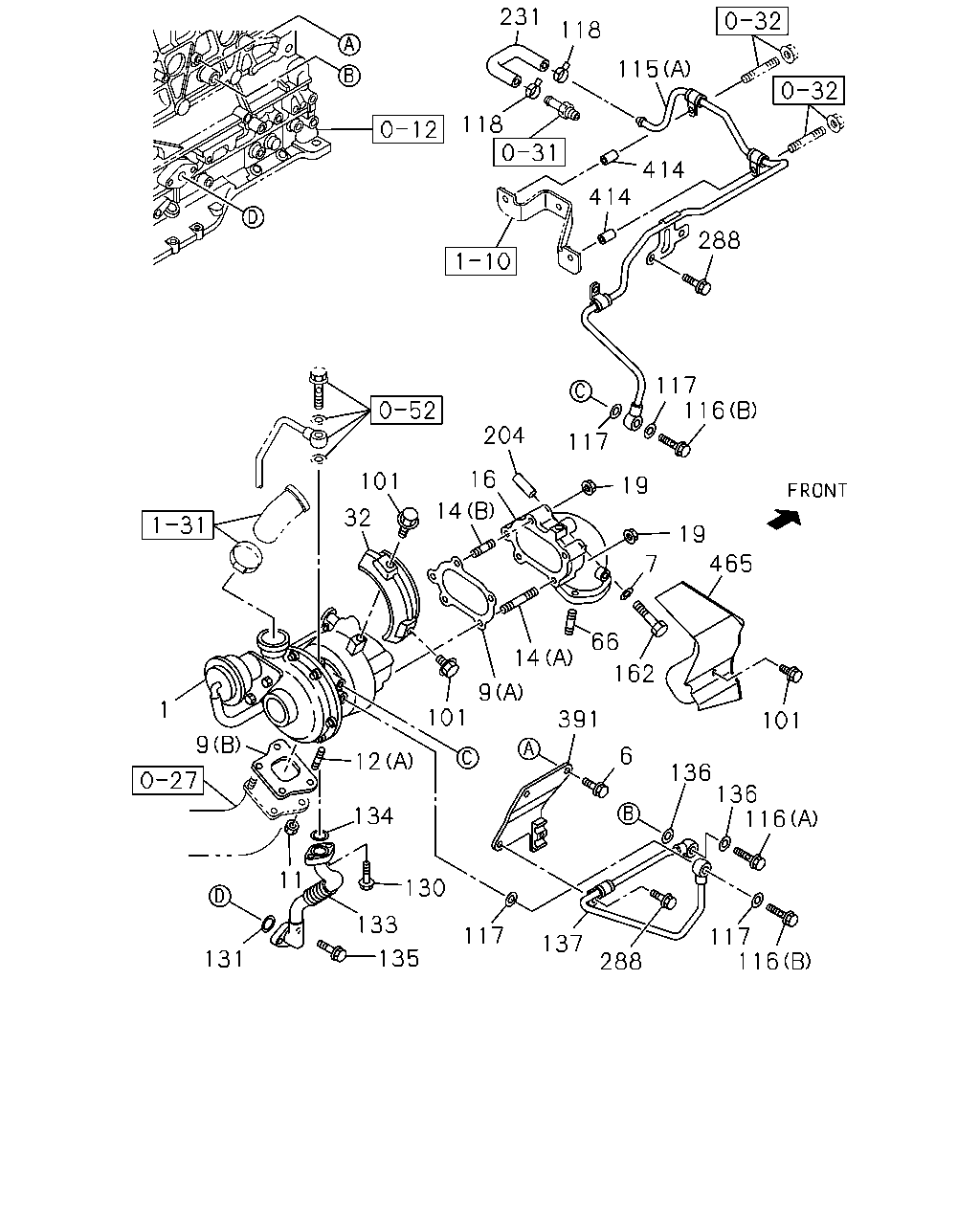

çizim 432024
231 118 115 118 414 414 288 117 204 117 19 16 101 32 14 19 7 465 66 14 162 1 9 12 134 130 133 135 131 11 101 391 9 6 117 137 288 117 116 116 136 136 101 116
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98217-251-2 01 1 1407- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 1410-1504 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 1505- ● ●
6 BOLT; BRKT TO C/BL
M8X16 FLANGE MAL 		0-28050-816-0 02 1 1407- ●
7 WASHER; PL,BRKT
ID=8 OD=18 T=3 		8-94174-537-0 01 1 1407- ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-97039-777-1 01 1 1407- ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		8-97374-412-0 01 1 1407- ●
11 NUT; TURBOCHARGER
M10 P=1.5 H=8 		9-09842-007-0 04 1 1407- ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 04 1 1410-1504 ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 04 1 1505- ● ●
12 STUD; TURBOCHARGER
(A) M10X28 		9-04731-028-0 02 1 1407- ●
12 STUD; TURBOCHARGER
(B) M8X25 		9-04130-825-0 01 1 1410-1504 ●
12 STUD; TURBOCHARGER
(B) M8X25 		9-04130-825-0 01 1 1505- ● ●
12 STUD; TURBOCHARGER
(C) M10X80 		9-04731-080-0 02 1 1410-1504 ●
12 STUD; TURBOCHARGER
(C) M10X80 		9-04731-080-0 02 1 1505- ● ●
14 STUD; TURBOCHARGER TO EXH PIPE
(A) M8X94 L=108 		8-97019-477-0 02 1 1407- ●
14 STUD; TURBOCHARGER TO EXH PIPE
(B) M8X49 L=63 		8-97019-478-0 03 1 1407- ●
16 ADAPTER; EXH PIPE 8-97039-749-2 01 1 1407- ●
16 ADAPTER; EXH PIPE 8-94395-767-0 01 1 1410-1504 ●
16 ADAPTER; EXH PIPE 8-94395-767-0 01 1 1505- ● ●
19 NUT; EXH PIPE,TURBOCHARGER
M8 FLANGE 		8-94170-486-0 05 1 1407- ●
32 PROTECTOR; HEAT,TURBOCHARGER 8-97351-168-0 01 1 1407- ●
66 STUD; EXH PIPE
M10X25 L=40 		0-44011-025-0 03 1 1407- ●
101 BOLT; HEAT PROTECTOR
M6X12 W/PL WASHER 		8-98054-289-0 06 1 1407- ●
115 PIPE; WATER,TURBOCHARGER OUT
(A) 		8-98063-841-0 01 1 1407- ●
115 PIPE; WATER,TURBOCHARGER OUT
(B) 		8-94392-950-0 01 1 1410-1504 ●
115 PIPE; WATER,TURBOCHARGER OUT
(B) 		8-94392-950-0 01 1 1505- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
(C) 		8-94395-454-4 01 1 1410-1504 ●
115 PIPE; WATER,TURBOCHARGER OUT
(C) 		8-94395-454-4 01 1 1505- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
(D) 		8-97618-808-0 01 1 1410-1507 ●
115 PIPE; WATER,TURBOCHARGER OUT
MZW6P M/T(RSZ) (D) 		8-97618-808-0 01 1 1508- ●
115 PIPE; WATER,TURBOCHARGER OUT
(D) 		8-97618-807-0 01 1 1505-1507 ●
115 PIPE; WATER,TURBOCHARGER OUT
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (D) 		8-97618-807-0 01 1 1508- ● ●
116 BOLT; WATER PIPE
(B) M12X24 EYE-BOLT 		1-09675-081-0 02 1 1407- ●
116 BOLT; WATER PIPE
(A) M14X30 EYE-BOLT 		8-94455-144-0 01 1 1407- ●
117 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		9-09571-412-0 04 1 1407- ●
118 CLIP; WATER HOSE
ID=15.5 		8-94221-519-0 06 1 1407- ●
130 BOLT; OIL PIPE TO TURBOCHARGER DRAIN
M6X20 W/LK WASHER 		0-50540-620-0 02 1 1407- ●
131 GASKET; OIL PIPE,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 		8-94394-671-0 01 1 1407- ●
133 PIPE; OIL DRAIN,TURBOCHARGER 8-98172-662-0 01 1 1407- ●
134 GASKET; OIL PIPE,TURBOCHARGER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8 		1-09623-462-0 01 1 1407- ●
135 BOLT; OIL PIPE TO C/BL
M8X20 FLANGE MAL 		0-28050-820-0 02 1 1407- ●
136 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		8-98251-345-0 02 1 1407- ●
137 PIPE; WATER,TURBOCHARGER IN 8-98063-007-0 01 1 1407- ●
162 BOLT; ADAPTER
M8X57 		5-09000-275-0 01 1 1407- ●
162 BOLT; ADAPTER
M8X57 		5-09000-275-0 05 1 1410-1504 ●
162 BOLT; ADAPTER
M8X57 		5-09000-275-0 05 1 1505- ● ●
204 COLLAR; PIPE ADAPTER 8-97214-384-1 01 1 1407- ●
231 HOSE; RUBBER,TURBOCHARGER OUT 8-97209-950-0 01 1 1407- ●
288 BOLT; WATER PIPE CLIP
M8X16 FLANGE MAL 		0-28050-816-0 02 1 1407- ●
391 BRACKET; WATER PIPE 8-98057-168-2 01 1 1407- ●
414 SPACER
M8X10 		1-11369-081-0 02 1 1407- ●
465 PROTECTOR; HEAT,EXH ADAPTER 8-98176-248-0 01 1 1407- ●

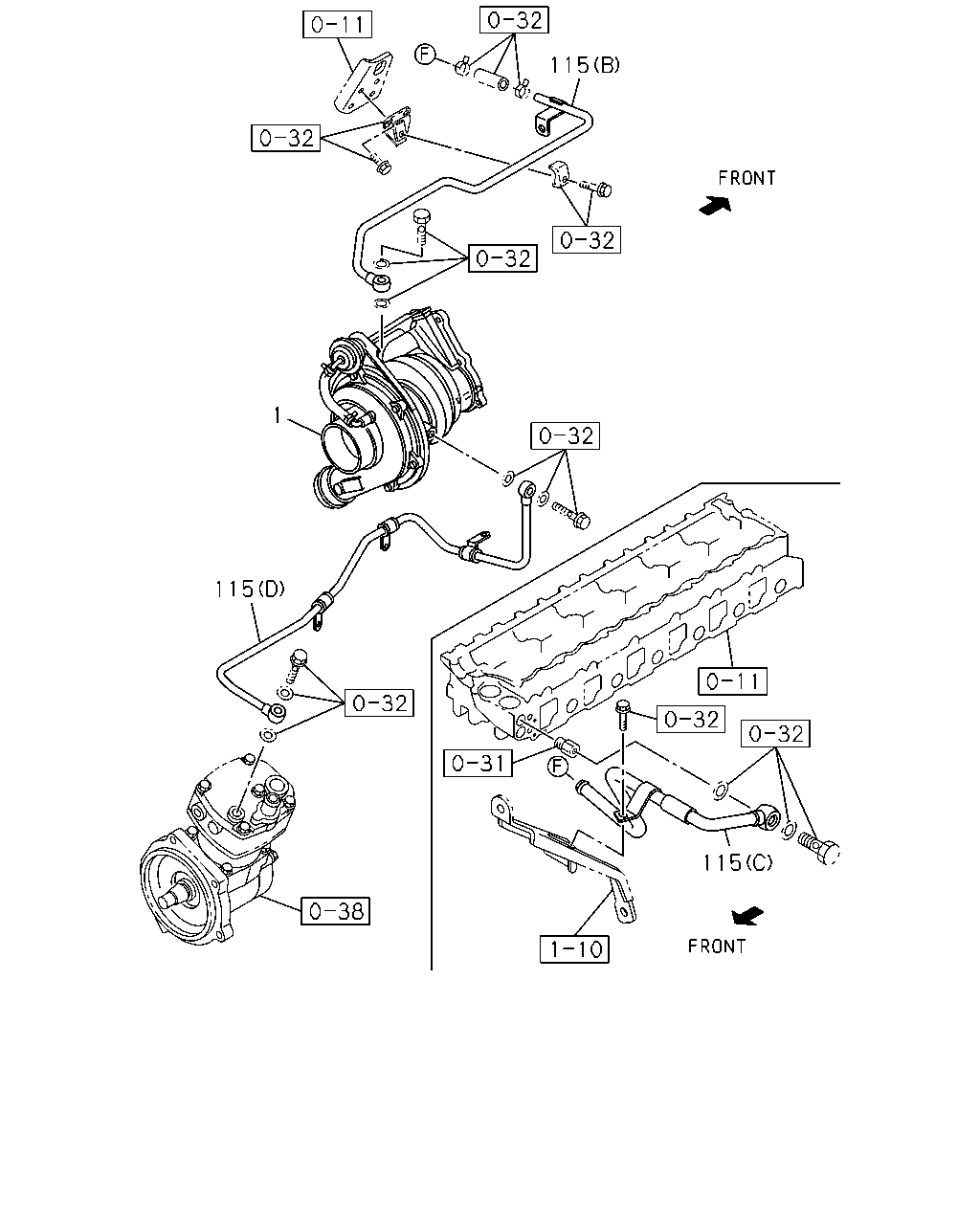

çizim 459376
115 1 115 115
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98217-251-2 01 1 1407- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 1410-1504 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 1505- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
(A) 		8-98063-841-0 01 1 1407- ●
115 PIPE; WATER,TURBOCHARGER OUT
(B) 		8-94392-950-0 01 1 1410-1504 ●
115 PIPE; WATER,TURBOCHARGER OUT
(B) 		8-94392-950-0 01 1 1505- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
(C) 		8-94395-454-4 01 1 1410-1504 ●
115 PIPE; WATER,TURBOCHARGER OUT
(C) 		8-94395-454-4 01 1 1505- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
(D) 		8-97618-808-0 01 1 1410-1507 ●
115 PIPE; WATER,TURBOCHARGER OUT
MZW6P M/T(RSZ) (D) 		8-97618-808-0 01 1 1508- ●
115 PIPE; WATER,TURBOCHARGER OUT
(D) 		8-97618-807-0 01 1 1505-1507 ●
115 PIPE; WATER,TURBOCHARGER OUT
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (D) 		8-97618-807-0 01 1 1508- ● ●
çizim 459482
2 12 11 10 212 212 11 1 12 13 388 16 17 162 217 275 265 217 275 162 17 17 122 20 20 79 398 398 92 92 488 398 398 79 398 398 20 143 98 143 28
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98217-251-2 01 1 1407- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 1410-1504 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 1505- ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-044-0 01 1 1410-1504 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-044-0 01 1 1505- ● ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 02 1 1410-1504 ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 02 1 1505- ● ●
11 NUT; TURBOCHARGER
M10 P=1.5 H=8 		9-09842-007-0 04 1 1407- ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 04 1 1410-1504 ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 04 1 1505- ● ●
12 STUD; TURBOCHARGER
(A) M10X28 		9-04731-028-0 02 1 1407- ●
12 STUD; TURBOCHARGER
(B) M8X25 		9-04130-825-0 01 1 1410-1504 ●
12 STUD; TURBOCHARGER
(B) M8X25 		9-04130-825-0 01 1 1505- ● ●
12 STUD; TURBOCHARGER
(C) M10X80 		9-04731-080-0 02 1 1410-1504 ●
12 STUD; TURBOCHARGER
(C) M10X80 		9-04731-080-0 02 1 1505- ● ●
13 STUD; EXH PIPE
M12X103 L=123 		8-94394-656-0 01 1 1410-1504 ●
13 STUD; EXH PIPE
M12X103 L=123 		8-94394-656-0 01 1 1505- ● ●
16 ADAPTER; EXH PIPE 8-97039-749-2 01 1 1407- ●
16 ADAPTER; EXH PIPE 8-94395-767-0 01 1 1410-1504 ●
16 ADAPTER; EXH PIPE 8-94395-767-0 01 1 1505- ● ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 06 1 1410-1504 ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 06 1 1505- ● ●
20 PIPE; INL,TURBOCHARGER OUT
(A) 		8-97606-675-1 01 1 1410-1504 ●
20 PIPE; INL,TURBOCHARGER OUT
(A) 		8-97606-675-1 01 1 1505- ● ●
20 PIPE; INL,TURBOCHARGER OUT
(C) 		8-97618-734-0 01 1 1410-1504 ●
20 PIPE; INL,TURBOCHARGER OUT
(C) 		8-97618-734-0 01 1 1505- ● ●
20 PIPE; INL,TURBOCHARGER OUT
(B) 		8-98251-577-0 01 1 1410-1504 ●
20 PIPE; INL,TURBOCHARGER OUT
(B) 		8-98251-577-0 01 1 1505- ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT 8-94393-182-0 01 1 1410-1504 ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT 8-94393-182-0 01 1 1505- ● ●
79 CLIP; RUBBER HOSE
ID=58-79 		1-09707-136-0 02 1 1410-1504 ●
79 CLIP; RUBBER HOSE
ID=58-79 		1-09707-136-0 02 1 1505- ● ●
92 BOLT; INL PIPE
(B) M8X35 FLANGE 		0-28650-835-0 01 1 1410-1504 ●
92 BOLT; INL PIPE
(B) M8X35 FLANGE 		0-28650-835-0 01 1 1505- ● ●
92 BOLT; INL PIPE
(A) M8X40 FLANGE 		0-28650-840-0 01 1 1410-1504 ●
92 BOLT; INL PIPE
(A) M8X40 FLANGE 		0-28650-840-0 01 1 1505- ● ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
ID=62 L=70 		8-98245-240-0 01 1 1410-1504 ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
ID=62 L=70 		8-98245-240-0 01 1 1505- ● ●
122 NUT; ADAPTER
M8 		1-09400-118-1 01 1 1410-1504 ●
122 NUT; ADAPTER
M8 		1-09400-118-1 01 1 1505- ● ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-79 		8-94126-771-0 02 1 1410-1504 ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-79 		8-94126-771-0 02 1 1505- ● ●
162 BOLT; ADAPTER
M8X57 		5-09000-275-0 01 1 1407- ●
162 BOLT; ADAPTER
M8X57 		5-09000-275-0 05 1 1410-1504 ●
162 BOLT; ADAPTER
M8X57 		5-09000-275-0 05 1 1505- ● ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 1410-1504 ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 1505- ● ●
217 BOLT; BRKT
M12X30 		8-94394-324-0 03 1 1410-1504 ●
217 BOLT; BRKT
M12X30 		8-94394-324-0 03 1 1505- ● ●
265 BRACKET; EXH PIPE 8-94395-764-2 01 1 1410-1504 ●
265 BRACKET; EXH PIPE 8-94395-764-2 01 1 1505- ● ●
275 WASHER; PL
ID=12.2 		1-09503-008-0 03 1 1410-1504 ●
275 WASHER; PL
ID=12.2 		1-09503-008-0 03 1 1505- ● ●
388 GASKET; EXH PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94394-248-2 01 1 1410-1504 ●
388 GASKET; EXH PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94394-248-2 01 1 1505- ● ●
398 MOUNTING
(F) ID=19 OD=26 		8-94160-177-0 01 1 1410-1504 ●
398 MOUNTING
(F) ID=19 OD=26 		8-94160-177-0 01 1 1505- ● ●
398 MOUNTING
(C) OD=28 		8-94390-551-1 01 1 1410-1504 ●
398 MOUNTING
(C) OD=28 		8-94390-551-1 01 1 1505- ● ●
398 MOUNTING
(D) ID=13 OD=28 		8-94394-504-0 01 1 1410-1504 ●
398 MOUNTING
(D) ID=13 OD=28 		8-94394-504-0 01 1 1505- ● ●
398 MOUNTING
(E) OD=26 		8-94394-529-0 01 1 1410-1504 ●
398 MOUNTING
(E) OD=26 		8-94394-529-0 01 1 1505- ● ●
398 MOUNTING
(A) OD=32 		8-94395-766-0 01 1 1410-1504 ●
398 MOUNTING
(A) OD=32 		8-94395-766-0 01 1 1505- ● ●
398 MOUNTING
(B) OD=23 		8-97105-689-6 01 1 1410-1504 ●
398 MOUNTING
(B) OD=23 		8-97105-689-6 01 1 1505- ● ●
488 HOSE; RUBBER
ID=62 L=70 		8-98245-240-0 01 1 1410-1504 ●
488 HOSE; RUBBER
ID=62 L=70 		8-98245-240-0 01 1 1505- ● ●
