◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11118 - EXY NZ JNST04 EXC.HYDRAULIC RETARDER ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶
4-55 — FRONT LEAF SPRING (#14410) — 12 parça

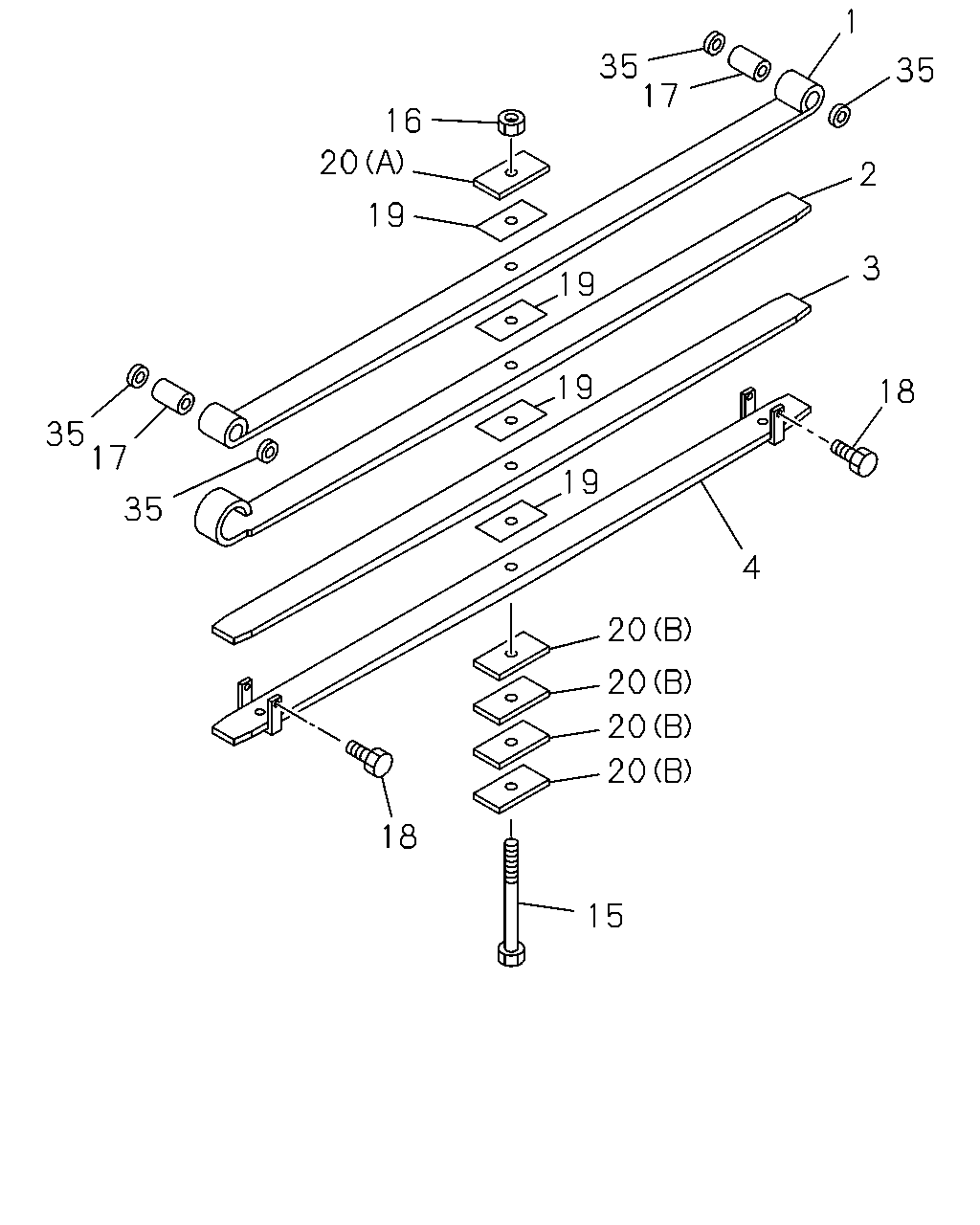

çizim 96263
1 35 35 17 16 20 19 2 19 3 19 18 35 17 35 19 4 20 20 20 20 18 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
ASM PART: A = 1-51130-920-0 		1-51131-912-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: A = 1-51130-920-0 		1-51132-912-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: A = 1-51130-920-0 		1-51133-912-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: A = 1-51130-920-0 		1-51134-912-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=170 ASM PART: A = 1-51130-920-0 		1-51156-305-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 1-51130-920-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=42 ASM PART: A = 1-51130-920-0 		1-51351-044-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X103 ASM PART: A = 1-51130-920-0 		1-09000-536-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 1-51130-920-0 		1-51177-071-0 04 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: A = 1-51130-920-0 		1-51177-097-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=15 ASM PART: A = 1-51130-920-0 		1-51177-352-0 04 1 -
35 SEAL; DUST
ASM PART: A = 1-51130-920-0 		1-51177-321-0 04 1 -
