0-32 — WATER PIPING; ENGINE (#144098) — 124 parça

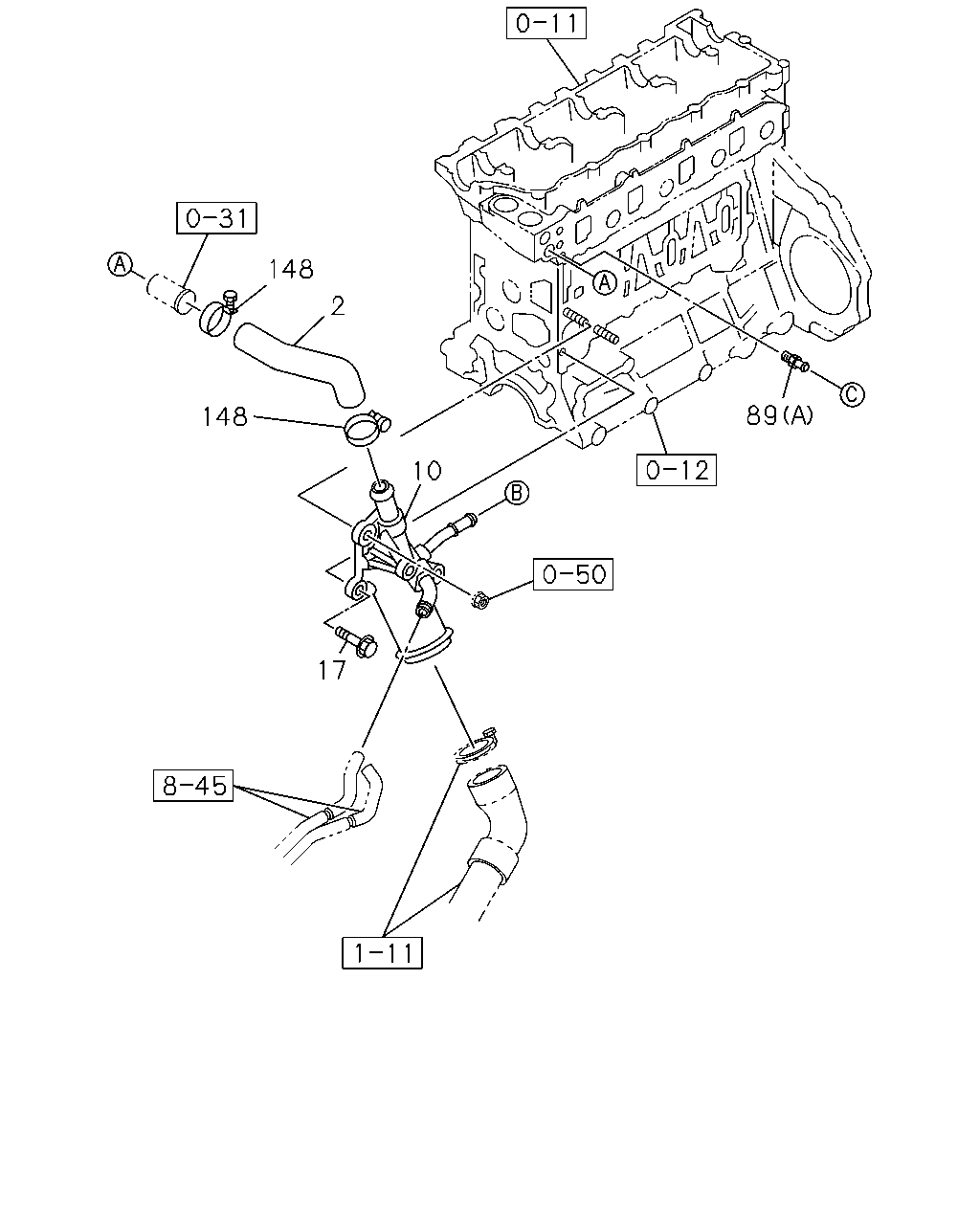

çizim 431164
148 148 10 2 89 17
BalonParca AdiParca NoAdetTipApplied Date A B C
2 HOSE; WATER,BY-PASS 8-97379-228-1 01 1 1407- ●
10 PIPE; SUCTION 8-98166-995-0 01 1 1407- ●
17 BOLT; SUCTION PIPE
M8X48 FLANGE 		8-94458-473-1 01 1 1407- ●
89 PIPE; WATER,AIR CMPR,IN
(A) 		8-97358-699-0 01 1 1407- ●
89 PIPE; WATER,AIR CMPR,IN
(B) 		8-97376-783-1 01 1 1407- ●
89 PIPE; WATER,AIR CMPR,IN
(C) 		8-97611-095-0 01 1 1410-1507 ●
89 PIPE; WATER,AIR CMPR,IN
MZW6P M/T(RSZ) (C) 		8-97611-095-0 01 1 1508- ●
89 PIPE; WATER,AIR CMPR,IN
(C) 		8-97610-086-0 01 1 1505-1507 ●
89 PIPE; WATER,AIR CMPR,IN
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (C) 		8-97610-086-0 01 1 1508- ● ●
148 CLIP; BYPASS HOSE
ID=30 		9-09915-315-1 02 1 1407- ●

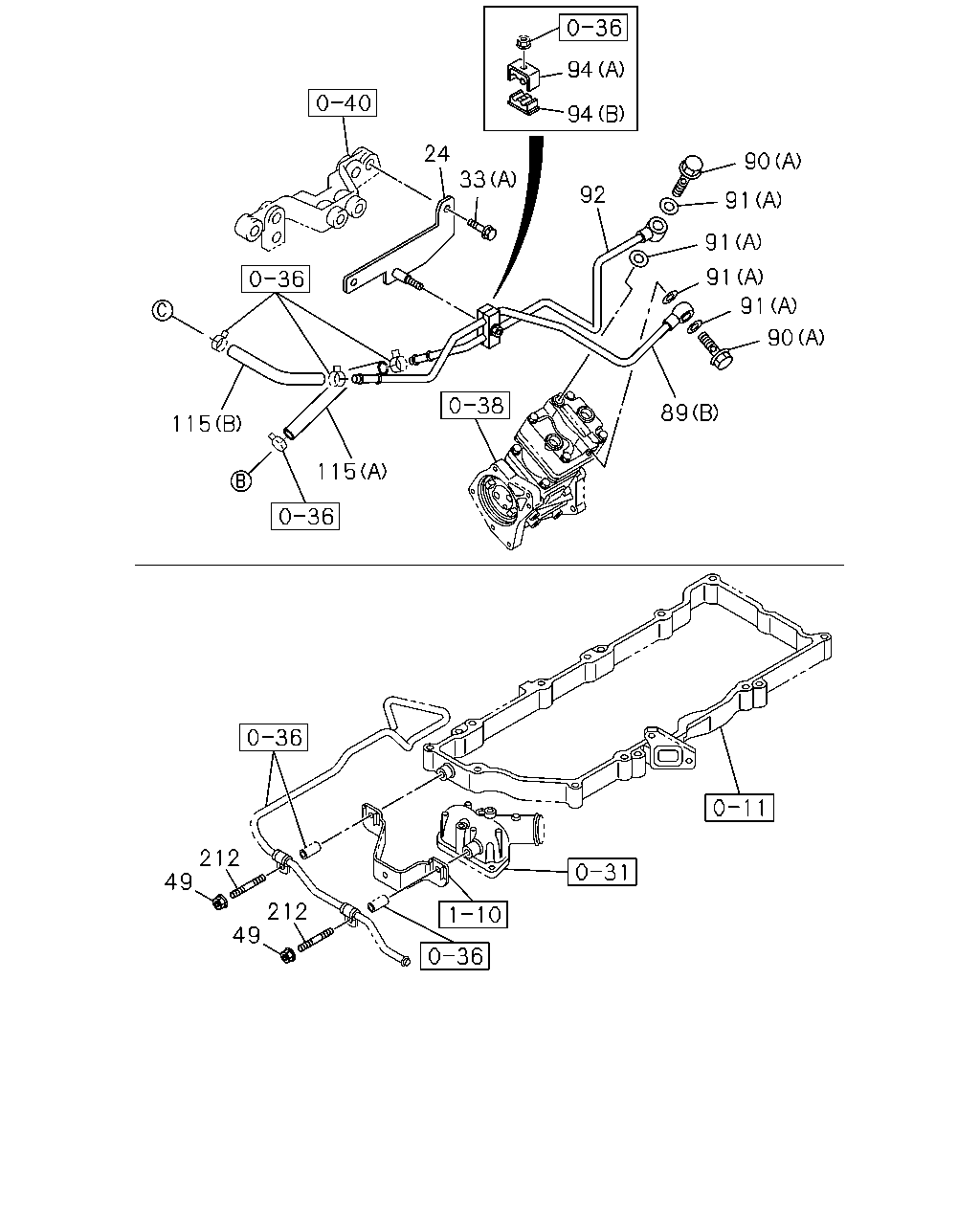

çizim 431215
94 94 24 92 90 91 91 91 91 90 89 115 115 33 212 49 212 49
BalonParca AdiParca NoAdetTipApplied Date A B C
24 BRACKET; WATER PIPE 8-97379-140-0 01 1 1407- ●
33 BOLT; BRKT
(A) M6X10 FLANGE 		0-28050-610-0 02 1 1407- ●
33 BOLT; BRKT
(C) M8X16 FLANGE MAL 		0-28050-816-0 02 1 1410-1504 ●
33 BOLT; BRKT
(C) M8X16 FLANGE MAL 		0-28050-816-0 02 1 1505- ● ●
33 BOLT; BRKT
(B) M8X20 FLANGE MAL 		0-28050-820-0 02 1 1410-1504 ●
33 BOLT; BRKT
(B) M8X20 FLANGE MAL 		0-28050-820-0 02 1 1505- ● ●
49 NUT; WATER PIPE
M8 FLANGE MAL 		0-91180-108-0 02 1 1407- ●
89 PIPE; WATER,AIR CMPR,IN
(A) 		8-97358-699-0 01 1 1407- ●
89 PIPE; WATER,AIR CMPR,IN
(B) 		8-97376-783-1 01 1 1407- ●
89 PIPE; WATER,AIR CMPR,IN
(C) 		8-97611-095-0 01 1 1410-1507 ●
89 PIPE; WATER,AIR CMPR,IN
MZW6P M/T(RSZ) (C) 		8-97611-095-0 01 1 1508- ●
89 PIPE; WATER,AIR CMPR,IN
(C) 		8-97610-086-0 01 1 1505-1507 ●
89 PIPE; WATER,AIR CMPR,IN
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (C) 		8-97610-086-0 01 1 1508- ● ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(A) M14X27 EYE-BOLT 		1-09675-193-0 02 1 1407- ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(A) M14X27 EYE-BOLT 		1-09675-193-0 01 1 1410-1504 ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(A) M14X27 EYE-BOLT 		1-09675-193-0 01 1 1505- ● ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(B) M16X28 		8-94383-489-0 01 1 1410-1504 ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(B) M16X28 		8-94383-489-0 01 1 1505- ● ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 		8-98251-345-0 04 1 1407- ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2 		1-09630-086-0 02 1 1410-1504 ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2 		1-09630-086-0 02 1 1505- ● ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1410-1504 ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1505- ● ●
92 PIPE; WATER,AIR CMPR,OUT 8-97376-784-0 01 1 1407- ●
94 CLIP; WATER PIPE
(A) ID=9 & 9 L=25 		1-09701-180-0 01 1 1407- ●
94 CLIP; WATER PIPE
(B) ID=9 & 9 L=25 		8-94393-280-3 01 1 1407- ●
94 CLIP; WATER PIPE
(C) 		8-94396-860-0 01 1 1410-1504 ●
94 CLIP; WATER PIPE
(C) 		8-94396-860-0 01 1 1505- ● ●
115 HOSE; RUBBER
(A) 		8-98009-361-0 01 1 1407- ●
115 HOSE; RUBBER
(B) L=130 		8-98136-884-0 01 1 1407- ●
115 HOSE; RUBBER
(C) L=60 SERVICED BY L=3000 		0-03561-300-0 01 1 1410-1504 ●
115 HOSE; RUBBER
(C) L=60 SERVICED BY L=3000 		0-03561-300-0 01 1 1505- ● ●
212 STUD; PIPE
M8X45 L=55 		8-94217-227-0 02 1 1407- ●

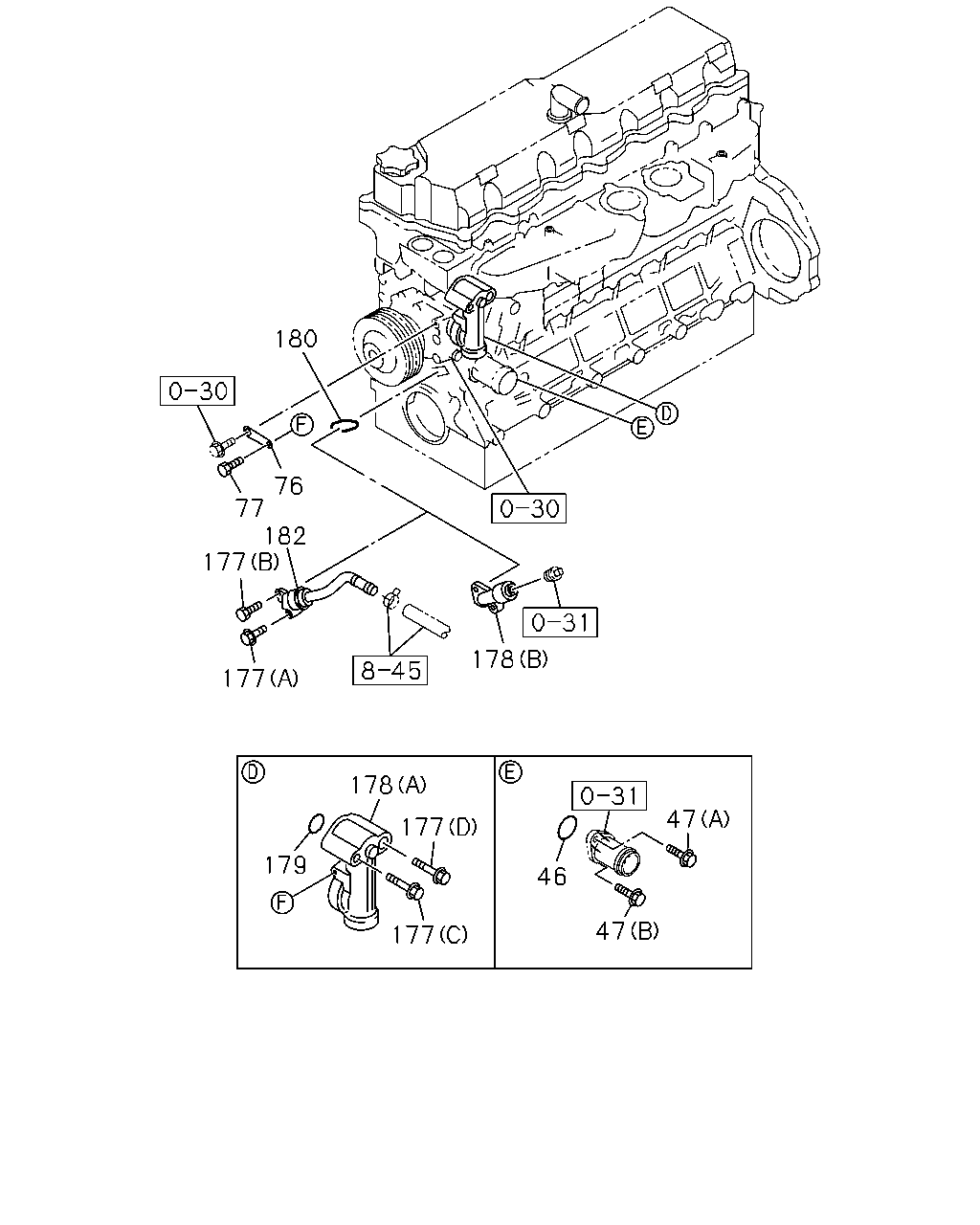

çizim 458255
180 77 76 177 177 178 178 179 177 177 46 47 47 182
BalonParca AdiParca NoAdetTipApplied Date A B C
46 GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3 		8-94396-680-2 01 1 1410-1504 ●
46 GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3 		8-94396-680-2 01 1 1505- ● ●
47 BOLT; DUCT,TO OIL COOLER
(A) M8X45 FLANGE 		0-28050-845-0 01 1 1410-1504 ●
47 BOLT; DUCT,TO OIL COOLER
(A) M8X45 FLANGE 		0-28050-845-0 01 1 1505- ● ●
47 BOLT; DUCT,TO OIL COOLER
(B) M8X25 FLANGE MAL 		0-28650-825-0 01 1 1410-1504 ●
47 BOLT; DUCT,TO OIL COOLER
(B) M8X25 FLANGE MAL 		0-28650-825-0 01 1 1505- ● ●
76 BRACKET; WATER DUCT,PUMP 8-94394-784-0 01 1 1410-1504 ●
76 BRACKET; WATER DUCT,PUMP 8-94394-784-0 01 1 1505- ● ●
77 BOLT; BRKT,WATER DUCT
M8X50 FLANGE 		0-28050-850-0 01 1 1410-1504 ●
77 BOLT; BRKT,WATER DUCT
M8X50 FLANGE 		0-28050-850-0 01 1 1505- ● ●
177 BOLT; WATER DUCT
(C) M8X80 FLANGE 		0-28050-880-0 01 1 1410-1504 ●
177 BOLT; WATER DUCT
(C) M8X80 FLANGE 		0-28050-880-0 01 1 1505- ● ●
177 BOLT; WATER DUCT
(B) M8X25 FLANGE MAL 		0-28650-825-0 01 1 1410-1504 ●
177 BOLT; WATER DUCT
(B) M8X25 FLANGE MAL 		0-28650-825-0 01 1 1505- ● ●
177 BOLT; WATER DUCT
(A) M8X65 FLANGE 		1-09044-072-1 01 1 1410-1504 ●
177 BOLT; WATER DUCT
(A) M8X65 FLANGE 		1-09044-072-1 01 1 1505- ● ●
177 BOLT; WATER DUCT
(D) M16X75 FLANGE 		8-94397-360-1 01 1 1410-1504 ●
177 BOLT; WATER DUCT
(D) M16X75 FLANGE 		8-94397-360-1 01 1 1505- ● ●
178 DUCT; WATER,BYPASS
(A) 		8-94396-627-3 01 1 1410-1504 ●
178 DUCT; WATER,BYPASS
(A) 		8-94396-627-3 01 1 1505- ● ●
178 DUCT; WATER,BYPASS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-94390-644-0 01 1 1410-1504 ●
178 DUCT; WATER,BYPASS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-94390-644-0 01 1 1505- ● ●
179 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2 		8-98276-756-0 01 1 1410-1504 ●
179 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2 		8-98276-756-0 01 1 1505- ● ●
180 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94396-720-1 01 1 1410-1504 ●
180 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94396-720-1 01 1 1505- ● ●
182 DUCT; WATER,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94394-348-5 01 1 1410-1504 ●
182 DUCT; WATER,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94394-348-5 01 1 1505- ● ●

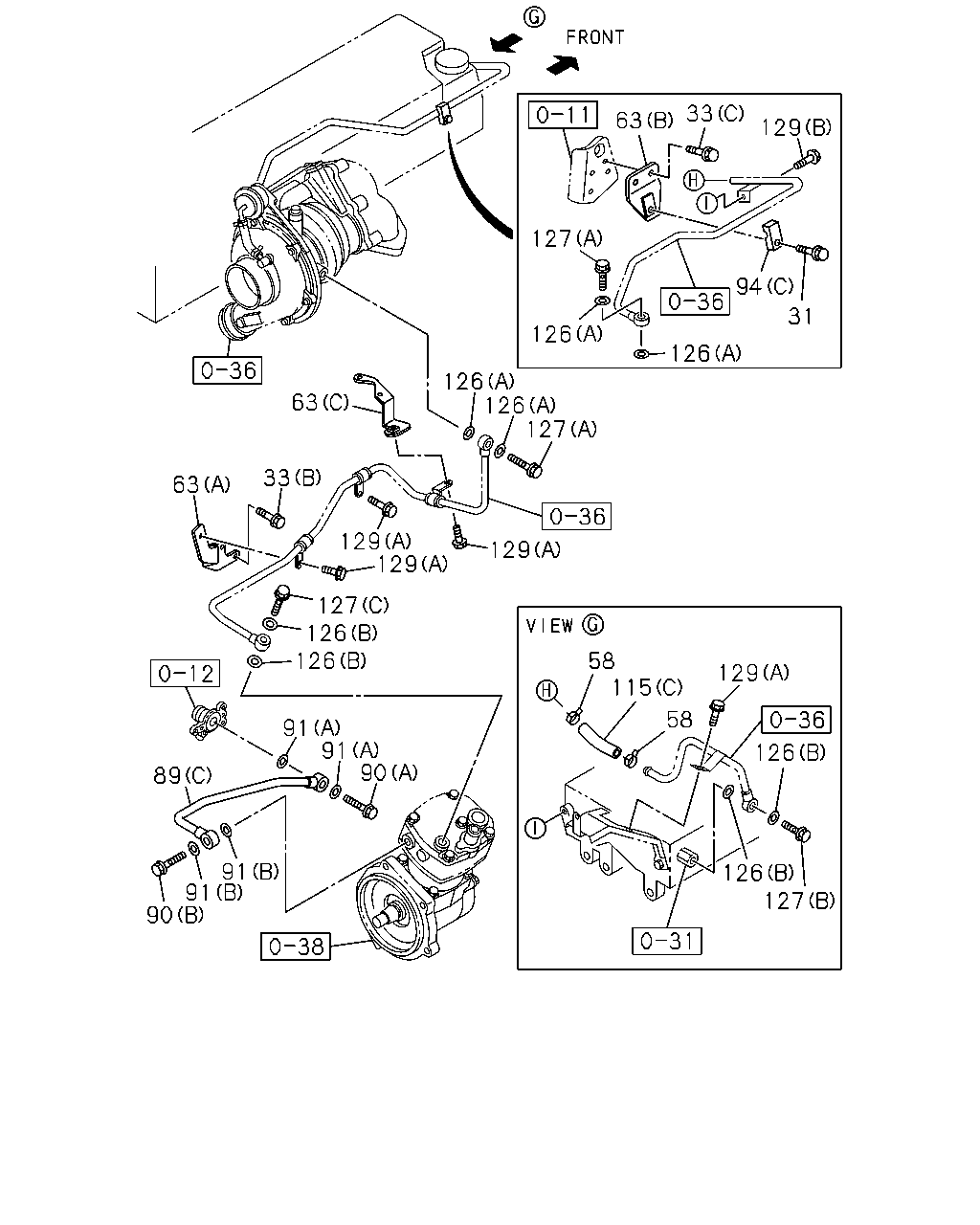

çizim 459012
63 33 129 127 94 126 126 31 126 126 127 129 129 129 127 126 126 91 91 90 58 115 58 129 126 126 127 91 91 63 33 63 89 90
BalonParca AdiParca NoAdetTipApplied Date A B C
31 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 01 1 1410-1504 ●
31 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 01 1 1505- ● ●
33 BOLT; BRKT
(A) M6X10 FLANGE 		0-28050-610-0 02 1 1407- ●
33 BOLT; BRKT
(C) M8X16 FLANGE MAL 		0-28050-816-0 02 1 1410-1504 ●
33 BOLT; BRKT
(C) M8X16 FLANGE MAL 		0-28050-816-0 02 1 1505- ● ●
33 BOLT; BRKT
(B) M8X20 FLANGE MAL 		0-28050-820-0 02 1 1410-1504 ●
33 BOLT; BRKT
(B) M8X20 FLANGE MAL 		0-28050-820-0 02 1 1505- ● ●
58 CLIP; RUBBER HOSE
ID=16 		8-94392-924-0 02 1 1410-1504 ●
58 CLIP; RUBBER HOSE
ID=16 		8-94392-924-0 02 1 1505- ● ●
63 BRACKET; WATER PIPE
(B) 		8-94392-951-0 01 1 1410-1504 ●
63 BRACKET; WATER PIPE
(B) 		8-94392-951-0 01 1 1505- ● ●
63 BRACKET; WATER PIPE
(C) 		8-98074-252-0 01 1 1410-1504 ●
63 BRACKET; WATER PIPE
(C) 		8-98074-252-0 01 1 1505- ● ●
63 BRACKET; WATER PIPE
(A) 		8-98074-253-0 01 1 1410-1504 ●
63 BRACKET; WATER PIPE
(A) 		8-98074-253-0 01 1 1505- ● ●
89 PIPE; WATER,AIR CMPR,IN
(A) 		8-97358-699-0 01 1 1407- ●
89 PIPE; WATER,AIR CMPR,IN
(B) 		8-97376-783-1 01 1 1407- ●
89 PIPE; WATER,AIR CMPR,IN
(C) 		8-97611-095-0 01 1 1410-1507 ●
89 PIPE; WATER,AIR CMPR,IN
MZW6P M/T(RSZ) (C) 		8-97611-095-0 01 1 1508- ●
89 PIPE; WATER,AIR CMPR,IN
(C) 		8-97610-086-0 01 1 1505-1507 ●
89 PIPE; WATER,AIR CMPR,IN
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (C) 		8-97610-086-0 01 1 1508- ● ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(A) M14X27 EYE-BOLT 		1-09675-193-0 02 1 1407- ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(A) M14X27 EYE-BOLT 		1-09675-193-0 01 1 1410-1504 ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(A) M14X27 EYE-BOLT 		1-09675-193-0 01 1 1505- ● ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(B) M16X28 		8-94383-489-0 01 1 1410-1504 ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(B) M16X28 		8-94383-489-0 01 1 1505- ● ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 		8-98251-345-0 04 1 1407- ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2 		1-09630-086-0 02 1 1410-1504 ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2 		1-09630-086-0 02 1 1505- ● ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1410-1504 ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1505- ● ●
94 CLIP; WATER PIPE
(A) ID=9 & 9 L=25 		1-09701-180-0 01 1 1407- ●
94 CLIP; WATER PIPE
(B) ID=9 & 9 L=25 		8-94393-280-3 01 1 1407- ●
94 CLIP; WATER PIPE
(C) 		8-94396-860-0 01 1 1410-1504 ●
94 CLIP; WATER PIPE
(C) 		8-94396-860-0 01 1 1505- ● ●
115 HOSE; RUBBER
(A) 		8-98009-361-0 01 1 1407- ●
115 HOSE; RUBBER
(B) L=130 		8-98136-884-0 01 1 1407- ●
115 HOSE; RUBBER
(C) L=60 SERVICED BY L=3000 		0-03561-300-0 01 1 1410-1504 ●
115 HOSE; RUBBER
(C) L=60 SERVICED BY L=3000 		0-03561-300-0 01 1 1505- ● ●
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=16.2 		1-09630-086-0 04 1 1410-1504 ●
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=16.2 		1-09630-086-0 04 1 1505- ● ●
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2 		8-98251-345-0 04 1 1410-1504 ●
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2 		8-98251-345-0 04 1 1505- ● ●
127 BOLT; EYE
(A) M14X27 EYE-BOLT 		1-09675-193-0 02 1 1410-1504 ●
127 BOLT; EYE
(A) M14X27 EYE-BOLT 		1-09675-193-0 02 1 1505- ● ●
127 BOLT; EYE
(B) M16X25 		5-09675-028-2 01 1 1410-1504 ●
127 BOLT; EYE
(B) M16X25 		5-09675-028-2 01 1 1505- ● ●
127 BOLT; EYE
(C) M16X28 		8-94383-489-0 01 1 1410-1504 ●
127 BOLT; EYE
(C) M16X28 		8-94383-489-0 01 1 1505- ● ●
129 BOLT; WATER PIPE TO BRKT
(A) M8X16 FLANGE MAL 		0-28050-816-0 05 1 1410-1504 ●
129 BOLT; WATER PIPE TO BRKT
(A) M8X16 FLANGE MAL 		0-28050-816-0 05 1 1505- ● ●
129 BOLT; WATER PIPE TO BRKT
(B) M12X20 FLANGE 		0-28151-220-0 01 1 1410-1504 ●
129 BOLT; WATER PIPE TO BRKT
(B) M12X20 FLANGE 		0-28151-220-0 01 1 1505- ● ●
