◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11604 - FVR(MALAYSIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-30 - WATER PUMP AND CORROSION RESISTOR ▶
0-30 — WATER PUMP AND CORROSION RESISTOR (#144096) — 54 parça

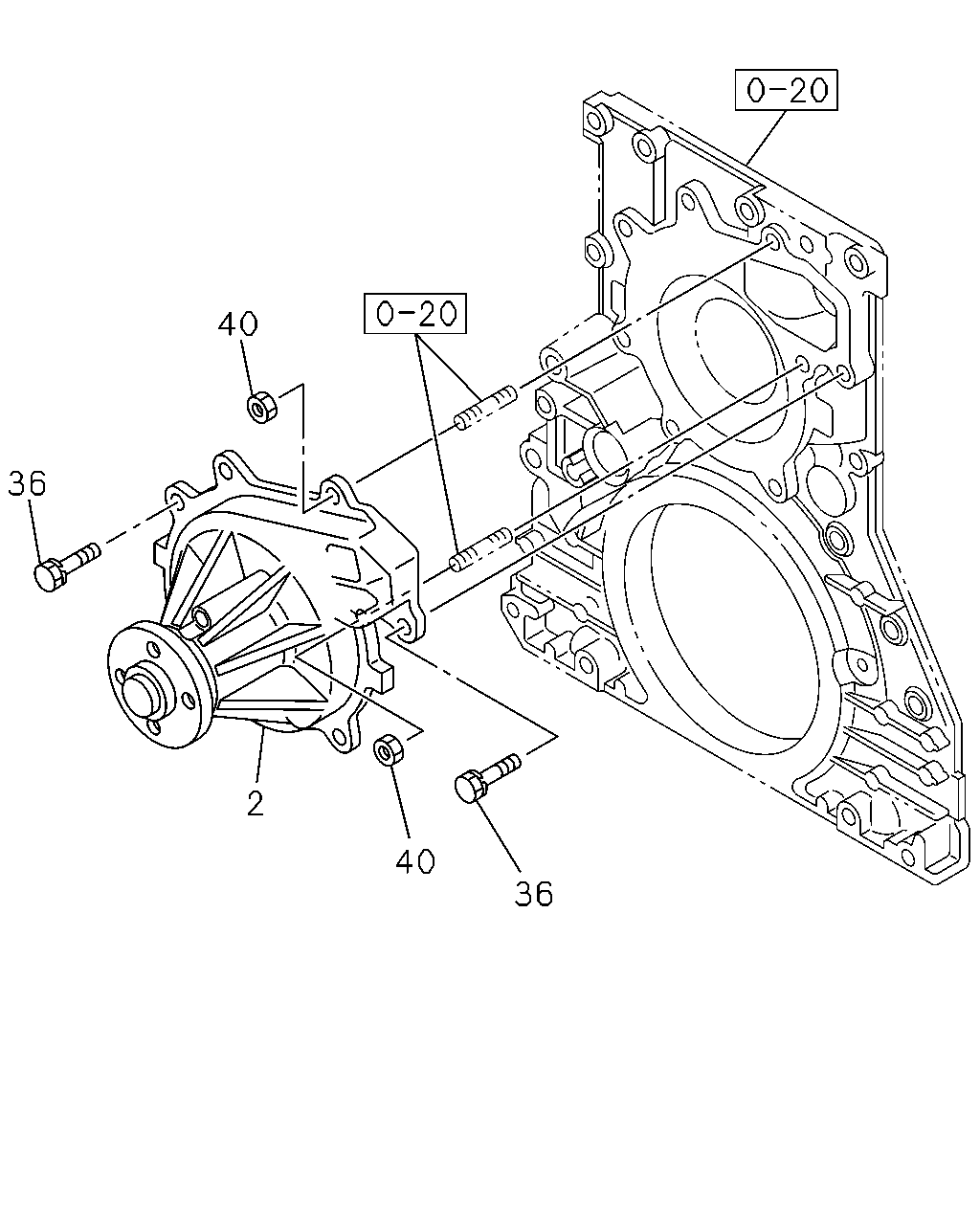

çizim 432253
40 2 36 40 36
BalonParca AdiParca NoAdetTipApplied Date A B C
2 PUMP ASM; WATER 8-97363-478-0 01 1 1407- ●
2 PUMP ASM; WATER
BEST VALUE PARTS 		5-87610-089-0 01 1 1407- ●
36 BOLT; WATER PUMP TO C/BL
M8X40 FLANGE 		0-28650-840-0 06 1 1407- ●
40 NUT; WATER PUMP
M8 FLANGE MAL 		0-91180-108-0 02 1 1407- ●

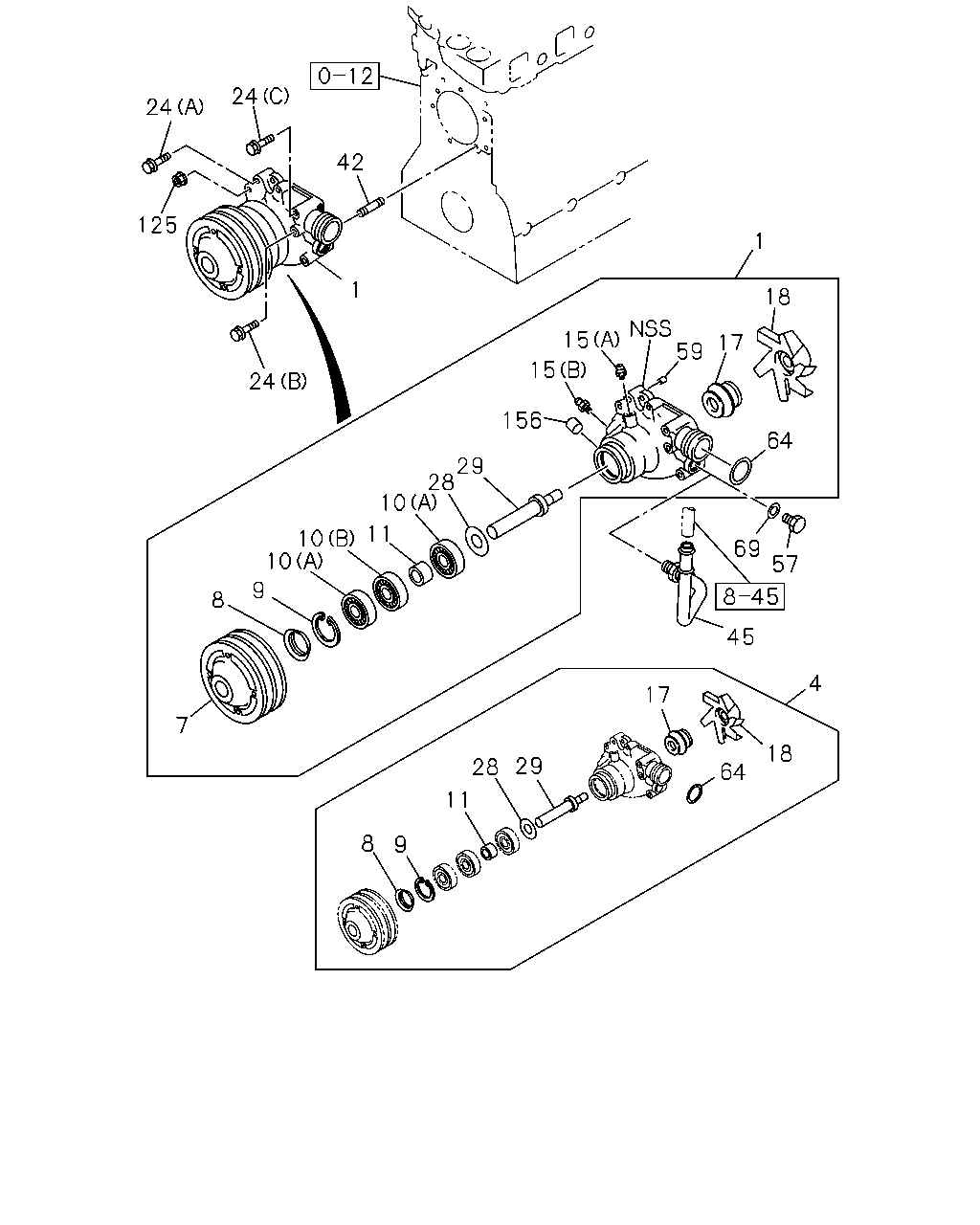

çizim 459013
24 24 125 42 24 1 18 17 59 15 15 156 29 28 10 11 10 10 9 8 7 64 69 57 45 4 17 18 64 29 28 11 9 8 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; WATER,W/GASKET 1-87310-974-0 01 1 1410-1504 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-974-0 01 1 1505- ● ●
4 REPAIR KIT; WATER PUMP 1-87814-615-0 01 1 1410-1504 ●
4 REPAIR KIT; WATER PUMP 1-87814-615-0 01 1 1505- ● ●
7 PULLEY; WATER PUMP 8-98281-099-0 01 1 1410-1504 ●
7 PULLEY; WATER PUMP 8-98281-099-0 01 1 1505- ● ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 1410-1504 ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 1505- ● ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 1410-1504 ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 1505- ● ●
10 BEARING; WATER PUMP
(A) 		8-94391-298-0 02 1 1410-1504 ●
10 BEARING; WATER PUMP
(A) 		8-94391-298-0 02 1 1505- ● ●
10 BEARING; WATER PUMP
(B) 		8-94391-299-0 01 1 1410-1504 ●
10 BEARING; WATER PUMP
(B) 		8-94391-299-0 01 1 1505- ● ●
11 SPACER; BRG,WATER PUMP 1-13634-040-0 01 1 1410-1504 ●
11 SPACER; BRG,WATER PUMP 1-13634-040-0 01 1 1505- ● ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1410-1504 ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1505- ● ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 1410-1504 ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 1505- ● ●
17 SEAL UNIT; WATER PUMP 8-98272-791-0 01 1 1410-1504 ●
17 SEAL UNIT; WATER PUMP 8-98272-791-0 01 1 1505- ● ●
18 IMPELLER; WATER PUMP 8-94392-922-0 01 1 1410-1504 ●
18 IMPELLER; WATER PUMP 8-94392-922-0 01 1 1505- ● ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28050-880-0 01 1 1410-1504 ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28050-880-0 01 1 1505- ● ●
24 BOLT; WATER PUMP
(A) M8X58 FLANGE 		8-94130-055-1 03 1 1410-1504 ●
24 BOLT; WATER PUMP
(A) M8X58 FLANGE 		8-94130-055-1 03 1 1505- ● ●
24 BOLT; WATER PUMP
(C) M10X85 FLANGE 		8-94397-359-1 01 1 1410-1504 ●
24 BOLT; WATER PUMP
(C) M10X85 FLANGE 		8-94397-359-1 01 1 1505- ● ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 1410-1504 ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 1505- ● ●
29 SHAFT; WATER PUMP 8-98280-700-0 01 1 1410-1504 ●
29 SHAFT; WATER PUMP 8-98280-700-0 01 1 1505- ● ●
42 STUD; WATER PUMP
M8X30 L=46 		0-40110-830-0 01 1 1410-1504 ●
42 STUD; WATER PUMP
M8X30 L=46 		0-40110-830-0 01 1 1505- ● ●
45 JOINT; HTR HOSE,WATER PUMP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94392-827-1 01 1 1410-1504 ●
45 JOINT; HTR HOSE,WATER PUMP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94392-827-1 01 1 1505- ● ●
57 PLUG; HTR,WATER PUMP
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M20 		9-99202-320-0 01 1 1410-1504 ●
57 PLUG; HTR,WATER PUMP
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M20 		9-99202-320-0 01 1 1505- ● ●
59 DOWEL; WATER PUMP
OD=12 L=9 		1-13119-003-0 02 1 1410-1504 ●
59 DOWEL; WATER PUMP
OD=12 L=9 		1-13119-003-0 02 1 1505- ● ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7 		1-09623-383-0 01 1 1410-1504 ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7 		1-09623-383-0 01 1 1505- ● ●
69 GASKET; PLUG,HTR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=20.5 OD=28.0 		9-09571-420-0 01 1 1410-1504 ●
69 GASKET; PLUG,HTR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=20.5 OD=28.0 		9-09571-420-0 01 1 1505- ● ●
125 NUT; WATER PUMP
M8 FLANGE MAL 		0-91180-108-0 04 1 1410-1504 ●
125 NUT; WATER PUMP
M8 FLANGE MAL 		0-91180-108-0 04 1 1505- ● ●
156 CUP; SEALING
OD=25 		1-09600-016-0 01 1 1410-1504 ●
156 CUP; SEALING
OD=25 		1-09600-016-0 01 1 1505- ● ●
