Isuzu WW
▶
TRUCKS
▶
FVR
▶
11604 - FVR(MALAYSIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶
0-28 — VENTILATION SYSTEM
(#144095) — 34 parça
Tümü
A - 4HK1-TCS ENG
B - 6HK1-TCN ENG
C - 6HK1-TCS ENG
◀

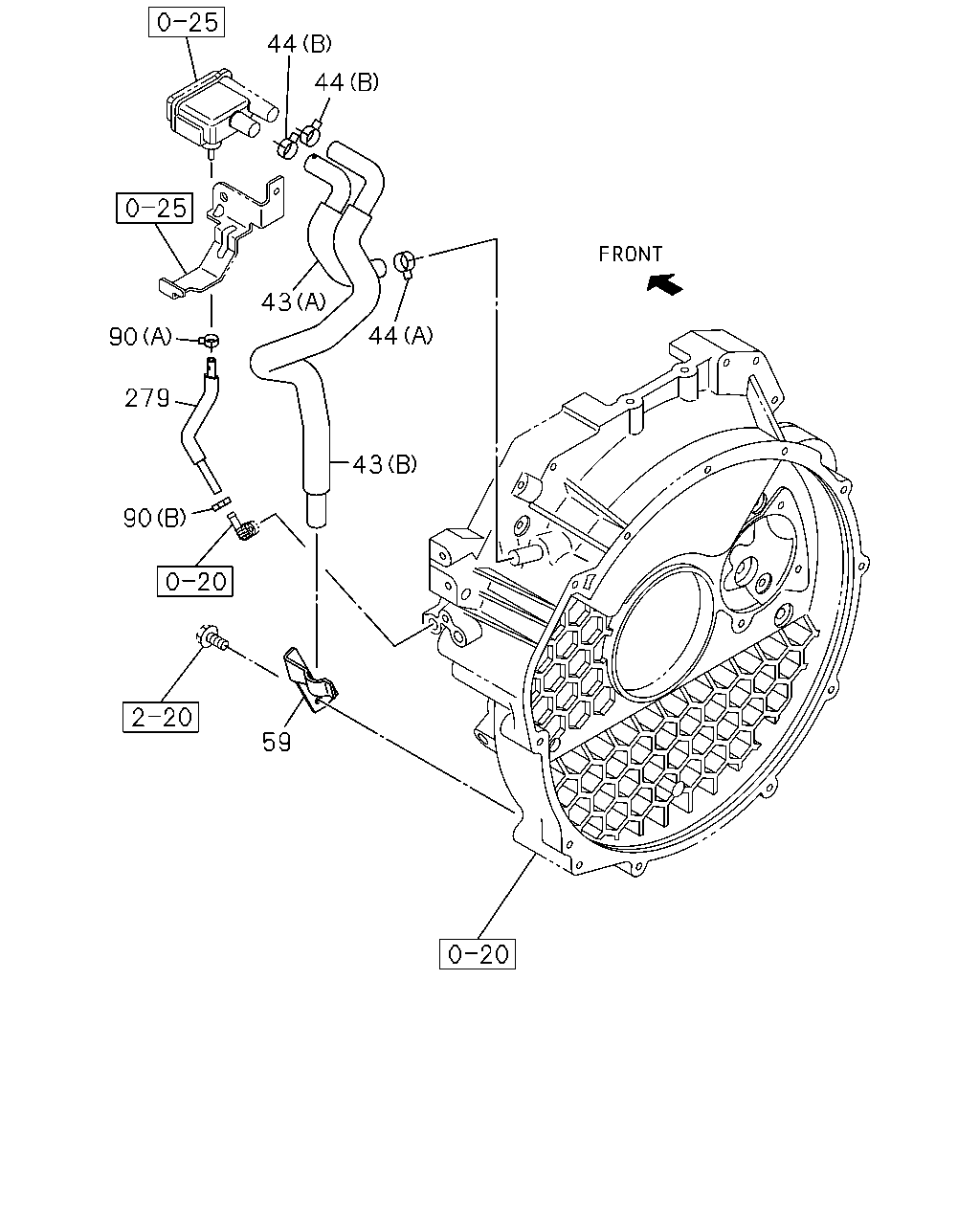

[028A] 4HK1 (10 parça)

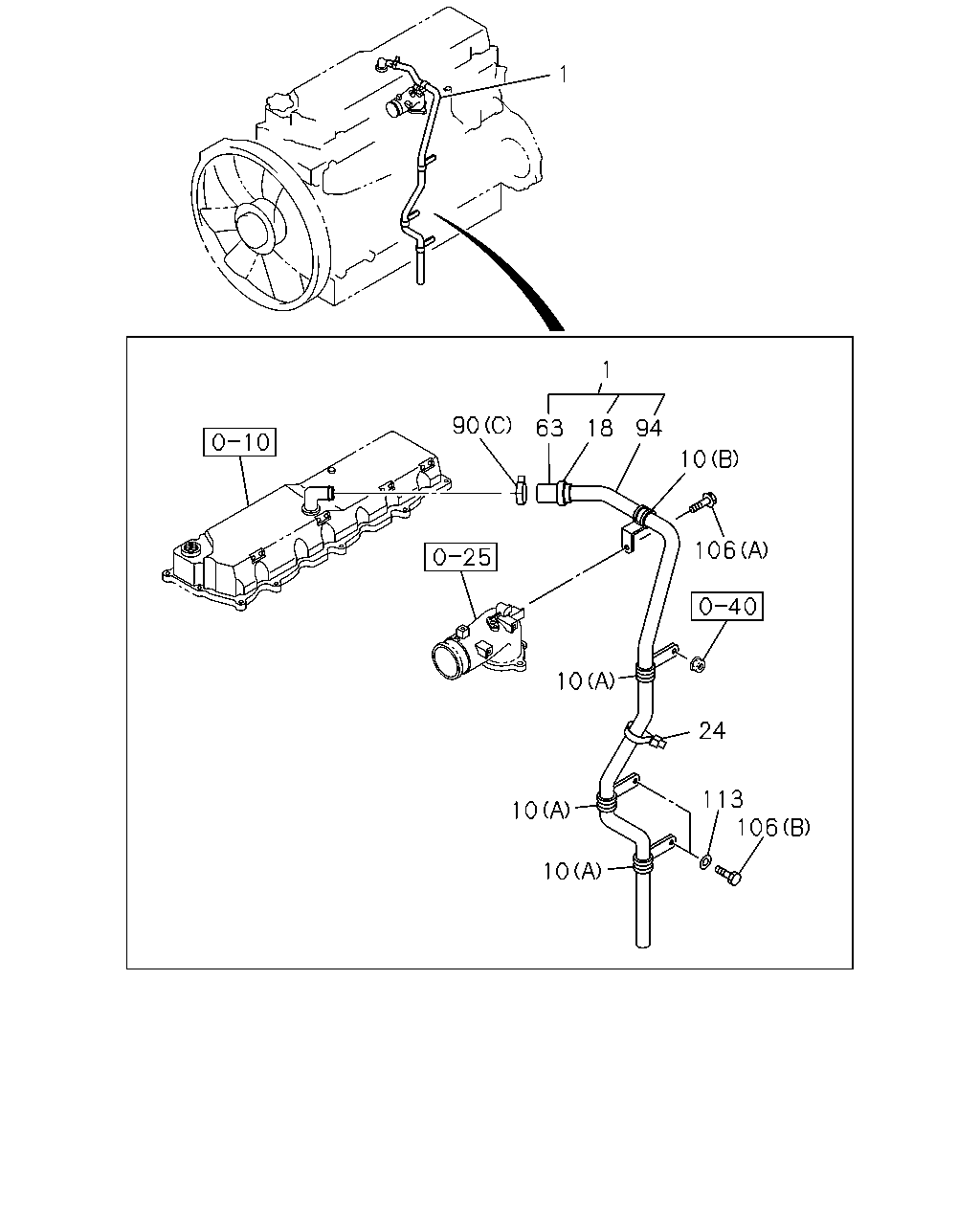

[028A] 6HK1 (24 parça)
▶
90
44
44
44
43
43
279
90
59
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
43
HOSE; PCV
(A)
8-97149-012-3
01
1
1407-
●
43
HOSE; PCV
(B)
8-98249-509-0
01
1
1407-
●
44
CLIP; HOSE,PCV
(A) ID=21 MAL
8-94242-034-0
01
1
1407-
●
44
CLIP; HOSE,PCV
(B) ID=22.7
8-94466-382-0
02
1
1407-
●
59
CLIP; HOSE
8-98249-517-0
01
1
1407-
●
90
CLIP; RUBBER HOSE
(A) ID=11
8-94238-570-0
01
1
1407-
●
90
CLIP; RUBBER HOSE
(B) ID=11.5
8-97138-011-0
01
1
1407-
●
90
CLIP; RUBBER HOSE
(C) ID=33.6
8-94362-518-0
01
1
1410-1504
●
90
CLIP; RUBBER HOSE
(C) ID=33.6
8-94362-518-0
01
1
1505-
●
●
279
HOSE; RUBBER,OIL DRAIN
8-98075-714-0
01
1
1407-
●
1
90
1
63
18
94
106
10
10
10
106
113
24
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
BREATHER; AIR
8-94392-083-3
01
1
1410-1504
●
1
BREATHER; AIR
8-94392-083-3
01
1
1505-
●
●
10
CLIP; AIR BREATHER
(A) ID=32 L=75
1-09700-704-1
03
1
1410-1504
●
10
CLIP; AIR BREATHER
(A) ID=32 L=75
1-09700-704-1
03
1
1505-
●
●
10
CLIP; AIR BREATHER
(B) ID=31 H=30 L=35
1-09700-994-0
01
1
1410-1504
●
10
CLIP; AIR BREATHER
(B) ID=31 H=30 L=35
1-09700-994-0
01
1
1505-
●
●
18
CLIP; RUBBER HOSE,AIR BREATHER
ID=33.6
8-94362-518-0
01
1
1410-1504
●
18
CLIP; RUBBER HOSE,AIR BREATHER
ID=33.6
8-94362-518-0
01
1
1505-
●
●
24
CLIP; RUBBER HOSE,VENTILATOR
L=250
8-98216-430-0
01
1
1410-1504
●
24
CLIP; RUBBER HOSE,VENTILATOR
L=250
8-98216-430-0
01
1
1505-
●
●
63
HOSE; RUBBER,AIR BREATHER
L=70
0-02728-070-0
01
1
1410-1504
●
63
HOSE; RUBBER,AIR BREATHER
L=70
0-02728-070-0
01
1
1505-
●
●
90
CLIP; RUBBER HOSE
(A) ID=11
8-94238-570-0
01
1
1407-
●
90
CLIP; RUBBER HOSE
(B) ID=11.5
8-97138-011-0
01
1
1407-
●
90
CLIP; RUBBER HOSE
(C) ID=33.6
8-94362-518-0
01
1
1410-1504
●
90
CLIP; RUBBER HOSE
(C) ID=33.6
8-94362-518-0
01
1
1505-
●
●
94
HOSE; BREATHER TO PIPE
L=1260
8-94392-082-0
01
1
1410-1504
●
94
HOSE; BREATHER TO PIPE
L=1260
8-94392-082-0
01
1
1505-
●
●
106
BOLT; DRAIN PIPE
(A) M6X12 FLANGE MAL
0-28050-612-0
01
1
1410-1504
●
106
BOLT; DRAIN PIPE
(A) M6X12 FLANGE MAL
0-28050-612-0
01
1
1505-
●
●
106
BOLT; DRAIN PIPE
(B) M10X16 FLANGE
0-28151-016-0
02
1
1410-1504
●
106
BOLT; DRAIN PIPE
(B) M10X16 FLANGE
0-28151-016-0
02
1
1505-
●
●
113
WASHER; PL,CLIP
ID=10.5
0-91610-510-0
02
1
1410-1504
●
113
WASHER; PL,CLIP
ID=10.5
0-91610-510-0
02
1
1505-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
