0-22 — ENGINE MOUNTING (#144092) — 101 parça

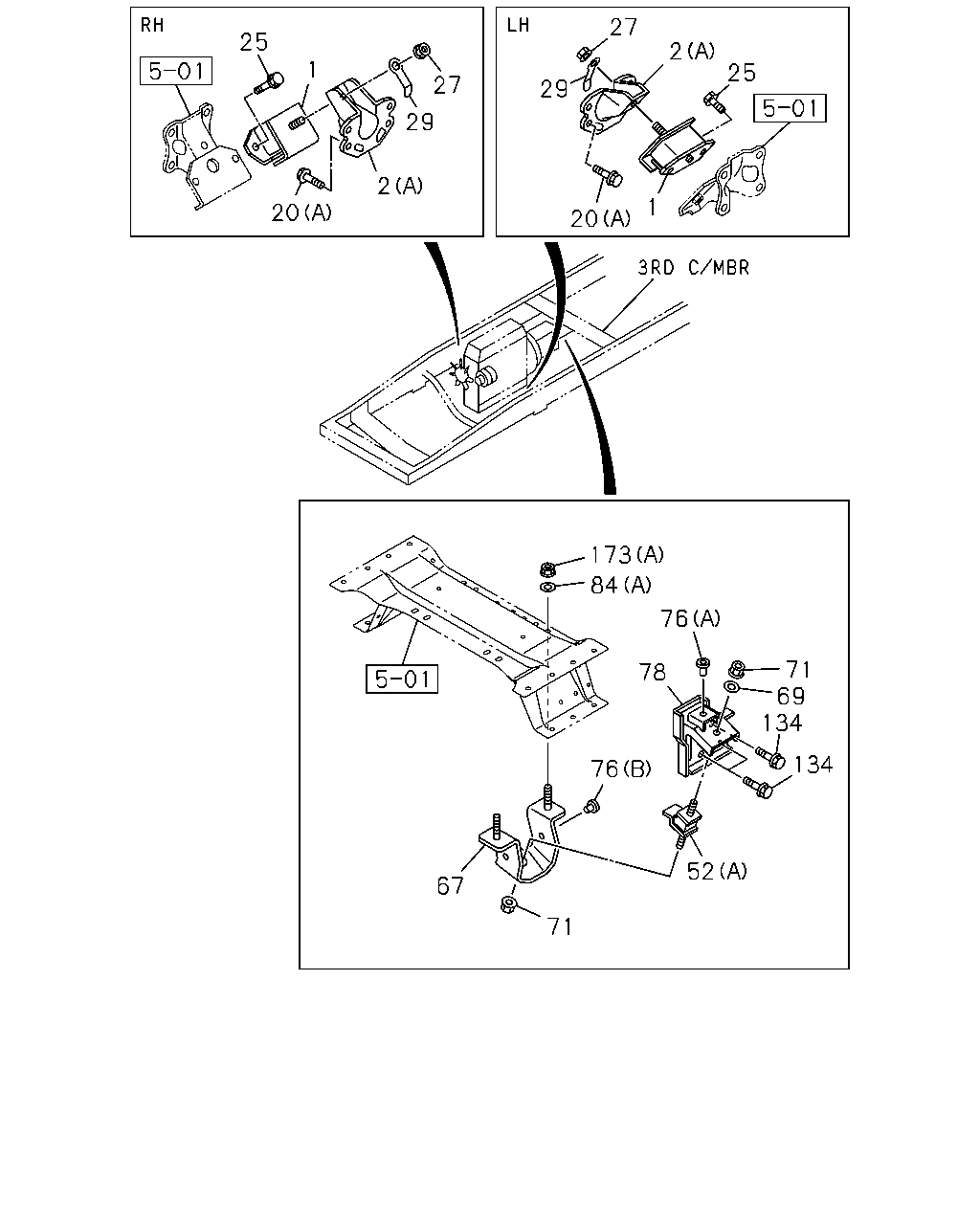

çizim 431140
1 25 27 29 2 20 27 25 2 29 1 20 173 84 76 71 69 134 134 78 76 52 67 71
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RUBBER; ENG FOOT,FRT 1-53215-184-0 02 1 1407- ●
1 RUBBER; ENG FOOT,FRT 1-53215-172-0 02 1 1410-1504 ●
1 RUBBER; ENG FOOT,FRT 1-53215-172-0 02 1 1505- ● ●
2 FOOT; ENG
(A) 		8-97376-076-1 02 1 1407- ●
2 FOOT; ENG
(B) 		8-97602-589-1 02 1 1410-1504 ●
2 FOOT; ENG
(B) 		8-97602-589-1 02 1 1505- ● ●
2 FOOT; ENG
(C) 		8-97611-988-0 01 1 1410-1507 ●
2 FOOT; ENG
MZW6P M/T(RSZ) (C) 		8-97611-988-0 01 1 1508- ●
2 FOOT; ENG
(C) 		8-97611-989-0 01 1 1410-1507 ●
2 FOOT; ENG
MZW6P M/T(RSZ) (C) 		8-97611-989-0 01 1 1508- ●
2 FOOT; ENG
(D) 		8-97611-990-0 01 1 1505-1507 ●
2 FOOT; ENG
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (D) 		8-97611-990-0 01 1 1508- ● ●
2 FOOT; ENG
(D) 		8-97611-991-0 01 1 1505-1507 ●
2 FOOT; ENG
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (D) 		8-97611-991-0 01 1 1508- ● ●
20 BOLT; ENG FOOT
(A) M10X30 FLANGE 		0-28161-030-0 08 1 1407- ●
20 BOLT; ENG FOOT
(B) M10X20 FLANGE 		8-94395-721-0 08 1 1410-1504 ●
20 BOLT; ENG FOOT
(B) M10X20 FLANGE 		8-94395-721-0 08 1 1505- ● ●
20 BOLT; ENG FOOT
(C) M12X50 		0-16956-250-0 08 1 1410-1507 ●
20 BOLT; ENG FOOT
MZW6P M/T(RSZ) (C) M12X50 		0-16956-250-0 08 1 1508- ●
20 BOLT; ENG FOOT
(D) M12X55 		8-94399-884-1 08 1 1505-1507 ●
20 BOLT; ENG FOOT
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (D) M12X55 		8-94399-884-1 08 1 1508- ● ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28651-235-0 04 1 1407-1409 ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28651-235-0 04 1 1410-1504 ● ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28651-235-0 04 1 1505- ● ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE MAL 		0-91180-212-0 02 1 1407-1409 ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE MAL 		0-91180-212-0 02 1 1410-1504 ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE MAL 		0-91180-212-0 02 1 1505- ● ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 8-98010-312-0 02 1 1407-1409 ●
29 PLATE; LK,CUSHION RUBBER,FRT 8-98010-312-0 02 1 1410-1504 ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 8-98010-312-0 02 1 1505- ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR
(A) 		8-97039-277-0 02 1 1407- ●
52 RUBBER; CUSHION,ENG MTG,RR
(B) 		8-98013-021-1 02 1 1410- ●
52 RUBBER; CUSHION,ENG MTG,RR
(C) 		8-98013-022-1 02 1 1505-1507 ●
52 RUBBER; CUSHION,ENG MTG,RR
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (C) 		8-98013-022-1 02 1 1508- ● ●
67 BRACKET; SUPPORT,ENG MTG,RR 8-98055-142-0 02 1 1407- ●
69 WASHER; PL,SUPPORT RUBBER TO BRKT
ID=10.5 OD=22 T=4 		1-09503-045-0 02 1 1407- ●
71 NUT; SUPPORT RUBBER TO BRKT
M10 FLANGE MAL 		0-91180-110-0 04 1 1407- ●
76 STOPPER; ENG MTG RUBBER
(A) 		8-94111-904-0 02 1 1407- ●
76 STOPPER; ENG MTG RUBBER
(B) 		8-97039-947-1 04 1 1407- ●
78 BRACKET; ENG MTG,RR 8-98180-441-1 01 1 1407- ●
78 BRACKET; ENG MTG,RR 8-98180-442-1 01 1 1407- ●
84 WASHER; PL,ENG MTG RR TO FRAME
(A) ID=10.5 OD=32 MAL 		0-91614-810-0 04 1 1407- ●
84 WASHER; PL,ENG MTG RR TO FRAME
(B) ID=19 OD=36 		0-91614-618-0 02 1 1410- ●
84 WASHER; PL,ENG MTG RR TO FRAME
(C) ID=17 		0-91614-516-0 04 1 1505-1507 ●
84 WASHER; PL,ENG MTG RR TO FRAME
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (C) ID=17 		0-91614-516-0 04 1 1508- ● ●
134 BOLT; SUPPORT BRKT
M14X35 FLANGE 		0-28751-435-0 08 1 1407- ●
173 NUT; ENG MTG RR TO FRAME
(A) M10 FLANGE MAL 		0-91180-210-0 04 1 1407- ●
173 NUT; ENG MTG RR TO FRAME
(B) M14 FLANGE 		0-91180-214-0 08 1 1410-1507 ●
173 NUT; ENG MTG RR TO FRAME
(B) M14 FLANGE 		0-91180-214-0 08 1 1508- ● ●
173 NUT; ENG MTG RR TO FRAME
(C) M16 		0-91110-516-0 02 1 1505-1507 ●
173 NUT; ENG MTG RR TO FRAME
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (C) M16 		0-91110-516-0 02 1 1508- ● ●

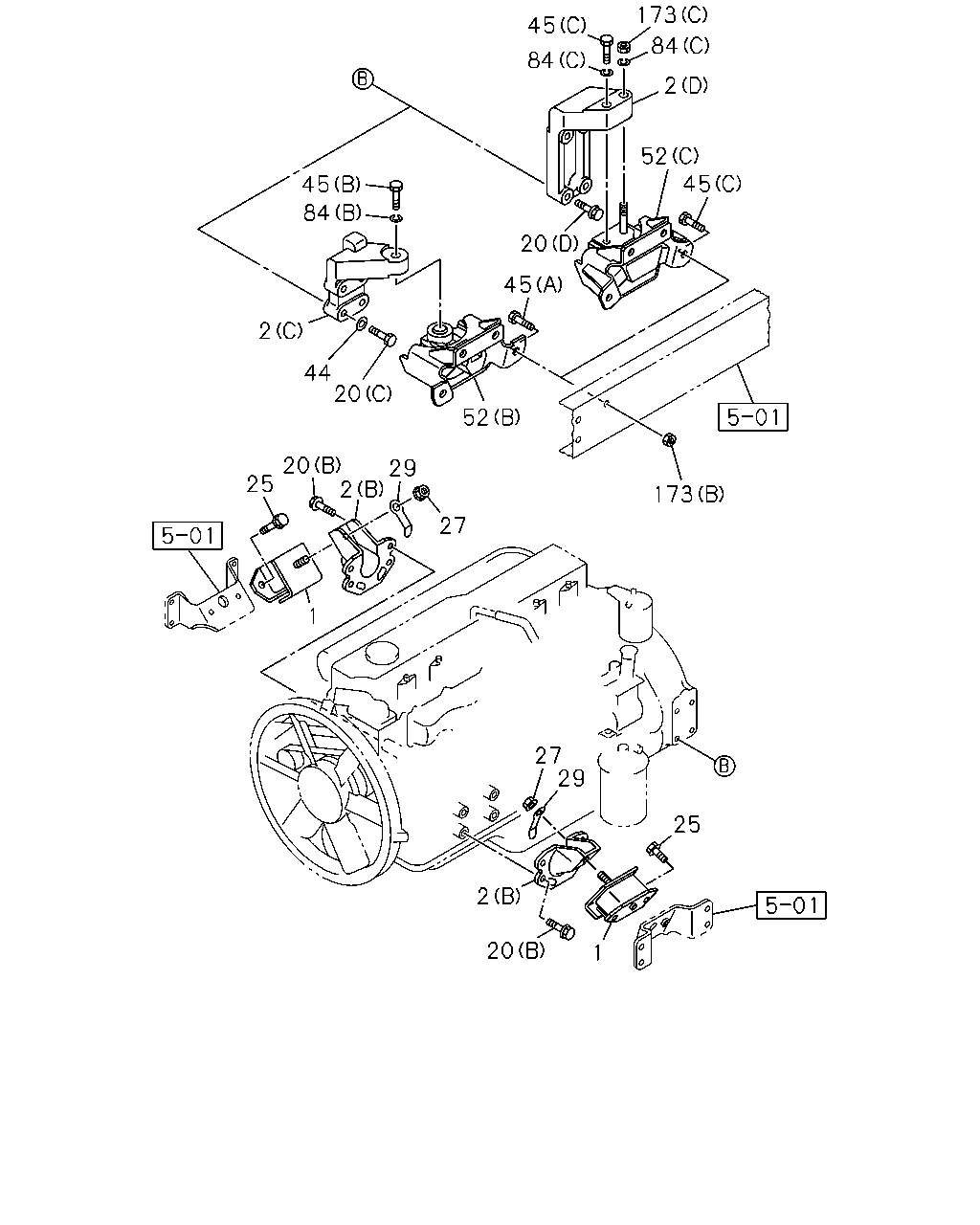

çizim 458192
173 45 84 84 2 52 45 20 45 84 2 44 52 20 20 25 2 29 27 173 25 20 2 27 29 45 1 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RUBBER; ENG FOOT,FRT 1-53215-184-0 02 1 1407- ●
1 RUBBER; ENG FOOT,FRT 1-53215-172-0 02 1 1410-1504 ●
1 RUBBER; ENG FOOT,FRT 1-53215-172-0 02 1 1505- ● ●
2 FOOT; ENG
(A) 		8-97376-076-1 02 1 1407- ●
2 FOOT; ENG
(B) 		8-97602-589-1 02 1 1410-1504 ●
2 FOOT; ENG
(B) 		8-97602-589-1 02 1 1505- ● ●
2 FOOT; ENG
(C) 		8-97611-988-0 01 1 1410-1507 ●
2 FOOT; ENG
MZW6P M/T(RSZ) (C) 		8-97611-988-0 01 1 1508- ●
2 FOOT; ENG
(C) 		8-97611-989-0 01 1 1410-1507 ●
2 FOOT; ENG
MZW6P M/T(RSZ) (C) 		8-97611-989-0 01 1 1508- ●
2 FOOT; ENG
(D) 		8-97611-990-0 01 1 1505-1507 ●
2 FOOT; ENG
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (D) 		8-97611-990-0 01 1 1508- ● ●
2 FOOT; ENG
(D) 		8-97611-991-0 01 1 1505-1507 ●
2 FOOT; ENG
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (D) 		8-97611-991-0 01 1 1508- ● ●
20 BOLT; ENG FOOT
(A) M10X30 FLANGE 		0-28161-030-0 08 1 1407- ●
20 BOLT; ENG FOOT
(B) M10X20 FLANGE 		8-94395-721-0 08 1 1410-1504 ●
20 BOLT; ENG FOOT
(B) M10X20 FLANGE 		8-94395-721-0 08 1 1505- ● ●
20 BOLT; ENG FOOT
(C) M12X50 		0-16956-250-0 08 1 1410-1507 ●
20 BOLT; ENG FOOT
MZW6P M/T(RSZ) (C) M12X50 		0-16956-250-0 08 1 1508- ●
20 BOLT; ENG FOOT
(D) M12X55 		8-94399-884-1 08 1 1505-1507 ●
20 BOLT; ENG FOOT
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (D) M12X55 		8-94399-884-1 08 1 1508- ● ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28651-235-0 04 1 1407-1409 ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28651-235-0 04 1 1410-1504 ● ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28651-235-0 04 1 1505- ● ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE MAL 		0-91180-212-0 02 1 1407-1409 ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE MAL 		0-91180-212-0 02 1 1410-1504 ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE MAL 		0-91180-212-0 02 1 1505- ● ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 8-98010-312-0 02 1 1407-1409 ●
29 PLATE; LK,CUSHION RUBBER,FRT 8-98010-312-0 02 1 1410-1504 ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 8-98010-312-0 02 1 1505- ● ● ●
44 WASHER; LK,ENG FOOT
ID=12.5 		0-91614-512-0 08 1 1410-1507 ●
44 WASHER; LK,ENG FOOT
MZW6P M/T(RSZ) ID=12.5 		0-91614-512-0 08 1 1508- ●
45 BOLT; CUSHION RUBBER TO FRAME
(A) M14X50 		0-29261-450-0 08 1 1410-1507 ●
45 BOLT; CUSHION RUBBER TO FRAME
(A) M14X50 		0-29261-450-0 08 1 1508- ● ●
45 BOLT; CUSHION RUBBER TO FRAME
(B) M18X65 		8-94393-260-1 02 1 1410- ●
45 BOLT; CUSHION RUBBER TO FRAME
(C) M16X60 		0-10956-660-0 02 1 1505-1507 ●
45 BOLT; CUSHION RUBBER TO FRAME
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (C) M16X60 		0-10956-660-0 02 1 1508- ● ●
52 RUBBER; CUSHION,ENG MTG,RR
(A) 		8-97039-277-0 02 1 1407- ●
52 RUBBER; CUSHION,ENG MTG,RR
(B) 		8-98013-021-1 02 1 1410- ●
52 RUBBER; CUSHION,ENG MTG,RR
(C) 		8-98013-022-1 02 1 1505-1507 ●
52 RUBBER; CUSHION,ENG MTG,RR
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (C) 		8-98013-022-1 02 1 1508- ● ●
84 WASHER; PL,ENG MTG RR TO FRAME
(A) ID=10.5 OD=32 MAL 		0-91614-810-0 04 1 1407- ●
84 WASHER; PL,ENG MTG RR TO FRAME
(B) ID=19 OD=36 		0-91614-618-0 02 1 1410- ●
84 WASHER; PL,ENG MTG RR TO FRAME
(C) ID=17 		0-91614-516-0 04 1 1505-1507 ●
84 WASHER; PL,ENG MTG RR TO FRAME
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (C) ID=17 		0-91614-516-0 04 1 1508- ● ●
173 NUT; ENG MTG RR TO FRAME
(A) M10 FLANGE MAL 		0-91180-210-0 04 1 1407- ●
173 NUT; ENG MTG RR TO FRAME
(B) M14 FLANGE 		0-91180-214-0 08 1 1410-1507 ●
173 NUT; ENG MTG RR TO FRAME
(B) M14 FLANGE 		0-91180-214-0 08 1 1508- ● ●
173 NUT; ENG MTG RR TO FRAME
(C) M16 		0-91110-516-0 02 1 1505-1507 ●
173 NUT; ENG MTG RR TO FRAME
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (C) M16 		0-91110-516-0 02 1 1508- ● ●
