Sayfa 0-14 - Isuzu EPC

0-14 — CAMSHAFT AND VALVE (#144089) — 233 parça

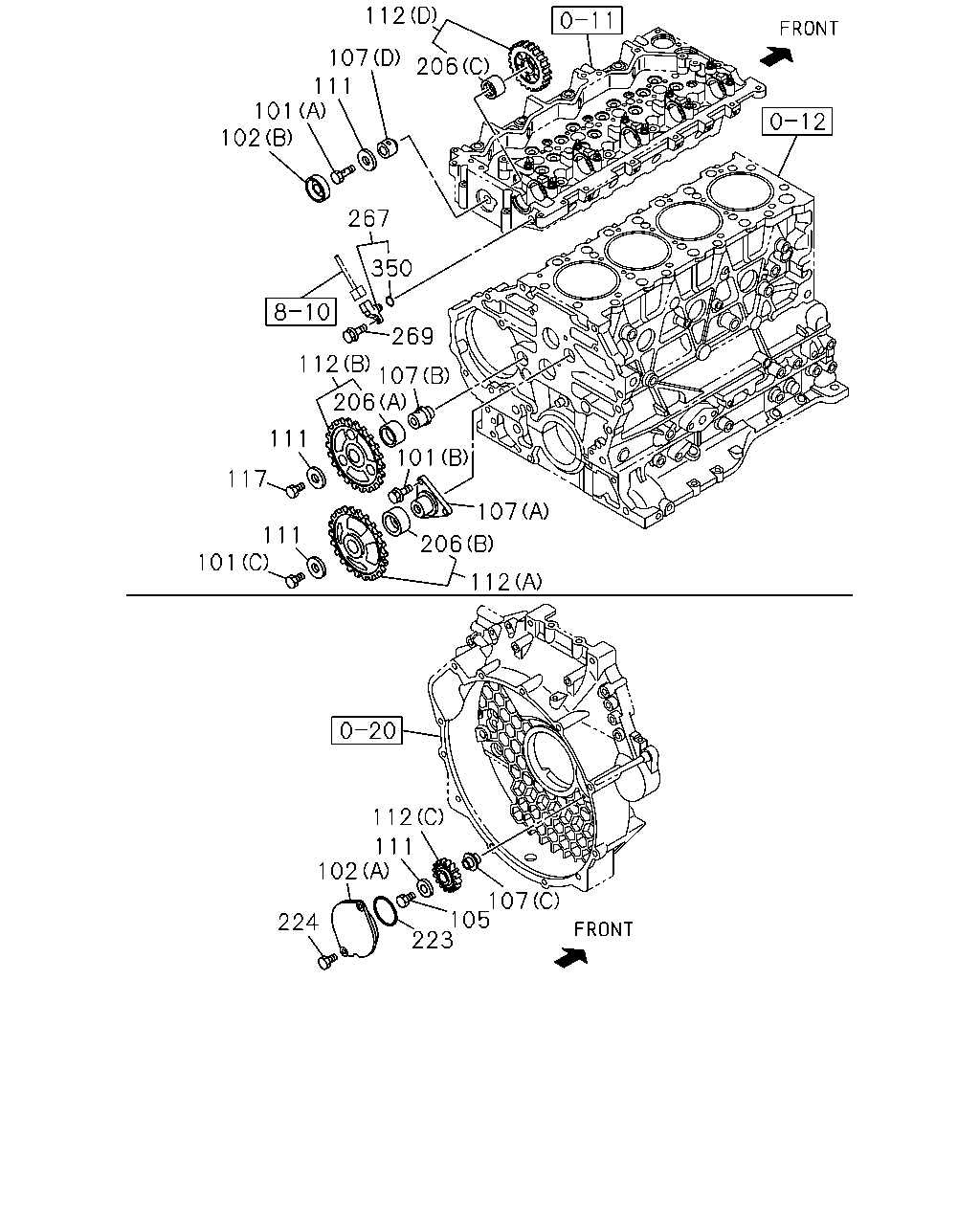

223 112 111 102 224 107 105 112 101 107 206 111 112 107 101 117 111 206 107 112 269 350 267 102 101 111 206

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
101	BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	1407-	●
101	BOLT; THRUST COLLAR (C) M14X25	0-23951-425-0	01	1	1407-	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	1407-1409	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	1410-1504	●	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	1505-	●	●	●
101	BOLT; THRUST COLLAR (D) M14X60	0-16956-460-0	01	1	1410-1504		●
101	BOLT; THRUST COLLAR (D) M14X60	0-16956-460-0	01	1	1505-		●	●
101	BOLT; THRUST COLLAR (E) M14X30	0-23951-430-0	01	1	1410-1504		●
101	BOLT; THRUST COLLAR (E) M14X30	0-23951-430-0	01	1	1505-		●	●
102	COVER; IDLE GEAR (A)	8-94334-681-1	01	1	1407-	●
102	COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	1407-	●
105	BOLT; IDLE GEAR SHAFT M14X60	0-16956-460-0	01	1	1407-	●
105	BOLT; IDLE GEAR SHAFT M14X65	8-97066-798-0	01	1	1410-1504		●
105	BOLT; IDLE GEAR SHAFT M14X65	8-97066-798-0	01	1	1505-		●	●
107	SHAFT; IDLE GEAR (C)	8-94334-682-1	01	1	1407-1409	●
107	SHAFT; IDLE GEAR (C)	8-94334-682-1	01	1	1410-1504	●	●
107	SHAFT; IDLE GEAR (C)	8-94334-682-1	01	1	1505-	●	●	●
107	SHAFT; IDLE GEAR (D)	8-97186-398-1	01	1	1407-	●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	1407-1409	●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	1410-1504	●	●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	1505-	●	●	●
107	SHAFT; IDLE GEAR (B)	8-98060-780-0	01	1	1407-1409	●
107	SHAFT; IDLE GEAR (B)	8-98060-780-0	01	1	1410-1504	●	●
107	SHAFT; IDLE GEAR (B)	8-98060-780-0	01	1	1505-	●	●	●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	04	1	1407-	●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	03	1	1410-1504		●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	03	1	1505-		●	●
112	GEAR; IDLE (C) Z=34	8-97120-005-1	01	1	1407-	●
112	GEAR; IDLE (D) Z=41	8-97606-929-0	01	1	1407-	●
112	GEAR; IDLE (A) Z=61	8-97606-767-0	01	1	1407-1409	●
112	GEAR; IDLE (A) Z=61	8-97606-767-0	01	1	1410-1504	●	●
112	GEAR; IDLE (A) Z=61	8-97606-767-0	01	1	1505-	●	●	●
112	GEAR; IDLE (B) Z=72-60-30	8-98254-970-0	01	1	1407-1409	●
112	GEAR; IDLE (B) Z=72-60-30	8-98254-970-0	01	1	1410-1504	●	●
112	GEAR; IDLE (B) Z=72-60-30	8-98254-970-0	01	1	1505-	●	●	●
112	GEAR; IDLE (E) Z=34	8-97606-771-0	01	1	1410-1504		●
112	GEAR; IDLE (E) Z=34	8-97606-771-0	01	1	1505-		●	●
117	BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	1407-	●
206	BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	8-98255-899-0	01	1	1407-	●
206	BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-97606-768-0	01	1	1407-	●
206	BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97606-770-0	01	1	1407-	●
223	GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	1407-	●
224	BOLT; COVER M8X16 FLANGE MAL	0-28050-816-0	02	1	1407-	●
267	SENSOR; CAM ANGLE	8-98019-024-0	01	1	1407-	●
269	BOLT; SENSOR M6X12 FLANGE MAL	0-28050-612-0	01	1	1407-	●
350	GASKET; SENSOR,CAM ANGLE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=18.8	8-97369-404-0	01	1	1407-	●

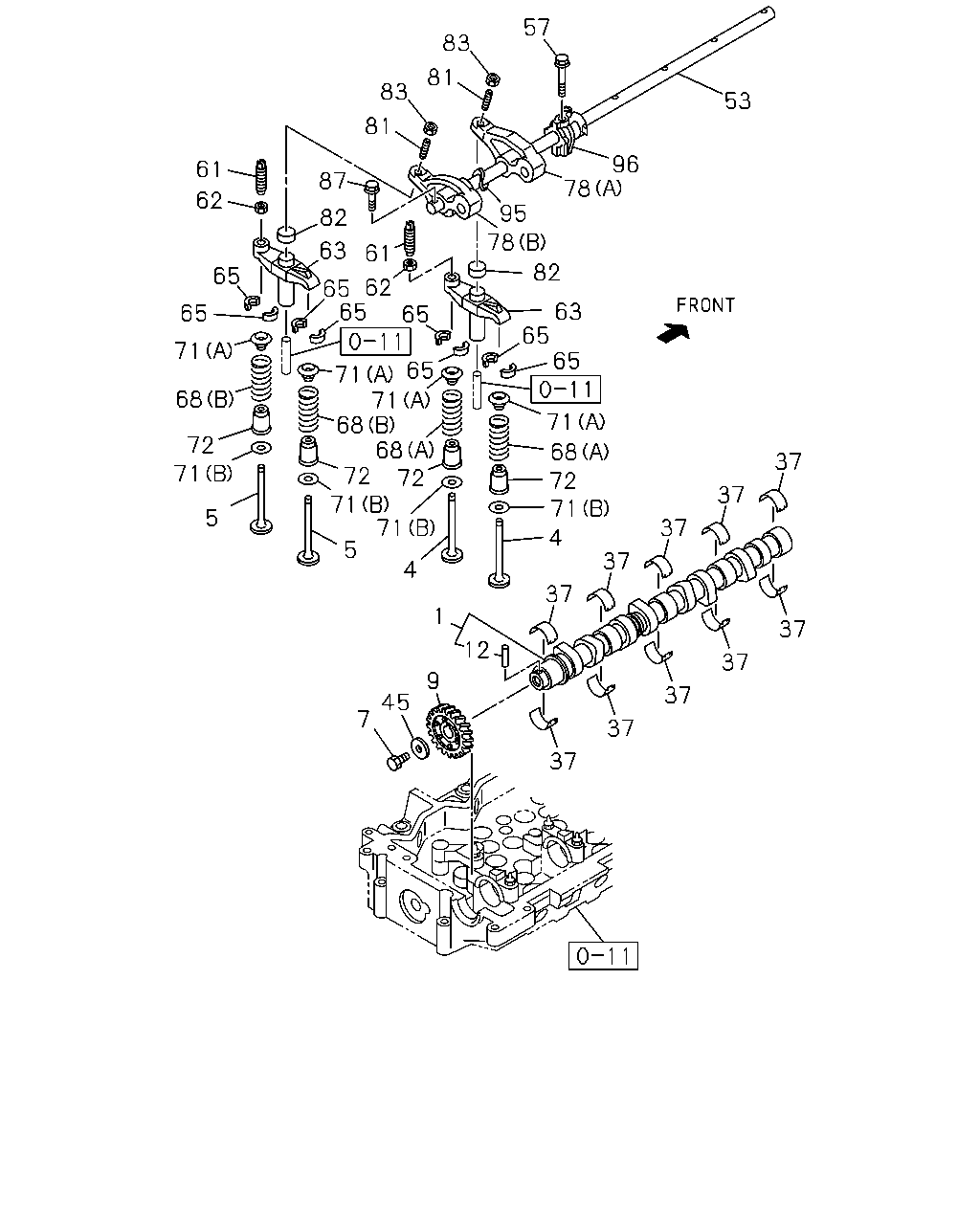

37 37 37 37 37 37 37 37 37 37 12 9 45 7 1 4 4 5 71 68 71 65 65 63 82 78 95 78 96 53 71 71 5 72 72 68 68 71 65 71 65 65 62 61 65 63 82 87 81 83 81 83 57 71 72 68 71 65 65 62 61 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CAMSHAFT	8-97262-166-0	01	1	1407-	●
1	CAMSHAFT	8-98227-261-1	01	1	1410-1504		●
1	CAMSHAFT	8-98227-261-1	01	1	1505-		●	●
4	VALVE; INL	8-94395-882-2	08	1	1407-	●
4	VALVE; INL	8-94395-882-2	12	1	1410-1504		●
4	VALVE; INL	8-94395-882-2	12	1	1505-		●	●
5	VALVE; EXH	8-97209-876-4	08	1	1407-	●
5	VALVE; EXH	8-97209-876-4	12	1	1410-1504		●
5	VALVE; EXH	8-97209-876-4	12	1	1505-		●	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	1407-1409	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	1410-1504	●	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	1505-	●	●	●
9	GEAR; CM/SHF Z=35	8-98018-935-3	01	1	1407-	●
9	GEAR; CM/SHF Z=35	8-98018-934-3	01	1	1410-1504		●
9	GEAR; CM/SHF Z=35	8-98018-934-3	01	1	1505-		●	●
12	KEY; CAM GEAR SET OD=7 L=7.5	8-94399-487-0	02	1	1407-	●
37	METAL; CM/SHF B=16	8-97386-189-0	10	1	1407-	●
37	METAL; CM/SHF B=16	8-97386-189-0	04	1	1410-1504		●
37	METAL; CM/SHF B=16	8-97386-189-0	04	1	1505-		●	●
37	METAL; CM/SHF B=26	8-97602-699-0	04	1	1410-1504		●
37	METAL; CM/SHF B=26	8-97602-699-0	04	1	1505-		●	●
45	WASHER; GEAR CAM ID=14.5	9-09851-850-3	01	1	1407-	●
53	SHAFT; ROCKER ARM	8-97389-921-0	01	1	1407-	●
53	SHAFT; ROCKER ARM	8-97389-918-0	01	1	1410-1504		●
53	SHAFT; ROCKER ARM	8-97389-918-0	01	1	1505-		●	●
57	BOLT; ROCKER ARM BRKT M10X62 FLANGE	8-94393-131-0	03	1	1407-	●
61	SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	08	1	1407-	●
61	SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	12	1	1410-1504		●
61	SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	12	1	1505-		●	●
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE	9-09844-574-0	08	1	1407-	●
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE	9-09844-574-0	12	1	1410-1504		●
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE	9-09844-574-0	12	1	1505-		●	●
63	BRIDGE	8-94392-002-3	08	1	1407-	●
63	BRIDGE	8-94392-002-3	12	1	1410-1504		●
63	BRIDGE	8-94392-002-3	12	1	1505-		●	●
65	COLLAR; SPLIT	5-12565-004-0	32	1	1407-	●
65	COLLAR; SPLIT	5-12565-004-0	48	1	1410-1504		●
65	COLLAR; SPLIT	5-12565-004-0	48	1	1505-		●	●
68	SPRING; VLV (B) EXHAUST MARK RED	8-97210-682-0	08	1	1407-	●
68	SPRING; VLV (A) INLET MARK BLUE	8-97352-888-0	08	1	1407-	●
68	SPRING; VLV (B) EXHAUST MARK WHITE	8-94395-885-1	12	1	1410-1504		●
68	SPRING; VLV (B) EXHAUST MARK WHITE	8-94395-885-1	12	1	1505-		●	●
68	SPRING; VLV (A) INLET MARK BLUE	8-97352-888-0	12	1	1410-1504		●
68	SPRING; VLV (A) INLET MARK BLUE	8-97352-888-0	12	1	1505-		●	●
71	SEAT; SPR (A) UPPER OD=32.8 T=12.75	8-94390-783-2	16	1	1407-	●
71	SEAT; SPR (B) LOWER ID=14.3 T=1.0	8-94391-468-0	16	1	1407-	●
71	SEAT; SPR (A) UPPER OD=32.8 T=12.75	8-94390-783-2	24	1	1410-1504		●
71	SEAT; SPR (A) UPPER OD=32.8 T=12.75	8-94390-783-2	24	1	1505-		●	●
71	SEAT; SPR (B) LOWER ID=14.3 T=1.0	8-94391-468-0	24	1	1410-1504		●
71	SEAT; SPR (B) LOWER ID=14.3 T=1.0	8-94391-468-0	24	1	1505-		●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	16	1	1407-	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	24	1	1410-1504		●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	24	1	1505-		●	●
78	ARM; ROCKER (A) INLET	8-97306-421-3	04	1	1407-	●
78	ARM; ROCKER (B) EXHAUST	8-97306-424-3	04	1	1407-	●
78	ARM; ROCKER (A) INLET	8-97306-421-3	06	1	1410-1504		●
78	ARM; ROCKER (A) INLET	8-97306-421-3	06	1	1505-		●	●
78	ARM; ROCKER (B) EXHAUST	8-97306-424-3	06	1	1410-1504		●
78	ARM; ROCKER (B) EXHAUST	8-97306-424-3	06	1	1505-		●	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	08	1	1407-	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	1410-1504		●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	1505-		●	●
82	CAP; ROCKER SHAFT	8-94396-015-2	08	1	1407-	●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	1407-	●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	12	1	1410-1504		●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	12	1	1505-		●	●
87	BOLT; ROCKER SHAFT M8X40 FLANGE	0-28050-840-0	02	1	1407-	●
95	SPRING; ROCKER SHAFT	8-94392-999-0	04	1	1407-	●
95	SPRING; ROCKER SHAFT	8-94392-999-0	06	1	1410-1504		●
95	SPRING; ROCKER SHAFT	8-94392-999-0	06	1	1505-		●	●
96	BRACKET; ROCKER ARM SHAFT	8-97334-414-0	03	1	1407-	●

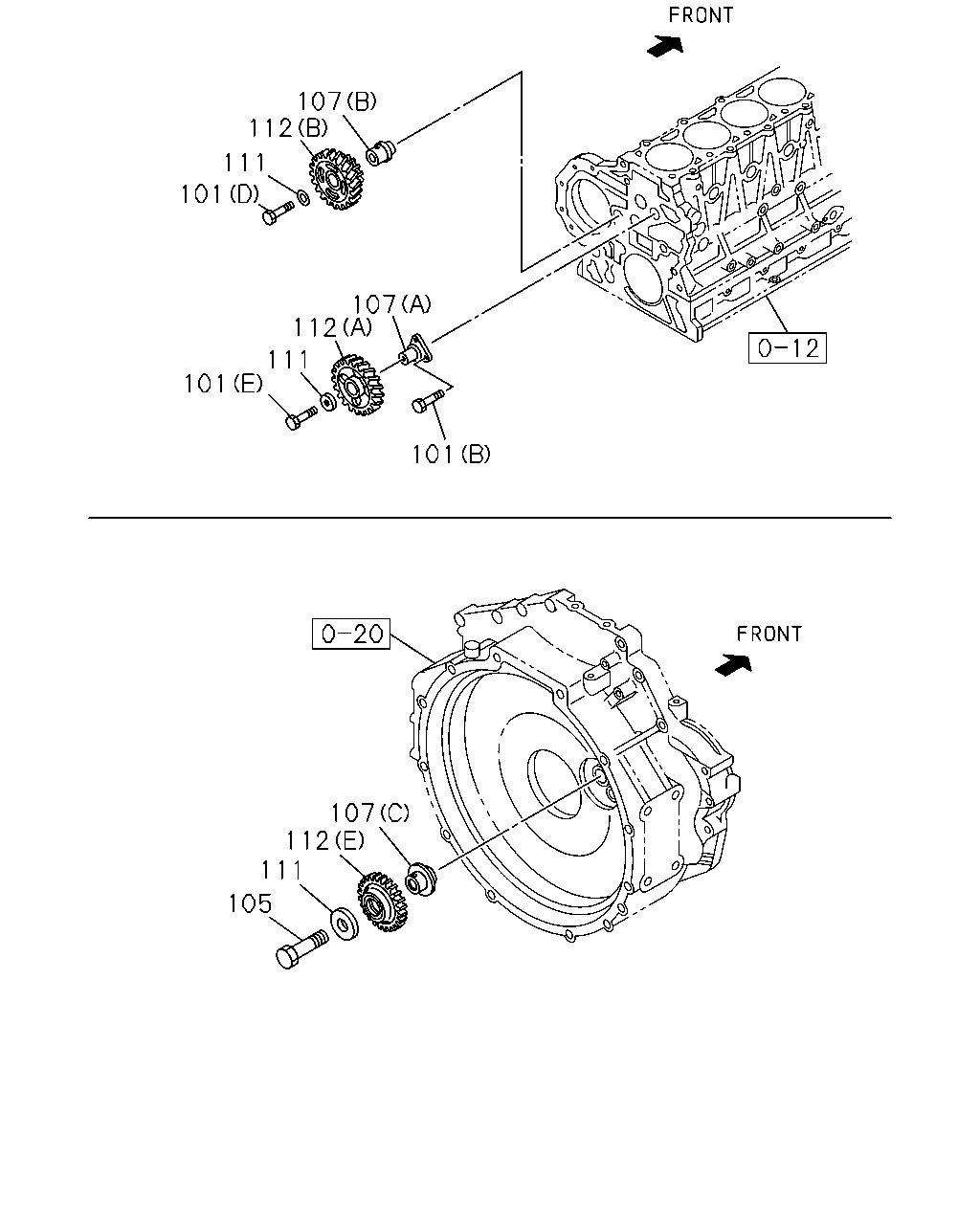

107 107 112 111 105 101 101 111 112 107 101 111 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
101	BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	1407-	●
101	BOLT; THRUST COLLAR (C) M14X25	0-23951-425-0	01	1	1407-	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	1407-1409	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	1410-1504	●	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	1505-	●	●	●
101	BOLT; THRUST COLLAR (D) M14X60	0-16956-460-0	01	1	1410-1504		●
101	BOLT; THRUST COLLAR (D) M14X60	0-16956-460-0	01	1	1505-		●	●
101	BOLT; THRUST COLLAR (E) M14X30	0-23951-430-0	01	1	1410-1504		●
101	BOLT; THRUST COLLAR (E) M14X30	0-23951-430-0	01	1	1505-		●	●
105	BOLT; IDLE GEAR SHAFT M14X60	0-16956-460-0	01	1	1407-	●
105	BOLT; IDLE GEAR SHAFT M14X65	8-97066-798-0	01	1	1410-1504		●
105	BOLT; IDLE GEAR SHAFT M14X65	8-97066-798-0	01	1	1505-		●	●
107	SHAFT; IDLE GEAR (C)	8-94334-682-1	01	1	1407-1409	●
107	SHAFT; IDLE GEAR (C)	8-94334-682-1	01	1	1410-1504	●	●
107	SHAFT; IDLE GEAR (C)	8-94334-682-1	01	1	1505-	●	●	●
107	SHAFT; IDLE GEAR (D)	8-97186-398-1	01	1	1407-	●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	1407-1409	●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	1410-1504	●	●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	1505-	●	●	●
107	SHAFT; IDLE GEAR (B)	8-98060-780-0	01	1	1407-1409	●
107	SHAFT; IDLE GEAR (B)	8-98060-780-0	01	1	1410-1504	●	●
107	SHAFT; IDLE GEAR (B)	8-98060-780-0	01	1	1505-	●	●	●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	04	1	1407-	●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	03	1	1410-1504		●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	03	1	1505-		●	●
112	GEAR; IDLE (C) Z=34	8-97120-005-1	01	1	1407-	●
112	GEAR; IDLE (D) Z=41	8-97606-929-0	01	1	1407-	●
112	GEAR; IDLE (A) Z=61	8-97606-767-0	01	1	1407-1409	●
112	GEAR; IDLE (A) Z=61	8-97606-767-0	01	1	1410-1504	●	●
112	GEAR; IDLE (A) Z=61	8-97606-767-0	01	1	1505-	●	●	●
112	GEAR; IDLE (B) Z=72-60-30	8-98254-970-0	01	1	1407-1409	●
112	GEAR; IDLE (B) Z=72-60-30	8-98254-970-0	01	1	1410-1504	●	●
112	GEAR; IDLE (B) Z=72-60-30	8-98254-970-0	01	1	1505-	●	●	●
112	GEAR; IDLE (E) Z=34	8-97606-771-0	01	1	1410-1504		●
112	GEAR; IDLE (E) Z=34	8-97606-771-0	01	1	1505-		●	●

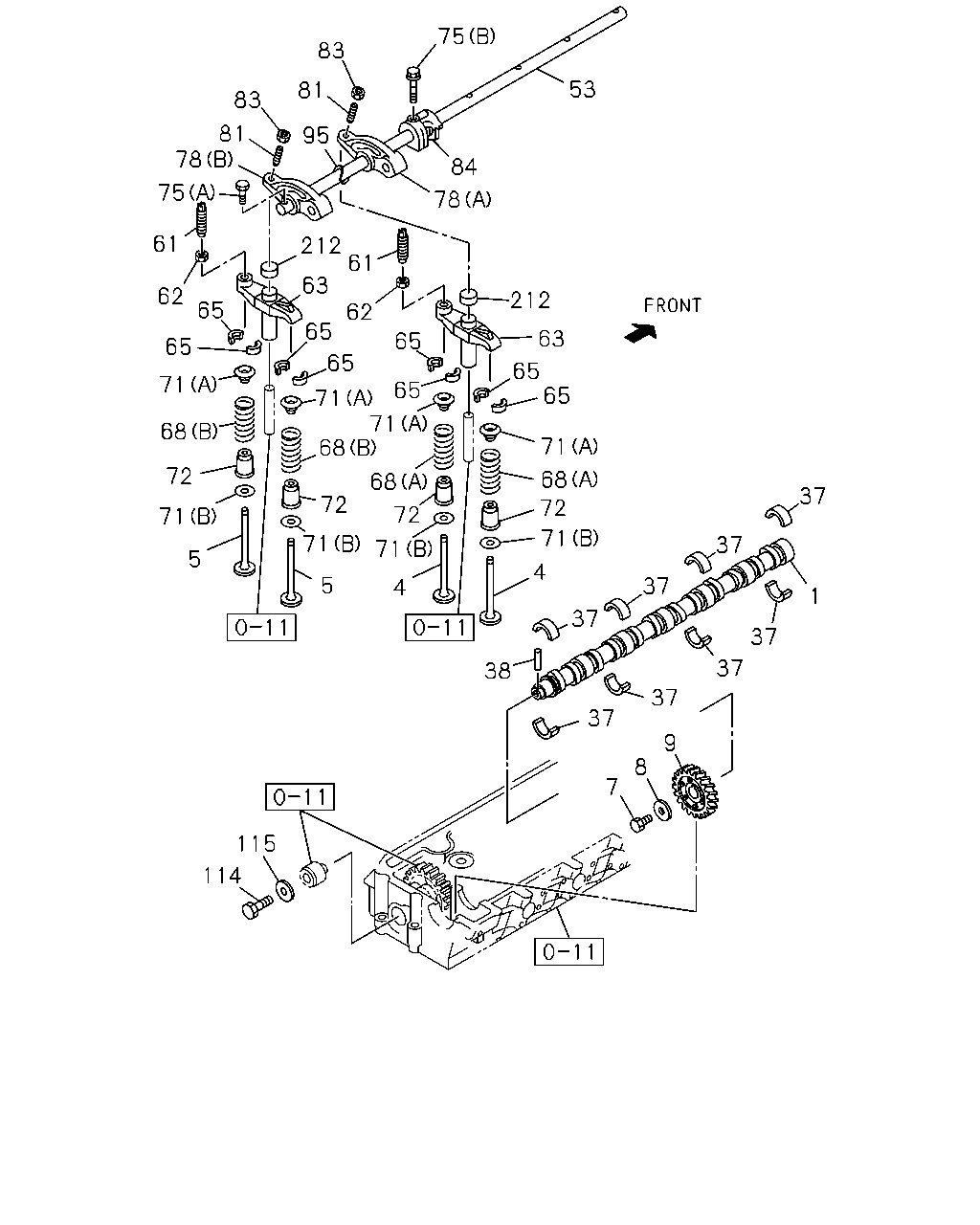

37 37 37 37 38 1 37 37 37 37 9 8 7 115 114 4 5 4 72 71 68 71 65 65 63 212 53 84 78 75 83 81 95 71 71 68 72 72 68 71 71 65 65 65 62 61 63 212 65 5 71 68 72 71 65 65 62 61 75 78 81 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CAMSHAFT	8-97262-166-0	01	1	1407-	●
1	CAMSHAFT	8-98227-261-1	01	1	1410-1504		●
1	CAMSHAFT	8-98227-261-1	01	1	1505-		●	●
4	VALVE; INL	8-94395-882-2	08	1	1407-	●
4	VALVE; INL	8-94395-882-2	12	1	1410-1504		●
4	VALVE; INL	8-94395-882-2	12	1	1505-		●	●
5	VALVE; EXH	8-97209-876-4	08	1	1407-	●
5	VALVE; EXH	8-97209-876-4	12	1	1410-1504		●
5	VALVE; EXH	8-97209-876-4	12	1	1505-		●	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	1407-1409	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	1410-1504	●	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	1505-	●	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	1410-1504		●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	1505-		●	●
9	GEAR; CM/SHF Z=35	8-98018-935-3	01	1	1407-	●
9	GEAR; CM/SHF Z=35	8-98018-934-3	01	1	1410-1504		●
9	GEAR; CM/SHF Z=35	8-98018-934-3	01	1	1505-		●	●
37	METAL; CM/SHF B=16	8-97386-189-0	10	1	1407-	●
37	METAL; CM/SHF B=16	8-97386-189-0	04	1	1410-1504		●
37	METAL; CM/SHF B=16	8-97386-189-0	04	1	1505-		●	●
37	METAL; CM/SHF B=26	8-97602-699-0	04	1	1410-1504		●
37	METAL; CM/SHF B=26	8-97602-699-0	04	1	1505-		●	●
38	PIN; CAM BRG SET OD=7 L=7.5	8-94399-487-0	01	1	1410-1504		●
38	PIN; CAM BRG SET OD=7 L=7.5	8-94399-487-0	01	1	1505-		●	●
53	SHAFT; ROCKER ARM	8-97389-921-0	01	1	1407-	●
53	SHAFT; ROCKER ARM	8-97389-918-0	01	1	1410-1504		●
53	SHAFT; ROCKER ARM	8-97389-918-0	01	1	1505-		●	●
61	SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	08	1	1407-	●
61	SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	12	1	1410-1504		●
61	SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	12	1	1505-		●	●
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE	9-09844-574-0	08	1	1407-	●
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE	9-09844-574-0	12	1	1410-1504		●
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE	9-09844-574-0	12	1	1505-		●	●
63	BRIDGE	8-94392-002-3	08	1	1407-	●
63	BRIDGE	8-94392-002-3	12	1	1410-1504		●
63	BRIDGE	8-94392-002-3	12	1	1505-		●	●
65	COLLAR; SPLIT	5-12565-004-0	32	1	1407-	●
65	COLLAR; SPLIT	5-12565-004-0	48	1	1410-1504		●
65	COLLAR; SPLIT	5-12565-004-0	48	1	1505-		●	●
68	SPRING; VLV (B) EXHAUST MARK RED	8-97210-682-0	08	1	1407-	●
68	SPRING; VLV (A) INLET MARK BLUE	8-97352-888-0	08	1	1407-	●
68	SPRING; VLV (B) EXHAUST MARK WHITE	8-94395-885-1	12	1	1410-1504		●
68	SPRING; VLV (B) EXHAUST MARK WHITE	8-94395-885-1	12	1	1505-		●	●
68	SPRING; VLV (A) INLET MARK BLUE	8-97352-888-0	12	1	1410-1504		●
68	SPRING; VLV (A) INLET MARK BLUE	8-97352-888-0	12	1	1505-		●	●
71	SEAT; SPR (A) UPPER OD=32.8 T=12.75	8-94390-783-2	16	1	1407-	●
71	SEAT; SPR (B) LOWER ID=14.3 T=1.0	8-94391-468-0	16	1	1407-	●
71	SEAT; SPR (A) UPPER OD=32.8 T=12.75	8-94390-783-2	24	1	1410-1504		●
71	SEAT; SPR (A) UPPER OD=32.8 T=12.75	8-94390-783-2	24	1	1505-		●	●
71	SEAT; SPR (B) LOWER ID=14.3 T=1.0	8-94391-468-0	24	1	1410-1504		●
71	SEAT; SPR (B) LOWER ID=14.3 T=1.0	8-94391-468-0	24	1	1505-		●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	16	1	1407-	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	24	1	1410-1504		●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	24	1	1505-		●	●
75	BOLT; BRKT (A) M8X40 FLANGE	0-28050-840-0	02	1	1410-1504		●
75	BOLT; BRKT (A) M8X40 FLANGE	0-28050-840-0	02	1	1505-		●	●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	1410-1504		●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	1505-		●	●
78	ARM; ROCKER (A) INLET	8-97306-421-3	04	1	1407-	●
78	ARM; ROCKER (B) EXHAUST	8-97306-424-3	04	1	1407-	●
78	ARM; ROCKER (A) INLET	8-97306-421-3	06	1	1410-1504		●
78	ARM; ROCKER (A) INLET	8-97306-421-3	06	1	1505-		●	●
78	ARM; ROCKER (B) EXHAUST	8-97306-424-3	06	1	1410-1504		●
78	ARM; ROCKER (B) EXHAUST	8-97306-424-3	06	1	1505-		●	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	08	1	1407-	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	1410-1504		●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	1505-		●	●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	1407-	●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	12	1	1410-1504		●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	12	1	1505-		●	●
84	BRACKET; ROCKER SHAFT,INTER	8-94395-836-2	05	1	1410-1504		●
84	BRACKET; ROCKER SHAFT,INTER	8-94395-836-2	05	1	1505-		●	●
95	SPRING; ROCKER SHAFT	8-94392-999-0	04	1	1407-	●
95	SPRING; ROCKER SHAFT	8-94392-999-0	06	1	1410-1504		●
95	SPRING; ROCKER SHAFT	8-94392-999-0	06	1	1505-		●	●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	1410-1504		●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	1505-		●	●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	01	1	1410-1504		●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	01	1	1505-		●	●
212	CAP; ADJ SCREW	8-94396-015-2	12	1	1410-1504		●
212	CAP; ADJ SCREW	8-94396-015-2	12	1	1505-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
