0-13 - OIL PAN AND LEVEL GAUGE
▶
0-13 — OIL PAN AND LEVEL GAUGE
(#144088) — 86 parça
Tümü
A - 4HK1-TCS ENG
B - 6HK1-TCN ENG
C - 6HK1-TCS ENG
◀

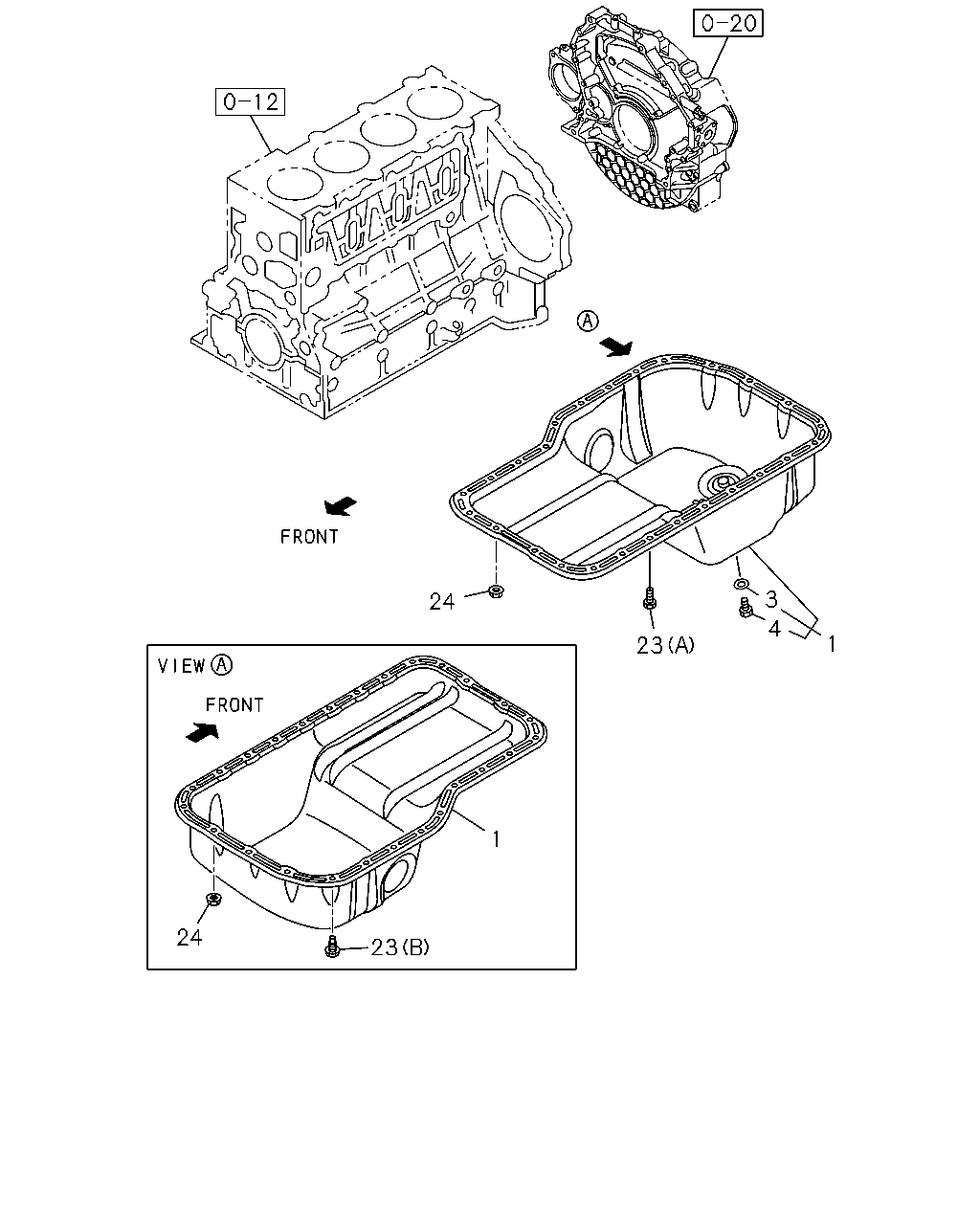

[013A] 4HK1; OIL PAN (14 parça)
[013A] 4HK1; OIL LEVEL GAUGE AND GUIDE TUBE (29 parça)

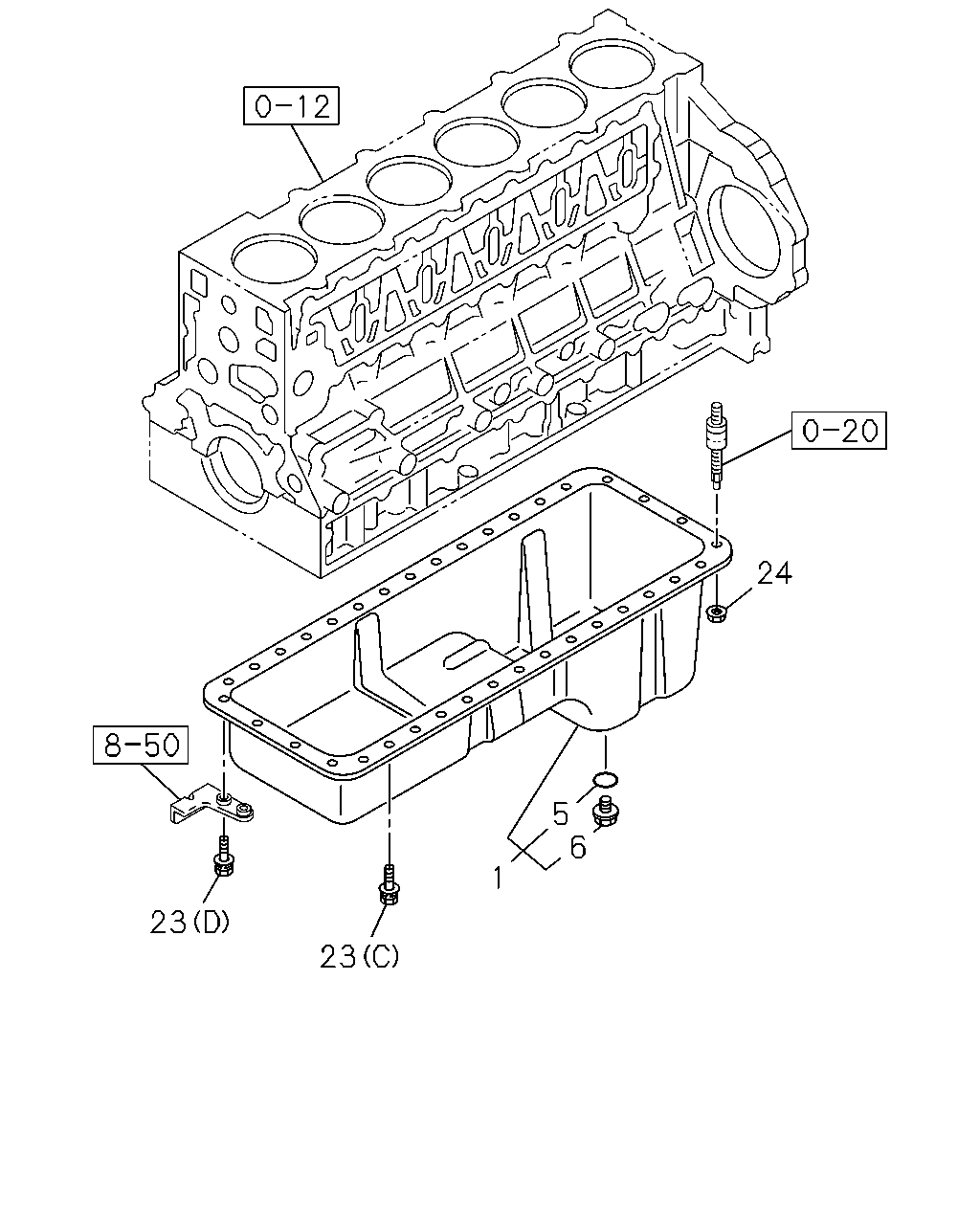

[013A] 6HK1; OIL PAN (16 parça)
[013A] 6HK1; OIL LEVEL GAUGE AND GUIDE TUBE (27 parça)
▶
24
23
3
4
1
24
23
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
PAN ASM; OIL
8-98191-050-0
01
1
1407-
●
1
PAN ASM; OIL
8-98179-005-0
01
1
1410-1504
●
1
PAN ASM; OIL
8-98179-005-0
01
1
1505-
●
●
3
GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24
8-94158-328-0
01
1
1407-
●
4
PLUG; DRAIN,OIL
M14X14
8-94152-613-0
01
1
1407-
●
23
BOLT; OIL PAN
(B) M8X14 W/SCOTCH GRIP
8-97047-004-1
01
1
1407-
●
23
BOLT; OIL PAN
(A) M8X14
8-97047-005-0
18
1
1407-
●
23
BOLT; OIL PAN
(C) M8X18 FLANGE
0-28080-818-0
28
1
1410-1504
●
23
BOLT; OIL PAN
(C) M8X18 FLANGE
0-28080-818-0
28
1
1505-
●
●
23
BOLT; OIL PAN
(D) M8X28 FLANGE
8-97329-626-0
02
1
1410-1504
●
23
BOLT; OIL PAN
(D) M8X28 FLANGE
8-97329-626-0
02
1
1505-
●
●
24
NUT; OIL PAN
M8 W/LK WASHER MAL
8-97581-234-0
07
1
1407-
●
24
NUT; OIL PAN
M8 FLANGE MAL
0-91180-108-0
04
1
1410-1504
●
24
NUT; OIL PAN
M8 FLANGE MAL
0-91180-108-0
04
1
1505-
●
●
10
49
193
8
2
193
10
379
192
9
9
8
380
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
GAUGE; OIL LEVEL
8-98245-516-0
01
1
1407-
●
2
GAUGE; OIL LEVEL
8-98092-600-0
01
1
1410-1504
●
2
GAUGE; OIL LEVEL
8-98092-600-0
01
1
1505-
●
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
8-98009-115-1
01
1
1407-
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
8-98179-498-0
01
1
1407-
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
(C)
8-98084-773-0
01
1
1410-1504
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
(C)
8-98084-773-0
01
1
1505-
●
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
(D)
8-98063-554-0
01
1
1410-1504
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
(D)
8-98063-554-0
01
1
1505-
●
●
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
1-09623-469-0
02
1
1407-
●
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
1-09623-469-0
02
1
1410-1504
●
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
1-09623-469-0
02
1
1505-
●
●
10
BOLT; GUIDE TUBE
(A) M6X12 FLANGE MAL
0-28050-612-0
01
1
1407-
●
10
BOLT; GUIDE TUBE
(B) M8X20 FLANGE MAL
0-28650-820-0
01
1
1407-1409
●
10
BOLT; GUIDE TUBE
(B) M8X20 FLANGE MAL
0-28650-820-0
01
1
1410-1504
●
●
10
BOLT; GUIDE TUBE
(B) M8X20 FLANGE MAL
0-28650-820-0
01
1
1505-
●
●
●
10
BOLT; GUIDE TUBE
(C) M10X35 FLANGE
0-28151-035-0
01
1
1410-1504
●
10
BOLT; GUIDE TUBE
(C) M10X35 FLANGE
0-28151-035-0
01
1
1505-
●
●
49
NUT; GUIDE TUBE
M8 FLANGE MAL
0-91180-108-0
01
1
1407-1409
●
49
NUT; GUIDE TUBE
M8 FLANGE MAL
0-91180-108-0
01
1
1410-1504
●
●
49
NUT; GUIDE TUBE
M8 FLANGE MAL
0-91180-108-0
01
1
1505-
●
●
●
192
HOSE; GUIDE TUBE
8-98206-931-0
01
1
1407-
●
192
HOSE; GUIDE TUBE
L=463
8-98054-844-1
01
1
1410-1504
●
192
HOSE; GUIDE TUBE
L=463
8-98054-844-1
01
1
1505-
●
●
193
CLIP; HOSE,GUIDE TUBE
ID=17
1-09707-158-0
02
1
1407-1409
●
193
CLIP; HOSE,GUIDE TUBE
ID=17
1-09707-158-0
02
1
1410-1504
●
●
193
CLIP; HOSE,GUIDE TUBE
ID=17
1-09707-158-0
02
1
1505-
●
●
●
379
CLIP; PIPE TO HOSE
ID=18 & 18
8-94323-068-0
01
1
1407-
●
380
PROTECTOR; PIPE
ID=18 L=40
8-98070-445-0
01
1
1407-
●
24
5
6
23
23
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
PAN ASM; OIL
8-98191-050-0
01
1
1407-
●
1
PAN ASM; OIL
8-98179-005-0
01
1
1410-1504
●
1
PAN ASM; OIL
8-98179-005-0
01
1
1505-
●
●
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4
1-09623-057-0
01
1
1410-1504
●
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4
1-09623-057-0
01
1
1505-
●
●
6
PLUG; OIL DRAIN
M20X16.5
9-09662-012-0
01
1
1410-1504
●
6
PLUG; OIL DRAIN
M20X16.5
9-09662-012-0
01
1
1505-
●
●
23
BOLT; OIL PAN
(B) M8X14 W/SCOTCH GRIP
8-97047-004-1
01
1
1407-
●
23
BOLT; OIL PAN
(A) M8X14
8-97047-005-0
18
1
1407-
●
23
BOLT; OIL PAN
(C) M8X18 FLANGE
0-28080-818-0
28
1
1410-1504
●
23
BOLT; OIL PAN
(C) M8X18 FLANGE
0-28080-818-0
28
1
1505-
●
●
23
BOLT; OIL PAN
(D) M8X28 FLANGE
8-97329-626-0
02
1
1410-1504
●
23
BOLT; OIL PAN
(D) M8X28 FLANGE
8-97329-626-0
02
1
1505-
●
●
24
NUT; OIL PAN
M8 W/LK WASHER MAL
8-97581-234-0
07
1
1407-
●
24
NUT; OIL PAN
M8 FLANGE MAL
0-91180-108-0
04
1
1410-1504
●
24
NUT; OIL PAN
M8 FLANGE MAL
0-91180-108-0
04
1
1505-
●
●
49
10
8
2
192
193
193
10
8
9
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
GAUGE; OIL LEVEL
8-98245-516-0
01
1
1407-
●
2
GAUGE; OIL LEVEL
8-98092-600-0
01
1
1410-1504
●
2
GAUGE; OIL LEVEL
8-98092-600-0
01
1
1505-
●
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
8-98009-115-1
01
1
1407-
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
8-98179-498-0
01
1
1407-
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
(C)
8-98084-773-0
01
1
1410-1504
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
(C)
8-98084-773-0
01
1
1505-
●
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
(D)
8-98063-554-0
01
1
1410-1504
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
(D)
8-98063-554-0
01
1
1505-
●
●
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
1-09623-469-0
02
1
1407-
●
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
1-09623-469-0
02
1
1410-1504
●
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
1-09623-469-0
02
1
1505-
●
●
10
BOLT; GUIDE TUBE
(A) M6X12 FLANGE MAL
0-28050-612-0
01
1
1407-
●
10
BOLT; GUIDE TUBE
(B) M8X20 FLANGE MAL
0-28650-820-0
01
1
1407-1409
●
10
BOLT; GUIDE TUBE
(B) M8X20 FLANGE MAL
0-28650-820-0
01
1
1410-1504
●
●
10
BOLT; GUIDE TUBE
(B) M8X20 FLANGE MAL
0-28650-820-0
01
1
1505-
●
●
●
10
BOLT; GUIDE TUBE
(C) M10X35 FLANGE
0-28151-035-0
01
1
1410-1504
●
10
BOLT; GUIDE TUBE
(C) M10X35 FLANGE
0-28151-035-0
01
1
1505-
●
●
49
NUT; GUIDE TUBE
M8 FLANGE MAL
0-91180-108-0
01
1
1407-1409
●
49
NUT; GUIDE TUBE
M8 FLANGE MAL
0-91180-108-0
01
1
1410-1504
●
●
49
NUT; GUIDE TUBE
M8 FLANGE MAL
0-91180-108-0
01
1
1505-
●
●
●
192
HOSE; GUIDE TUBE
8-98206-931-0
01
1
1407-
●
192
HOSE; GUIDE TUBE
L=463
8-98054-844-1
01
1
1410-1504
●
192
HOSE; GUIDE TUBE
L=463
8-98054-844-1
01
1
1505-
●
●
193
CLIP; HOSE,GUIDE TUBE
ID=17
1-09707-158-0
02
1
1407-1409
●
193
CLIP; HOSE,GUIDE TUBE
ID=17
1-09707-158-0
02
1
1410-1504
●
●
193
CLIP; HOSE,GUIDE TUBE
ID=17
1-09707-158-0
02
1
1505-
●
●
●
