Isuzu WW
▶
TRUCKS
▶
FYH
▶
11602 - FYH(LHD)CHINA
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-60 - HEATER UNIT; FRONT
▶

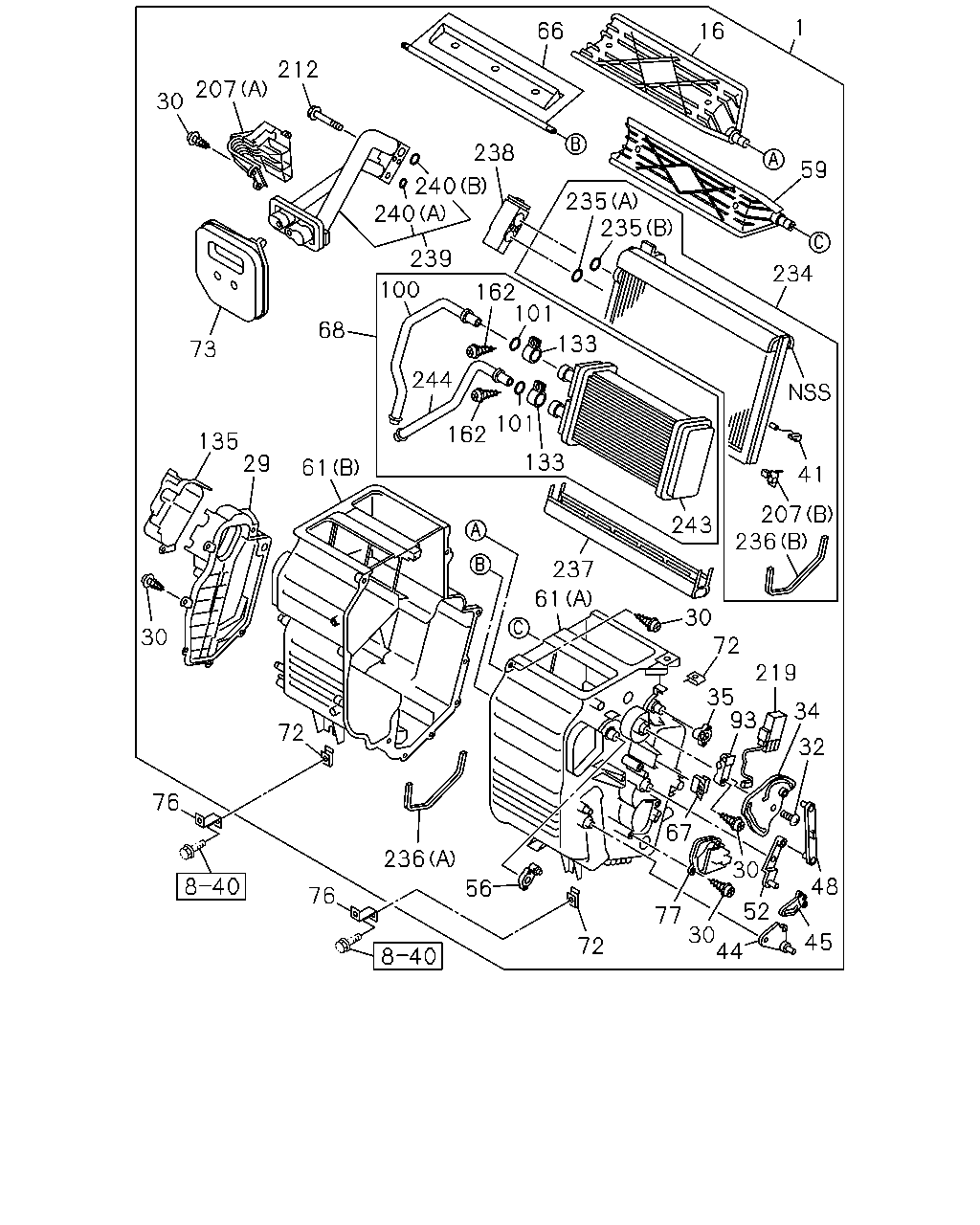

8-60 — HEATER UNIT; FRONT
(#144074) — 45 parça
1
16
66
212
207
30
73
68
240
240
238
235
235
59
234
162
239
100
101
162
244
133
101
41
207
236
243
133
61
29
135
237
61
30
72
219
34
32
48
35
93
45
30
52
67
30
44
77
72
56
236
72
76
76
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEATER UNIT
8-97431-259-0
01
1
1404-
16
SHUTTER; HTR UNIT,CENTER UPR
CHI
8-98047-387-0
01
1
1404-
29
COVER; HTR UNIT
CHI
8-98047-480-0
01
1
1404-
30
SCREW; HTR UNIT
M4X16 TAPPING CHI
8-97957-708-0
27
1
1404-
32
SCREW; HTR UNIT
M4X16 CHI
8-98047-416-0
03
1
1404-
34
LEVER; SHUTTER,HTR UNIT
CHI
8-98047-497-0
01
1
1404-
35
LEVER; SHUTTER,HTR UNIT
CHI
8-98047-500-0
01
1
1404-
41
THERMOSTAT; HTR UNIT
CHI
8-98047-412-0
01
1
1404-
44
LEVER; SHUTTER,HTR UNIT
CHI
8-98047-502-0
01
1
1404-
45
LEVER; SHUTTER,HTR UNIT
CHI
8-98047-503-0
01
1
1404-
48
LEVER; HTR UNIT
CHI
8-98047-391-0
01
1
1404-
52
LEVER; SHUTTER,HTR UNIT
CHI
8-98047-498-0
01
1
1404-
56
LEVER; SHUTTER,HTR UNIT
CHI
8-98047-501-0
01
1
1404-
59
SHUTTER; HTR UNIT,SIDE
CHI
8-98047-386-0
01
1
1404-
61
CASE; HTR UNIT
(A) CHI
8-98047-478-0
01
1
1404-
61
CASE; HTR UNIT
(B) CHI
8-98047-479-0
01
1
1404-
66
SHUTTER; HTR UNIT,CENTER LWR
CHI
8-98047-385-0
01
1
1404-
67
CLIP; HTR UNIT
CHI
8-98047-417-0
02
1
1404-
68
CORE; HTR UNIT
CHI
8-98047-494-0
01
1
1404-
72
NUT; CASE,HTR UNIT
M6 CHI
8-98047-428-0
03
1
1404-
73
PLATE; HTR UNIT
CHI
8-98047-491-0
01
1
1404-
76
BRACKET; HTR UNIT
8-97431-255-0
02
1
1404-
77
COVER; HTR CASE
CHI
8-98047-482-0
01
1
1404-
93
PLATE; HTR UNIT
CHI
8-98047-427-0
01
1
1404-
100
PIPE; CORE,HTR UNIT
CHI
8-98072-532-0
01
1
1404-
101
GASKET; CORE,HTR UNIT
CHI
8-98072-531-0
02
1
1404-
133
CLIP; PIPE
CHI
8-98072-530-0
02
1
1404-
135
COVER; HTR
CHI
8-98047-481-0
01
1
1404-
162
SCREW; CLIP FIX
CHI
8-98072-529-0
02
1
1404-
207
CLAMP; HTR UNIT
(A) CHI
8-98047-493-0
01
1
1404-
207
CLAMP; HTR UNIT
(B) CHI
8-98047-413-0
01
1
1404-
212
BOLT; HTR UNIT
M5X61 CHI
8-98047-415-0
02
1
1404-
219
AMPLIFIER; HEATER UNIT
CHI
8-98047-429-0
01
1
1404-
234
EVAPORATOR ASM; HEATER
CHI
8-98074-120-1
01
1
1404-
235
GASKET; EVAPORATOR
(A) ID=11.7 CHI
8-97095-907-0
01
1
1404-
235
GASKET; EVAPORATOR
(B) ID=14.5 CHI
8-97095-908-0
01
1
1404-
236
GASKET; HEATER
(A) CHI
8-98047-420-0
01
1
1404-
236
GASKET; HEATER
(B) CHI
8-98047-421-0
01
1
1404-
237
INSULATOR; EVAPORATOR
CHI
8-98047-382-0
01
1
1404-
238
VALVE; EXPANSION
CHI
8-98047-383-0
01
1
1404-
239
TUBE ASM; HEATER
CHI
8-98047-504-0
01
1
1404-
240
GASKET; HEATER
(A) ID=7.4 CHI
8-97095-906-0
01
1
1404-
240
GASKET; HEATER
(B) ID=14.5 CHI
8-97095-908-0
01
1
1404-
243
CORE
CHI
8-98048-508-0
01
1
1404-
244
PIPE; INLET
CHI
8-98048-511-0
01
1
1404-
