◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11118 - EXY NZ JNST04 EXC.HYDRAULIC RETARDER ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#14407) — 60 parça

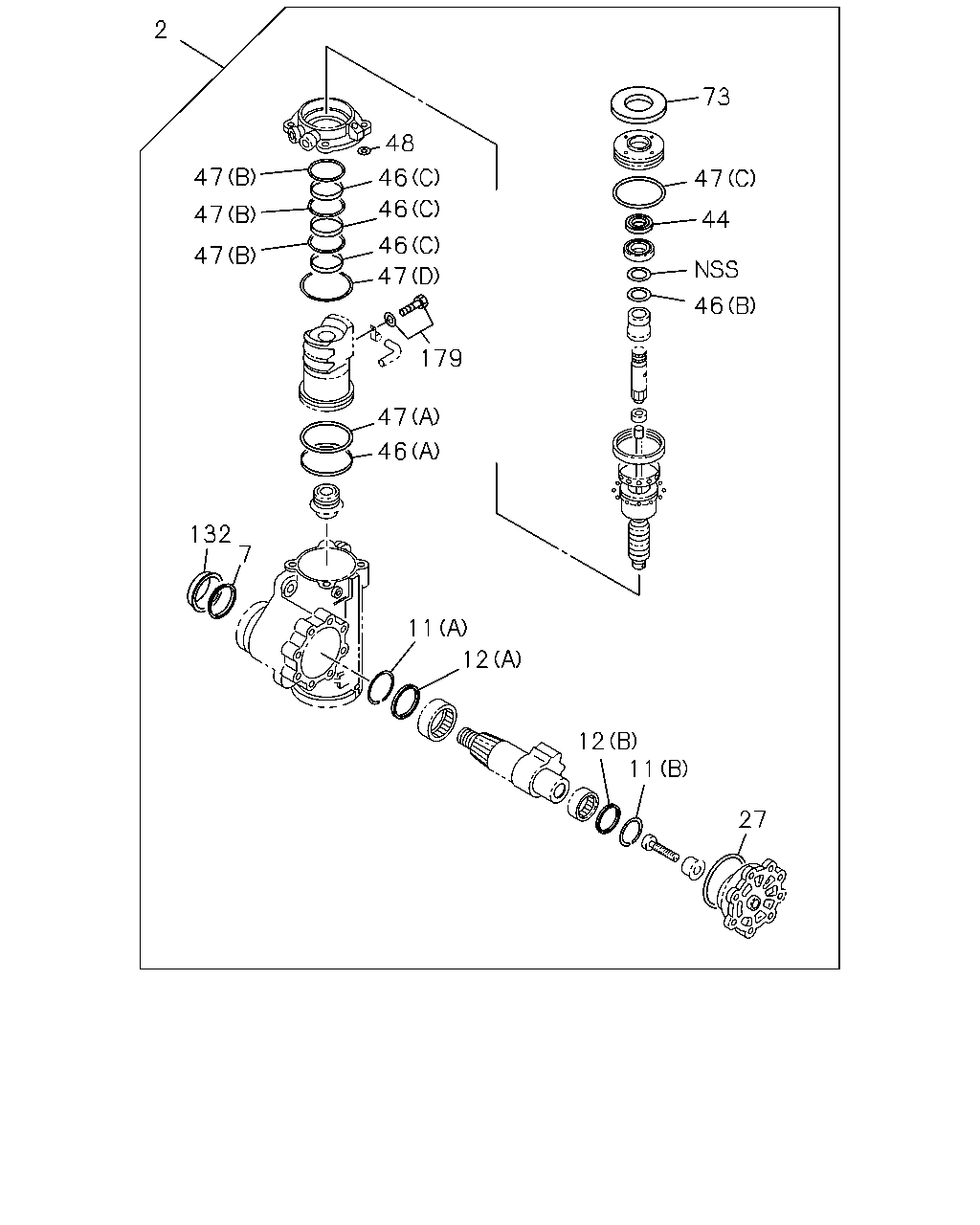

çizim 96248
2 73 48 47 46 47 46 47 44 46 47 47 46 179 47 46 132 7 11 12 12 11 27
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: A = 1-44000-943-2 		1-85574-052-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44249-041-0 01 1 -1001
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-943-2 		8-98159-116-0 01 1 1002-
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-943-2 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-943-2 		1-44519-252-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-943-2 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-943-2 		1-44519-265-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44269-035-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-943-2 		1-44159-170-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-943-2 		1-44519-255-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-943-2 		1-44519-302-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-943-2 		1-44159-163-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-943-2 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-943-2 		1-44519-260-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-943-2 		1-44519-261-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44519-262-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44519-114-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44519-227-0 01 1 -
179 SCREW; CLIP STRG UNIT
ASM PART: A = 1-44000-943-2 		1-09000-610-0 02 1 -

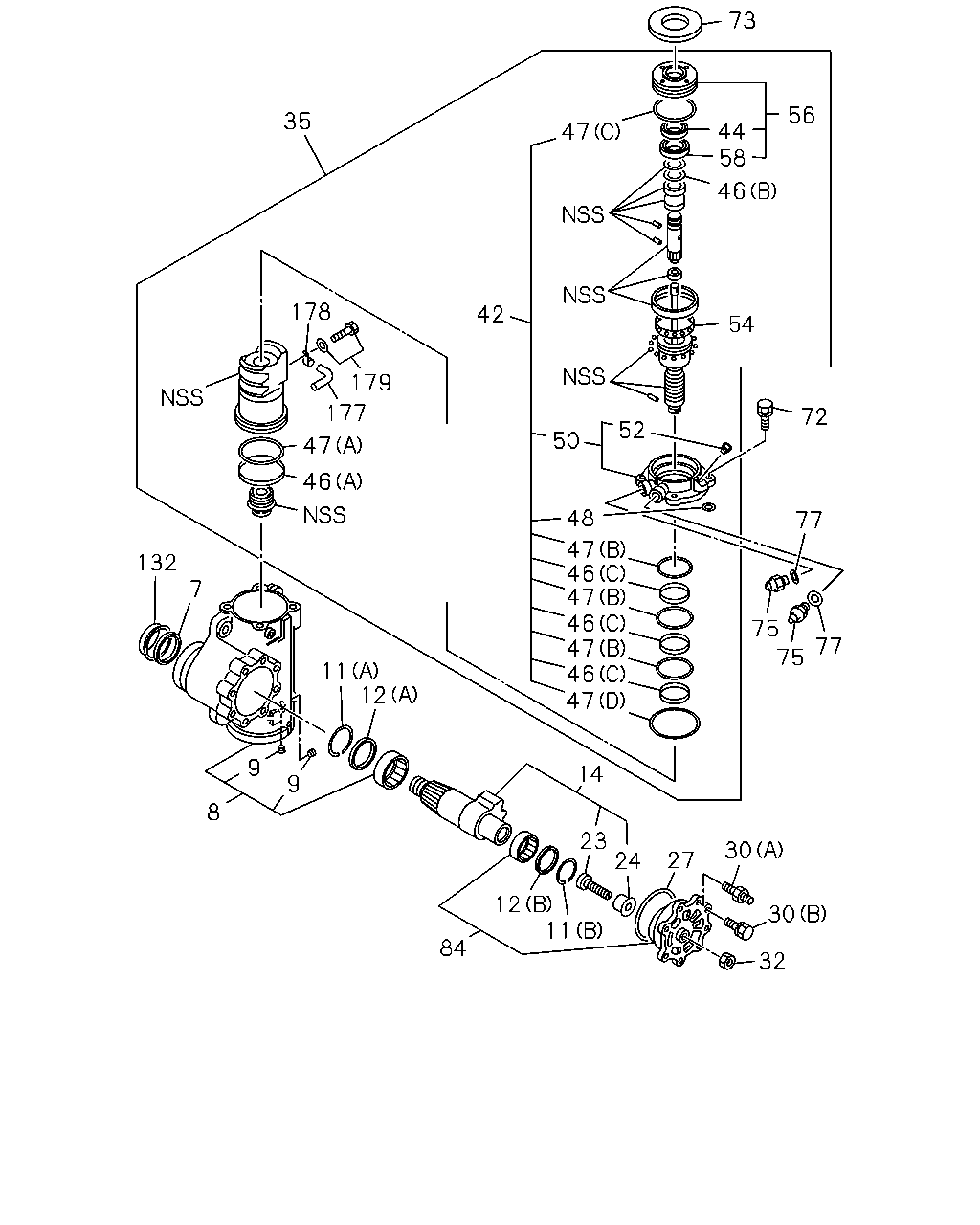

çizim 106732
73 56 35 44 58 47 46 178 42 54 179 177 72 52 50 47 46 48 77 47 46 47 46 47 46 47 132 7 75 77 75 11 12 9 14 9 8 23 24 30 27 12 11 30 84 32
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44249-041-0 01 1 -1001
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-943-2 		8-98159-116-0 01 1 1002-
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44240-148-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-943-2 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-943-2 		1-44519-252-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-943-2 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-943-2 		1-44519-265-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44320-016-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44277-003-1 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44269-035-0 01 1 -
30 BOLT; COVER STRG UNIT
(A) ASM PART: A = 1-44000-943-2 		1-19519-121-0 03 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: A = 1-44000-943-2 		1-44279-012-0 05 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44269-037-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44150-130-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44560-098-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-943-2 		1-44159-170-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-943-2 		1-44519-255-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-943-2 		1-44519-302-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-943-2 		1-44159-163-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-943-2 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-943-2 		1-44519-260-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-943-2 		1-44519-261-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44560-099-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44241-088-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44250-006-1 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44259-029-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44259-017-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44519-114-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
M22X1.5 ASM PART: A = 1-44000-943-2 		1-44259-035-1 02 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-943-2 		9-89970-787-0 02 1 -
84 COVER ASM; STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44260-030-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44519-227-0 01 1 -
177 TUBE; BALL BRG STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44159-167-0 02 1 -
178 CLIP; BALL TUBE STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44159-034-0 01 1 -
179 SCREW; CLIP STRG UNIT
ASM PART: A = 1-44000-943-2 		1-09000-610-0 02 1 -
