Isuzu WW
▶
TRUCKS
▶
FYH
▶
11602 - FYH(LHD)CHINA
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-03 - LAMP; REAR AND REAR SIDE
▶

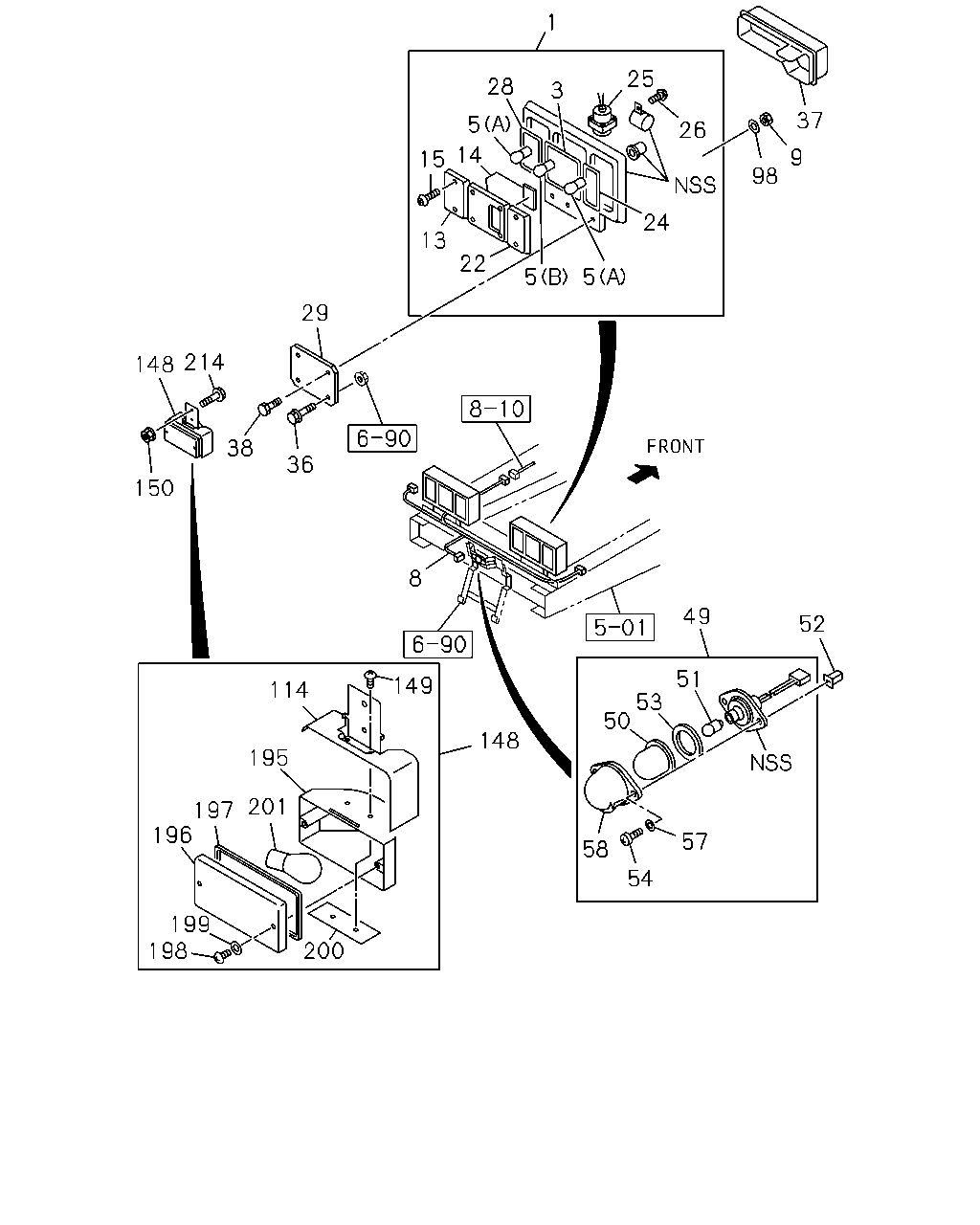

8-03 — LAMP; REAR AND REAR SIDE
(#144062) — 44 parça
1
25
3
28
5
14
15
13
22
5
5
24
26
98
9
37
29
214
148
150
38
36
8
49
52
51
53
50
57
54
58
148
149
114
195
201
197
196
199
200
198
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; RR COMB
CHI
1-82230-209-0
01
1
1404-
1
LAMP ASM; RR COMB
CHI
1-82230-208-0
01
1
1404-
3
GASKET; RR COMB LAMP
CHI
8-94257-505-0
02
1
1404-
5
BULB; RR COMB LAMP
(A) 24V 21W CHI
1-82194-036-0
04
1
1404-
5
BULB; RR COMB LAMP
(B) 24V 21/5W CHI
1-82194-038-0
02
1
1404-
8
HARNESS; RR COMB LAMP
8-97431-380-0
01
1
1404-
9
NUT; LAMP,RR COMB
M6 CHI
0-91110-506-0
04
1
1404-
13
LENS; TURN SIGNAL
CHI
8-94174-638-0
01
1
1404-
13
LENS; TURN SIGNAL
CHI
8-94174-639-0
01
1
1404-
14
LENS; TAIL & STOP,RR COMB LAMP
CHI
8-94178-624-0
01
1
1404-
14
LENS; TAIL & STOP,RR COMB LAMP
CHI
8-94178-625-0
01
1
1404-
15
SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS
0-71190-420-0
16
1
1404-
22
LENS; BACKUP,RR COMB LAMP
CHI
8-94257-512-1
02
1
1404-
24
GASKET; BACK,LAMP
CHI
8-94257-506-0
02
1
1404-
25
HORN ASM; BACK
CHI
8-94257-518-0
01
1
1404-
26
SCREW; BACK HORN
M4X12 TAPPING
9-07076-412-0
02
1
1404-
26
SCREW; BACK HORN
M4X14 TAPPING
9-07076-414-0
01
1
1404-
28
GASKET; TURN,LAMP
CHI
8-94257-507-0
02
1
1404-
29
BRACKET; LAMP,RR COMB
CHI
1-82237-050-1
02
1
1404-
36
BOLT; BRKT,RR COMB
CHI
0-50741-025-0
04
1
1404-
37
COVER; RR COMB LAMP
CHI
1-82239-008-0
01
1
1404-
37
COVER; RR COMB LAMP
CHI
1-82239-007-0
01
1
1404-
38
BOLT; LAMP,RR COMB
M6X30 W/LK&PL WASHER CHI
0-50640-630-0
04
1
1404-
49
LAMP; LICENSE PLATE
24V 10W CHI
1-82120-024-1
01
1
1404-
50
LENS; LICENSE PLATE LAMP
CHI
1-82235-006-0
01
1
1404-
51
BULB; LICENSE PLATE LAMP
24V 10W CHI
1-82194-037-0
01
1
1404-
52
GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK CHI
8-94275-946-0
02
1
1404-
53
GASKET; LICENSE LAMP
CHI
1-82126-005-0
01
1
1404-
54
SCREW; LICENSE PLATE LAMP
M5X20 CHI
1-82129-007-0
02
1
1404-
57
WASHER; PL,LICENSE PLATE LAMP
CHI
1-82129-008-0
02
1
1404-
58
COVER; LICENSE PLATE LAMP
CHI
1-82129-005-0
01
1
1404-
98
WASHER
ID=6.4 OD=18 CHI
0-91610-706-0
04
1
1404-
114
BRACKET; RR FOG LAMP
CHI
8-97108-583-0
01
1
1404-
148
LAMP ASM; RR FOG
CHI
1-82110-477-0
01
1
1404-
149
SCREW; BRKT TO LAMP BODY
CHI
8-94336-372-0
02
1
1404-
150
NUT; RR FOG LAMP
M6 FLANGE
5-09440-004-0
01
1
1404-
195
LAMP UNIT; RR FOG
CHI
8-94336-322-0
01
1
1404-
196
LENS; RR FOG LAMP
CHI
8-94336-325-0
01
1
1404-
197
GASKET; RR FOG LAMP
CHI
8-94336-324-0
01
1
1404-
198
SCREW; LENS TO BODY
0-71190-416-0
02
1
1404-
199
WASHER; LENS,RR FOG LAMP
CHI
8-94336-326-0
02
1
1404-
200
PLATE; SET,RR FOG LAMP
CHI
8-94336-323-0
01
1
1404-
201
BULB; RR FOG LAMP
24V 21W CHI
1-82194-036-0
01
1
1404-
214
BOLT; RR FOG LAMP
M6X20 FLANGE CHI
0-28650-620-0
01
1
1404-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
