Isuzu WW
▶
TRUCKS
▶
FYH
▶
11602 - FYH(LHD)CHINA
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-70 - SEPARATER AND BED
▶

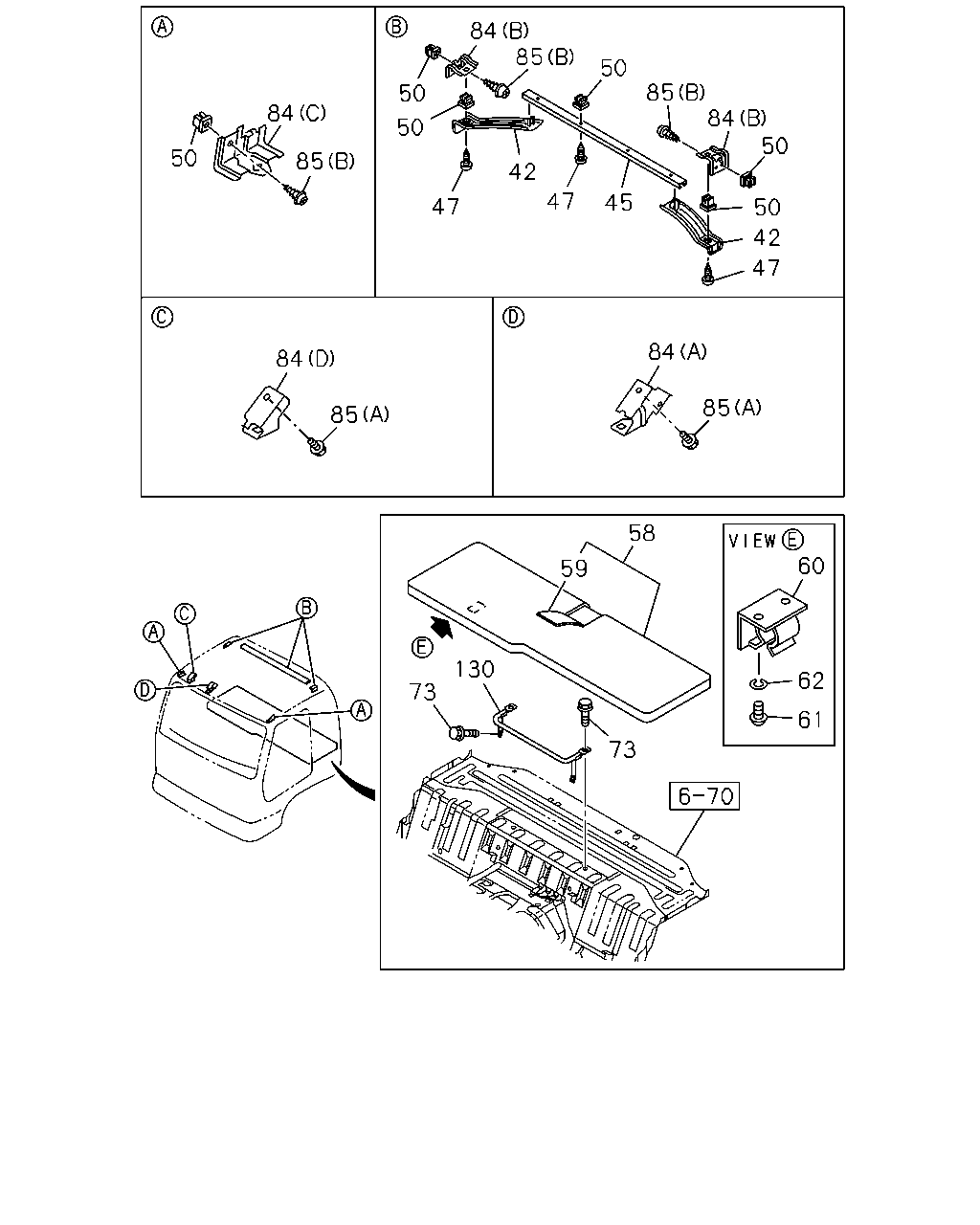

7-70 — SEPARATER AND BED
(#144060) — 18 parça
50
84
85
50
47
50
84
42
85
85
50
45
47
84
50
47
42
50
84
85
58
59
130
73
73
62
61
60
84
85
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
42
STOPPER; CURTAIN RAIL
DARK GRAY CHI
8-97407-972-2
01
1
1404-
42
STOPPER; CURTAIN RAIL
DARK GRAY CHI
8-97407-499-2
01
1
1404-
45
RAIL; CURTAIN,FRT
DARK GRAY CHI
8-97407-486-0
01
1
1404-
47
SCREW; CURTAIN RAIL
M5X20 CHI
5-09981-059-0
06
1
1404-
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5 CHI
8-94279-078-0
12
1
1404-
58
BED; MAT
CHI
8-97430-953-0
01
1
1404-
59
COVER ASM; TRIM,BED MAT
CHI
1-75118-997-0
01
1
1404-
60
HOLDER
CHI
1-75147-582-0
04
1
1404-
61
SCREW; ROD HOLDER FIX
CHI M6X16
9-03490-616-0
14
1
1404-
62
WASHER; LK,ROD HOLDER
CHI ID=8.2
9-09150-508-0
14
1
1404-
73
BOLT; GUARD PIPE
M8X20 FLANGE CHI
0-28450-820-0
04
1
1404-
84
BRACKET; CURTAIN RAIL
(C) CHI
8-98028-326-1
02
1
1404-
84
BRACKET; CURTAIN RAIL
(B) CHI
8-98042-152-0
04
1
1404-
84
BRACKET; CURTAIN RAIL
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) CHI
8-98049-289-1
01
1
1404-
84
BRACKET; CURTAIN RAIL
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (D) CHI
8-98074-739-0
01
1
1404-
85
SCREW; BRKT
(B) M5X20 CHI
5-09981-059-0
06
1
1404-
85
SCREW; BRKT
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE CHI
8-97108-669-0
02
1
1404-
130
PIPE; GUARD,BED
8-97431-405-0
01
1
1404-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
