4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#14405) — 99 parça

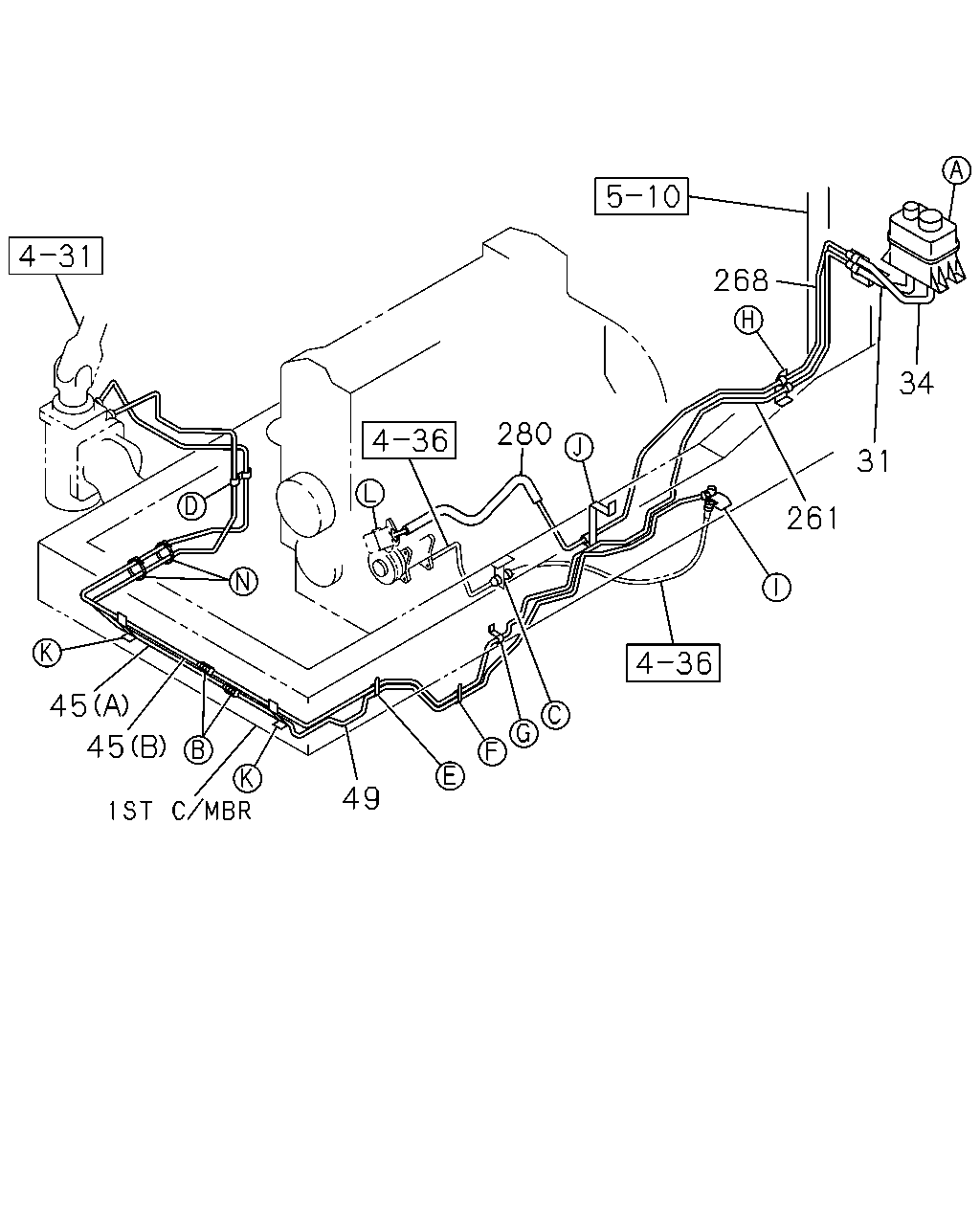

45 45 49 261 31 34 268 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL	1-21117-509-1	01	1	0710-
34	HOSE; P/S OIL TANK,OUTLET	1-21117-510-1	01	1	0710-
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1475	1-21117-916-0	01	1	0710-1309
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1475	8-98257-624-0	01	1	1310-
45	PIPE; OIL,P/S UNIT TO UNION (B) L=1404	1-21117-917-0	01	1	0710-1309
45	PIPE; OIL,P/S UNIT TO UNION (B) L=1404	8-98257-625-0	01	1	1310-
49	PIPE; OIL,FLEX HOSE TO UNION L=2147	1-21117-763-0	01	1	0710-
261	PIPE; OIL,UNION TO HOSE L=3362	1-21117-802-0	01	1	0710-1208
261	PIPE; OIL,UNION TO HOSE L=3351	8-98219-712-0	01	1	1209-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1367	1-21117-813-0	01	1	0710-
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0710-

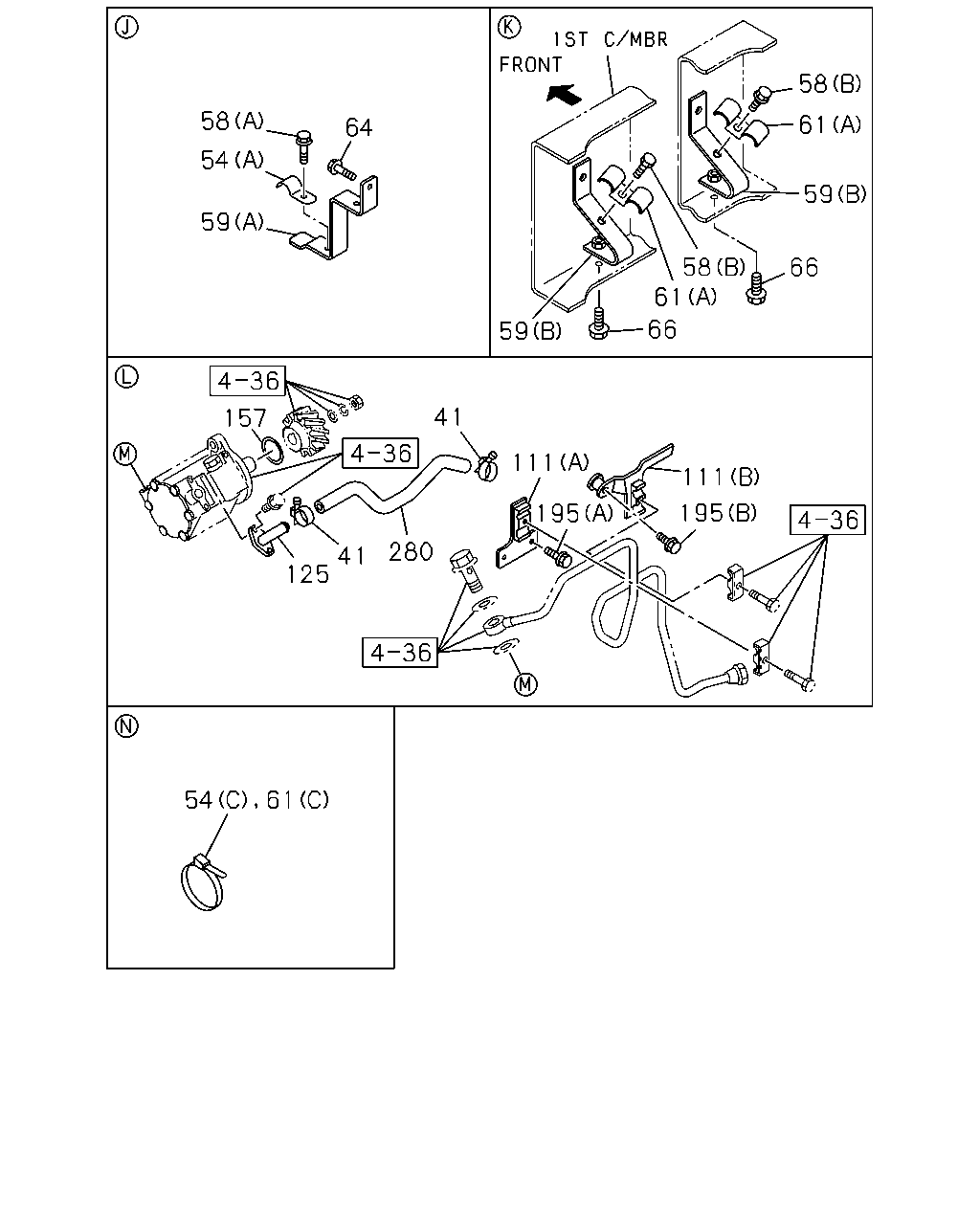

58 54 64 59 58 61 59 66 58 61 66 59 157 41 125 280 41 111 195 111 195 54 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	0710-
54	CLIP; OIL PIPE (C) L=350	1-09707-183-0	01	1	1310-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	01	1	0710-
54	CLIP; OIL PIPE (B) ID=26 L=27	1-09701-006-0	01	1	0710-
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0710-
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	03	1	0710-
58	BOLT; CLIP (A) M10X20 FLANGE	0-28651-020-0	03	1	0710-
59	BRACKET; CLIP,OIL PIPE (A)	1-47471-183-0	01	1	0710-
59	BRACKET; CLIP,OIL PIPE (B)	1-47479-521-0	02	1	0710-
61	CLIP; OIL PIPE (C) L=350	1-09707-183-0	01	1	1310-
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	01	1	0710-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	05	1	0710-
64	BOLT; CLIP BRKT M8X20 FLANGE	0-28650-820-0	01	1	0710-
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28650-820-0	02	1	0710-
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	0710-
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	0710-
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	0710-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	0710-
195	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	02	1	0710-
195	BOLT; BRKT (B) M10X35 FLANGE	0-28151-035-0	01	1	0710-
195	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	08	1	0710-
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0710-

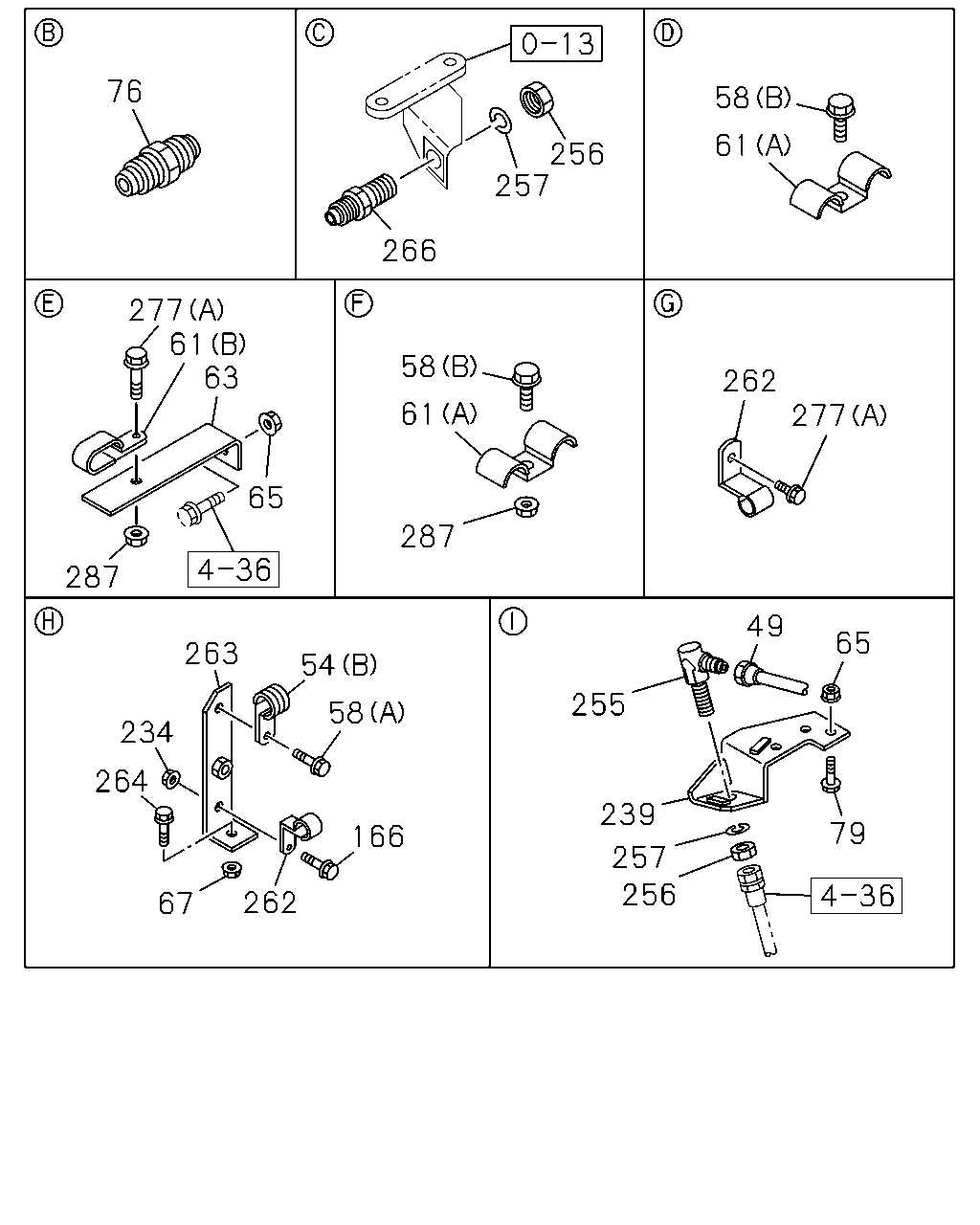

58 61 256 257 266 277 76 61 63 65 287 287 61 58 262 277 49 65 255 239 79 257 256 262 166 58 54 263 234 264 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	PIPE; OIL,FLEX HOSE TO UNION L=2147	1-21117-763-0	01	1	0710-
54	CLIP; OIL PIPE (C) L=350	1-09707-183-0	01	1	1310-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	01	1	0710-
54	CLIP; OIL PIPE (B) ID=26 L=27	1-09701-006-0	01	1	0710-
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0710-
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	03	1	0710-
58	BOLT; CLIP (A) M10X20 FLANGE	0-28651-020-0	03	1	0710-
61	CLIP; OIL PIPE (C) L=350	1-09707-183-0	01	1	1310-
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	01	1	0710-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	05	1	0710-
63	BRACKET; CLIP,P/S L=115 B=25	1-47476-758-0	01	1	0710-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0710-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0710-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0710-
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	02	1	0710-
79	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0710-
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0710-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	0710-
239	BRACKET; FLEX HOSE	1-47471-227-0	01	1	0710-
255	UNION; FLEX HOSE M22 & M22 ELBOW	1-09654-163-1	01	1	0710-
256	NUT; UNION M22	0-91111-522-0	01	1	0710-
256	NUT; UNION M22	0-91111-522-0	01	1	0710-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0710-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0710-
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	02	1	0710-
263	BRACKET; P/S PIPE	1-47471-191-1	01	1	0710-
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	0710-
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	0710-
277	BOLT; HOSE CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	0710-
277	BOLT; HOSE CLIP (A) M8X25 FLANGE	0-28650-825-0	03	1	0710-
287	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0710-

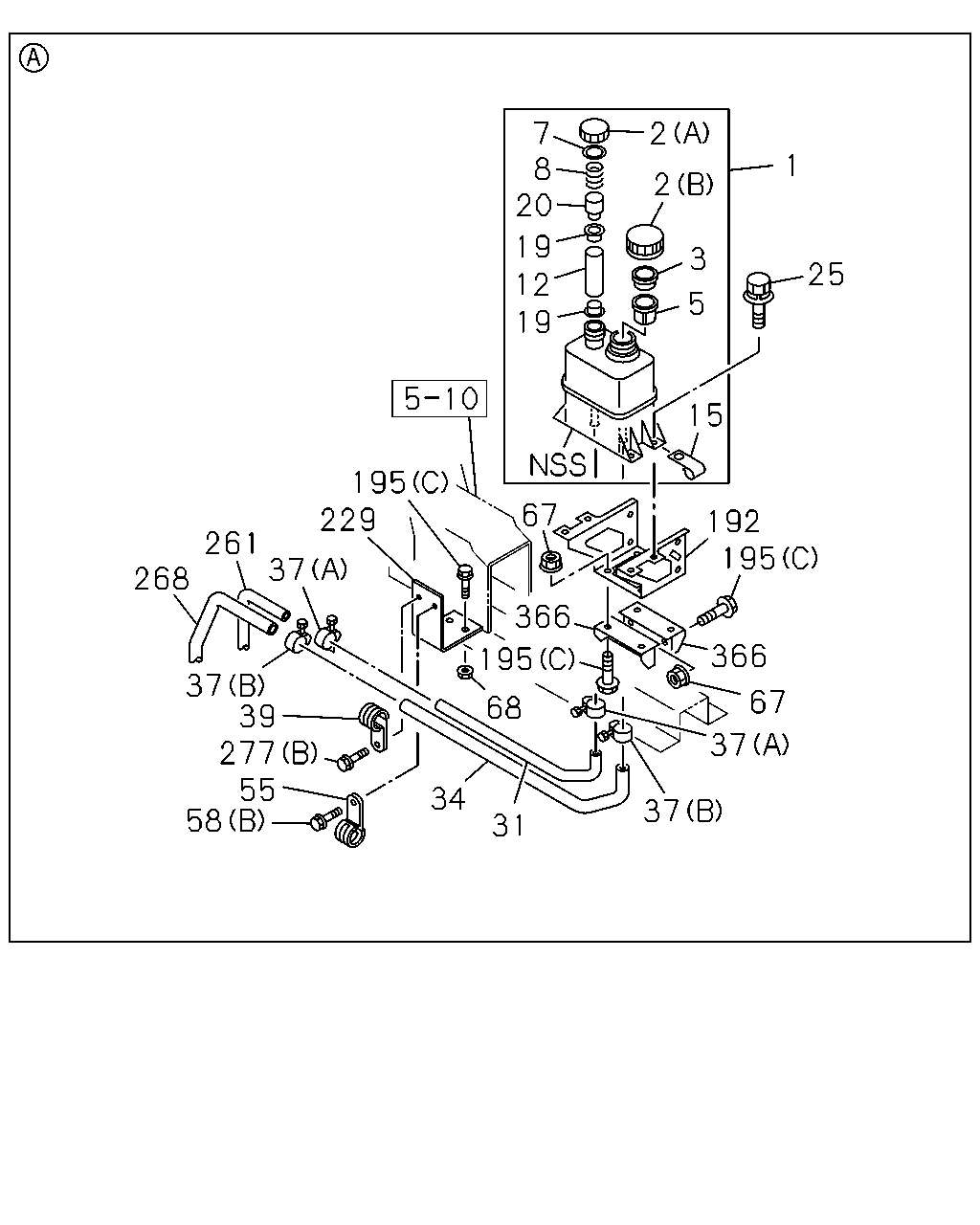

7 2 8 2 1 20 19 3 12 19 5 25 15 195 229 67 192 195 261 268 37 366 366 195 37 39 68 67 37 277 55 34 37 31 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0710-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	0710-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	0710-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0710-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0710-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0710-
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	0710-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0710-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	0710-
19	SEAT; OIL TANK	1-21262-001-0	02	1	0710-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0710-
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	0710-
31	HOSE; P/S OIL TANK,INL	1-21117-509-1	01	1	0710-
34	HOSE; P/S OIL TANK,OUTLET	1-21117-510-1	01	1	0710-
37	CLIP; HOSE,P/S (B) ID=38	9-09915-041-1	02	1	0710-
37	CLIP; HOSE,P/S (A) ID=28	9-09915-672-1	02	1	0710-
39	CLIP; FLEX HOSE ID=37 L=35	1-09701-109-0	01	1	0710-
55	CLIP; P/S RUBBER HOSE ID=28 L=32	1-09701-107-1	01	1	0710-
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0710-
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	03	1	0710-
58	BOLT; CLIP (A) M10X20 FLANGE	0-28651-020-0	03	1	0710-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0710-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0710-
68	NUT; CLIP,OIL PIPE M10 FLANGE	0-91180-210-0	02	1	0710-
192	BRACKET; P/S OIL TANK	1-21489-200-1	01	1	0710-
195	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	02	1	0710-
195	BOLT; BRKT (B) M10X35 FLANGE	0-28151-035-0	01	1	0710-
195	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	08	1	0710-
229	BRACKET; HOSE,POWER STRG	1-21464-780-0	01	1	0710-
261	PIPE; OIL,UNION TO HOSE L=3362	1-21117-802-0	01	1	0710-1208
261	PIPE; OIL,UNION TO HOSE L=3351	8-98219-712-0	01	1	1209-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1367	1-21117-813-0	01	1	0710-
277	BOLT; HOSE CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	0710-
277	BOLT; HOSE CLIP (A) M8X25 FLANGE	0-28650-825-0	03	1	0710-
366	SPACER; BRKT TO MEMBER	1-21489-196-1	02	1	0710-
