◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11602 - FYH(LHD)CHINA ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#144042) — 58 parça

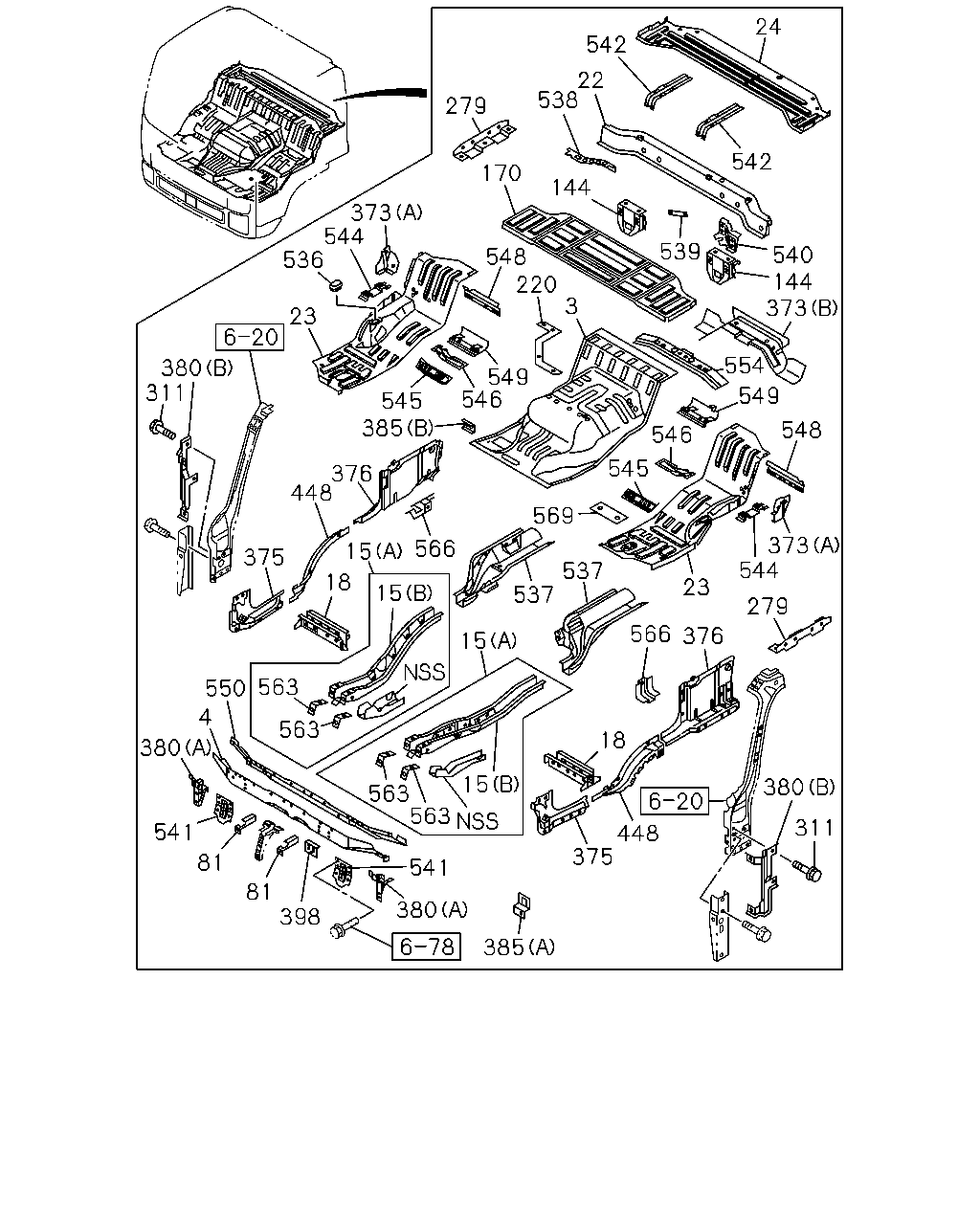

çizim 432507
311 380 448 375 385 380 398 81 541 81 541 380 563 563 563 563 550 18 375 566 15 15 537 569 537 376 448 15 385 545 546 549 3 545 546 23 566 376 18 279 373 544 548 549 554 373 144 540 539 542 24 542 22 538 279 170 548 144 220 373 544 536 23 380 311 15 4
BalonParca AdiParca NoAdetTipApplied Date
3 HOOD ASM; ENG
CHI 		8-97430-014-0 01 1 1404-
4 FRAME; FLOOR,FRT
CHI 		8-97431-037-0 01 1 1404-
15 FRAME; UNDER
(A) CHI 		8-97430-018-0 01 1 1404-
15 FRAME; UNDER
(B) CHI 		8-97430-019-0 01 1 1404-
15 FRAME; UNDER
(A) CHI 		8-97430-027-1 01 1 1404-
15 FRAME; UNDER
(B) CHI 		8-97430-333-0 01 1 1404-
18 FRAME; FLOOR,CENTER SIDE
CHI 		8-97430-022-0 01 1 1404-
18 FRAME; FLOOR,CENTER SIDE
CHI 		8-97430-028-1 01 1 1404-
22 FRAME; FLOOR REAR
CHI 		8-97584-431-5 01 1 1404-
23 PANEL; FLOOR,SIDE
CHI 		8-97430-321-0 01 1 1404-
23 PANEL; FLOOR,SIDE
CHI 		8-97430-324-0 01 1 1404-
24 PANEL; BED PAN
CHI 		8-97584-378-6 01 1 1404-
81 BRACKET; HARNESS SUPPORT
CHI 		8-97430-037-0 02 1 1404-
144 BRACKET; MTG,RR
CHI 		8-97584-432-6 01 1 1404-
144 BRACKET; MTG,RR
CHI 		8-97589-666-6 01 1 1404-
170 EXTENSION; RR FLOOR
CHI 		8-97589-207-4 01 1 1404-
220 PATCH
CHI 		8-97430-015-0 01 1 1404-
279 REINFORCEMENT
CHI 		8-97430-904-0 02 1 1404-
311 BOLT; BRKT
M6X16 FLANGE CHI 		0-28650-616-0 04 1 1404-
373 REINFORCEMENT; SEAT BELT
(B) CHI 		8-97430-880-0 01 1 1404-
373 REINFORCEMENT; SEAT BELT
(A) CHI 		8-97584-367-2 01 1 1404-
373 REINFORCEMENT; SEAT BELT
(A) CHI 		8-97584-375-2 01 1 1404-
375 CLOSING; PILLAR
CHI 		8-97430-040-0 01 1 1404-
375 CLOSING; PILLAR
CHI 		8-97430-043-0 01 1 1404-
376 CLOSING; PILLAR,LWR
CHI 		8-97589-554-4 01 1 1404-
376 CLOSING; PILLAR,LWR
CHI 		8-97589-556-4 01 1 1404-
380 BRACKET; HEAD LAMP
(A) CHI 		8-97430-033-0 01 1 1404-
380 BRACKET; HEAD LAMP
(A) CHI 		8-97589-708-1 01 1 1404-
380 BRACKET; HEAD LAMP
(B) CHI 		8-97430-539-0 01 1 1404-
380 BRACKET; HEAD LAMP
(B) CHI 		8-97430-538-0 01 1 1404-
385 BRACKET
(A) CHI 		8-97430-035-0 01 1 1404-
385 BRACKET
(B) CHI 		8-98053-825-1 01 1 1404-
398 BRACKET; PIPE SUPPORT
CHI 		8-97589-681-3 01 1 1404-
448 CLOSING; ROCKER
CHI 		8-97589-551-2 01 1 1404-
448 CLOSING; ROCKER
CHI 		8-97589-552-2 01 1 1404-
536 PLUG; CABLE,PTO
CHI 		8-97612-074-1 01 1 1404-
537 SUPPORT ASM; MTG RR
CHI 		8-97430-327-0 01 1 1404-
537 SUPPORT ASM; MTG RR
CHI 		8-97430-328-0 01 1 1404-
538 REINFORCEMENT ASM; AIR INT DUCT
CHI 		8-98098-707-1 01 1 1404-
539 PATCH ASM; SAFTY HOOK
CHI 		8-97584-440-2 01 1 1404-
540 BRACKET ASM; CAB LOCK LEVER
CHI 		8-97584-438-1 01 1 1404-
541 REINFORCEMENT; MTG,FRT
CHI 		8-98076-127-0 02 1 1404-
542 BOLSTER; BED PAN
CHI 		8-97589-685-1 02 1 1404-
544 BRACKET; DUMP CONT
CHI 		8-97584-363-1 01 1 1404-
544 BRACKET; DUMP CONT
CHI 		8-98049-529-0 01 1 1404-
545 BRACKET; SEAT FRT
CHI 		8-97430-976-0 01 1 1404-
545 BRACKET; SEAT FRT
CHI 		8-97430-994-0 01 1 1404-
546 REINFORCEMENT; FLOOR SIDE
CHI 		8-97584-426-0 02 1 1404-
548 BRACKET; MUD GUARD
CHI 		8-97588-964-1 01 1 1404-
548 BRACKET; MUD GUARD
CHI 		8-97588-965-1 01 1 1404-
549 BRACKET; SEAT RR
CHI 		8-97430-322-0 01 1 1404-
549 BRACKET; SEAT RR
CHI 		8-97430-992-0 01 1 1404-
550 CLOSING ASM; MTG,FRT
CHI 		8-97589-710-3 01 1 1404-
554 REINFORCEMENT; FLOOR CENTER
CHI 		8-97430-973-0 01 1 1404-
563 REINFORCEMENT; MTG FRT,RR
CHI 		8-97589-579-2 04 1 1404-
566 REINFORCEMENT; FENDER,RR
CHI 		8-97430-041-0 01 1 1404-
566 REINFORCEMENT; FENDER,RR
CHI 		8-98076-133-0 01 1 1404-
569 REINFORCEMENT; FRT,ENG HOOD
CHI 		8-98108-382-0 01 1 1404-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
