Isuzu WW
▶
TRUCKS
▶
FYH
▶
11602 - FYH(LHD)CHINA
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-47 - MUD GUARD AND INSULATOR
▶
6-47 — MUD GUARD AND INSULATOR
(#144039) — 75 parça
◀
[647A] OTHER PARTS (6 parça)
[647A] MUD GUARD;FRONT (11 parça)
[647A] MUD GUARD;REAR (16 parça)
[647A] FIXING;PANEL (16 parça)
[647A] MUD COVER AND SEAL (9 parça)
[647A] BOLT AND NUT (17 parça)
▶

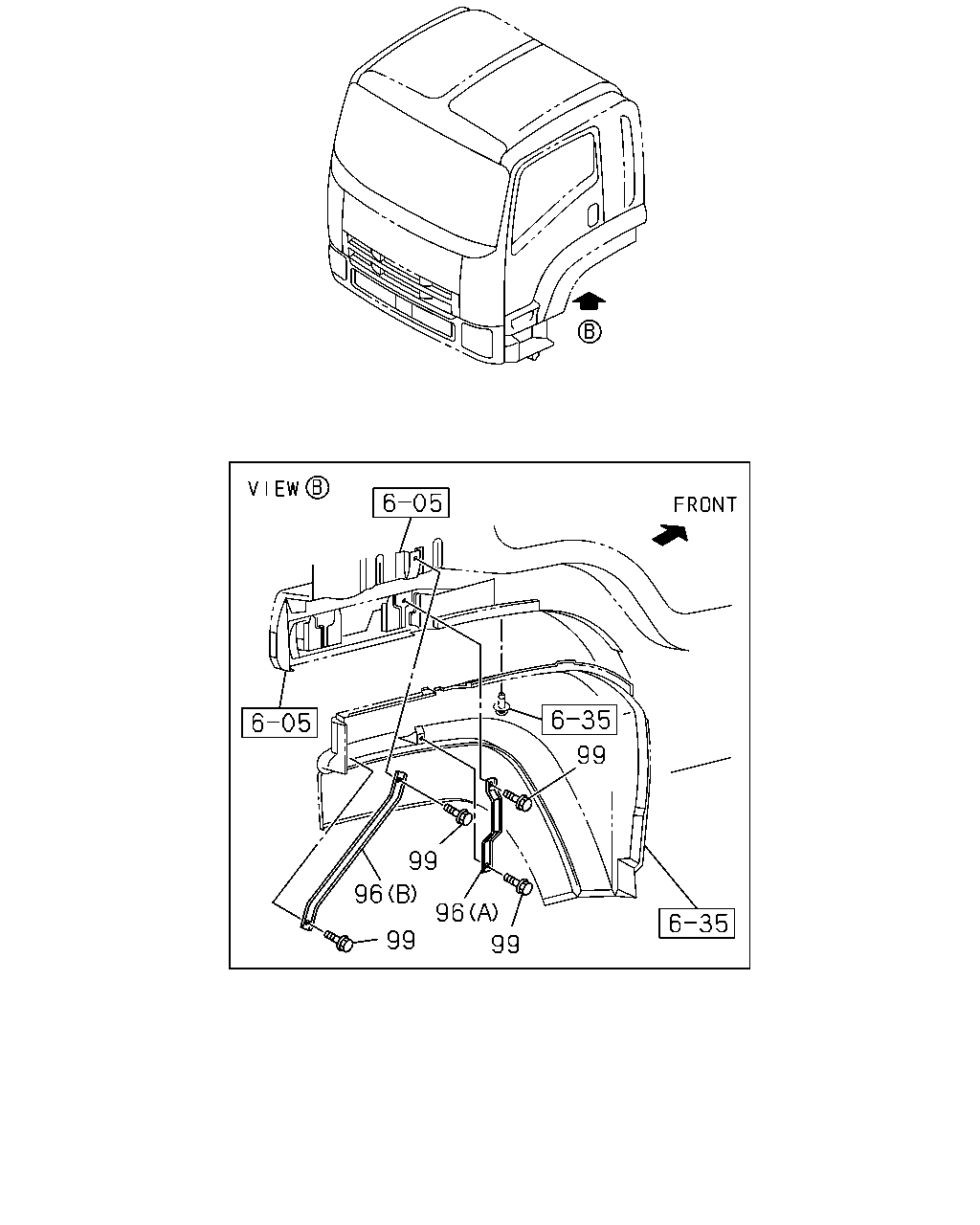

99
99
96
96
99
99
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
96
STAY; MUD GUARD
(A) CHI
8-98057-075-0
02
1
1404-
96
STAY; MUD GUARD
(B) CHI
8-98082-316-0
02
1
1404-
96
STAY; MUD GUARD
(C) CHI
8-98199-175-0
01
1
1404-
96
STAY; MUD GUARD
(C) CHI
8-98199-177-0
01
1
1404-
96
STAY; MUD GUARD
(D) CHI
8-98219-184-1
01
1
1404-
99
BOLT; STAY TO MUD GUARD
M6X16 FLANGE CHI
0-28650-616-0
08
1
1404-

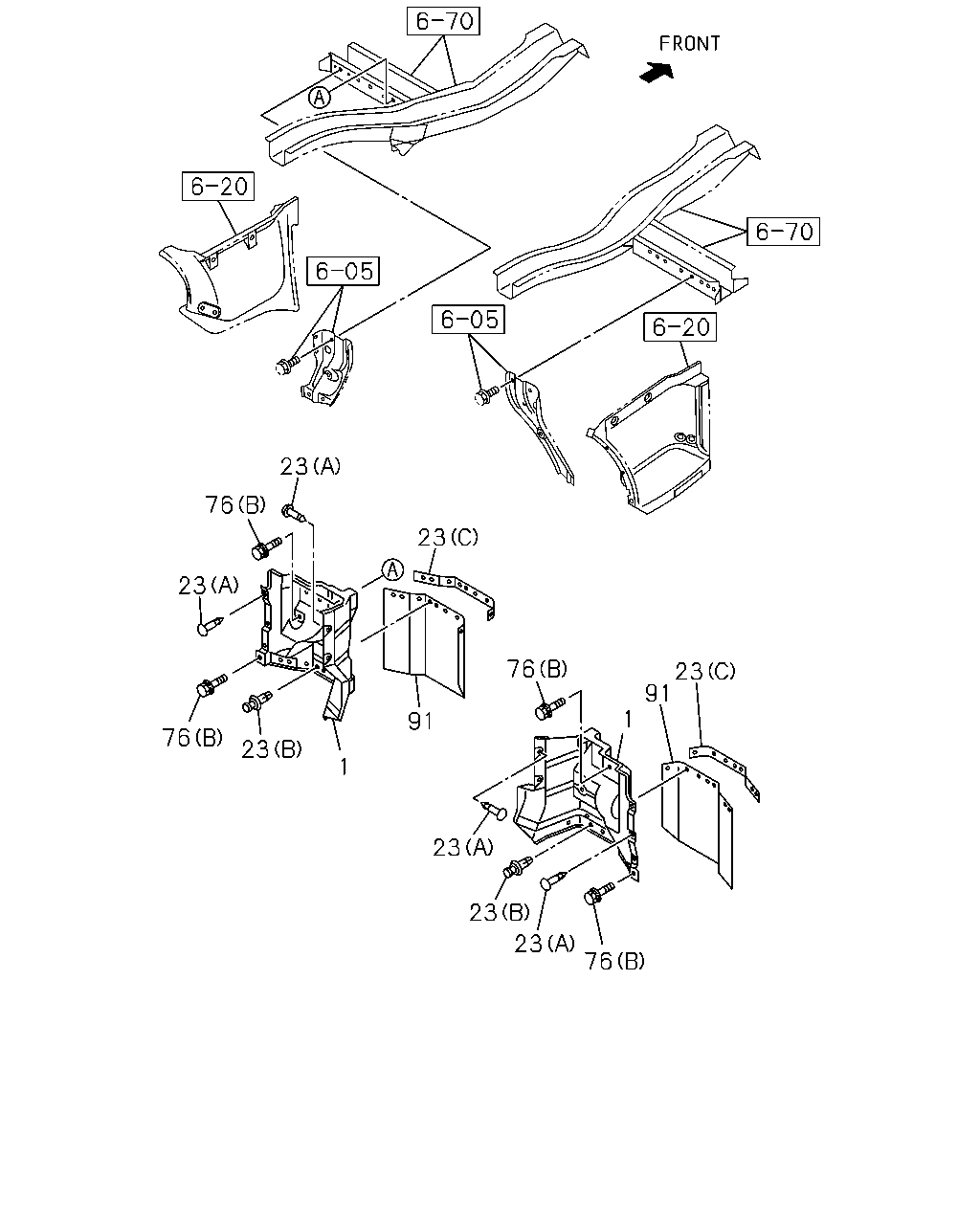

23
76
23
76
23
1
91
23
76
23
23
23
76
1
91
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GUARD; MUD,FRT
CHI
8-97430-085-0
01
1
1404-
1
GUARD; MUD,FRT
CHI
8-97430-084-0
01
1
1404-
23
FASTENER; MUD COVER
(B) CHI
1-09470-001-0
09
1
1404-
23
FASTENER; MUD COVER
(A) D8X13.5 CHI
1-09987-248-1
08
1
1404-
23
FASTENER; MUD COVER
(C) CHI
8-98060-235-0
01
1
1404-
23
FASTENER; MUD COVER
(C) CHI
8-97430-087-0
01
1
1404-
76
BOLT; MUD GUARD
(A) M8X20 FLANGE CHI
0-28650-820-0
02
1
1404-
76
BOLT; MUD GUARD
(C) M8X25 W/LK&PL WASHER CHI
1-09030-093-0
08
1
1404-
76
BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER CHI
8-94331-747-1
06
1
1404-
91
COVER; MUD,FRT
CHI
8-97617-155-0
01
1
1404-
91
COVER; MUD,FRT
CHI
8-97430-088-0
01
1
1404-

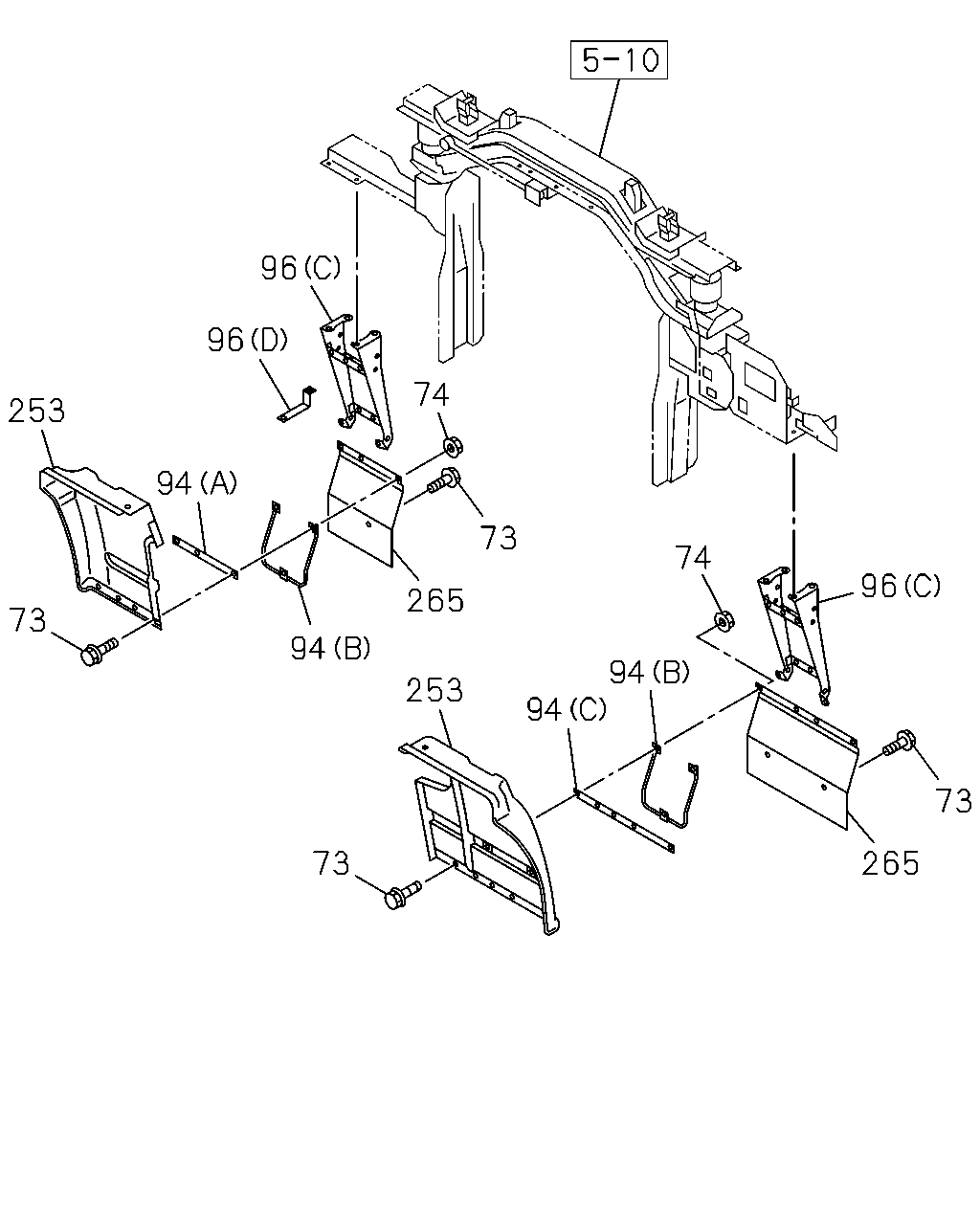

96
96
253
94
73
94
265
73
74
253
73
94
94
74
96
73
265
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
73
BOLT; MUD COVER BRKT
M8X25 W/LK&PL WASHER CHI
1-09030-093-0
03
1
1404-
73
BOLT; MUD COVER BRKT
M8X25 W/LK&PL WASHER CHI
1-09030-093-0
04
1
1404-
74
NUT
M8 FLANGE CHI
0-91180-108-0
03
1
1404-
74
NUT
M8 FLANGE CHI
0-91180-108-0
03
1
1404-
94
RETAINER; FLAP RUBBER
(C) CHI
1-79931-091-2
01
1
1404-
94
RETAINER; FLAP RUBBER
(A) CHI
8-98038-675-0
01
1
1404-
94
RETAINER; FLAP RUBBER
(B) CHI
8-98079-256-0
01
1
1404-
96
STAY; MUD GUARD
(A) CHI
8-98057-075-0
02
1
1404-
96
STAY; MUD GUARD
(B) CHI
8-98082-316-0
02
1
1404-
96
STAY; MUD GUARD
(C) CHI
8-98199-175-0
01
1
1404-
96
STAY; MUD GUARD
(C) CHI
8-98199-177-0
01
1
1404-
96
STAY; MUD GUARD
(D) CHI
8-98219-184-1
01
1
1404-
253
GUARD; MUD
CHI
8-97430-946-0
01
1
1404-
253
GUARD; MUD
8-97431-332-0
01
1
1404-
265
RUBBER; FLAP,REAR
CHI
1-79930-978-0
01
1
1404-
265
RUBBER; FLAP,REAR
CHI
8-98159-950-0
01
1
1404-

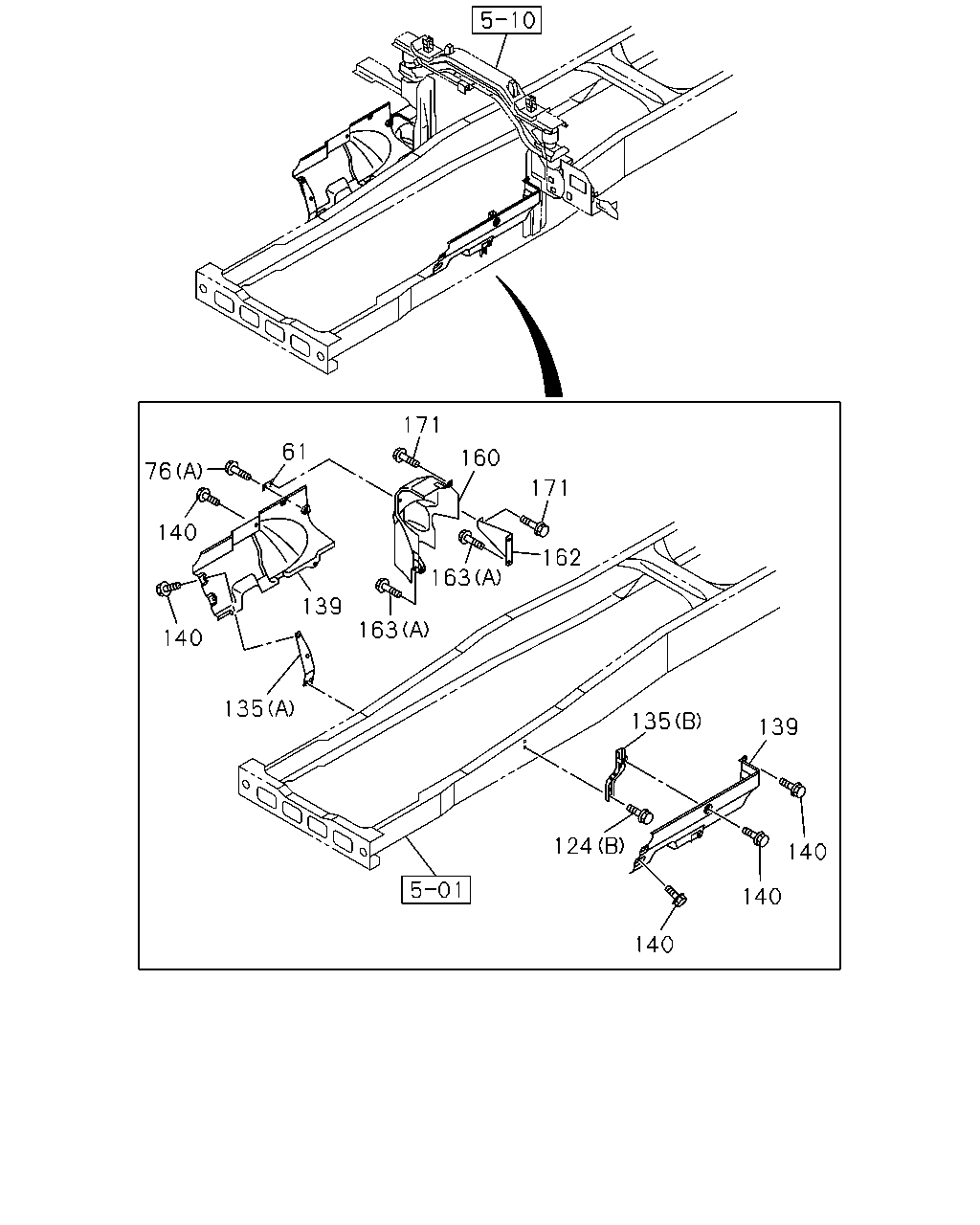

171
61
76
140
140
135
139
163
163
160
171
162
135
139
140
140
140
124
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
61
BRACKET; COVER
CHI
8-98039-501-1
01
1
1404-
76
BOLT; MUD GUARD
(A) M8X20 FLANGE CHI
0-28650-820-0
02
1
1404-
76
BOLT; MUD GUARD
(C) M8X25 W/LK&PL WASHER CHI
1-09030-093-0
08
1
1404-
76
BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER CHI
8-94331-747-1
06
1
1404-
124
BOLT; BRKT
(A) M8X30 FLANGE CHI
0-28050-830-0
02
1
1404-
124
BOLT; BRKT
(B) M12X25 FLANGE CHI
0-28051-225-0
02
1
1404-
135
BRACKET; SIDE PANEL
(A) CHI
8-97430-187-0
01
1
1404-
135
BRACKET; SIDE PANEL
(B) CHI
8-97430-188-0
01
1
1404-
139
PANEL; SIDE
CHI
8-97430-185-0
01
1
1404-
139
PANEL; SIDE
CHI
8-97430-186-0
01
1
1404-
140
BOLT; SIDE PANEL
M8X35 W/LK&PL WASHER CHI
1-09030-094-0
11
1
1404-
160
COVER ASM; EXH
CHI
8-98121-365-0
01
1
1404-
162
BRACKET
CHI
8-98127-027-0
01
1
1404-
163
BOLT; BRKT
(B) M8X20 FLANGE CHI
0-28650-820-0
03
1
1404-
163
BOLT; BRKT
(A) M8X30 FLANGE CHI
0-28650-830-0
01
1
1404-
171
BOLT; COVER FIX
M8X20 FLANGE CHI
0-28650-820-0
01
1
1404-

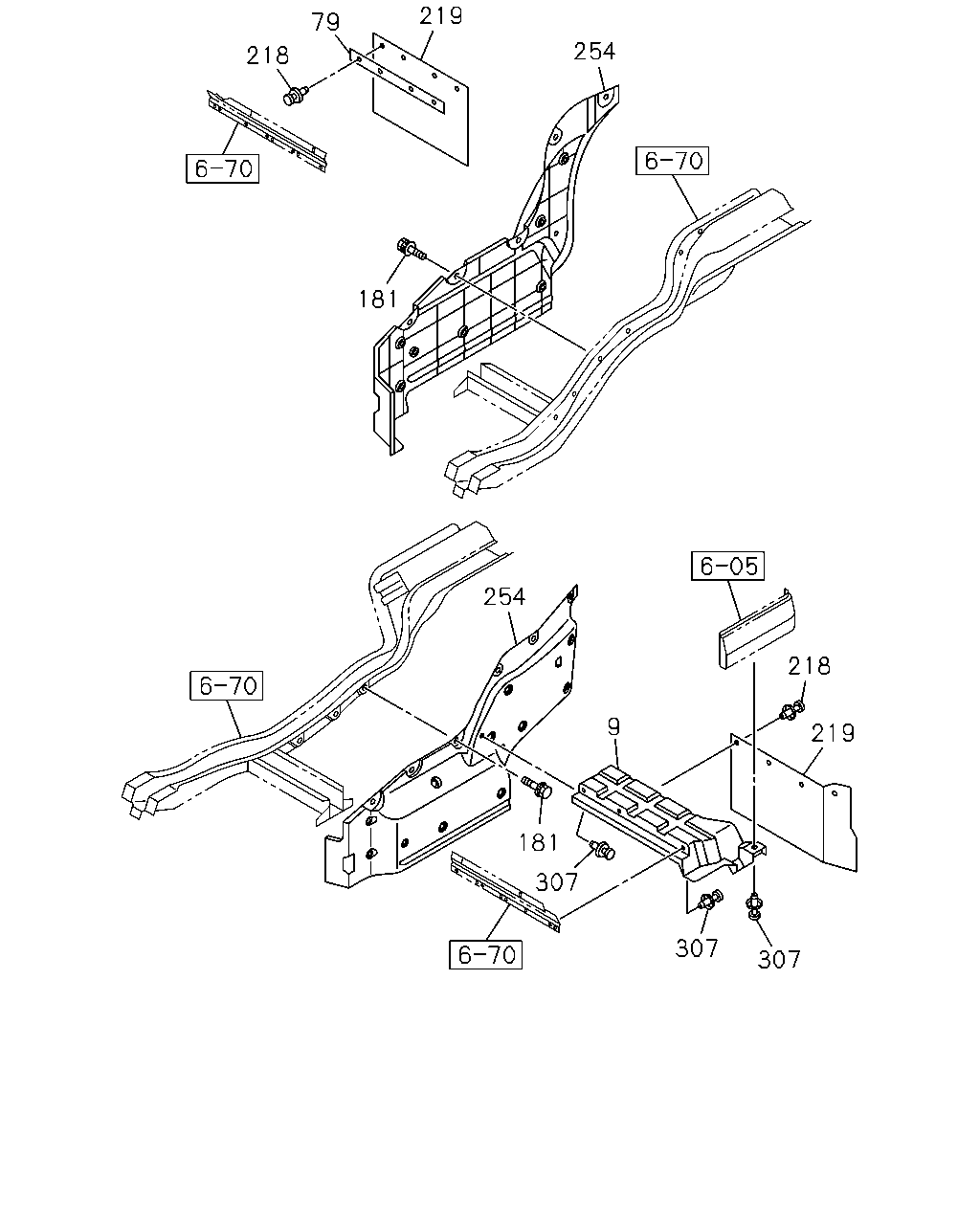

219
79
218
181
254
9
81
307
307
307
219
218
254
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
GUARD; SPLASH,WHEEL HOUSE
CHI
8-97617-133-1
01
1
1404-
79
RETAINER; MUD COVER
CHI
8-97430-059-0
01
1
1404-
181
BOLT; COVER,SIDE
M8X24.5 W/LK&PL WASHER CHI
8-98059-720-0
11
1
1404-
218
FASTENER; RUBBER
D8X13.5 CHI
1-09987-248-1
08
1
1404-
219
FLAP; MUD GUARD
CHI
8-97617-139-0
01
1
1404-
219
FLAP; MUD GUARD
CHI
8-97430-058-0
01
1
1404-
254
COVER; MUD,VALANCE
CHI
8-97430-053-0
01
1
1404-
254
COVER; MUD,VALANCE
CHI
8-97430-052-0
01
1
1404-
307
RETAINER
D8X13.5 CHI
1-09987-248-1
07
1
1404-
97
124
76
99
76
163
171
122
163
110
105
175
225
105
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
76
BOLT; MUD GUARD
(A) M8X20 FLANGE CHI
0-28650-820-0
02
1
1404-
76
BOLT; MUD GUARD
(C) M8X25 W/LK&PL WASHER CHI
1-09030-093-0
08
1
1404-
76
BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER CHI
8-94331-747-1
06
1
1404-
97
BOLT; STAY TO FRAME
M8X20 FLANGE CHI
0-28050-820-0
02
1
1404-
99
BOLT; STAY TO MUD GUARD
M6X16 FLANGE CHI
0-28650-616-0
08
1
1404-
105
NUT; BRKT
(A) M8 FLANGE CHI
0-91180-108-0
01
1
1404-
105
NUT; BRKT
(B) M10 FLANGE CHI
0-91180-210-0
04
1
1404-
110
BOLT; BRKT
M10X25 FLANGE CHI
0-28651-025-0
04
1
1404-
122
BOLT
M8X30 FLANGE CHI
0-28650-830-0
02
1
1404-
124
BOLT; BRKT
(A) M8X30 FLANGE CHI
0-28050-830-0
02
1
1404-
124
BOLT; BRKT
(B) M12X25 FLANGE CHI
0-28051-225-0
02
1
1404-
163
BOLT; BRKT
(B) M8X20 FLANGE CHI
0-28650-820-0
03
1
1404-
163
BOLT; BRKT
(A) M8X30 FLANGE CHI
0-28650-830-0
01
1
1404-
171
BOLT; COVER FIX
M8X20 FLANGE CHI
0-28650-820-0
01
1
1404-
175
NUT; STAY FIX
M8 FLANGE CHI
0-91180-108-0
02
1
1404-
175
NUT; STAY FIX
M8 W/DISHED WASHER CHI
8-97329-625-0
02
1
1404-
225
NUT; MUD GUARD
M8 FLANGE CHI
0-91180-108-0
11
1
1404-
