◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11118 - EXY NZ JNST04 EXC.HYDRAULIC RETARDER ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-20 - REAR AXLE CASE AND SHAFT ▶
4-20 — REAR AXLE CASE AND SHAFT (#14400) — 79 parça

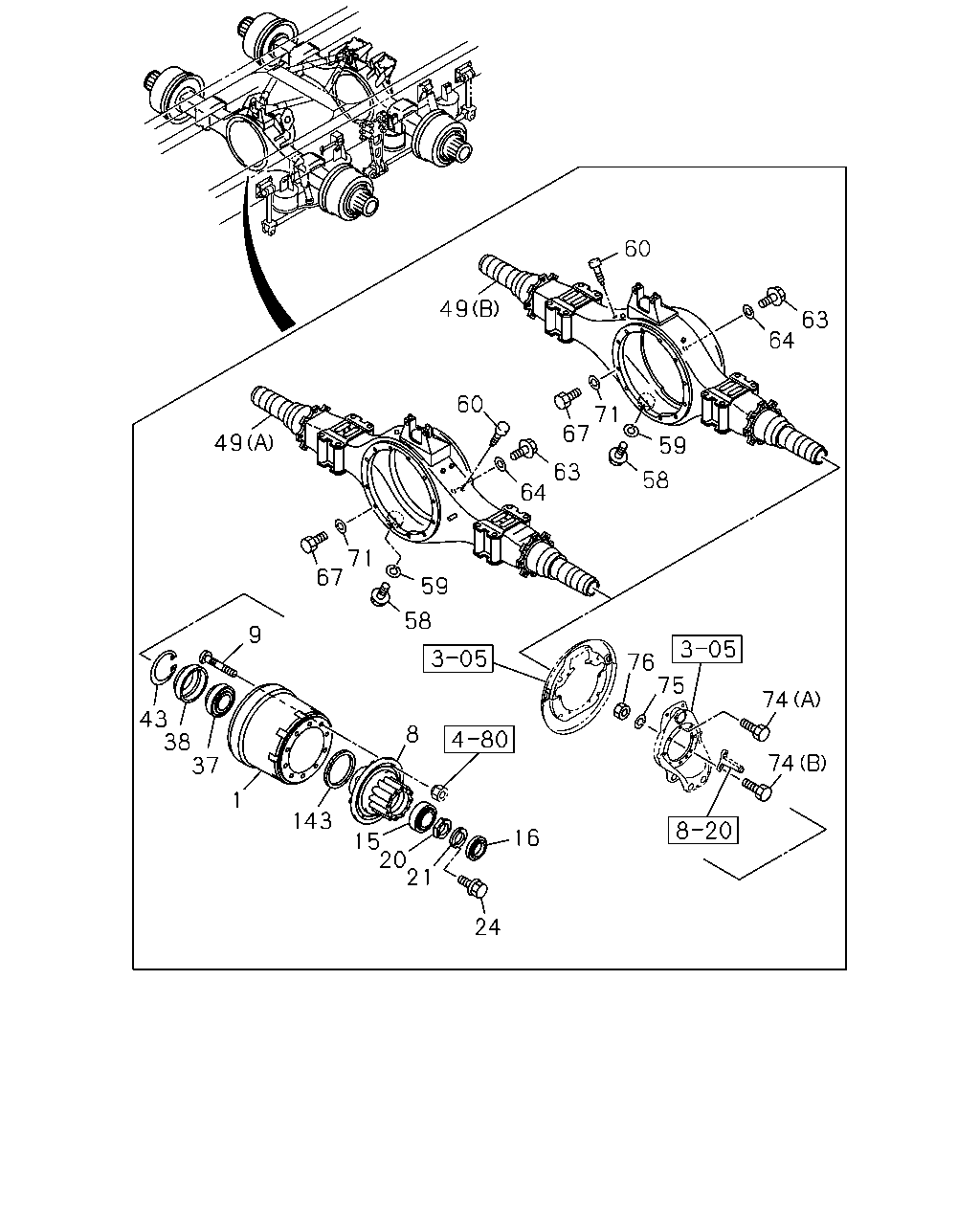

çizim 96551
60 63 64 49 60 71 67 59 58 63 64 49 71 67 59 58 76 75 74 74 24 16 21 20 15 143 1 37 38 43 9 8
BalonParca AdiParca NoAdetTipApplied Date
1 DRUM; BRK,RR 1-42315-377-2 02 1 0710-
1 DRUM; BRK,RR 1-42315-377-2 02 1 0710-
8 HUB; RR AXLE
FORWARD 		1-42311-085-0 02 1 0710-
8 HUB; RR AXLE
REARWARD 		1-42311-094-0 02 1 0710-
9 PIN; WHEEL,RR AXLE
DISC WHEEL AL<SDM> M22X109 RH THREAD 		1-42337-076-1 20 1 0710-
9 PIN; WHEEL,RR AXLE
DISC WHEEL AL<SDM> M22X109 RH THREAD 		1-42337-076-1 20 1 0710-
9 PIN; WHEEL,RR AXLE
DISC WHEEL STEEL<SDN> M22X93 RH THREAD 		1-42337-066-2 20 1 0710-
9 PIN; WHEEL,RR AXLE
DISC WHEEL STEEL<SDN> M22X93 RH THREAD 		1-42337-066-2 20 1 0710-
15 BEARING; HUB OUTER,RR AXLE
SKF 		1-09812-256-0 02 1 1209-
15 BEARING; HUB OUTER,RR AXLE
SKF 		1-09812-256-0 02 1 1209-
15 BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS 		1-87610-136-0 02 1 1209-
15 BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS 		1-87610-136-0 02 1 1209-
15 BEARING; HUB OUTER,RR AXLE
JTEKT 		1-09812-232-0 02 1 0710-
15 BEARING; HUB OUTER,RR AXLE
JTEKT 		1-09812-232-0 02 1 0710-
16 SEAL; OIL,RR HUB,OUTER
TKK 		1-09625-444-0 02 1 0710-
16 SEAL; OIL,RR HUB,OUTER
TKK 		1-09625-444-0 02 1 0710-
20 NUT; BRG,RR HUB
M88 		9-09843-062-2 04 1 1208-1211
20 NUT; BRG,RR HUB
M88 		9-09843-062-2 02 1 1212-
20 NUT; BRG,RR HUB
M88 		9-09843-062-2 02 1 1212-
20 NUT; BRG,RR HUB
M88 		9-09843-062-2 02 1 0710-1207
20 NUT; BRG,RR HUB
M88 		9-09843-062-2 02 1 0710-1207
20 NUT; BRG,RR HUB
M88 		9-09843-062-2 02 1 1208-1211
21 WASHER; LK,BRG NUT
ID=88 		9-09854-112-0 02 1 0710-
21 WASHER; LK,BRG NUT
ID=88 		9-09854-112-0 02 1 0710-
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28650-616-0 06 1 0710-
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28650-616-0 06 1 0710-
37 BEARING; HUB INNER,RR AXLE
SKF 		1-09812-257-0 02 1 1209-
37 BEARING; HUB INNER,RR AXLE
SKF 		1-09812-257-0 02 1 1209-
37 BEARING; HUB INNER,RR AXLE
JTEKT 		1-09812-233-0 02 1 0710-
37 BEARING; HUB INNER,RR AXLE
JTEKT 		1-09812-233-0 02 1 0710-
37 BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS 		1-87610-138-0 02 1 0710-
37 BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS 		1-87610-138-0 02 1 0710-
38 SEAL; OIL,RR HUB,INNER
NOK 		1-09625-265-0 02 1 0710-
38 SEAL; OIL,RR HUB,INNER
NOK 		1-09625-265-0 02 1 0710-
38 SEAL; OIL,RR HUB,INNER
TKK 		1-09625-350-0 02 1 0710-
38 SEAL; OIL,RR HUB,INNER
TKK 		1-09625-350-0 02 1 0710-
43 RING; SNAP,HUB SEAL,RR AXLE
OD=179 		1-09587-057-0 02 1 0710-
43 RING; SNAP,HUB SEAL,RR AXLE
OD=179 		1-09587-057-0 02 1 0710-
49 CASE; RR AXLE
(B) 		1-42190-387-4 01 1 1208-1211
49 CASE; RR AXLE
(B) 		1-42190-432-0 01 1 0710-
49 CASE; RR AXLE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-42190-484-0 01 1 0710-
49 CASE; RR AXLE
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-42190-385-3 01 1 0710-
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE 		1-09604-023-0 01 1 0710-
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE 		1-09604-023-0 01 1 0710-
59 GASKET; DRAIN PLUG
ID=26.8 		9-09920-605-0 01 1 0710-
59 GASKET; DRAIN PLUG
ID=26.8 		9-09920-605-0 01 1 0710-
60 BREATHER; RR AXLE CASE 1-09893-011-1 02 1 0710-1412
60 BREATHER; RR AXLE CASE 1-09893-003-0 02 1 1501-
63 PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE 		1-09604-022-0 01 1 0710-
63 PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE 		1-09604-022-0 01 1 0710-
64 GASKET; OIL FILLER,AXLE CASE
ID=26.8 		9-09920-605-0 01 1 0710-
64 GASKET; OIL FILLER,AXLE CASE
ID=26.8 		9-09920-605-0 01 1 0710-
67 BOLT; FINAL DRIVE SETTING
M16X70 		0-10956-670-0 04 1 0710-
67 BOLT; FINAL DRIVE SETTING
M16X70 		0-10956-670-0 04 1 0710-
67 BOLT; FINAL DRIVE SETTING
M16X40 		0-20951-640-0 06 1 0710-
67 BOLT; FINAL DRIVE SETTING
M16X40 		0-20951-640-0 08 1 0710-
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		0-91510-816-0 12 1 0710-
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		0-91510-816-0 12 1 0710-
74 BOLT; RR BRK ASM SETTING
(A) REARWARD M14X50 		1-09040-066-0 12 1 0710-
74 BOLT; RR BRK ASM SETTING
(A) FORWARD M14X50 		1-09040-066-0 16 1 0710-
74 BOLT; RR BRK ASM SETTING
(B) REARWARD M14X80 		9-92621-480-0 04 1 0710-1504
74 BOLT; RR BRK ASM SETTING
(B) REARWARD M14X60 		1-09040-084-0 04 1 1505-
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		0-91510-814-0 16 1 0710-
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		0-91510-814-0 16 1 0710-
76 NUT; RR BRK ASM SETTING
M14 		0-91110-514-0 16 1 0710-
76 NUT; RR BRK ASM SETTING
M14 		0-91110-514-0 16 1 0710-
143 RING; EXCITER 1-42319-173-0 02 1 0710-

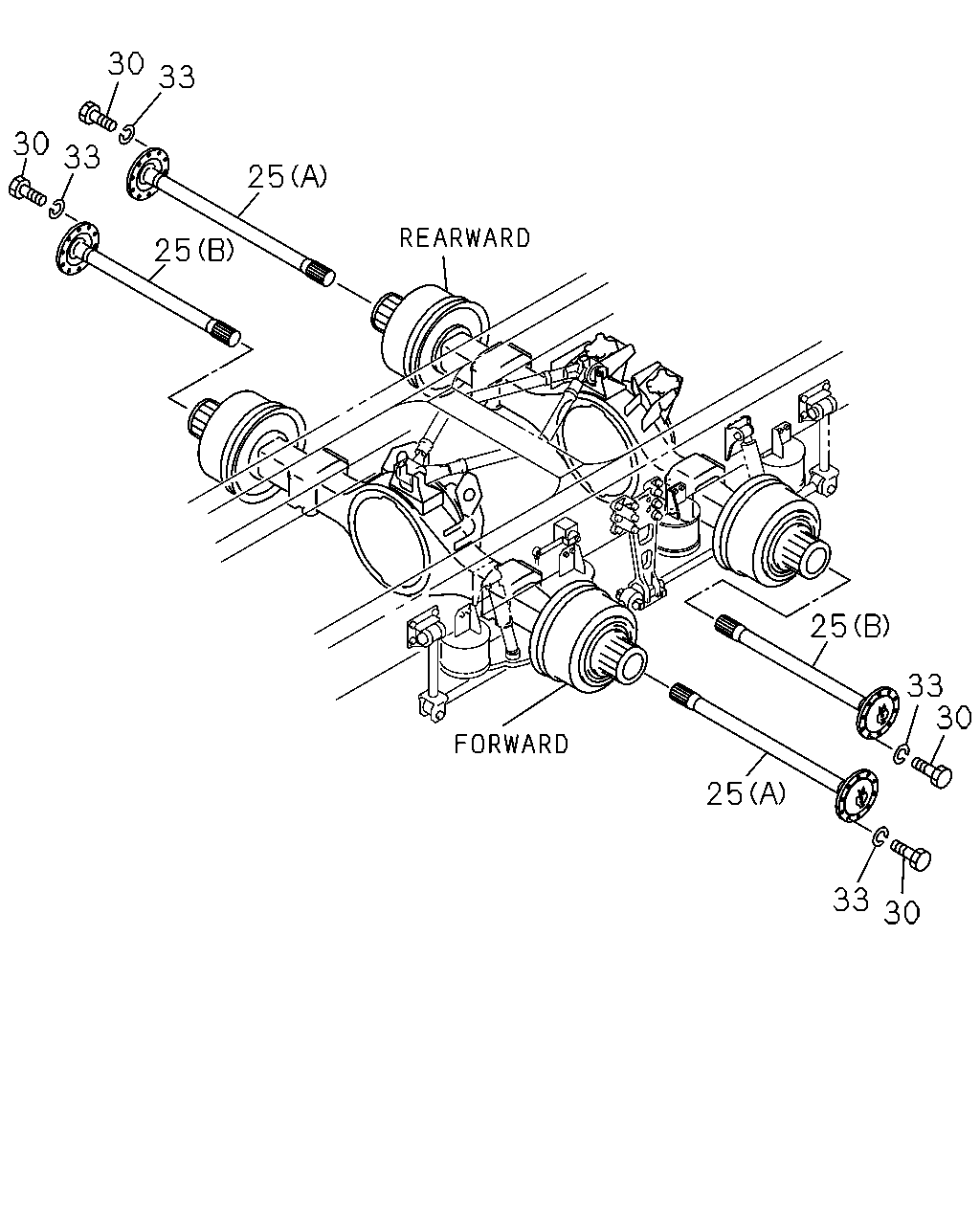

çizim 106728
30 33 30 33 25 25 25 33 30 25 33 30
BalonParca AdiParca NoAdetTipApplied Date
25 SHAFT; AXLE,RR
(A) L=1103 		1-42171-538-0 01 1 0710-0910
25 SHAFT; AXLE,RR
(A) L=1103 		1-42171-538-0 01 1 0710-0910
25 SHAFT; AXLE,RR
(A) L=1121 		8-98146-160-0 01 1 0911-
25 SHAFT; AXLE,RR
(A) L=1121 		8-98146-160-0 01 1 0911-
25 SHAFT; AXLE,RR
(B) L=978 		1-42171-539-0 01 1 0710-0910
25 SHAFT; AXLE,RR
(B) L=978 		1-42171-539-0 01 1 0710-0910
25 SHAFT; AXLE,RR
(B) L=976 		8-98146-161-0 01 1 0911-
25 SHAFT; AXLE,RR
(B) L=976 		8-98146-161-0 01 1 0911-
30 BOLT; HUB TO AXLE SHAFT
M14X58 		1-09000-582-0 20 1 0710-
30 BOLT; HUB TO AXLE SHAFT
M14X58 		1-09000-582-0 20 1 0710-
33 WASHER; AXLE SHAFT
ID=14.2 		0-91510-814-0 20 1 0710-
33 WASHER; AXLE SHAFT
ID=14.2 		0-91510-814-0 20 1 0710-
