0-31 — THERMOSTAT AND HOUSING (#144) — 12 parça

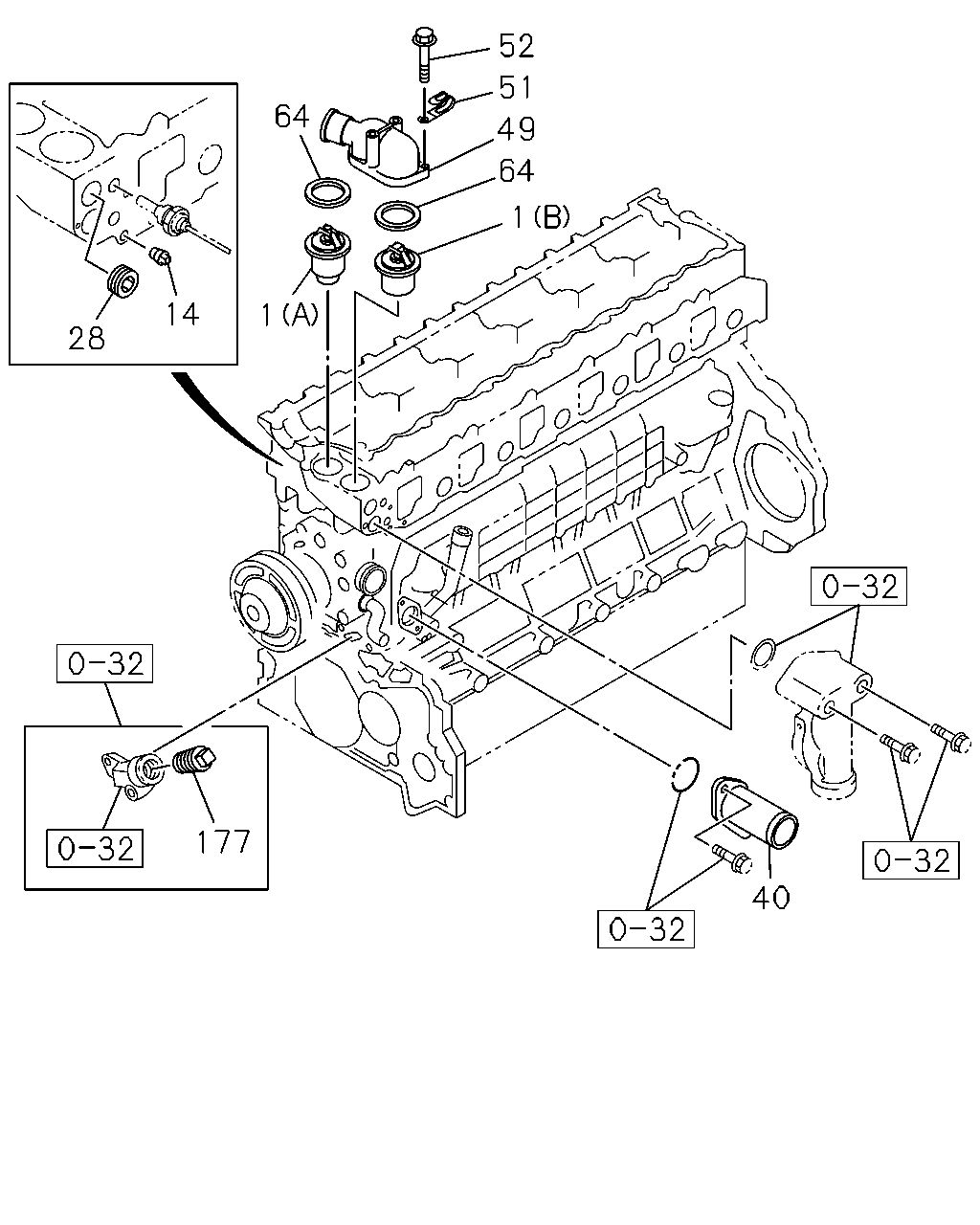

çizim 92607
52 51 64 49 64 1 14 1 28 177 40
BalonParca AdiParca NoAdetTipApplied Date A B
1 THERMOSTAT
(A) 82?C 		8-94397-310-0 01 1 9212- ● ●
1 THERMOSTAT
(B) 82?C 		8-94397-311-0 01 1 9212- ● ●
14 PLUG; SW
PT3/8 		8-94397-338-0 01 1 9212- ● ●
28 PLUG; HTR
PT3/4 		1-09605-020-0 01 1 9212- ● ●
40 DUCT; WATER,SUCTION 8-94397-005-2 01 1 9212- ● ●
49 PIPE; WATER OUTLET 8-94399-499-1 01 1 9212- ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 9212-9408 ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 02 1 9409- ● ●
52 BOLT; JOINT,THERMOSTAT
M8X22 FLANGE 		0-28080-822-0 02 1 9212- ● ●
52 BOLT; JOINT,THERMOSTAT
M8X79 FLANGE 		8-94311-617-1 02 1 9212- ● ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94370-480-0 02 1 9212- ● ●
177 PLUG; PIPE,WATER DUCT
EXC. HEATER&DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) PT1/2 		9-09204-521-0 01 1 9301- ● ●
