4-10 — FRONT AXLE (#14398) — 170 parça

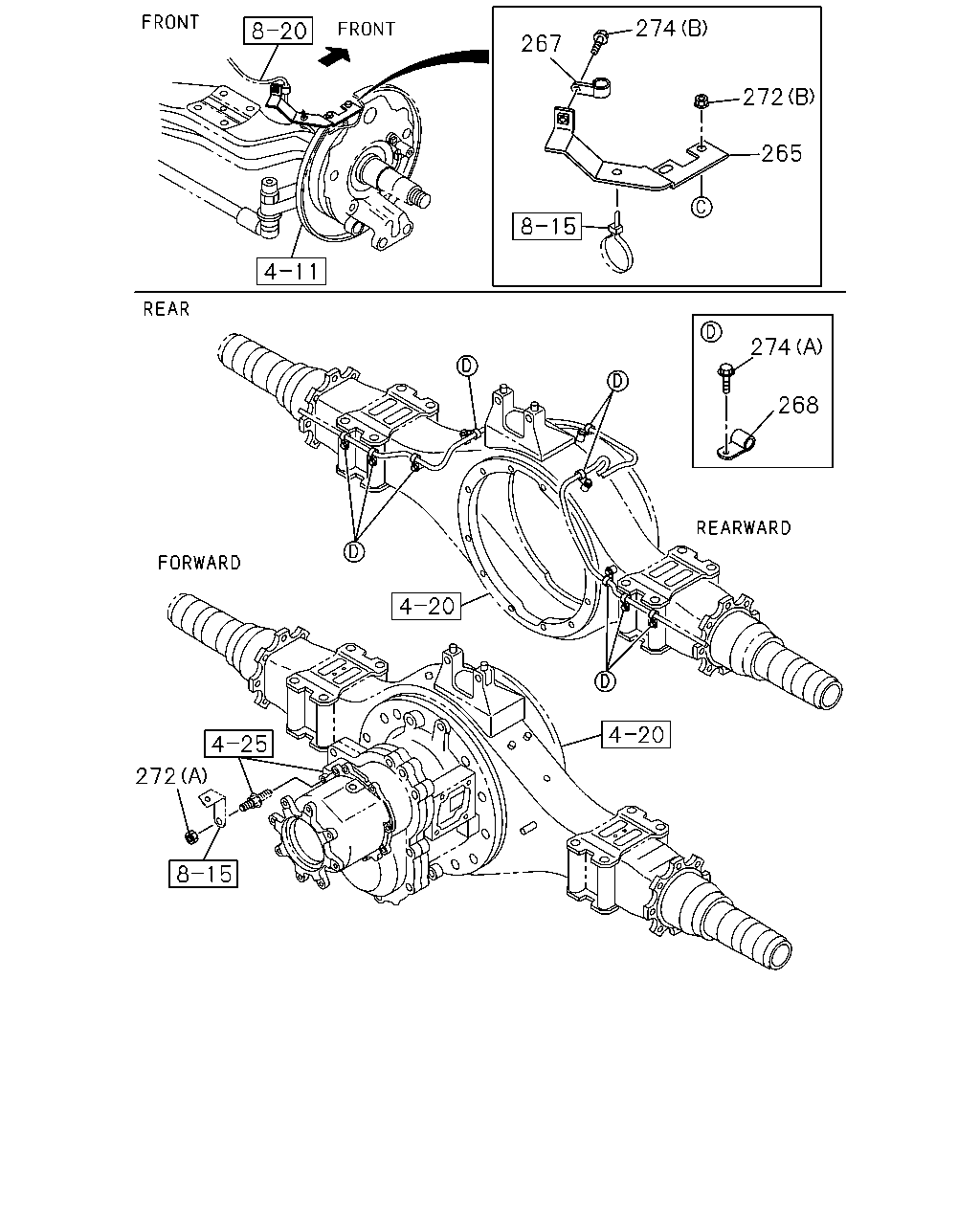

çizim 95869
274 267 272 265 274 268 272
BalonParca AdiParca NoAdetTipApplied Date
265 BRACKET; CLIP I BEAM 1-82698-426-0 01 1 0710-
265 BRACKET; CLIP I BEAM 1-82698-427-0 01 1 0710-
267 CLIP; HARNESS
ID=11 L=20 		0-95235-035-0 02 1 0710-
268 CLIP; HARNESS
ID=11 L=20 		0-95235-035-0 09 1 0710-
272 NUT; CLIP
(B) M10 FLANGE 		0-91180-110-0 04 1 0710-
272 NUT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M12 FLANGE 		0-91180-212-0 01 1 0710-
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 09 1 0710-
274 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0710-

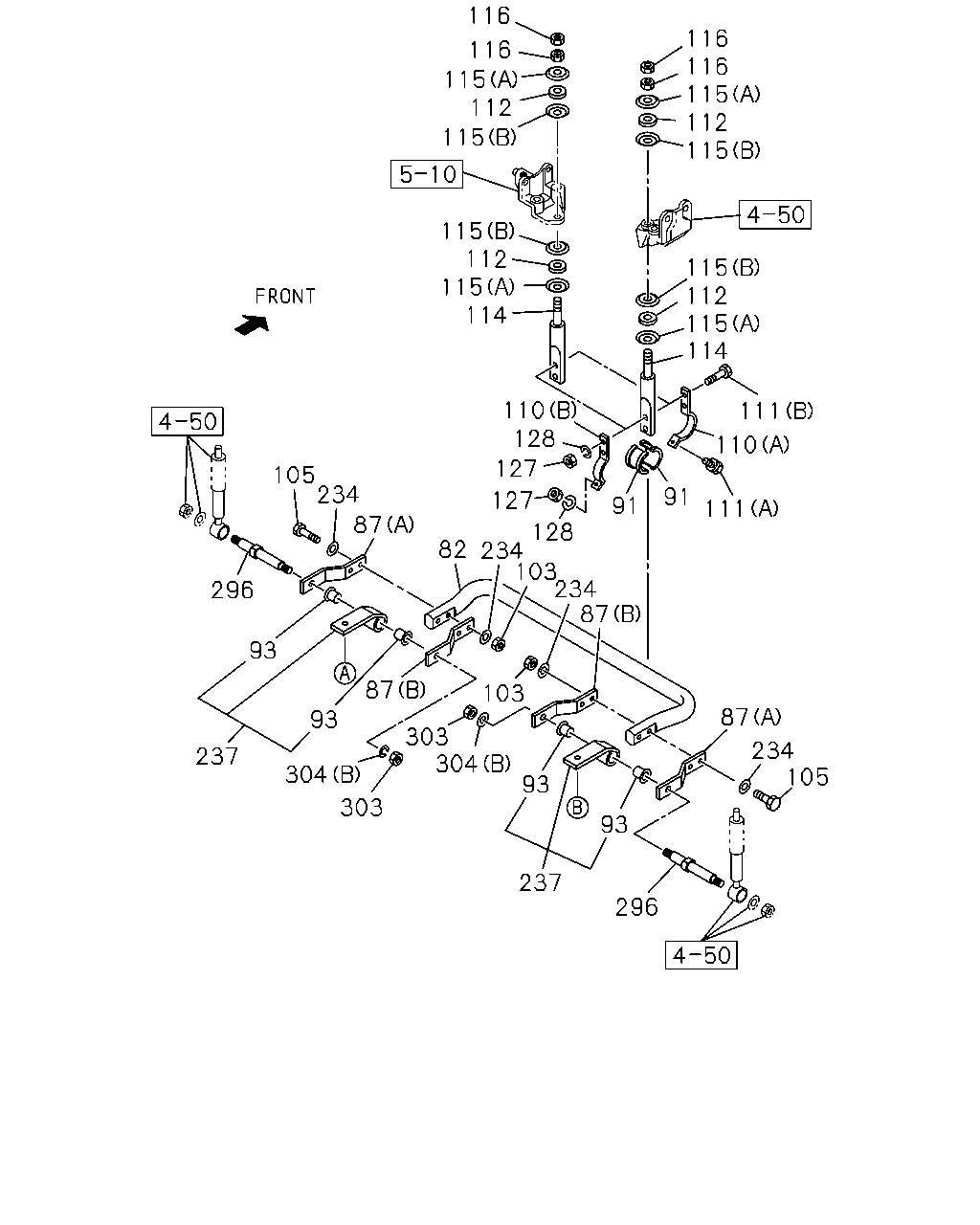

çizim 96043
116 116 116 115 112 115 116 115 112 115 115 112 115 114 115 112 115 114 110 128 111 110 127 105 234 128 91 127 91 111 87 82 234 103 234 87 296 93 87 103 87 93 303 304 234 105 237 304 3 303 93 237 296
BalonParca AdiParca NoAdetTipApplied Date
3 KING PIN SET
(A) 		1-87831-111-7 02 1 0710-0801
3 KING PIN SET
(B) 		1-87831-349-2 02 1 0802-
82 BAR; STAB,FRT SUSP 1-51771-136-1 01 1 0710-
87 BRACKET; STABILIZER
(A) 		1-51781-083-1 02 1 0710-0912
87 BRACKET; STABILIZER
(A) 		8-98012-958-0 02 1 1001-
87 BRACKET; STABILIZER
(B) 		1-51781-084-1 02 1 0710-0912
87 BRACKET; STABILIZER
(B) 		8-98012-959-0 02 1 1001-
91 BUSHING; RUBBER,STAB BAR 1-51779-087-1 04 1 0710-
93 BUSHING; STABILIZER 1-51689-015-3 04 1 0710-
103 NUT; BRKT FIX
M14 		0-91110-514-0 04 1 0710-
105 BOLT; BRKT FIX
M14X70 		9-91066-470-0 04 1 0710-0910
105 BOLT; BRKT FIX
M14X70 		0-10956-470-0 04 1 0911-
110 CLAMP; STAB TO ROD
(A) 		1-51789-027-2 02 1 0710-
110 CLAMP; STAB TO ROD
(B) 		1-51789-028-1 02 1 0710-
111 BOLT; CLAMP TO ROD
(A) M12X30 		0-20801-230-0 02 1 0710-0910
111 BOLT; CLAMP TO ROD
(A) M12X30 		0-20851-230-0 02 1 0911-
111 BOLT; CLAMP TO ROD
(B) M12X50 		0-20801-250-0 04 1 0710-0910
111 BOLT; CLAMP TO ROD
(B) M12X50 		0-20851-250-0 04 1 0911-
112 BUSHING; ROD 9-51631-039-0 04 1 0710-
114 ROD; STAB BAR 1-51773-072-2 02 1 0710-
115 WASHER; CENTER,STAB TO FRAME
(A) ID=16.5 		9-51631-040-0 04 1 0710-
115 WASHER; CENTER,STAB TO FRAME
(B) ID=20.8 		9-51631-041-0 04 1 0710-
116 NUT; LK,STAB TO FRAME
M14 		0-91111-514-0 04 1 0710-
127 NUT; CLAMP
M12 		0-91110-512-0 06 1 0710-
128 WASHER; LK,CLAMP
ID=12.2 		0-91510-512-0 06 1 0710-0912
128 WASHER; LK,CLAMP
ID=12.2 		0-91510-812-0 06 1 1001-
234 WASHER; STAB
ID=15 		9-09651-069-0 08 1 0710-0910
234 WASHER; STAB
ID=15 		8-98010-627-1 08 1 0911-
237 SUPPORT; STAB BAR 1-51681-662-0 02 1 0710-
296 PIN; STAB 1-51682-145-2 02 1 0710-0907
296 PIN; STAB 8-98022-874-1 02 1 0908-
303 NUT; PIN
M20 		0-91110-520-0 02 1 0710-
304 WASHER; PL
(A) ID=12.5 		0-91614-512-0 04 1 0710-
304 WASHER; PL
(B) ID=21 		9-09164-520-0 02 1 0710-0907
304 WASHER; PL
(B) ID=21 		0-91614-520-0 02 1 0908-

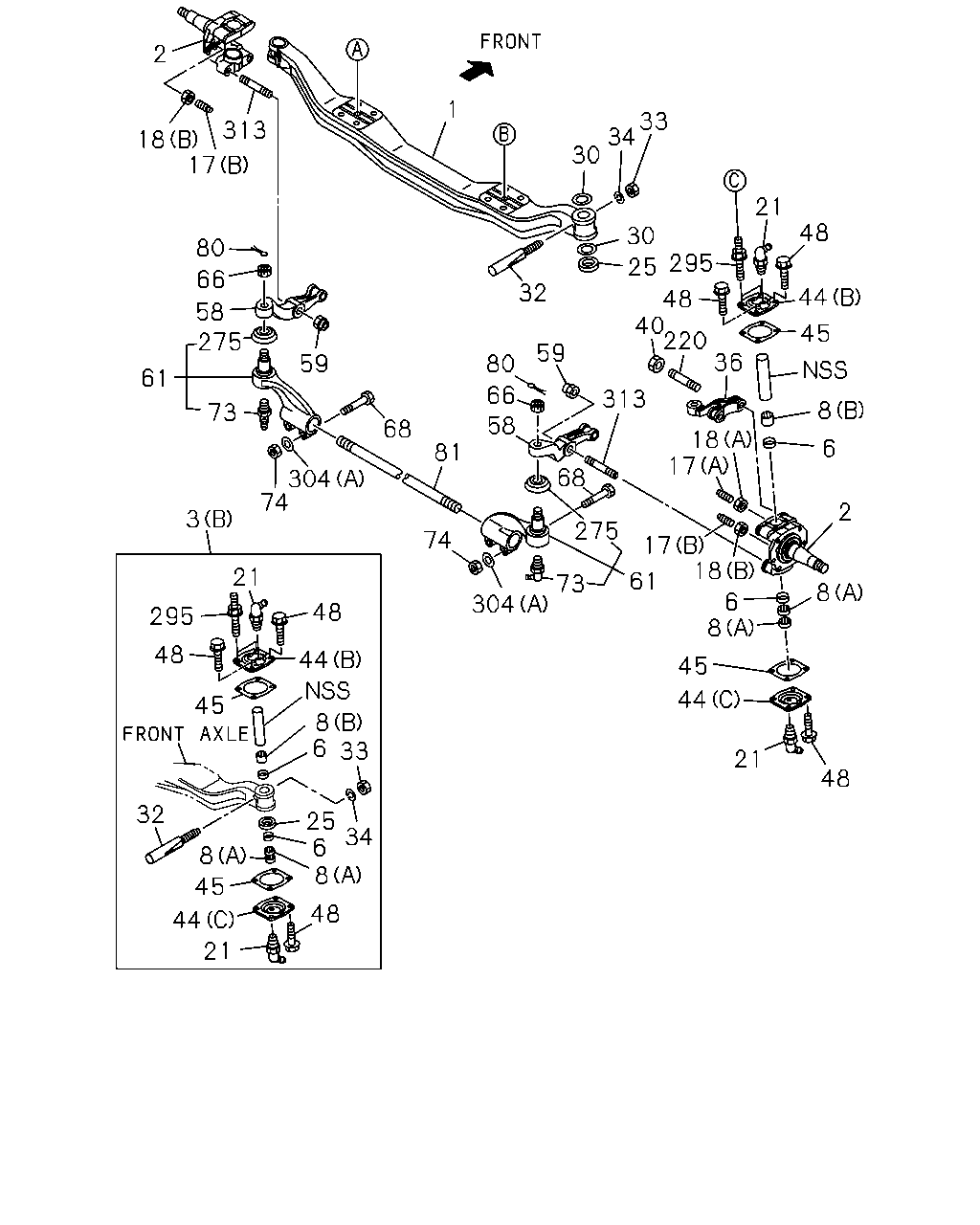

çizim 106713
2 1 33 34 30 313 18 17 21 48 30 80 295 25 66 32 44 48 40 220 36 58 275 45 59 59 80 61 66 313 8 73 18 17 58 68 6 81 68 304 74 2 3 275 74 17 18 21 61 73 8 6 8 304 48 295 48 44 45 44 45 8 6 33 21 48 32 25 34 6 8 8 45 48 44 21
BalonParca AdiParca NoAdetTipApplied Date
1 AXLE; FRT 1-43111-107-9 01 1 0710-
2 KNUCKLE; FRT AXLE 1-43131-118-1 01 1 0710-
2 KNUCKLE; FRT AXLE 1-43132-101-1 01 1 0710-
3 KING PIN SET
(A) 		1-87831-111-7 02 1 0710-0801
3 KING PIN SET
(B) 		1-87831-349-2 02 1 0802-
6 SEAL; KING PIN 9-09926-024-0 04 1 0710-
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 0710-
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 0710-
17 BOLT; STOPPER KNUCKLE
(A) M18X53 		1-09009-066-0 01 1 0710-
17 BOLT; STOPPER KNUCKLE
(B) M18X43 		1-09009-190-0 02 1 0710-
18 NUT; STOPPER BOLT,KNUCKLE
(B) HEXAGON M18 		0-91110-518-0 02 1 0710-
18 NUT; STOPPER BOLT,KNUCKLE
(A) OCTAGON M18 		1-09469-011-1 01 1 0710-
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 0710-
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 0710-
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 		1-43171-185-0 AR 1 0710-
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 		1-43171-186-0 AR 1 0710-
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 		1-43171-187-0 AR 1 0710-
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 		1-43171-188-0 AR 1 0710-
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 0710-
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 0710-
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 0710-
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 0710-
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 		1-43171-193-0 AR 1 0710-
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 		1-43171-194-0 AR 1 0710-
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 		1-43171-195-0 AR 1 0710-
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 		1-43171-196-0 AR 1 0710-
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 		1-43171-197-0 AR 1 0710-
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 		1-43171-198-0 AR 1 0710-
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 		1-43171-199-0 AR 1 0710-
32 BOLT; KEY,KING PIN 1-43116-002-2 02 1 0710-
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 0710-
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 0710-
36 ARM; KNUCKLE 1-43133-083-3 01 1 0710-
40 NUT; KNUCKLE ARM
M22 		1-09449-084-0 02 1 0710-
44 COVER; KING PIN
(C) 		8-98100-655-0 02 1 0802-
44 COVER; KING PIN
(A) 		1-43175-025-0 04 1 0710-0801
44 COVER; KING PIN
(B) 		8-98100-654-0 02 1 0802-
45 GASKET; KING PIN COVER 8-98100-656-1 04 1 0802-
48 BOLT; COVER
M10X25 FLANGE 		0-28751-025-0 12 1 0710-
58 ARM; TIE ROD 1-43134-049-4 01 1 0710-
58 ARM; TIE ROD 1-43135-049-4 01 1 0710-
59 NUT; TIE ROD ARM
M22 		1-09449-084-0 04 1 0710-
61 ROD END; TIE ROD 1-43150-856-0 01 1 0710-1009
61 ROD END; TIE ROD 8-98105-073-0 01 1 1010-1306
61 ROD END; TIE ROD 8-98228-100-0 01 1 1307-
61 ROD END; TIE ROD 1-43150-857-0 01 1 0710-1009
61 ROD END; TIE ROD 8-98105-074-0 01 1 1010-1306
61 ROD END; TIE ROD 8-98228-101-0 01 1 1307-
66 NUT; TIE ROD END
M24 SLOTTED 		1-09442-020-0 02 1 0710-0805
66 NUT; TIE ROD END
M24 		1-09442-032-0 02 1 0806-
68 BOLT; TIE ROD END
M12X65 		8-98053-922-0 04 1 0710-
73 NIPPLE; GREASE,TIE ROD END 1-43159-133-0 02 1 1010-
74 NUT; TIE ROD END
M12 		0-91110-512-0 04 1 0710-
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		0-81125-035-0 02 1 0710-
81 ROD; TIE 1-43151-154-0 01 1 0710-
220 STUD; KNUCKLE ARM
M22X145 		1-09300-127-1 02 1 0710-
275 BOOT; ROD END,TIE 1-43159-107-0 02 1 0710-1009
275 BOOT; ROD END,TIE 1-43159-131-0 02 1 1010-1306
275 BOOT; ROD END,TIE 8-98229-116-0 02 1 1307-
295 STUD; COVER,KING PIN
M10X20,M10X26 L=56 		8-98010-334-0 04 1 0710-
304 WASHER; PL
(A) ID=12.5 		0-91614-512-0 04 1 0710-
304 WASHER; PL
(B) ID=21 		9-09164-520-0 02 1 0710-0907
304 WASHER; PL
(B) ID=21 		0-91614-520-0 02 1 0908-
313 STUD; TIE ROD ARM
M22X145 		1-09300-127-1 04 1 0710-

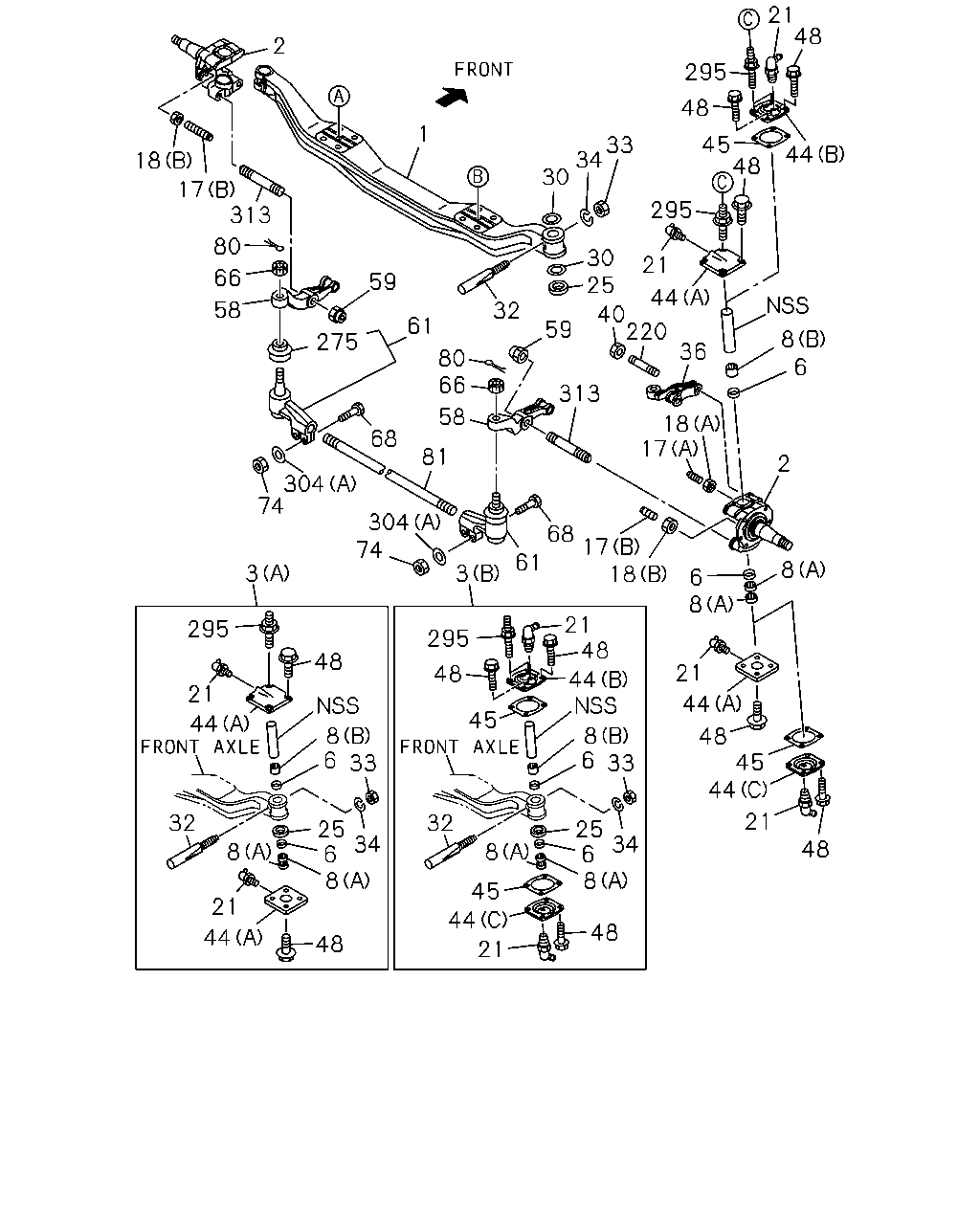

çizim 106729
21 48 2 295 48 1 44 45 48 33 34 30 18 17 313 295 80 30 25 21 66 59 44 58 32 40 220 61 59 8 6 275 36 80 66 313 18 17 58 68 81 2 304 74 304 74 68 17 18 61 8 3 3 6 8 21 48 295 295 48 21 48 44 21 45 44 44 8 6 33 8 6 33 48 45 44 32 32 21 25 34 6 8 25 34 6 8 48 8 8 45 21 44 48 44 48 21
BalonParca AdiParca NoAdetTipApplied Date
1 AXLE; FRT 1-43111-107-9 01 1 0710-
2 KNUCKLE; FRT AXLE 1-43131-118-1 01 1 0710-
2 KNUCKLE; FRT AXLE 1-43132-101-1 01 1 0710-
3 KING PIN SET
(A) 		1-87831-111-7 02 1 0710-0801
3 KING PIN SET
(B) 		1-87831-349-2 02 1 0802-
6 SEAL; KING PIN 9-09926-024-0 04 1 0710-
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 0710-
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 0710-
17 BOLT; STOPPER KNUCKLE
(A) M18X53 		1-09009-066-0 01 1 0710-
17 BOLT; STOPPER KNUCKLE
(B) M18X43 		1-09009-190-0 02 1 0710-
18 NUT; STOPPER BOLT,KNUCKLE
(B) HEXAGON M18 		0-91110-518-0 02 1 0710-
18 NUT; STOPPER BOLT,KNUCKLE
(A) OCTAGON M18 		1-09469-011-1 01 1 0710-
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 0710-
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 0710-
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 		1-43171-185-0 AR 1 0710-
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 		1-43171-186-0 AR 1 0710-
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 		1-43171-187-0 AR 1 0710-
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 		1-43171-188-0 AR 1 0710-
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 0710-
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 0710-
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 0710-
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 0710-
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 		1-43171-193-0 AR 1 0710-
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 		1-43171-194-0 AR 1 0710-
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 		1-43171-195-0 AR 1 0710-
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 		1-43171-196-0 AR 1 0710-
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 		1-43171-197-0 AR 1 0710-
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 		1-43171-198-0 AR 1 0710-
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 		1-43171-199-0 AR 1 0710-
32 BOLT; KEY,KING PIN 1-43116-002-2 02 1 0710-
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 0710-
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 0710-
36 ARM; KNUCKLE 1-43133-083-3 01 1 0710-
40 NUT; KNUCKLE ARM
M22 		1-09449-084-0 02 1 0710-
44 COVER; KING PIN
(C) 		8-98100-655-0 02 1 0802-
44 COVER; KING PIN
(A) 		1-43175-025-0 04 1 0710-0801
44 COVER; KING PIN
(B) 		8-98100-654-0 02 1 0802-
45 GASKET; KING PIN COVER 8-98100-656-1 04 1 0802-
48 BOLT; COVER
M10X25 FLANGE 		0-28751-025-0 12 1 0710-
58 ARM; TIE ROD 1-43134-049-4 01 1 0710-
58 ARM; TIE ROD 1-43135-049-4 01 1 0710-
59 NUT; TIE ROD ARM
M22 		1-09449-084-0 04 1 0710-
61 ROD END; TIE ROD 1-43150-856-0 01 1 0710-1009
61 ROD END; TIE ROD 8-98105-073-0 01 1 1010-1306
61 ROD END; TIE ROD 8-98228-100-0 01 1 1307-
61 ROD END; TIE ROD 1-43150-857-0 01 1 0710-1009
61 ROD END; TIE ROD 8-98105-074-0 01 1 1010-1306
61 ROD END; TIE ROD 8-98228-101-0 01 1 1307-
66 NUT; TIE ROD END
M24 SLOTTED 		1-09442-020-0 02 1 0710-0805
66 NUT; TIE ROD END
M24 		1-09442-032-0 02 1 0806-
68 BOLT; TIE ROD END
M12X65 		8-98053-922-0 04 1 0710-
74 NUT; TIE ROD END
M12 		0-91110-512-0 04 1 0710-
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		0-81125-035-0 02 1 0710-
81 ROD; TIE 1-43151-154-0 01 1 0710-
220 STUD; KNUCKLE ARM
M22X145 		1-09300-127-1 02 1 0710-
275 BOOT; ROD END,TIE 1-43159-107-0 02 1 0710-1009
275 BOOT; ROD END,TIE 1-43159-131-0 02 1 1010-1306
275 BOOT; ROD END,TIE 8-98229-116-0 02 1 1307-
295 STUD; COVER,KING PIN
M10X20,M10X26 L=56 		8-98010-334-0 04 1 0710-
304 WASHER; PL
(A) ID=12.5 		0-91614-512-0 04 1 0710-
304 WASHER; PL
(B) ID=21 		9-09164-520-0 02 1 0710-0907
304 WASHER; PL
(B) ID=21 		0-91614-520-0 02 1 0908-
313 STUD; TIE ROD ARM
M22X145 		1-09300-127-1 04 1 0710-
