Isuzu WW
▶
TRUCKS
▶
EXY
▶
11118 - EXY NZ JNST04 EXC.HYDRAULIC RETARDER
▶
3 - Brakes, Brake System
▶
3-77 - BRAKE PIPING; AIR,REAR
▶
3-77 — BRAKE PIPING; AIR,REAR
(#14392) — 87 parça
◀

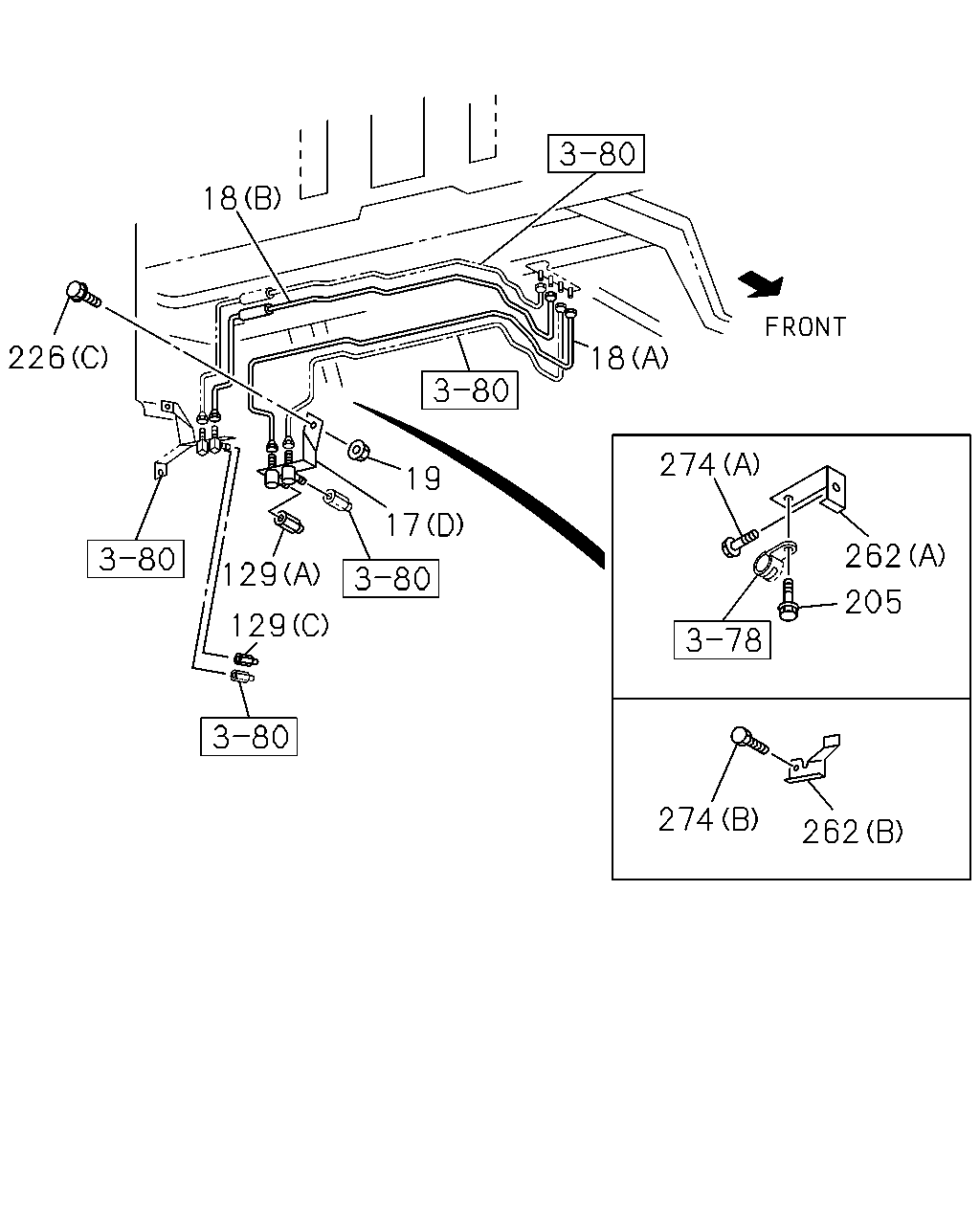

[377A] CAB UNDER (21 parça)

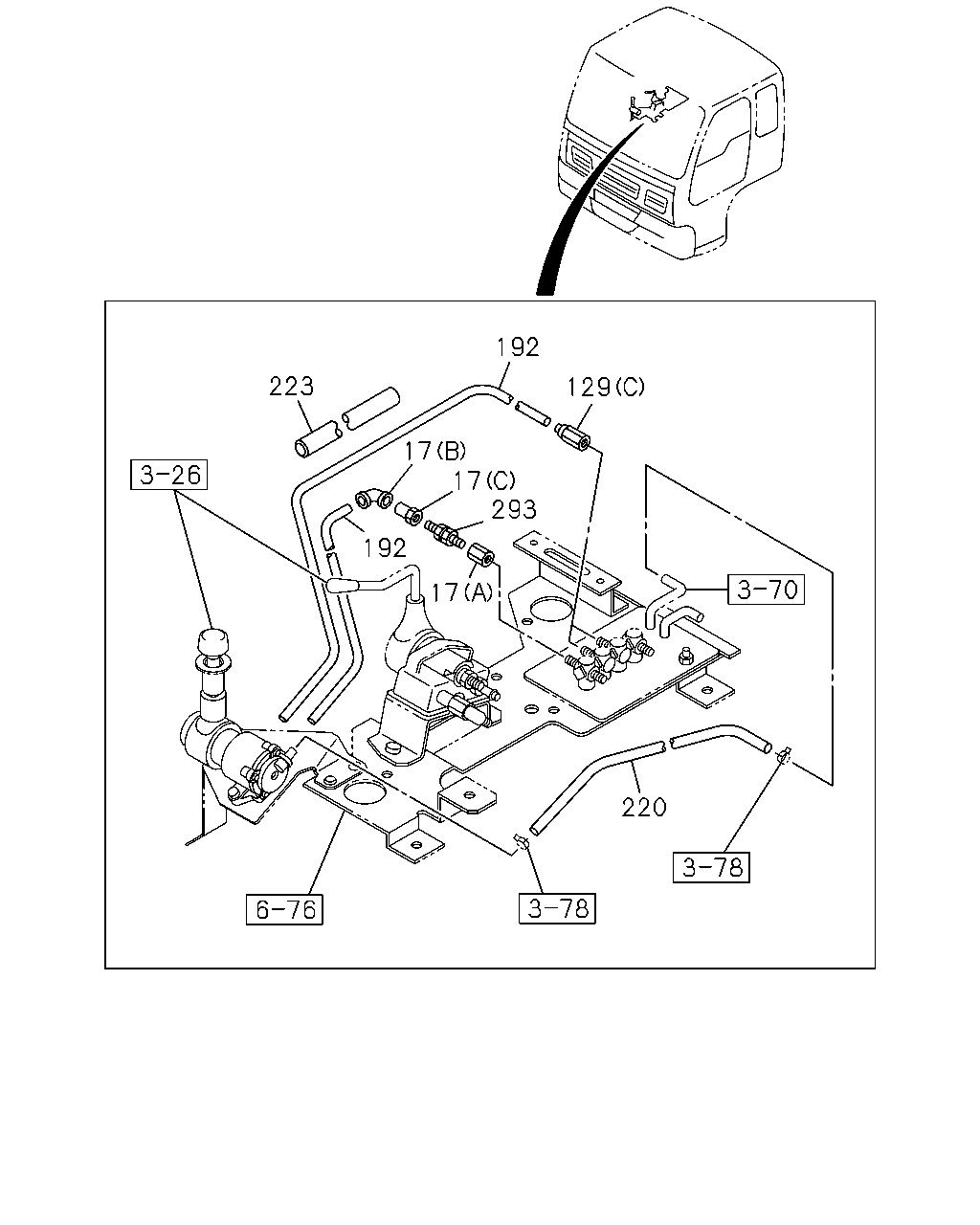

[377A] CAB SIDE (22 parça)

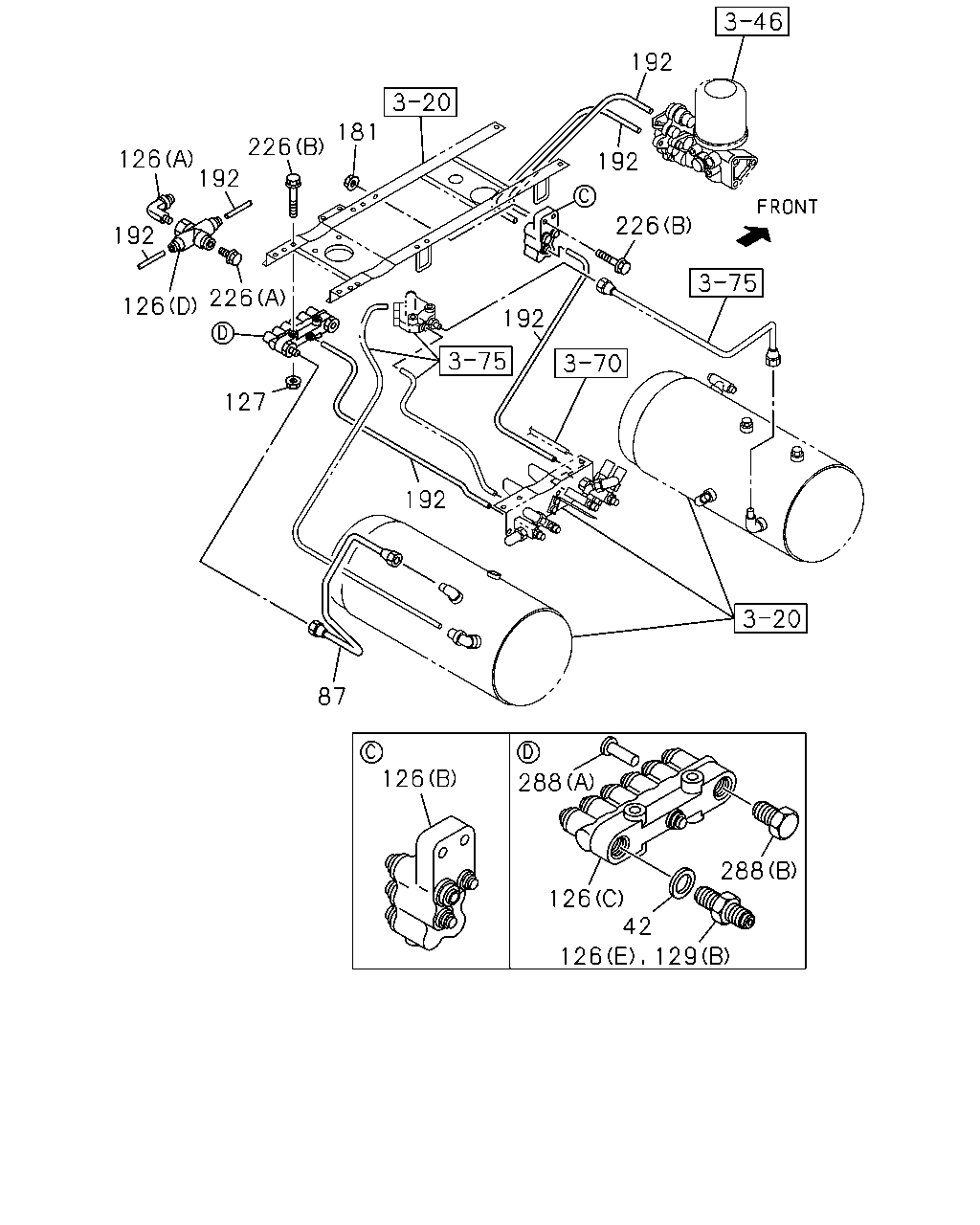

[377A] AIR TANK SIDE (24 parça)

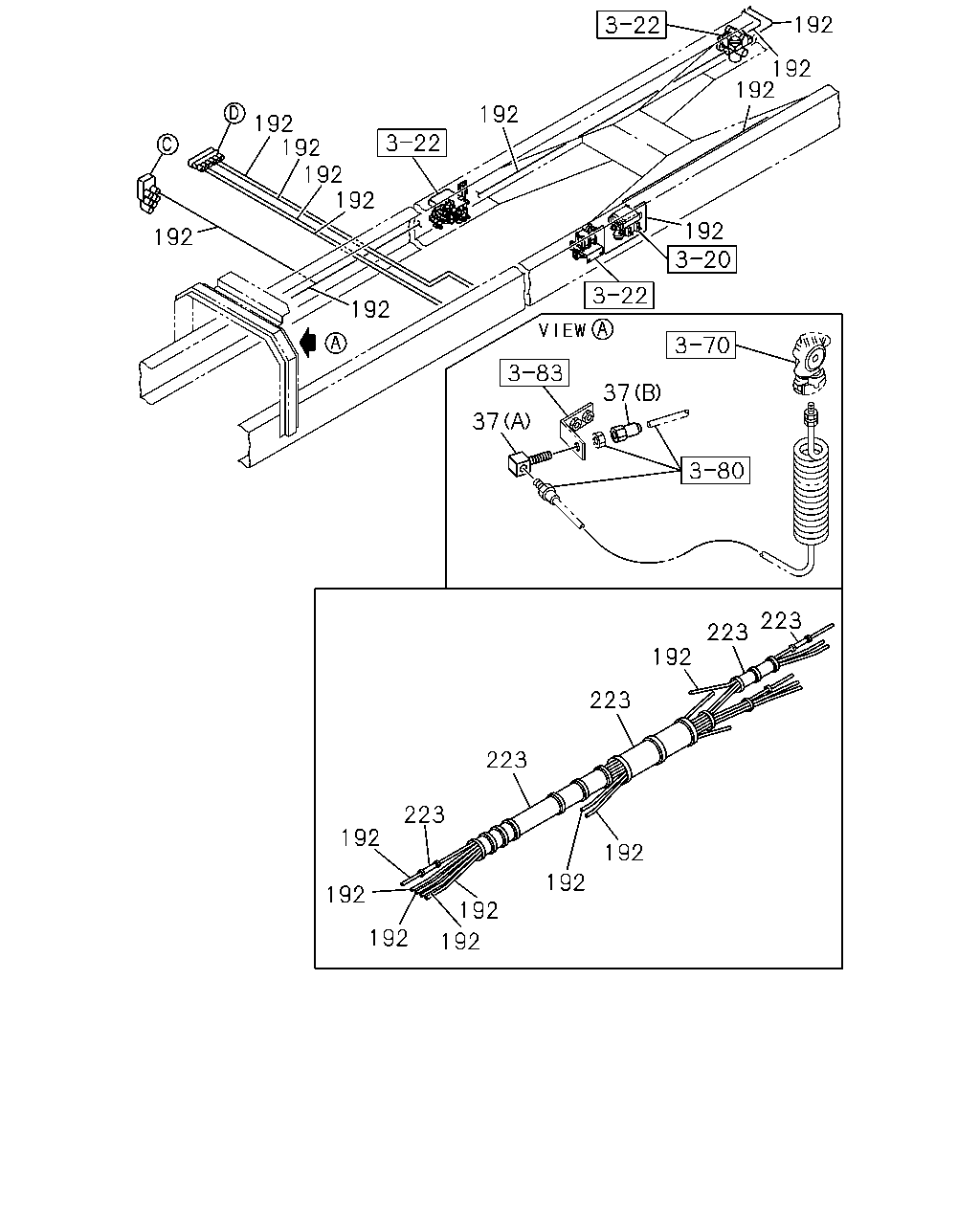

[377A] FRAME SIDE NO.1 (13 parça)

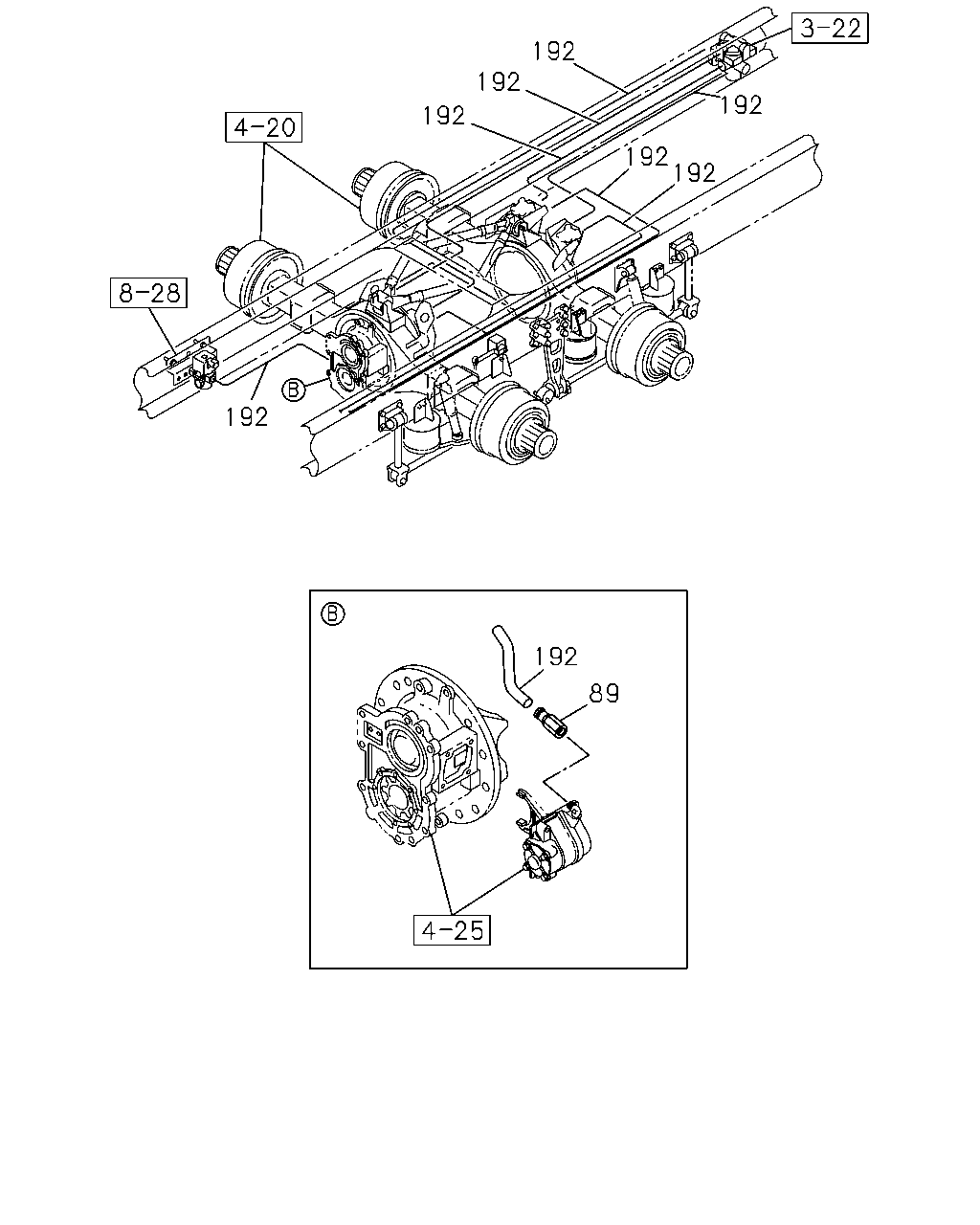

[377A] FRAME SIDE NO.2 (7 parça)
▶
18
226
18
19
17
129
129
274
262
205
274
262
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
17
UNION; AIR PIPE
(A) M16 & RC3/8 STRAIGHT
1-09660-882-0
01
1
0710-
17
UNION; AIR PIPE
(B) DIN12 ID=15.4 ELBOW
1-09661-079-1
01
1
0710-1006
17
UNION; AIR PIPE
(B)
8-97633-775-0
01
1
1007-
17
UNION; AIR PIPE
(C)
1-09661-083-0
01
1
0710-1006
17
UNION; AIR PIPE
(C)
8-97633-777-0
01
1
1007-
17
UNION; AIR PIPE
(D)
1-47470-609-0
01
1
0710-
18
PIPE; AIR,UNION TO UNION
(A) L=1749
1-49121-758-1
01
1
0710-
18
PIPE; AIR,UNION TO UNION
(B) L=1845
1-49122-059-1
01
1
0710-
19
NUT; PIPE UNION
M8
0-91110-508-0
01
1
0710-
129
CONNECTOR; NYLON TUBE
(C) DIN8 & M14 STRAIGHT
1-09660-874-0
04
1
0710-
129
CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
0710-0812
129
CONNECTOR; NYLON TUBE
(B)
8-97618-539-0
01
1
0710-0803
205
BOLT; TUBE CLIP
M8X16 FLANGE
0-28050-816-0
02
1
0710-
226
BOLT; UNION
(A) M8X16 FLANGE
0-28050-816-0
01
1
0710-
226
BOLT; UNION
(B) M8X45 FLANGE
0-28050-845-0
04
1
0710-
226
BOLT; UNION
(C) M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
0710-0904
226
BOLT; UNION
(C) M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
0905-
262
BRACKET
(A)
1-79996-143-0
01
1
0710-
262
BRACKET
(B)
1-79996-144-0
01
1
0710-
274
BOLT; BRKT
(B) M8X16 FLANGE
0-28050-816-0
01
1
0710-
274
BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER
8-94279-201-0
01
1
0710-
192
129
223
17
17
293
192
17
220
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
17
UNION; AIR PIPE
(A) M16 & RC3/8 STRAIGHT
1-09660-882-0
01
1
0710-
17
UNION; AIR PIPE
(B) DIN12 ID=15.4 ELBOW
1-09661-079-1
01
1
0710-1006
17
UNION; AIR PIPE
(B)
8-97633-775-0
01
1
1007-
17
UNION; AIR PIPE
(C)
1-09661-083-0
01
1
0710-1006
17
UNION; AIR PIPE
(C)
8-97633-777-0
01
1
1007-
17
UNION; AIR PIPE
(D)
1-47470-609-0
01
1
0710-
129
CONNECTOR; NYLON TUBE
(C) DIN8 & M14 STRAIGHT
1-09660-874-0
04
1
0710-
129
CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
0710-0812
129
CONNECTOR; NYLON TUBE
(B)
8-97618-539-0
01
1
0710-0803
192
TUBE; NYLON
SERVICED BY L=2000 OD=6
1-87411-001-0
AR
1
0710-
192
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
0710-
192
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
0710-
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0710-
192
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
0710-
192
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0710-
220
HOSE; VINYL,EXH,PARKING BRK VLV
L=650 SERVICED BY L=10000
9-09914-701-0
01
1
0710-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=7
1-87411-016-0
AR
1
0710-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
0710-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
0710-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=22
1-87411-029-0
AR
1
0710-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
AR
1
0710-
293
VALVE; CHECK
1-48410-479-1
01
1
0710-
192
181
226
126
192
192
226
192
226
192
126
127
192
87
126
288
288
126
42
126
129
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
42
GASKET; CONNECTOR
9-09572-022-0
01
1
0710-0803
87
PIPE; AIR,AIR TANK TO UNION
L=620
1-49123-985-0
01
1
0710-
126
UNION; NYLON TUBE
(E) DIN12 M22 STRAIGHT
8-98107-103-0
01
1
0804-
126
UNION; NYLON TUBE
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
0710-
126
UNION; NYLON TUBE
(D) DIN12X2 & R3/8 3WAY
1-09661-131-0
01
1
0710-
126
UNION; NYLON TUBE
(B)
1-09661-610-1
01
1
0710-
126
UNION; NYLON TUBE
(C)
1-09661-612-1
01
1
0710-
127
NUT; UNION
M8 FLANGE
0-91180-108-0
02
1
0710-
129
CONNECTOR; NYLON TUBE
(C) DIN8 & M14 STRAIGHT
1-09660-874-0
04
1
0710-
129
CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
0710-0812
129
CONNECTOR; NYLON TUBE
(B)
8-97618-539-0
01
1
0710-0803
181
NUT; TUBE UNION
M8 FLANGE
0-91180-108-0
02
1
0710-
192
TUBE; NYLON
SERVICED BY L=2000 OD=6
1-87411-001-0
AR
1
0710-
192
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
0710-
192
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
0710-
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0710-
192
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
0710-
192
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0710-
226
BOLT; UNION
(A) M8X16 FLANGE
0-28050-816-0
01
1
0710-
226
BOLT; UNION
(B) M8X45 FLANGE
0-28050-845-0
04
1
0710-
226
BOLT; UNION
(C) M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
0710-0904
226
BOLT; UNION
(C) M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
0905-
288
PLUG
(B) M22
1-09661-502-0
01
1
0710-
288
PLUG
(A) OD=12
1-09661-617-0
01
1
0710-
192
192
192
192
192
192
192
192
192
192
192
37
37
223
223
192
223
223
223
192
192
192
192
192
192
192
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
UNION; AIR PIPE
(A)
1-09650-003-1
01
1
0710-
37
UNION; AIR PIPE
(B) DIN12 & M20 STRAIGHT
1-09660-877-0
01
1
0710-
192
TUBE; NYLON
SERVICED BY L=2000 OD=6
1-87411-001-0
AR
1
0710-
192
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
0710-
192
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
0710-
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0710-
192
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
0710-
192
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0710-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=7
1-87411-016-0
AR
1
0710-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
0710-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
0710-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=22
1-87411-029-0
AR
1
0710-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
AR
1
0710-
192
192
192
192
192
192
192
192
89
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
89
CONNECTOR; NYLON TUBE
DIN8 & M12 STRAIGHT
1-09660-873-0
01
1
0710-
192
TUBE; NYLON
SERVICED BY L=2000 OD=6
1-87411-001-0
AR
1
0710-
192
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
0710-
192
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
0710-
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0710-
192
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
0710-
192
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0710-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
