Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#1439) — 276 parça

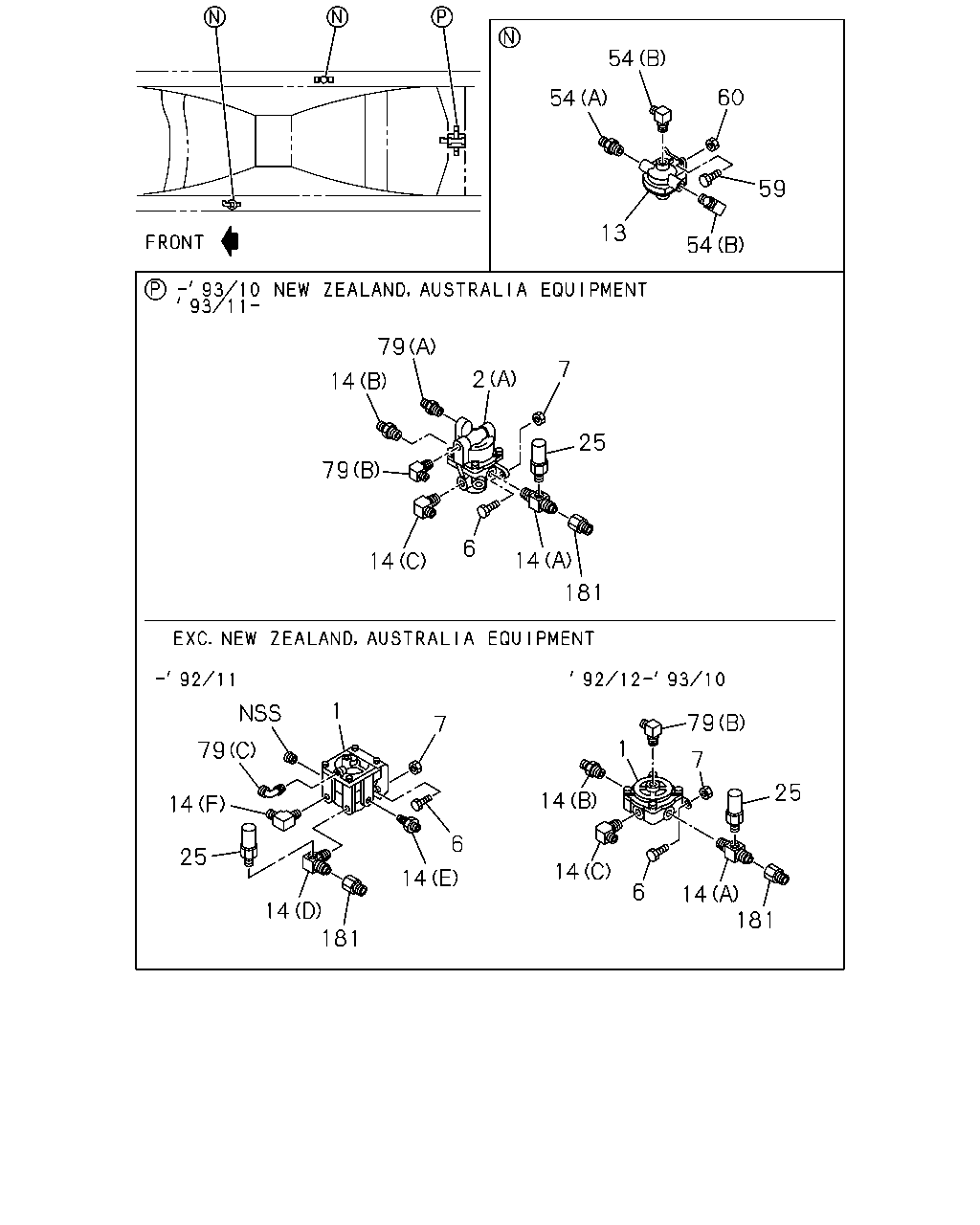

54 60 54 59 13 54 79 7 2 14 25 79 6 14 14 181 1 79 7 1 79 7 25 14 14 6 25 14 14 6 14 181 14 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48210-408-0	01	1	9203-9211
1	VALVE; RELAY RWD RR EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48210-278-0	01	1	9212-9310
2	VALVE; RELAY (B)	1-48210-408-0	03	1	9203-9211
2	VALVE; RELAY (B)	1-48210-278-0	03	1	9212-
2	VALVE; RELAY NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48210-143-0	01	1	9203-9310
2	VALVE; RELAY (A)	1-48210-143-0	01	1	9311-
6	BOLT; VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M10X35 W/LK WASHER	0-50041-035-0	02	1	9203-9211
6	BOLT; VLV M10X35 W/LK WASHER	0-50041-035-0	02	1	9212-
6	BOLT; VLV EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M10X25 W/LK WASHER	0-50041-025-0	02	1	9203-9211
7	NUT; RELAY VLV M10	9-09110-410-0	02	1	9203-
13	VALVE ASM; QUICK RELEASE	1-48410-052-1	02	1	9203-9307
13	VALVE ASM; QUICK RELEASE	1-48410-320-0	02	1	9308-
14	CONNECTOR; RELAY VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09656-476-0	01	1	9203-9211
14	CONNECTOR; RELAY VLV (A)	1-09656-476-0	01	1	9212-
14	CONNECTOR; RELAY VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-09660-298-0	01	1	9203-9211
14	CONNECTOR; RELAY VLV (B)	1-09660-298-0	01	1	9212-
14	CONNECTOR; RELAY VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (C)	1-09660-571-0	01	1	9203-9211
14	CONNECTOR; RELAY VLV (C)	1-09660-571-0	01	1	9212-
14	CONNECTOR; RELAY VLV EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (D)	1-09656-641-1	01	1	9203-9211
14	CONNECTOR; RELAY VLV (G) M16	1-09650-245-1	02	1	9212-
14	CONNECTOR; RELAY VLV EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (E)	1-09660-532-0	01	1	9203-9211
14	CONNECTOR; RELAY VLV EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (F)	1-09660-536-0	01	1	9203-9211
25	SWITCH; PRESSURE	1-82410-138-0	01	1	9203-9502
25	SWITCH; PRESSURE	1-82410-163-0	01	1	9503-
54	CONNECTOR; QUICK RELEASE VLV (A)	1-09660-572-0	02	1	9203-
54	CONNECTOR; QUICK RELEASE VLV (B)	1-09660-574-0	04	1	9203-
59	BOLT; RELEASE VALVE FIX M8X30 FLANGE	0-28010-830-0	04	1	9203-9204
59	BOLT; RELEASE VALVE FIX M8X30 FLANGE	0-28080-830-0	04	1	9205-
60	NUT; RELEASE VALVE FIX M8	9-09110-408-0	04	1	9203-
79	CONNECTOR; RELAY VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09660-569-0	01	1	9203-9310
79	CONNECTOR; RELAY VLV (A)	1-09660-569-0	01	1	9311-
79	CONNECTOR; RELAY VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-09660-570-0	01	1	9203-9211
79	CONNECTOR; RELAY VLV (B)	1-09660-570-0	01	1	9212-
79	CONNECTOR; RELAY VLV EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (C)	1-09660-533-0	01	1	9203-9211
181	ADAPTER; PRESSURE SW M20X36	1-09660-576-0	01	1	9203-

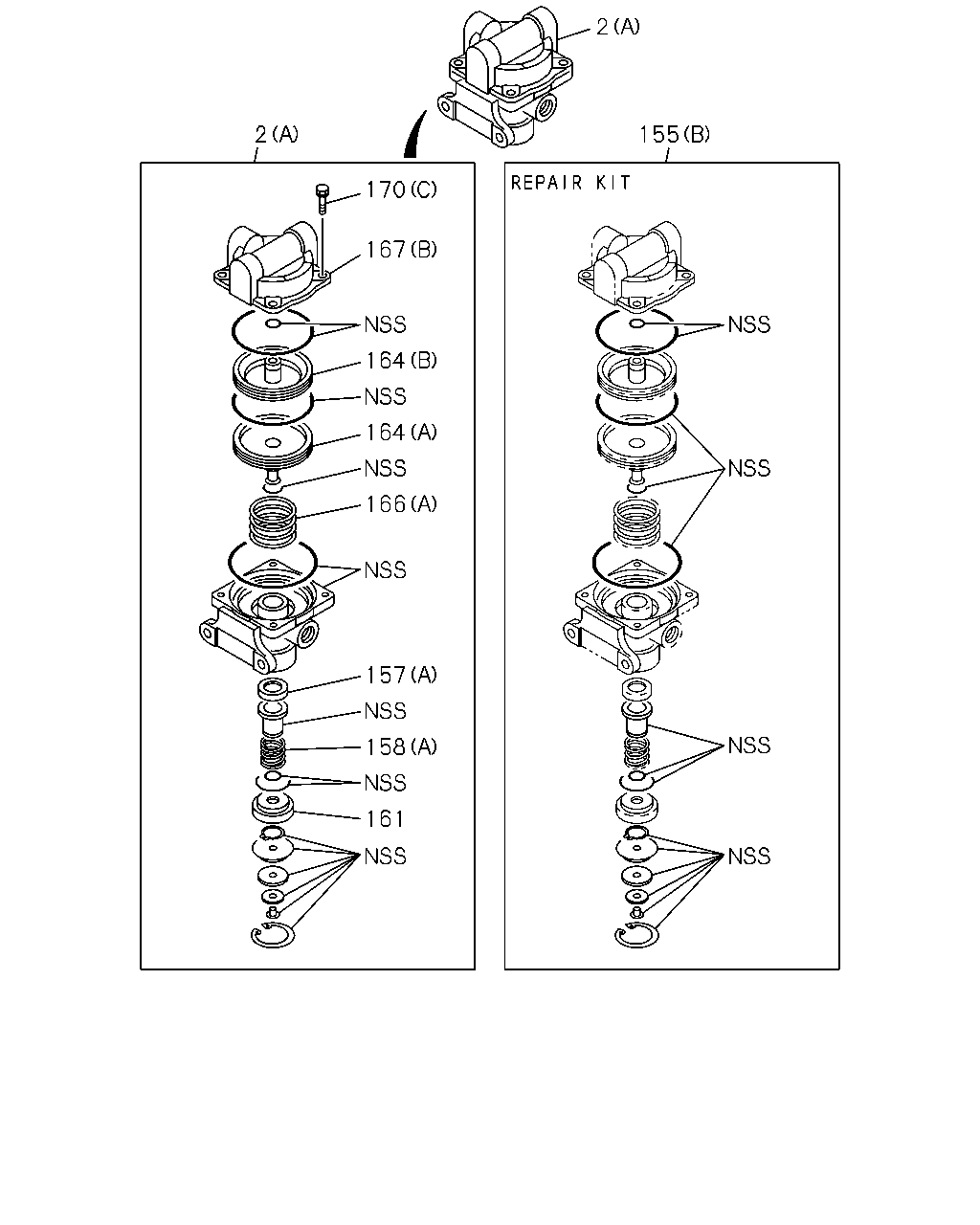

2 1 2 155 1 170 167 164 166 157 158 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48210-408-0	01	1	9203-9211
1	VALVE; RELAY RWD RR EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48210-278-0	01	1	9212-9310
2	VALVE; RELAY (B)	1-48210-408-0	03	1	9203-9211
2	VALVE; RELAY (B)	1-48210-278-0	03	1	9212-
2	VALVE; RELAY NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48210-143-0	01	1	9203-9310
2	VALVE; RELAY (A)	1-48210-143-0	01	1	9311-
155	REPAIR KIT; RELAY VALVE (A)	1-85576-033-0	03	1	9212-
155	REPAIR KIT; RELAY VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-85576-035-0	01	1	9203-9310
155	REPAIR KIT; RELAY VALVE (B)	1-85576-035-0	01	1	9311-
155	REPAIR KIT; RELAY VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-85576-033-0	01	1	9212-9310
157	RETAINER; VALVE (B)	1-48219-121-0	03	1	9203-9211
157	RETAINER; VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48213-002-0	01	1	9203-9211
157	RETAINER; VALVE (B)	1-48213-002-0	04	1	9212-
157	RETAINER; VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-121-0	01	1	9203-9211
158	SPRING; VALVE (B)	1-48219-112-0	03	1	9203-9211
158	SPRING; VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-47819-089-0	01	1	9203-9211
158	SPRING; VALVE (A)	1-47819-089-0	04	1	9212-
158	SPRING; VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-112-0	01	1	9203-9211
161	GUIDE; VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48129-014-0	01	1	9203-9211
161	GUIDE; VALVE	1-48129-014-0	04	1	9212-
164	PISTON; RELAY VALVE (C)	1-48219-107-0	03	1	9203-9211
164	PISTON; RELAY VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-032-0	01	1	9203-9310
164	PISTON; RELAY VALVE (A)	1-48219-032-0	01	1	9311-
164	PISTON; RELAY VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-047-0	01	1	9203-9310
164	PISTON; RELAY VALVE (B)	1-48219-047-0	01	1	9311-
164	PISTON; RELAY VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (C)	1-48219-107-0	01	1	9203-9211
164	PISTON; RELAY VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (D)	1-48219-071-0	01	1	9212-9310
164	PISTON; RELAY VALVE (D)	1-48219-071-0	03	1	9212-
166	SPRING; PISTON (B)	1-48219-110-0	03	1	9203-9211
166	SPRING; PISTON (C)	1-47819-090-0	03	1	9212-
166	SPRING; PISTON NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-048-0	01	1	9203-9310
166	SPRING; PISTON (A)	1-48219-048-0	01	1	9311-
166	SPRING; PISTON EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-110-0	01	1	9203-9211
166	SPRING; PISTON EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (C)	1-47819-090-0	01	1	9212-9310
167	COVER; VALVE (A)	1-48219-070-0	03	1	9311-
167	COVER; VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-050-1	01	1	9203-9310
167	COVER; VALVE (B)	1-48219-050-1	01	1	9311-
167	COVER; VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-070-0	01	1	9212-9310
170	SCREW; COVER TO BODY (A)	1-48219-123-0	06	1	9203-9211
170	SCREW; COVER TO BODY (D)	1-48219-039-0	12	1	9212-
170	SCREW; COVER TO BODY (B)	1-48219-124-0	06	1	9203-9211
170	SCREW; COVER TO BODY NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (C)	1-48219-041-0	04	1	9203-9310
170	SCREW; COVER TO BODY (C)	1-48219-041-0	04	1	9311-
170	SCREW; COVER TO BODY EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-123-0	02	1	9203-9211
170	SCREW; COVER TO BODY EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (D)	1-48219-039-0	04	1	9212-9310
170	SCREW; COVER TO BODY EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-124-0	02	1	9203-9211

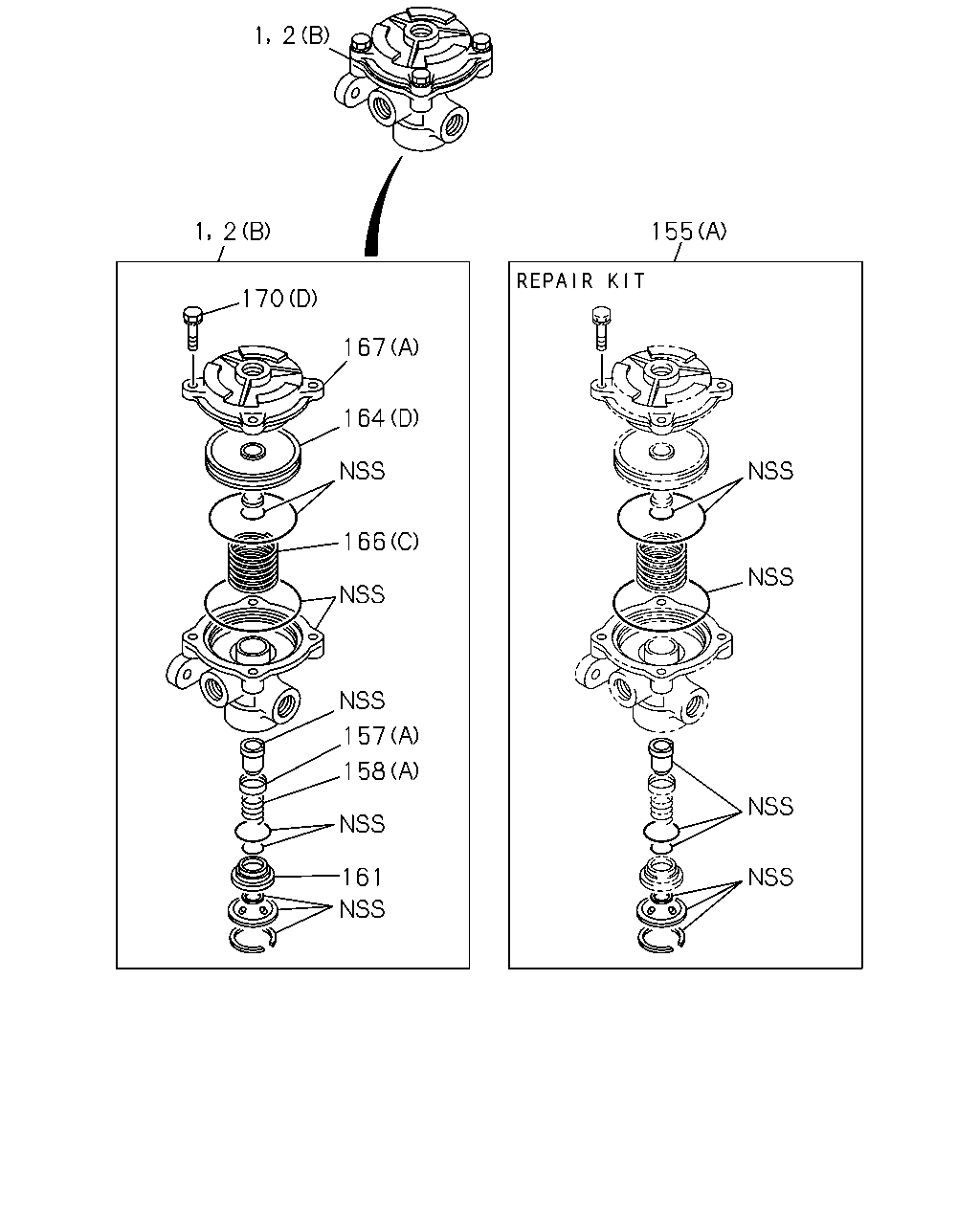

2 2 155 170 167 164 164 166 157 158 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY (B)	1-48210-408-0	03	1	9203-9211
2	VALVE; RELAY (B)	1-48210-278-0	03	1	9212-
2	VALVE; RELAY NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48210-143-0	01	1	9203-9310
2	VALVE; RELAY (A)	1-48210-143-0	01	1	9311-
155	REPAIR KIT; RELAY VALVE (A)	1-85576-033-0	03	1	9212-
155	REPAIR KIT; RELAY VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-85576-035-0	01	1	9203-9310
155	REPAIR KIT; RELAY VALVE (B)	1-85576-035-0	01	1	9311-
155	REPAIR KIT; RELAY VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-85576-033-0	01	1	9212-9310
157	RETAINER; VALVE (B)	1-48219-121-0	03	1	9203-9211
157	RETAINER; VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48213-002-0	01	1	9203-9211
157	RETAINER; VALVE (B)	1-48213-002-0	04	1	9212-
157	RETAINER; VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-121-0	01	1	9203-9211
158	SPRING; VALVE (B)	1-48219-112-0	03	1	9203-9211
158	SPRING; VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-47819-089-0	01	1	9203-9211
158	SPRING; VALVE (A)	1-47819-089-0	04	1	9212-
158	SPRING; VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-112-0	01	1	9203-9211
161	GUIDE; VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48129-014-0	01	1	9203-9211
161	GUIDE; VALVE	1-48129-014-0	04	1	9212-
164	PISTON; RELAY VALVE (C)	1-48219-107-0	03	1	9203-9211
164	PISTON; RELAY VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-032-0	01	1	9203-9310
164	PISTON; RELAY VALVE (A)	1-48219-032-0	01	1	9311-
164	PISTON; RELAY VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-047-0	01	1	9203-9310
164	PISTON; RELAY VALVE (B)	1-48219-047-0	01	1	9311-
164	PISTON; RELAY VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (C)	1-48219-107-0	01	1	9203-9211
164	PISTON; RELAY VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (D)	1-48219-071-0	01	1	9212-9310
164	PISTON; RELAY VALVE (D)	1-48219-071-0	03	1	9212-
166	SPRING; PISTON (B)	1-48219-110-0	03	1	9203-9211
166	SPRING; PISTON (C)	1-47819-090-0	03	1	9212-
166	SPRING; PISTON NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-048-0	01	1	9203-9310
166	SPRING; PISTON (A)	1-48219-048-0	01	1	9311-
166	SPRING; PISTON EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-110-0	01	1	9203-9211
166	SPRING; PISTON EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (C)	1-47819-090-0	01	1	9212-9310
167	COVER; VALVE (A)	1-48219-070-0	03	1	9311-
167	COVER; VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-050-1	01	1	9203-9310
167	COVER; VALVE (B)	1-48219-050-1	01	1	9311-
167	COVER; VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-070-0	01	1	9212-9310
170	SCREW; COVER TO BODY (A)	1-48219-123-0	06	1	9203-9211
170	SCREW; COVER TO BODY (D)	1-48219-039-0	12	1	9212-
170	SCREW; COVER TO BODY (B)	1-48219-124-0	06	1	9203-9211
170	SCREW; COVER TO BODY NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (C)	1-48219-041-0	04	1	9203-9310
170	SCREW; COVER TO BODY (C)	1-48219-041-0	04	1	9311-
170	SCREW; COVER TO BODY EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-123-0	02	1	9203-9211
170	SCREW; COVER TO BODY EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (D)	1-48219-039-0	04	1	9212-9310
170	SCREW; COVER TO BODY EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-124-0	02	1	9203-9211

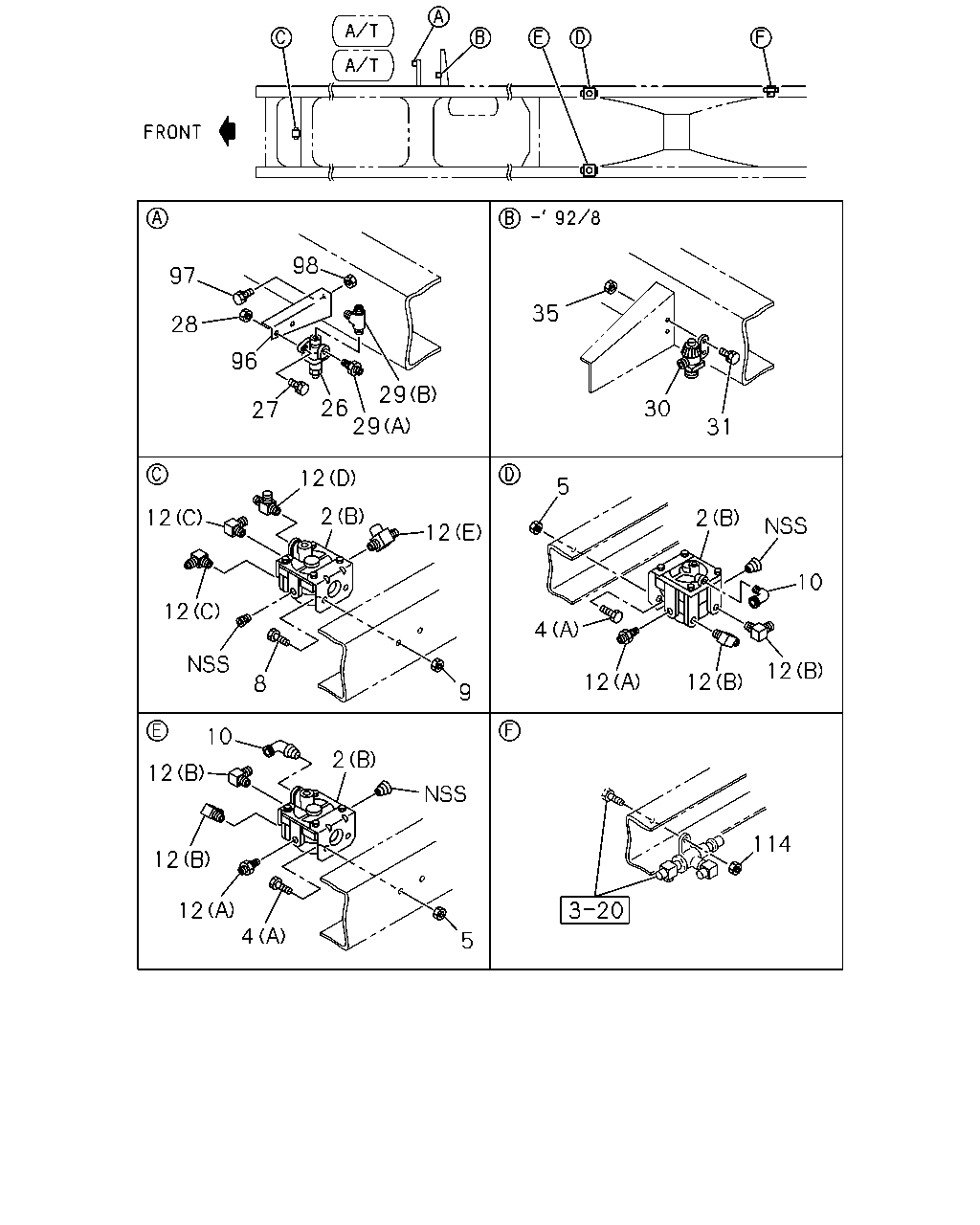

2 1 2 1 170 170 168 165 164 156 113 166 156 159 157 159 158 160 162 186 187 4 163

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48210-408-0	01	1	9203-9211
1	VALVE; RELAY RWD RR EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48210-278-0	01	1	9212-9310
2	VALVE; RELAY (B)	1-48210-408-0	03	1	9203-9211
2	VALVE; RELAY (B)	1-48210-278-0	03	1	9212-
2	VALVE; RELAY NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48210-143-0	01	1	9203-9310
2	VALVE; RELAY (A)	1-48210-143-0	01	1	9311-
4	BOLT; RELAY VLV TO BRKT (A)	0-50041-030-0	04	1	9203-9211
4	BOLT; RELAY VLV TO BRKT (A)	0-50041-035-0	04	1	9212-
4	BOLT; RELAY VLV TO BRKT (B)	1-48219-116-0	04	1	9203-9211
113	BOLT; VLV	1-48219-108-0	03	1	9203-9211
113	BOLT; VLV EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48219-108-0	01	1	9203-9211
156	VALVE ASM; INL (A)	1-48219-111-0	03	1	9203-9211
156	VALVE ASM; INL (B)	1-48219-120-0	03	1	9203-9211
156	VALVE ASM; INL EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-111-0	01	1	9203-9211
156	VALVE ASM; INL EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-120-0	01	1	9203-9211
157	RETAINER; VALVE (B)	1-48219-121-0	03	1	9203-9211
157	RETAINER; VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48213-002-0	01	1	9203-9211
157	RETAINER; VALVE (B)	1-48213-002-0	04	1	9212-
157	RETAINER; VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-121-0	01	1	9203-9211
158	SPRING; VALVE (B)	1-48219-112-0	03	1	9203-9211
158	SPRING; VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-47819-089-0	01	1	9203-9211
158	SPRING; VALVE (A)	1-47819-089-0	04	1	9212-
158	SPRING; VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-112-0	01	1	9203-9211
159	GASKET; INL VALVE (A)	1-48219-119-0	03	1	9203-9211
159	GASKET; INL VALVE (B)	1-48219-122-0	03	1	9203-9211
159	GASKET; INL VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-119-0	01	1	9203-9211
159	GASKET; INL VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-122-0	01	1	9203-9211
160	GASKET; VALVE GUIDE	1-48219-113-0	03	1	9203-9211
160	GASKET; VALVE GUIDE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48219-113-0	01	1	9203-9211
162	COVER ASM; EXH	1-48219-114-0	03	1	9203-9211
162	COVER ASM; EXH EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48219-114-0	01	1	9203-9211
163	RING; RET,EXH COVER	1-48219-118-0	03	1	9203-9211
163	RING; RET,EXH COVER EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48219-118-0	01	1	9203-9211
164	PISTON; RELAY VALVE (C)	1-48219-107-0	03	1	9203-9211
164	PISTON; RELAY VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-032-0	01	1	9203-9310
164	PISTON; RELAY VALVE (A)	1-48219-032-0	01	1	9311-
164	PISTON; RELAY VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-047-0	01	1	9203-9310
164	PISTON; RELAY VALVE (B)	1-48219-047-0	01	1	9311-
164	PISTON; RELAY VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (C)	1-48219-107-0	01	1	9203-9211
164	PISTON; RELAY VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (D)	1-48219-071-0	01	1	9212-9310
164	PISTON; RELAY VALVE (D)	1-48219-071-0	03	1	9212-
165	GASKET; PISTON	1-48219-109-0	03	1	9203-9211
165	GASKET; PISTON EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48219-109-0	01	1	9203-9211
166	SPRING; PISTON (B)	1-48219-110-0	03	1	9203-9211
166	SPRING; PISTON (C)	1-47819-090-0	03	1	9212-
166	SPRING; PISTON NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-048-0	01	1	9203-9310
166	SPRING; PISTON (A)	1-48219-048-0	01	1	9311-
166	SPRING; PISTON EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-110-0	01	1	9203-9211
166	SPRING; PISTON EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (C)	1-47819-090-0	01	1	9212-9310
168	GASKET; COVER TO BODY	1-48219-109-0	03	1	9203-9211
168	GASKET; COVER TO BODY EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48219-109-0	01	1	9203-9211
170	SCREW; COVER TO BODY (A)	1-48219-123-0	06	1	9203-9211
170	SCREW; COVER TO BODY (D)	1-48219-039-0	12	1	9212-
170	SCREW; COVER TO BODY (B)	1-48219-124-0	06	1	9203-9211
170	SCREW; COVER TO BODY NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (C)	1-48219-041-0	04	1	9203-9310
170	SCREW; COVER TO BODY (C)	1-48219-041-0	04	1	9311-
170	SCREW; COVER TO BODY EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-123-0	02	1	9203-9211
170	SCREW; COVER TO BODY EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (D)	1-48219-039-0	04	1	9212-9310
170	SCREW; COVER TO BODY EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-124-0	02	1	9203-9211
186	DIAPHRAGM; RELAY VLV	1-48219-115-0	03	1	9203-9211
186	DIAPHRAGM; RELAY VLV EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48219-115-0	01	1	9203-9211
187	WASHER; RELAY VLV	1-48219-117-0	03	1	9203-9211
187	WASHER; RELAY VLV EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48219-117-0	01	1	9203-9211

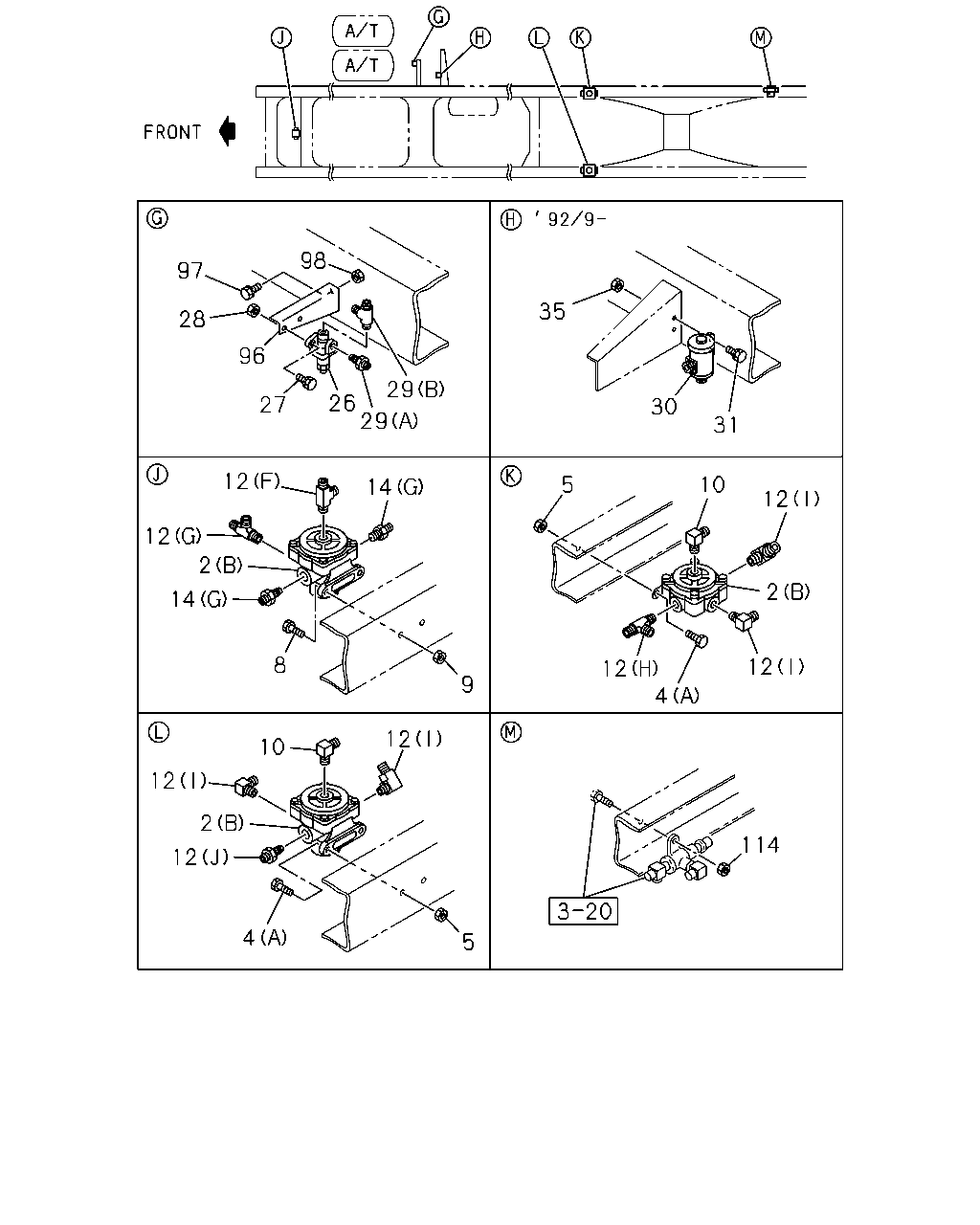

98 97 35 28 96 29 26 29 27 30 31 12 10 5 14 12 12 2 2 14 8 12 12 4 9 12 10 12 2 114 12 4 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY (B)	1-48210-408-0	03	1	9203-9211
2	VALVE; RELAY (B)	1-48210-278-0	03	1	9212-
2	VALVE; RELAY NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48210-143-0	01	1	9203-9310
2	VALVE; RELAY (A)	1-48210-143-0	01	1	9311-
4	BOLT; RELAY VLV TO BRKT (A)	0-50041-030-0	04	1	9203-9211
4	BOLT; RELAY VLV TO BRKT (A)	0-50041-035-0	04	1	9212-
4	BOLT; RELAY VLV TO BRKT (B)	1-48219-116-0	04	1	9203-9211
5	NUT M10	9-09110-410-0	04	1	9203-
8	BOLT; BRKT M10X30 W/LK WASHER	0-50041-030-0	02	1	9203-
9	NUT M10	9-09110-410-0	02	1	9203-
10	CONNECTOR	1-09660-533-0	02	1	9203-9211
10	CONNECTOR	1-09660-570-0	02	1	9212-
12	CONNECTOR; RELAY VLV (C)	1-09650-406-0	02	1	9203-9211
12	CONNECTOR; RELAY VLV (J)	1-09660-298-0	02	1	9212-9310
12	CONNECTOR; RELAY VLV (J)	1-09660-298-0	01	1	9311-
12	CONNECTOR; RELAY VLV (A)	1-09660-532-0	02	1	9203-9211
12	CONNECTOR; RELAY VLV (B)	1-09660-536-0	04	1	9203-9211
12	CONNECTOR; RELAY VLV (F)	1-09660-628-0	01	1	9212-
12	CONNECTOR; RELAY VLV (D)	1-09660-537-0	01	1	9203-9211
12	CONNECTOR; RELAY VLV (G)	1-09660-645-0	01	1	9212-
12	CONNECTOR; RELAY VLV (E)	1-09660-540-0	01	1	9203-9211
12	CONNECTOR; RELAY VLV (I)	1-09660-571-0	04	1	9212-
12	CONNECTOR; RELAY VLV (H)	1-09660-322-0	01	1	9311-
14	CONNECTOR; RELAY VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09656-476-0	01	1	9203-9211
14	CONNECTOR; RELAY VLV (A)	1-09656-476-0	01	1	9212-
14	CONNECTOR; RELAY VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-09660-298-0	01	1	9203-9211
14	CONNECTOR; RELAY VLV (B)	1-09660-298-0	01	1	9212-
14	CONNECTOR; RELAY VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (C)	1-09660-571-0	01	1	9203-9211
14	CONNECTOR; RELAY VLV (C)	1-09660-571-0	01	1	9212-
14	CONNECTOR; RELAY VLV EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (D)	1-09656-641-1	01	1	9203-9211
14	CONNECTOR; RELAY VLV (G) M16	1-09650-245-1	02	1	9212-
14	CONNECTOR; RELAY VLV EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (E)	1-09660-532-0	01	1	9203-9211
14	CONNECTOR; RELAY VLV EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (F)	1-09660-536-0	01	1	9203-9211
26	VALVE; AIR NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48110-006-0	01	1	9203-
27	BOLT; AIR VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9203-
28	NUT; AIR VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8	9-09110-408-0	02	1	9203-
29	CONNECTOR; AIR VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09660-577-0	01	1	9203-
29	CONNECTOR; AIR VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-09664-182-0	01	1	9203-
30	GOVERNOR; AIR CONT	1-48350-037-0	01	1	9203-9208
30	GOVERNOR; AIR CONT	1-48350-050-1	01	1	9209-9409
30	GOVERNOR; AIR CONT	1-48350-059-0	01	1	9410-
31	BOLT; GOV TO FRAME M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9203-
35	NUT; GOV TO FRAME M8	9-09110-408-0	02	1	9203-
96	BRACKET NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48195-058-0	01	1	9203-
97	BOLT; VLV BRKT NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE	0-28010-825-0	02	1	9203-9204
97	BOLT; VLV BRKT NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE	0-28080-825-0	02	1	9205-
98	NUT; VLV BRKT NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8	9-09110-408-0	02	1	9203-
114	NUT; VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8	9-09110-408-0	01	1	9203-9310
114	NUT; VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8	9-09110-408-0	02	1	9311-

98 97 35 28 96 29 26 29 30 27 31 12 5 2 12 2 12 10 12 4 12 12 12 8 9 10 2 12 114 12 12 4 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY (B)	1-48210-408-0	03	1	9203-9211
2	VALVE; RELAY (B)	1-48210-278-0	03	1	9212-
2	VALVE; RELAY NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48210-143-0	01	1	9203-9310
2	VALVE; RELAY (A)	1-48210-143-0	01	1	9311-
4	BOLT; RELAY VLV TO BRKT (A)	0-50041-030-0	04	1	9203-9211
4	BOLT; RELAY VLV TO BRKT (A)	0-50041-035-0	04	1	9212-
4	BOLT; RELAY VLV TO BRKT (B)	1-48219-116-0	04	1	9203-9211
5	NUT M10	9-09110-410-0	04	1	9203-
8	BOLT; BRKT M10X30 W/LK WASHER	0-50041-030-0	02	1	9203-
9	NUT M10	9-09110-410-0	02	1	9203-
10	CONNECTOR	1-09660-533-0	02	1	9203-9211
10	CONNECTOR	1-09660-570-0	02	1	9212-
12	CONNECTOR; RELAY VLV (C)	1-09650-406-0	02	1	9203-9211
12	CONNECTOR; RELAY VLV (J)	1-09660-298-0	02	1	9212-9310
12	CONNECTOR; RELAY VLV (J)	1-09660-298-0	01	1	9311-
12	CONNECTOR; RELAY VLV (A)	1-09660-532-0	02	1	9203-9211
12	CONNECTOR; RELAY VLV (B)	1-09660-536-0	04	1	9203-9211
12	CONNECTOR; RELAY VLV (F)	1-09660-628-0	01	1	9212-
12	CONNECTOR; RELAY VLV (D)	1-09660-537-0	01	1	9203-9211
12	CONNECTOR; RELAY VLV (G)	1-09660-645-0	01	1	9212-
12	CONNECTOR; RELAY VLV (E)	1-09660-540-0	01	1	9203-9211
12	CONNECTOR; RELAY VLV (I)	1-09660-571-0	04	1	9212-
12	CONNECTOR; RELAY VLV (H)	1-09660-322-0	01	1	9311-
26	VALVE; AIR NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48110-006-0	01	1	9203-
27	BOLT; AIR VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9203-
28	NUT; AIR VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8	9-09110-408-0	02	1	9203-
29	CONNECTOR; AIR VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09660-577-0	01	1	9203-
29	CONNECTOR; AIR VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-09664-182-0	01	1	9203-
30	GOVERNOR; AIR CONT	1-48350-037-0	01	1	9203-9208
30	GOVERNOR; AIR CONT	1-48350-050-1	01	1	9209-9409
30	GOVERNOR; AIR CONT	1-48350-059-0	01	1	9410-
31	BOLT; GOV TO FRAME M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9203-
35	NUT; GOV TO FRAME M8	9-09110-408-0	02	1	9203-
96	BRACKET NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48195-058-0	01	1	9203-
97	BOLT; VLV BRKT NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE	0-28010-825-0	02	1	9203-9204
97	BOLT; VLV BRKT NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE	0-28080-825-0	02	1	9205-
98	NUT; VLV BRKT NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8	9-09110-408-0	02	1	9203-
114	NUT; VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8	9-09110-408-0	01	1	9203-9310
114	NUT; VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8	9-09110-408-0	02	1	9311-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
