◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11118 - EXY NZ JNST04 EXC.HYDRAULIC RETARDER ▶ 3 - Brakes, Brake System ▶ 3-58 - FIXING PARTS; OIL PIPING ▶
3-58 — FIXING PARTS; OIL PIPING (#14389) — 10 parça
çizim 95944
9 38 138 69 153 153 138 69 9 9 153 138 69 9 153 138 69
BalonParca AdiParca NoAdetTipApplied Date
9 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 06 1 0710-
38 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 01 1 0710-
69 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0710-
69 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 0710-
138 CLIP; TUBE
ID=35 L=33 		1-09700-945-0 05 1 0710-
153 BRACKET; NYLON TUBE
(A) REARWARD 		1-42129-493-1 01 1 0710-
153 BRACKET; NYLON TUBE
(B) FORWARD 		1-42129-499-0 01 1 0710-
153 BRACKET; NYLON TUBE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) FORWARD 		1-42129-494-0 01 1 0710-
153 BRACKET; NYLON TUBE
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) FORWARD 		1-42129-488-1 01 1 0710-

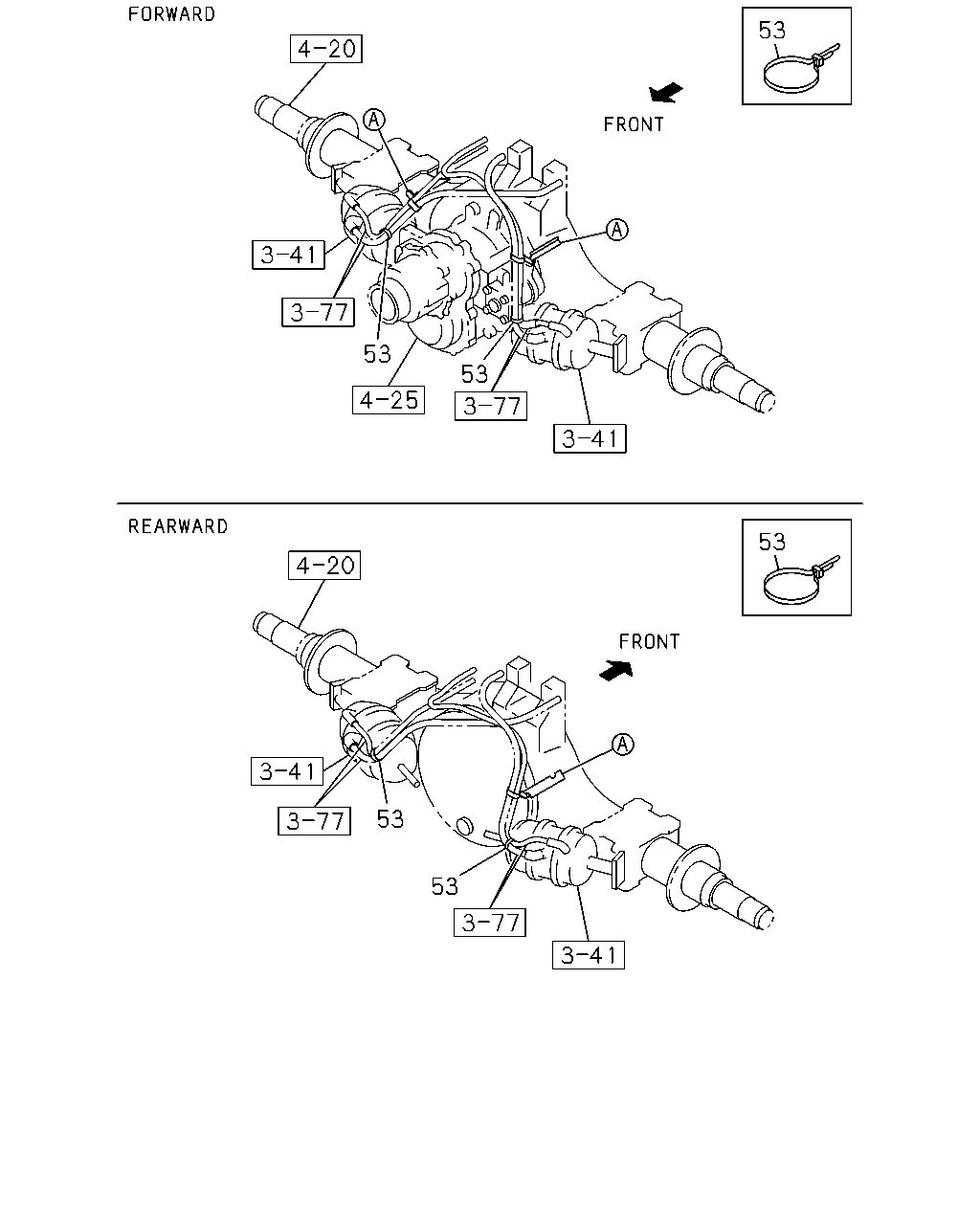

çizim 106693
53 53 53 53 53 53
BalonParca AdiParca NoAdetTipApplied Date
53 CLIP; UNION
L=250 		1-09707-126-0 04 1 0710-
