Isuzu WW
▶
TRUCKS
▶
EXY
▶
11118 - EXY NZ JNST04 EXC.HYDRAULIC RETARDER
▶
3 - Brakes, Brake System
▶

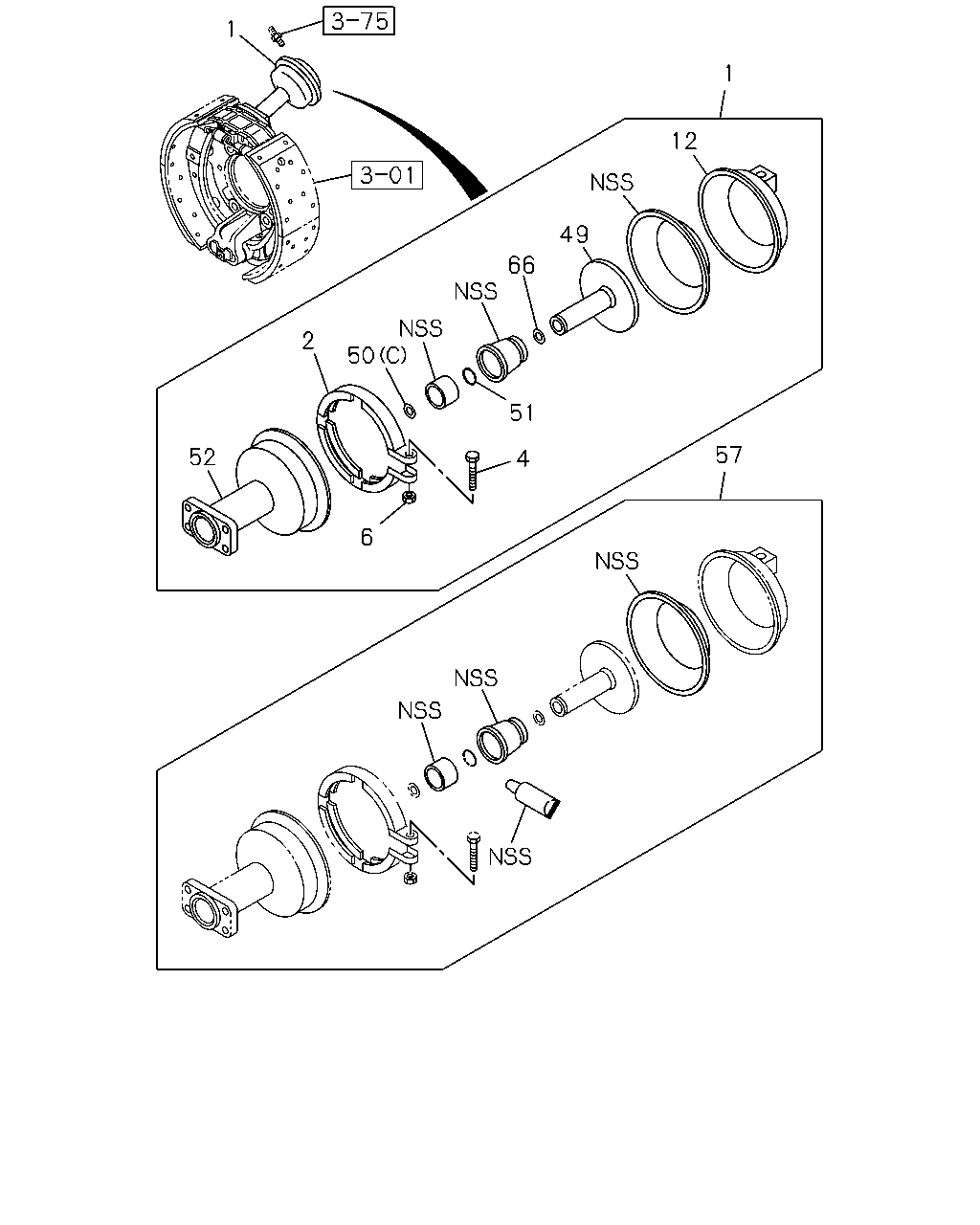

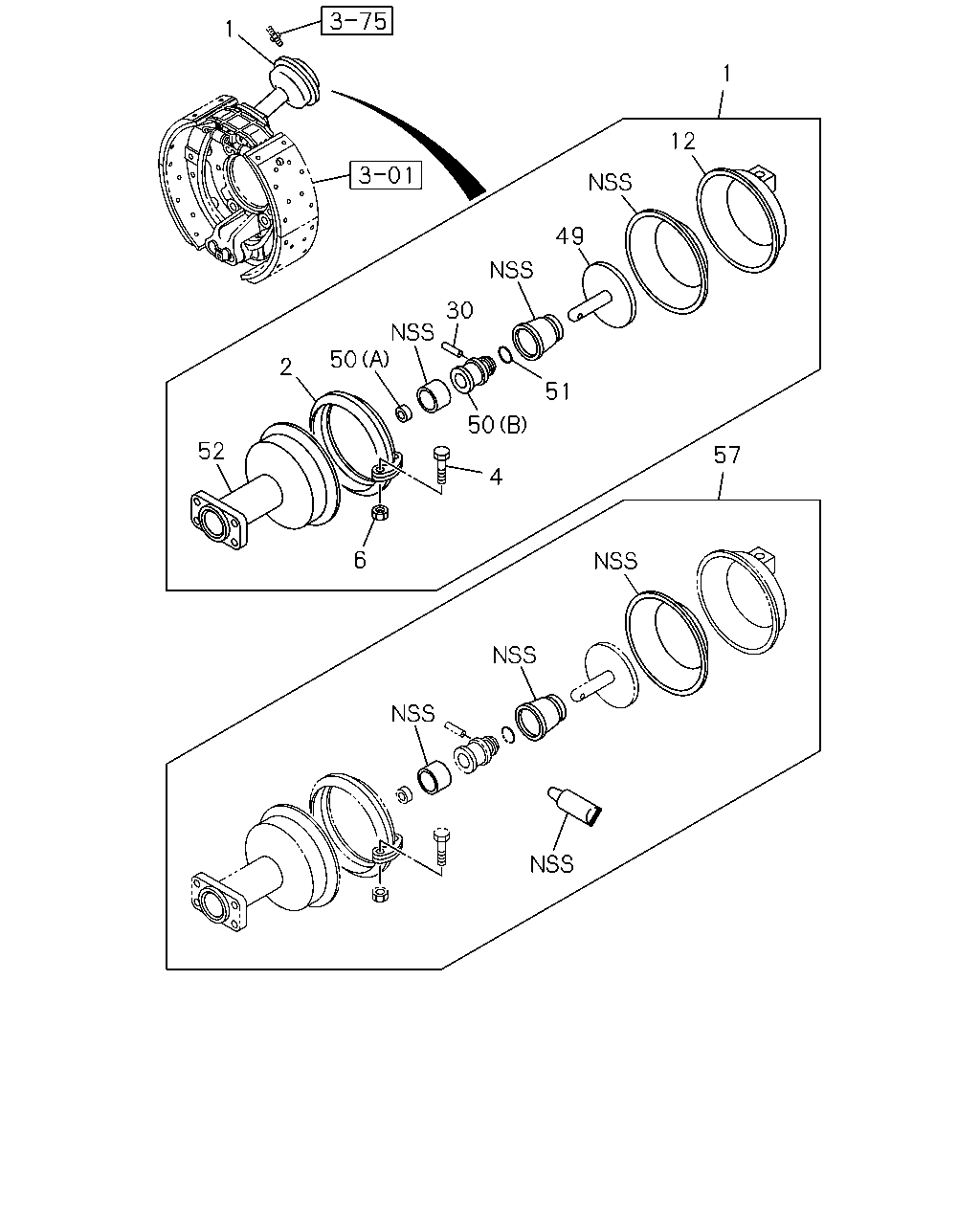

3-40 - FRONT BRAKE POWER CHAMBER
▶
3-40 — FRONT BRAKE POWER CHAMBER
(#14386) — 44 parça
◀
[340A] -'09/10 (22 parça)
[340A] '09/11- (22 parça)
▶
1
1
12
49
30
50
2
51
50
52
57
4
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CHAMBER ASM; POWER,FRT BRK
1-48250-837-0
02
1
0710-0910
1
CHAMBER ASM; POWER,FRT BRK
8-98145-680-1
02
1
0911-
2
RING; CLAMP,SPR CHAMBER
1-48269-149-0
02
1
0710-0910
2
RING; CLAMP,SPR CHAMBER
1-48269-256-0
02
1
0911-
4
BOLT; CLAMP RING
1-48269-146-0
04
1
0710-0910
4
BOLT; CLAMP RING
1-48269-257-0
02
1
0911-
6
NUT; CLAMP RING
1-48269-147-0
04
1
0710-0910
6
NUT; CLAMP RING
1-48269-147-0
02
1
0911-
12
COVER ASM; LWR,SPR CHAMBER
1-48251-103-0
02
1
0710-
30
PIN; STRAIGHT,SPR CHAMBER
1-48269-153-0
02
1
0710-0910
49
ROD; PUSH,SPR CHAMBER
1-48263-020-0
02
1
0710-0910
49
ROD; PUSH,SPR CHAMBER
8-98146-969-1
02
1
0911-
50
GUIDE; SPR CHAMBER
(A)
1-48269-152-0
02
1
0710-0910
50
GUIDE; SPR CHAMBER
(C)
8-98146-963-1
02
1
0911-
50
GUIDE; SPR CHAMBER
(B)
1-48269-154-0
02
1
0710-0910
51
RING; SPR CHAMBER
1-48269-155-0
02
1
0710-0910
51
RING; SPR CHAMBER
8-98146-966-0
02
1
0911-
52
HOUSING; SPR CHAMBER
1-48251-153-0
02
1
0710-0910
52
HOUSING; SPR CHAMBER
1-48251-195-1
02
1
0911-1403
52
HOUSING; SPR CHAMBER
8-98248-793-0
02
1
1404-
57
REPAIR KIT; SPR CHAMBER
1-85576-326-0
02
1
0710-0910
57
REPAIR KIT; SPR CHAMBER
8-98146-978-0
02
1
0911-
1
1
12
49
66
50
2
51
57
52
4
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CHAMBER ASM; POWER,FRT BRK
1-48250-837-0
02
1
0710-0910
1
CHAMBER ASM; POWER,FRT BRK
8-98145-680-1
02
1
0911-
2
RING; CLAMP,SPR CHAMBER
1-48269-149-0
02
1
0710-0910
2
RING; CLAMP,SPR CHAMBER
1-48269-256-0
02
1
0911-
4
BOLT; CLAMP RING
1-48269-146-0
04
1
0710-0910
4
BOLT; CLAMP RING
1-48269-257-0
02
1
0911-
6
NUT; CLAMP RING
1-48269-147-0
04
1
0710-0910
6
NUT; CLAMP RING
1-48269-147-0
02
1
0911-
12
COVER ASM; LWR,SPR CHAMBER
1-48251-103-0
02
1
0710-
49
ROD; PUSH,SPR CHAMBER
1-48263-020-0
02
1
0710-0910
49
ROD; PUSH,SPR CHAMBER
8-98146-969-1
02
1
0911-
50
GUIDE; SPR CHAMBER
(A)
1-48269-152-0
02
1
0710-0910
50
GUIDE; SPR CHAMBER
(C)
8-98146-963-1
02
1
0911-
50
GUIDE; SPR CHAMBER
(B)
1-48269-154-0
02
1
0710-0910
51
RING; SPR CHAMBER
1-48269-155-0
02
1
0710-0910
51
RING; SPR CHAMBER
8-98146-966-0
02
1
0911-
52
HOUSING; SPR CHAMBER
1-48251-153-0
02
1
0710-0910
52
HOUSING; SPR CHAMBER
1-48251-195-1
02
1
0911-1403
52
HOUSING; SPR CHAMBER
8-98248-793-0
02
1
1404-
57
REPAIR KIT; SPR CHAMBER
1-85576-326-0
02
1
0710-0910
57
REPAIR KIT; SPR CHAMBER
8-98146-978-0
02
1
0911-
66
SHIM
8-98146-965-0
AR
1
0911-
