3-26 — TRAILER CONTROL (#14384) — 99 parça

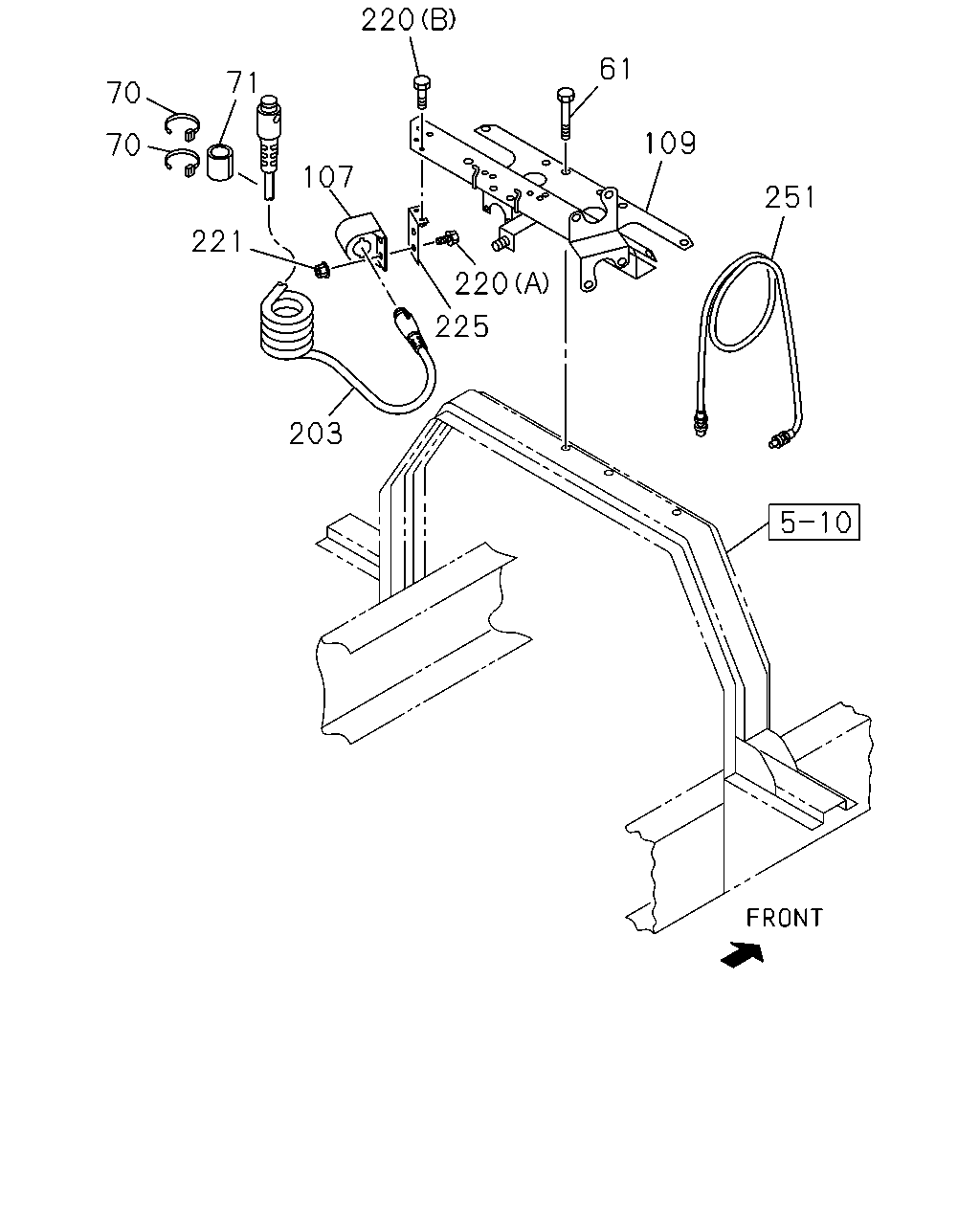

çizim 95848
220 61 109 251 71 70 70 107 221 220 225 203
BalonParca AdiParca NoAdetTipApplied Date
61 BOLT; STEP BOARD
M10X30 FLANGE 		0-28651-030-0 06 1 0710-
70 CLIP; BAND,JUMPER HOSE
L=250 		5-09707-030-1 10 1 0710-
71 RUBBER; STEP BOARD
ID=38.1 L=50 		5-09360-835-0 02 1 0710-
107 HANGER; JUMPER HOSE 1-57550-022-2 01 1 0710-
109 BRACKET; HOSE HANGER 1-53497-718-1 01 1 0710-
203 CABLE; JUMPER
L=5500 		1-82659-201-2 01 1 0710-1009
203 CABLE; JUMPER
L=5500 		8-98107-178-0 01 1 1010-
220 BOLT; HANGER
(A) M6X16 FLANGE 		0-28650-616-0 02 1 0710-
220 BOLT; HANGER
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0710-
221 NUT; HANGER
M6 FLANGE 		0-91180-106-0 02 1 0710-
225 BRACKET; HANGER 1-82698-002-0 01 1 0710-
251 CABLE; JUMPER,EBS 1-82659-210-2 01 1 0710-

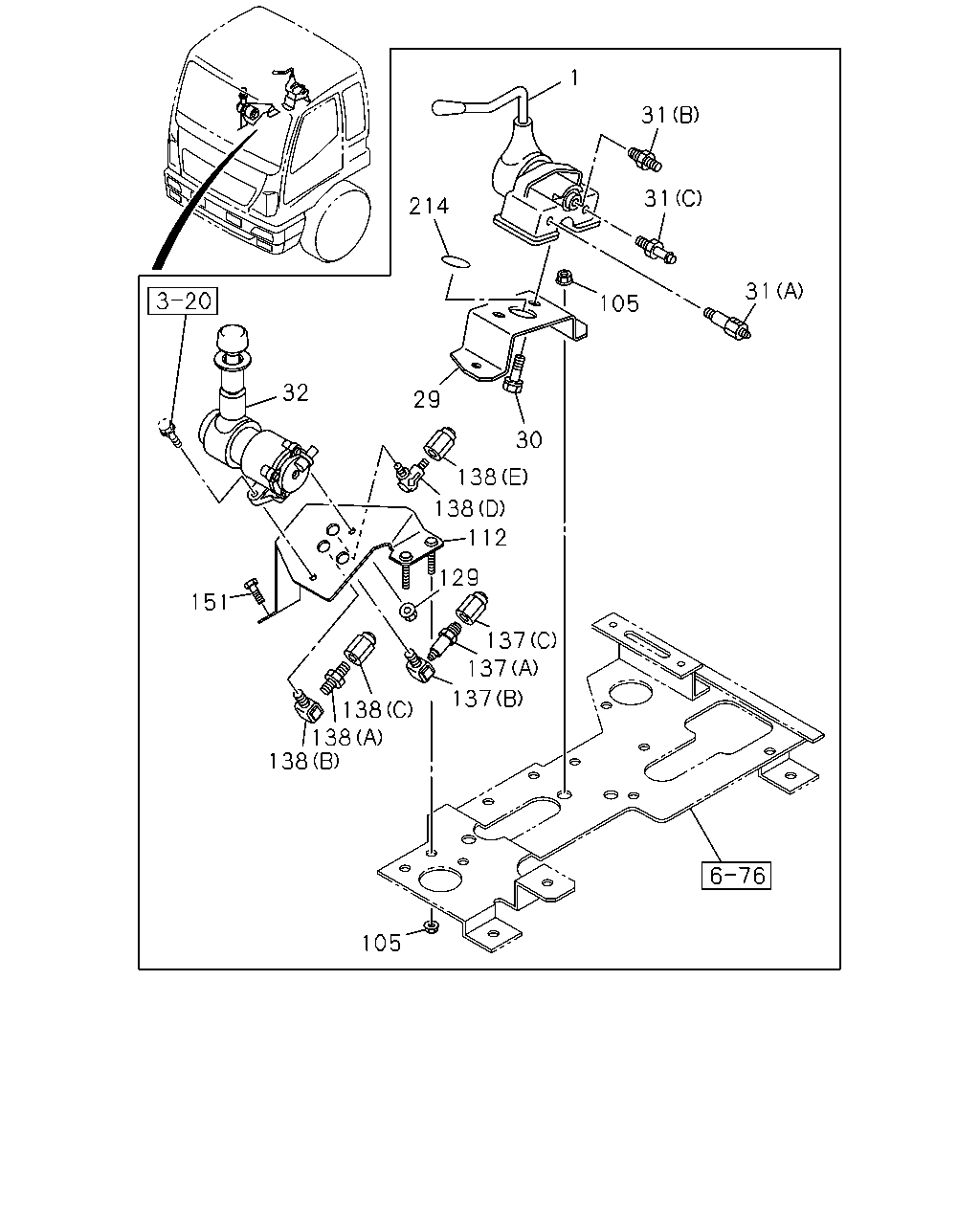

çizim 95928
1 31 31 1 105 214 32 29 30 138 138 112 129 151 137 137 137 138 138 138 105
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE ASM; HAND BRK 1-48100-859-0 01 1 0710-
29 BRACKET; HAND BRK 1-79997-357-1 01 1 0710-
30 BOLT; BRKT,HAND BRK VLV
M10X20 W/LK WASHER 		0-50541-020-0 02 1 0710-
31 CONNECTOR; HAND BRK VLV
(B) M16 & PT1/4 STRAIGHT 		0-92121-810-0 01 1 0710-
31 CONNECTOR; HAND BRK VLV
(A) M14 		1-09656-391-2 01 1 0710-
31 CONNECTOR; HAND BRK VLV
(C) L=45 		8-94338-874-0 01 1 0710-
32 VALVE; BRK,HAND CONT 1-48460-339-1 01 1 0710-
105 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0710-
112 BRACKET; CONT VLV 1-79996-387-0 01 1 0710-
129 NUT; VLV
M8 FLANGE 		0-91180-108-0 01 1 0710-
129 NUT; VLV
M8 FLANGE 		0-91180-108-0 03 1 0710-
137 CONNECTOR; SUPPLY
(A) 		1-09650-352-1 01 1 0710-
137 CONNECTOR; SUPPLY
(B) PT1/4 2WAY 		1-09660-693-0 01 1 0710-
137 CONNECTOR; SUPPLY
(C) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0710-
138 CONNECTOR; DELIVERY
(D) 		1-09650-263-2 01 1 0710-
138 CONNECTOR; DELIVERY
(A) M14 & PT1/4 STRAIGHT 		1-09650-332-1 01 1 0710-
138 CONNECTOR; DELIVERY
(B) PT1/4 2WAY 		1-09660-693-0 01 1 0710-
138 CONNECTOR; DELIVERY
(C) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0710-
138 CONNECTOR; DELIVERY
(E) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0710-
151 BOLT; VLV BRKT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0710-
214 SEAL; COVER,HAND BRK
OD=25 BLACK 		1-76798-019-0 01 1 0710-

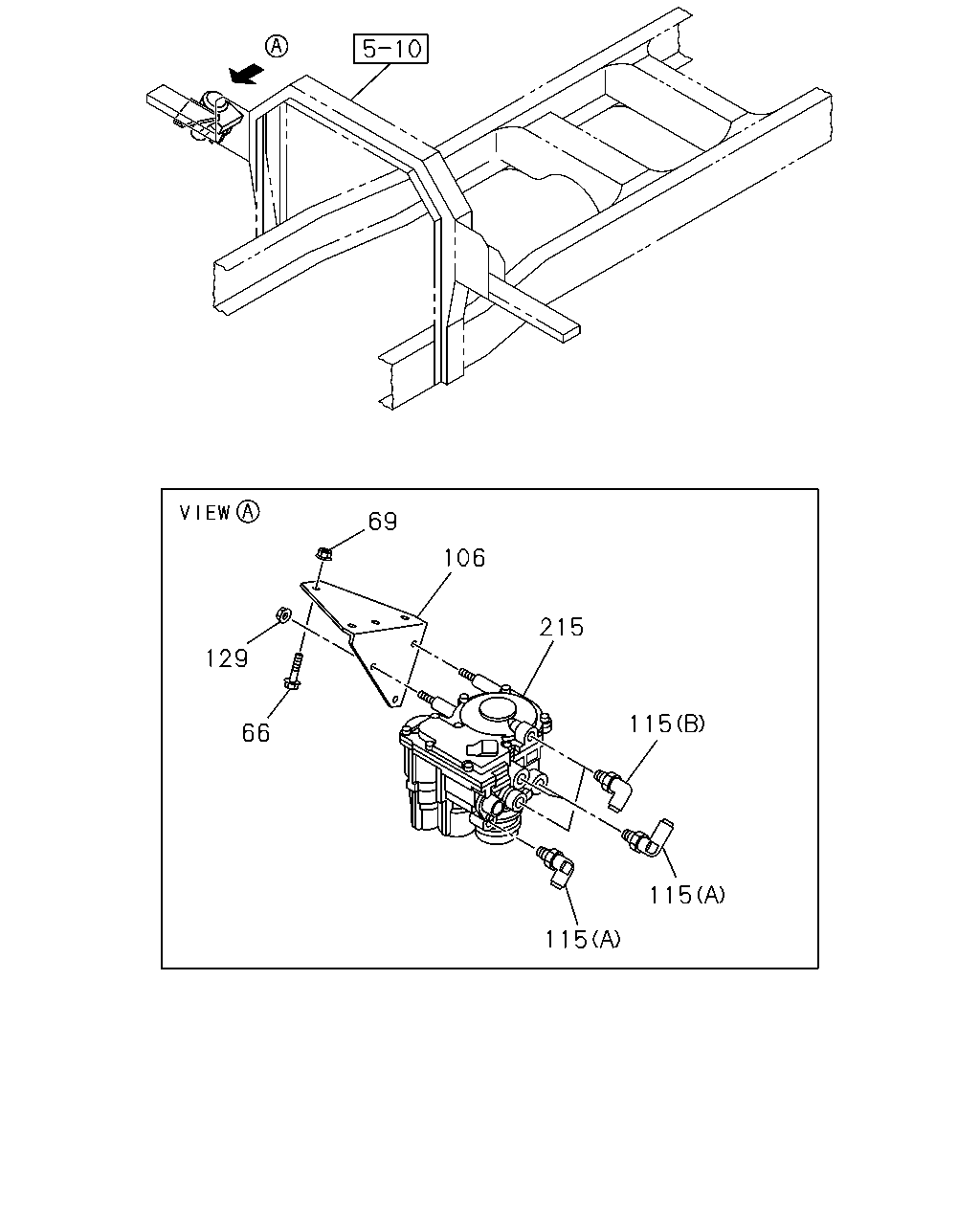

çizim 95940
69 106 215 115 115 115 66 129
BalonParca AdiParca NoAdetTipApplied Date
66 BOLT; VLV BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0710-
66 BOLT; VLV BRKT
M10X25 FLANGE 		0-28651-025-0 02 1 0710-
69 NUT; VLV BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710-
69 NUT; VLV BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-
106 BRACKET; VLV 1-48495-273-0 01 1 0710-
115 CONNECTOR; DUAL RELAY VLV
(A) DIN12 & M22 ELBOW 		1-09661-521-0 03 1 0710-
115 CONNECTOR; DUAL RELAY VLV
(B) DIN8 & M16 ELBOW 		1-09661-531-0 02 1 0710-
129 NUT; VLV
M8 FLANGE 		0-91180-108-0 01 1 0710-
129 NUT; VLV
M8 FLANGE 		0-91180-108-0 03 1 0710-
215 VALVE; TRAILER CONT 1-48240-191-1 01 1 0710-

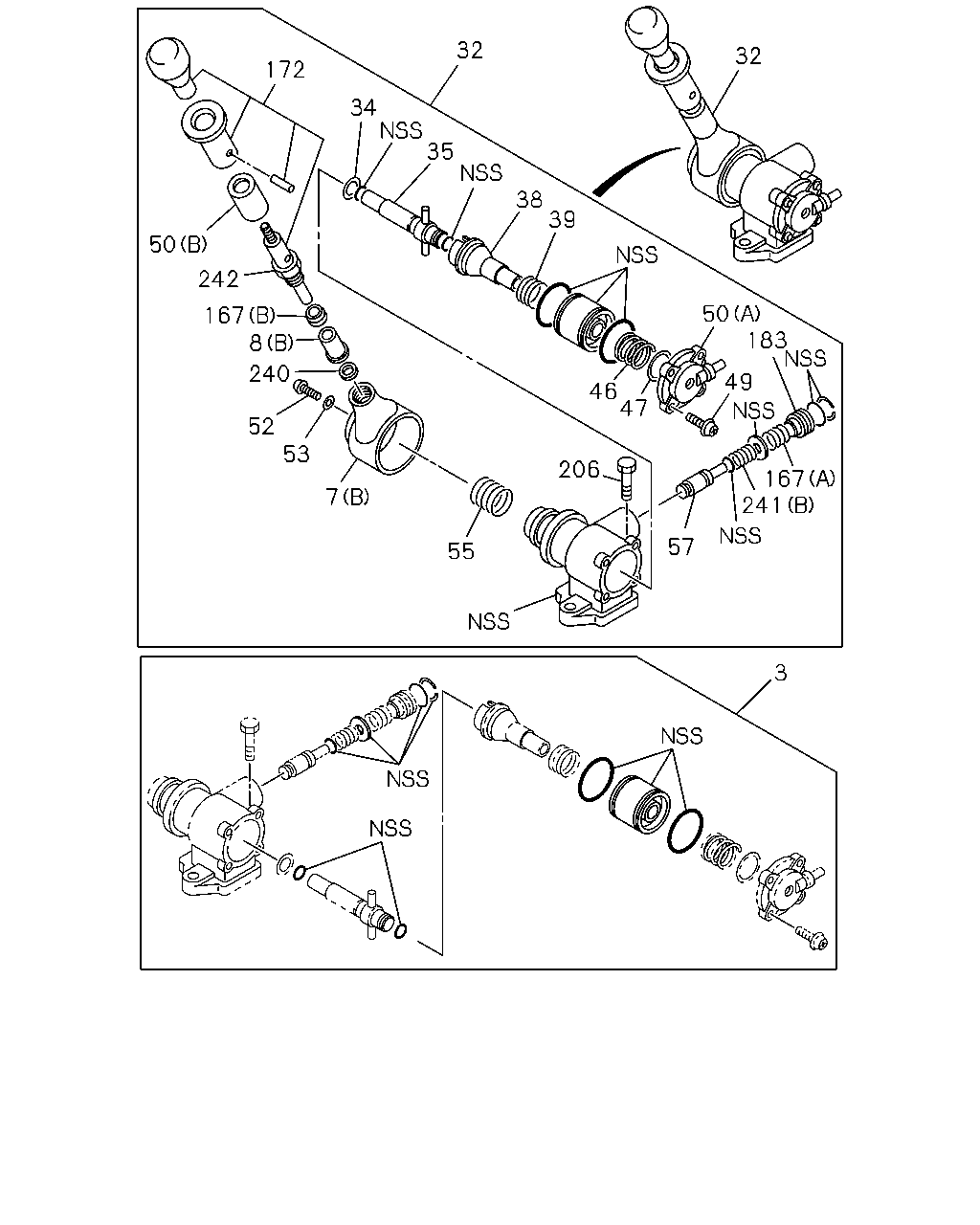

çizim 96044
32 32 172 34 35 38 39 50 183 49 46 47 167 241 57 206 55 7 53 52 240 8 167 242 50 3
BalonParca AdiParca NoAdetTipApplied Date
3 REPAIR KIT; HAND BRK VLV 1-85576-376-0 01 1 0710-
7 HEAD; BRK VLV
(A) 		1-48119-577-1 01 1 0710-
7 HEAD; BRK VLV
(B) 		1-48469-201-0 01 1 0710-
8 STOPPER; BRK VLV
(A) 		1-48119-327-0 01 1 0710-
8 STOPPER; BRK VLV
(B) 		1-48469-200-0 01 1 0710-
32 VALVE; BRK,HAND CONT 1-48460-339-1 01 1 0710-
34 SHIM; CAM HOLDER 1-48469-055-0 AR 1 0710-
35 HOLDER; CAM 1-48469-171-0 01 1 0710-
38 SEAT; EXH VLV 1-48469-172-0 01 1 0710-
39 SPRING; RETURN,CAM RING 1-48469-150-0 01 1 0710-
46 SPRING; MAIN,PISTON 1-48469-173-0 01 1 0710-
47 SHIM; MAIN SPRING 1-48469-072-0 AR 1 0710-
49 SCREW; COVER 1-48469-169-0 04 1 0710-
50 COVER; HAND BRK VLV
(A) 		1-48469-153-0 01 1 0710-
50 COVER; HAND BRK VLV
(B) 		1-48469-196-0 01 1 0710-
52 SCREW; HANDLE 1-48469-062-0 01 1 0710-
53 WASHER; HANDLE 1-48469-061-0 01 1 0710-
55 SPRING; RETURN,HANDLE 1-48469-155-0 01 1 0710-
57 PLUNGER; HAND BRK VLV 1-48469-180-0 01 1 0710-
167 SPRING; VALVE
(A) 		1-48469-177-0 01 1 0710-
167 SPRING; VALVE
(B) 		1-48469-184-0 01 1 0710-
172 KNOB; VALVE 1-48469-203-0 01 1 0710-
183 RETAINER; VALVE 1-48469-185-0 01 1 0710-
206 BOLT; HAND BRK VALVE 1-48469-160-0 01 1 0710-
240 RING; STOPPER 1-48469-199-0 01 1 0710-
241 SPRING; RETURN
(A) 		1-48119-576-0 01 1 0710-
241 SPRING; RETURN
(B) 		1-48469-182-0 01 1 0710-
242 NUT; LK 1-48469-179-0 01 1 0710-

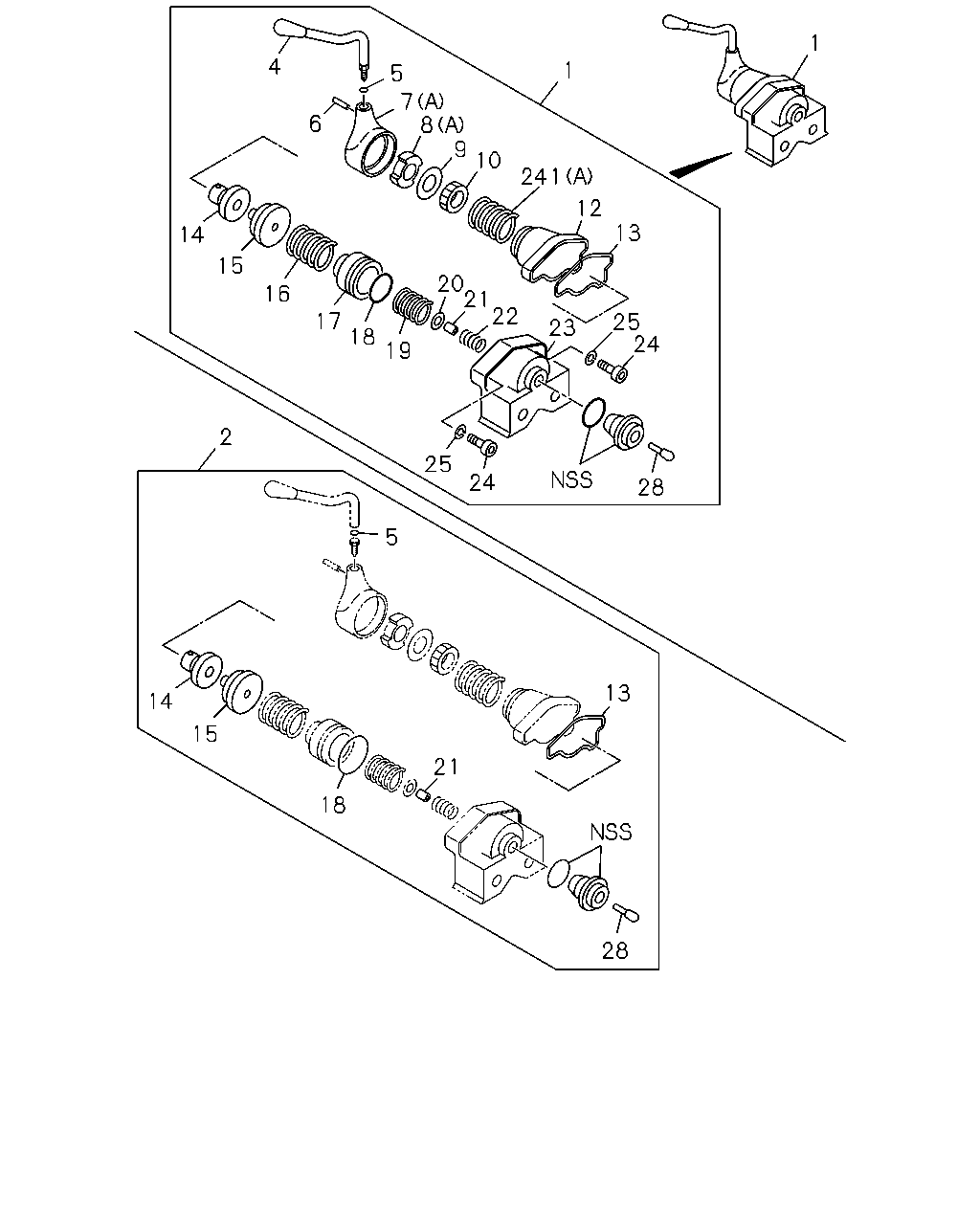

çizim 106668
1 1 4 5 7 8 6 9 10 241 12 13 14 15 16 17 18 19 20 21 22 23 25 24 25 24 28 2 5 13 14 15 21 18 28
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE ASM; HAND BRK 1-48100-859-0 01 1 0710-
2 REPAIR KIT; HAND BRK VLV 1-85576-305-0 01 1 0710-
4 HANDLE ASM; BRK VLV 1-48119-580-1 01 1 0710-
5 GASKET; HANDLE 1-48119-128-0 01 1 0710-
6 PIN; SPR 1-48119-143-0 01 1 0710-
7 HEAD; BRK VLV
(A) 		1-48119-577-1 01 1 0710-
7 HEAD; BRK VLV
(B) 		1-48469-201-0 01 1 0710-
8 STOPPER; BRK VLV
(A) 		1-48119-327-0 01 1 0710-
8 STOPPER; BRK VLV
(B) 		1-48469-200-0 01 1 0710-
9 WASHER; LK,ADJ 1-48119-123-0 01 1 0710-
10 RING; ADJ 1-48119-122-0 01 1 0710-
12 COVER; BRK VLV 1-48129-319-1 01 1 0710-
13 GASKET; BODY TO COVER 1-48119-120-0 01 1 0710-
14 FOLLOWER; CAM 1-48129-135-0 01 1 0710-
15 CAM; FOLLOWER 1-48129-134-0 01 1 0710-
16 SPRING; GRUDUATING 1-48129-101-0 01 1 0710-
17 PISTON; SPR 1-48129-095-0 01 1 0710-
18 GASKET; BODY 1-48129-096-0 01 1 0710-
19 SPRING; PISTON 1-48129-094-0 01 1 0710-
20 GUIDE; VLV 1-48129-090-0 01 1 0710-
21 VALVE; IN & EXH 1-48121-017-0 01 1 0710-
22 SPRING; VLV 1-48123-024-0 01 1 0710-
23 BODY; BRK VLV 1-48111-060-1 01 1 0710-
24 BOLT; EXH VLV 1-48129-092-0 02 1 0710-
25 WASHER; LK,EXH VLV 1-48129-093-0 02 1 0710-
28 STEM ASM; BRK VLV 1-48129-089-0 01 1 0710-
241 SPRING; RETURN
(A) 		1-48119-576-0 01 1 0710-
241 SPRING; RETURN
(B) 		1-48469-182-0 01 1 0710-
