3-22 — AIR CONTROL PARTS (#14383) — 46 parça

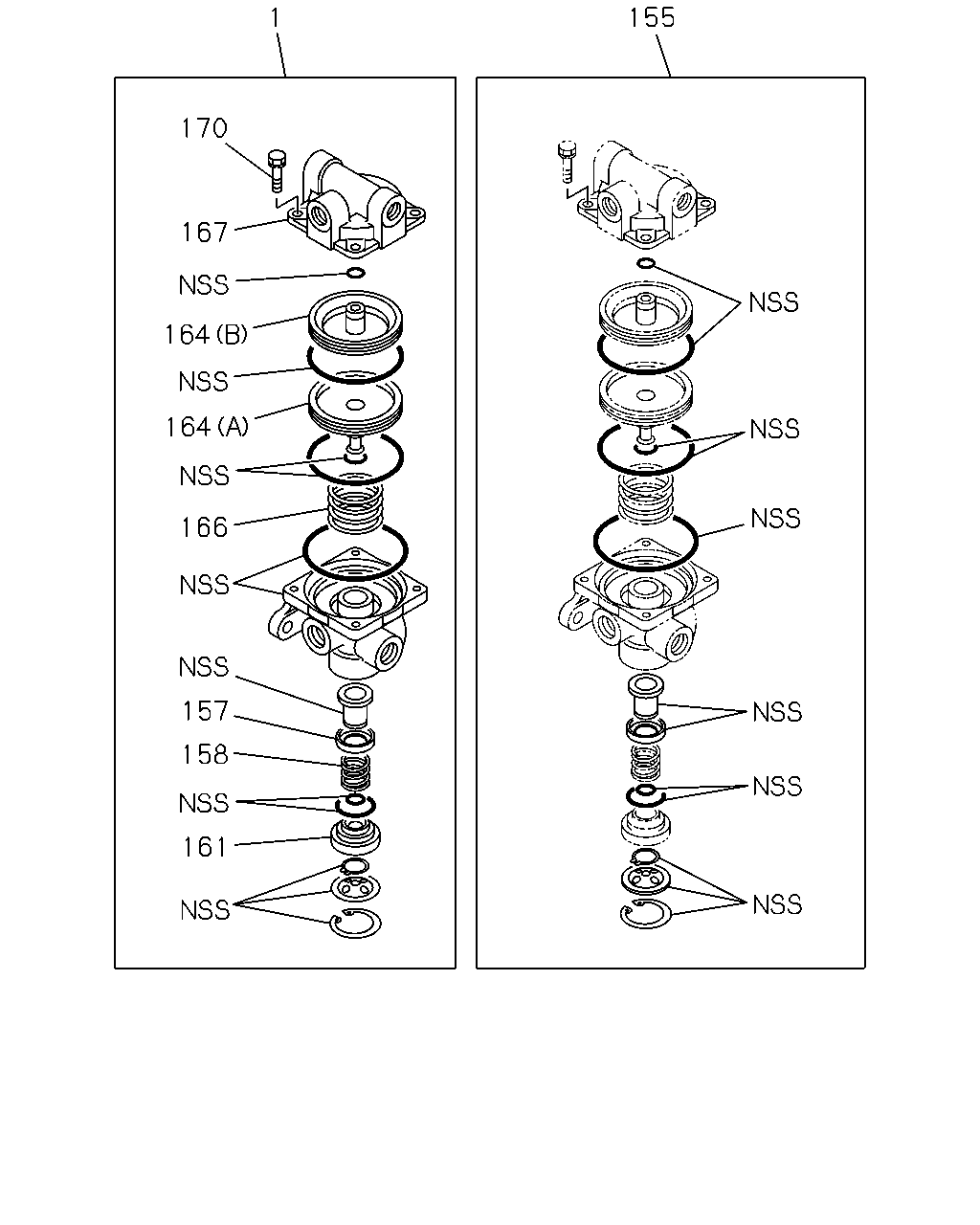

çizim 95929
155 1 170 167 164 164 166 157 158 161
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR 1-48240-041-1 01 1 0710-
155 REPAIR KIT; RELAY VALVE 1-85576-035-0 01 1 0710-
157 RETAINER; VALVE 1-48213-002-0 01 1 0710-
158 SPRING; VALVE 1-47819-089-0 01 1 0710-
161 GUIDE; VALVE 1-48129-014-0 01 1 0710-
164 PISTON; RELAY VALVE
(A) 		1-48219-032-0 01 1 0710-
164 PISTON; RELAY VALVE
(B) 		1-48219-047-0 01 1 0710-
166 SPRING; PISTON 1-48219-048-0 01 1 0710-
167 COVER; VALVE 1-48219-050-1 01 1 0710-
170 SCREW; COVER TO BODY 1-48219-041-0 04 1 0710-

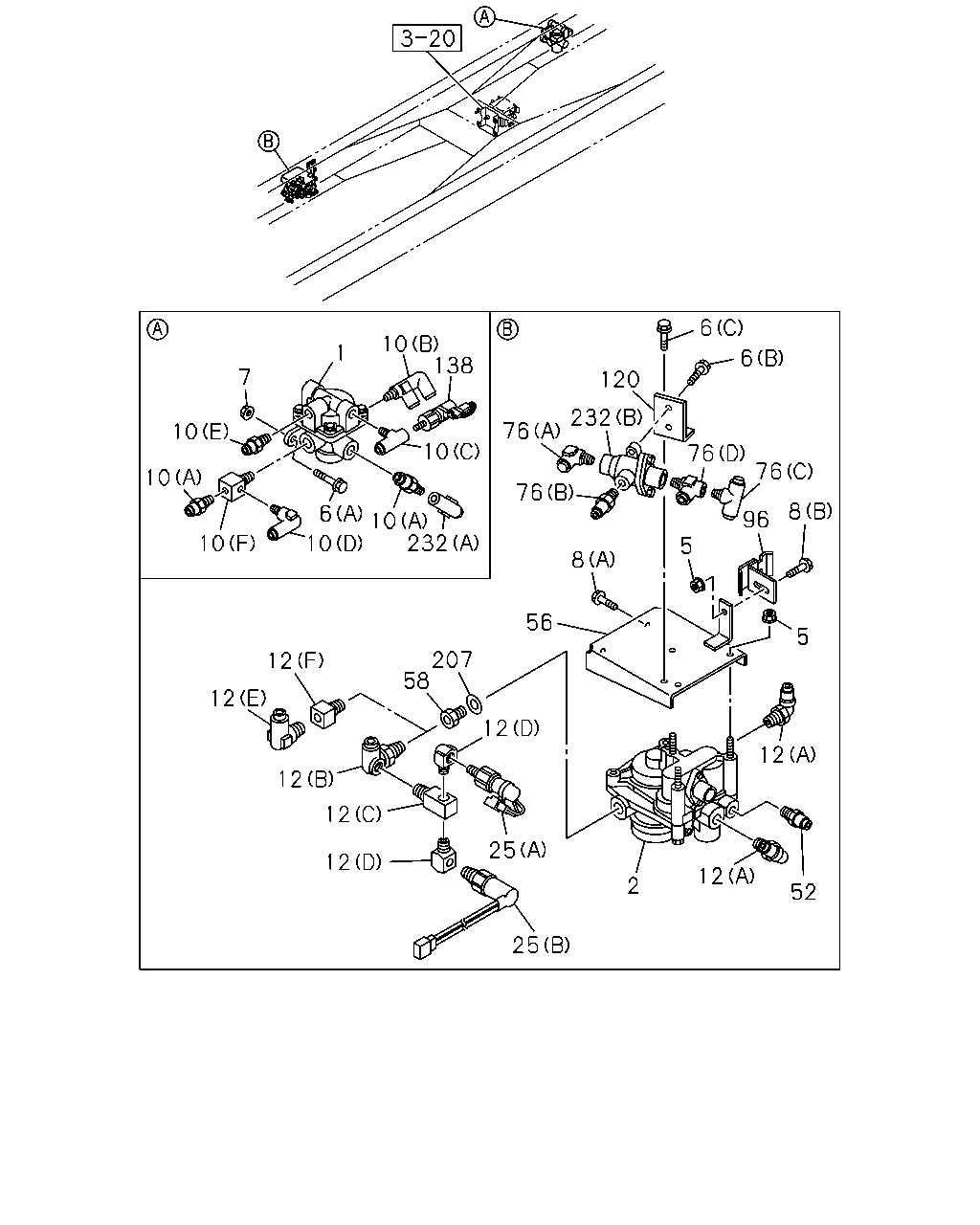

çizim 106710
6 10 138 1 6 7 120 232 76 10 10 76 76 10 76 10 232 8 6 96 10 10 5 8 56 5 207 58 12 12 12 12 12 12 25 12 12 2 52 25
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR 1-48240-041-1 01 1 0710-
2 VALVE; RELAY 1-48240-245-1 01 1 0710-
5 NUT
M8 FLANGE 		0-91180-108-0 04 1 0710-
6 BOLT; VLV
(B) M8X12 FLANGE 		0-28050-812-0 02 1 0710-
6 BOLT; VLV
(C) M8X25 FLANGE 		0-28650-825-0 01 1 0710-
6 BOLT; VLV
(A) M10X35 FLANGE 		0-28651-035-0 02 1 0710-
7 NUT; RELAY VLV
M10 FLANGE 		0-91180-210-0 02 1 0710-
8 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0710-
8 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0710-
10 CONNECTOR
(D) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0710-
10 CONNECTOR
(E) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0710-
10 CONNECTOR
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0710-
10 CONNECTOR
(B) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0710-
10 CONNECTOR
(F) PT3/8 3WAY 		1-09661-300-0 01 1 0710-
10 CONNECTOR
(C) DIN8 & RC1/4 & R3/8 3WAY 		8-97620-116-0 01 1 0710-
12 CONNECTOR; RELAY VLV
(C) 		1-09660-363-0 01 1 0710-0805
12 CONNECTOR; RELAY VLV
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0806-
12 CONNECTOR; RELAY VLV
(D) PT1/4 2WAY 		1-09660-693-0 02 1 0710-
12 CONNECTOR; RELAY VLV
(B) DIN12 & R3/8 ELBOW 		1-09661-233-0 01 1 0710-0805
12 CONNECTOR; RELAY VLV
(F) 		1-09661-515-0 01 1 0806-
12 CONNECTOR; RELAY VLV
(A) DIN12 & M22 ELBOW 		1-09661-497-0 02 1 0710-
25 SWITCH; PRESSURE
(A) GREEN 		1-82410-176-1 01 1 0710-
25 SWITCH; PRESSURE
(B) 		8-97383-820-1 01 1 0710-
52 CONNECTOR; RELAY VLV
DIN8 & M16 STRAIGHT 		1-09661-530-0 01 1 0710-
56 BRACKET; RELAY VLV 1-48495-246-0 01 1 0710-
58 ADAPTER
INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 0710-
76 CONNECTOR; CONT VLV
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0710-
76 CONNECTOR; CONT VLV
(B) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0710-
76 CONNECTOR; CONT VLV
(C) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0710-
76 CONNECTOR; CONT VLV
(D) DIN8 & R3/8 & RC3/8 3WAY 		1-09661-271-0 01 1 0710-
96 BRACKET 1-47479-693-0 01 1 0710-
120 BRACKET; VLV 1-47479-362-0 01 1 0710-
138 SWITCH; RELAY VALVE 1-48340-067-0 01 1 0710-
207 GASKET; ADAPTER
ID=22.5 		9-09571-422-0 01 1 0710-
232 VALVE; CHECK
(A) 		1-48320-031-1 01 1 0710-
232 VALVE; CHECK
(B) 		1-48410-531-1 01 1 0710-
