3-20 — AIR TANK (#1438) — 81 parça

121 111 111 95 111 121 111 111 95 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
95	VALVE; DOUBLE CHECK NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48410-251-0	01	1	9203-9310
95	VALVE; DOUBLE CHECK NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48410-251-0	02	1	9311-
111	CONNECTOR; CHECK VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09660-534-0	01	1	9203-
111	CONNECTOR; CHECK VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (C)	1-09660-563-0	01	1	9203-
111	CONNECTOR; CHECK VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-09660-572-0	01	1	9203-
111	CONNECTOR; CHECK VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (D)	1-09660-535-0	01	1	9311-
111	CONNECTOR; CHECK VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (E)	1-09660-555-0	02	1	9311-
121	BOLT; DOUBLE CHECK VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X35 FLANGE	0-28010-835-0	01	1	9203-9204
121	BOLT; DOUBLE CHECK VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X35 FLANGE	0-28080-835-0	01	1	9205-9310
121	BOLT; DOUBLE CHECK VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X35 FLANGE	0-28080-835-0	02	1	9311-

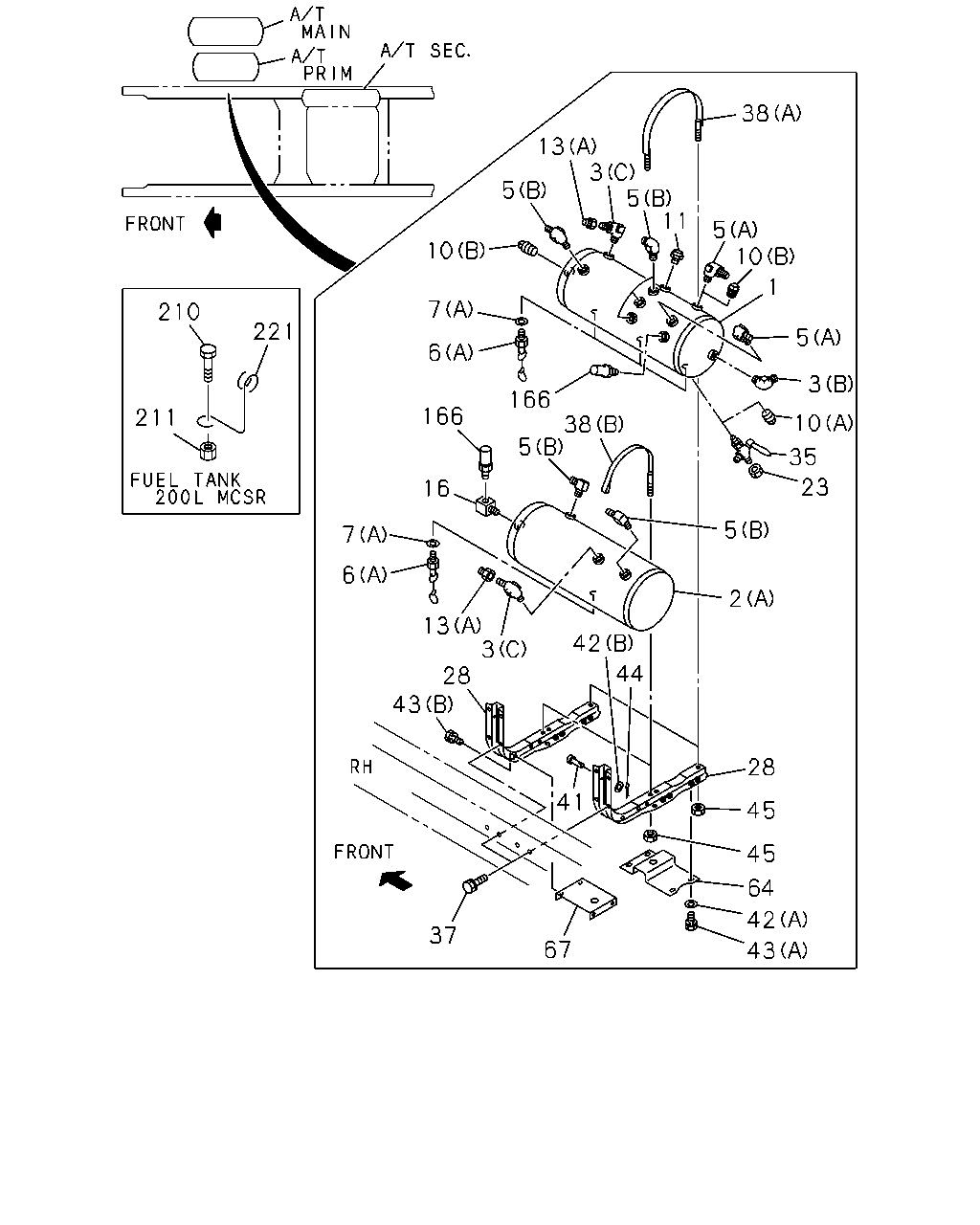

38 13 3 5 11 5 5 10 10 1 7 210 221 5 6 3 166 166 211 10 38 5 35 23 16 5 7 6 2 13 3 42 44 28 43 28 41 45 45 64 42 37 67 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR	1-48330-801-4	01	1	9203-
2	TANK; AIR (A)	1-48330-802-1	01	1	9203-
2	TANK; AIR (B)	1-48330-804-2	01	1	9203-
3	VALVE; CHECK,AIR TANK (A)	1-48410-133-2	01	1	9203-
3	VALVE; CHECK,AIR TANK (C)	1-48410-133-2	02	1	9203-
3	VALVE; CHECK,AIR TANK (B) M22 & PT3/4 ELBOW	1-48410-134-2	01	1	9203-
5	UNION; AIR TANK NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-09660-534-0	05	1	9203-
5	UNION; AIR TANK NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09660-535-0	02	1	9203-
5	UNION; AIR TANK EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-09660-534-0	06	1	9203-
5	UNION; AIR TANK EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09660-535-0	03	1	9203-
6	COCK; DRAIN,AIR TANK (A) W/COVER	1-48312-004-1	04	1	9203-9509
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	04	1	9510-
6	COCK; DRAIN,AIR TANK (B)	1-48312-013-1	01	1	9203-
7	GASKET; DRAIN COCK (B) ID=14.2 OD=19.2	1-09630-085-0	01	1	9203-
7	GASKET; DRAIN COCK (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	9203-
10	PLUG; AIR TANK NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-09605-111-0	02	1	9203-
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4> (A)	9-99204-513-0	01	1	9203-
11	VALVE; SAFETY,AIR TANK	1-48320-003-0	01	1	9203-
13	ADAPTER; NYLON TUBE (B) M20X36	1-09660-576-0	01	1	9203-
13	ADAPTER; NYLON TUBE (A) M20X36	1-09660-576-0	02	1	9203-
16	CONNECTOR; SWITCH	1-09660-640-1	02	1	9203-9302
16	CONNECTOR; SWITCH PT1/2 & NPTF1/2 2WAY	1-09660-695-0	02	1	9303-
23	CAP; COCK,AIR TANK TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	9203-
28	BRACKET; AIR TANK	1-48317-240-4	02	1	9203-
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<SG4>	1-09680-036-0	01	1	9203-
37	BOLT; AIR TANK M12X35 W/LK WASHER	0-50041-235-0	08	1	9203-
38	BAND; AIR TANK (A)	1-48317-108-2	02	1	9203-
38	BAND; AIR TANK (B)	1-48317-109-2	02	1	9203-
41	PIN; BAND FIX	9-08221-060-0	02	1	9203-
42	WASHER; PL (A) ID=8.4 OD=22	9-09160-708-0	04	1	9203-
42	WASHER; PL (B) ID=10.5	9-09164-510-0	02	1	9203-
43	BOLT; STAY,AIR TANK,MAIN (A) M8X25 W/LK WASHER	0-50040-825-0	04	1	9203-
43	BOLT; STAY,AIR TANK,MAIN (B) M6X20 W/LK&PL WASHER	0-50140-620-0	04	1	9203-
44	PIN; SPLIT OD=2.8 L=18	9-08113-018-0	02	1	9203-
45	NUT; AIR TANK,MAIN M8	9-09110-408-0	12	1	9203-
64	STAY; AIR TANK,MAIN	1-48317-220-1	01	1	9203-
67	STAY; SUB TANK	1-48317-271-0	01	1	9203-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK	1-48340-040-0	02	1	9203-9411
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-0	02	1	9412-
210	BOLT; STRING GUIDE FUEL TANK 200L MCSR(PK6) M8X20 FLANGE	0-28010-820-0	03	1	9203-9204
210	BOLT; STRING GUIDE FUEL TANK 200L MCSR(PK6) M8X20 FLANGE	0-28080-820-0	03	1	9205-
211	NUT; STRING GUIDE FUEL TANK 200L MCSR(PK6) M8	9-09110-408-0	03	1	9203-
221	GUIDE; STRING,AIR TANK FUEL TANK 200L MCSR(PK6)	1-48319-091-0	03	1	9203-

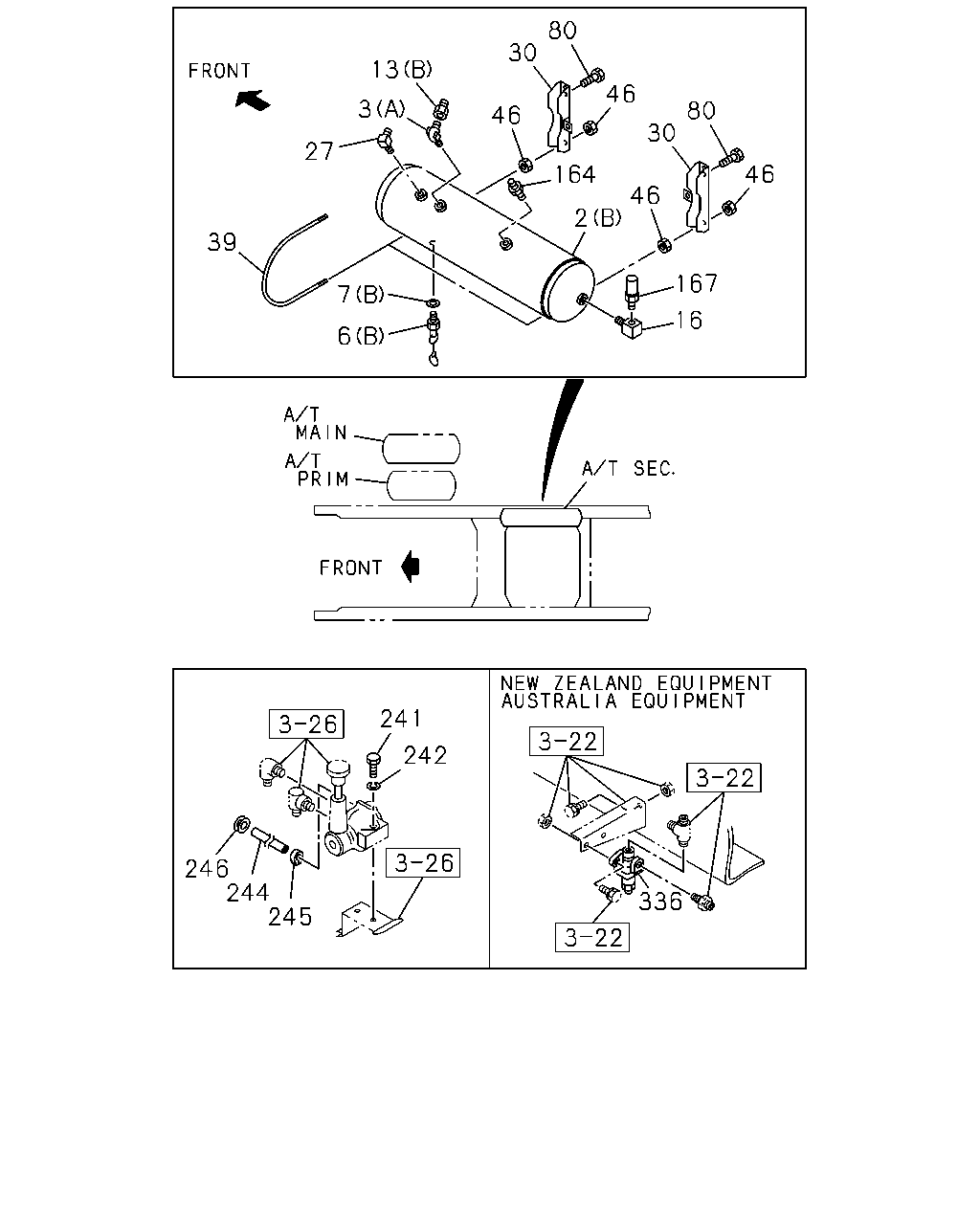

80 30 13 46 3 80 46 30 27 46 164 46 2 39 167 7 16 6 241 242 246 244 245 336

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	TANK; AIR (A)	1-48330-802-1	01	1	9203-
2	TANK; AIR (B)	1-48330-804-2	01	1	9203-
3	VALVE; CHECK,AIR TANK (A)	1-48410-133-2	01	1	9203-
3	VALVE; CHECK,AIR TANK (C)	1-48410-133-2	02	1	9203-
3	VALVE; CHECK,AIR TANK (B) M22 & PT3/4 ELBOW	1-48410-134-2	01	1	9203-
6	COCK; DRAIN,AIR TANK (A) W/COVER	1-48312-004-1	04	1	9203-9509
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	04	1	9510-
6	COCK; DRAIN,AIR TANK (B)	1-48312-013-1	01	1	9203-
7	GASKET; DRAIN COCK (B) ID=14.2 OD=19.2	1-09630-085-0	01	1	9203-
7	GASKET; DRAIN COCK (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	9203-
13	ADAPTER; NYLON TUBE (B) M20X36	1-09660-576-0	01	1	9203-
13	ADAPTER; NYLON TUBE (A) M20X36	1-09660-576-0	02	1	9203-
16	CONNECTOR; SWITCH	1-09660-640-1	02	1	9203-9302
16	CONNECTOR; SWITCH PT1/2 & NPTF1/2 2WAY	1-09660-695-0	02	1	9303-
27	UNION; ELBOW,AIR TANK	1-09660-534-0	01	1	9203-
30	BRACKET; AIR TANK,SUB	1-48317-494-0	02	1	9203-
39	U-BOLT; AIR TANK L=250	1-48317-308-0	02	1	9203-
46	NUT; U-BOLT M8	9-09110-408-0	08	1	9203-
80	BOLT; BRKT M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	9203-
164	CONNECTOR; SUB AIR TANK	1-09660-531-0	01	1	9203-
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB	1-48340-040-0	01	1	9203-9411
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB 530KPA	1-48340-054-0	01	1	9412-
241	BOLT; SET,CONT VLV M8X65	0-10805-865-0	02	1	9203-
242	WASHER; LK,CONT VLV ID=8.2	9-09150-508-0	02	1	9203-
244	PIPE; VINYL,EXH L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9203-
245	CLIP; VINYL PIPE ID=15	9-09715-098-0	01	1	9203-
246	GROMMET; VINYL PIPE OD=24	9-61166-007-0	01	1	9203-
336	VALVE; PROTECTION NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48110-006-0	01	1	9203-
