3-08 — PARKING BRAKE (#14379) — 70 parça

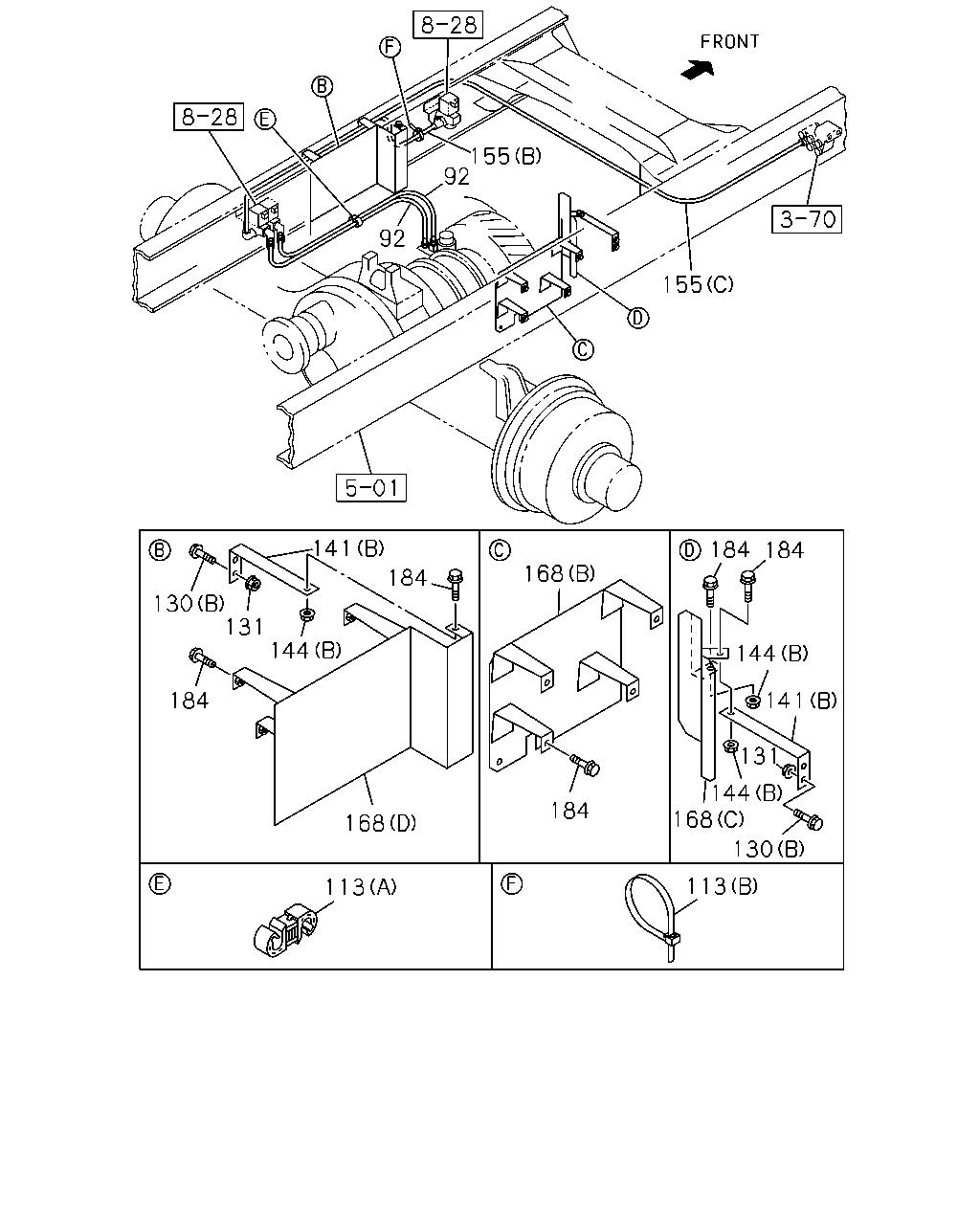

155 92 92 155 184 184 144 141 131 144 168 130 113 184 168 184 141 130 131 144 184 168 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> L=390	1-09363-616-0	02	1	0710-
113	CLIP; HOSE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) L=350	1-09707-183-0	01	1	0710-
113	CLIP; HOSE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=10 & 10	1-09709-277-1	01	1	0710-
130	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X25 FLANGE	0-28650-825-0	04	1	0710-
130	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6X14 HEX SOCKET	1-48629-145-0	01	1	0710-
131	NUT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91180-108-0	04	1	0710-
141	BRACKET BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-47479-803-0	02	1	0710-
141	BRACKET BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-111-2	01	1	0710-
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8 FLANGE	0-91180-108-0	03	1	0710-
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M12	9-09840-280-0	03	1	0710-
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-092-0	01	1	0710-
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) SERVICED BY L=4000 OD=6	1-87411-002-0	01	1	0710-
155	TUBE TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0710-
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-190-0	02	1	0710-
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D)	1-22119-594-0	01	1	0710-
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-22119-592-0	01	1	0710-
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C)	1-22119-593-0	01	1	0710-
184	BOLT; HEAT PROTECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28650-825-0	11	1	0710-

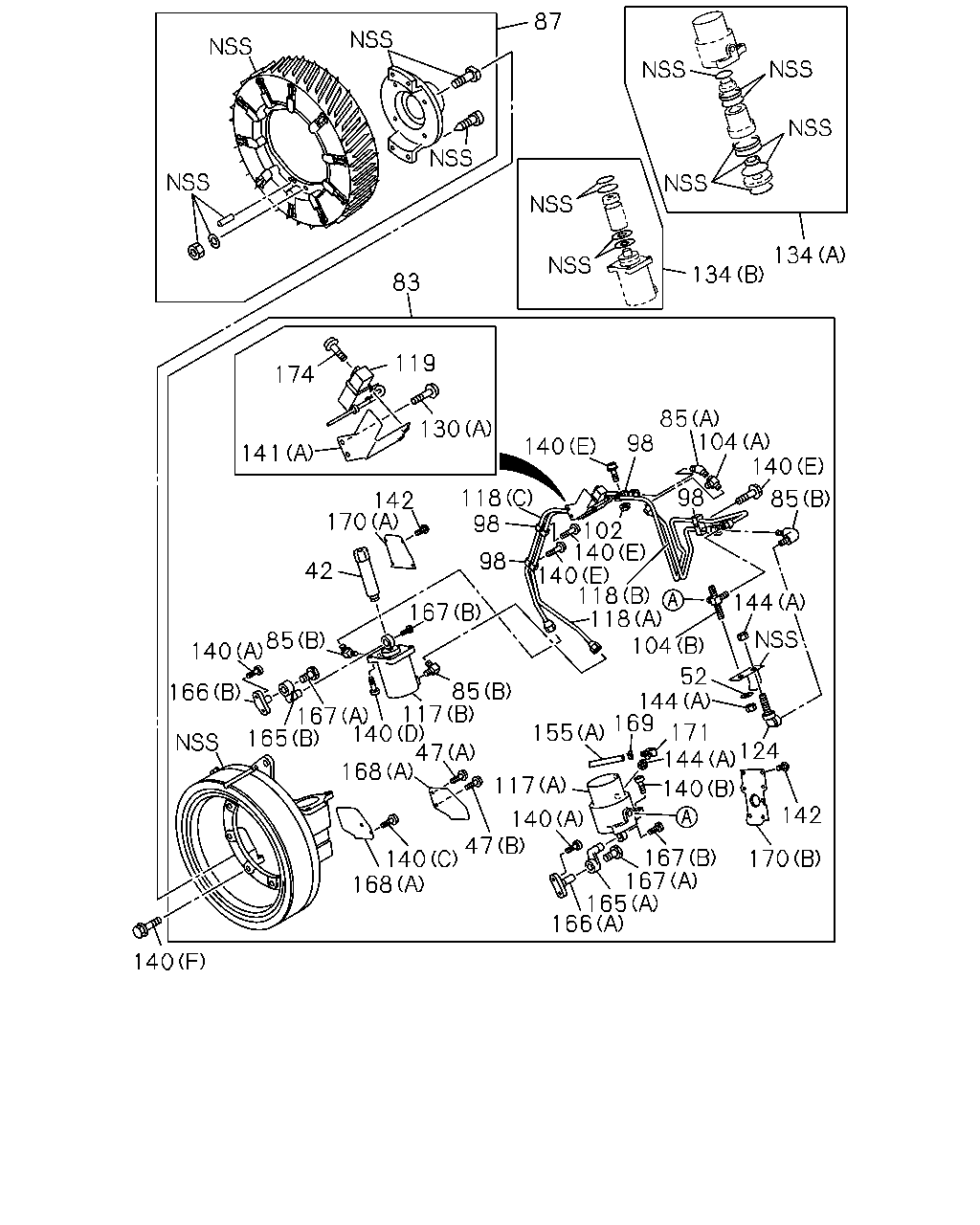

140 168 140 47 166 165 167 167 170 142 140 144 124 171 169 144 52 104 118 118 140 140 102 144 85 140 104 85 98 140 118 98 98 155 117 140 168 47 85 117 140 167 165 166 140 85 167 42 170 142 130 119 83 174 141 134 134 87 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
42	SPRING; RETURN,LEVER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-071-1	01	1	0710-
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X10 HEX SOCKET	1-48629-133-0	01	1	0710-
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6X14 HEX SOCKET	1-48629-145-0	01	1	0710-
52	WASHER; PL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=12.5 OD=26	0-91610-612-0	01	1	0710-
83	RETARDER ASM; PARKING BRK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48610-466-3	01	1	0710-
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/8	0-92124-306-0	03	1	0710-
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-150-0	01	1	0710-
87	DRUM; RETARDER,PARKING BRK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48610-460-2	01	1	0710-
98	CLIP; AIR PIPE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-131-0	10	1	0710-
102	NUT; CLIP,AIR PIPE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	5-09440-004-0	01	1	0710-
104	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-149-0	01	1	0710-
104	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-394-0	01	1	0710-
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-142-0	01	1	0710-
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-146-0	01	1	0710-
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-391-0	01	1	0710-
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C)	1-48629-392-0	01	1	0710-
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-49115-875-0	01	1	0710-
119	SWITCH; THERMO BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82450-054-0	01	1	0710-
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-393-0	01	1	0710-
130	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X25 FLANGE	0-28650-825-0	04	1	0710-
130	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6X14 HEX SOCKET	1-48629-145-0	01	1	0710-
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-137-0	01	1	0710-
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-138-0	01	1	0710-
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (F) M12X35 FLANGE	0-28761-235-0	08	1	0710-
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M10X20	1-48629-070-0	04	1	0710-
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-104-0	03	1	0710-
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M6X10 HEX SOCKET	1-48629-133-0	01	1	0710-
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) M8X18	1-48629-134-0	05	1	0710-
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D)	1-48629-148-0	04	1	0710-
141	BRACKET BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-47479-803-0	02	1	0710-
141	BRACKET BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-111-2	01	1	0710-
142	SCREW BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M5X10 PAN-HD	9-93490-510-0	11	1	0710-
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8 FLANGE	0-91180-108-0	03	1	0710-
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M12	9-09840-280-0	03	1	0710-
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-092-0	01	1	0710-
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) SERVICED BY L=4000 OD=6	1-87411-002-0	01	1	0710-
155	TUBE TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0710-
165	LINK; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-140-0	01	1	0710-
165	LINK; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-141-0	01	1	0710-
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-066-0	01	1	0710-
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-067-0	01	1	0710-
167	STOPPER; LINKAGE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-069-0	02	1	0710-
167	STOPPER; LINKAGE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-217-0	02	1	0710-
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-190-0	02	1	0710-
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D)	1-22119-594-0	01	1	0710-
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-22119-592-0	01	1	0710-
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C)	1-22119-593-0	01	1	0710-
169	CLAMP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-126-0	01	1	0710-
170	COVER; CASE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-063-0	01	1	0710-
170	COVER; CASE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-240-0	01	1	0710-
171	BREATHER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-144-0	01	1	0710-
174	BOLT; SWITCH BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X10 HEX SOCKET	1-48629-133-0	02	1	0710-
