◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11118 - EXY NZ JNST04 EXC.HYDRAULIC RETARDER ▶ 3 - Brakes, Brake System ▶ 3-05 - REAR WHEEL BRAKE ▶
3-05 — REAR WHEEL BRAKE (#14378) — 128 parça
çizim 95946
346 301 328 327 319 334 297 297 335 311 348 329 319 327 328 301 347 301 301
BalonParca AdiParca NoAdetTipApplied Date
297 RING; SNAP
(A) 		1-47649-031-0 02 1 0710-
297 RING; SNAP
(A) 		1-47649-031-0 02 1 0710-
297 RING; SNAP
(B) 		1-47649-034-1 02 1 0710-
297 RING; SNAP
(B) 		1-47649-034-1 02 1 0710-
301 CLIP; ANTI LOTATION 1-47621-017-0 04 1 0710-
301 CLIP; ANTI LOTATION 1-47621-017-0 04 1 0710-
311 BOOT; WEDGE 1-47649-042-0 02 1 0710-
311 BOOT; WEDGE 1-47649-042-0 02 1 0710-
319 RING; DRIVE 1-47629-200-0 04 1 0710-
319 RING; DRIVE 1-47629-200-0 04 1 0710-
327 SPRING; ADJ 1-47629-196-0 04 1 0710-
327 SPRING; ADJ 1-47629-196-0 04 1 0710-
328 CAGE; SPRING 1-47629-192-0 04 1 0710-
328 CAGE; SPRING 1-47629-192-0 04 1 0710-
329 SCREW; LOCATING 1-47619-149-1 04 1 0710-
329 SCREW; LOCATING 1-47619-149-1 04 1 0710-
334 SPRING; ROD 1-47649-041-0 02 1 0710-
334 SPRING; ROD 1-47649-041-0 02 1 0710-
335 RETAINER; SPRING 1-47649-020-0 02 1 0710-
335 RETAINER; SPRING 1-47649-020-0 02 1 0710-
346 REPAIR KIT; EXPANDER 1-85576-403-0 02 1 0710-
346 REPAIR KIT; EXPANDER 1-85576-403-0 02 1 0710-
347 REPAIR KIT; BOOT,EXPANDER 1-85576-404-0 02 1 0710-
347 REPAIR KIT; BOOT,EXPANDER 1-85576-404-0 02 1 0710-
348 CAP; EXPANDER 1-47649-044-0 02 1 0710-
348 CAP; EXPANDER 1-47649-044-0 02 1 0710-

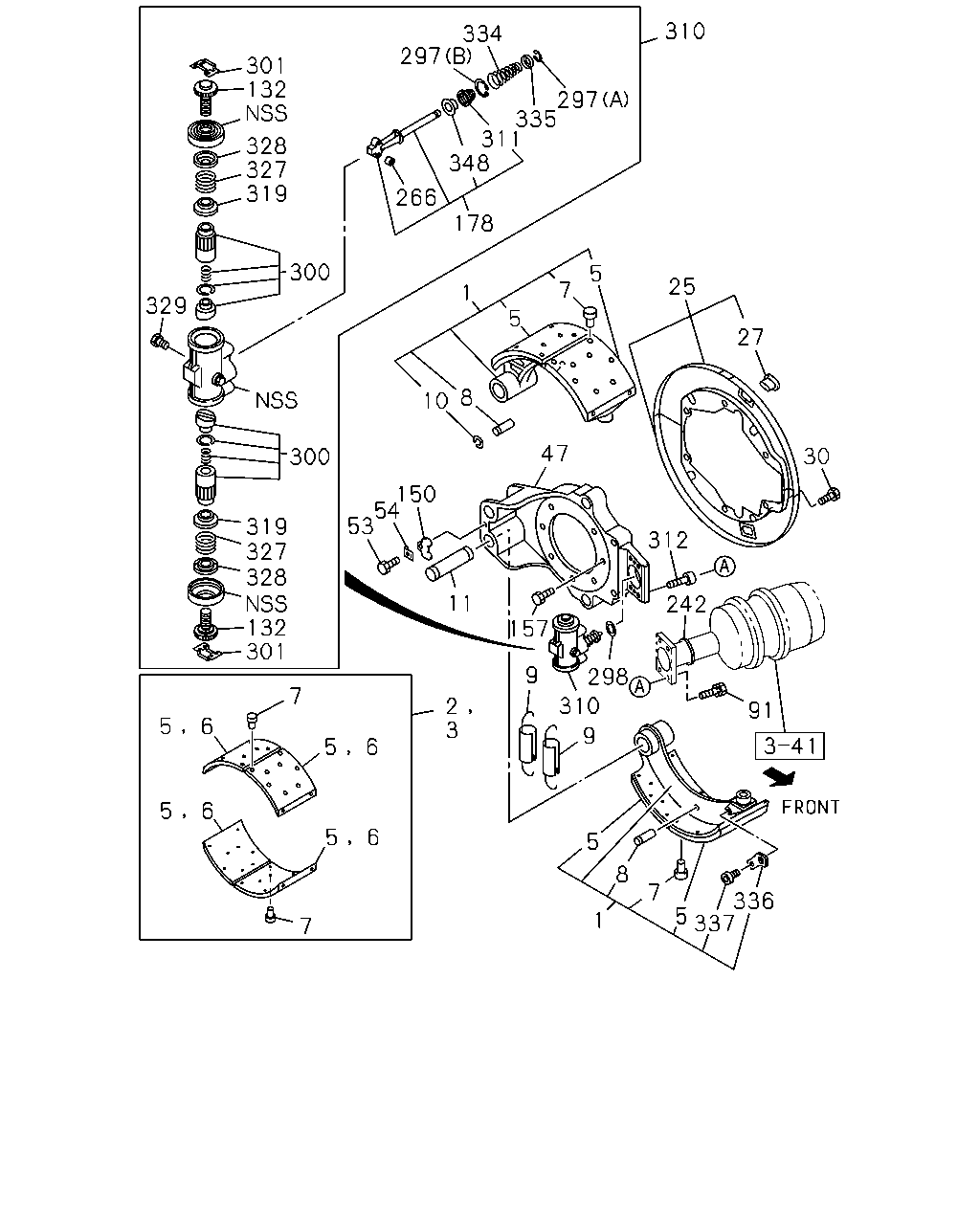

çizim 106674
310 334 297 301 132 297 335 311 348 328 327 319 266 178 300 5 25 7 1 329 5 27 8 10 47 30 300 150 54 53 319 327 328 132 301 312 11 242 157 9 298 7 310 2 3 91 6 5 9 5 6 5 6 5 6 5 8 336 5 337 7 1 7
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,RR
LEADING 		1-47170-324-0 01 1 0710-
1 SHOE; BRK,RR
LEADING 		1-47170-324-0 01 1 0710-
1 SHOE; BRK,RR
TRAILING 		1-47170-325-0 01 1 0710-
1 SHOE; BRK,RR
TRAILING 		1-47170-325-0 01 1 0710-
1 SHOE; BRK,RR
LEADING 		1-47170-326-0 01 1 0710-
1 SHOE; BRK,RR
LEADING 		1-47170-326-0 01 1 0710-
1 SHOE; BRK,RR
TRAILING 		1-47170-327-0 01 1 0710-
1 SHOE; BRK,RR
TRAILING 		1-47170-327-0 01 1 0710-
2 LINING SET; RR BRK,STANDARD 1-88310-775-0 02 1 0710-
2 LINING SET; RR BRK,STANDARD 1-88310-775-0 02 1 0710-
3 LINING SET; RR BRK,OVER SIZE 1-88310-776-0 02 1 0710-
3 LINING SET; RR BRK,OVER SIZE 1-88310-776-0 02 1 0710-
5 LINING; RR BRK SHOE,STANDARD 1-47126-093-0 08 1 0710-
5 LINING; RR BRK SHOE,STANDARD 1-47126-093-0 08 1 0710-
6 LINING; RR BRK SHOE,OVER SIZE 1-47126-094-0 08 1 0710-
6 LINING; RR BRK SHOE,OVER SIZE 1-47126-094-0 08 1 0710-
7 RIVET; LINING,RR BRK
L=15.5 		1-09732-053-0 AR 1 0710-
7 RIVET; LINING,RR BRK
L=15.5 		1-09732-053-0 AR 1 0710-
8 PIN; RETURN SPRING,RR BRK SHOE
TRAILING 		1-47119-136-0 02 1 0710-
8 PIN; RETURN SPRING,RR BRK SHOE
TRAILING 		1-47119-136-0 02 1 0710-
8 PIN; RETURN SPRING,RR BRK SHOE
LEADING 		1-47119-172-0 02 1 0710-
8 PIN; RETURN SPRING,RR BRK SHOE
LEADING 		1-47119-172-0 02 1 0710-
9 SPRING; RETURN,BRK SHOE 1-09583-365-1 02 1 0710-
9 SPRING; RETURN,BRK SHOE 1-09583-365-1 02 1 0710-
10 RING; SNAP,SPR PIN
ID=10 		0-91805-510-0 02 1 0710-
10 RING; SNAP,SPR PIN
ID=10 		0-91805-510-0 02 1 0710-
11 PIN; ANCHOR,RR WHEEL BRK
L=138.5 		1-47131-045-0 04 1 0710-
11 PIN; ANCHOR,RR WHEEL BRK
L=138.5 		1-47131-045-0 04 1 0710-
25 COVER SET; RR BRK DRUM
FORWARD RH,REARWARD LH 		1-47151-808-0 01 1 0710-1309
25 COVER SET; RR BRK DRUM
FORWARD RH,REARWARD LH 		1-47151-808-0 01 1 0710-1309
25 COVER SET; RR BRK DRUM 1-47151-878-0 02 1 1310-
25 COVER SET; RR BRK DRUM 1-47151-878-0 02 1 1310-
25 COVER SET; RR BRK DRUM
FORWARD LH,REARWARD RH 		1-47151-809-0 01 1 0710-1309
25 COVER SET; RR BRK DRUM
FORWARD LH,REARWARD RH 		1-47151-809-0 01 1 0710-1309
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 0710-
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 0710-
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 0710-
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 0710-
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
REARWARD 		1-47137-549-0 01 1 0710-1306
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
REARWARD 		8-98091-254-1 01 1 1307-
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
REARWARD 		1-47137-550-0 01 1 0710-1306
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
REARWARD 		8-98091-255-1 01 1 1307-
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FORWARD 		1-47137-472-0 02 1 0710-1306
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FORWARD 		8-98091-253-1 02 1 1307-
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 02 1 0710-0910
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 02 1 0710-0910
53 BOLT; LOCK PLATE
M10X16 		1-47139-173-0 02 1 0911-
53 BOLT; LOCK PLATE
M10X16 		1-47139-173-0 02 1 0911-
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 0710-
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 0710-
91 BOLT; CHAMBER
M10X45 W/LK WASHER 		0-50051-045-0 08 1 0710-0906
91 BOLT; CHAMBER
M10X45 W/LK WASHER 		0-50051-045-0 08 1 0710-0906
91 BOLT; CHAMBER
M10X45 W/LK WASHER 		0-50551-045-0 08 1 0907-0910
91 BOLT; CHAMBER
M10X45 W/LK WASHER 		0-50551-045-0 08 1 0907-0910
91 BOLT; CHAMBER
M10X45 		1-47139-174-0 08 1 0911-
91 BOLT; CHAMBER
M10X45 		1-47139-174-0 08 1 0911-
132 SCREW; ADJ,RR BRK 1-47623-035-2 04 1 0710-
132 SCREW; ADJ,RR BRK 1-47623-035-2 04 1 0710-
150 PLATE; LK,ANCHOR PIN 1-47133-010-0 02 1 0710-
150 PLATE; LK,ANCHOR PIN 1-47133-010-0 02 1 0710-
157 BOLT; RR BRK SET
M14X50 		1-09040-066-0 02 1 0710-
157 BOLT; RR BRK SET
M14X50 		1-09040-066-0 02 1 0710-
178 WEDGE; RR WHEEL CYL 1-47640-012-0 02 1 0710-
178 WEDGE; RR WHEEL CYL 1-47640-012-0 02 1 0710-
242 SEAL 1-47159-186-0 04 1 0710-
242 SEAL 1-47159-186-0 04 1 0710-
266 ROLLER; WEDGE 1-47643-007-0 04 1 0710-
266 ROLLER; WEDGE 1-47643-007-0 04 1 0710-
297 RING; SNAP
(A) 		1-47649-031-0 02 1 0710-
297 RING; SNAP
(A) 		1-47649-031-0 02 1 0710-
297 RING; SNAP
(B) 		1-47649-034-1 02 1 0710-
297 RING; SNAP
(B) 		1-47649-034-1 02 1 0710-
298 GASKET 1-48259-231-0 02 1 0710-
298 GASKET 1-48259-231-0 02 1 0710-
300 SLEEVE 1-47629-247-1 04 1 0710-
300 SLEEVE 1-47629-247-1 04 1 0710-
301 CLIP; ANTI LOTATION 1-47621-017-0 04 1 0710-
301 CLIP; ANTI LOTATION 1-47621-017-0 04 1 0710-
310 EXPANDER 1-47601-087-0 02 1 0710-
310 EXPANDER 1-47601-087-0 02 1 0710-
311 BOOT; WEDGE 1-47649-042-0 02 1 0710-
311 BOOT; WEDGE 1-47649-042-0 02 1 0710-
312 BOLT; EXPANDER
M8X16 HEXALOBULAR SOCKET 		1-47634-008-0 04 1 0710-
312 BOLT; EXPANDER
M8X16 HEXALOBULAR SOCKET 		1-47634-008-0 04 1 0710-
319 RING; DRIVE 1-47629-200-0 04 1 0710-
319 RING; DRIVE 1-47629-200-0 04 1 0710-
327 SPRING; ADJ 1-47629-196-0 04 1 0710-
327 SPRING; ADJ 1-47629-196-0 04 1 0710-
328 CAGE; SPRING 1-47629-192-0 04 1 0710-
328 CAGE; SPRING 1-47629-192-0 04 1 0710-
329 SCREW; LOCATING 1-47619-149-1 04 1 0710-
329 SCREW; LOCATING 1-47619-149-1 04 1 0710-
334 SPRING; ROD 1-47649-041-0 02 1 0710-
334 SPRING; ROD 1-47649-041-0 02 1 0710-
335 RETAINER; SPRING 1-47649-020-0 02 1 0710-
335 RETAINER; SPRING 1-47649-020-0 02 1 0710-
336 PLATE; PIVOT 1-47119-152-0 04 1 0710-
336 PLATE; PIVOT 1-47119-152-0 04 1 0710-
337 BOLT; PLATE 1-47119-153-0 04 1 0710-
337 BOLT; PLATE 1-47119-153-0 04 1 0710-
348 CAP; EXPANDER 1-47649-044-0 02 1 0710-
348 CAP; EXPANDER 1-47649-044-0 02 1 0710-
