Isuzu WW
▶
TRUCKS
▶
EXY
▶
11118 - EXY NZ JNST04 EXC.HYDRAULIC RETARDER
▶
2 - Clutch, Transmission, Trans Axle
▶
2-53 - TRANSMISSION OIL COOLER SYSTEM
▶

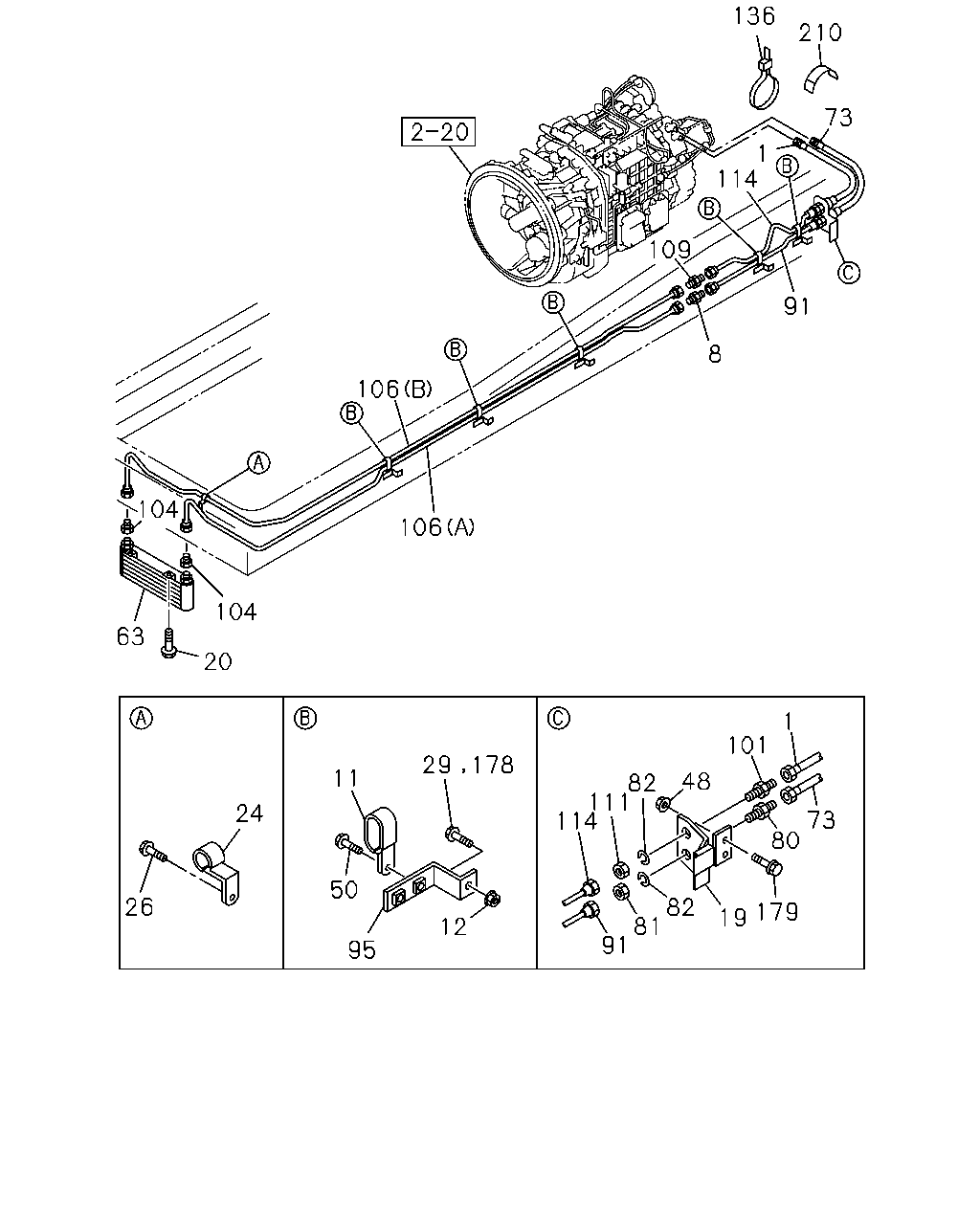

2-53 — TRANSMISSION OIL COOLER SYSTEM
(#14374) — 35 parça
136
210
73
1
114
109
91
8
106
106
104
104
63
20
24
26
95
50
12
11
29
178
114
111
82
48
101
1
73
80
179
19
82
81
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; ATF
L=600
1-09365-232-0
01
1
0710-
8
UNION
M22 L=51
0-92123-015-0
01
1
0710-
11
CLIP; PIPE
ID=16X2 L=20
0-95325-535-0
05
1
0710-
12
NUT; BRKT
M8 FLANGE
0-91180-108-0
05
1
0710-
19
BRACKET; FLEX HOSE
1-47479-613-1
01
1
0710-
20
BOLT; COOLER TO BRKT
M10X20 FLANGE
0-28051-020-0
02
1
0710-
24
CLIP; OIL PIPE
ID=15 H=24 L=20
1-09700-606-0
01
1
0710-
26
BOLT; PIPE CLIP
M8X20 FLANGE
0-28650-820-0
01
1
0710-
29
BOLT; FILTER TO BRKT
M8X30 FLANGE
0-28650-830-0
04
1
0710-
48
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0710-
50
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
05
1
0710-
63
COOLER; OIL
1-21700-394-0
01
1
0710-1405
63
COOLER; OIL
8-98269-766-0
01
1
1406-
73
HOSE; FLEX,TRANS
L=550
1-09365-231-0
01
1
0710-
80
UNION; FLEX HOSE
M22 & M22 STRAIGHT
1-09654-204-2
01
1
0710-
81
NUT; UNION
M22
0-91111-522-0
01
1
0710-
82
WASHER; LK,UNION
ID=22.5
0-91510-522-0
02
1
0710-
91
PIPE; OIL,FLEX HOSE TO UNION
L=818
1-49167-820-0
01
1
0710-0804
91
PIPE; OIL,FLEX HOSE TO UNION
L=916
8-98117-505-0
01
1
0805-
95
BRACKET; CLIP
1-47479-482-0
05
1
0710-
101
UNION; FLEX HOSE
M22 & M22 STRAIGHT
1-09654-204-2
01
1
0710-
104
CONNECTOR; COOLER
1-09654-398-0
02
1
0710-
106
PIPE ASM; OIL,COOLER TO UNION
(A)
1-49167-821-0
01
1
0710-0804
106
PIPE ASM; OIL,COOLER TO UNION
(A)
8-98117-506-0
01
1
0805-
106
PIPE ASM; OIL,COOLER TO UNION
(B)
1-49167-822-0
01
1
0710-0804
106
PIPE ASM; OIL,COOLER TO UNION
(B)
8-98117-507-0
01
1
0805-
109
UNION
M22 L=51
0-92123-015-0
01
1
0710-
111
NUT; UNION
M22
0-91111-522-0
01
1
0710-
114
PIPE; OIL,UNION TO FLEX HOSE
L=877
1-49167-823-0
01
1
0710-0804
114
PIPE; OIL,UNION TO FLEX HOSE
L=835
8-98117-508-0
01
1
0805-0805
114
PIPE; OIL,UNION TO FLEX HOSE
L=835
8-98123-941-0
01
1
0806-
136
CLIP; FLEX HOSE
L=350
1-09707-183-0
01
1
0710-
178
BOLT; BRKT,CLIP
M8X30 FLANGE
0-28650-830-0
01
1
0710-
179
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
02
1
0710-
210
BAND; FLEX HOSE
L=175
1-09707-178-0
01
1
0710-
