◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11118 - EXY NZ JNST04 EXC.HYDRAULIC RETARDER ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-25 - SPEEDOMETER DRIVEN GEAR ▶
2-25 — SPEEDOMETER DRIVEN GEAR (#14368) — 14 parça

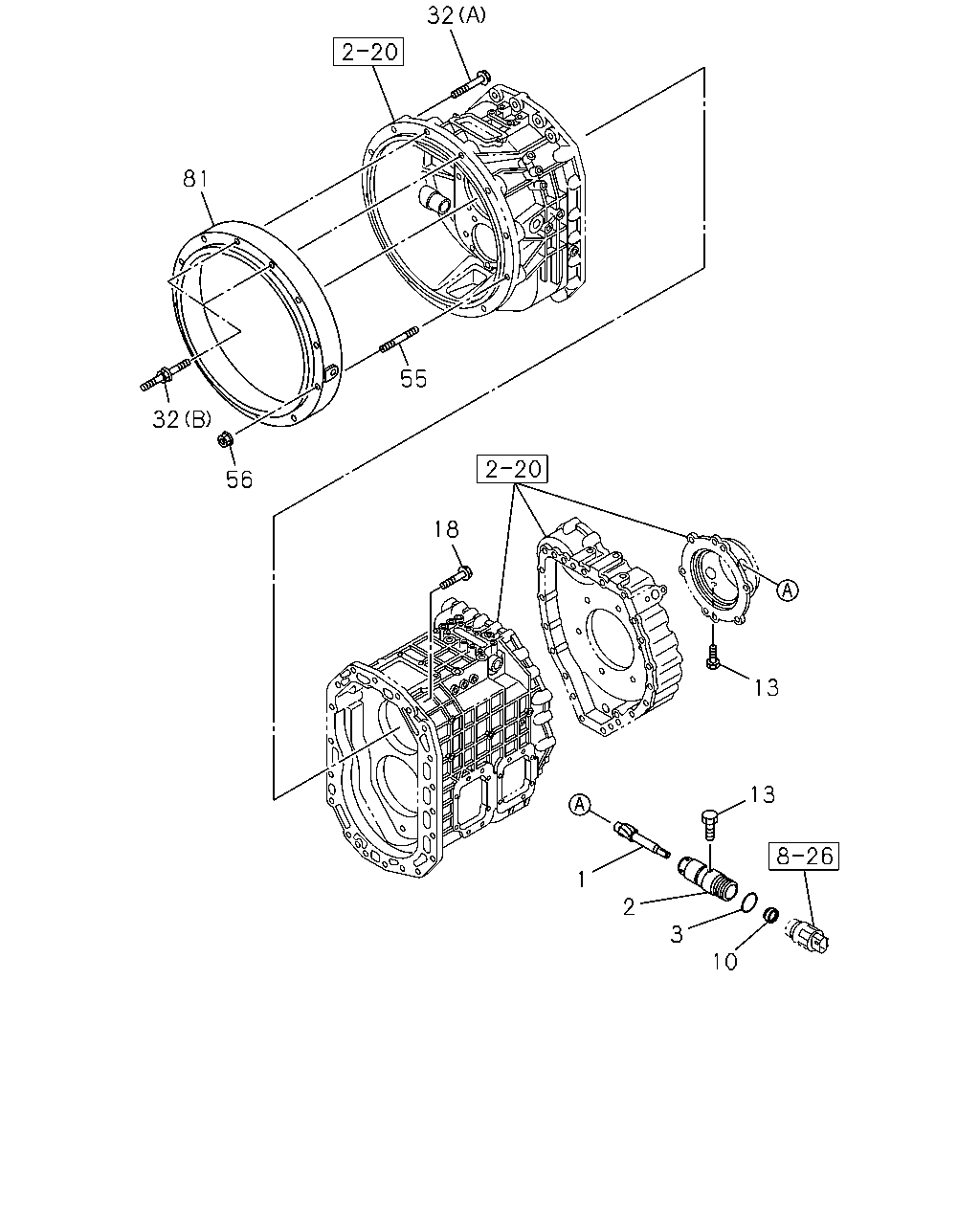

çizim 95910
32 81 55 32 56 18 13 13 1 2 3 10
BalonParca AdiParca NoAdetTipApplied Date
1 GEAR; DRIVEN,SPD
Z=17 		1-33372-120-4 01 1 0710-
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 1-33373-084-0 01 1 0710-
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-069-0 01 1 0710-
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-510-0 01 1 0710-
13 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		1-09044-063-0 01 1 0710-0805
13 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		8-98014-141-0 01 1 0806-
18 BOLT; CLU HSG TO TRANS
M12X50 FLANGE 		0-28151-250-0 19 1 0710-
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M12X100 FLANGE 		0-28151-200-0 06 1 0710-1207
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M12X110 FLANGE 		0-28156-211-0 06 1 1208-
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X16,M12X100 L=129.5 		1-09049-039-1 02 1 0710-1207
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X18,M12X110 L=139.5 		1-09049-033-1 02 1 1208-
55 STUD; FLYWHEEL HSG
M12X105 L=123 		1-09302-166-0 04 1 0710-
56 NUT; CLU HSG TO FLYWHEEL HSG
M12 FLANGE 		0-91180-212-0 04 1 0710-
81 SPACER 1-31119-017-0 01 1 0710-
