Isuzu WW
▶
TRUCKS
▶
EXY
▶
11118 - EXY NZ JNST04 EXC.HYDRAULIC RETARDER
▶
2 - Clutch, Transmission, Trans Axle
▶
2-05 - CLUTCH PIPING
▶
2-05 — CLUTCH PIPING
(#14363) — 75 parça
◀
[205A] CAB SIDE NO.1 (7 parça)
[205A] FRAME SIDE NO.2 (23 parça)

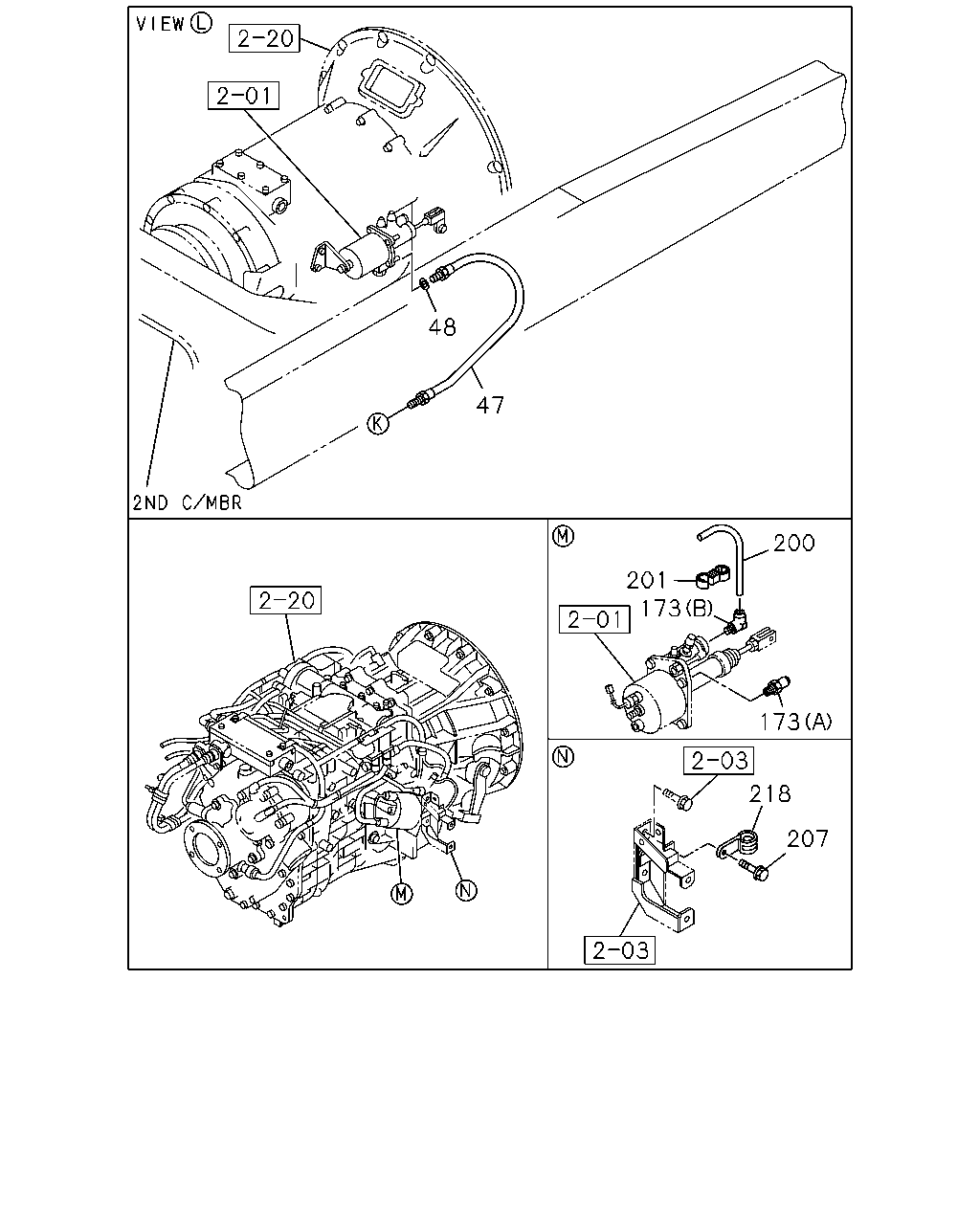

[205A] T/M SIDE (8 parça)

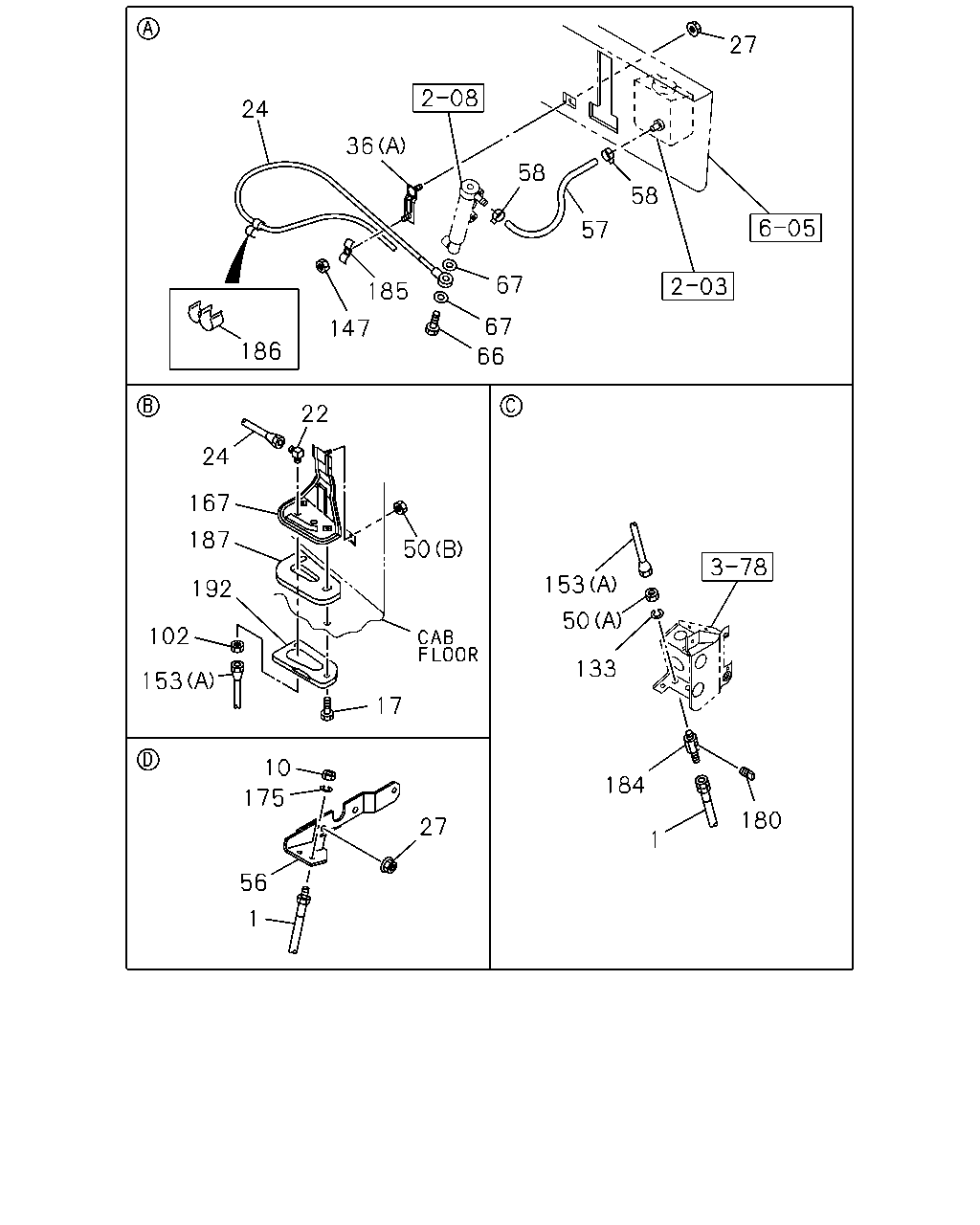

[205A] CAB SIDE NO.2 (33 parça)

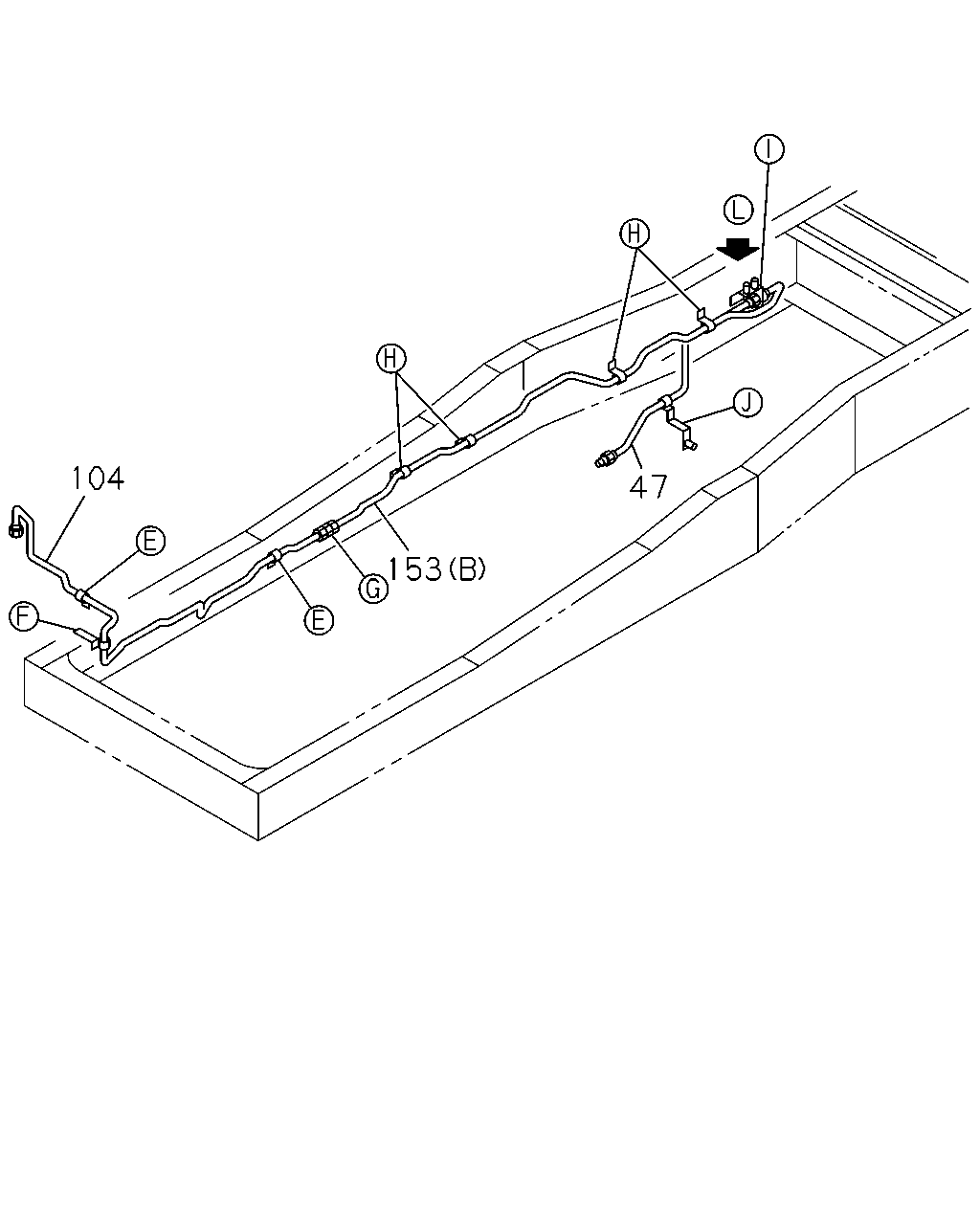

[205A] FRAME SIDE NO.1 (4 parça)
▶
24
153
167
56
104
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,CLU CONT
L=620
8-98072-333-0
01
1
0710-
24
PIPE ASM; CLU,M/CYL TO UNION
L=643
1-47424-529-2
01
1
0710-
56
BRACKET; FLEX HOSE
1-47478-300-1
01
1
0710-
104
PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1412 SERVICED BY L=1550
1-47428-766-0
01
1
0710-
153
PIPE ASM; CLU,UNION TO FLEX
(B) L=2085 SERVICED BY L=2150
1-47428-770-0
01
1
0710-
153
PIPE ASM; CLU,UNION TO FLEX
(A) L=537
8-98085-164-0
01
1
0710-
167
BRACKET; UNION
1-71117-183-3
01
1
0710-
106
27
30
28
25
29
29
28
26
34
33
35
42
43
116
115
117
4
36
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
CLIP; FLEX HOSE,CLU CONT
ID=16 H=25 L=25
1-09701-162-0
01
1
0710-
25
BRACKET; OIL PIPE
1-46147-101-0
01
1
0710-
26
NUT; CLIP,OIL PIPE
M8 FLANGE
0-91180-108-0
02
1
0710-
27
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
0710-
27
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
0710-
27
NUT; BRKT
M6 FLANGE W/RUBBER
1-09984-180-0
01
1
0710-
28
CLIP; OIL PIPE
(B) ID=9 L=20
0-95234-835-0
01
1
0710-
28
CLIP; OIL PIPE
(A) ID=8 H=20 L=20
1-09700-604-0
02
1
0710-
29
BOLT; CLIP,OIL PIPE
M8X20 FLANGE
0-28650-820-0
02
1
0710-
29
BOLT; CLIP,OIL PIPE
M8X30 FLANGE
0-28650-830-0
01
1
0710-
30
BOLT; BRKT
M8X35 FLANGE
0-28650-835-0
01
1
0710-
33
CLIP; OIL PIPE
ID=8 H=20 L=20
1-09700-604-0
04
1
0710-
34
BOLT; PIPE CLIP
M8X30 FLANGE
0-28650-830-0
04
1
0710-
35
NUT; PIPE CLIP
M8 FLANGE
0-91180-108-0
04
1
0710-
36
BRACKET; CLIP
(B)
1-47475-689-0
01
1
0710-
36
BRACKET; CLIP
(A)
1-71117-191-1
01
1
0710-
37
BOLT; CLIP BRKT
M10X16 FLANGE
0-28151-016-0
01
1
0710-
42
BRACKET; FLEX HOSE,CLU CONT
1-47471-235-0
01
1
0710-
43
BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X35 FLANGE
0-28650-835-0
02
1
0710-
106
UNION; OIL PIPE
M14 STRAIGHT
0-92113-008-0
01
1
0710-
115
NUT; FLEX HOSE,CLU CONT
M14
0-91111-514-0
01
1
0710-
116
WASHER; FLEX HOSE,CLU CONT
ID=14.2
0-91510-514-0
01
1
0710-
117
BOLT; CLIP,FLEX HOSE
M8X16 FLANGE
0-28050-816-0
01
1
0710-
48
47
200
201
173
173
218
207
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
47
HOSE; FLEX,CLU CONT
L=640
1-09365-155-0
01
1
0710-
48
GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0
9-09571-410-0
01
1
0710-
173
CONNECTOR
(A) DIN8 R1/4 STRAIGHT
1-09660-647-1
01
1
0710-
173
CONNECTOR
(B) DIN12 & R3/8 ELBOW
1-09660-653-1
01
1
0710-
200
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
01
1
0710-
201
CLIP; NYLON TUBE
ID=6.35 & 12
1-09709-275-1
01
1
0710-
207
BOLT; CLIP
M8X16 FLANGE
0-28050-816-0
01
1
0710-
218
CLIP
ID=11 L=20
0-95235-035-0
01
1
0710-
27
24
36
58
58
57
67
185
67
147
186
66
22
24
167
187
50
153
192
50
102
133
153
17
10
184
175
180
27
1
56
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,CLU CONT
L=620
8-98072-333-0
01
1
0710-
10
NUT; FLEX HOSE,CLU CONT
M14
0-91111-514-0
01
1
0710-
17
BOLT; BRKT
M8X20 W/LK&PL WASHER
8-94279-216-0
02
1
0710-
22
UNION; CLU PIPE
M14 ELBOW
0-92125-208-0
01
1
0710-
24
PIPE ASM; CLU,M/CYL TO UNION
L=643
1-47424-529-2
01
1
0710-
27
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
0710-
27
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
0710-
27
NUT; BRKT
M6 FLANGE W/RUBBER
1-09984-180-0
01
1
0710-
36
BRACKET; CLIP
(B)
1-47475-689-0
01
1
0710-
36
BRACKET; CLIP
(A)
1-71117-191-1
01
1
0710-
50
NUT; UNION
(A) M14
0-91111-514-0
01
1
0710-
50
NUT; UNION
(B) M6 FLANGE W/RUBBER
1-09984-180-0
02
1
0710-
56
BRACKET; FLEX HOSE
1-47478-300-1
01
1
0710-
57
HOSE; CLU M/CYL TO OIL TANK
1-47424-533-0
01
1
0710-
58
CLIP; RUBBER HOSE TO M/CYL
ID=14
8-94238-572-0
02
1
0710-
66
BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT
1-09675-146-0
01
1
0710-0805
66
BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT
8-98037-827-0
01
1
0806-
67
GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2
1-09630-085-0
02
1
0710-1312
67
GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2
8-98251-345-0
02
1
1401-
102
NUT; FLEX HOSE,CLU CONT
M14
0-91111-514-0
01
1
0710-
133
WASHER; LK,UNION
ID=14.2
0-91510-514-0
01
1
0710-
147
NUT; CLIP FIX
M8 CUTTING NUT W/FLANGE
1-09985-340-0
01
1
0710-
153
PIPE ASM; CLU,UNION TO FLEX
(B) L=2085 SERVICED BY L=2150
1-47428-770-0
01
1
0710-
153
PIPE ASM; CLU,UNION TO FLEX
(A) L=537
8-98085-164-0
01
1
0710-
167
BRACKET; UNION
1-71117-183-3
01
1
0710-
175
WASER; LK,FLEX HOSE,CLU CONT
ID=14.2
0-91510-514-0
01
1
0710-
180
PLUG; PIPE
9-09204-510-0
01
1
0710-0804
184
UNION; FLEX HOSE
STRAIGHT
1-09656-679-0
01
1
0710-0804
184
UNION; FLEX HOSE
STRAIGHT
1-09654-435-0
01
1
0805-
185
CLIP; BRKT
ID=9 L=20
0-95405-308-0
01
1
0710-
186
HOLDER; CLIP
8-94107-710-0
02
1
0710-
187
SEAL; BRKT
1-71117-222-0
01
1
0710-
192
PLATE
1-71117-221-0
01
1
0710-
104
153
47
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
47
HOSE; FLEX,CLU CONT
L=640
1-09365-155-0
01
1
0710-
104
PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1412 SERVICED BY L=1550
1-47428-766-0
01
1
0710-
153
PIPE ASM; CLU,UNION TO FLEX
(B) L=2085 SERVICED BY L=2150
1-47428-770-0
01
1
0710-
153
PIPE ASM; CLU,UNION TO FLEX
(A) L=537
8-98085-164-0
01
1
0710-
