Isuzu WW
▶
TRUCKS
▶
FVZ
▶
10633 - FVZ-RHD
▶
3 - Brakes, Brake System
▶
3-05 - REAR WHEEL BRAKE
▶

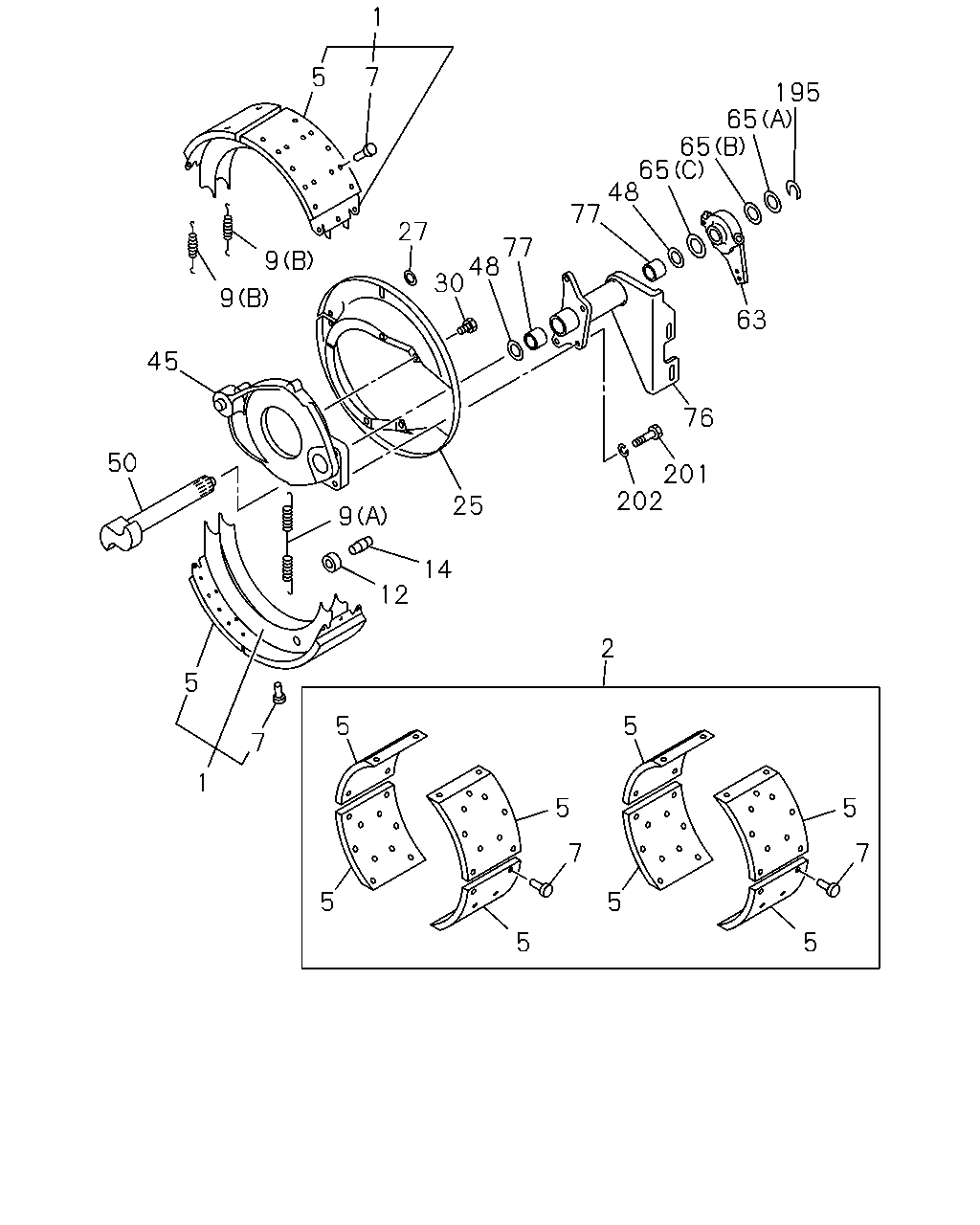

3-05 — REAR WHEEL BRAKE
(#1435) — 28 parça
1
5
7
195
65
65
65
48
77
27
77
48
30
9
9
63
45
76
50
201
202
25
9
14
12
2
5
5
5
7
1
5
5
7
7
5
5
5
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHOE; BRK,RR
1-87061-390-0
08
1
9203-
2
LINING SET; RR BRK,STANDARD
1-87061-315-0
02
1
9203-
5
LINING; RR BRK SHOE,STANDARD
1-87061-314-0
16
1
9203-
7
RIVET; LINING,RR BRK
1-87061-377-0
AR
1
9203-
9
SPRING; RETURN,BRK SHOE
(A)
1-87061-313-0
04
1
9203-
9
SPRING; RETURN,BRK SHOE
(B)
1-87061-384-0
08
1
9203-
12
ROLLER; CAM,BRK SHOE
1-87061-379-0
04
1
9203-
14
PIN; CAM ROLLER,BRK SHOE
1-87061-380-0
04
1
9203-
25
COVER SET; RR BRK DRUM
1-87061-392-0
04
1
9203-
27
COVER; CHECK HOLE,DRUM COVER
1-87061-402-0
08
1
9203-
30
BOLT; DRUM COVER
1-87061-389-0
24
1
9203-
45
BRACKET; ANCHOR PIN,W/BUSHING
FORWARD
1-87061-387-0
02
1
9203-
45
BRACKET; ANCHOR PIN,W/BUSHING
REARWARD
1-87061-750-0
02
1
9203-
48
SEAL; OIL,CM/SHF,RR BRK
1-87061-386-0
08
1
9203-
50
CAMSHAFT; BRK,RR BRK
1-87061-375-0
02
1
9203-
50
CAMSHAFT; BRK,RR BRK
1-87061-376-0
02
1
9203-
63
ADJUSTER ASM; SLACK,RR BRK
1-87061-724-0
04
1
9203-
65
SPACER; SLACK ADJ,BRK
(A)
1-87061-368-0
12
1
9203-
65
SPACER; SLACK ADJ,BRK
(B)
1-87061-374-0
12
1
9203-
65
SPACER; SLACK ADJ,BRK
(C)
1-87061-381-0
04
1
9203-
76
BRACKET; POWER CHAMBER,RR,W/BUSHING
FORWARD
1-87061-397-0
01
1
9203-
76
BRACKET; POWER CHAMBER,RR,W/BUSHING
REARWARD
1-87061-751-0
01
1
9203-
76
BRACKET; POWER CHAMBER,RR,W/BUSHING
FORWARD
1-87061-396-0
01
1
9203-
76
BRACKET; POWER CHAMBER,RR,W/BUSHING
REARWARD
1-87061-752-0
01
1
9203-
77
BUSHING
1-87061-312-0
08
1
9203-
195
RING; SNAP,CM/SHF
1-87061-388-0
04
1
9203-
201
BOLT; BRKT,POWER CHAMBER
1-87061-378-0
16
1
9203-
202
WASHER; LK,BRKT
1-87061-403-0
16
1
9203-
