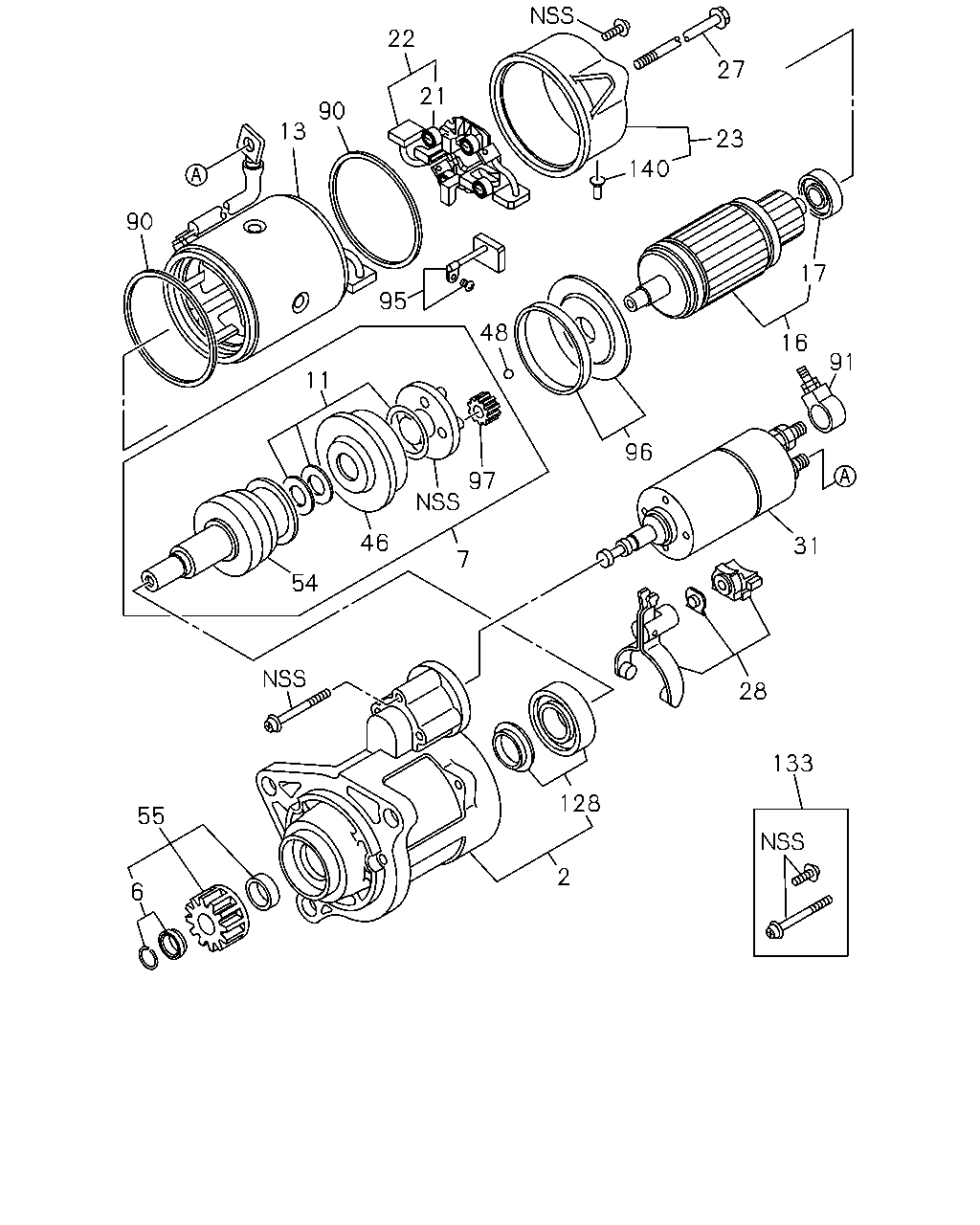

2 |
CASE; PINION,STARTER
ASM PART: A = 8-97380-508-4
|
1-81123-065-0 |
01 |
1 |
- |
| |
6 |
STOPPER; PINION STARTER
ASM PART: A = 8-97380-508-4
|
1-81129-785-0 |
01 |
1 |
- |
| |
7 |
CLUTCH ASM; PINION,STARTER
ASM PART: A = 8-97380-508-4
|
1-81129-794-0 |
01 |
1 |
- |
| |
11 |
WASHER; GEAR SHAFT STARTER
ASM PART: A = 8-97380-508-4
|
1-81129-781-0 |
01 |
1 |
- |
| |
13 |
YOKE; STARTER
ASM PART: A = 8-97380-508-4
|
8-97381-362-1 |
01 |
1 |
- |
| |
16 |
ARMATURE; STARTER
ASM PART: A = 8-97380-508-4
|
1-81121-067-0 |
01 |
1 |
- |
| |
17 |
BEARING; ARMATURE,STARTER
ASM PART: A = 8-97380-508-4
|
1-81129-952-0 |
01 |
1 |
- |
| |
18 |
WASHER; THRUST,ARMATURE,STARTER
ASM PART: A = 8-97380-508-4
|
8-98237-580-0 |
01 |
1 |
1306- |
| |
21 |
SPRING; BRUSH HOLDER STARTER
ASM PART: A = 8-97380-508-4
|
1-81129-828-0 |
04 |
1 |
- |
| |
22 |
HOLDER; BRUSH STARTER
ASM PART: A = 8-97380-508-4
|
1-81121-071-0 |
01 |
1 |
- |
| |
23 |
COVER; RR COVER STARTER
ASM PART: A = 8-97380-508-4
|
1-81115-233-0 |
01 |
1 |
-1305 |
| |
23 |
COVER; RR COVER STARTER
ASM PART: A = 8-97380-508-4
|
8-98237-570-0 |
01 |
1 |
1306- |
| |
27 |
BOLT; THROUGH,STARTER
ASM PART: A = 8-97380-508-4
|
1-81129-769-0 |
01 |
1 |
- |
| |
28 |
LEVER; SHIFT,STARTER
ASM PART: A = 8-97380-508-4
|
1-81129-783-0 |
01 |
1 |
- |
| |
31 |
SWITCH; ENGAGE STARTER
ASM PART: A = 8-97380-508-4
|
8-97381-364-0 |
01 |
1 |
- |
| |
46 |
GEAR; CLU STARTER
ASM PART: A = 8-97380-508-4
|
1-81123-061-0 |
01 |
1 |
- |
| |
48 |
BALL; PINION,STARTER
ASM PART: A = 8-97380-508-4
|
8-97116-515-0 |
01 |
1 |
- |
| |
54 |
CLUTCH; PINION,STARTER
ASM PART: A = 8-97380-508-4
|
1-81129-782-0 |
01 |
1 |
- |
| |
55 |
PINION; CLU,STARTER
ASM PART: A = 8-97380-508-4
|
1-81129-784-0 |
01 |
1 |
-1209 |
| |
55 |
PINION; CLU,STARTER
ASM PART: A = 8-97380-508-4
|
8-98222-732-0 |
01 |
1 |
1210- |
| |
90 |
GASKET; ARMATURE
ASM PART: A = 8-97380-508-4
|
1-81129-827-0 |
02 |
1 |
- |
| |
91 |
COVER; STARTER
ASM PART: A = 8-97380-508-4
|
1-81129-786-0 |
01 |
1 |
- |
| |
95 |
BRUSH ASM; STARTER
ASM PART: A = 8-97380-508-4
|
1-81116-067-0 |
01 |
1 |
- |
| |
96 |
GASKET; FRT CASE
ASM PART: A = 8-97380-508-4
|
1-81129-796-0 |
01 |
1 |
- |
| |
97 |
GEAR; STARTER
ASM PART: A = 8-97380-508-4
|
1-81123-056-0 |
04 |
1 |
- |
| |
128 |
BEARING; STARTER
ASM PART: A = 8-97380-508-4
|
1-81129-780-0 |
01 |
1 |
- |
| |
133 |
SCREW SET; STARTER
ASM PART: A = 8-97380-508-4
|
1-81129-787-0 |
01 |
1 |
- |
| |
140 |
GROMMET; RR COVER
ASM PART: A = 8-97380-508-4
|
8-97376-389-0 |
01 |
1 |
- |
