0-60 — ENGINE ELECTRICAL CONTROL PARTS (#14344) — 83 parça

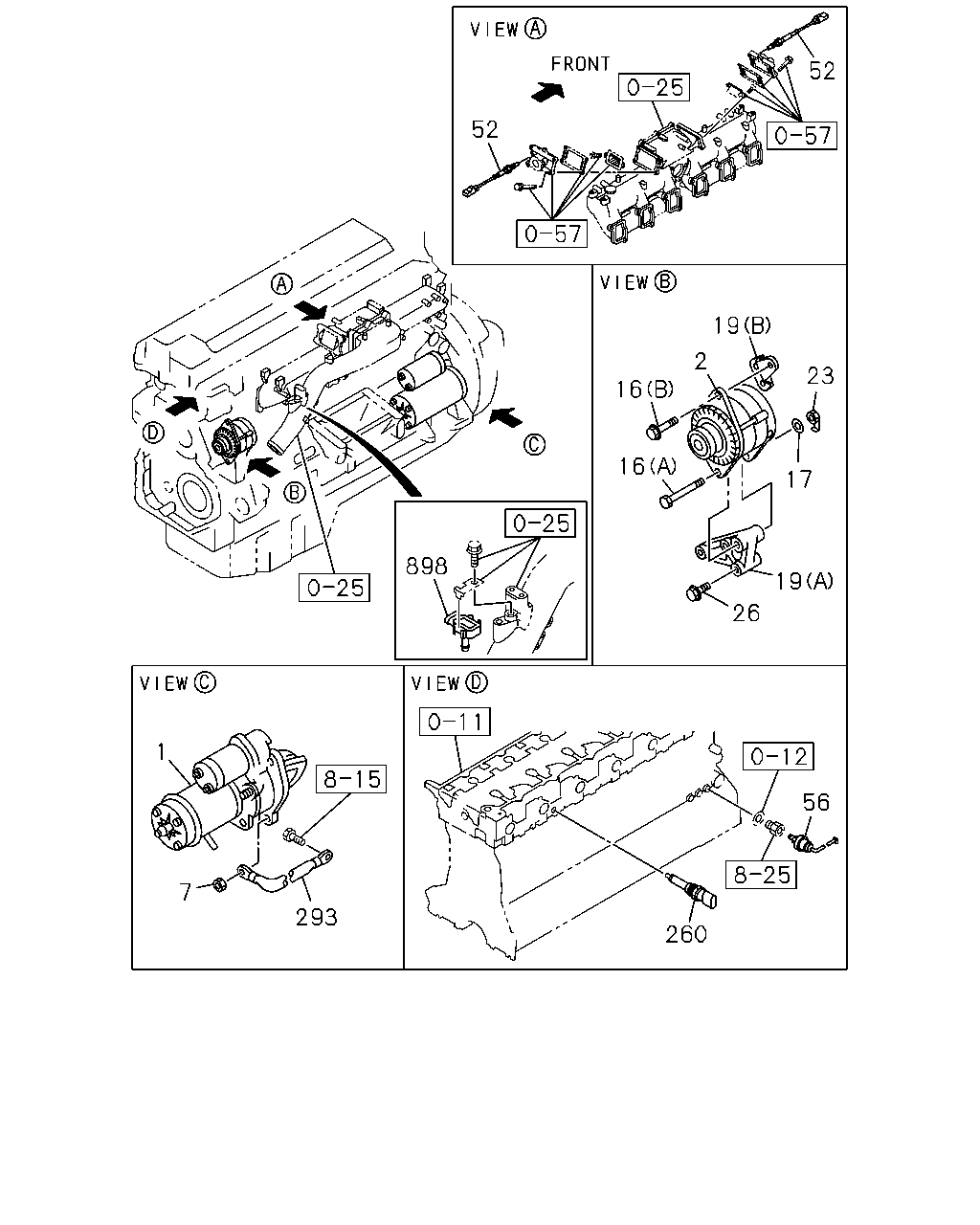

çizim 95901
52 52 19 23 17 2 16 16 26 19 898 1 7 293 260 56
BalonParca AdiParca NoAdetTipApplied Date
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.0KW MITSUBISHI 		8-97380-508-4 01 1 0710-
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-50A 1.2KW(SLX) 24V 50A MITSUBISHI 		1-81200-484-8 01 1 0710-1112
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-50A 1.2KW(SLX) 24V 50A MITSUBISHI 		8-98200-154-0 01 1 1201-
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 60A MITSUBISHI 		1-81200-572-8 01 1 0710-
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 03 1 0710-
16 BOLT; GEN
(B) M12X40 FLANGE 		0-28051-240-0 01 1 0710-
16 BOLT; GEN
(A) M14X123 		1-09040-105-0 01 1 0710-
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 0710-
19 BRACKET; GEN
(B) 		8-97606-317-0 01 1 0710-
19 BRACKET; GEN
(A) 		8-97607-133-0 01 1 0710-
23 NUT; GEN
M14 W/BRKT 		1-19711-029-0 01 1 0710-0910
23 NUT; GEN
M14 FLANGE 		0-91150-114-0 01 1 0911-
26 BOLT; GEN BRKT
M10X60 FLANGE 		0-28151-060-0 02 1 0710-
52 SENSOR; EGR GAS 1-81510-758-0 02 1 0710-
56 SWITCH; OIL PRESSURE WARNING 1-82410-163-1 01 1 0710-
260 SENSOR; WATER TEMP 1-80210-005-1 01 1 0710-
293 CABLE; STARTER EARTH
L=350 		1-82650-235-0 01 1 0710-
898 SENSOR; BOOST 8-09373-269-1 01 1 0710-0809
898 SENSOR; BOOST 8-28139-775-0 01 1 0810-

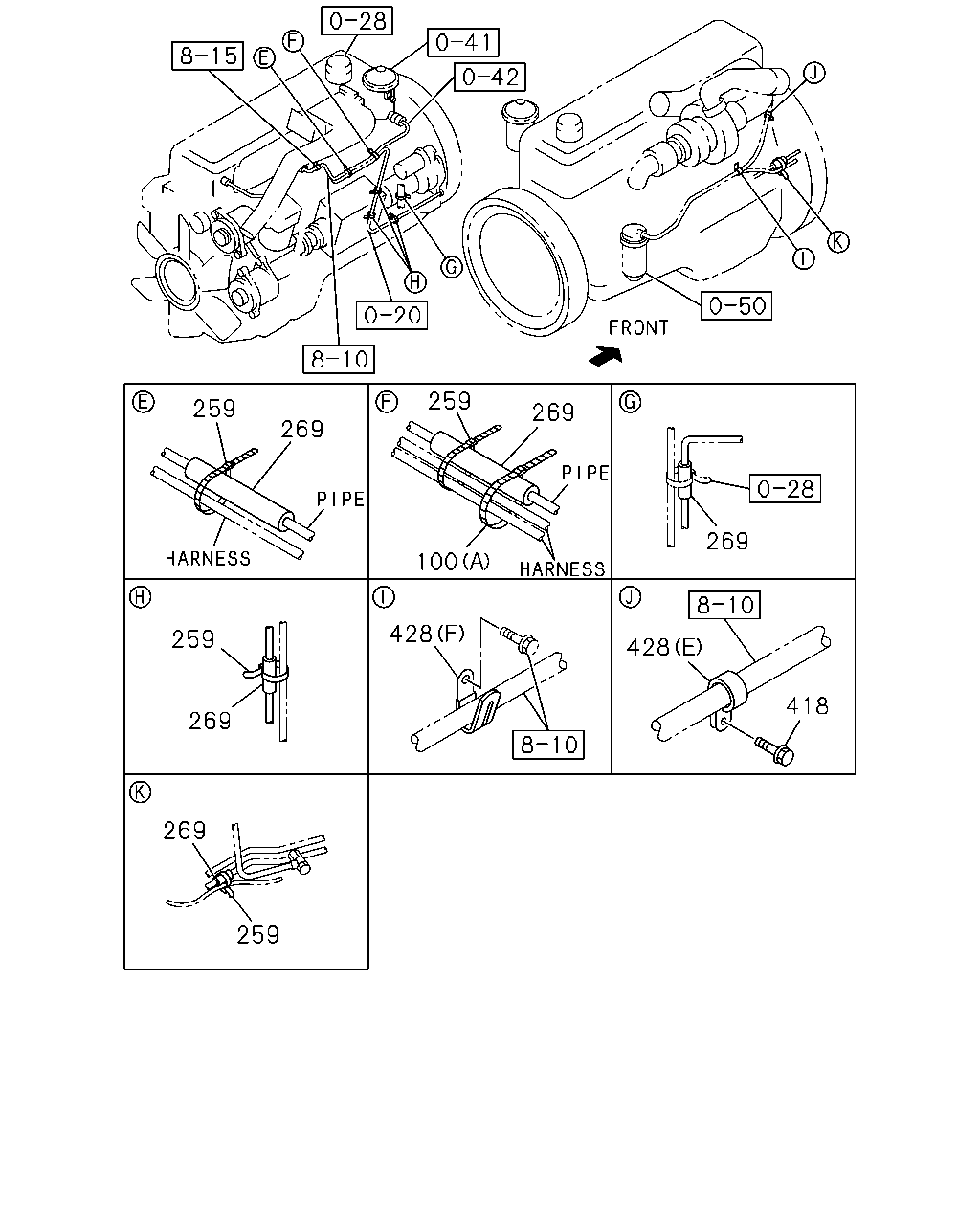

çizim 95902
259 259 269 269 269 100 428 259 428 418 269 269 259
BalonParca AdiParca NoAdetTipApplied Date
100 CLIP; HARNESS
(B) ID=11 L=20 		0-95235-035-0 01 1 0710-
100 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0710-1205
100 CLIP; HARNESS
(A) L=140 		8-98216-431-0 02 1 1206-
259 CLIP; BAND,HARNESS TO OIL PIPE
L=250 		5-09707-030-1 07 1 0710-1205
259 CLIP; BAND,HARNESS TO OIL PIPE
L=250 		8-98216-430-0 07 1 1206-
259 CLIP; BAND,HARNESS TO OIL PIPE
L=140 		5-09707-031-1 01 1 0710-1205
259 CLIP; BAND,HARNESS TO OIL PIPE
L=140 		8-98216-431-0 01 1 1206-
269 SLEEVE; RUBBER,CABLE
ID=10 OD=14 L=30 		9-09956-682-0 03 1 0710-
418 BOLT; CLIP
M10X16 FLANGE 		0-28151-016-0 01 1 0710-
428 CLIP; HARNESS
(A) ID=39 H=28 L=32 		1-09701-263-0 02 1 0710-
428 CLIP; HARNESS
(D) ID=35X2 L=32 		1-09701-314-0 01 1 0710-
428 CLIP; HARNESS
(G) L=350 		1-09707-183-0 01 1 0710-
428 CLIP; HARNESS
(C) 		1-82698-375-1 01 1 0710-
428 CLIP; HARNESS
(H) 		1-82698-555-0 01 1 0710-
428 CLIP; HARNESS
(B) 		1-82699-993-1 01 1 0710-
428 CLIP; HARNESS
(F) L=36 		8-94224-891-1 01 1 0710-
428 CLIP; HARNESS
(E) ID=11 L=28 		9-09917-544-0 01 1 0710-

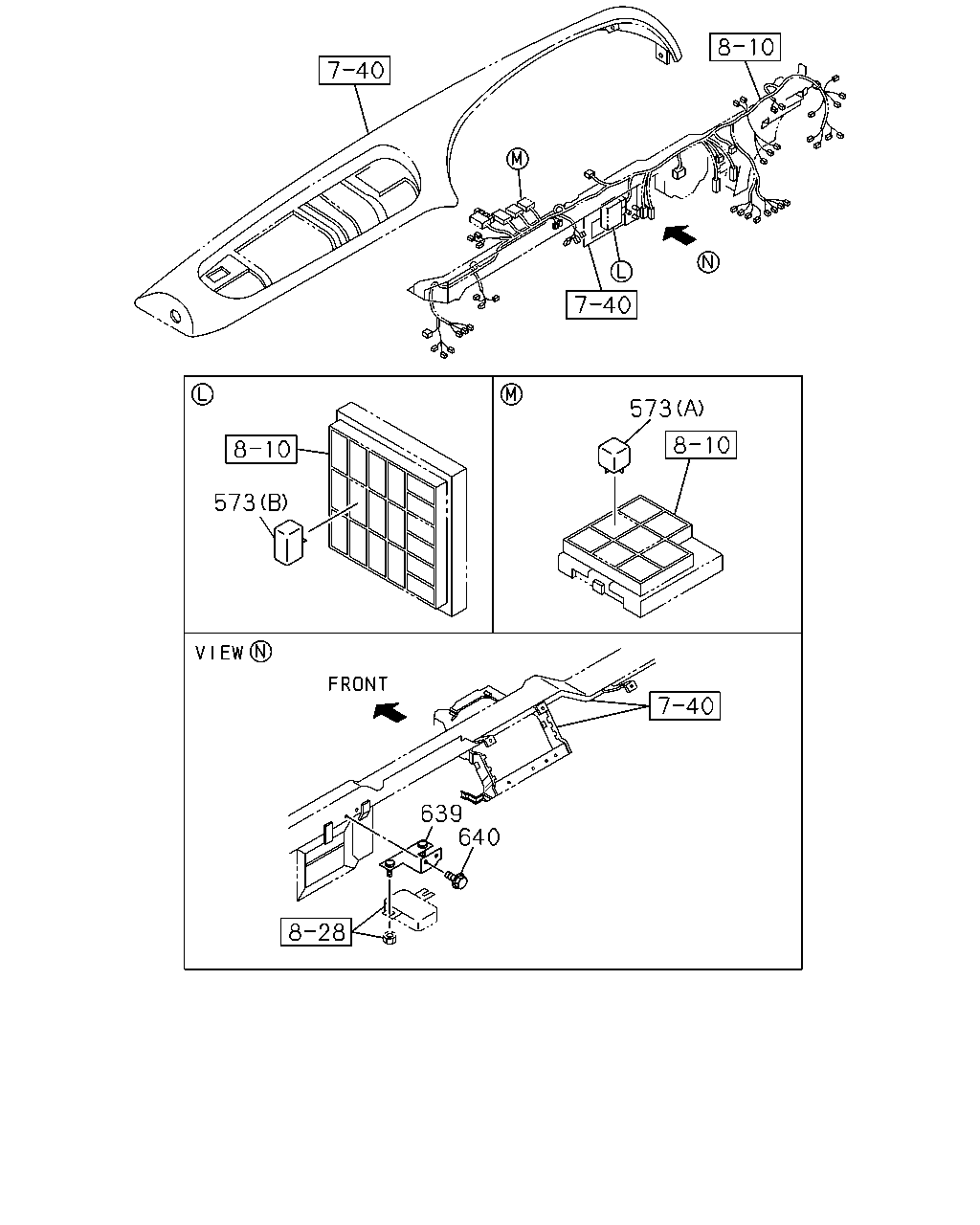

çizim 95953
573 573 639 640
BalonParca AdiParca NoAdetTipApplied Date
573 RELAY; ELEC GOV
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 0710-
573 RELAY; ELEC GOV
(A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0710-
639 BRACKET; QOS GLOW TIMER 1-73908-161-0 01 1 0710-
640 BOLT; BRKT,QOS GLOW TIMER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-
çizim 95954
10 296 296
BalonParca AdiParca NoAdetTipApplied Date
10 RELAY; STARTER 1-81171-100-1 01 1 0710-
296 NUT; RELAY,STARTER
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-
296 NUT; RELAY,STARTER
(B) M6 FLANGE 		0-91180-206-0 02 1 0710-

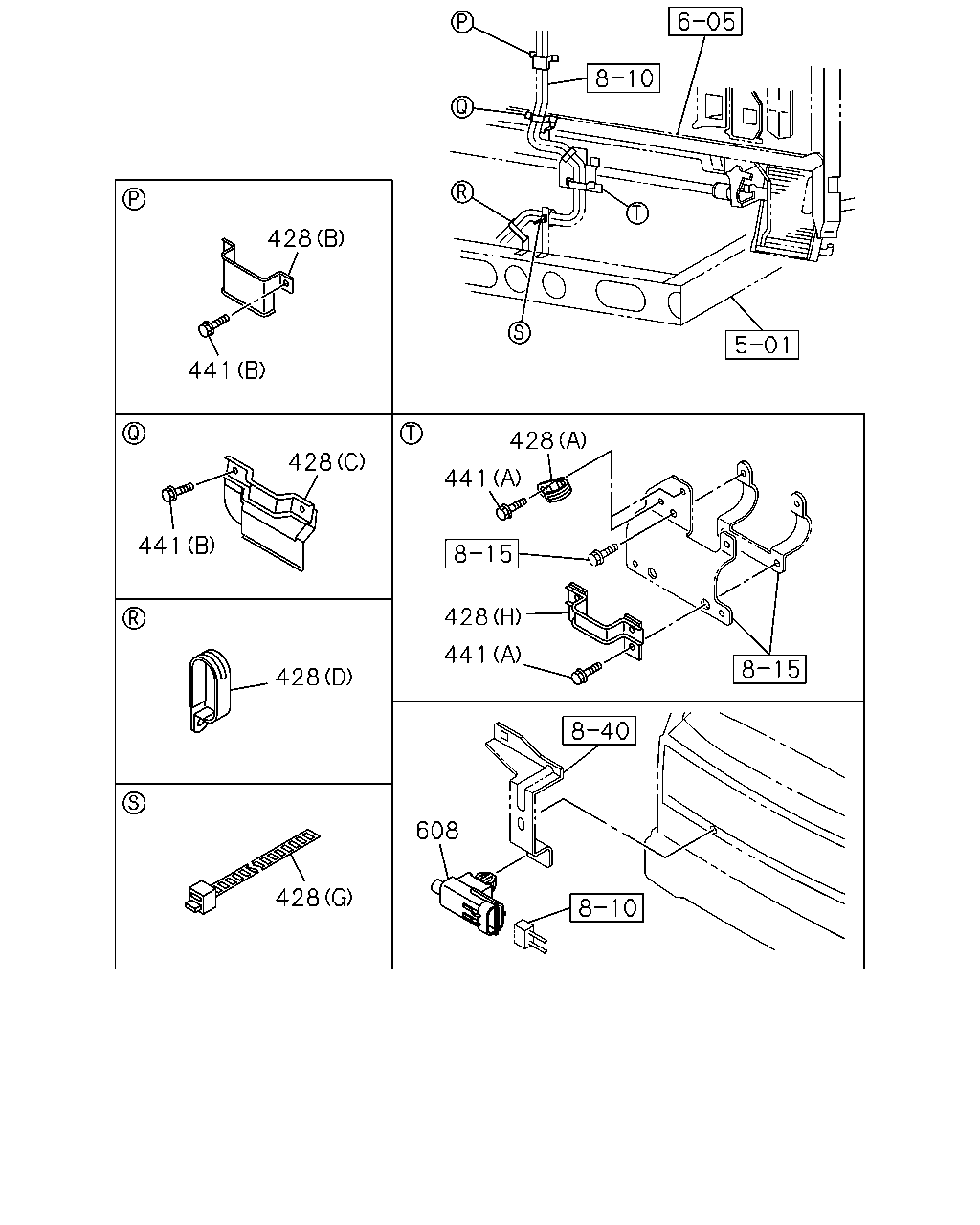

çizim 95955
428 441 428 428 441 441 428 441 428 608 428
BalonParca AdiParca NoAdetTipApplied Date
428 CLIP; HARNESS
(A) ID=39 H=28 L=32 		1-09701-263-0 02 1 0710-
428 CLIP; HARNESS
(D) ID=35X2 L=32 		1-09701-314-0 01 1 0710-
428 CLIP; HARNESS
(G) L=350 		1-09707-183-0 01 1 0710-
428 CLIP; HARNESS
(C) 		1-82698-375-1 01 1 0710-
428 CLIP; HARNESS
(H) 		1-82698-555-0 01 1 0710-
428 CLIP; HARNESS
(B) 		1-82699-993-1 01 1 0710-
428 CLIP; HARNESS
(F) L=36 		8-94224-891-1 01 1 0710-
428 CLIP; HARNESS
(E) ID=11 L=28 		9-09917-544-0 01 1 0710-
441 BOLT; HARNESS TO FRAME
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0710-
441 BOLT; HARNESS TO FRAME
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0710-
441 BOLT; HARNESS TO FRAME
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0710-0809
441 BOLT; HARNESS TO FRAME
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0810-0904
441 BOLT; HARNESS TO FRAME
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905-
608 SENSOR; AIR TEMP 8-97177-549-0 01 1 0710-1204
608 SENSOR; AIR TEMP 8-98214-375-0 01 1 1205-

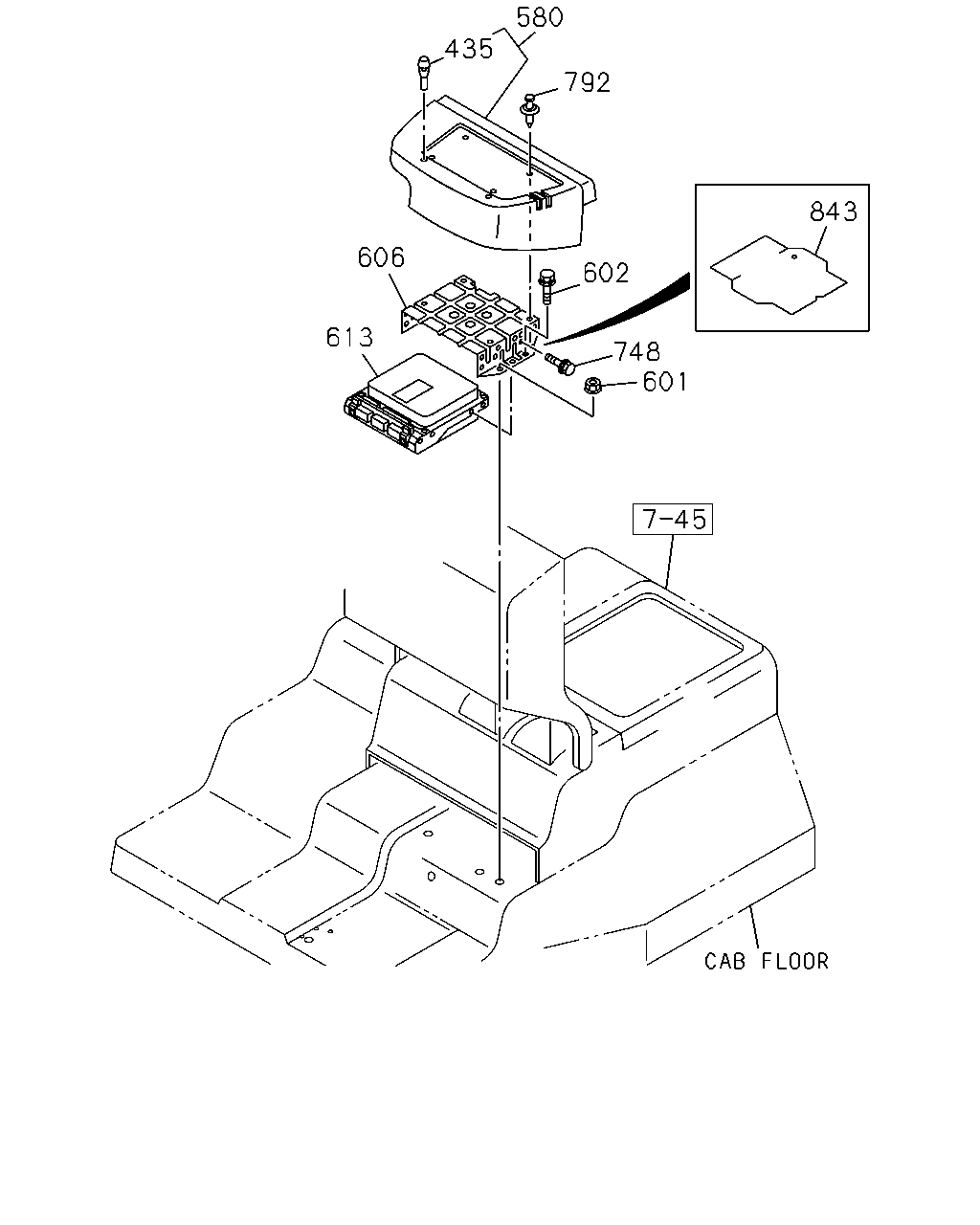

çizim 95956
580 435 792 843 606 602 613 748 601
BalonParca AdiParca NoAdetTipApplied Date
435 RUBBER; CUSHION 1-72537-138-0 02 1 0710-
580 COVER; CONT UNIT 1-72537-279-2 01 1 0710-
601 NUT; UNIT
M6 FLANGE 		0-91180-106-0 04 1 0710-
602 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0710-
602 BOLT; BRKT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0710-
606 BRACKET; CONT UNIT 1-72537-333-0 01 1 0710-
613 CONTROL UNIT; ENG 1-80111-405-0 01 1 0710-1103
613 CONTROL UNIT; ENG 8-98174-818-0 01 1 1104-
748 BOLT; CONT UNIT
M5X10 W/LK+PL WASHER 		0-36230-510-0 04 1 0710-
792 FASTENER
D8X13.5 		1-09987-270-0 04 1 0710-
843 SEAL; BRKT 1-76770-009-2 01 1 0710-1101
843 SEAL; BRKT 8-98119-974-0 01 1 1102-

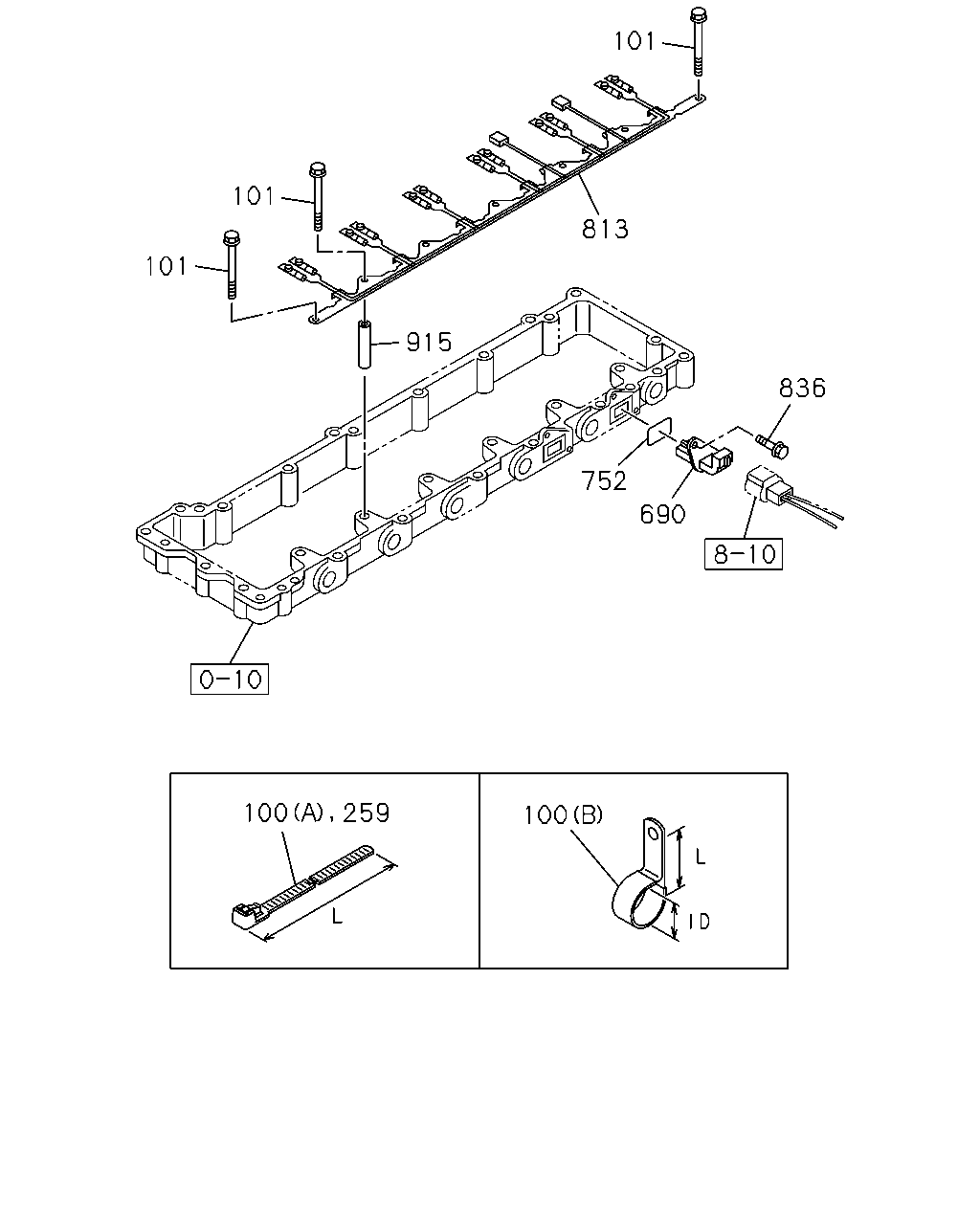

çizim 106599
101 101 813 101 915 836 752 690 100 259 100
BalonParca AdiParca NoAdetTipApplied Date
100 CLIP; HARNESS
(B) ID=11 L=20 		0-95235-035-0 01 1 0710-
100 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0710-1205
100 CLIP; HARNESS
(A) L=140 		8-98216-431-0 02 1 1206-
101 BOLT; HARNESS
M8X70 FLANGE 		0-28050-870-0 07 1 0710-
259 CLIP; BAND,HARNESS TO OIL PIPE
L=250 		5-09707-030-1 07 1 0710-1205
259 CLIP; BAND,HARNESS TO OIL PIPE
L=250 		8-98216-430-0 07 1 1206-
259 CLIP; BAND,HARNESS TO OIL PIPE
L=140 		5-09707-031-1 01 1 0710-1205
259 CLIP; BAND,HARNESS TO OIL PIPE
L=140 		8-98216-431-0 01 1 1206-
690 CONNECTOR 8-94390-858-1 02 1 0710-
752 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 02 1 0710-
813 HARNESS; INJECTOR 1-82641-338-1 01 1 0710-
836 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 04 1 0710-
915 SPACER; HARNESS
L=51 		1-11369-157-0 05 1 0710-
