Isuzu WW
▶
TRUCKS
▶
FVZ
▶
10633 - FVZ-RHD
▶
3 - Brakes, Brake System
▶
3-01 - FRONT WHEEL BRAKE
▶

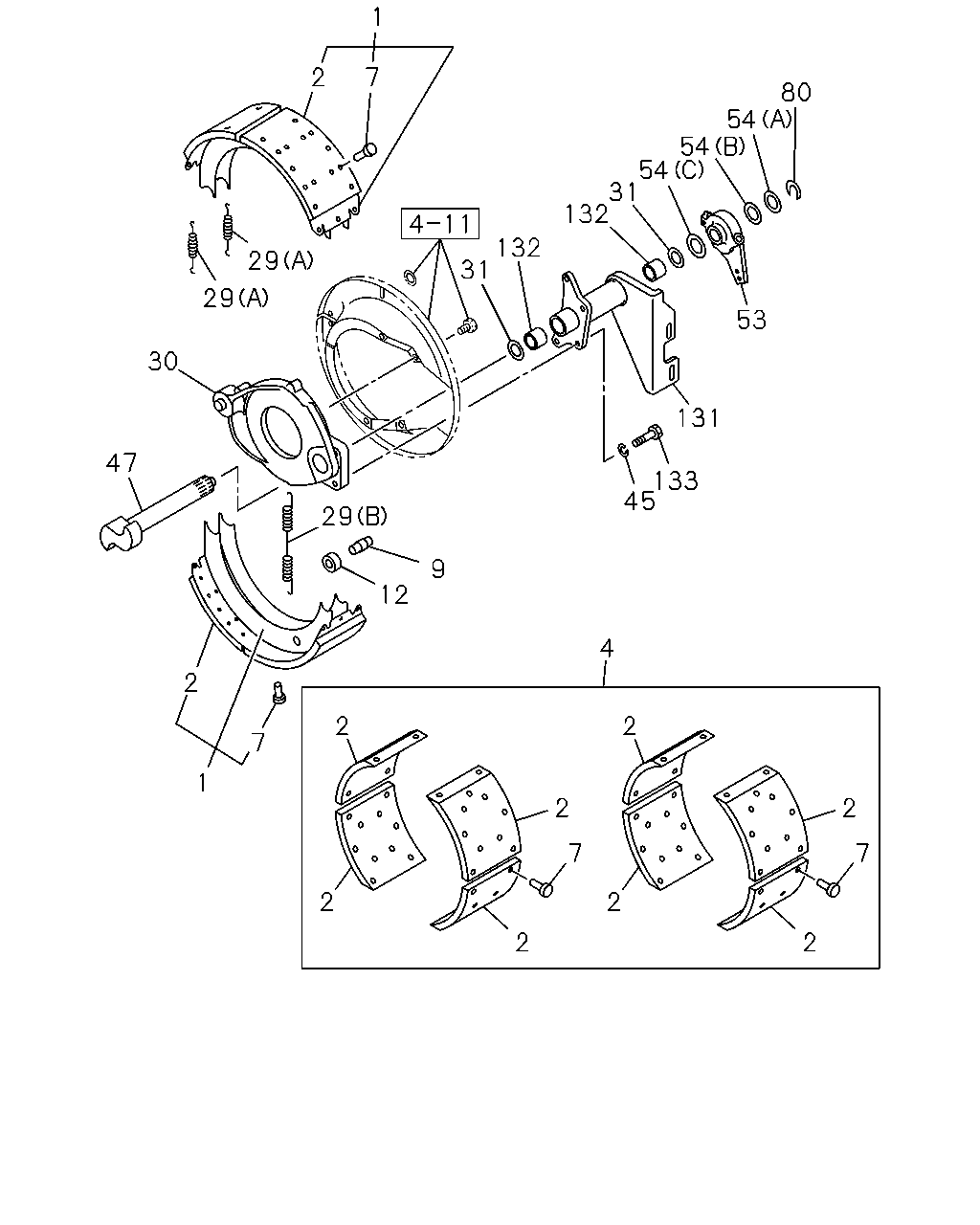

3-01 — FRONT WHEEL BRAKE
(#1434) — 24 parça
1
2
7
80
54
54
54
31
132
132
29
31
29
53
30
131
47
133
45
29
9
12
4
2
2
2
7
1
2
2
7
7
2
2
2
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHOE; BRK,FRT
1-87061-766-0
04
1
9203-
2
LINING; FRT BRK SHOE,STANDARD
1-87061-767-0
08
1
9203-
4
LINING SET; FRT BRK,STANDARD
1-87061-768-0
01
1
9203-
7
RIVET; LINING,FRT BRK
1-87061-377-0
80
1
9203-
9
PIN; SHOE HOLDER
1-87061-380-0
04
1
9203-
12
ROLLER; CAM,BRK SHOE
1-87061-379-0
04
1
9203-
29
SPRING; RETURN,FRT BRK SHOE
(B)
1-87061-313-0
02
1
9203-
29
SPRING; RETURN,FRT BRK SHOE
(A)
1-87061-384-0
04
1
9203-
30
BRACKET; ANCHOR,FRT
1-87061-770-0
01
1
9203-
30
BRACKET; ANCHOR,FRT
1-87061-769-0
01
1
9203-
31
SEAL; OIL,CM/SHF
1-87061-386-0
04
1
9203-
45
WASHER; LK
1-87061-403-0
08
1
9203-
47
CAMSHAFT; FRT BRK
1-87061-778-0
01
1
9203-
47
CAMSHAFT; FRT BRK
1-87061-777-0
01
1
9203-
53
ADJUSTER ASM; SLACK
1-87061-776-0
01
1
9203-
53
ADJUSTER ASM; SLACK
1-87061-775-0
01
1
9203-
54
SPACER; CM/SHF
(A)
1-87061-368-0
04
1
9203-
54
SPACER; CM/SHF
(B)
1-87061-374-0
02
1
9203-
54
SPACER; CM/SHF
(C)
1-87061-381-0
02
1
9203-
80
RING; SNAP,CM/SHF
1-87061-388-0
02
1
9203-
131
BRACKET; POWER CHAMBER
1-87061-772-0
01
1
9203-
131
BRACKET; POWER CHAMBER
1-87061-771-0
01
1
9203-
132
BUSHING; BRKT
1-87061-312-0
04
1
9203-
133
BOLT; BRKT
1-87061-378-0
08
1
9203-
