1 |

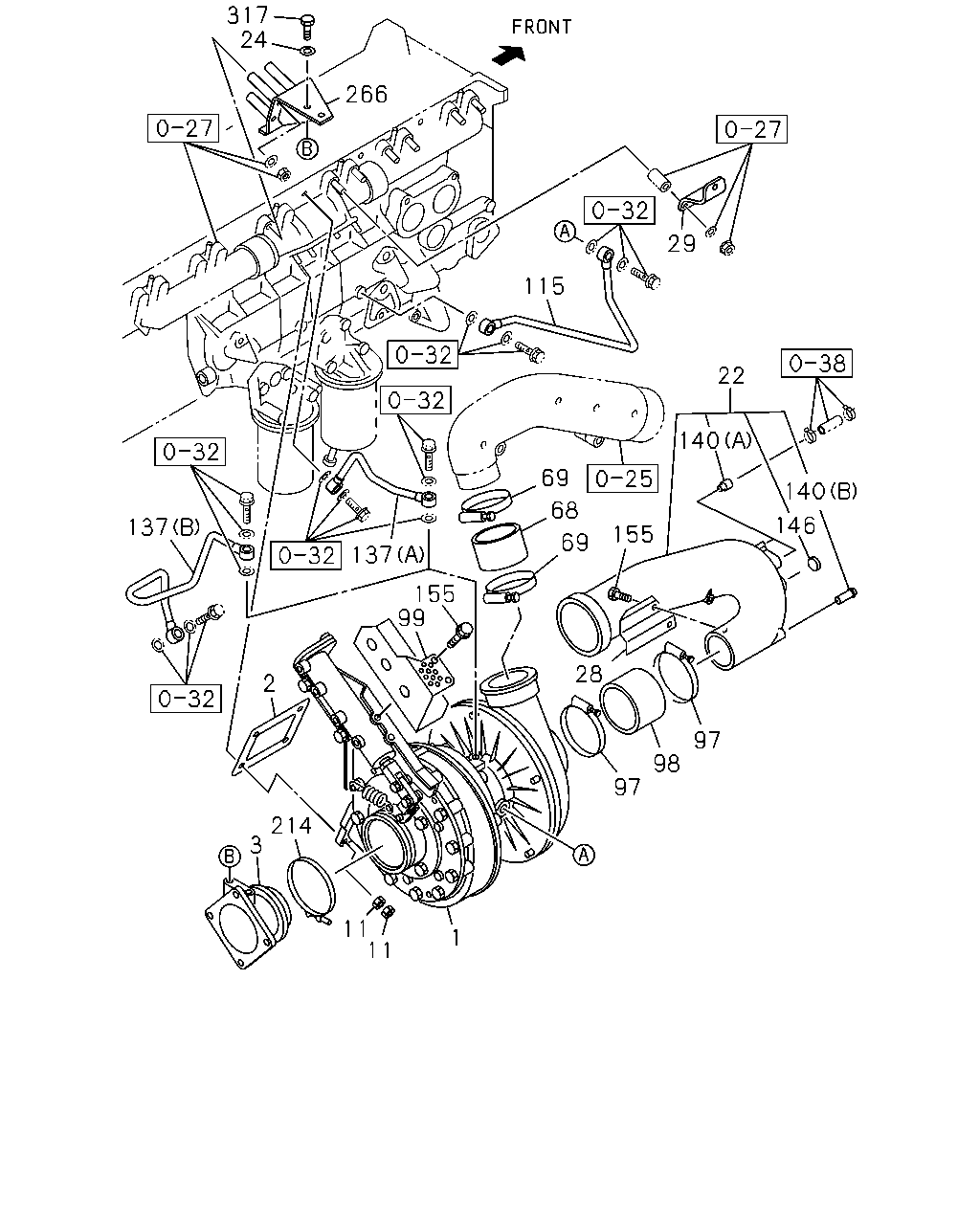

TURBOCHARGER ASM
|
1-14400-425-5 |
01 |
1 |
0710- |
| |
2 |
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
1-14145-208-1 |
01 |
1 |
0710-0804 |
| |
2 |
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
8-98116-466-0 |
01 |
1 |
0805-1001 |
| |
2 |
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
8-98162-161-0 |
01 |
1 |
1002- |
| |
3 |
PIPE; EXH,TURBOCHARGER
|
1-14144-658-1 |
01 |
1 |
0710- |
| |
11 |
NUT; TURBOCHARGER
M10
|
1-09420-005-0 |
08 |
1 |
0710- |
| |
22 |
DUCT; INL,ACL TO TURBOCHARGER
|
1-14134-478-3 |
01 |
1 |
0710- |
| |
24 |
WASHER; PL,PIPE
ID=10.5 OD=22
|
1-09500-007-0 |
02 |
1 |
0710- |
| |
28 |
PROTECTOR; HEAT,HOSE,AIR DUCT
|
1-14181-272-0 |
01 |
1 |
0710- |
| |
29 |
BRACKET; INL PIPE,ACL TO TURBOCHARGER
|
1-14119-473-0 |
01 |
1 |
0710- |
| |
68 |
HOSE; RUBBER,TURBOCHARGER TO INL COVER
|
1-09361-116-1 |
01 |
1 |
0710-1007 |
| |
68 |
HOSE; RUBBER,TURBOCHARGER TO INL COVER
|
8-98169-678-0 |
01 |
1 |
1008- |
| |
69 |
CLIP; RUBBER HOSE,TURBOCHARGER
ID=87-111
|
8-97375-039-0 |
02 |
1 |
0710-1007 |
| |
69 |
CLIP; RUBBER HOSE,TURBOCHARGER
ID=68-85
|
8-98096-592-0 |
02 |
1 |
1008- |
| |
97 |
CLIP; HOSE,TURBOCHARGER,INL
ID=104-139
|
1-09707-200-0 |
04 |
1 |
0710-0809 |
| |
97 |
CLIP; HOSE,TURBOCHARGER,INL
ID=104-139
|
1-09707-200-0 |
02 |
1 |
0810-0812 |
| |
97 |
CLIP; HOSE,TURBOCHARGER,INL
ID=120-140
|
8-98133-367-0 |
02 |
1 |
0901-0902 |
| |
97 |
CLIP; HOSE,TURBOCHARGER,INL
ID=104-142
|
1-09707-139-0 |
02 |
1 |
0903- |
| |
98 |
HOSE; RUBBER,TURBOCHARGER OUTLET
|
1-09360-988-0 |
01 |
1 |
0710- |
| |
99 |
PROTECTOR; HEAT
|
1-14181-350-0 |
01 |
1 |
0710- |
| |
115 |
PIPE; WATER,TURBOCHARGER OUT
|
1-13722-040-0 |
01 |
1 |
0710- |
| |
137 |
PIPE; WATER,TURBOCHARGER IN
(A)
|
1-13722-041-2 |
01 |
1 |
0710-1412 |
| |
137 |
PIPE; WATER,TURBOCHARGER IN
(B)
|
8-98300-237-0 |
01 |
1 |
1501- |
| |
140 |
PIPE; AIR PIPE
(B)
|
8-97603-427-1 |
01 |
1 |
0710- |
| |
140 |
PIPE; AIR PIPE
(A)
|
9-14119-228-1 |
02 |
1 |
0710- |
| |
146 |
PLUG; INL PIPE
OD=30
|
8-94241-638-0 |
01 |
1 |
0710- |
| |
155 |
BOLT; HEAT PROTECTOR
M6X10 FLANGE
|
0-28050-610-0 |
04 |
1 |
0710- |
| |
155 |
BOLT; HEAT PROTECTOR
M8X12 FLANGE
|
0-28050-812-0 |
02 |
1 |
0710- |
| |
214 |
BAND; "V",TURBOCHARGER TO EXH PIPE
|
8-98006-007-1 |
01 |
1 |
0710- |
| |
266 |
BRACKET; EXH PIPE
|
8-97606-662-1 |
01 |
1 |
0710- |
| |
317 |
BOLT; EXH PIPE
M10X20
|
1-09020-073-2 |
02 |
1 |
0710- |
