Sayfa 0-32 - Isuzu EPC

0-32 — WATER PIPING; ENGINE (#14332) — 99 parça

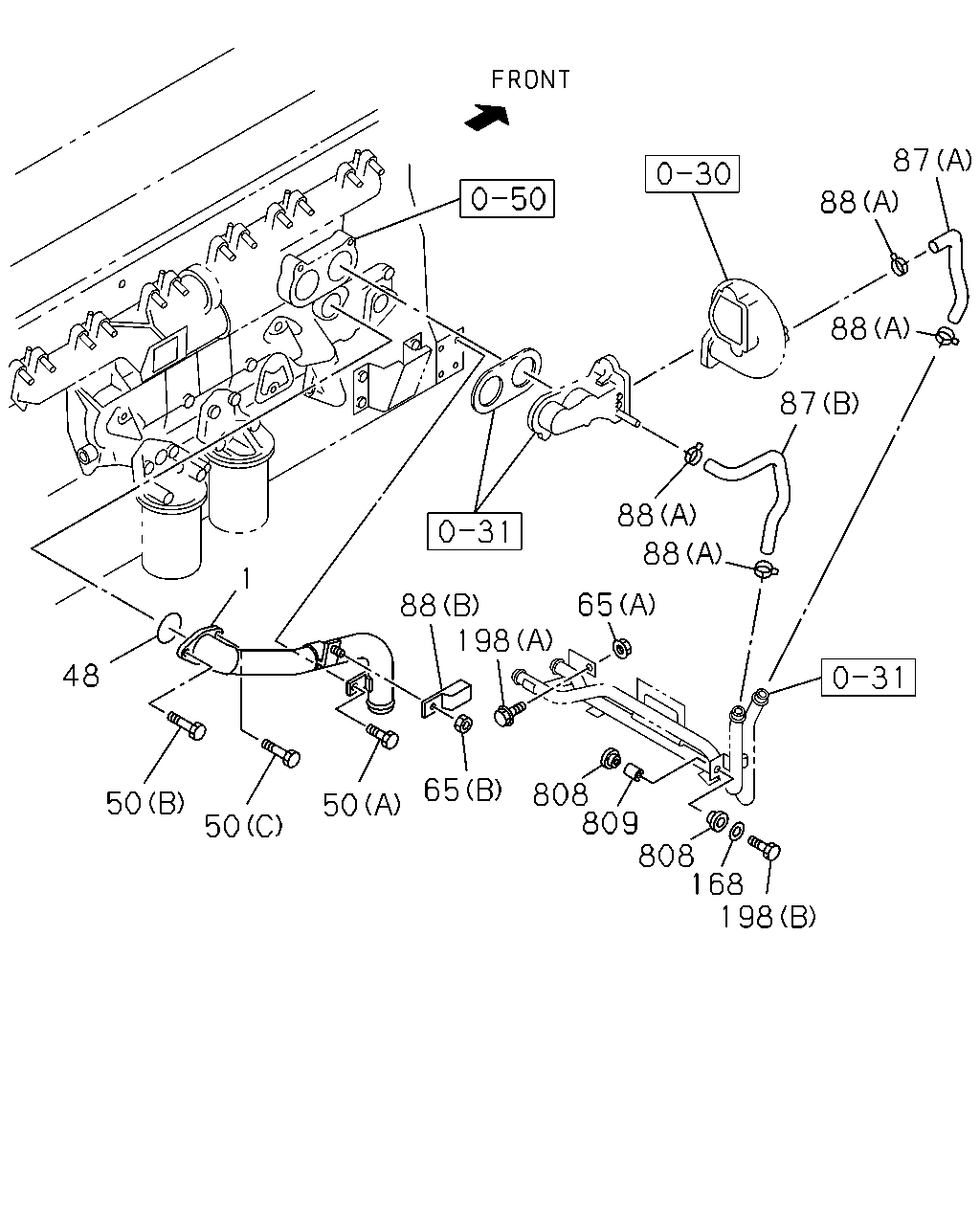

87 88 88 87 88 88 1 65 88 198 48 65 808 809 808 168 198 50 50 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; WATER PUMP,INL	8-97606-255-2	01	1	0710-
48	GASKET; PIPE TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	0710-
50	BOLT; WATER PIPE INL (B) M10X30 FLANGE	0-28151-030-0	01	1	0710-
50	BOLT; WATER PIPE INL (C) M10X80 FLANGE	0-28151-080-0	01	1	0710-
50	BOLT; WATER PIPE INL (A) M14X25 FLANGE	0-28951-425-0	01	1	0710-
65	NUT (A) M10 FLANGE	0-91150-110-0	01	1	0710-
65	NUT (B) M10 FLANGE	0-91180-110-0	01	1	0710-
87	HOSE; RUBBER,HTR (A)	1-83565-572-0	01	1	0710-
87	HOSE; RUBBER,HTR (B)	1-83565-577-0	01	1	0710-
88	CLIP; HOSE,HTR (A) ID=20	1-09707-084-1	04	1	0710-
88	CLIP; HOSE,HTR (B)	9-09915-663-0	01	1	0710-1206
88	CLIP; HOSE,HTR (B)	8-98166-024-0	01	1	1207-
168	WASHER; PL,PIPE ID=10.5 OD=26	0-91614-710-0	02	1	0710-
198	BOLT; PIPE (A) M10X45 FLANGE	0-28051-045-0	02	1	0710-
198	BOLT; PIPE (B) M10X45 FLANGE	0-28081-045-0	02	1	0710-
808	RUBBER; MTG	1-09337-017-0	04	1	0710-
809	TUBE; DIST ID=11.8 L=27	1-21559-149-0	02	1	0710-

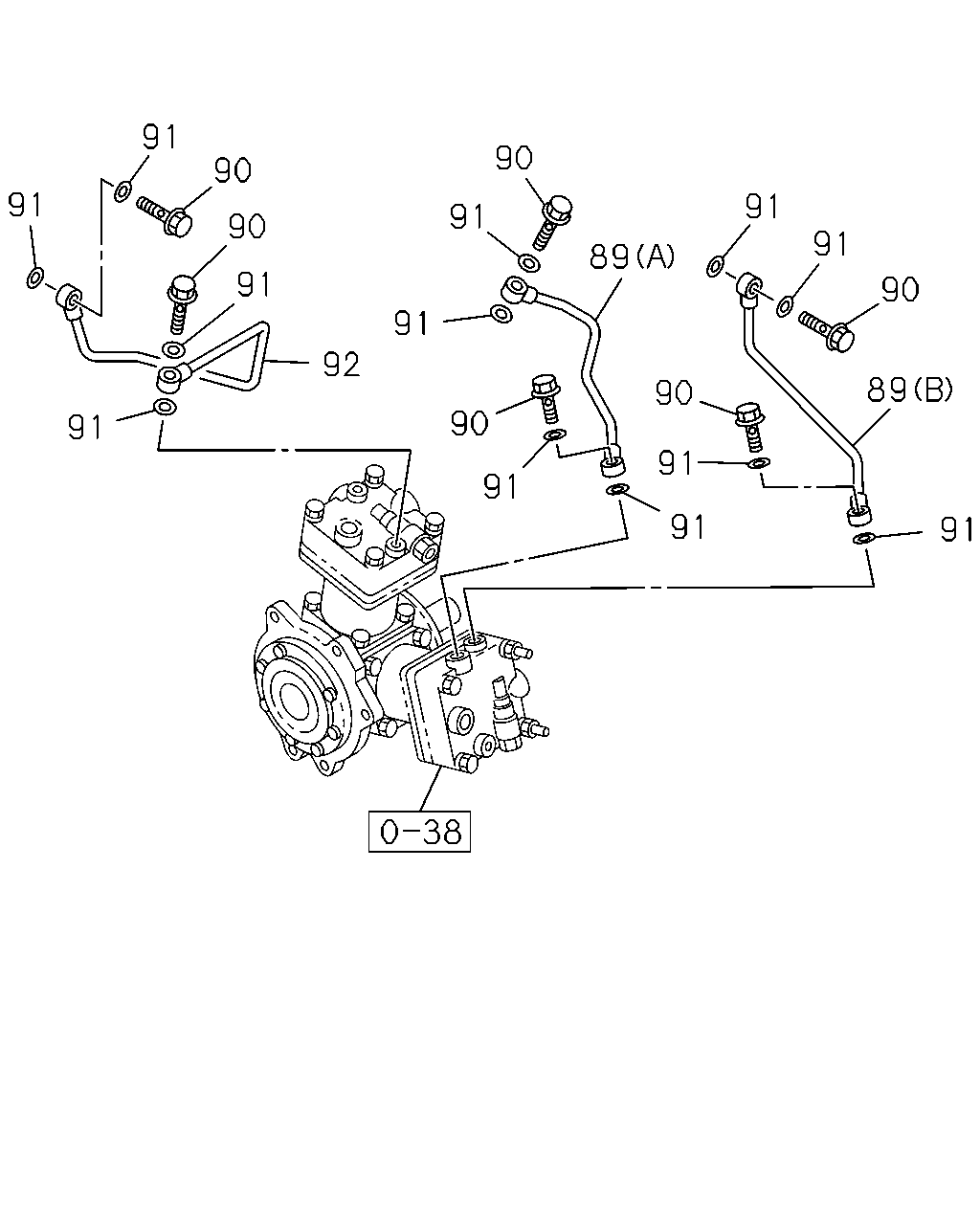

91 90 90 91 91 91 90 91 89 91 90 91 92 89 90 90 91 91 91 91 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
89	PIPE; WATER,AIR CMPR,IN (B)	1-13722-007-0	01	1	0710-
89	PIPE; WATER,AIR CMPR,IN (A)	1-13722-008-0	01	1	0710-
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	06	1	0710-
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	12	1	0710-
92	PIPE; WATER,AIR CMPR,OUT	1-13722-009-0	01	1	0710-

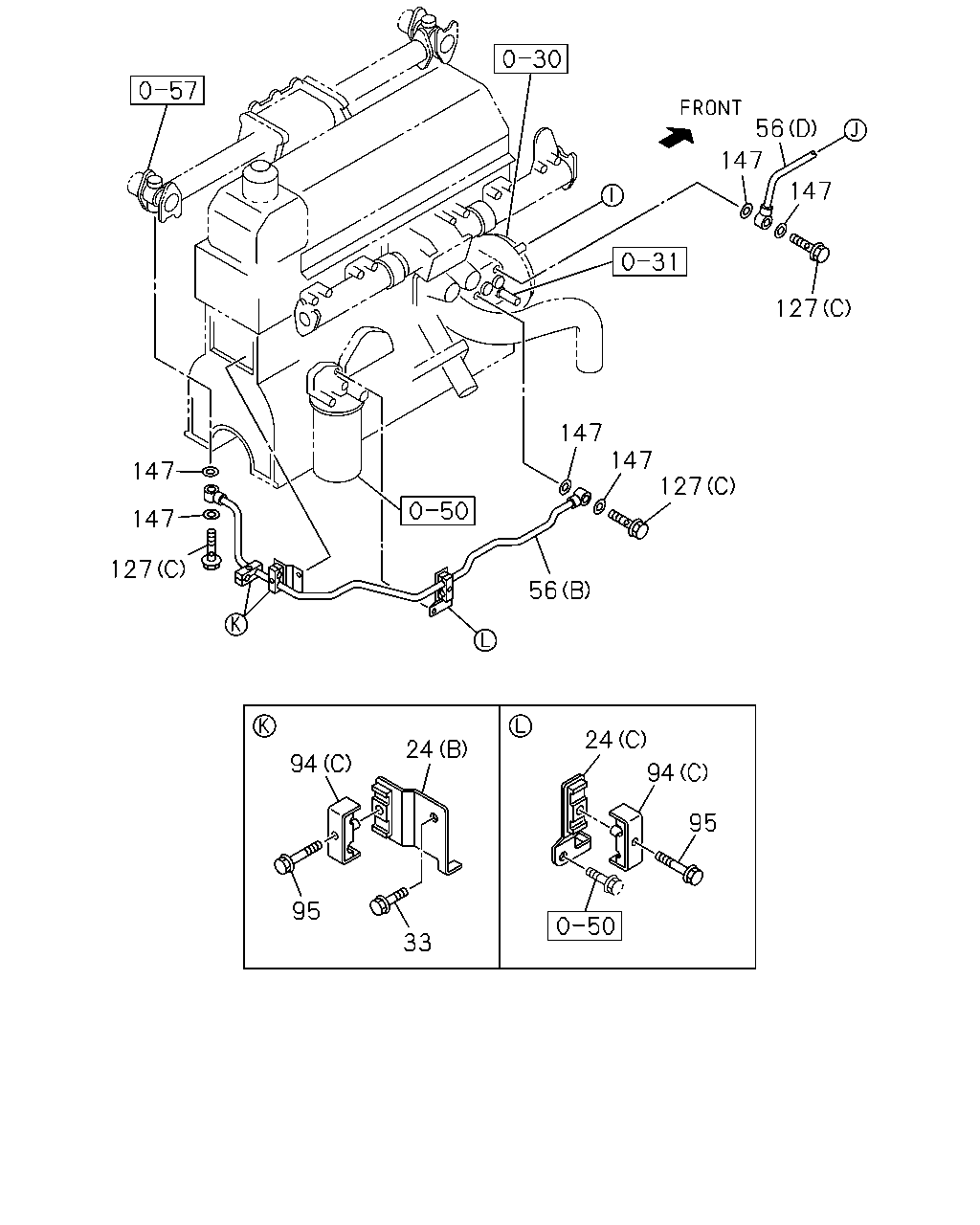

56 147 147 127 147 147 127 147 147 127 56 24 24 94 94 95 95 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	BRACKET; WATER PIPE (C)	1-13729-023-0	01	1	0710-
24	BRACKET; WATER PIPE (B)	1-13729-024-0	01	1	0710-
24	BRACKET; WATER PIPE (A)	1-13729-060-0	01	1	0710-
33	BOLT; BRKT M14X20 FLANGE	0-28951-420-0	01	1	0710-
56	PIPE; WATER OUTLET (B)	1-13721-747-0	01	1	0710-
56	PIPE; WATER OUTLET (C)	1-13721-855-0	01	1	0710-
56	PIPE; WATER OUTLET (D)	1-13721-898-0	01	1	0710-
56	PIPE; WATER OUTLET (A)	8-98039-673-0	01	1	0710-
94	CLIP; WATER PIPE (B)	1-09701-210-0	04	1	0710-
94	CLIP; WATER PIPE (D)	1-09701-282-0	04	1	0710-
94	CLIP; WATER PIPE (A) ID=17 L=17	1-09701-284-0	04	1	0710-
94	CLIP; WATER PIPE (C)	8-94393-037-0	02	1	0710-
95	BOLT; CLIP M6X35 FLANGE	0-28050-635-0	04	1	0710-
95	BOLT; CLIP M6X40 FLANGE	0-28050-640-0	04	1	0710-
127	BOLT; EYE (A) M10X21 FLANGE	1-09675-077-0	01	1	0710-0805
127	BOLT; EYE (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-
127	BOLT; EYE (C) M16X30 FLANGE	1-09675-095-1	09	1	0710-
127	BOLT; EYE (D) M14X27 EYE-BOLT	1-09675-193-0	02	1	0710-
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-230-0	01	1	0710-
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2	1-09630-086-0	16	1	0710-

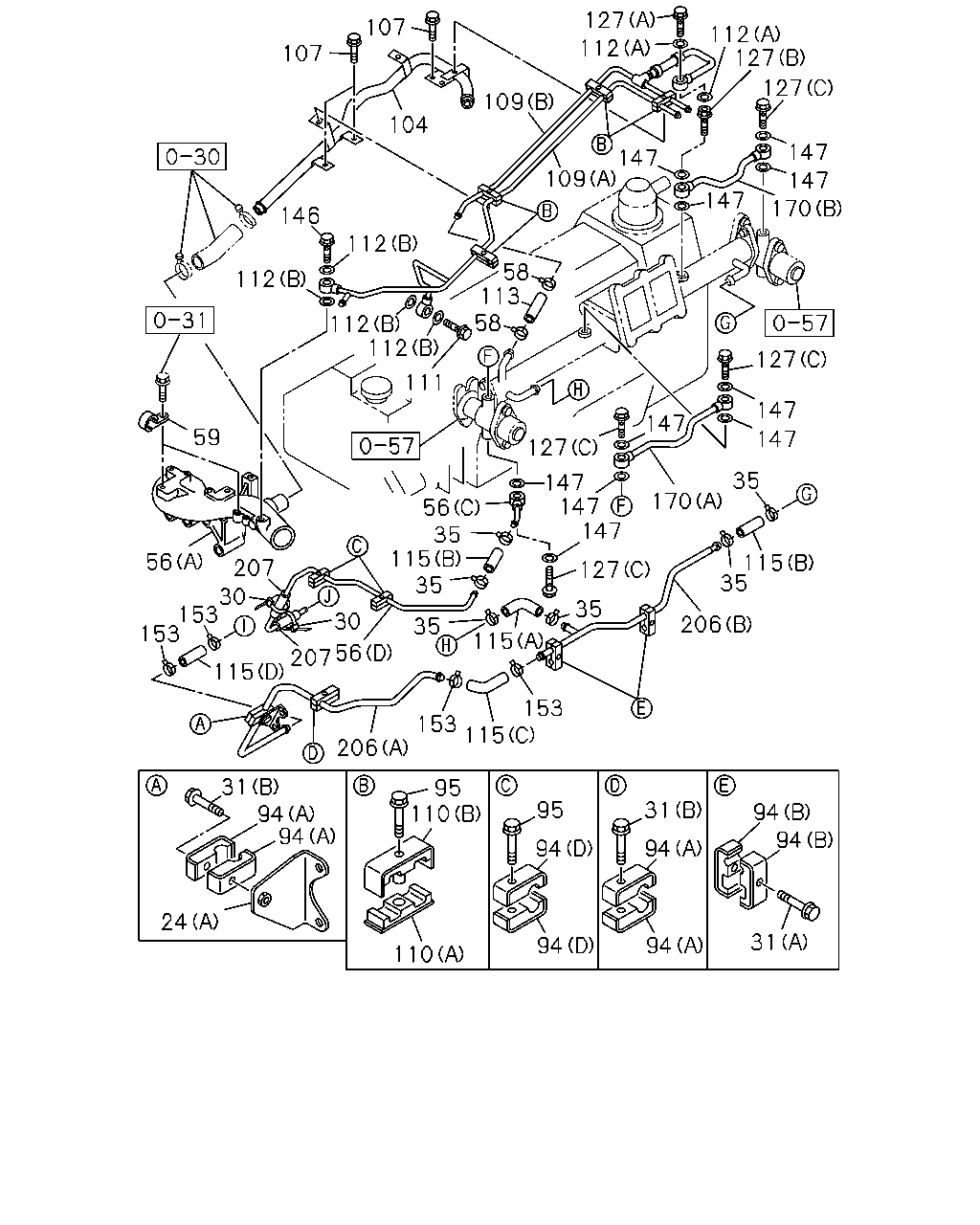

127 107 112 127 112 107 127 109 104 147 147 147 109 147 170 146 112 58 113 58 112 112 112 127 111 147 147 59 147 127 35 147 147 147 170 56 35 115 35 56 115 35 207 127 30 153 153 30 35 206 35 115 56 207 115 153 115 153 206 31 94 94 95 110 31 95 94 94 94 94 24 31 94 94 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	BRACKET; WATER PIPE (C)	1-13729-023-0	01	1	0710-
24	BRACKET; WATER PIPE (B)	1-13729-024-0	01	1	0710-
24	BRACKET; WATER PIPE (A)	1-13729-060-0	01	1	0710-
30	CLIP; HARNESS L=140	5-09707-031-1	02	1	0710-1205
30	CLIP; HARNESS L=140	8-98216-431-0	02	1	1206-
31	BOLT; CLIP (A) M6X70 FLANGE	0-28050-670-0	02	1	0710-
31	BOLT; CLIP (B) M8X40 FLANGE	0-28050-840-0	02	1	0710-
35	CLIP; RUBBER HOSE	1-09707-143-0	06	1	0710-
56	PIPE; WATER OUTLET (B)	1-13721-747-0	01	1	0710-
56	PIPE; WATER OUTLET (C)	1-13721-855-0	01	1	0710-
56	PIPE; WATER OUTLET (D)	1-13721-898-0	01	1	0710-
56	PIPE; WATER OUTLET (A)	8-98039-673-0	01	1	0710-
58	CLIP; RUBBER HOSE ID=14	1-09704-102-0	02	1	0710-
59	CLIP; HARNESS,WATER OUTLET PIPE ID=11 L=24	0-95235-045-0	02	1	0710-
94	CLIP; WATER PIPE (B)	1-09701-210-0	04	1	0710-
94	CLIP; WATER PIPE (D)	1-09701-282-0	04	1	0710-
94	CLIP; WATER PIPE (A) ID=17 L=17	1-09701-284-0	04	1	0710-
94	CLIP; WATER PIPE (C)	8-94393-037-0	02	1	0710-
95	BOLT; CLIP M6X35 FLANGE	0-28050-635-0	04	1	0710-
95	BOLT; CLIP M6X40 FLANGE	0-28050-640-0	04	1	0710-
104	PIPE; WATER CHARGE	1-13721-913-2	01	1	0710-1208
104	PIPE; WATER CHARGE	8-98228-041-0	01	1	1209-
107	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	04	1	0710-
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	1-13721-833-1	01	1	0710-
109	PIPE; AIR,LEAK,THERMOSTAT HSG (B)	1-13721-834-2	01	1	0710-
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	04	1	0710-
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-3	04	1	0710-
111	BOLT; EYE,LEAK,THERMOSTAT HSG M14X27 EYE-BOLT	1-09675-193-0	01	1	0710-
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0710-
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=25	1-09630-141-0	04	1	0710-
113	HOSE; RUBBER,AIR LEAK L=70 SERVICED BY L=3000	0-03559-300-0	01	1	0710-
115	HOSE; RUBBER (D) L=55 SERVICED BY L=3000	0-03566-300-0	01	1	0710-
115	HOSE; RUBBER (C)	1-09361-081-1	01	1	0710-
115	HOSE; RUBBER (B) L=60	1-09361-084-0	02	1	0710-
115	HOSE; RUBBER (A)	1-13729-039-0	01	1	0710-
127	BOLT; EYE (A) M10X21 FLANGE	1-09675-077-0	01	1	0710-0805
127	BOLT; EYE (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-
127	BOLT; EYE (C) M16X30 FLANGE	1-09675-095-1	09	1	0710-
127	BOLT; EYE (D) M14X27 EYE-BOLT	1-09675-193-0	02	1	0710-
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-230-0	01	1	0710-
146	BOLT; EYE M14X27 EYE-BOLT	1-09675-193-0	01	1	0710-
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2	1-09630-086-0	16	1	0710-
153	CLIP; RUBBER HOSE ID=20	1-09707-084-1	04	1	0710-
170	PIPE; WATER,INL (A)	1-13721-744-0	01	1	0710-
170	PIPE; WATER,INL (B)	1-13721-745-0	01	1	0710-
206	PIPE; WATER,EGR COOLER (B)	1-13721-853-0	01	1	0710-
206	PIPE; WATER,EGR COOLER (A)	1-13721-899-0	01	1	0710-
207	COUPLING; RUBBER ID=14 OD=18 L=60	1-09337-030-0	02	1	0710-

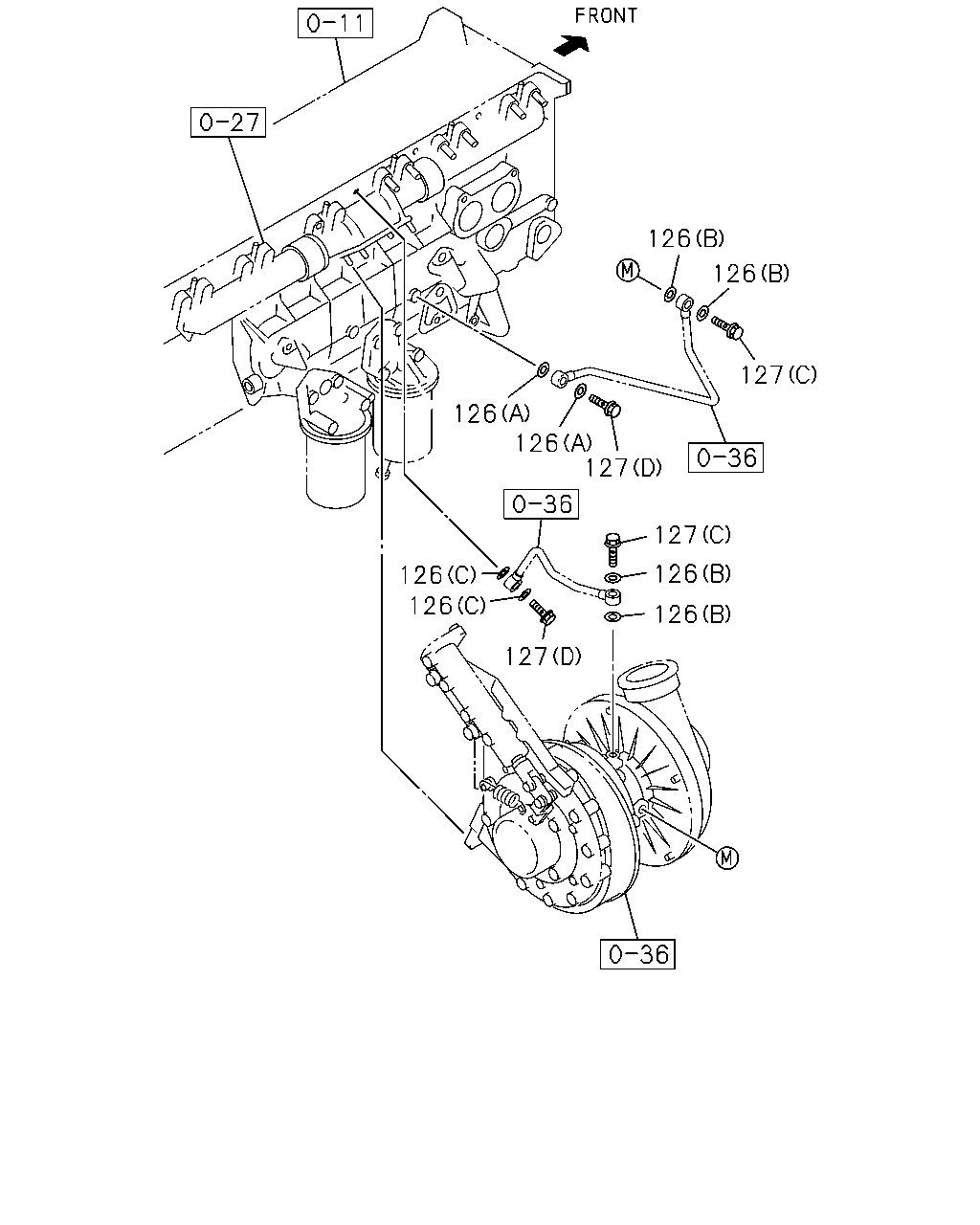

126 126 127 126 126 127 127 126 126 126 126 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0710-1312
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	04	1	0710-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	02	1	0710-
127	BOLT; EYE (A) M10X21 FLANGE	1-09675-077-0	01	1	0710-0805
127	BOLT; EYE (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-
127	BOLT; EYE (C) M16X30 FLANGE	1-09675-095-1	09	1	0710-
127	BOLT; EYE (D) M14X27 EYE-BOLT	1-09675-193-0	02	1	0710-
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-230-0	01	1	0710-
