Isuzu WW
▶
TRUCKS
▶
FVZ
▶
10633 - FVZ-RHD
▶
2 - Clutch, Transmission, Trans Axle
▶

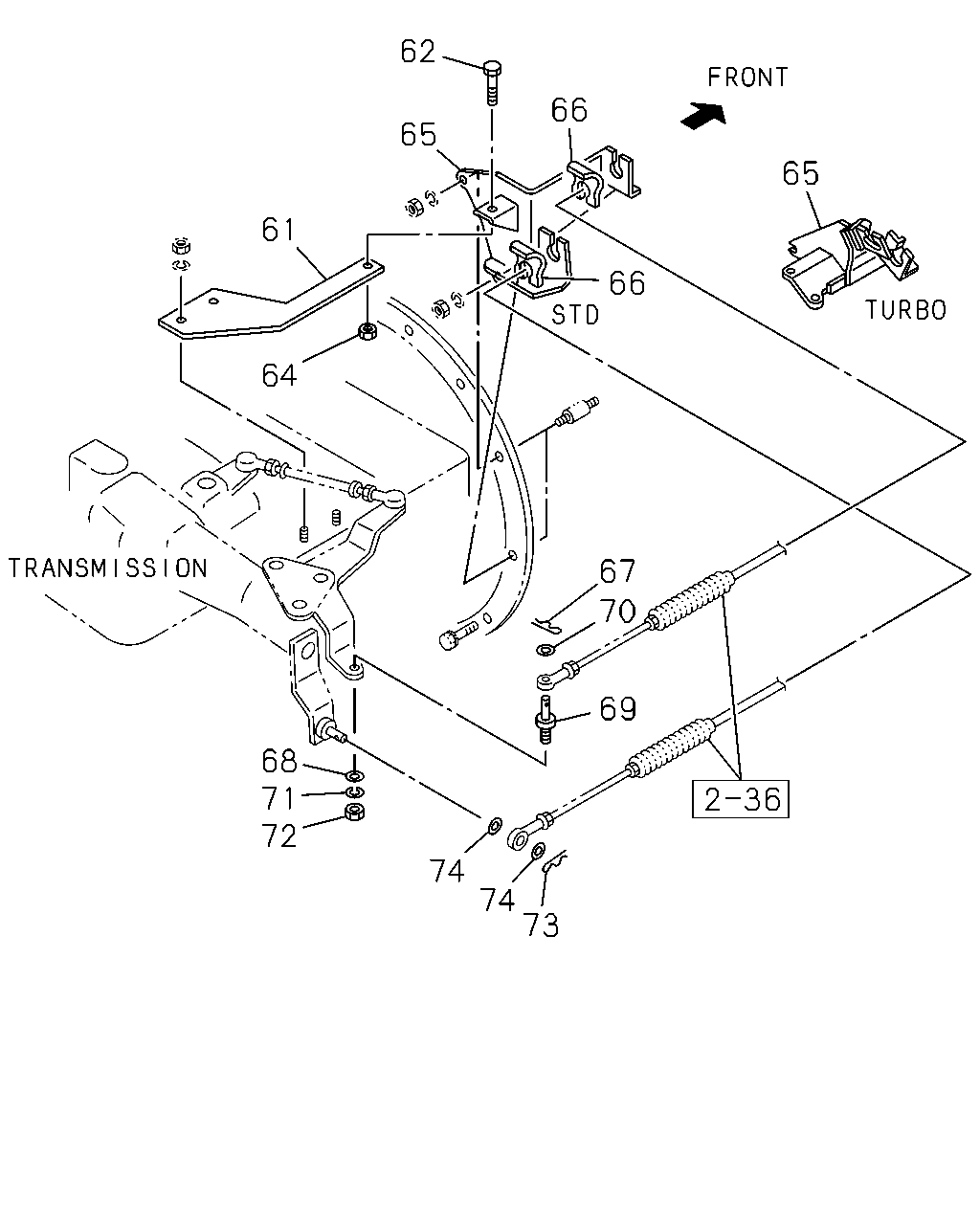

2-37 - MANUAL TRANSMISSION CONT; MISSION SIDE
▶
2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE
(#1433) — 16 parça
Tümü
A - FULLER RT6609 M/T
B - FULLER RT7608LL M/T
62
66
65
65
61
66
64
67
70
69
68
71
72
74
74
73
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
61
STAY; BRKT,TRANS CONT
6SA1 STD ENG(06L)
1-33657-406-0
01
1
9203-
●
●
62
BOLT; STAY
6SA1 STD ENG(06L) M10X25 W/LK WASHER
0-50041-025-0
01
1
9203-
●
●
62
BOLT; STAY
6SA1TC ENG(28L) M10X20 W/LK&PL WASHER
0-50151-020-0
02
1
9203-
●
●
64
NUT; STAY
6SA1 STD ENG(06L) M10 FLANGE
5-09440-006-0
03
1
9203-
●
●
65
BRACKET; SHIFT TO SELECT,TRANS CONT
6SA1 STD ENG(06L)
1-33657-405-0
01
1
9203-
●
●
65
BRACKET; SHIFT TO SELECT,TRANS CONT
6SA1TC ENG(28L)
1-33657-492-2
01
1
9203-
●
●
66
CLIP; SELECT BRKT
1-09700-778-1
02
1
9405-
●
●
67
PIN; SNAP,SELECT WIRE
L=27.7
8-94157-841-0
01
1
9405-
●
●
68
WASHER; PL,TRANS CONT,SELECT
ID=8.4 OD=18
9-09160-608-0
01
1
9203-
●
●
69
PIN; TRANS CONT,SELECT
1-33659-116-0
01
1
9405-
●
●
70
WASHER; PL,SELECT WIRE
ID=8.4 OD=18
9-09164-608-0
01
1
9405-
●
●
71
WASHER; LK,TRANS CONT,SELECT
ID=8.2
9-09150-608-0
01
1
9203-9203
●
●
71
WASHER; LK,TRANS CONT,SELECT
ID=8.2
9-09150-508-0
01
1
9405-
●
●
72
NUT; TRANS CONT,SELECT
M8
9-09110-408-0
01
1
9405-
●
●
73
RING; SNAP,WIRE SHAFT
L=32.6
8-94157-842-0
01
1
9405-
●
●
74
WASHER; PL,WIRE
ID=10.5 OD=32
9-09164-810-0
02
1
9405-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
