Isuzu WW
▶
TRUCKS
▶
EXY
▶
11118 - EXY NZ JNST04 EXC.HYDRAULIC RETARDER
▶
0 - Engine, Emission, Engine Electrical
▶
0-27 - EXHAUST MANIFOLD
▶

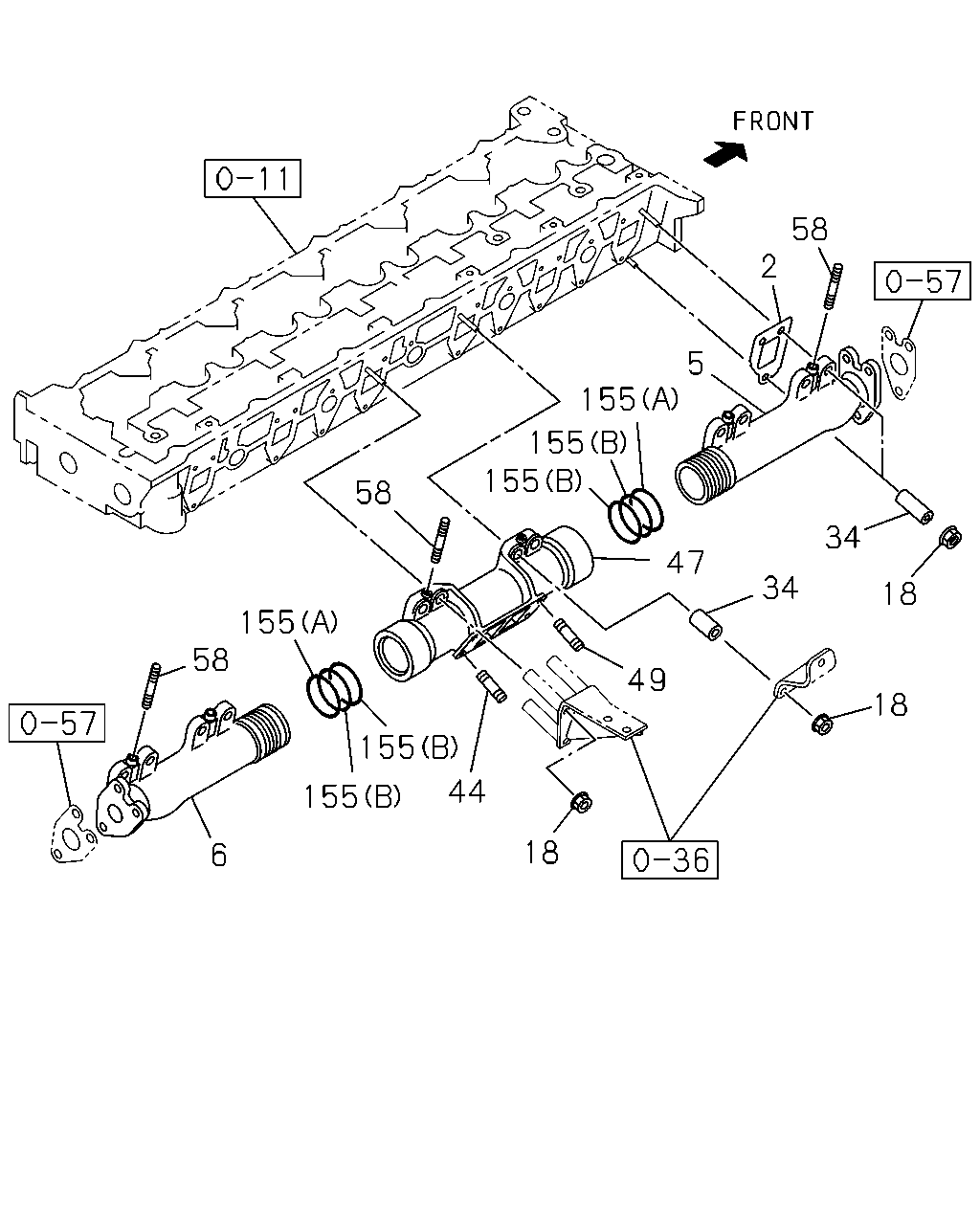

0-27 — EXHAUST MANIFOLD
(#14328) — 11 parça
58
2
5
155
155
155
58
155
58
6
155
155
44
18
49
47
34
18
34
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14145-182-3
06
1
0710-
5
MANIFOLD; EXH,FRT
1-14141-934-1
01
1
0710-
6
MANIFOLD; EXH,RR
1-14141-935-1
01
1
0710-
18
NUT; EXH MANIF
M10 FLANGE
8-97096-192-1
18
1
0710-
34
COLLAR; DIST,EXH MANIF
L=28
8-97250-073-1
14
1
0710-
44
STUD; TURBOCHARGER
M10X25 L=47
8-97378-071-0
02
1
0710-
47
MANIFOLD; EXH,CENTER
8-97604-878-1
01
1
0710-
49
STUD; CENTER MANIF TO TURBOCHARGER
M10X25 L=47
8-97378-071-0
02
1
0710-
58
STUD; HEAT PROTECTOR
M8X25 L=37
0-41010-825-0
04
1
0710-
155
RING; SEAL,EXH MANIF
(A)
1-14149-201-0
02
1
0710-
155
RING; SEAL,EXH MANIF
(B)
9-14149-026-1
04
1
0710-
