Sayfa 9-01 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11117 - EXY AUST/NZ HYDRAULIC RETARDER ▶ 9 - Tools ▶ 9-01 - TOOLS ▶

9-01 — TOOLS (#14316) — 99 parça

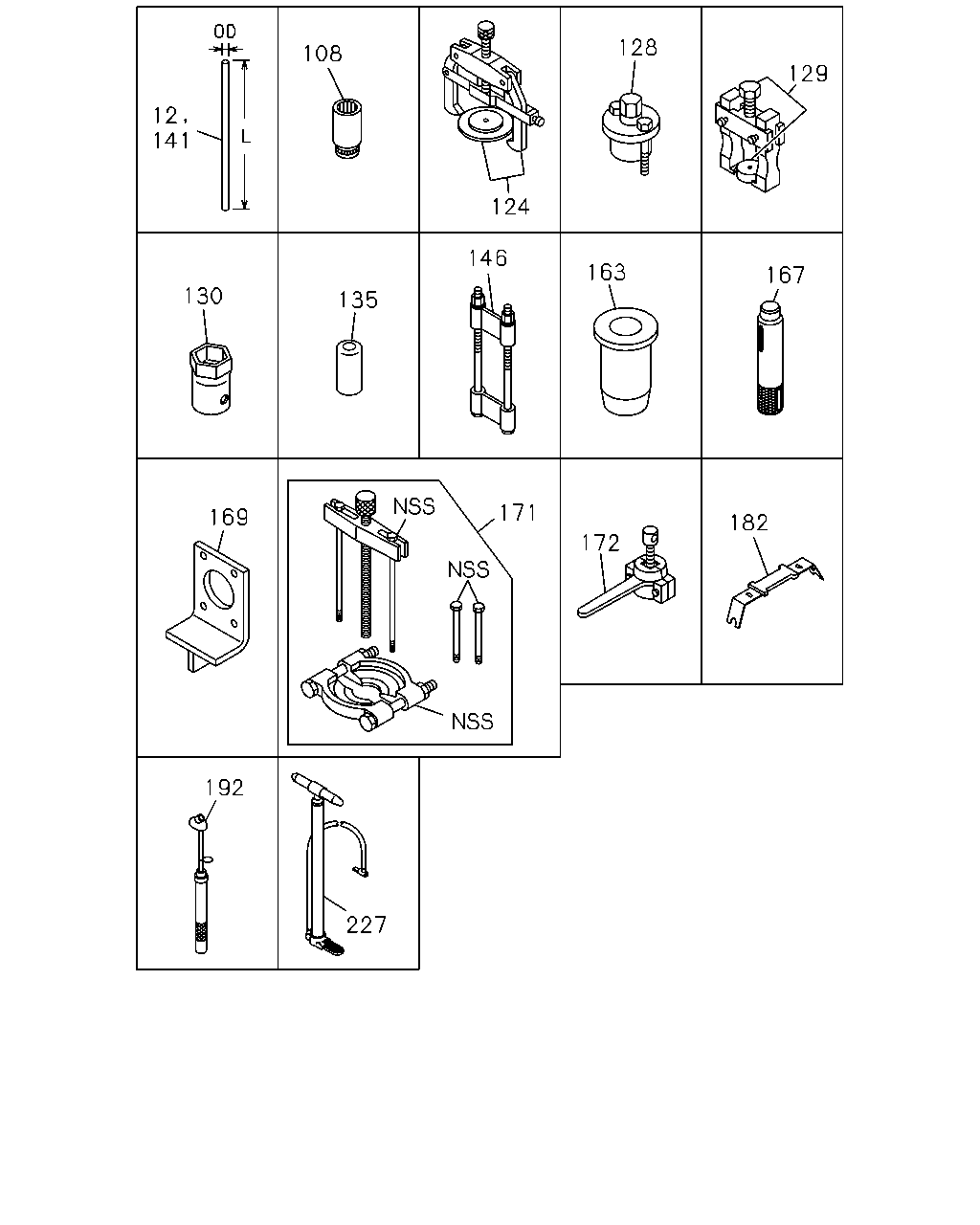

227 192 171 182 172 169 130 135 146 163 167 129 128 124 108 12 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	1-85116-011-0	01	1	0806-1008
12	HANDLE; WRENCH,WHEEL PIN TOOL B KIT<SL1> OD=25 L=480	1-85116-011-0	01	1	1009-1501
12	HANDLE; WRENCH,WHEEL PIN TOOL B KIT<SL1> OD=25 L=480	8-98257-407-0	01	1	1502-
108	WRENCH; SOCKET	9-85113-132-0	01	1	0806-
124	PULLER ASM; BRG DIFF	9-85210-131-0	01	1	0806-
128	PULLER ASM; STRG WHEEL	1-85210-078-0	01	1	0806-
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	0806-
130	WRENCH; BOX B=63	9-85111-368-0	01	1	0806-
135	COVER; ENG MTG,FRT	9-85595-016-0	02	1	0806-
141	HANDLE; WRENCH OD=25 L=480	1-85116-011-0	01	1	0806-1501
141	HANDLE; WRENCH OD=25 L=480	8-98257-407-0	01	1	1502-
141	HANDLE; WRENCH OD=16 L=200	9-85111-934-0	01	1	0806-
146	REPLACER KIT; LEAF SPR	9-85231-556-0	01	1	0806-
163	TOOL; SETTING L=195	1-85221-162-1	01	1	0806-
167	ALIGNER; CLU PILOT L=300 OD=52.5	1-85253-025-0	01	1	0806-
169	BRACKET; SPLINE YOKE	1-85221-317-0	01	1	0806-
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	0806-
172	PULLER ASM; BRG DIFF PILOT	9-85210-182-0	01	1	0806-
182	REMOVER ASM	1-85239-008-0	01	1	0806-
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	0806-
227	PUMP ASM; TIRE	9-85521-132-0	01	1	0806-

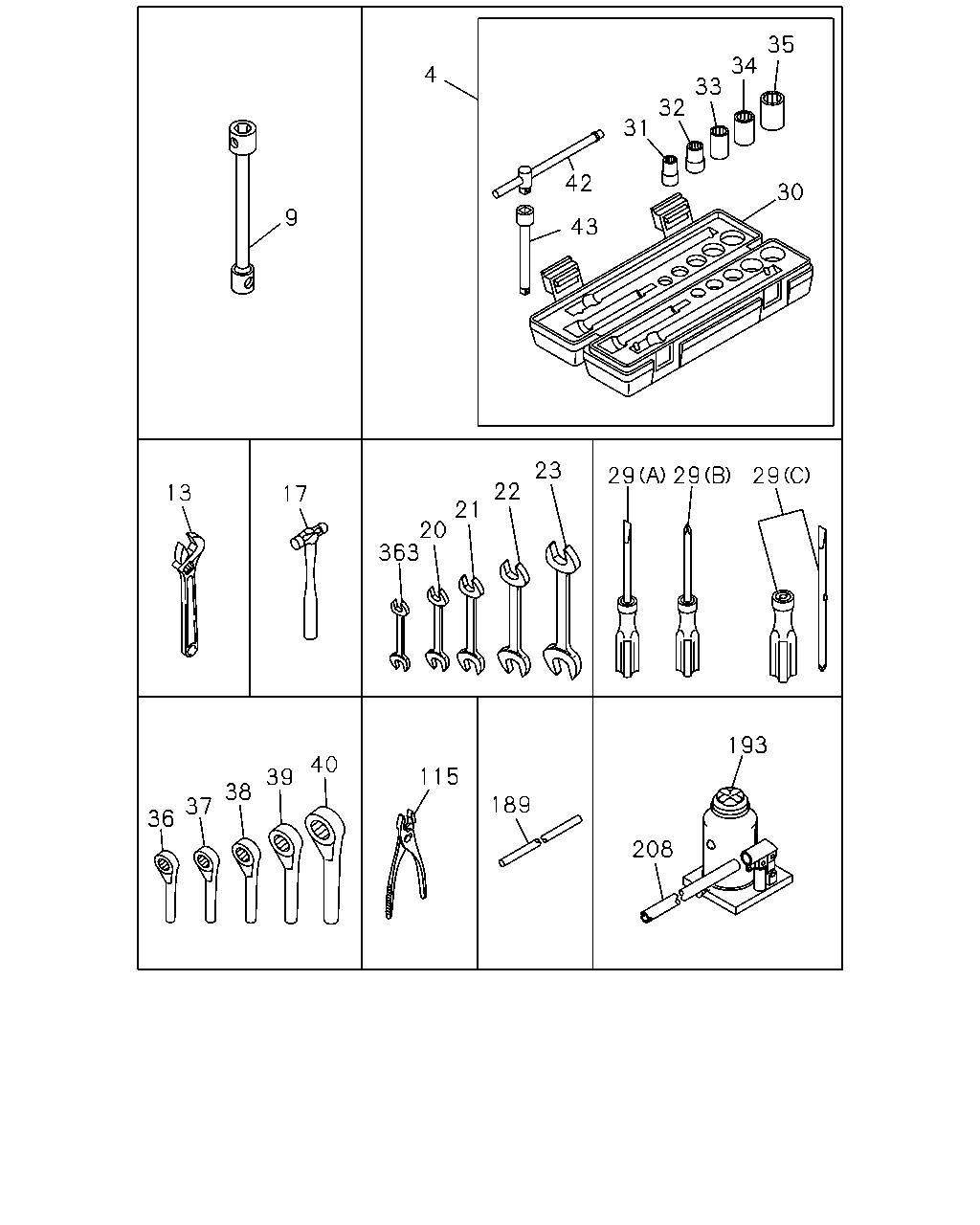

35 34 33 32 4 31 42 30 9 43 23 29 29 29 22 13 17 21 20 363 193 40 115 39 38 189 37 36 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	WRENCH KIT; SOCKET	1-85000-491-0	01	1	0806-1008
4	WRENCH KIT; SOCKET TOOL B KIT<SL1>	1-85000-491-0	01	1	1009-
9	WRENCH; WHEEL PIN B=33X30 L=450	1-85111-033-1	01	1	0806-1008
9	WRENCH; WHEEL PIN TOOL B KIT<SL1> B=33X30 L=450	1-85111-033-1	01	1	1009-
13	WRENCH; MONKEY L=255	1-85117-002-1	01	1	0806-0907
13	WRENCH; MONKEY L=247	1-85117-006-0	01	1	0908-1008
13	WRENCH; MONKEY TOOL B KIT<SL1> L=247	1-85117-006-0	01	1	1009-1407
13	WRENCH; MONKEY TOOL B KIT<SL1> L=255	8-98270-303-0	01	1	1408-
17	HAMMER	9-85121-406-0	01	1	0806-1008
17	HAMMER TOOL B KIT<SL1>	9-85121-406-0	01	1	1009-
20	WRENCH; 10X12 10X12	0-95902-510-0	01	1	0806-1008
20	WRENCH; 10X12 TOOL B KIT<SL1> 10X12	0-95902-510-0	01	1	1009-
21	WRENCH; 14X17 14X17	0-95902-514-0	01	1	0806-1008
21	WRENCH; 14X17 TOOL B KIT<SL1> 14X17	0-95902-514-0	01	1	1009-
22	WRENCH; 19X22 19X22	0-95902-519-0	01	1	0806-1008
22	WRENCH; 19X22 TOOL B KIT<SL1> 19X22	0-95902-519-0	01	1	1009-
23	WRENCH; 24X27 24X27	0-95902-524-0	01	1	0806-1008
23	WRENCH; 24X27 TOOL B KIT<SL1> 24X27	0-95902-524-0	01	1	1009-
29	DRIVER; SCREW (A) <-> L=285	1-85151-004-0	01	1	0806-1008
29	DRIVER; SCREW TOOL B KIT<SL1> (A) <-> L=285	1-85151-004-0	01	1	1009-
29	DRIVER; SCREW (C) <+>,<-> L=160	8-94242-798-1	01	1	0806-1008
29	DRIVER; SCREW TOOL B KIT<SL1> (C) <+>,<-> L=160	8-94242-798-1	01	1	1009-
29	DRIVER; SCREW (B) <+> L=275	9-09595-023-0	01	1	0806-1008
29	DRIVER; SCREW TOOL B KIT<SL1> (B) <+> L=275	9-09595-023-0	01	1	1009-
30	BOX; SOCKET WRENCH	1-85000-492-0	01	1	0806-1008
30	BOX; SOCKET WRENCH TOOL B KIT<SL1>	1-85000-492-0	01	1	1009-
31	WRENCH; 12	1-85000-495-0	01	1	0806-1008
31	WRENCH; 12 TOOL B KIT<SL1>	1-85000-495-0	01	1	1009-
32	WRENCH; 14	1-85000-496-0	01	1	0806-1008
32	WRENCH; 14 TOOL B KIT<SL1>	1-85000-496-0	01	1	1009-
33	WRENCH; 17	1-85000-497-0	01	1	0806-1008
33	WRENCH; 17 TOOL B KIT<SL1>	1-85000-497-0	01	1	1009-
34	WRENCH; 19	1-85000-498-0	01	1	0806-1008
34	WRENCH; 19 TOOL B KIT<SL1>	1-85000-498-0	01	1	1009-
35	WRENCH; 22	1-85000-499-0	01	1	0806-1008
35	WRENCH; 22 TOOL B KIT<SL1>	1-85000-499-0	01	1	1009-
36	WRENCH; 24	9-85111-377-0	01	1	0806-
37	WRENCH; 27	9-85111-375-0	01	1	0806-
38	WRENCH; 32	9-85111-358-0	01	1	0806-
39	WRENCH; 36	9-85111-374-0	01	1	0806-
40	WRENCH; 41	9-85111-356-0	01	1	0806-
42	HANDLE; SLIDING	1-85000-500-0	01	1	0806-1008
42	HANDLE; SLIDING TOOL B KIT<SL1>	1-85000-500-0	01	1	1009-
43	BAR; EXTENSION,SOCKET WRENCH	1-85000-501-0	01	1	0806-1008
43	BAR; EXTENSION,SOCKET WRENCH TOOL B KIT<SL1>	1-85000-501-0	01	1	1009-
115	PLIER	5-85171-002-0	01	1	0806-1008
115	PLIER TOOL B KIT<SL1>	5-85171-002-0	01	1	1009-1410
115	PLIER TOOL B KIT<SL1>	8-98282-845-0	01	1	1411-
189	TUBE; AIR BREATHER L=460	9-85291-414-0	01	1	0806-1008
189	TUBE; AIR BREATHER TOOL B KIT<SL1> L=460	9-85291-414-0	01	1	1009-
193	JACK ASM 15TON	1-85510-019-2	01	1	0806-1008
193	JACK ASM TOOL B KIT<SL1> 15TON	1-85510-019-2	01	1	1009-
208	HANDLE; JACK L=600	1-85515-009-0	01	1	0806-1008
208	HANDLE; JACK TOOL B KIT<SL1> L=600	1-85515-009-0	01	1	1009-1107
208	HANDLE; JACK TOOL B KIT<SL1> L=600	8-98181-437-0	01	1	1108-
363	WRENCH; OPEN END 8X10 8X10	0-95902-508-0	01	1	0806-1008
363	WRENCH; OPEN END 8X10 TOOL B KIT<SL1> 8X10	0-95902-508-0	01	1	1009-

122 121 120 230 237 249 245 247 405 404 388 388 407 246 248 250

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
120	PULLER ASM; MAIN REAR BRG L=285	9-85210-184-0	01	1	0806-
121	PULLER ASM; COUNTER REAR	1-85210-069-0	01	1	0806-
122	PULLER ASM; COUNTER FRT	9-85210-195-0	01	1	0806-
230	PUMP; GREASE	1-85556-007-5	01	1	0806-1008
230	PUMP; GREASE TOOL B KIT<SL1>	1-85556-007-5	01	1	1009-
237	BAG; TOOL	8-97130-902-1	01	1	0806-1008
237	BAG; TOOL TOOL B KIT<SL1>	8-97130-902-1	01	1	1009-
245	CHAIN; TIRE,SINGLE 9.00-20 SINGLE TYPE	9-85591-254-0	AR	1	0806-
246	CHAIN; TIRE,1000-20,SINGLE 10.00-20 SINGLE TYPE	9-85591-239-0	AR	1	0806-
246	CHAIN; TIRE,1000-20,SINGLE 11.00-20 SINGLE TYPE	9-85591-259-0	AR	1	0806-
247	CHAIN; TIRE,750-20,DOUBLE 9.00-20 DOUBLE TYPE	9-85591-255-0	AR	1	0806-
248	CHAIN; TIRE,1000-20,DOUBLE 10.00-20 DOUBLE TYPE	9-85591-240-0	AR	1	0806-
248	CHAIN; TIRE,1000-20,DOUBLE 11.00-20 DOUBLE TYPE	9-85591-260-0	AR	1	0806-
249	CHAIN; TIRE,TRIPLE 9.00-20 TRIPLE TYPE	9-85591-256-0	AR	1	0806-
250	CHAIN; TIRE,1000-20,TRIPLE 10.00-20 TRIPLE TYPE	9-85591-241-0	AR	1	0806-
250	CHAIN; TIRE,1000-20,TRIPLE 11.00-20 TRIPLE TYPE	9-85591-261-0	AR	1	0806-
388	WRENCH; U-BOLT (A)	9-85111-954-0	01	1	0806-
388	WRENCH; U-BOLT (B)	9-85111-955-0	01	1	0806-
404	TOOL; SETTING,MAIN COUNTER	1-85221-262-0	02	1	0806-
405	GUIDE; COUNTER	1-85221-264-0	01	1	0806-
407	SOCKET; SW	1-85221-267-1	01	1	0806-
