2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#1431) — 65 parça

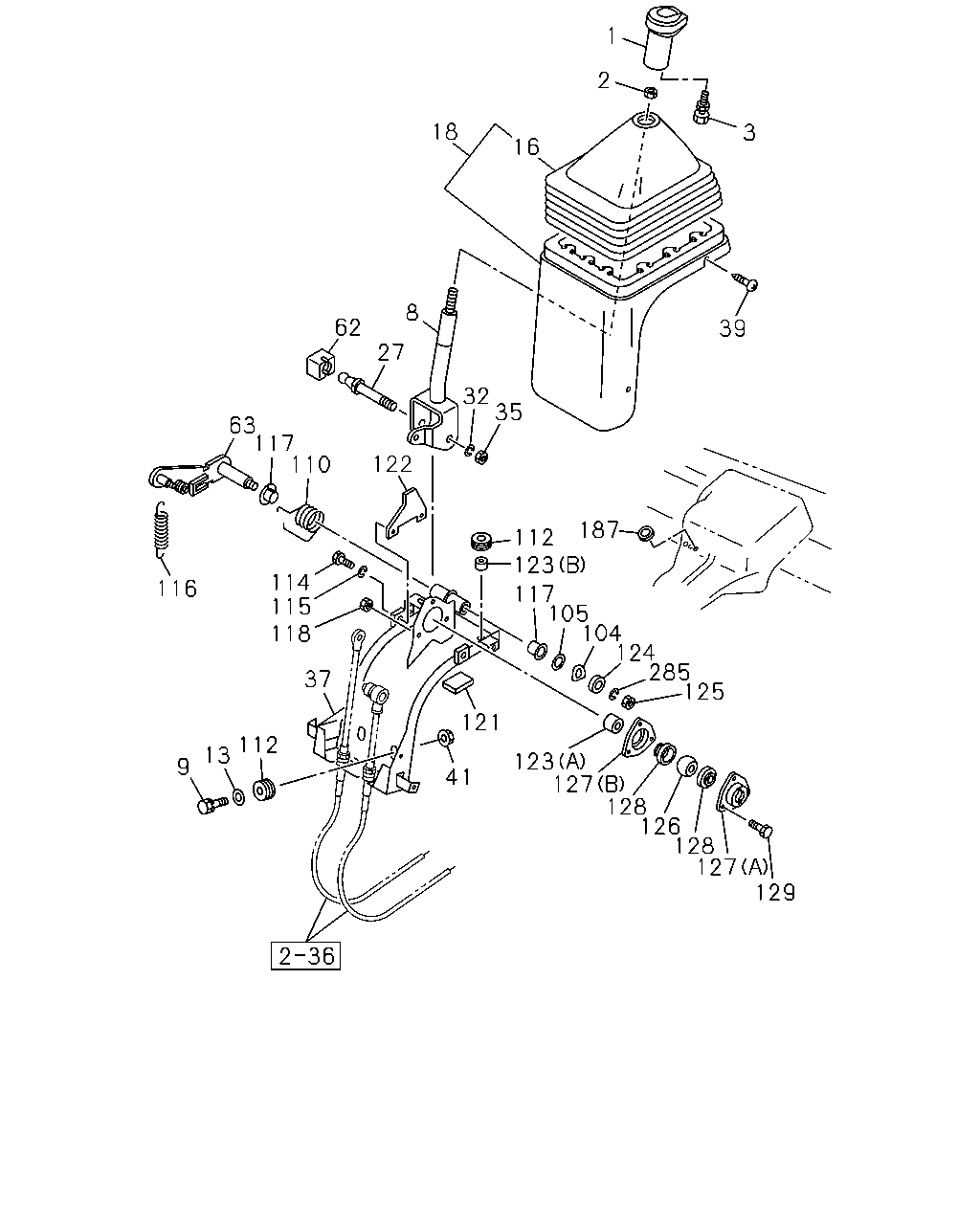

çizim 29364
1 2 18 3 16 8 62 39 27 32 35 63 117 110 122 187 112 123 114 115 118 116 117 105 104 124 285 125 37 121 112 13 123 127 128 126 128 127 129 9 41
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER 1-33611-042-0 01 1 9203- ●
1 KNOB; CHANGE LEVER 1-33611-043-0 01 1 9203- ●
2 NUT; KNOB 1-33619-033-0 01 1 9203- ● ●
3 CONNECTOR; CONT TUBE 1-33619-035-0 02 1 9203- ●
3 CONNECTOR; CONT TUBE 1-33619-035-0 04 1 9203- ●
8 LEVER; CHANGE 1-33613-314-1 01 1 9203- ● ●
9 BOLT; CHANGE LEVER
M8X25 W/LK WASHER 		9-01900-825-0 02 1 9203-9204 ● ●
9 BOLT; CHANGE LEVER
M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205- ● ●
13 WASHER; PL,SUPER SHIFT LEVER
ID=8.4 OD=22 		9-09160-708-0 02 1 9203- ● ●
16 BOOT; CHANGE LEVER 1-79998-719-1 01 1 9203- ● ●
18 BOOT; CHANGE LEVER 1-79998-718-1 01 1 9203- ● ●
27 STUD; BALL,CHANGE LEVER 1-33619-259-0 01 1 9203- ● ●
32 WASHER; LK,BALL STUD,CHANGE LEVER
ID=12.2 		9-09150-512-0 01 1 9203- ● ●
35 NUT; BALL STUD,CHANGE LEVER
M12 		9-99111-412-0 01 1 9203- ● ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-280-3 01 1 9203- ● ●
39 SCREW; BOOT,CHANGE LEVER
M5X16 TAPPING W/PL WASHER 		0-74110-516-0 04 1 9203- ● ●
41 NUT; CHANGE LEVER
M8 FLANGE 		1-09464-018-1 02 1 9203- ● ●
62 SEAT; BALL,CHANGE LEVER 8-94447-303-0 01 1 9203- ● ●
63 LEVER; RELAY,SELECT 1-33651-442-0 01 1 9203- ● ●
104 WASHER; WAVED 1-09550-009-0 01 1 9203- ● ●
105 SHIM; CHANGE LEVER 9-41119-031-0 01 1 9203- ● ●
110 SPRING; RETURN,CHANGE LEVER 1-09585-117-0 01 1 9203- ● ●
112 RUBBER; CUSHION 1-33619-266-0 04 1 9203- ● ●
114 BOLT; STOPPER PLATE
M6X10 		9-02040-610-0 02 1 9203-9204 ● ●
114 BOLT; STOPPER PLATE
M6X10 		0-20800-610-0 02 1 9205- ● ●
115 WASHER; LK,STOPPER PLATE
ID=6.1 		9-09150-506-0 02 1 9203- ● ●
116 SPRING; NEUTRAL 1-09583-251-0 01 1 9203- ● ●
117 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 9203- ● ●
118 NUT; SUPPORT,CHANGE LEVER
M6 FLANGE 		0-91150-106-0 03 1 9203- ● ●
121 SEAL; CHANGE LEVER 1-33619-265-0 02 1 9203- ● ●
122 PLATE; STOPPER,RETURN SPRING 1-33619-262-0 01 1 9203- ● ●
123 COLLAR; DIST,CHANGE LEVER
(A) 		1-33619-195-1 01 1 9203- ● ●
123 COLLAR; DIST,CHANGE LEVER
(B) 		1-33619-238-0 04 1 9203- ● ●
124 WASHER; PL,RELAY LEVER
ID=10.5 OD=22 		9-09160-610-0 01 1 9203- ● ●
125 NUT; ARM
M10 		9-09110-410-0 01 1 9203- ● ●
126 BOSS; CHANGE LEVER 1-33615-028-0 01 1 9203- ● ●
127 SUPPORT; CHANGE LEVER
(B) T=10 		1-33619-207-0 01 1 9203- ● ●
127 SUPPORT; CHANGE LEVER
(A) T=18 		1-33619-260-0 01 1 9203- ● ●
128 GUIDE; LEVER BALL 1-33619-261-0 02 1 9203- ● ●
129 BOLT; SUPPORT,CHANGE LEVER
M6X20 		9-02040-620-0 03 1 9203-9204 ● ●
129 BOLT; SUPPORT,CHANGE LEVER
M6X20 		0-20800-620-0 03 1 9205- ● ●
187 GROMMET; HOLE,CHANGE LEVER 1-09983-098-0 01 1 9203-9302 ● ●
285 WASHER; LK,RELAY LEVER
ID=10.2 		9-09150-510-0 01 1 9203- ● ●

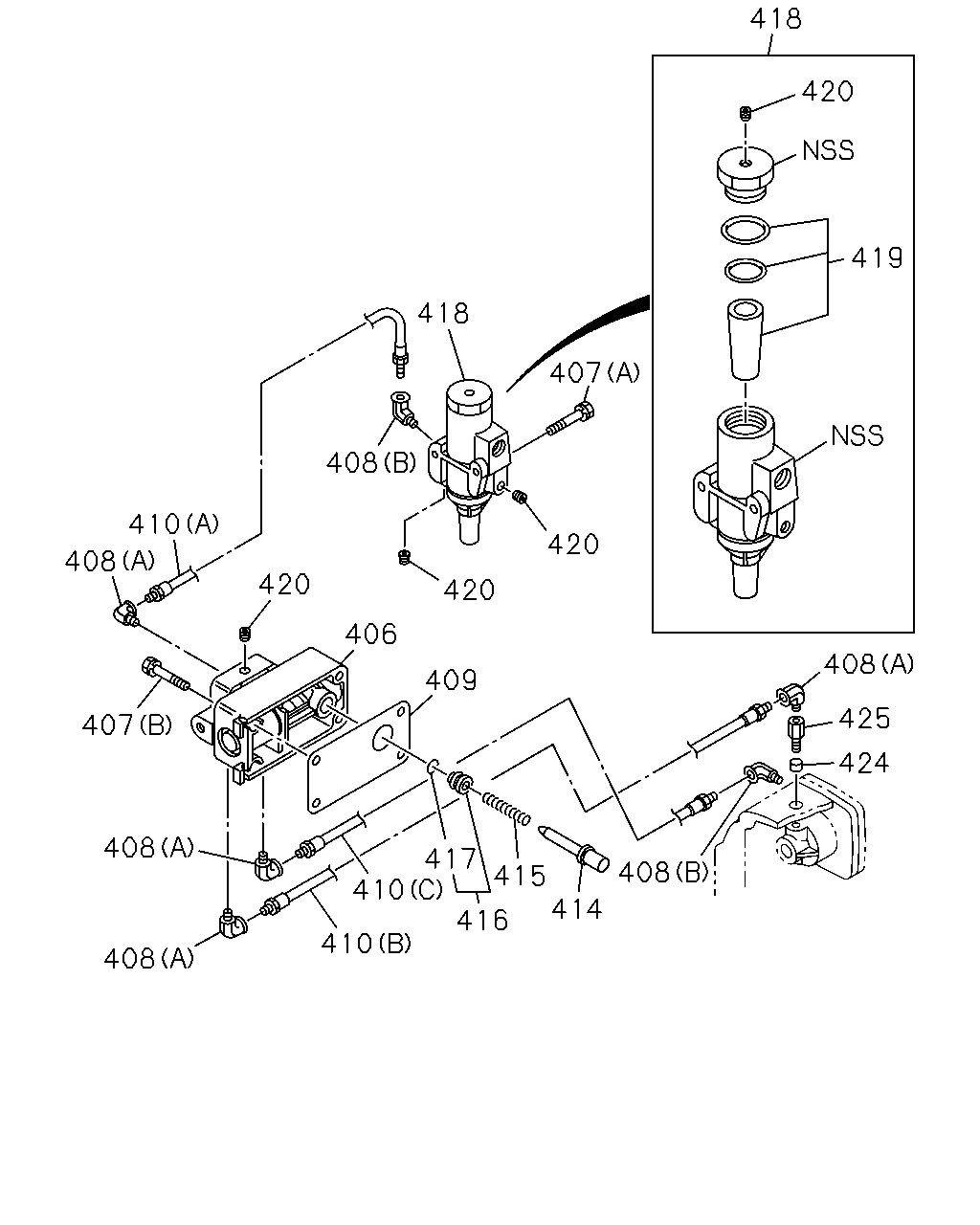

çizim 95604
418 420 419 418 407 408 410 420 408 420 420 406 408 409 425 407 424 408 417 410 408 415 414 416 410 408
BalonParca AdiParca NoAdetTipApplied Date A B
406 VALVE ASM; SLAVE 1-87061-508-0 01 1 9203- ● ●
407 BOLT; VALVE
(A) 		1-87061-096-0 02 1 9203- ● ●
407 BOLT; VALVE
(B) 		1-87061-539-0 04 1 9203- ● ●
408 CONNECTOR; AIR HOSE
(A),(B) 		1-87061-113-0 07 1 9203- ●
408 CONNECTOR; AIR HOSE
(A) 		1-87061-113-0 05 1 9203- ●
408 CONNECTOR; AIR HOSE
(B) 		1-87061-114-0 02 1 9203- ●
409 GASKET; SLAVE VALVE 1-87061-170-0 01 1 9203- ● ●
410 HOSE; AIR
(B) 		1-87061-541-0 01 1 9203- ●
410 HOSE; AIR
(C) 		1-87061-542-0 01 1 9203- ●
410 HOSE; AIR
(A) 		1-87061-498-0 01 1 9203- ● ●
410 HOSE; AIR
(C) 		1-87061-496-0 01 1 9203- ●
410 HOSE; AIR
(B) 		1-87061-497-0 02 1 9203- ●
414 PIN; SLAVE VALVE 1-87061-466-0 01 1 9203- ● ●
415 SPRING; SLAVE VALVE 1-87061-187-0 01 1 9203- ● ●
416 SLEEVE; SLAVE VALVE 1-87061-514-0 01 1 9203- ● ●
417 GASKET; SLEEVE 1-87060-995-0 01 1 9203- ● ●
418 VALVE ASM; AIR FILTER REG 1-87061-240-0 01 1 9203- ● ●
419 ELEMENT KIT; REG VLV 1-87061-100-0 01 1 9203- ● ●
420 PLUG; VALVE 1-87061-090-0 04 1 9203- ●
420 PLUG; VALVE 1-87061-090-0 01 1 9203- ●
424 SEAL; ADAPTER 1-87061-543-0 01 1 9203- ●
425 ADAPTER; CONNECTER 1-87061-544-0 01 1 9203- ●
